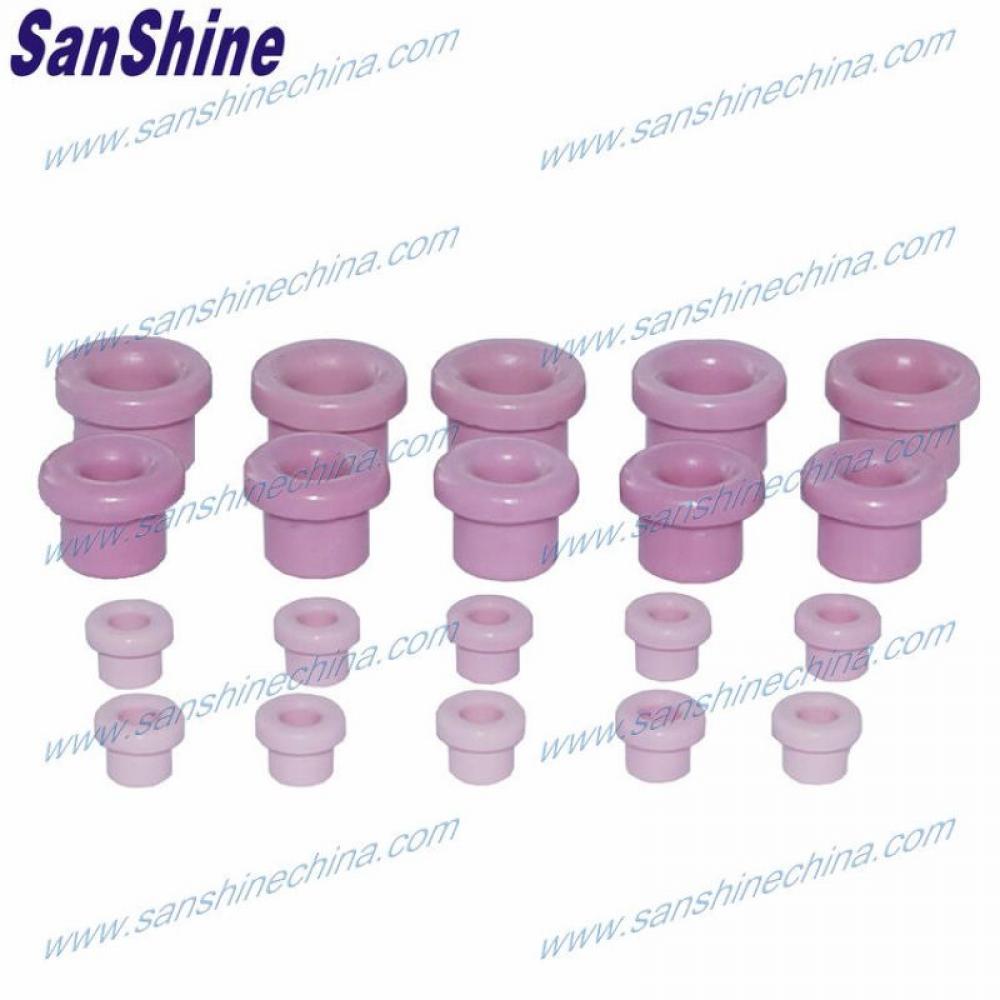

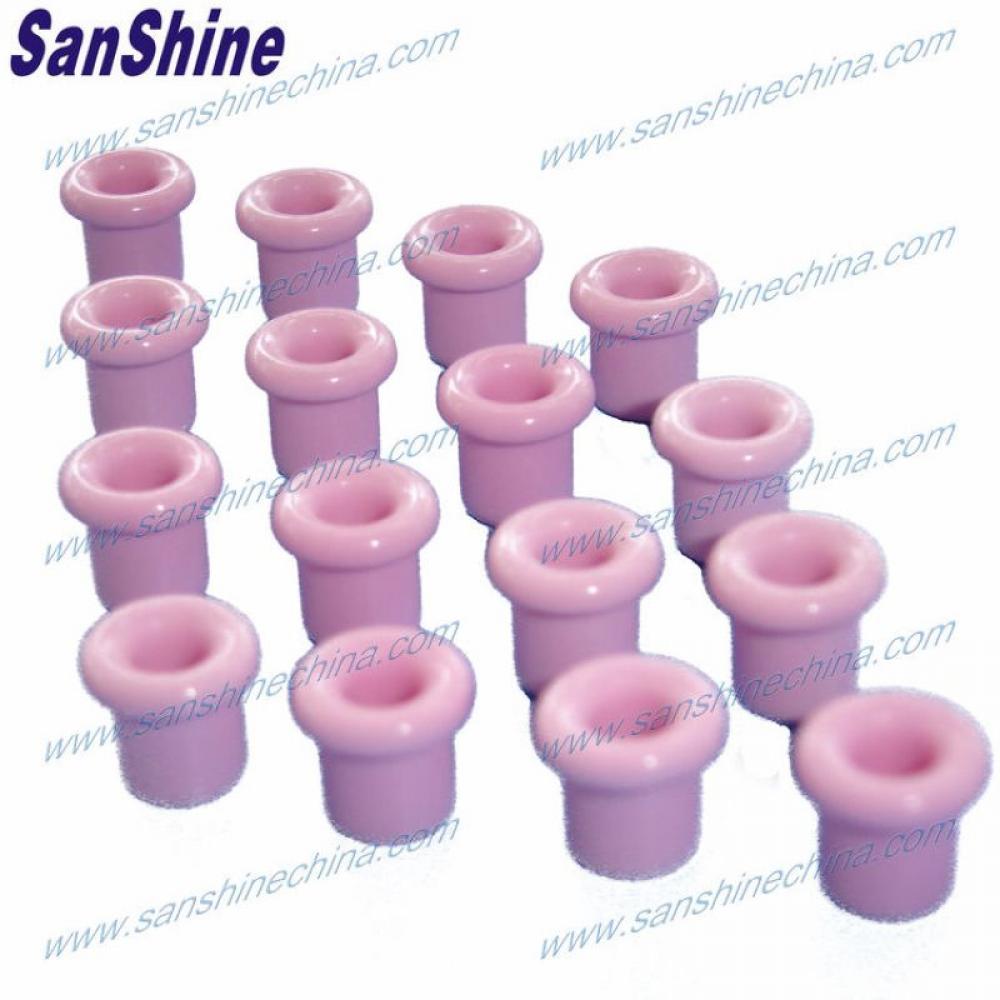

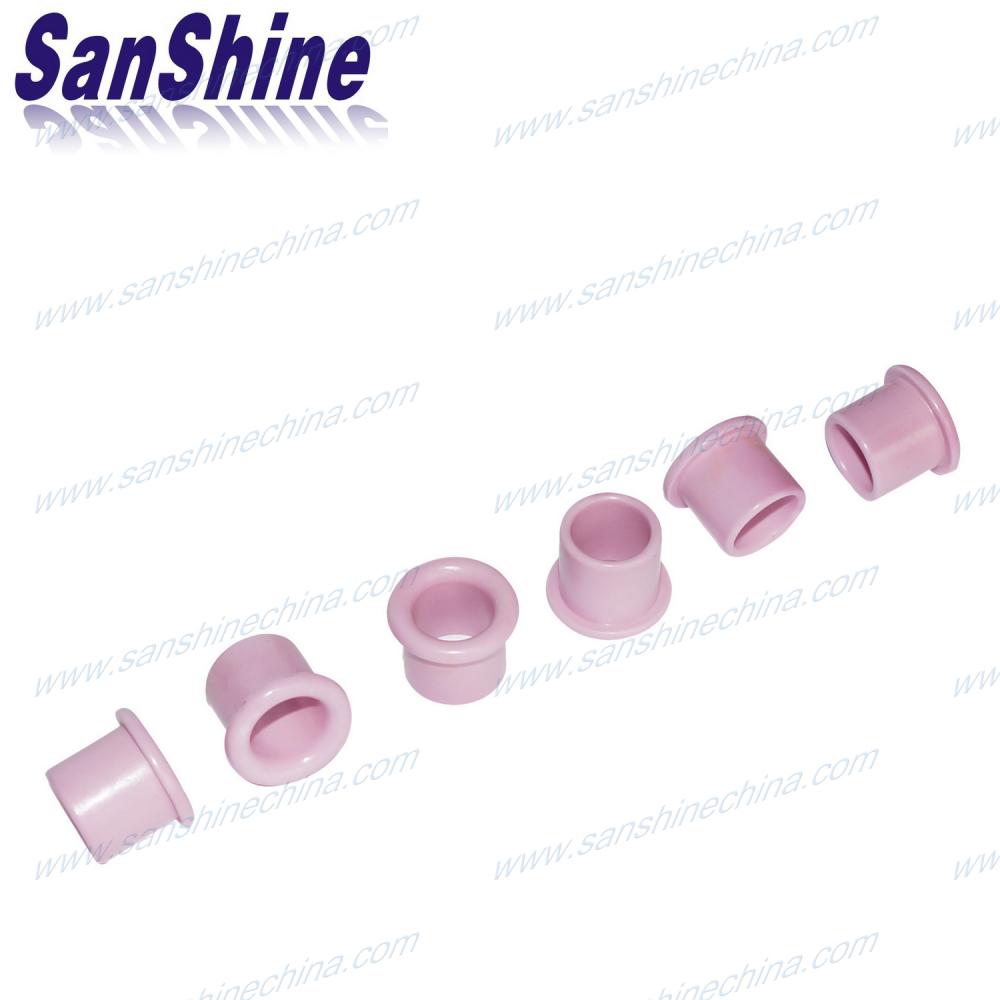

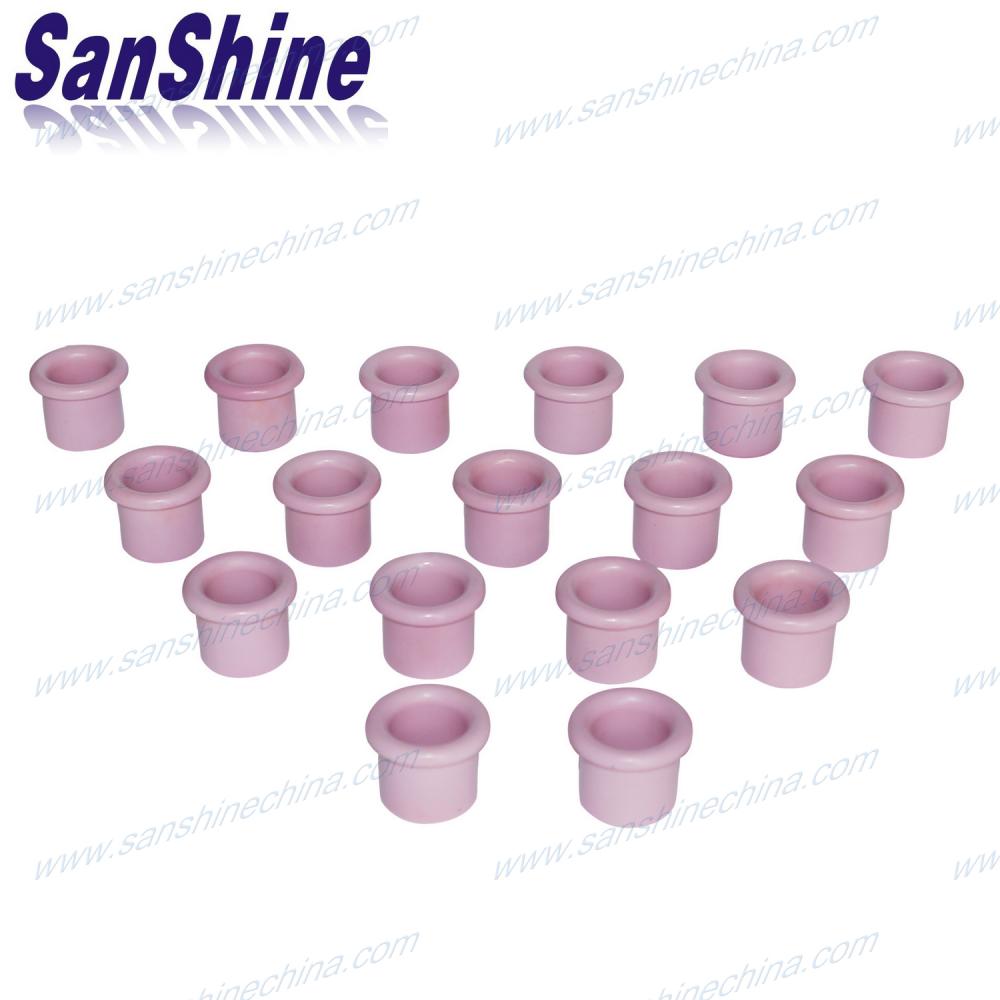

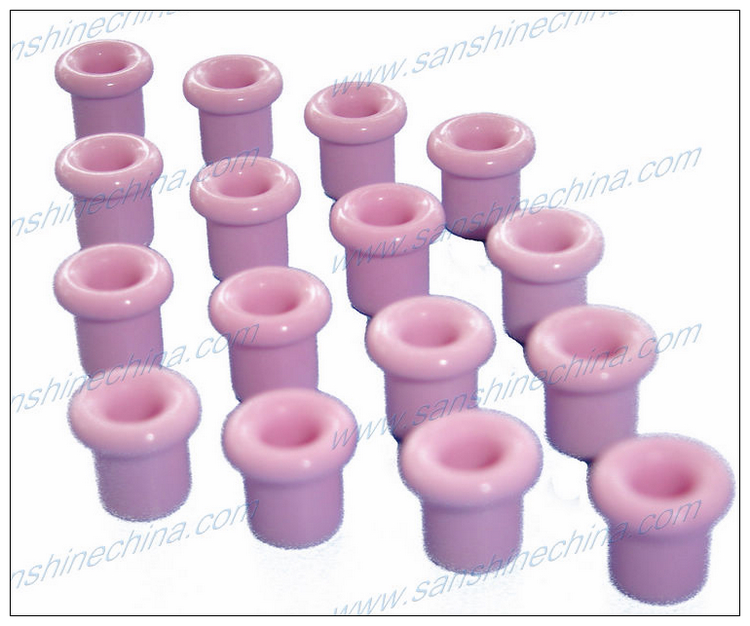

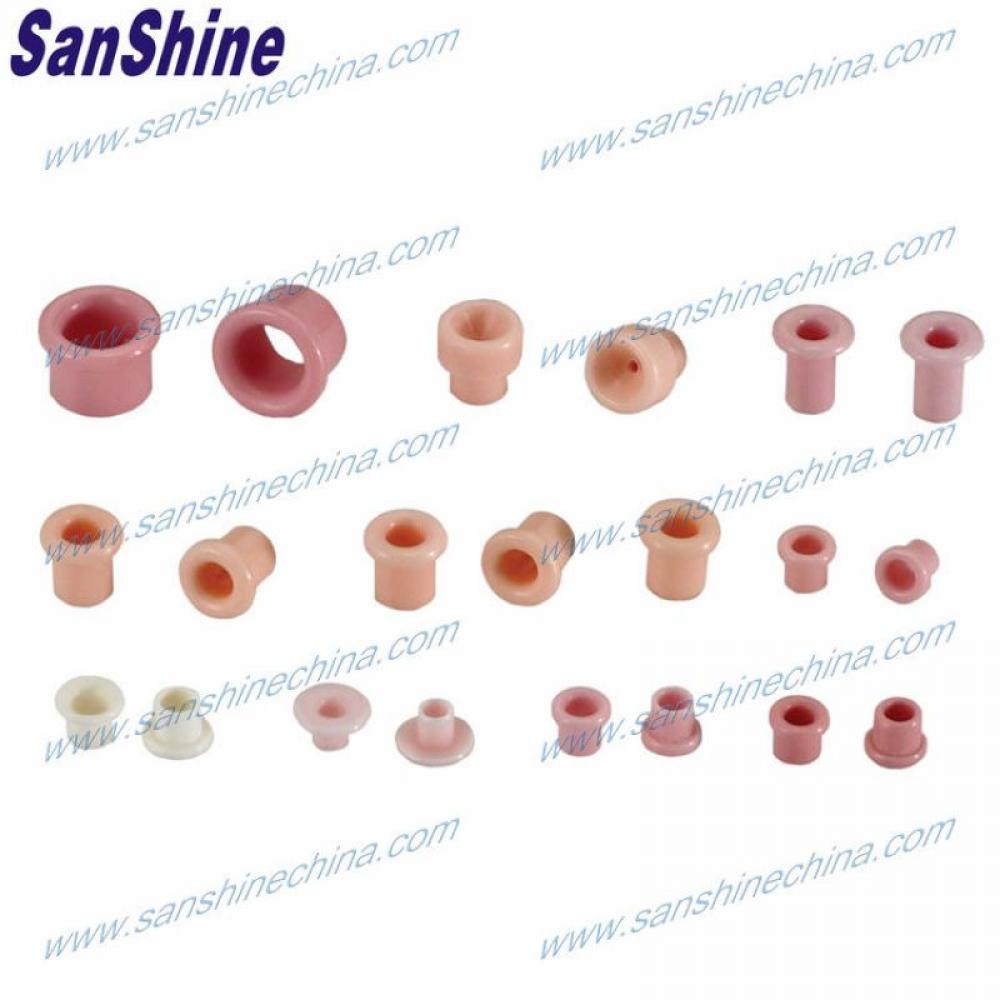

Product name : mirror surface wire guide ceramic eyelet

string guide ceramic eyelet

cable guide ceramic eyelet

Description :

The mirror surface wire guide ceramic eyelet is the most commonly used component for the wire passing and guiding. This mirror surface wire guide ceramic eyelet is named wire guide ceramic eyelet also which used in the wire passing position of the coil winding machine and the textile machinery. It is normally used for less demanding occasions. The shape, finish and the hardness of materials must be improved in order to reduce the friction because of the wire sliding in the surface of the ceramic rings. According to the requirements, the polish degree of porcelain eye can be regarded as roughness polishing, precision polishing and ultra-precision polishing.

Features :

1.The inside surface polish degree : Ra0.2~0.8.

2.The material : 99% AI2O3 with density of 3.85.

3.The hardness : HRa88.

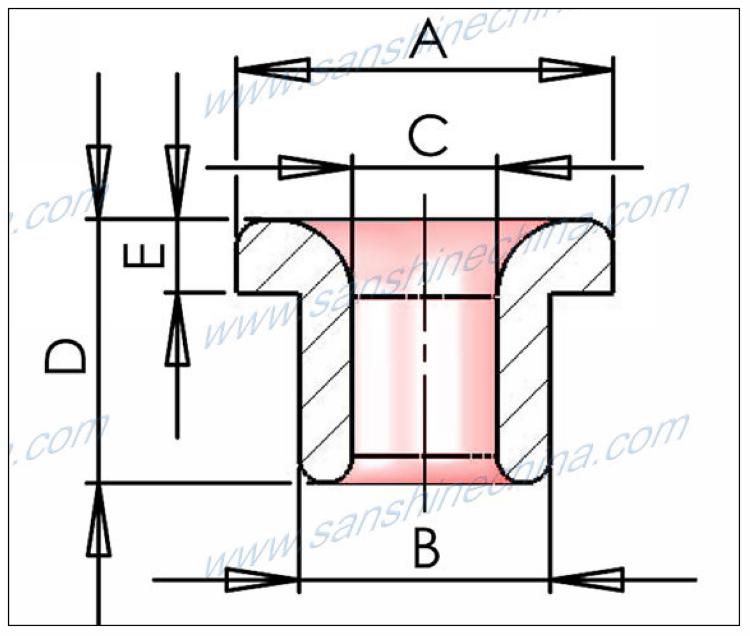

Specification :

measurement ±0.05mm

Part No.

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

CE001

4.4

2.8

1.2

2.8

1

CE002

4.1

3

1.8

4.8

1

CE003

4.1

3.1

1.6

4.2

1

CE004

5.9

3.4

1.7

3.6

1

CE005

4.6

3.5

2

3.3

1.2

CE006

4.7

3.6

2.9

6.7

1.5

CE007

7.2

3.8

2

4.2

1.5

CE008

5.1

4

2.3

4.1

1

CE009

6.8

4

2.5

4.1

1.5

CE010

5

4

2.5

5

1

CE011

6

4

2

8.1

1.2

CE012

6.2

4.5

2

5

1.5

CE013

6.7

4.4

3

8

1.5

CE014

6.5

4.8

3

6.6

1.5

CE015

6.5

4.8

3.2

4.5

1.5

CE016

7.8

5.2

3

5.4

1.5

CE017

6.6

5.3

3.2

7.8

1.5

CE018

7.9

5.7

3.1

5.1

1.5

CE019

8

5.8

3.4

4.9

2

CE020

7.8

5.9

3.3

8

1.5

CE021

8

5.9

3.3

6

2

CE022

8

6

3

8

1.5

CE023

8.6

6

3.5

9

2

CE024

10.2

6.2

4

10.3

2

CE025

10.5

6.3

3

10.5

2

CE026

7.9

6.3

3.4

16.5

1.2

CE027

9.5

6.7

3.9

8.2

2

CE028

9.5

7

3.9

8.9

2

CE029

10

7.2

4.7

8.7

1.5

CE030

9.9

7.4

4

7

2.5

CE031

10

7.4

4.7

8

2

CE032

10

7.5

5

8

2

CE033

9.3

7.5

5.5

10

2

CE034

10.6

7.6

4.8

9

2

CE035

10

7.8

4

7

2

CE036

10

7.8

4.5

8

2

CE037

10.2

8

3.6

9

2

CE038

10

8

4.6

6

2

CE039

11

8.2

5

10

2

CE040

10.4

8.4

4.6

10.1

2

CE041

12.1

8.8

5.4

7

2

CE042

11

9

6

7

1.2

CE043

12

9

5.4

8.7

1.8

CE044

14.4

9.7

5.4

25

3

CE045

14.4

9.7

5.6

40

3

CE046

11.9

9.8

6.9

8.2

2

CE047

12

10

7

11

2

CE048

14.1

10

6.5

9.6

3

CE049

14.2

10

5

20

4

CE050

14.9

11.6

7.3

10

3

CE051

15.6

12.5

8.5

10

3

CE052

23

20

8

20

5
