transformer generator motor reactor pump coil turns tester

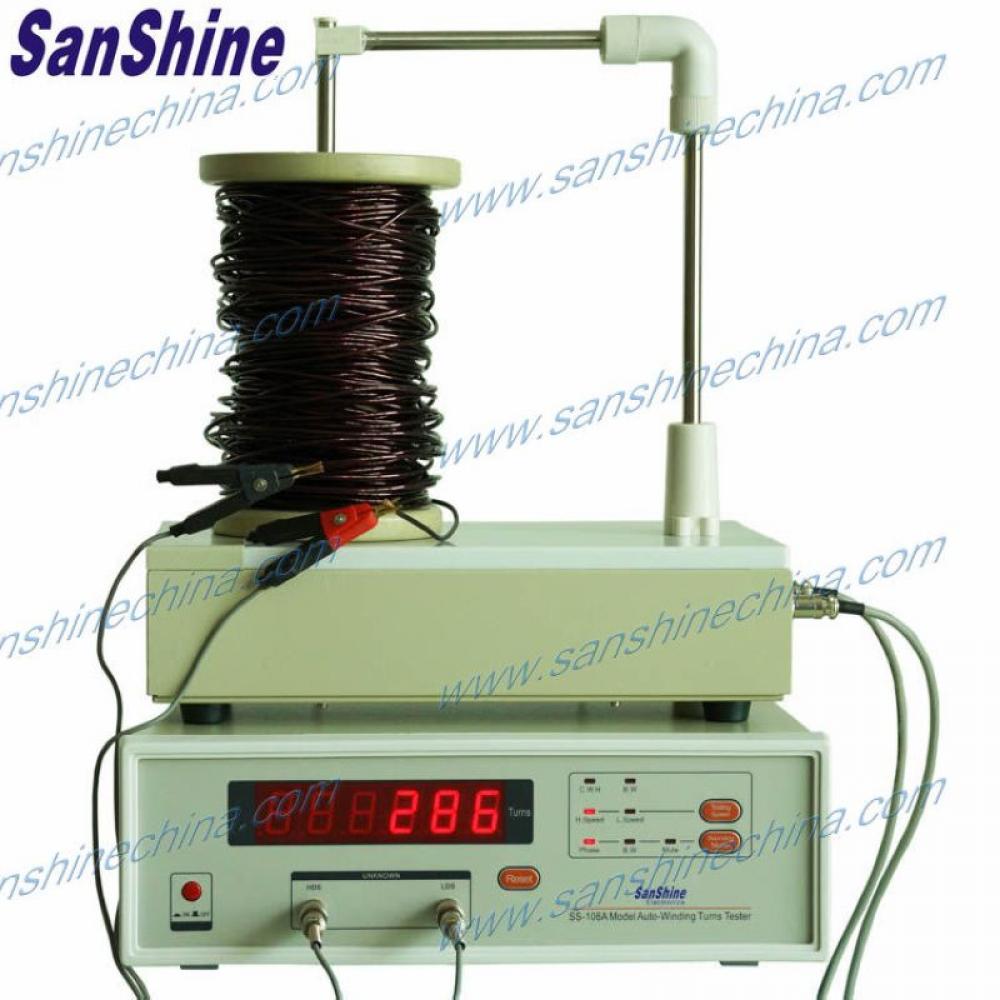

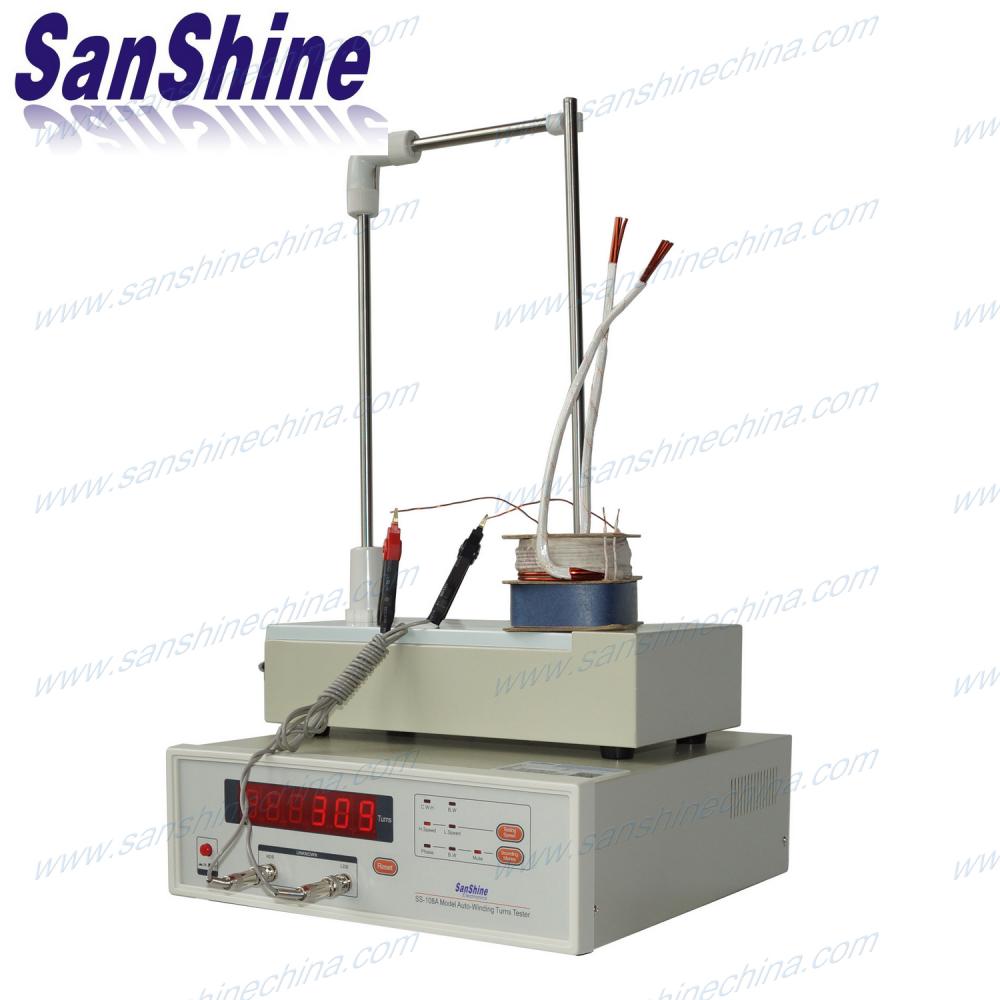

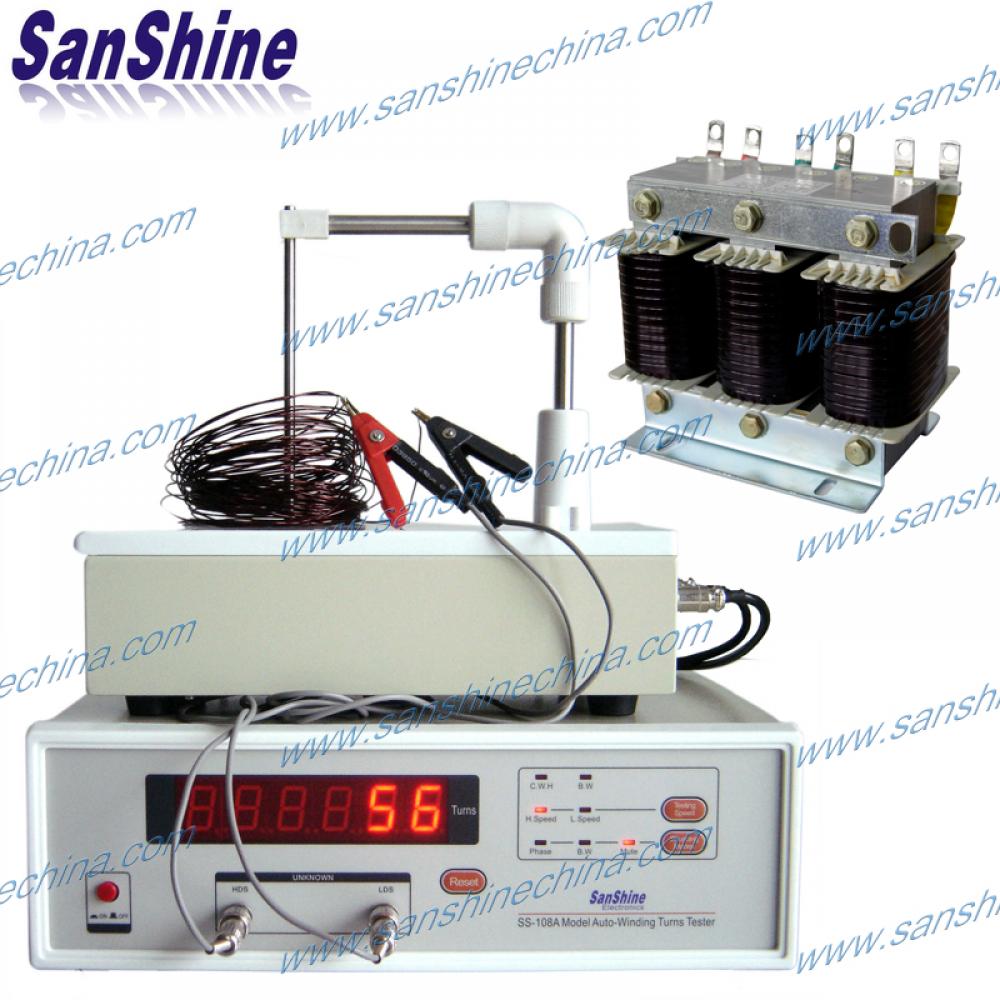

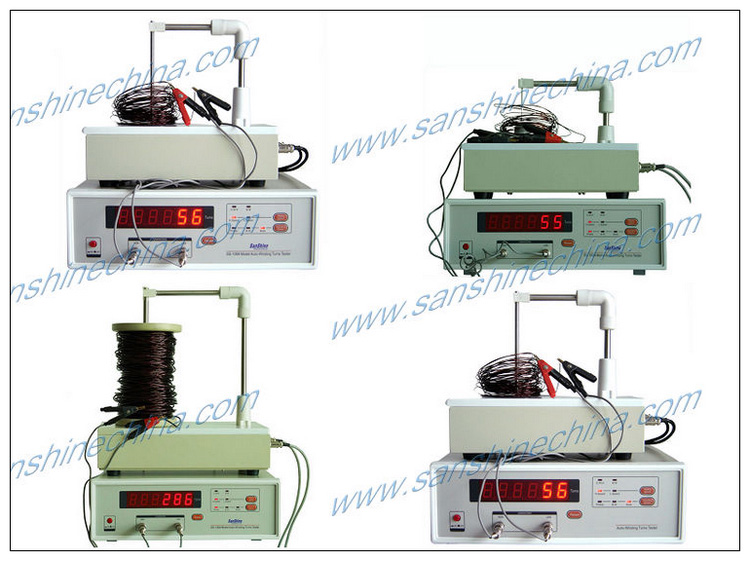

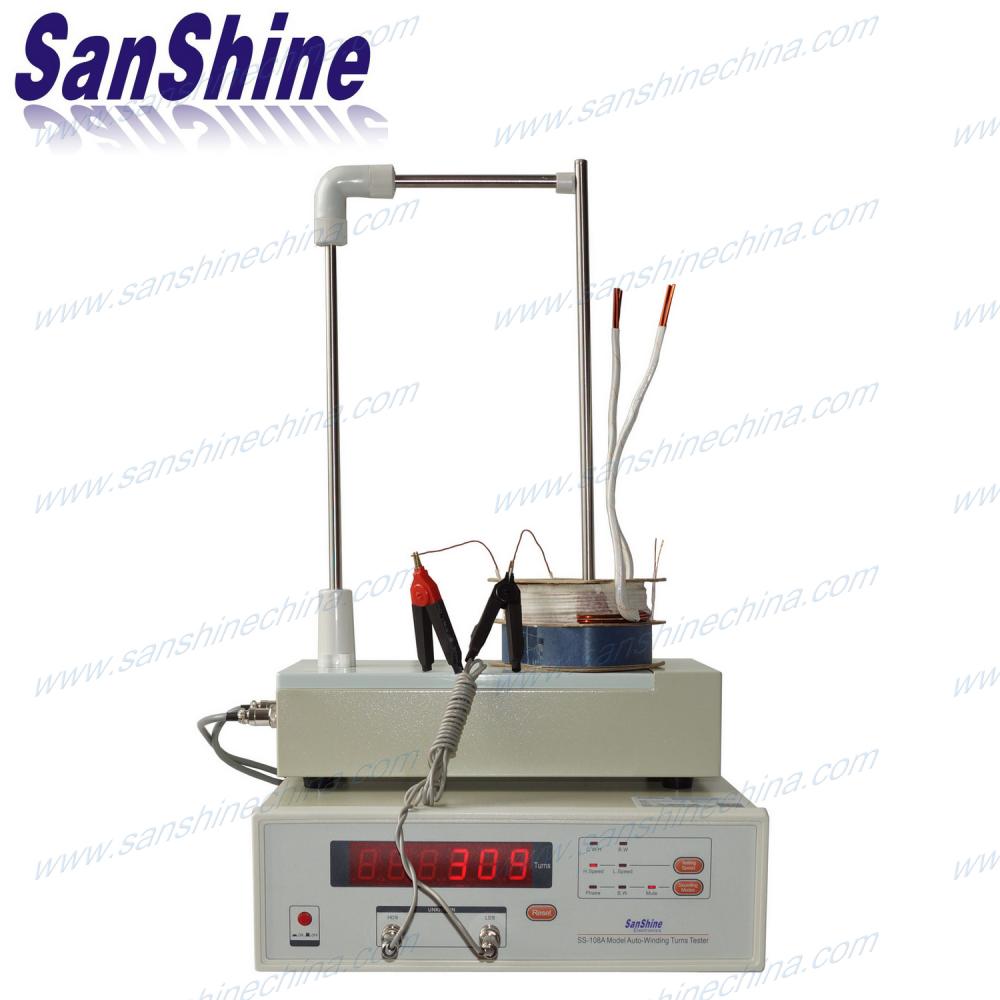

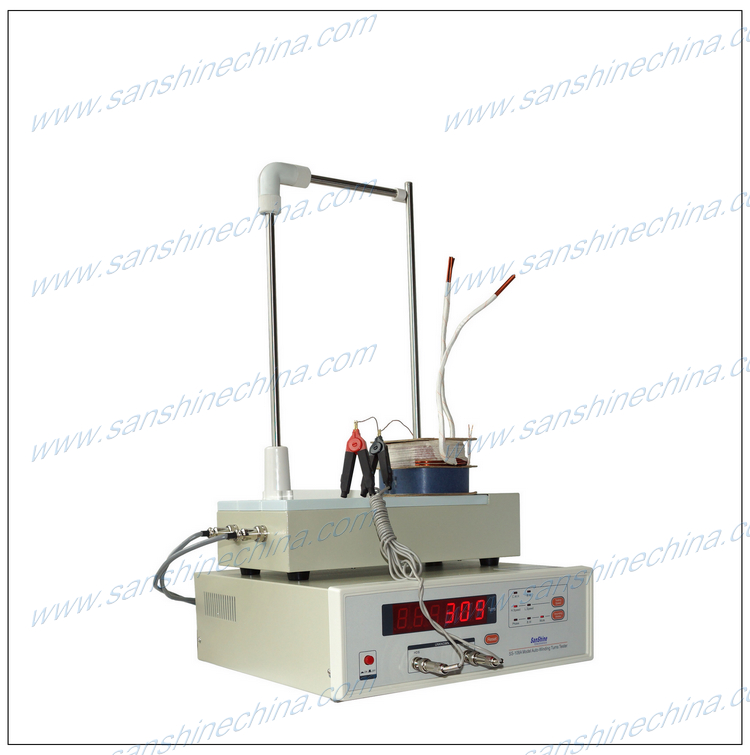

The transformer generator motor reactor pump coil turns tester (SS108A series) are used for testing the turns number of the various big winding coils.
  • Item NO.:

    SS108A series
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Beige and gray
contact now
Description

Product name : Transformer generator motor reactor pump coil turns tester (SS108A series)

generator coil turn tester

reactor coil turn tester

motorcylce coil turn tester

spool winding turn tester

energy transformer turn tester

Description :

The transformer generator motor reactor pump coil turns tester (SS108A series) are used for testing the turns number of the various big winding coils. So that can check and make sure the coil turns are correct after winding processing. This coil turns tester(SS108A series) are named winding coil turns measuring equipment also which used for testing the turns number of the big winding coils. Such as: Generator winding turns, big transformer winding turns, big mortor winding turns, big inductor winding turns, big reactor coil turns, big pump motor coil turns, etc..

Feature :

1. CPU control and digital display.

2. Operation easy, measuring automatically, no need switch the measurment range.

3. Accuracy: 0.2%.

4. 5 digital counts display.

Specification :

Model SS108A-4/150 SS108A-6/150 SS108A-10/150 SS108A-10/250 SS108A-10/350 SS108A-10/350 SS108A-10/550 SS108A-X

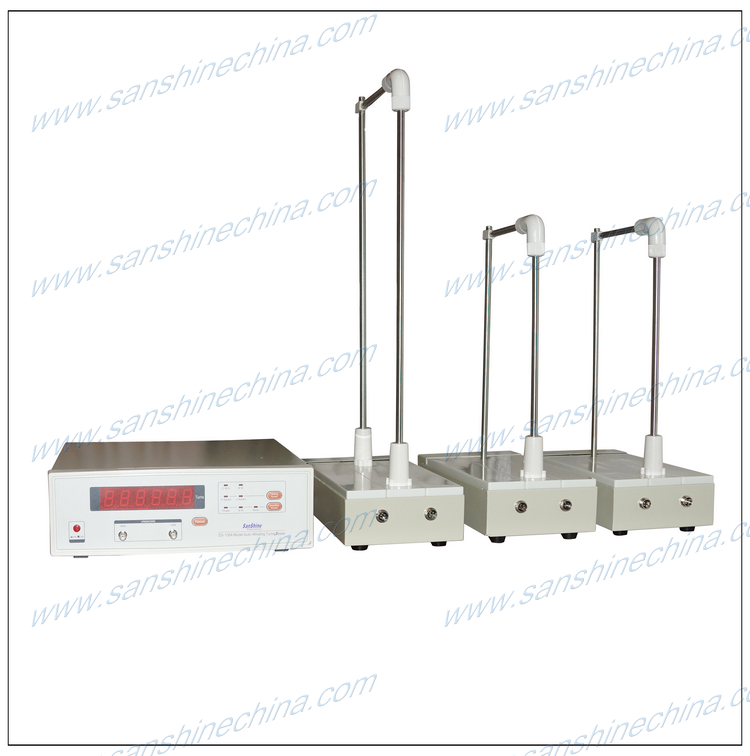

Testing rod size of testing platform(rod diameter*rod height* rode center distance mm) ∅4*H150*130 ∅6*H150*130 ∅10*H150*130 ∅10*H250*180 ∅10*H350*180 ∅10*H450*180 ∅10*H550*180 speciall testing platform size can be customized
Coil inside diameter > 4mm > 6mm > 10mm > 10mm > 10mm > 10m > 10mm
Coil outside diameter < 120mm < 170mm
Coil height < 110mm < 210mm < 310mm < 410mm < 510mm
Coil turns range 0 ~ 60000T
Testing accuracy 0~300T± 0T, 300~500T± 1T, 500~20000T± 0.2%, 20000~60000± 0.5%
Testing speed fast 3 Measurements /s, slow 1.2 Mea. /s
Weight about 11KG depend on different testing platform
Tester measurement 370*220* 110mm
