Magnetic toroid ring core winding coil turns tester

The magnetic toroid ring core winding coil turns tester (SS107A) is used to count the coil turns of various toroid core winding coil. This turn tester is named toroid current transformer turn tester also.

Item NO.:
SS107A
Product Orgin:
China
Brand:
SanShine
Shipping Port:
XIAMEN,CHINA
Color:
Beige

contact now User's reviews

Description

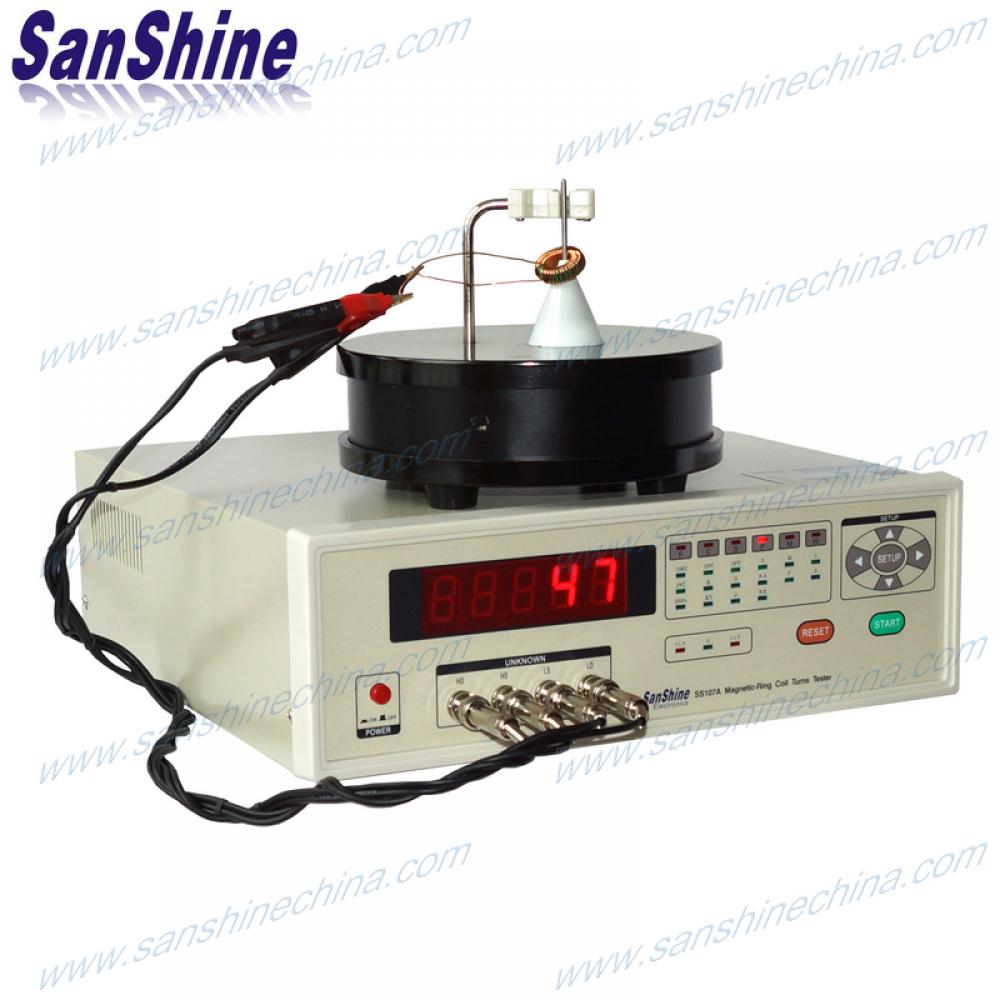

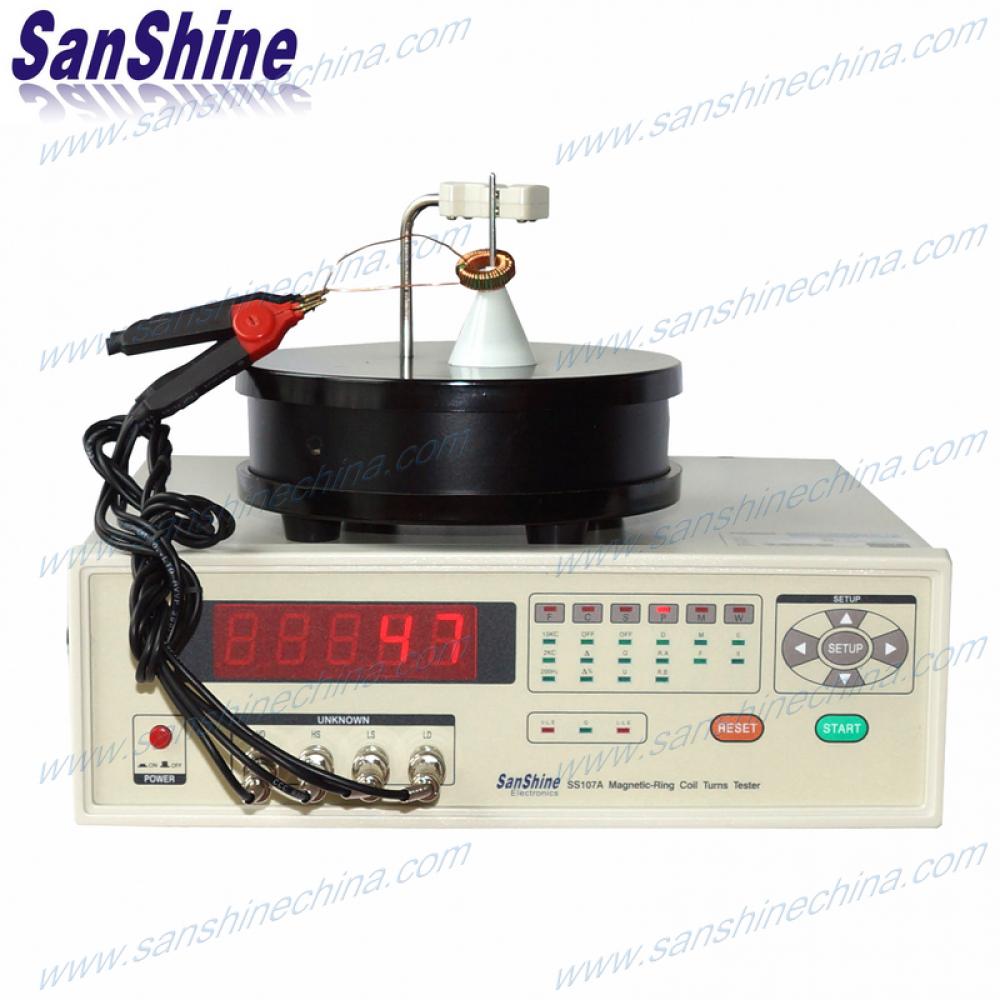

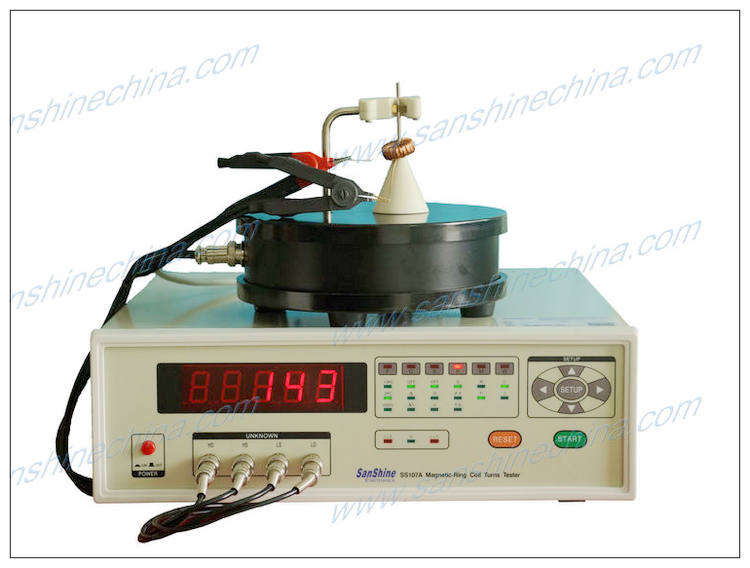

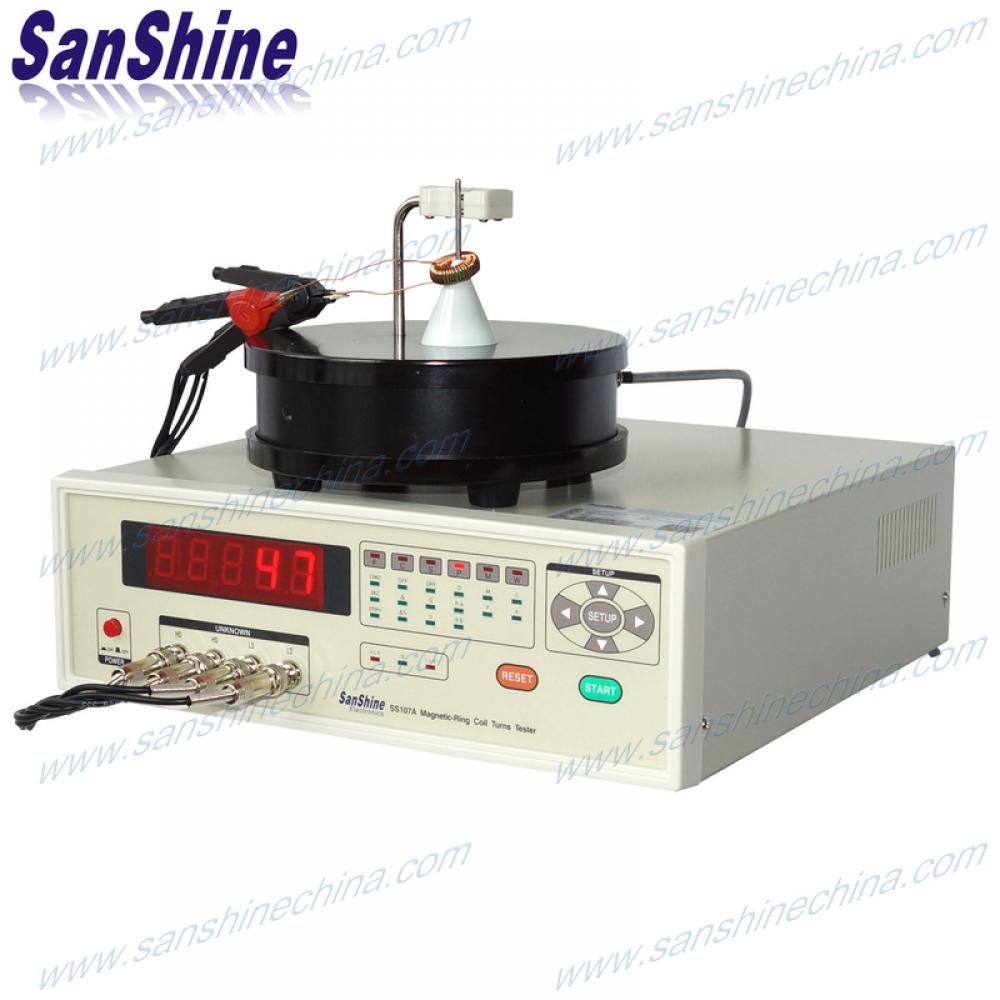

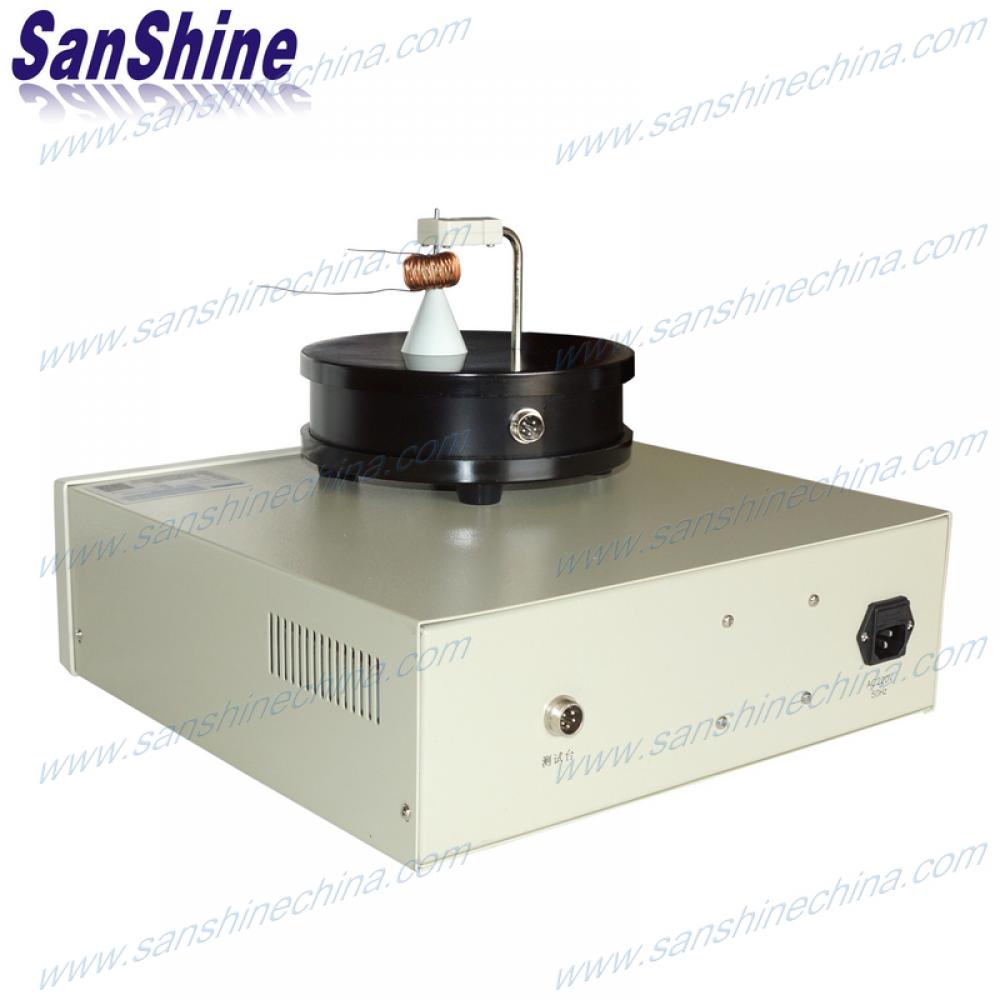

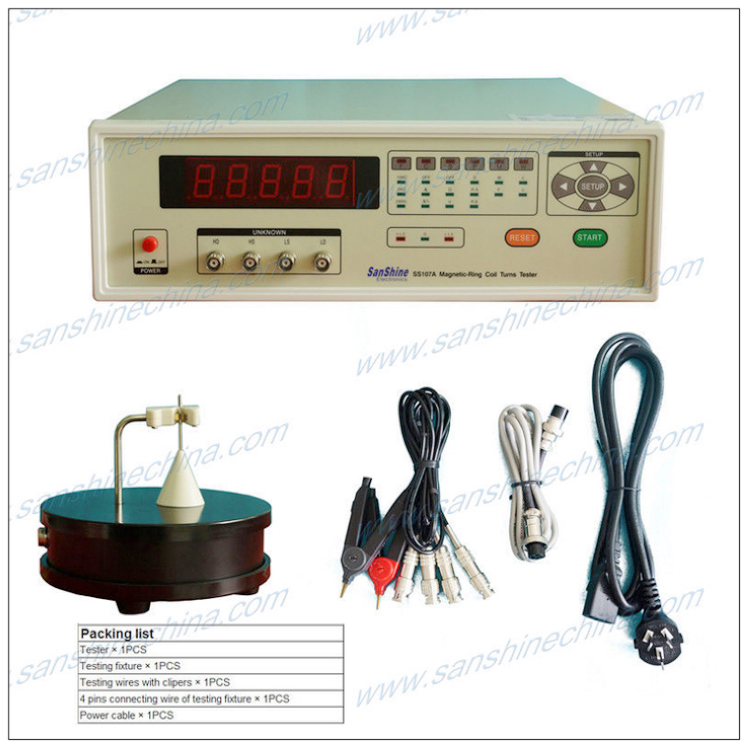

Product name : Magnetic toroid ring core winding coil turns tester (SS107A)

Description :

The magnetic toroid ring core winding coil turns tester (SS107A) adopts the high speed center microprocessing unit circuits and precise measurment A/D circuits. This coil turns tester is used to count the coil turns of various toroid core winding coils. Like as : toroid core inductors, toroid core transformers, toroidal core sensors, watt meter sensors, toroid current transformers, toroid core choke coils, etc. . This turn tester is named magnetic ring core coil turn tester also.

Feature :

1. CPU control and digital display.

2. Operation easy.

3. Open and short revising function

4. Set up the parameter limited for automatic judgement with buzzer.

Specification :

Model	SS107L	SS107A
Testing parameters	coil turns of toroid core, inductrance L , quality factor Q of toroid core coil	coil turns of toroid core

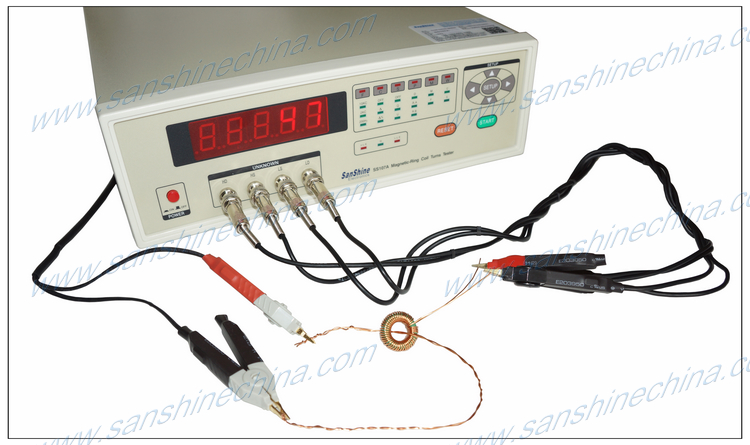

Finished toroid coil sizes	Request finised toroid coil ID>3mm OD≤90mm( can customize tester for the more bigger sizes coil) if use the black testin platform(fixture). Request finised toroid coil ID>0.5mm if use 1PCS cable to substitute the black testing platform(fixture).
Coil turns range	0–20000 turns
Turns testing accuracy	± 0.1% resolution
Inductance L Equivalent Mode	Series, Parallel	NO
Inductance L Display Range	0.0001uH–9999H	NO
Inductance L Basic Accuracy	±0.1%(1+Lx/Lmax+Lmin/Lx)(1+1/Qx)(1+ks+kv+kf);	NO
Quality Factor Q Display Range	0.0001–9999	NO
Quality Factor Q Accuracy	±0.001(1+Zx/Zmax+Zmin/Zx)(Qx+1/Qx)(1+ks+kv+kf);	NO
Testing terminal	four terminals
Display	LCD Resolution: 320×240, 5.7 inch, Blue background with white characters	LED
Test Frequency	100Hz, 200Hz, 1KHz, 2KHz, 10KHz, 20KHz, 40KHz, 100KHz	2KHz, 10KHz, 200KHz
Frequency Accuracy	± 0.02%
Test Level	1.0V, 0.3V, 0.1V
PC Communication Mode	RS232 serial port	NO
Test Speed	Slow (1 time/sec), Medium (2 times/sec), Fast (4 times/sec)	2 times/sec
Automatic distinguishing/sorting mode	Absolute value, Percentage, Upper / lower limit, Off	Absolute value, Percentage, Off
Automatic distinguishing way	pass / fail / close	Over Max. limit / Pass / Over Min. limit
Testing way	continual / single
Sorting Output	PLC switch signal output, Optocoupler isolated output, RS232 output, LED indicator	NO
Trigger Mode	Manual, Foot switch, External, RS232	Manual
Audible Alarm Option	Mute, pass beep, fail beep, Mixed audible	Pass beep / mute / fail beep
Storage Capacity	100 storage units, External USB function is optional	NO
Environmental Conditions	Operating temperature: 5℃–30℃ ; Operating humidity: 20%–80%RH
Power Input	220V± 10%, 50/60Hz <20W or 110V± 10%, 50/60Hz by request
Dimensions (mm)	tester 400(W)×130(H)×245(D) fixture 190×160	tester 350(W)× 110(H)× 390(D), fixture190×160
Net weight	Approx. 5Kg
