Industrial electric heating shrinking tunnel oven

Product name : Industrial electric heating shrinking tunnel oven (SS-HSTO01)

Description:

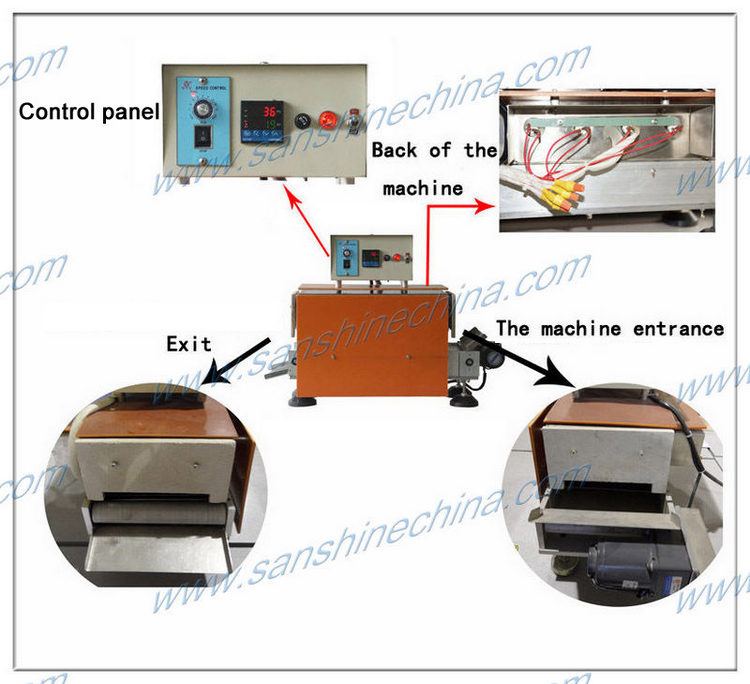

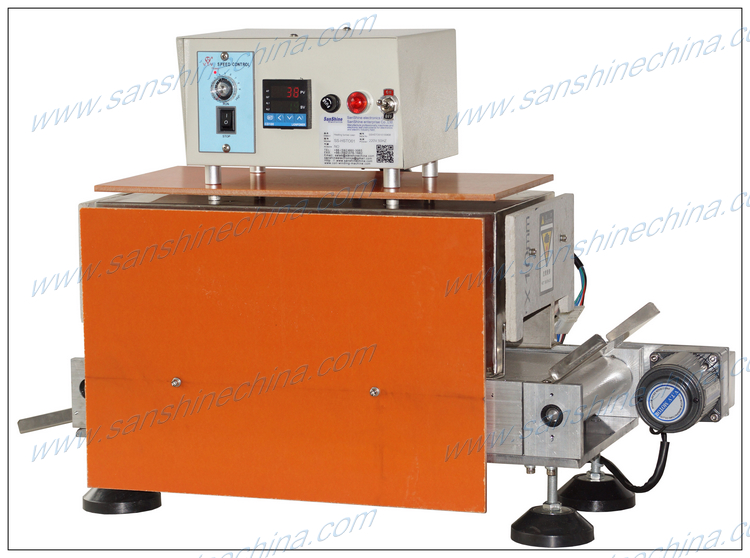

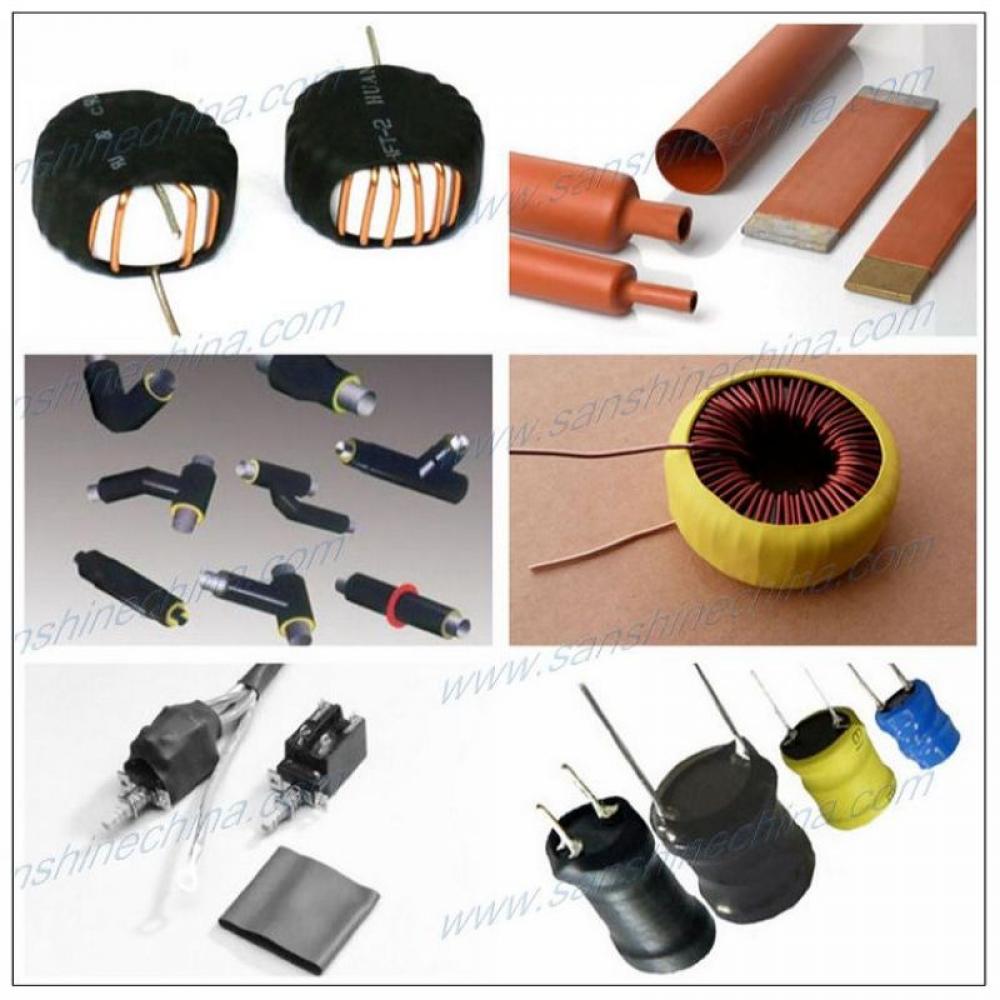

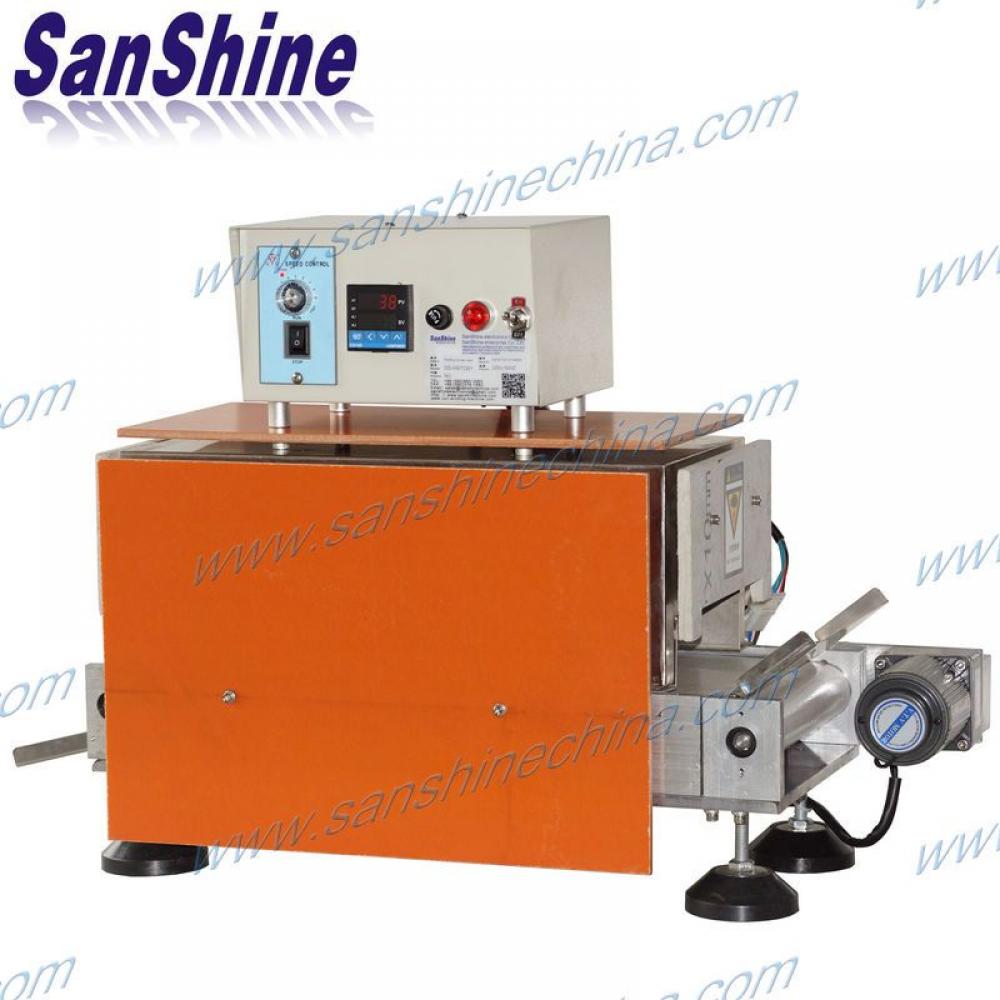

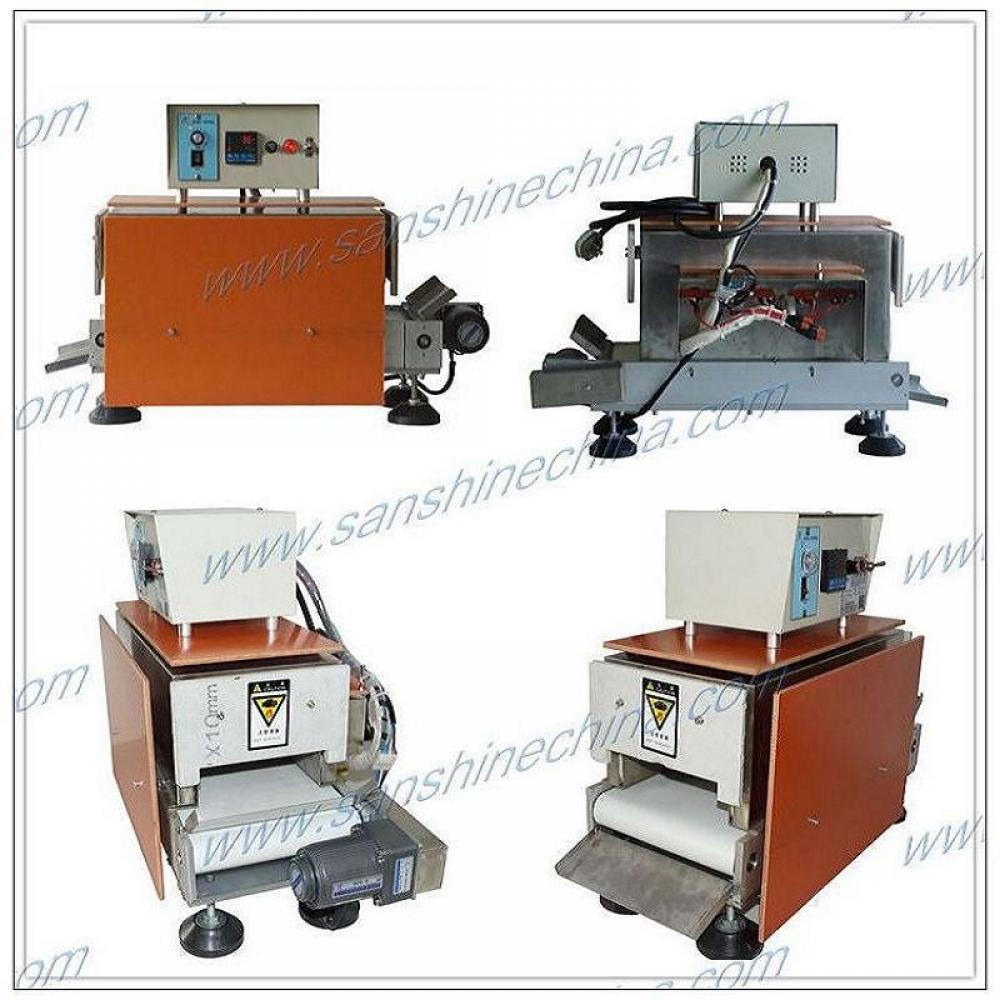

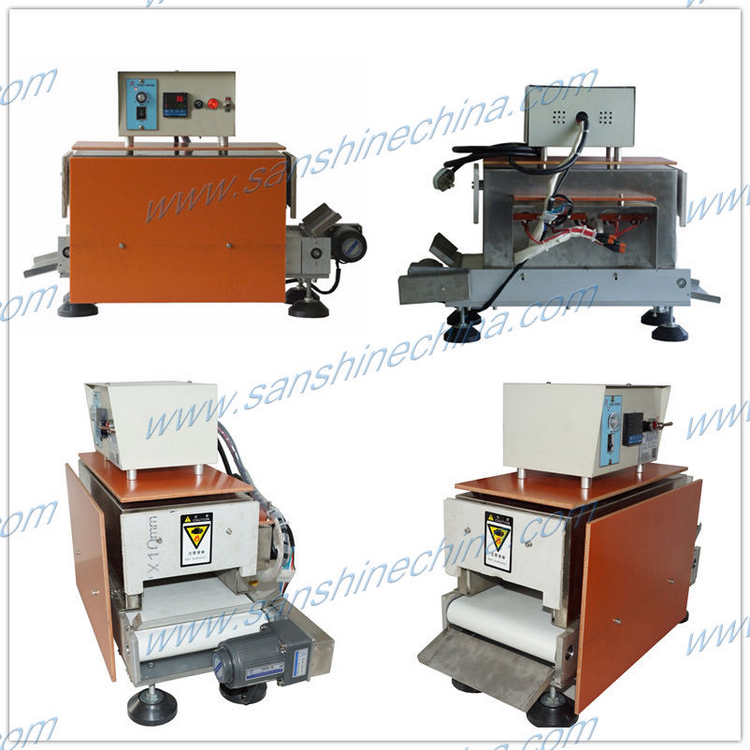

This industrial electric heating shrinking tunnel oven (SS-HSTO01) adopts the electric heating rods to heat with the programable digital precise temperature controller. This shrinking oven is best used for shrinking the heat shrink tube, shrink film, heat shrink packing, heating shrinking insulation sleeve and tube, harness, etc.. Like as : for shrink-wrap process, electronics cables, electrical harness, electrical cables, electronics components, electrical parts, battery, label of bottle, toys, hardware, etc.. This shrinking equipment is called electricity bus barwire sleeve shrinking oven and barwire insulation sleeve heating shrinking oven also. The SS-HSTO01 shrinking machine is one tunnel type oven which adopts the Nylon conveyor with the speed controller, the conveyor motor is a speed reducing high torsion motor. It is perfect for manufacturing settings. Highly accurate electronic digital temperature controller and speed control allows for repeatable consistent results. So easy to operation. The working temperature is invariableness by automatically.

Specification:

1. machine total length: 700mm. machine total height : 450mm , machine total width : 310mm.

2. heating zone length(inner working zone): 415mm ( be customized according to user's requirements also).

3. heating zone width(inner working zone): 105mm ( be customized according to user's requirements also).

4, conveying belt width(inner working zone): 203mm ( be customized according to user's requirements also ).

5, the entryway / exit height of tunnel oven: 55mm ( be customized according to user's requirements also ) .

6, the conveying belt length of entryway zone: 65mm.

7, the conveying length of exit zone: 20mm .

8, heating way: electrical heating tubes with.

9, heating power: 2KW.

10, the speed of conveyer: 20 to 200mm per second .

11, working temperature: Inner temperature 200º C± 3º C ( be customized according to user's requirements also).

12, power source: single phase 220V 50/60Hz.

13, conveying belt : Nylon.

14, Operating ambient temperature range: 10 to 40 degree C .

*****This heat shrink tubing oven can be customized according to user's requirements, welcome to inquire******
