High frequency transformer inductor automatic tester

The high frequency transformer parameters automatic analyzer (SS3250) is a accurate testing system which designed for transformer RD and production lines or incoming and outgoing inspection in quality control process with high stability and high reliability.
  • Item NO.:

    SS3250
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Beige and gray
contact now
Description

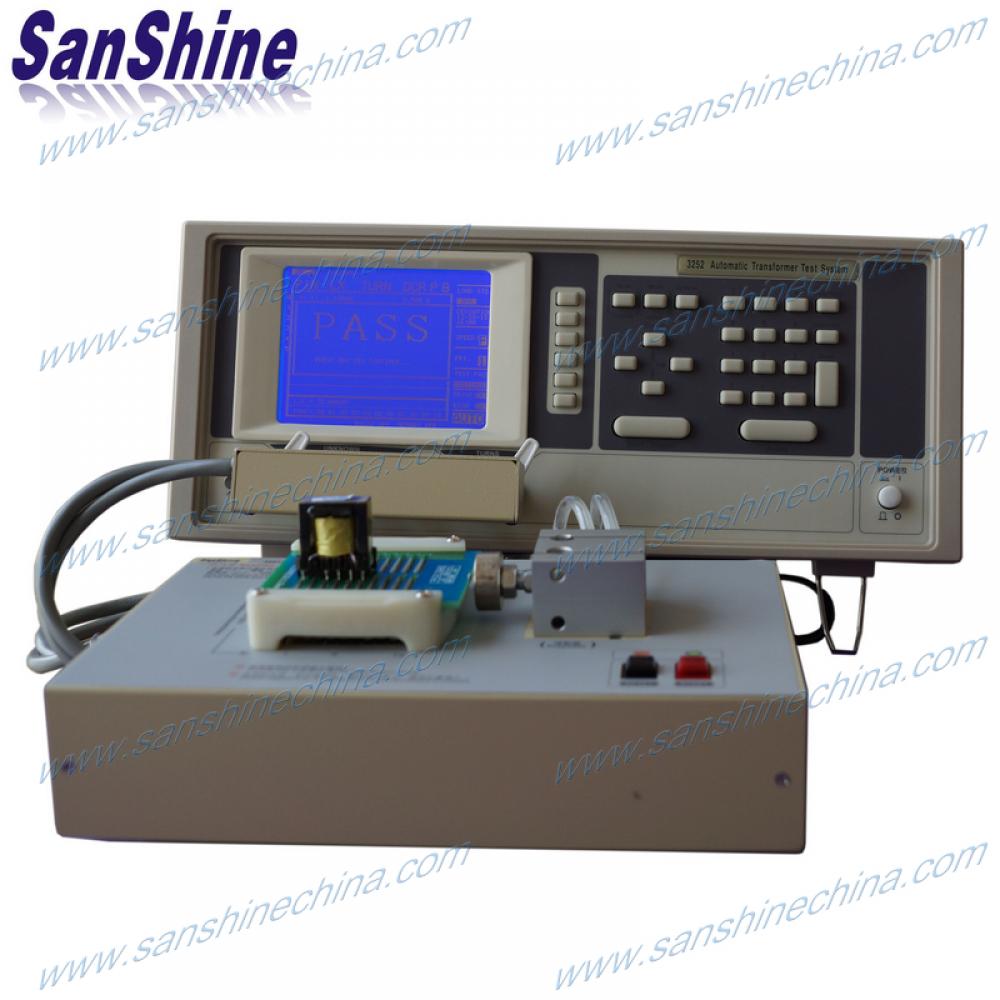

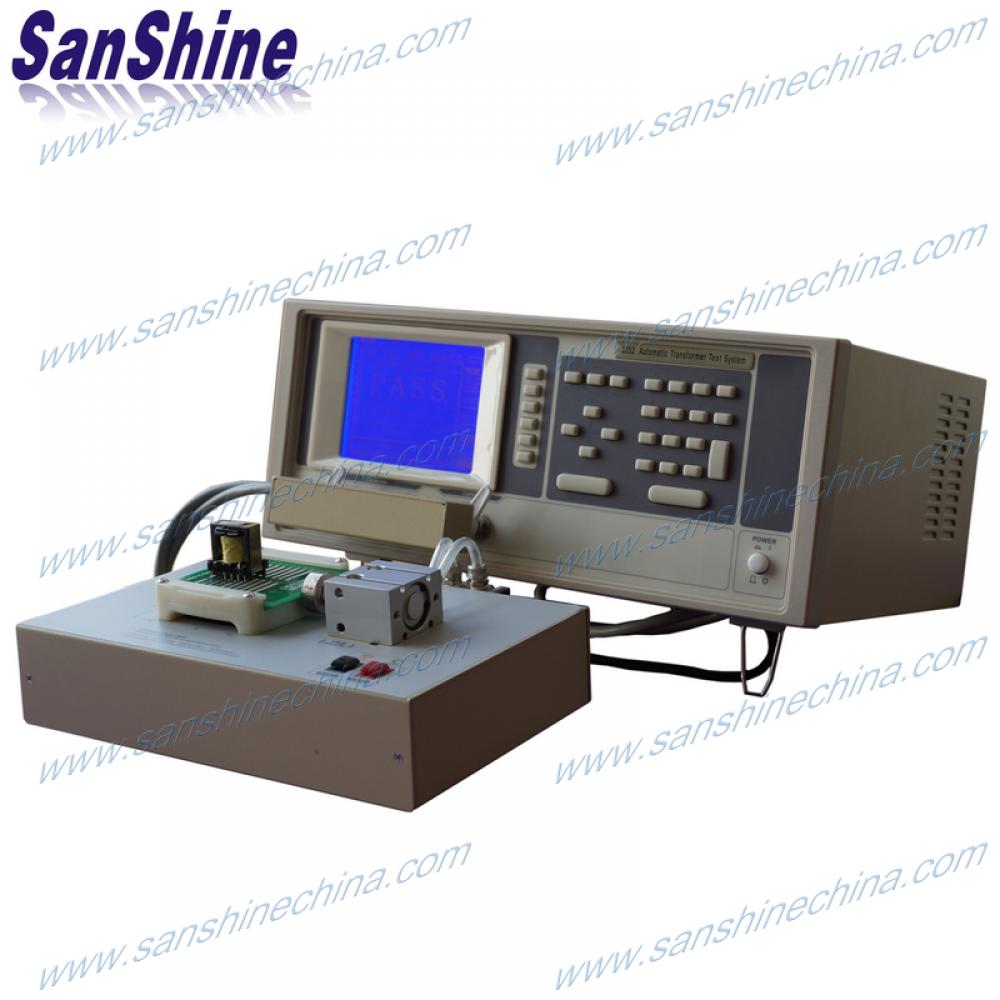

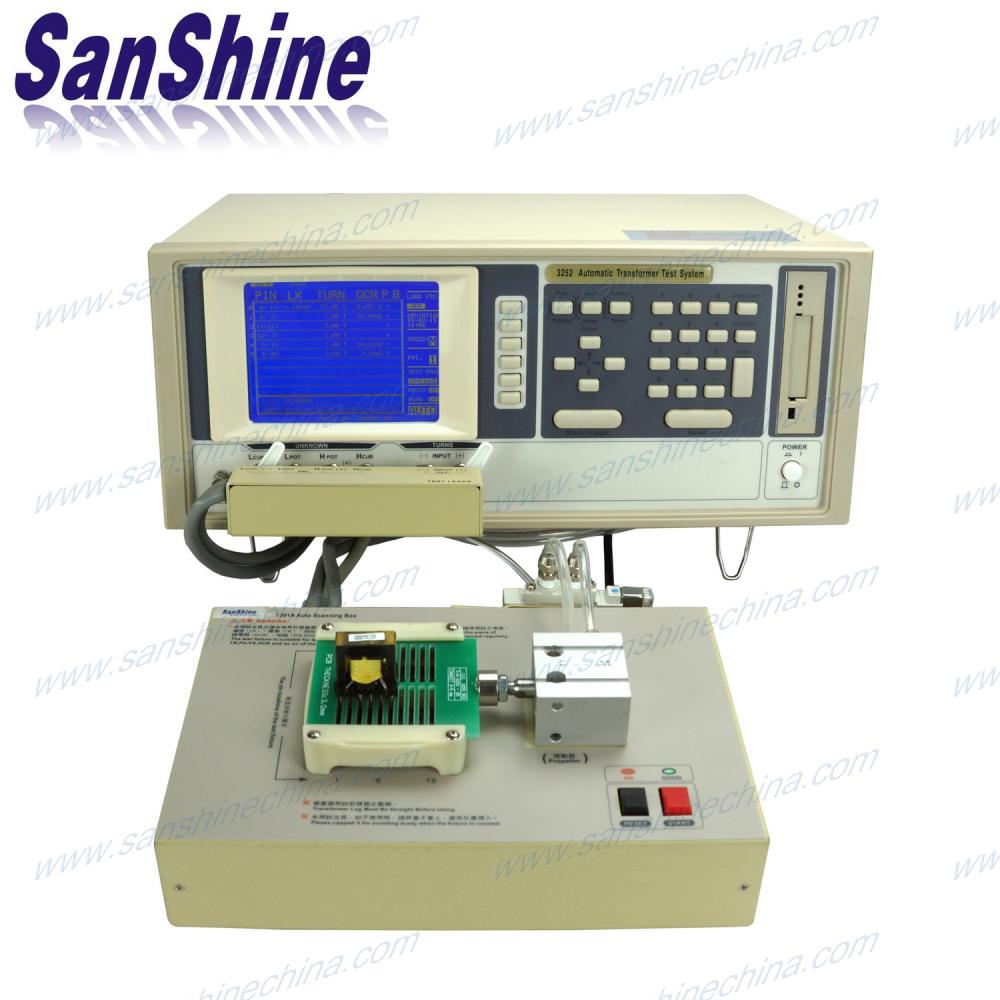

Product name : High frequency transformer inductor automatic tester (SS3250)


Chroma transformer tester

Zentech 3250 automatic transformer tester

Waynekerr transformer tester

Description :

The high frequency transformer inductor automatic tester (SS3250) is a accurate testing system which designed for transformer RD and production lines or incoming and outgoing inspection in quality control process with high stability and high reliability. With the enhanced capability in turn ratio measurement. It can solve the measuring problems of low coupling coefficient, transformer's turn ratio and turn number with more precise measurement. In addition to transformer scanning test function. This SS3250 transformer tester can substitute the Chroma 3250 automatic transformer tester and the Wayne Kerr automatic transformer tester and Zentech 3250 transformer test system fully and easily. The SS3302 / SS3252 have LCR Meter function. Operator-friendly and value-added. They can help you reduce production cost greatly. They can complete the testing of these parameters (Turn ratio , Phase ,Turn , L , Q, L.K , Balance , ACR , Cp , DCR , Pin short. ) instantaneously at one time.

Feature :

1. Test frequency: 20Hz-200KHz/1MHz, 0.02% accuracy.

2. Basic accuracy: 0.1%

3. Output impedance modes, measurement results are compatible with other well-known LCR meters.

4. Enhanced Turn Ratio measurement accuracy for low permeability core

5. Fast Inductance/Turn Ratio measurement speed up to 80 meas. /sec

6. Fast DCR measurement speed up to 50 meas. /sec

7. Bias current source directly control capability (SS3252/3302)

8. 320x240 DOT-matrix LCD display

9. Support versatile standard and custom-design test jigs

10. Four-terminal test for accurate, stable DCR, inductance and turn ratio measurements

11. Build-in comparator; 10 bin sorting with counter capability (SS3252/3302)

12. 2M SRAM memory card, for setup back-up between units

13. Standard RS-232, HANDLER, PRINTER interface

14. 50 internal instrument setups for store/recall capability

Order items :

A. SS3250 / SS3252 / SS3302

B. 3001A(scaning testing box)

C. Universal fixture

D. Custom-made fixture (optional)

E. Memory card (optional)

Specification :

Model

SS3250

SS3252 / SS3302

Main functions

transformer Auto. analyzer

transformer Auto. analyzer + LCR meter

Analyse parameter

Transformer Auto. Measure

Turn ratio , Phase ,Turn ,L ,Q, L.K ,Balance ,ACR ,Cp ,DCR ,Pin short.

LCR Measure

General L ,C ,R ,DCR

L ,C ,R , 1Z1 ,Y ,DCR ,Q ,D ,R ,X , θ

Measure Signal

Measure Level

Turn

10mV~10V,±10% ,10mV/Step

Other

10mV~2V,±10% ,10mV/Step

Meas. Frequency

Turn

3250 ,3252 :1KHZ ~ 200KHZ ,±0.02%

3302 :1KHZ~1MHZ ±0.02% ,Min. display :0.01HZ

other

3250 ,3252 : 0HZ ~ 200KHZ ,±0.02%

3302 : 20HZ~1MHZ ±0.02% , Min. display : 0.01HZ

Out impendance

Turn

10Ω , Meas. level≤2V

50Ω , Meas. level > 2V

Other

Constant=OFF : according to resistance value range to be

Constant=320X : 100Ω±0.5%

Constant=107X : 25Ω±0.5%

Constant=106X : 50Ω 100mA±0.5%(setup 1V )

inductance load <10Ω , 10Ω±10% , impedance≥10Ω

Measure Display range

L , L.K

0.00001uH ~ 9999.99H

C

0.00001pF ~ 999.999mF

Q, D

0.00001 ~ 99999

Z, X, R

0.00001Ω ~ 99.9999MΩ

Y

0.01nS ~ 99.9999S

θ

-90.00 ~ +90.00

DCR

0.01mΩ ~ 99.9999MΩ

Turn

0.01 ~ 99999.99T(S windings voltage < 100Vrms)

Pin - Short

11 windings , pin and pin

Base accuracy

L , L.K , C , Z , X , Y , R , DCR

0.1% ( AC parameter 1KHZ )

Q , D

0.0005 ( 1KHZ )

θ

0.03° ( 1KHZ )

Turn

0.5% ( 1KHZ )

Measure speed ( fast )

L , L.K , C , Z , X , Y , R ,Q , D , θ

80Meas./S

DCR

50Meas./S

Turn

10Meas./S

Judgement way

Transformer Auto. Meas.

the judgement of all parameters of NG or good which be output by ordered processor.

LCR Measure

parameters be displayed.

10 levels sorting and total No. be output by ordered processor. The judgement of parameter of good or NG be output by standard processor.

Displayer revising function

320*240 points LCD displayer

Open / Short , load revising

Memory

50 groups setup , can be extended by memory card.

Equivalent circuit model

series , parallel

Trigger

inner , manual , external

Common Spec.

Environment

10degree centigrade ~ 40degree centigrade ,10% ~ 90%RH

Power consuming

Max.140W

Power

90 ~ 125V AC or 190~250V AC 48HZ~62HZ

Weight

≈ 8.5KG

Dimensions( W×H×L )

430×180× 320mm
