Automatic shrinking tube sleeve tape cutting dispensing machine

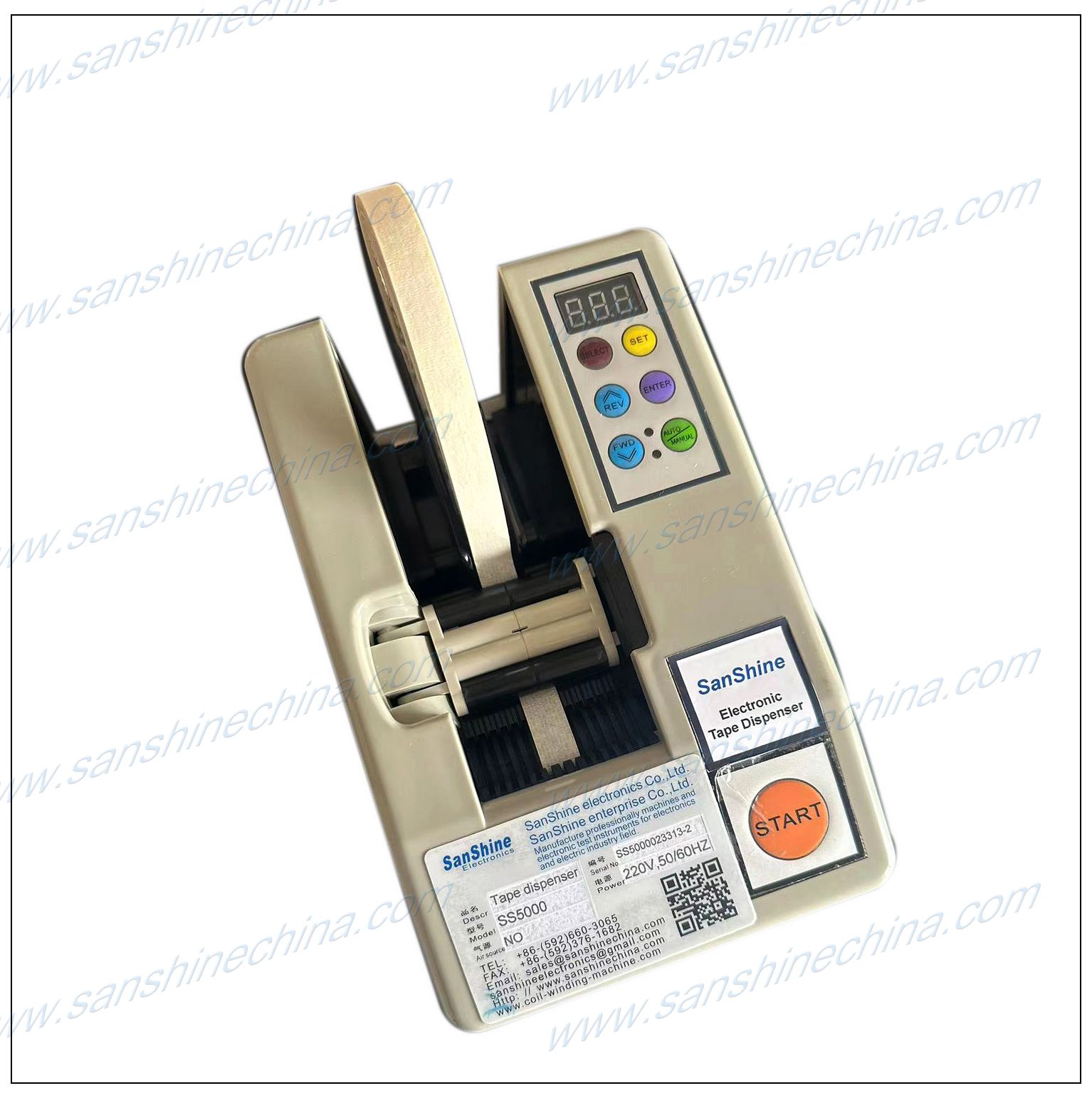

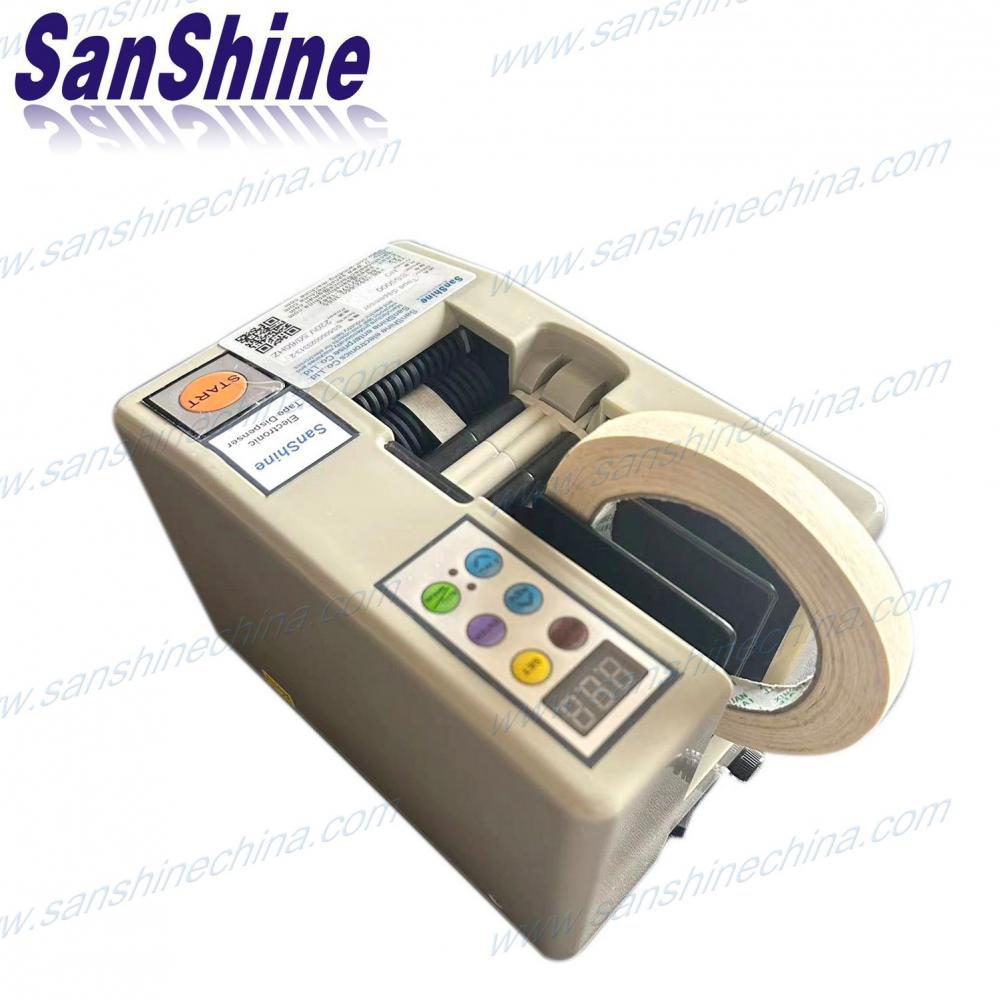

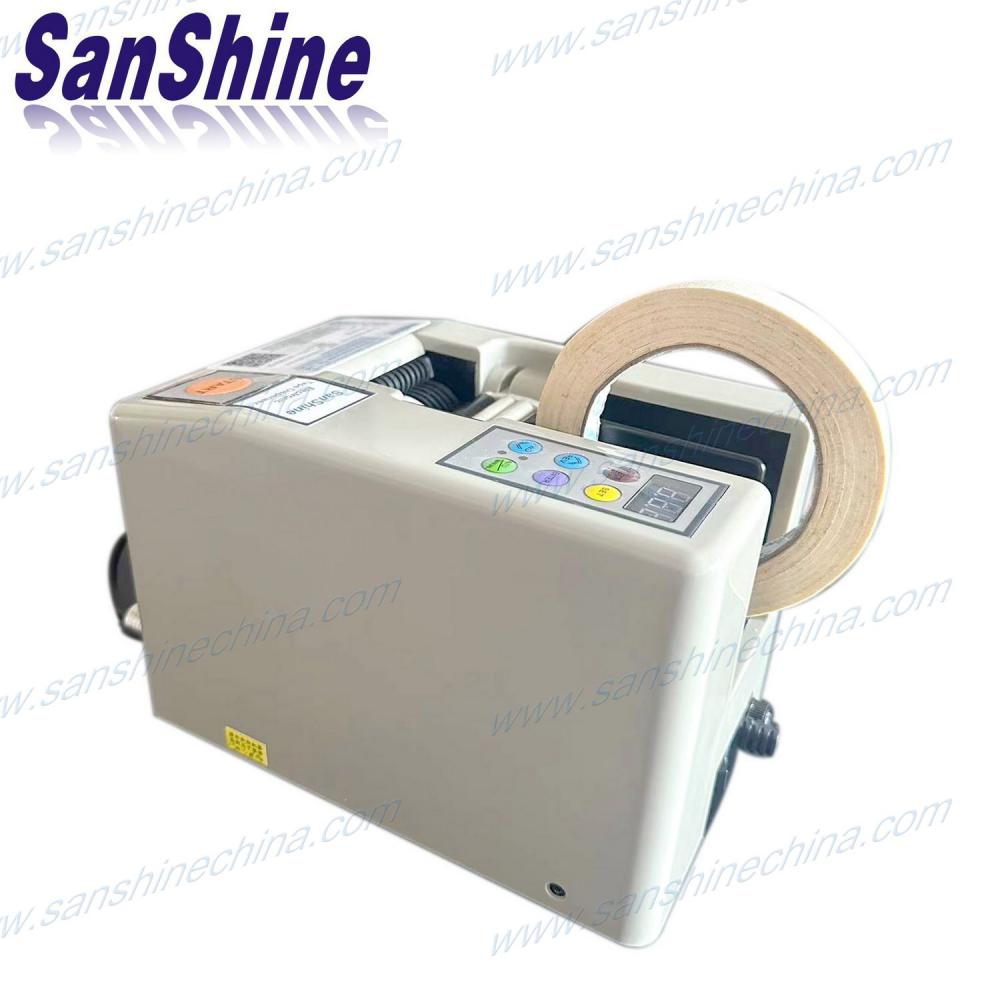

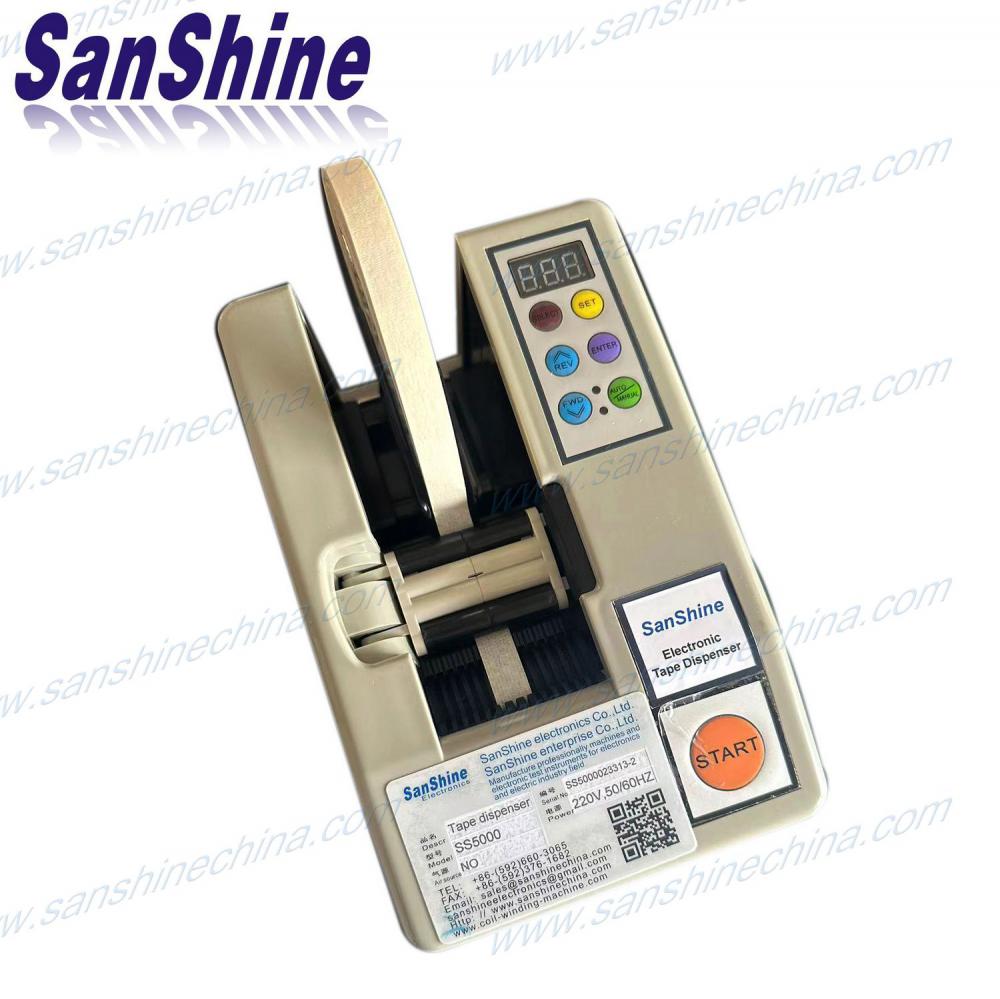

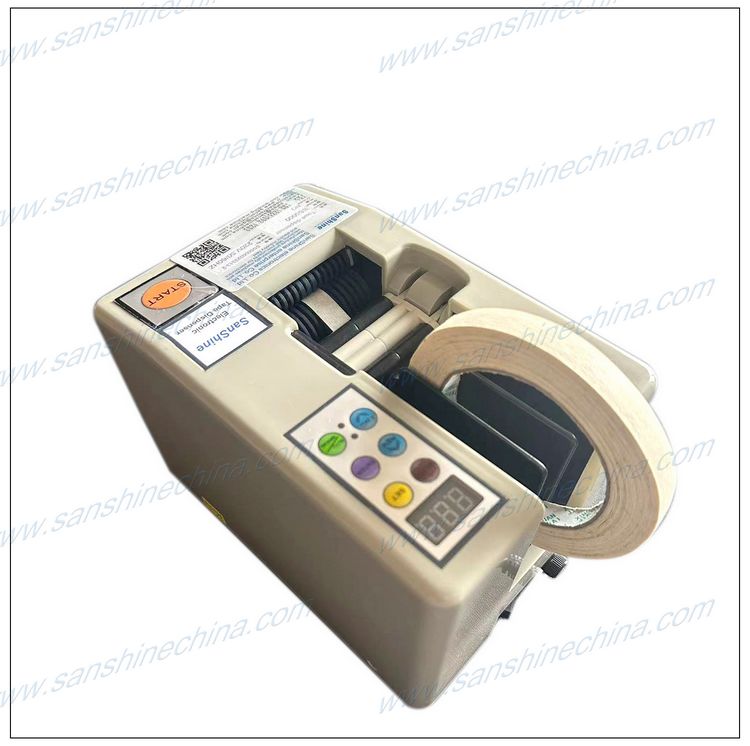

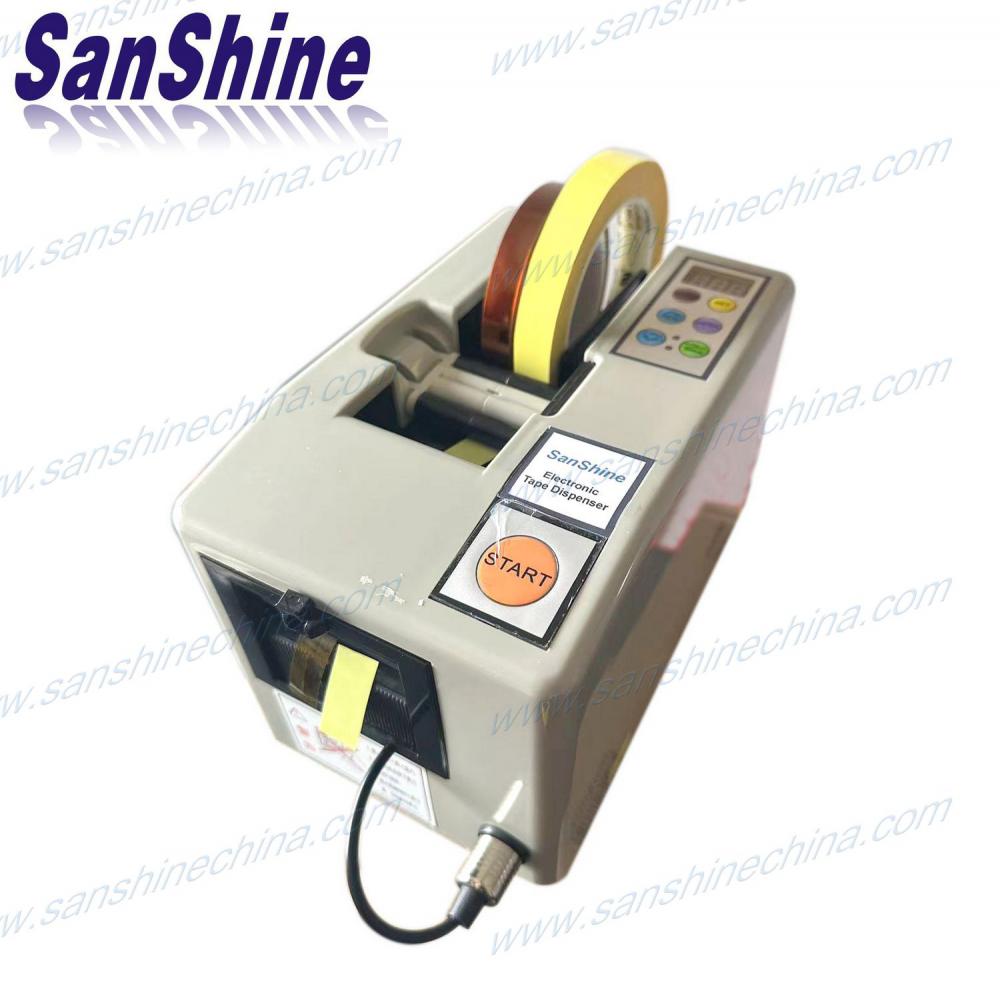

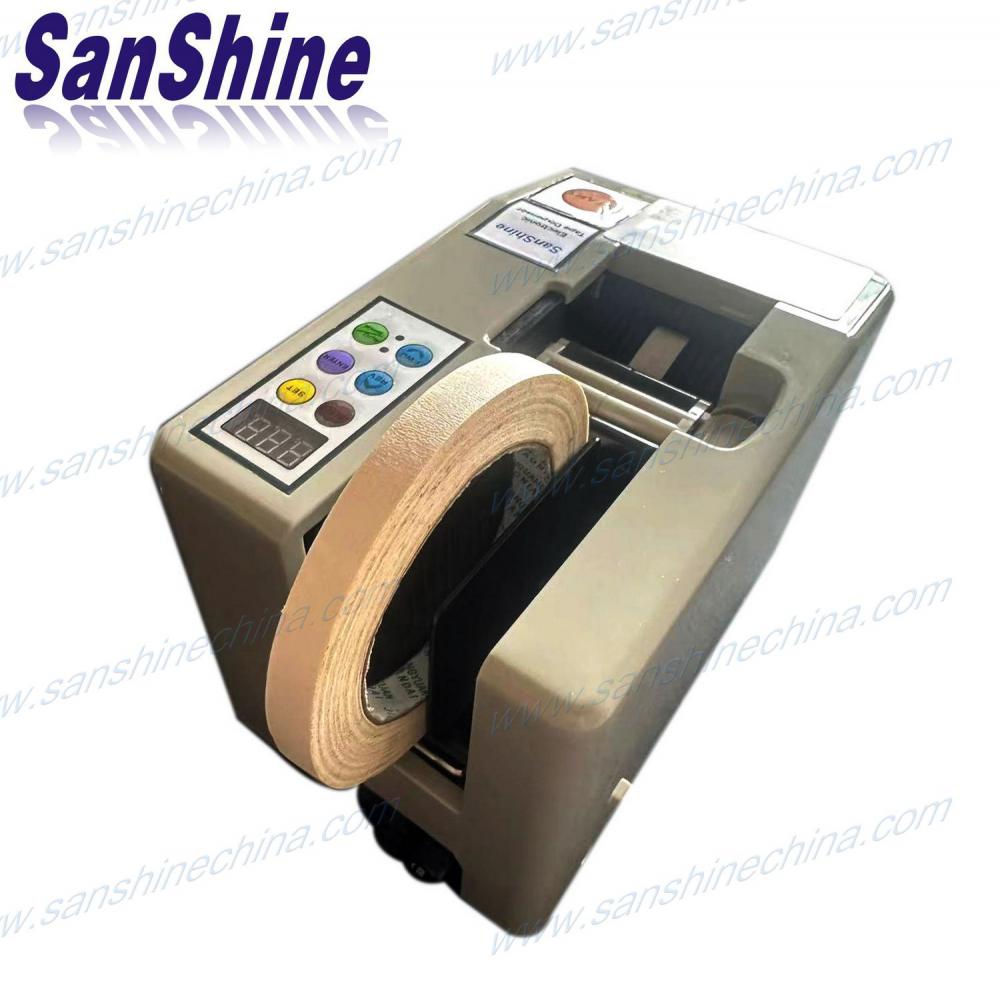

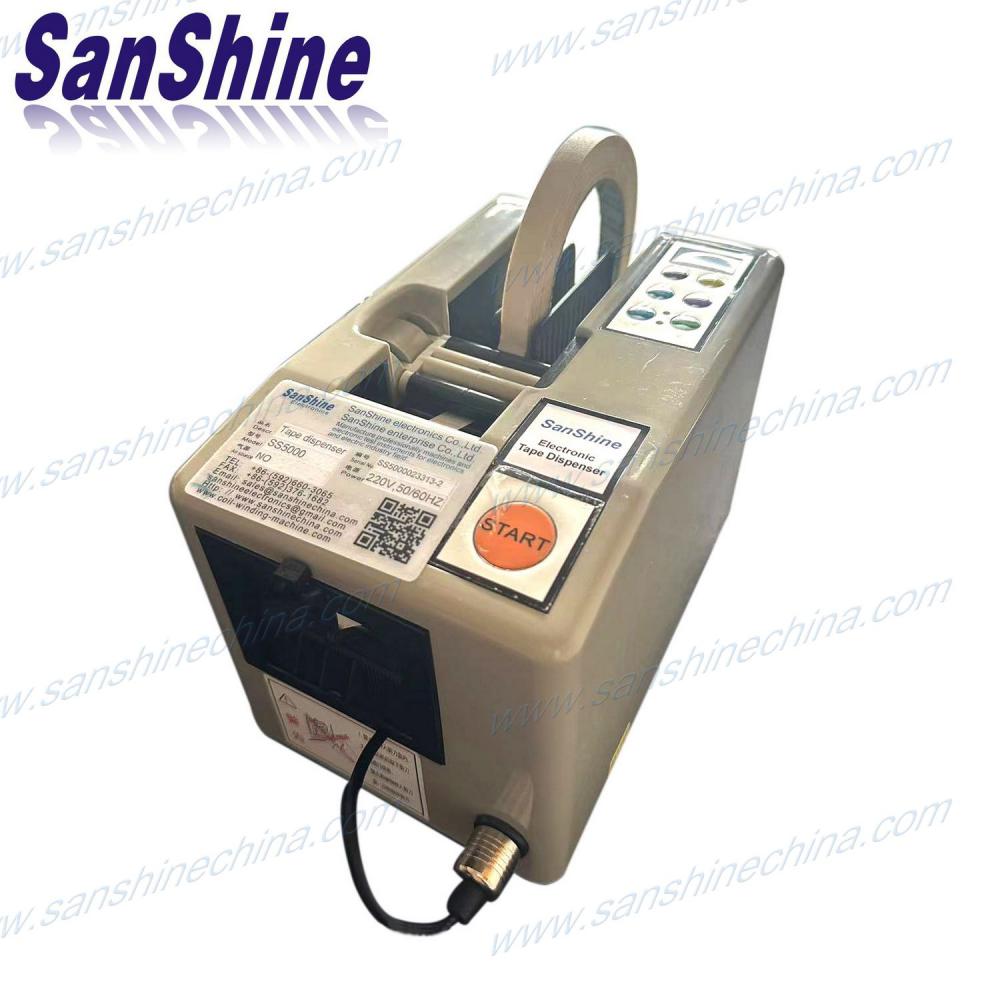

This automatic shrinking tube sleeve tape cutting dispensing machine(SS5000) is used for cutting and dispensing the tape, adhesive tape, protective film, thermal shrinkage bushing, insulation tube, harnees, insulation sleeve in measured precision automatically.

  • Item NO.:

    SS5000

  • Product Orgin:

    China

  • Brand:

    SanShine

  • Shipping Port:

    XIAMEN,CHINA

  • Color:

    White and black
contact now User's reviews
Description

Product name ： Automatic shrinking tube sleeve tape cutting dispensing machine(SS5000)


insulation bushing cutting machine


shrinking sleeve cutting equipment

Packing of SS-M1000 Automatic tape dispenser :

insulation sleeve cutting equipment

Description :

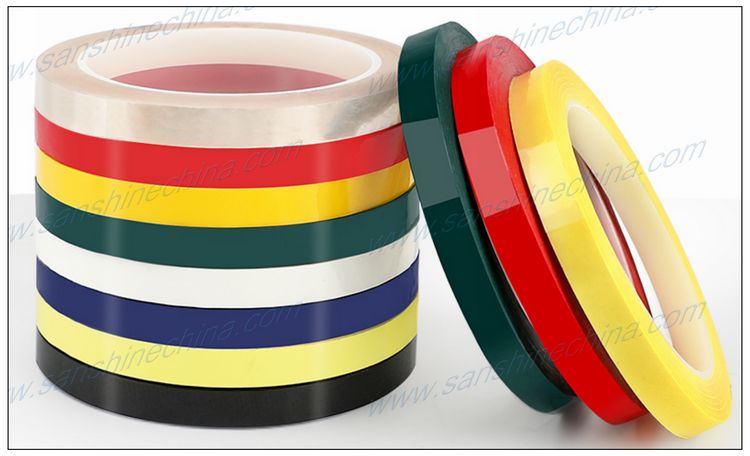

This automatic shrinking tube sleeve tape cutting dispensing machine(SS5000) is used for cutting and dispensing the tape, adhesive tape, protective film, thermal shrinkage bushing, insulation tube, harnees, insulation sleeve in measured precision automatically. This automatic tape cutting and dispensing machines adopts the digital Micro-CPU precise controlling system so that make sure the required tape length be high precisely. This automatic adhesive tape cutting dispensing machines is called thermal shrinkage tube cutting dispensing machine also. This tape cutting machines is according to user requested length to cut and dispense the tape in fast and precision automatically. Easy to operation.

Specification :

Model SS360 SS5000 SS-M1000 SS1000S SS55 SS2000 SS80A SS80B
power source 220V/50HZ or 110V/60HZ 220V/50HZ or 110V/60HZ 220V/50HZ or 110V/60HZ 220V/50HZ or 110V/60HZ 220V/50HZ or 110V/60HZ 220V/50HZ or 110V/60HZ 220V/50HZ or 110V/60HZ 220V/50HZ or 110V/60HZ
power 160 35W 18W 18W 18W 35W 150W 150W
cutting length 13~59mm 5~999mm 20~999mm 5~999mm 20~999mm 5~999mm 40~999mm 40~999mm
accuracy ±1.0mm ±1.0mm ±1.0mm ±1.0mm ±1.0mm ±1.0mm ±1.0mm ±1.0mm
tape width range 3~22.0mm 5~50.0mm 7~50.0mm 7~50.0mm 7~55.0mm 5~50.0mm 15~80.0mm 15~80.0mm
applicable for inside diameter of the tape roller 75.0/32/25.0mm any 75.0/32/25.0mm 75.0/32/25.0mm 75.0mm any 76.0mm 76.0mm
tape type Tape,adhesive tape Tape, adhesive tape, protective film, thermal shrinkage bushing. Tape,adhesive tape. Tape,adhesive tape. Tape,adhesive tape. Tape,adhesive tape, protective film, thermal shrinkage bushing. any type adhesive tape protective film
display digital digital digital digital digital digital digital digital
cutting way manual /automatic manual /automatic manual /automatic manual /automatic manual /automatic manual /automatic manual /automatic manual /automatic
dispensing way gyrocompass(360°) move along for dispensing move along for dispensing move along for dispensing move along for dispensing move along for dispensing move along for dispensing move along for dispensing
memory stores length function store setting length store setting length store setting length store setting length store setting length store setting length store setting length store setting length
grouping cutting for different length no 3 groups no no no no no no
