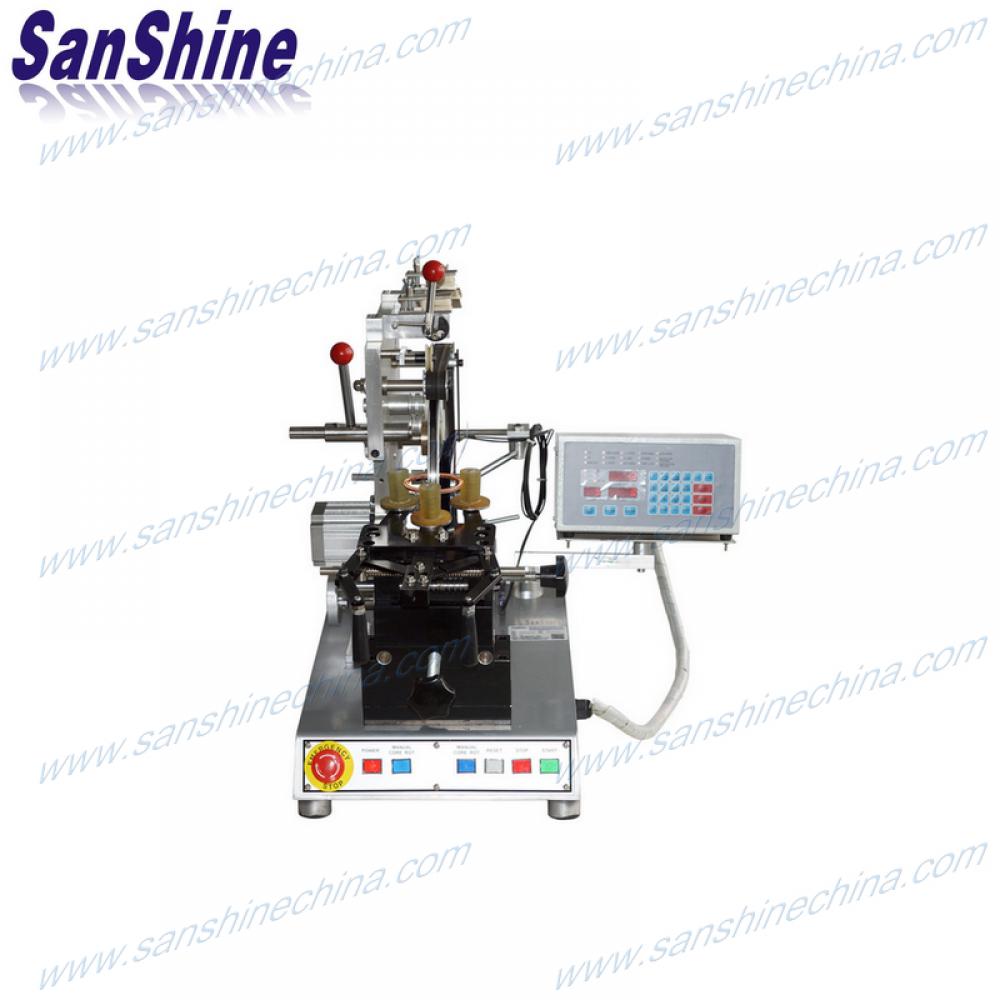

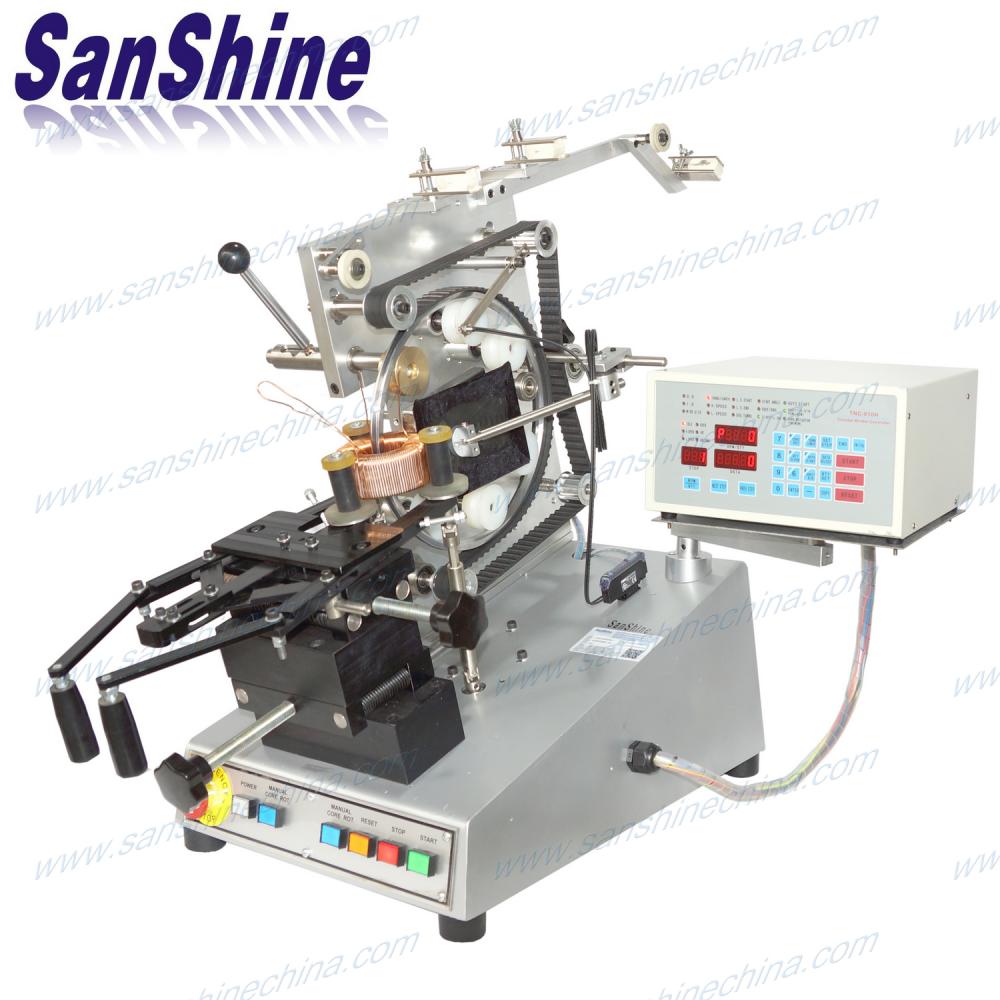

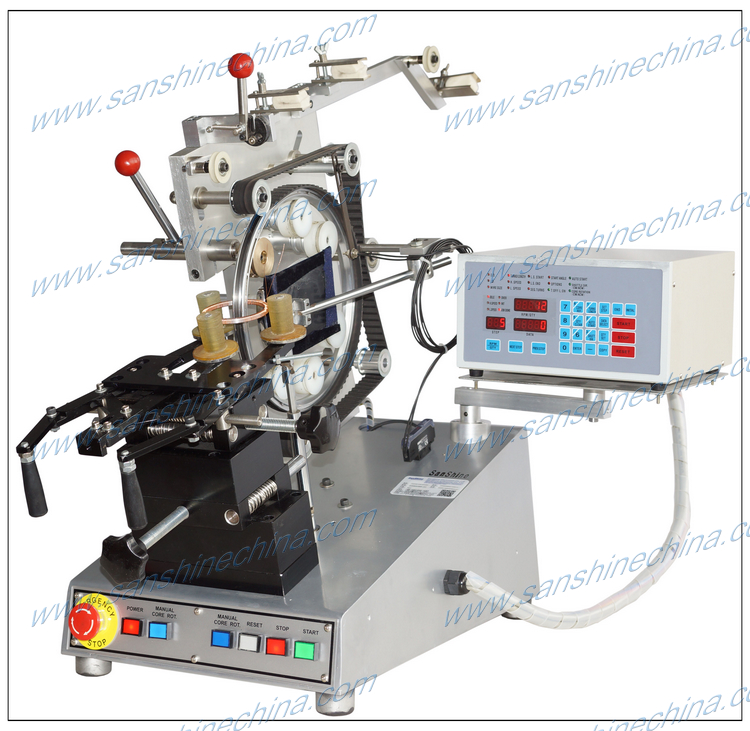

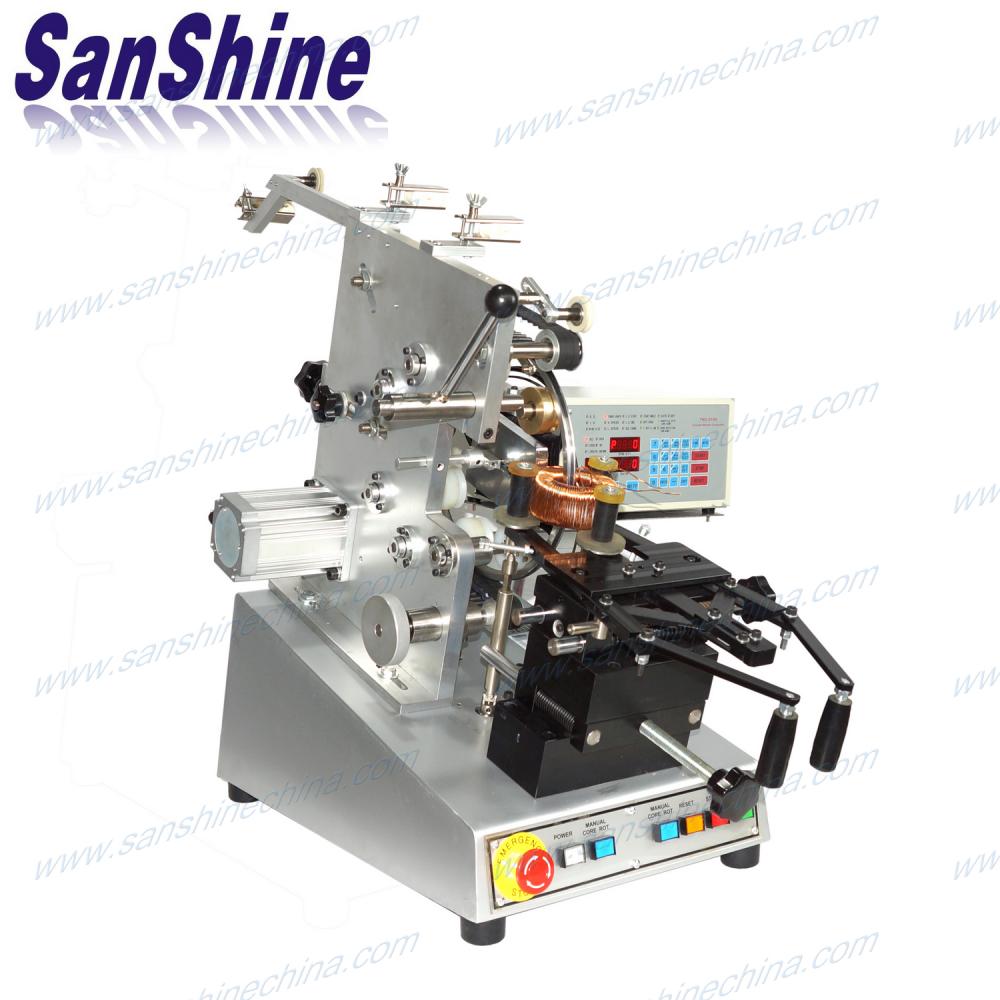

Belt type big automatic toroid coil winding machine

The belt type big automatic toroid coil winding machine (SS900B8, 8 inch winding head) is used for winding the heavy wire coils on the big toroidal core. like as big toroidal transformers, big toroidal inductors and big toroidal filter coil etc.. Also it is a shuttle type toroid winding machine, a rectangular common mode coil winding machine which spread wire by manually.
  • Item NO.:

    SS900B8
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray
contact now
Description

Product name : Belt type big automatic toroid coil winding machine (SS900B8)



rectangular common mode power coil winding machine

big toroid inductor winding machine

toroid transformer coil winder

heavy toroid core winding machine

heavy toroid coil winding machine

Description :

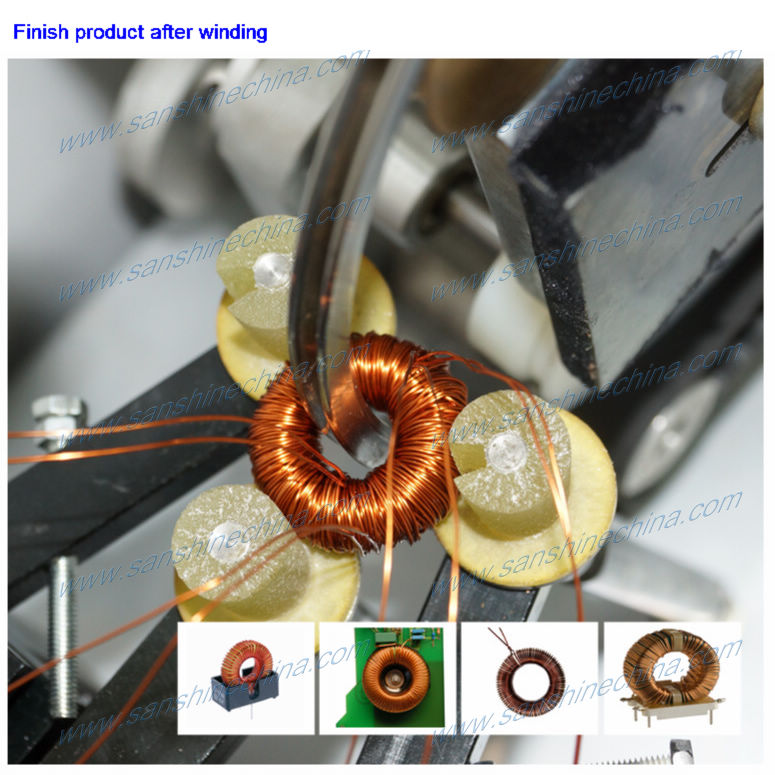

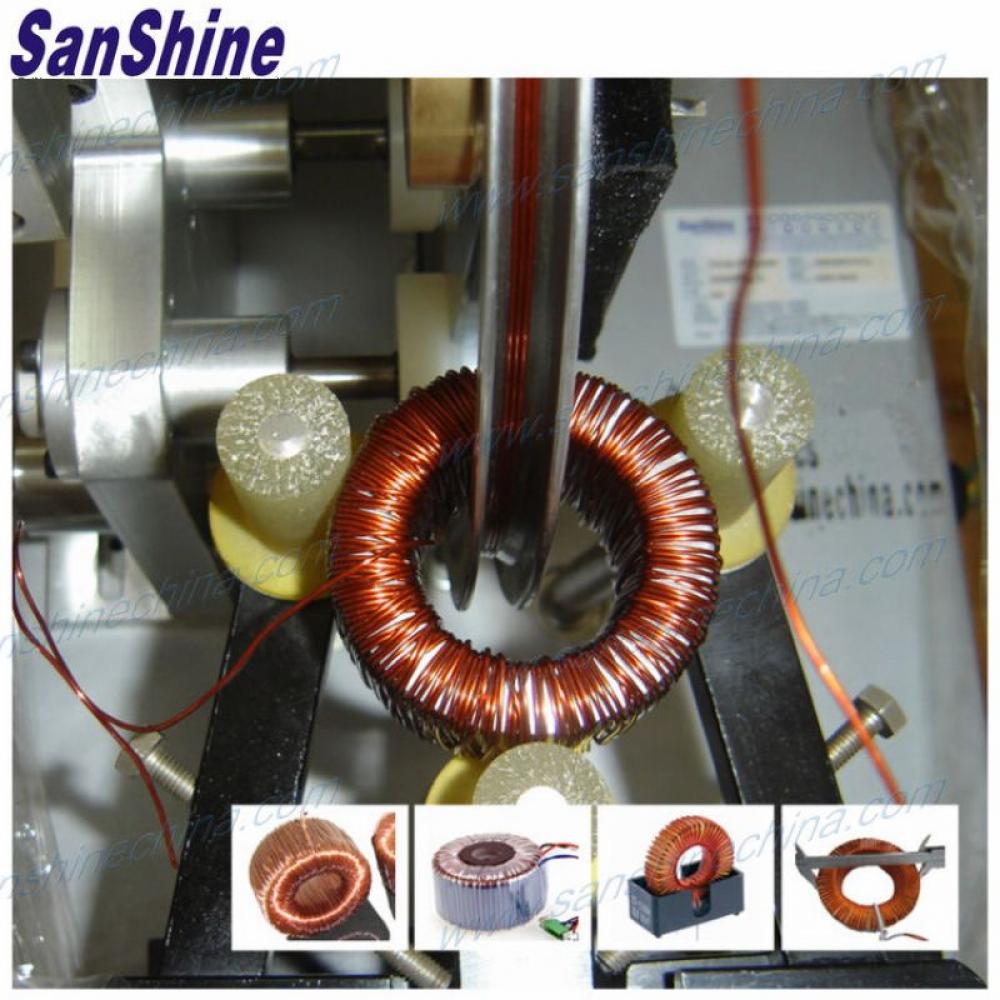

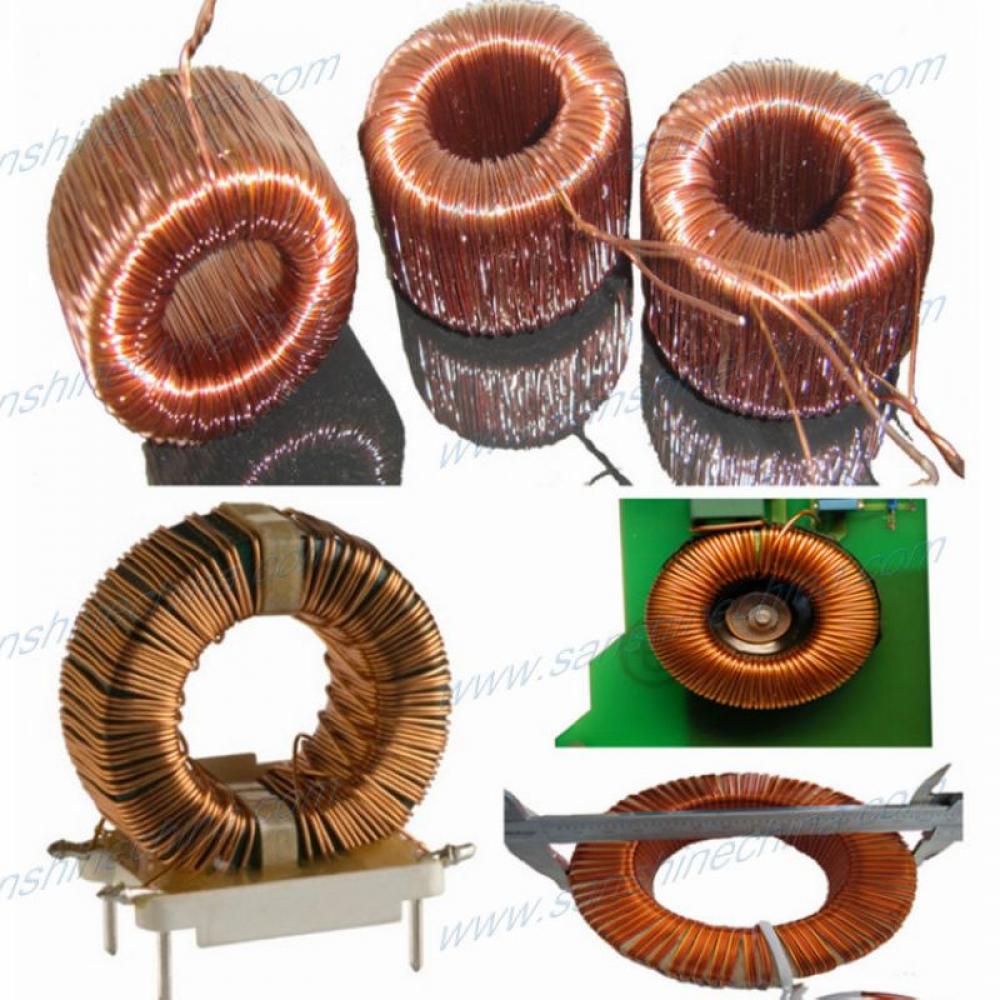

The digitail belt type big automatic toroid coil winding machine (SS900B8) adopts precise programmable CNC toroidal controller. it is belt type winding shuttle. It be called a magazine type toroid coil winding machine also. This belt type big toroidal coil winding machine SS900B8(8 inch winding head) is used for winding heavy enamelled wire on the big toroidal core. It's an accurately and reliability digital automatic big toroid winding machine. This belt type big automatic toroid coil winding machine (SS900B8) is used for winding big toroidal inductor, big toroidal transformer, big toroidal coil, big toroid choke coil, passive power big toroid inductors, UPS big toroidal inductor, converter big toroid inductors, etc. . The digitail belt type big automatic toroid coil winding machine (SS900B8) also can be a rectangular common mode power line coil winding machine, but need spread wire by manually during winding wires.

Features :

1. Collocate belt type big winding head, interchangeable roller table with different size shuttle (magazine) for different big toroid coil demensions, wire diameter, turns number, so that to reduce the cost. one set standard automatic toroid coil winding machine include one piece winding shuttle only, other sizes winding shuttles are optional.

2. Hi-tech shuttle for highest efficiency.

3. Separate speed controls for wire loading and winding.

4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.

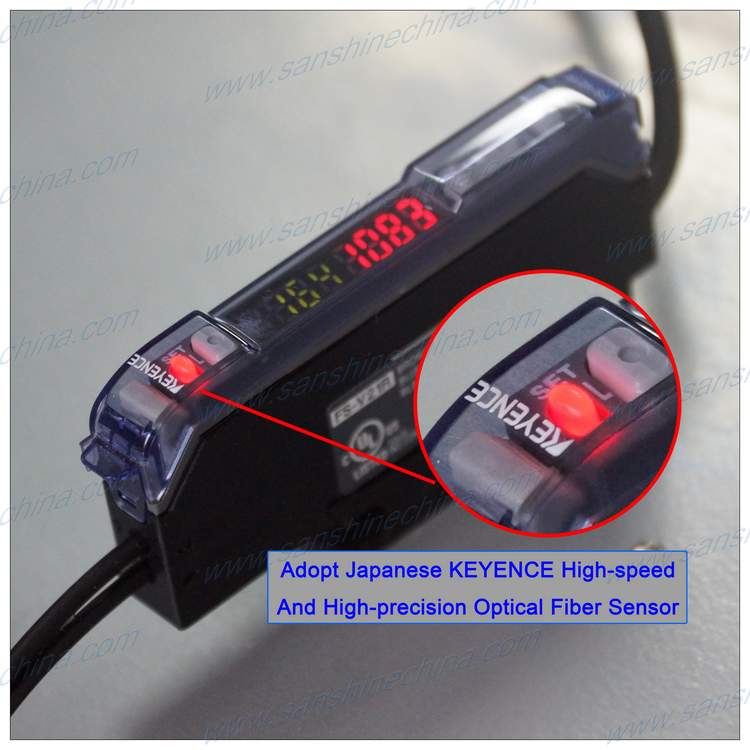

5. Accurately count turns of winding by high frequency response photo-electricity sensor.

6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.

7. Accurately wire spacing by programmable controller.

8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.

Specification :

Copper wire diameter: 0.35~1.4 mm (will be different by different dimensions core and different shuttle size).

Min. Finished ID: 12 mm (will be different by different size core, different wire diameter, turns, different shuttle size and coil height).

Finished OD range: 20~150 mm(will be different by different size core, different wire diameter, turns, different shuttle size and coil height )

Max. Speed: 1200 RPM

Winding motor: 1/2HP DC brushless motor

Spread motor: Stepping motor

Memory capacity: 999 steps

Power source: AC220V /110V +10%, 50/60 Hz

Dimension: L60x36x60(cm)

Net weight: 42 Kgs

Model

Universally matched shuttle model

Copper wire diameter range(mm)

Min. inside diameter of finished coil (mm)

Out side diameter of finished coil range (mm)

Height of finished coil range (mm)

SS900B2

1.2 1.4 1.6 1.8 2.0 or customized

0.07 ~0.25

2.0

5 ~ 16

3 ~8

SS900B3

1.4 1.6 1.8 2.0 2.5 or customized

0.07 ~0.25

2.5

5 ~16

3 ~8

SS900B4

2.5 2.8 3.0 3.5 4.5 or customized

0.15 ~0.8

3

5 ~60

3 ~25

SS900B6

3.5 5.0 6.3 or customized

0.3 ~1.2

6

10 ~80

5 ~45

SS900B8

8 10 12 15 or customized

0.35 ~1.4

12

20 ~150

8 ~80


How to select the best suited automatic toroid coil winding machine for your toroid coil?

Tell us your toroidal coil of data as below please:

1. toroid core outside diameter before winding?

2. toroid core inside diameter before winding?

3. toroid core height before winding?

4. how many windings on this core?

5. how many turns of each winding?

6. how about the copper wire diameter of each winding?

7. provide pictures of product which is better.
