Front four spindles automatic coil winding machine

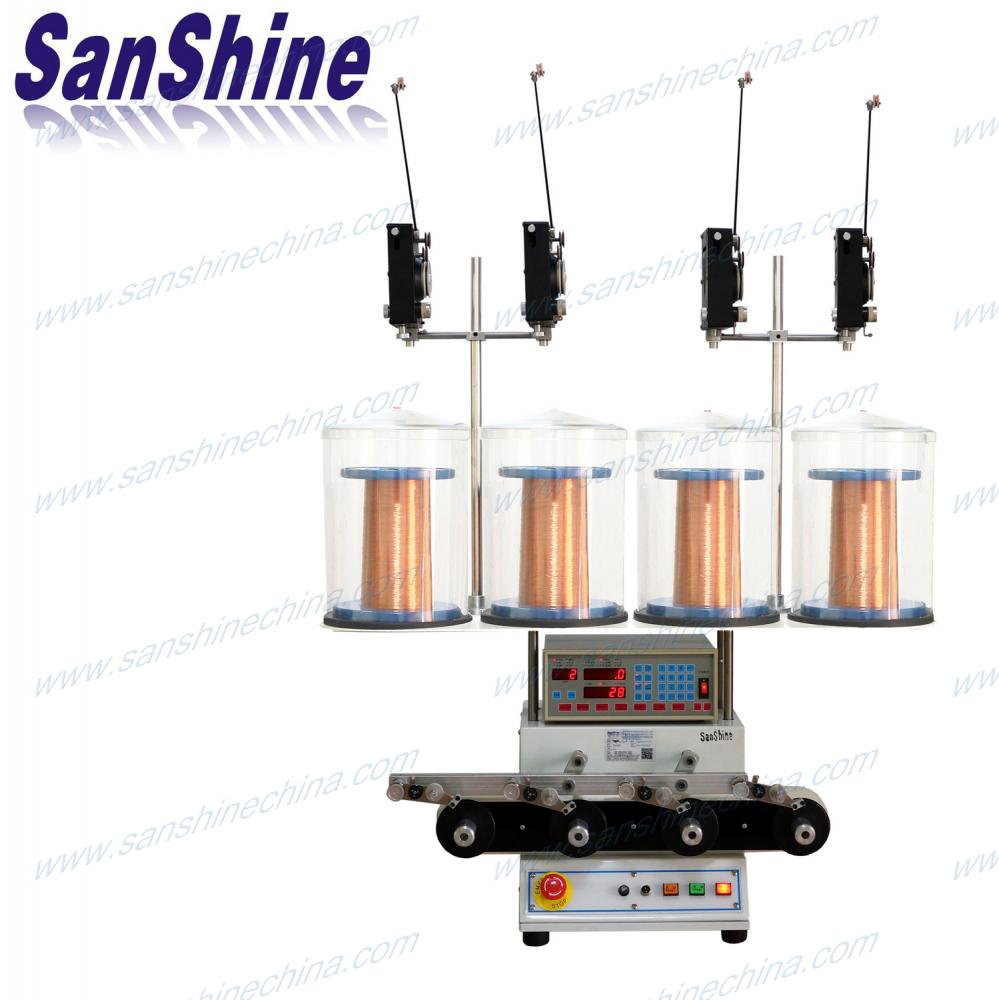

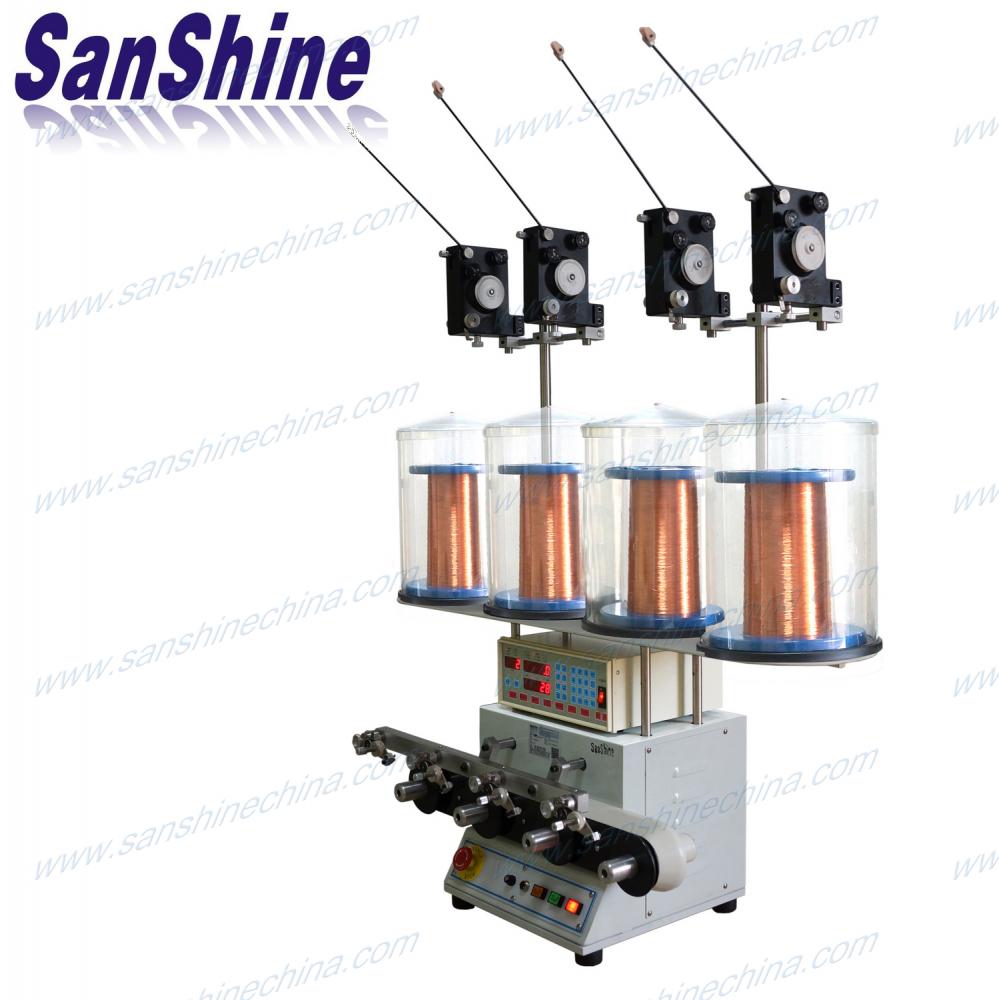

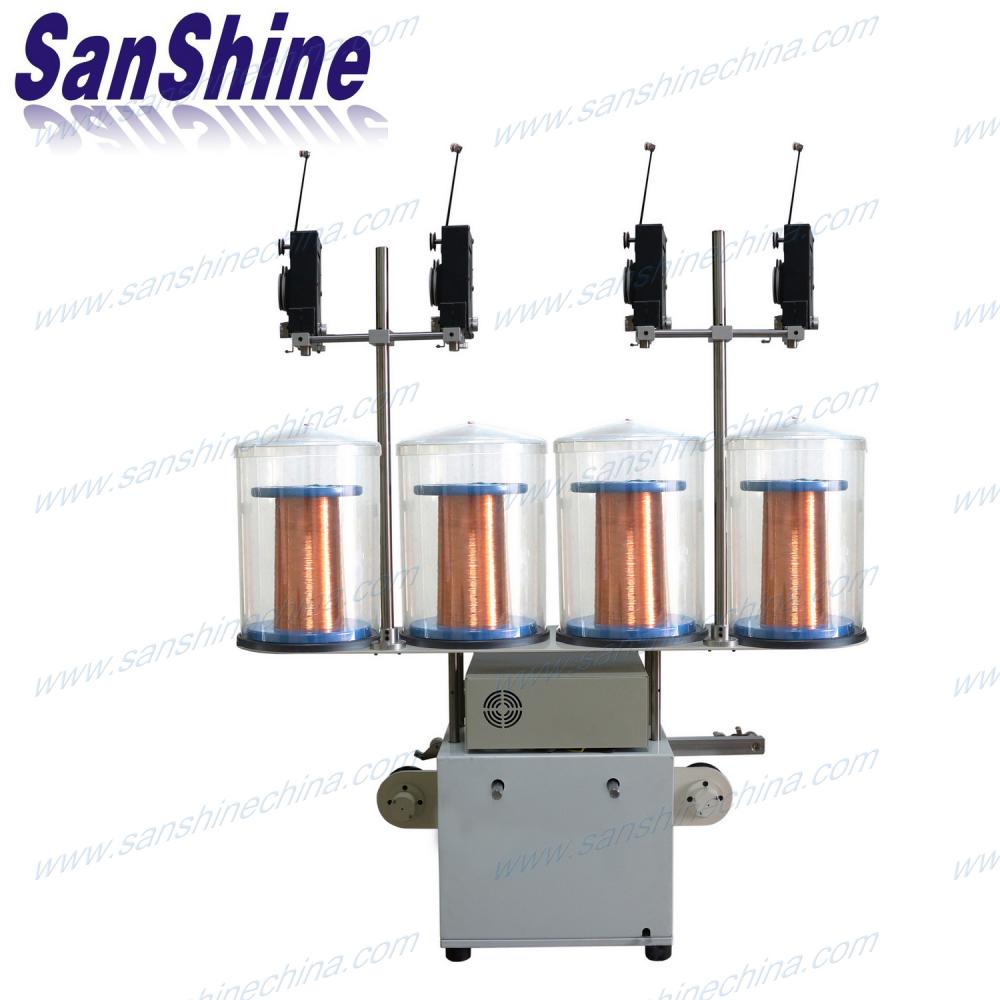

The front four spindles automatic coil winding machine (SS864) is used for winding the transformer, inductor, relay, contactor, choke, ignition coils, etc. . This winding machine be called four spindles contactor winding machine, four spindles filtering choke coil winding machine and four spindles lamination transformer winding machine also.
  • Item NO.:

    SS864
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White
contact now
Description

Product name : Front four spindles automatic coil winding machine (SS864)



four spindles lamination transformer coil winding machine

four spindles solenoid valve coil winding machine


Description :

This Front Four Spindles Automatic Coil Winding Machine (SS864) is a digital programmable High-speed coil winding machine. This winder have four pieces winding spindles. All spindles winding synchronal which is the highest efficiency winding machine. This winding machine adopts microprocessor design and the wire tensioners with nozzle type wire spreading head so that can make sure the fine wire winding to be precise and perfect under high speed. This coil winding machine be named four spindles ferroresonant transformer coil winding machine, lamination transformer winding machine and four spindles normal choke coil winding machine also. This four spindles coil windier is the best choice for winding transformer, inductor, relay, ignition, contactor, electric valve, etc. .

Feature :

1. Microprocessor design and nozzle type wire spreading head with tensioner, easy for program-setting.

2. Stepping motor driven by constant-current power supply, High spreading speed precise winding.

3. "Start Point " could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Wire spreading by nozzle type spreading head.

5. Wire passing through ceramic rollers prevent enamel from high temperature.

6. Multiple spindles winding synchronal for highest efficiency.

7. Foot-switch connection for better efficiency.

8. Winding parameters and options can be set independently for each step.

9. Memory capacity accommodates 999 steps of parameters with off-power memory retention.

10. Wire tensioner with nozzle type wire spreading head to make sure the fine wire winding to be precise and perfect under high speed.

Specification :

Model

SS861

SS862

SS863

SS864

Spindles

1

2

3

4

Wire size

0.03~0.6mm(Depends on Tensioner & Nozzle inner diameter)

Spread pitch

0~9.999mm

Spread width

100mm (Max. )

Coil diameter

100mm (Max. )

Main motor

Brushless Motor

Spread motor

Stepping motor

Max. speed

6000RPM

Memory

999 Sequences

Power source

AC220V /110V ±10%, 50/60 Hz

Dimension (cm)

45x67x100

50x67x100

75x67x100

100x67x100

Net weight(Kg)

45

50

55

60
