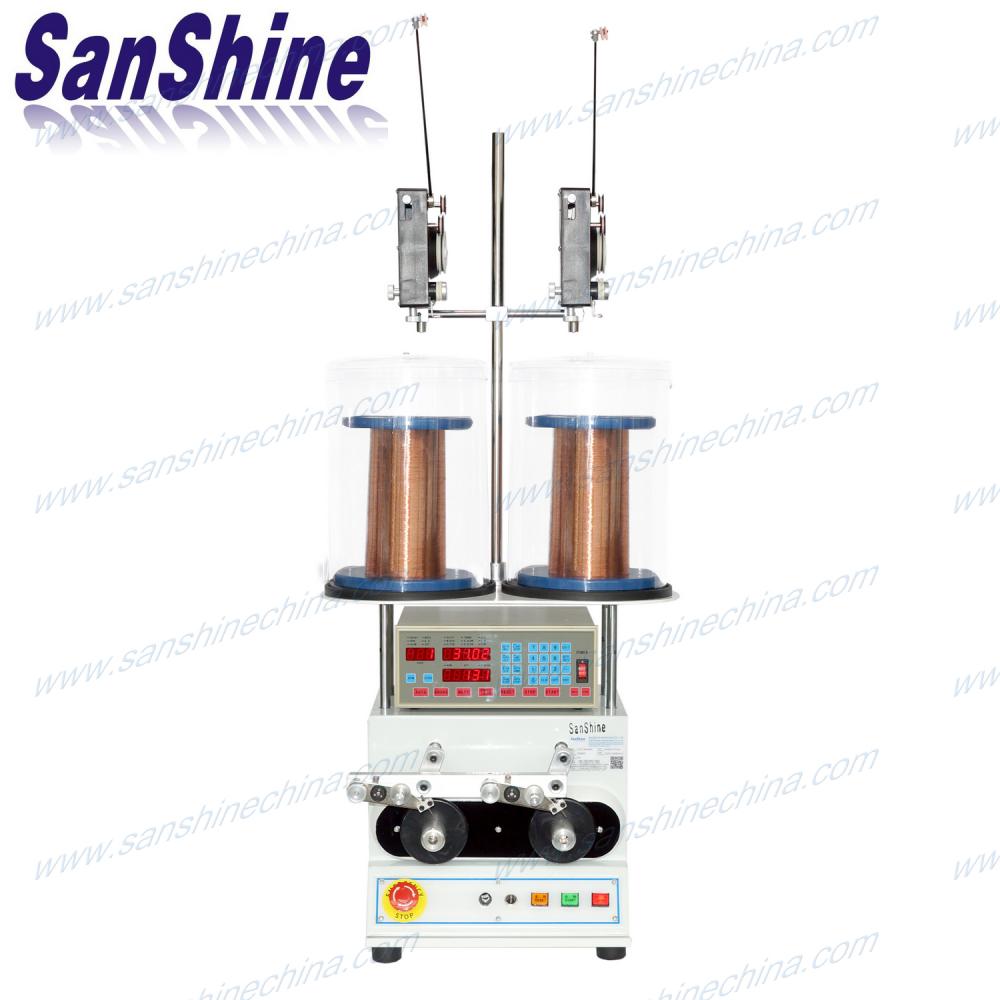

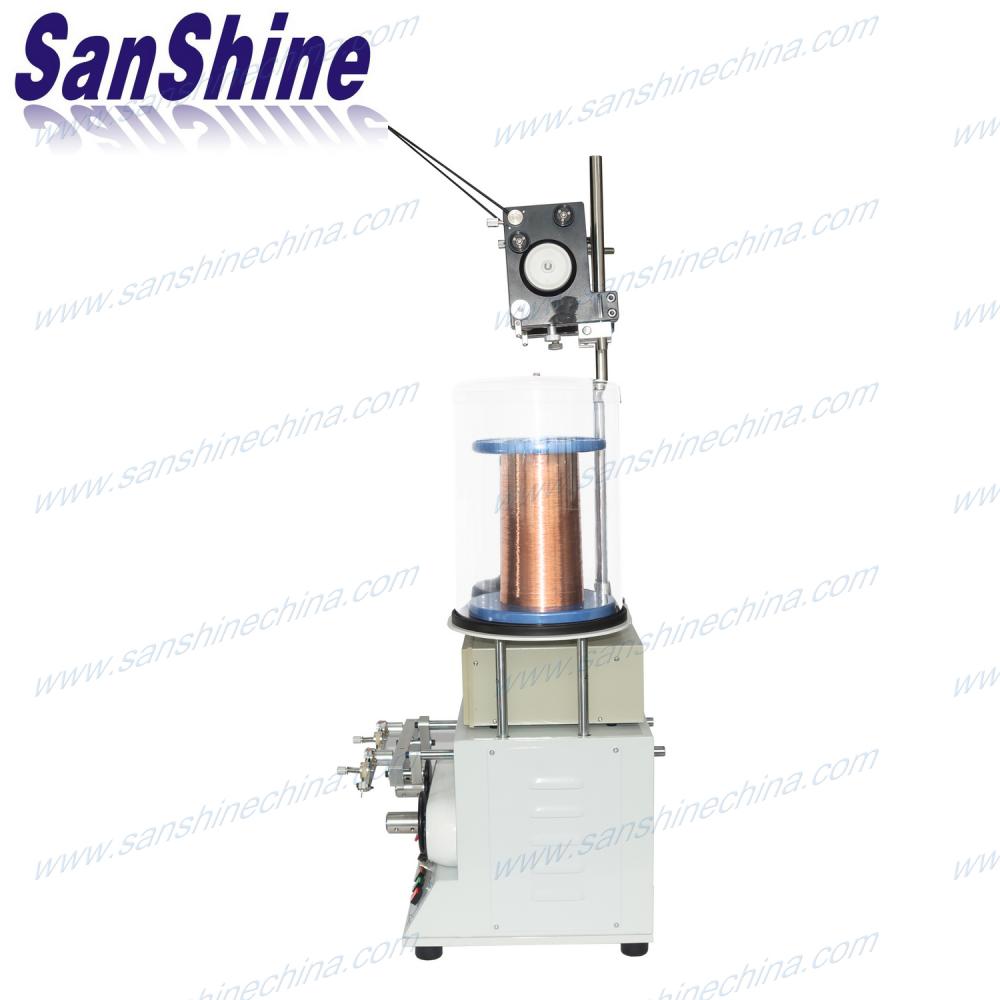

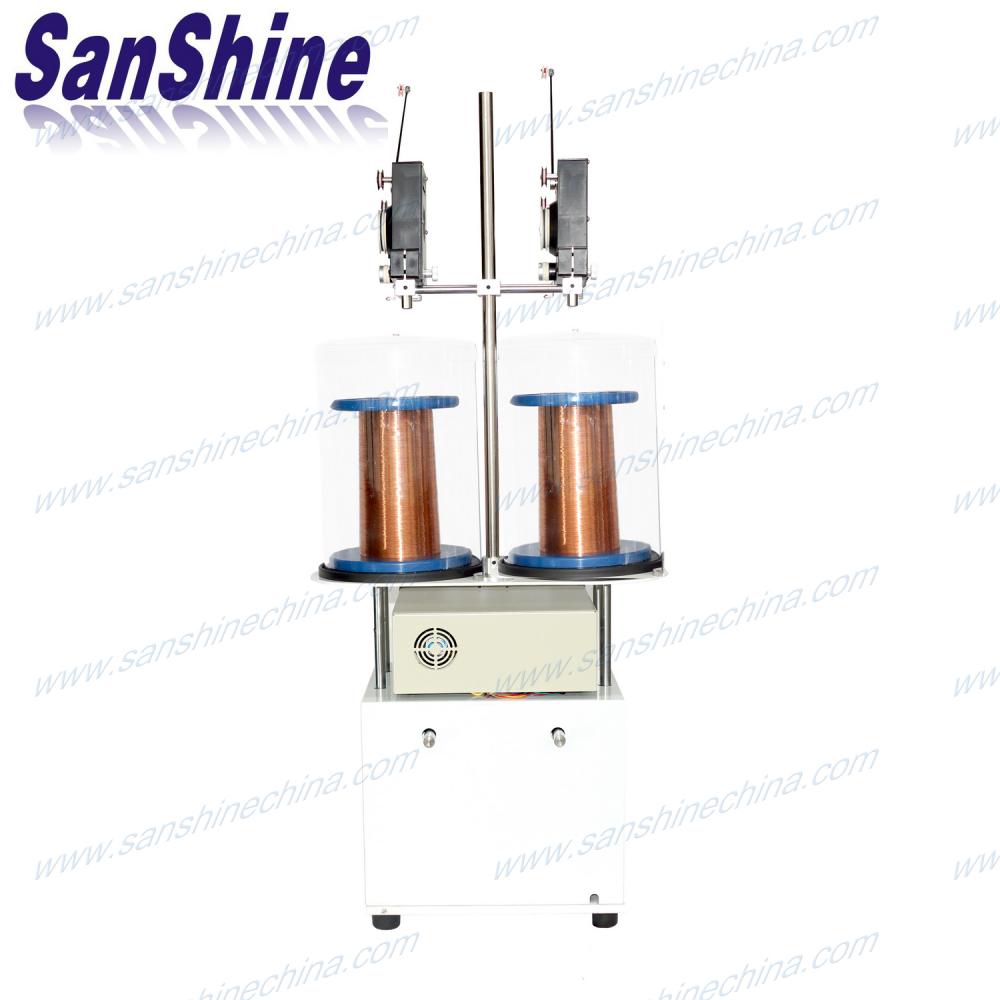

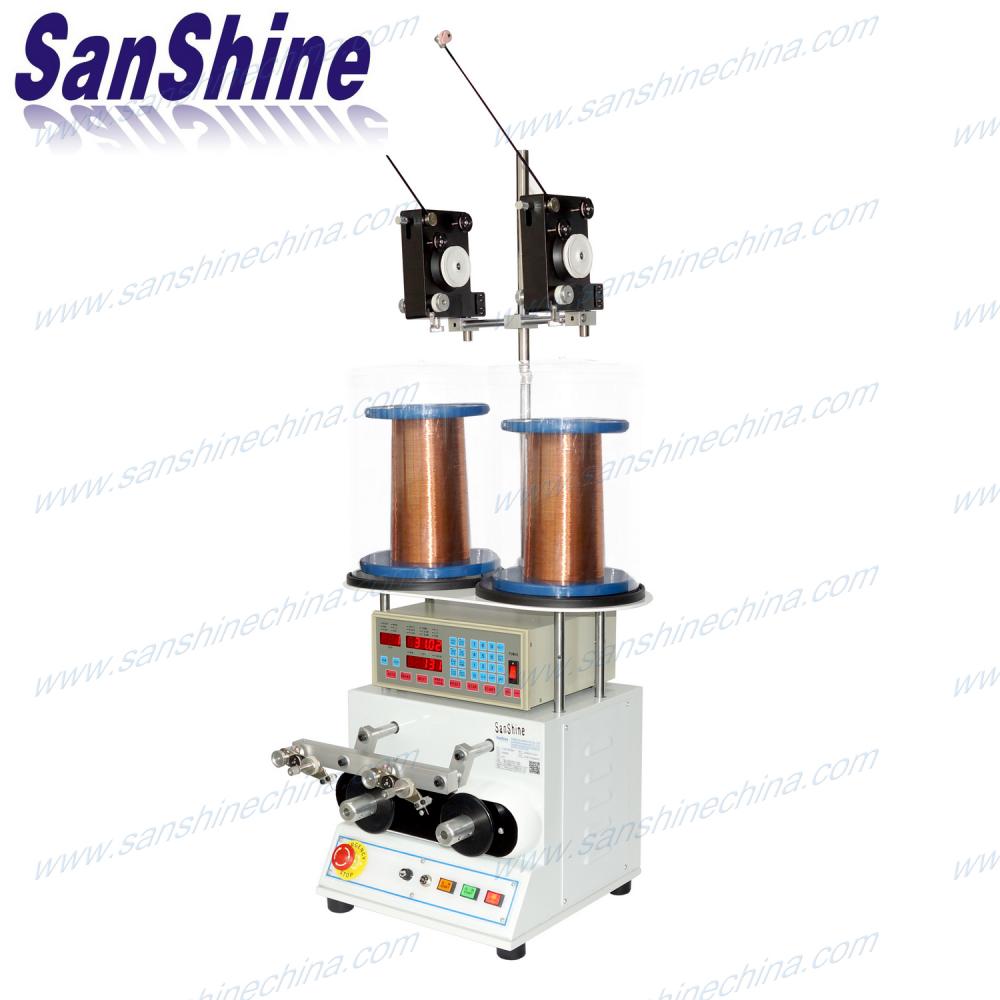

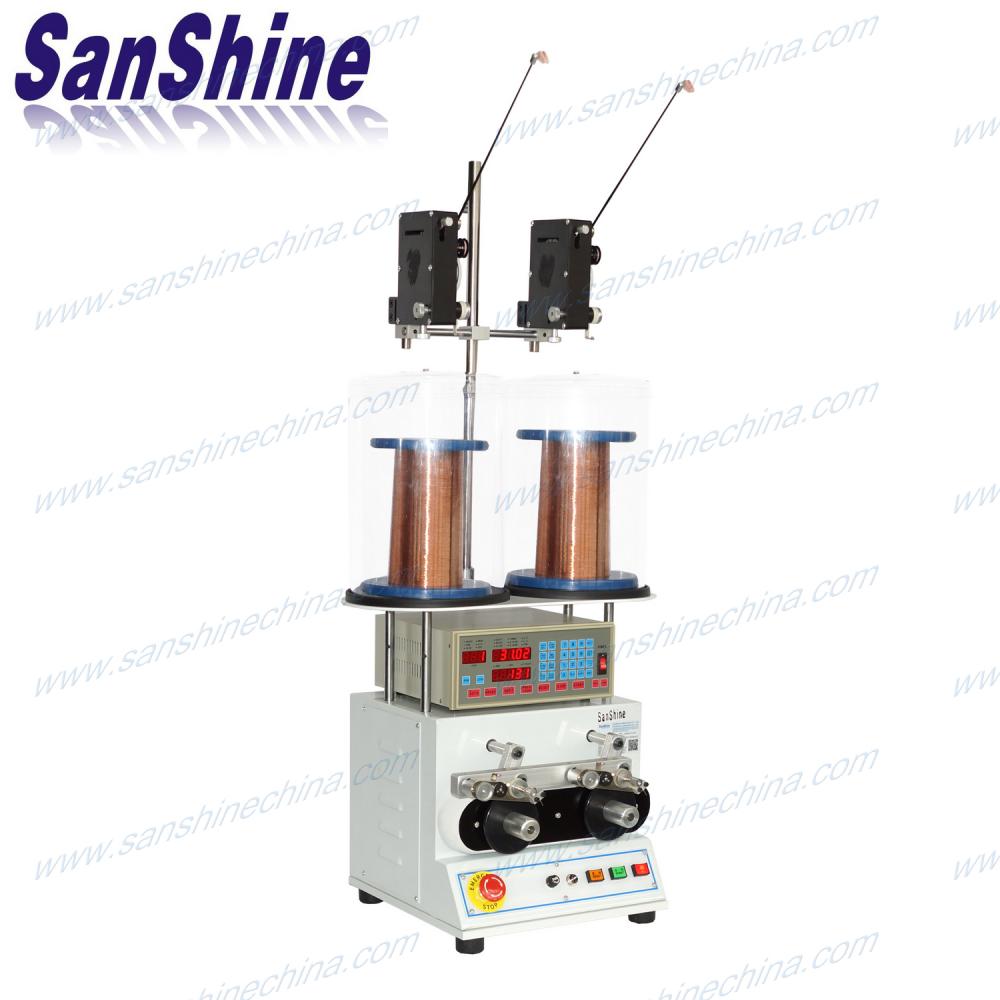

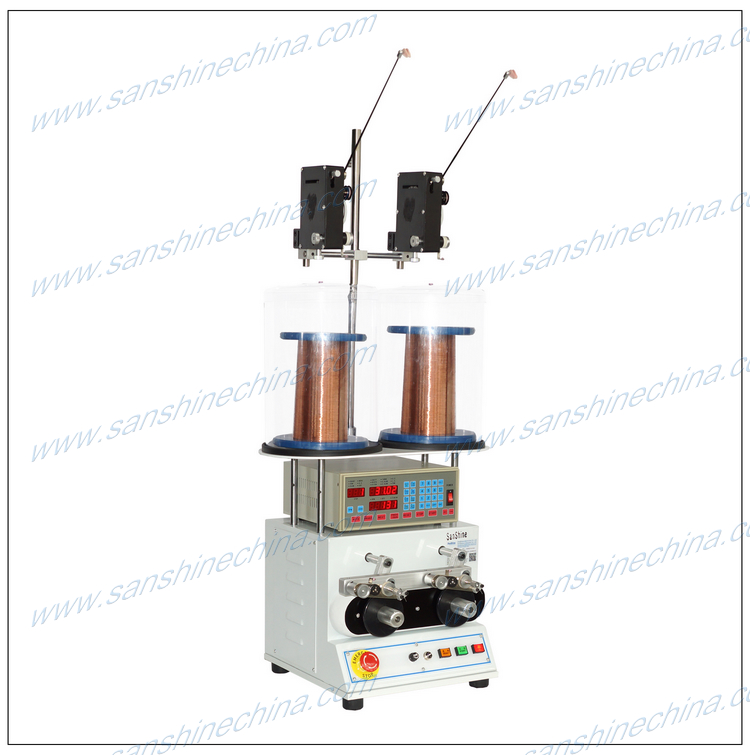

front two spindles automatic coil winding machine

The front two spindles automatic coil winding machine (SS862) is used for winding the fine wire coils. Like as : transformers, inductors, relays, contactor, etc. . This winding machine also be called contactor coil winding machine.
  • Item NO.:

    SS862
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White
contact now
Description

Product name : Front two spindles automatic coil winding machine (SS862)

fine wire coil winding machine

two axis coil winding machine

two axis winding machine

two axis coil winder

motorcycle coil winding machine

automobile relay coil winding machine

flyback transformer coil winder

Description :

The Digital Front Two Spindles Automatic Coil Winding Machine (SS862) is a digital programmable High-speed coil winding machine, There are two pieces winding spindles. This coil winder adopts wire tensioners and wire winding nozzle spreading head to spread wire. This winding machine is the highest efficiency equipment. It be named two spindle winding machine also. This coil winding machine is best choice for winding transformer, inductor, relay, ignition, contactor, electric valve, etc. .

Feature :

1. Microprocessor and front type spindles design, easy for program-setting.

2. Stepping motor driven by constant-current power supply, High spreading speed precise winding.

3. "Start Point " could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Nozzle type wire spreading head with wire tensioner to make sure the fine wire be winded in precisely under high speed.

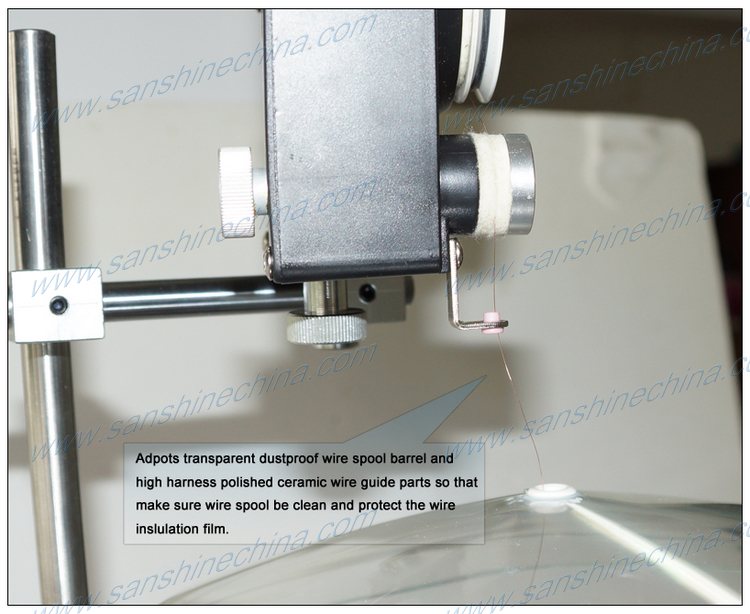

5. Wire passing through ceramic rollers prevent enamel from high temperature.

6. Multiple spindles winding synchronal for highest efficiency.

7. Foot-switch connection for better efficiency.

8. Winding parameters and options can be set independently for each step.

9. Memory capacity accommodates 999 steps of parameters with off-power memory retention.

Specification :

Model

SS861

SS862

SS863

SS864

Spindles

1

2

3

4

Wire size

0.03~0.8mm(Depends on Tensioner & Nozzle)

Spread pitch

0~9.999mm

Spread width

100mm (Max. )

Coil diameter

100mm (Max. )

Main motor

Brushless Motor

Spread motor

Stepping motor

Max. speed

6000RPM

Memory

999 Sequences

Power source

AC220V /110V ±10%, 50/60 Hz

Dimension (cm)

45x67x100

50x67x100

75x67x100

100x67x100

Net weight(Kg)

45

50

55

60
