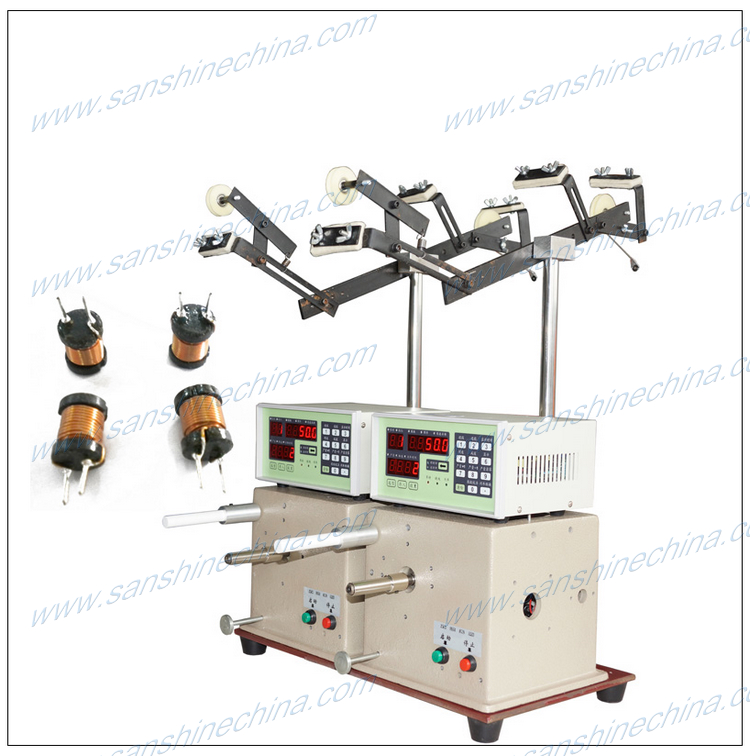

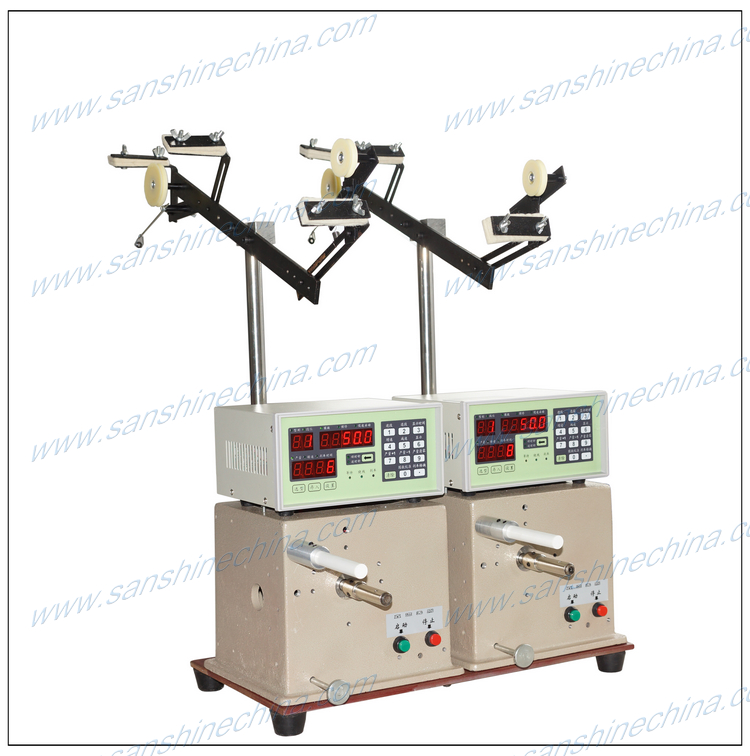

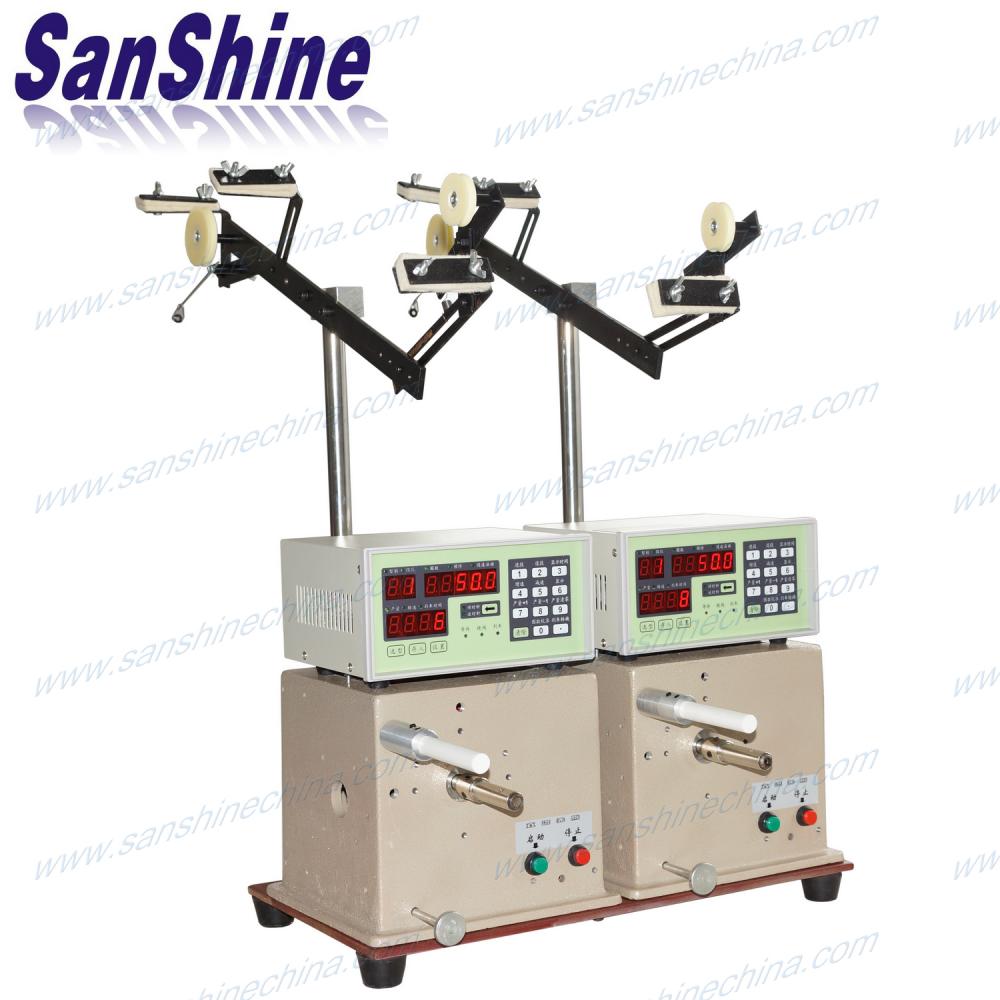

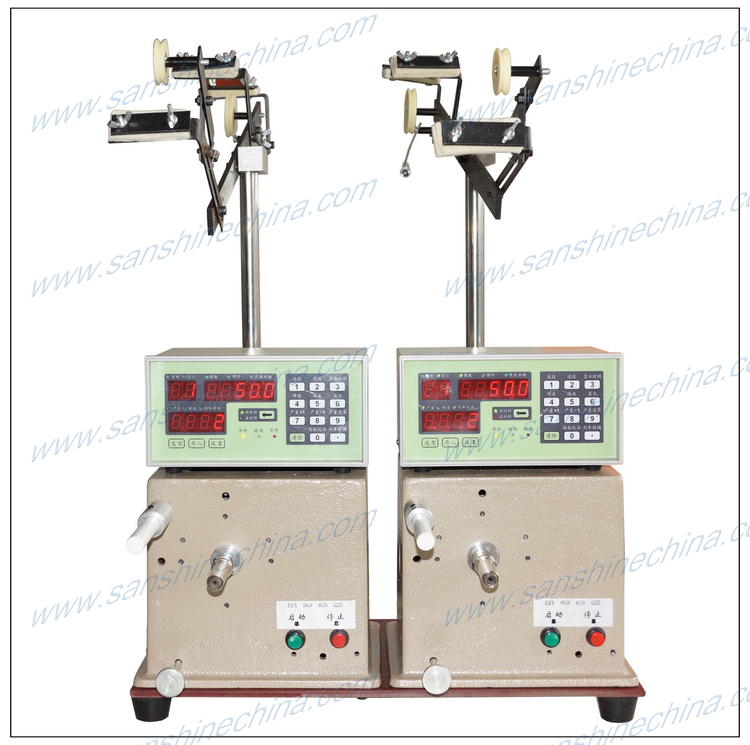

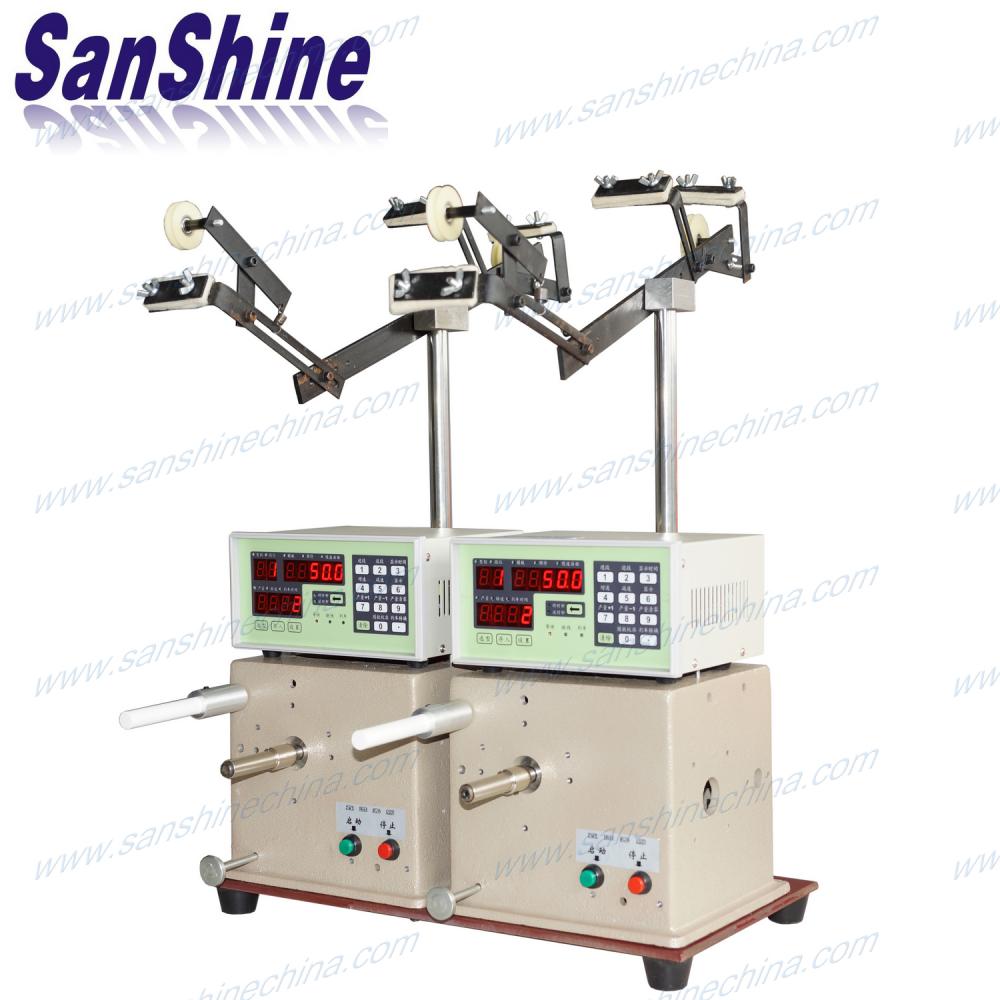

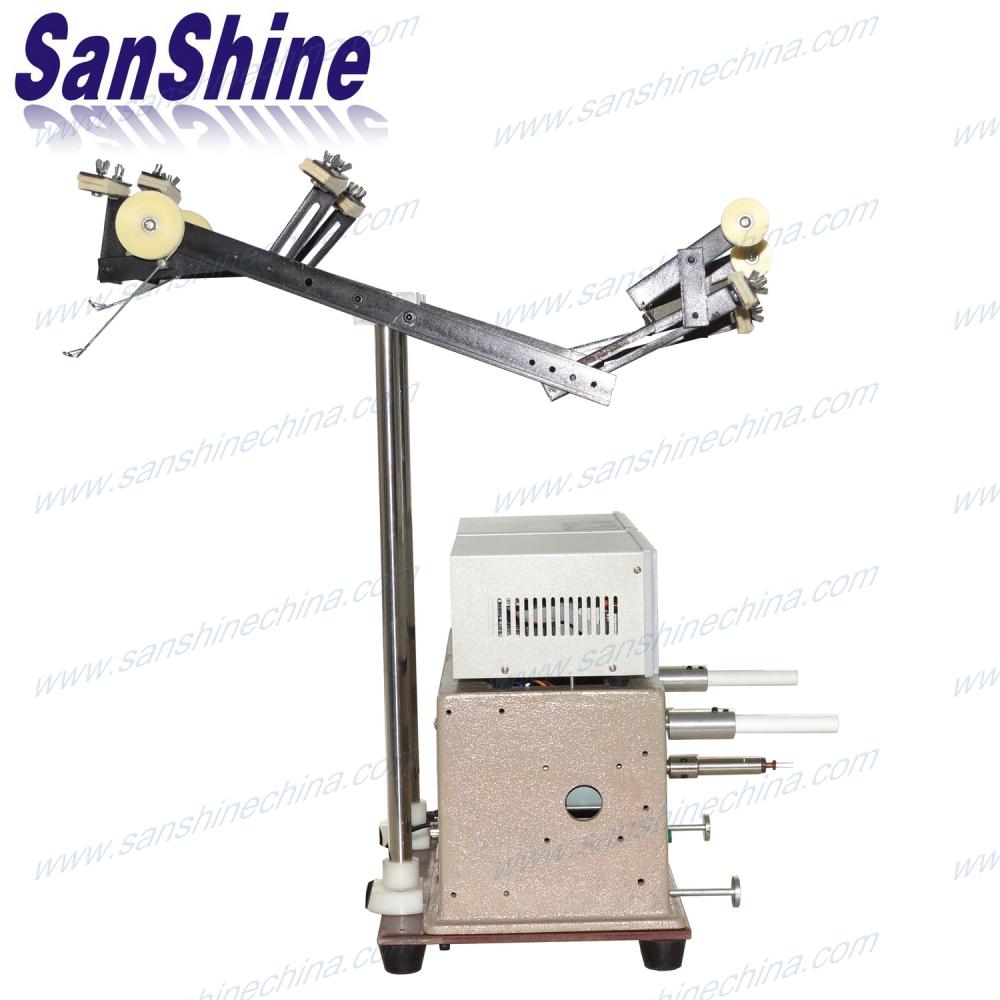

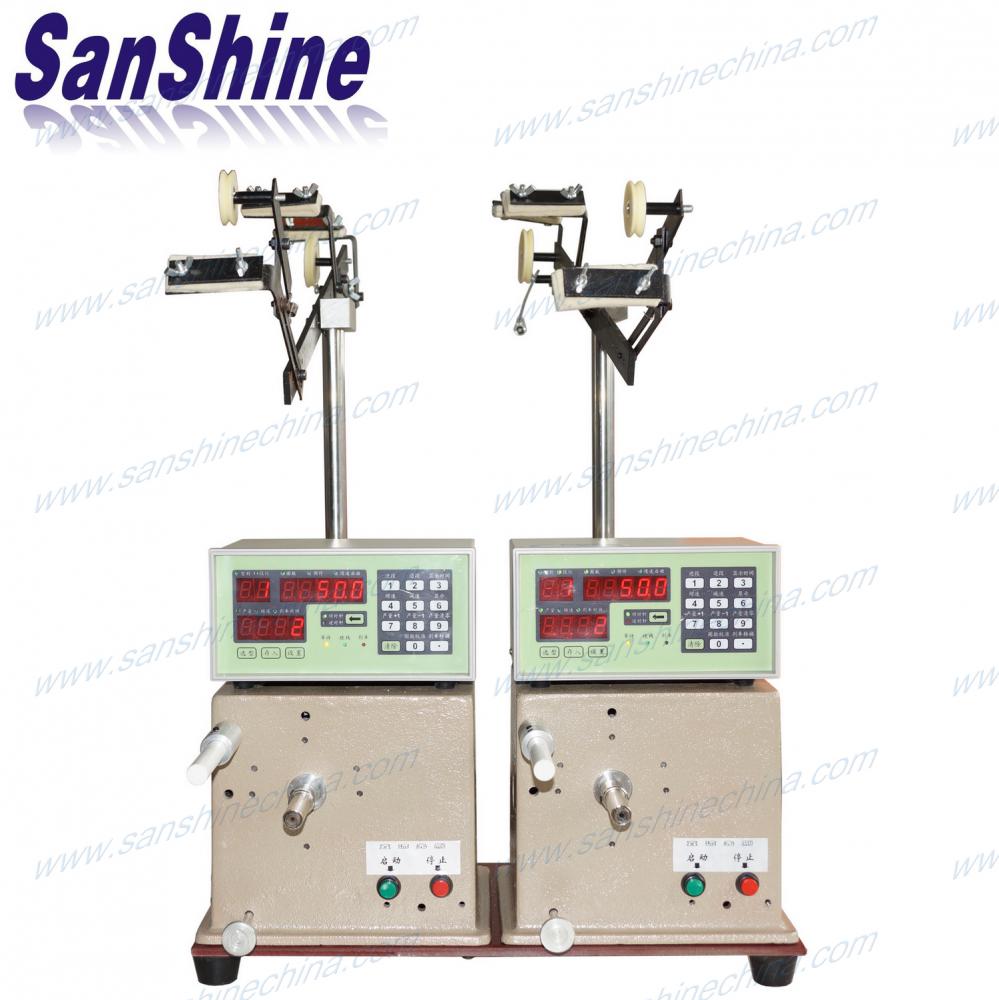

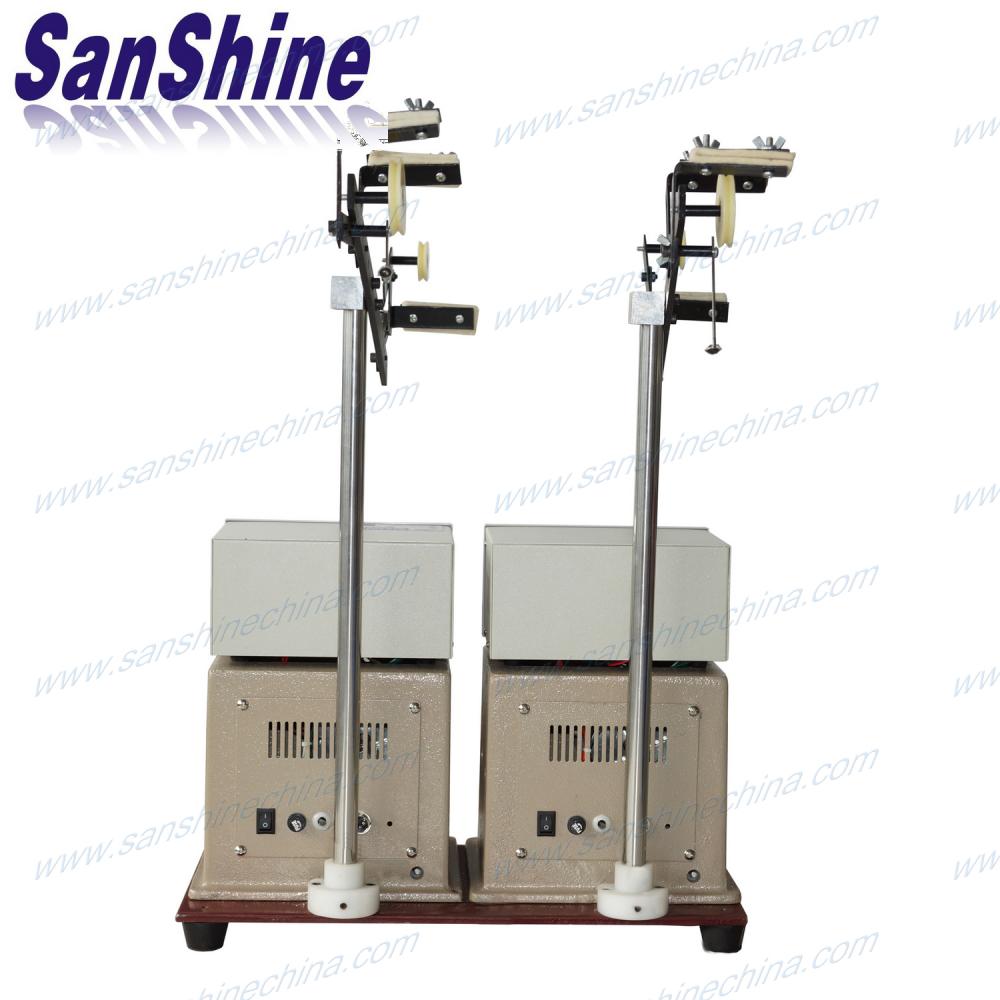

Two spindles drum core inductor winding machine

The two spindles drum core inductor winding machine (SS100C) is a digital coil winding machine. This winder has two winding spindles. It's an accurately and reliability digital coil winding machine for winding SMT SMD inductors and drum core inductors, etc.. It is very economical. This winding machine is called SMT drum core inductor winding machine and two spindles surface mount inductor coil winding machine.
  • Item NO.:

    SS100C
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Brown
contact now
Description

Product name : Two spindles drum core inductor winding machine (SS100C)

two spindles linearity coil winder

shielded inductor winding machine

surface mount coil winding machine

SMD coil winding machine

SMD inductor winding machine

round core winding machine

Description :

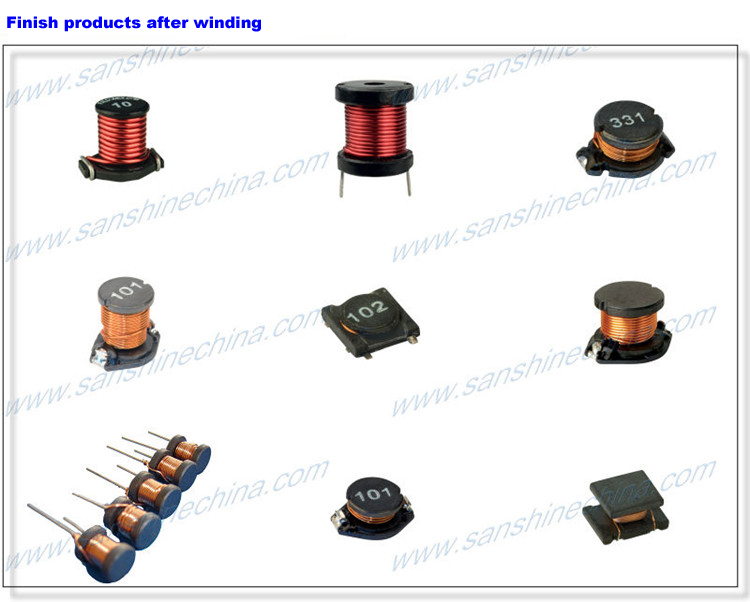

The two spindles drum core inductor winding machine (SS100C) is a digital type coil winding machine. This winder has two winding spindles. It adopts a digital controllers. This machine is an accurately and reliability digital coil winding machine. This winding machine is best suited for winding SMT SMD inductors, drum core inductors, unshielded SMD power inductor, shielded SMD SMT inductors, surface mount inductors, round core coils, etc.. This winder be called round unshielded SMD inductor winding machine, unshielded ultra current inductor winding machine, unshielded ultra high current inductor winding machine and two spindles smoothing choke coil winding machine also. It is a very economical winding machine for winding the SMD and drum core inductors.

Features :

1. Accurately count turns of winding by precise photo-electricity sensor.

2. Programmable winding direction, winding turns, winding speed, pre-stop and pre-start speed. Programmable many steps for many different coils.

3. Scientific winding fixture for loading the core to wind and finished unload easy.

4. Memory capacity accommodates 99sequences of parameters with off-power memory retention.

5. Spread wire by automatically via the smooth ceramic round stick.

6. More convenience by using foot-switch.

Specification :

Spindles: 2 spindles

WIRE SIZE: Φ0.02~1.2mm

SPEED: 300 ~8570rpm

WINDING MOTOR: DC brushless Motor

MEMORY CAPACITY: 999 Steps

POWER SOURCE: AC220V/110V ±10%, 50/60 Hz

BRAKE WAY: Use clutch.
