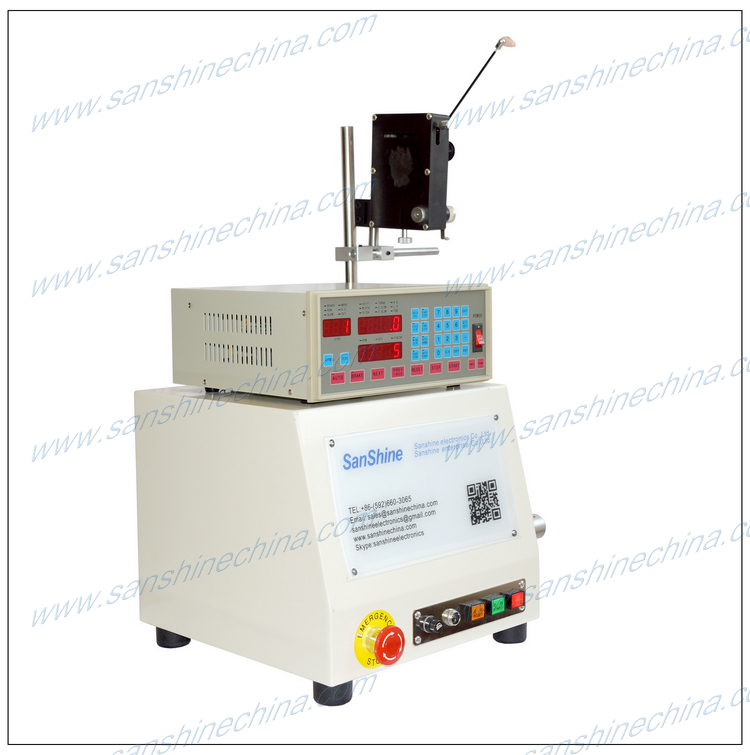

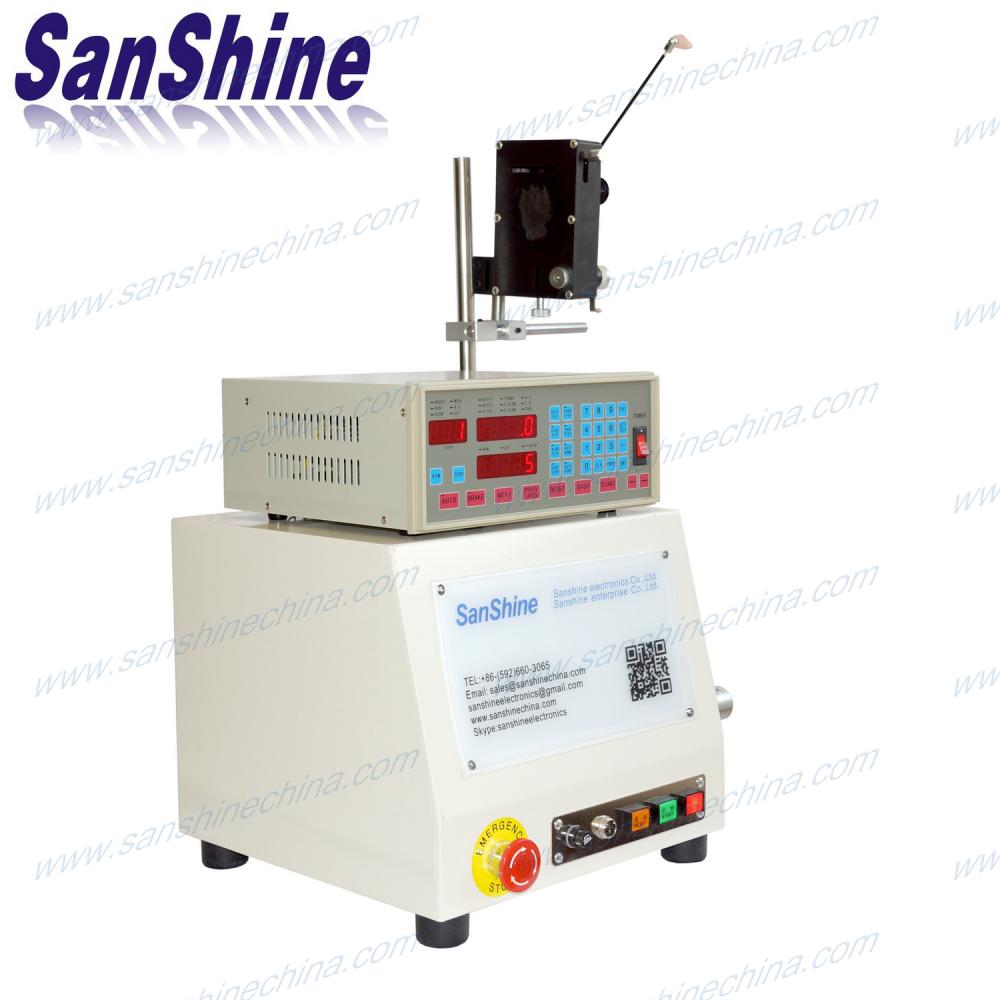

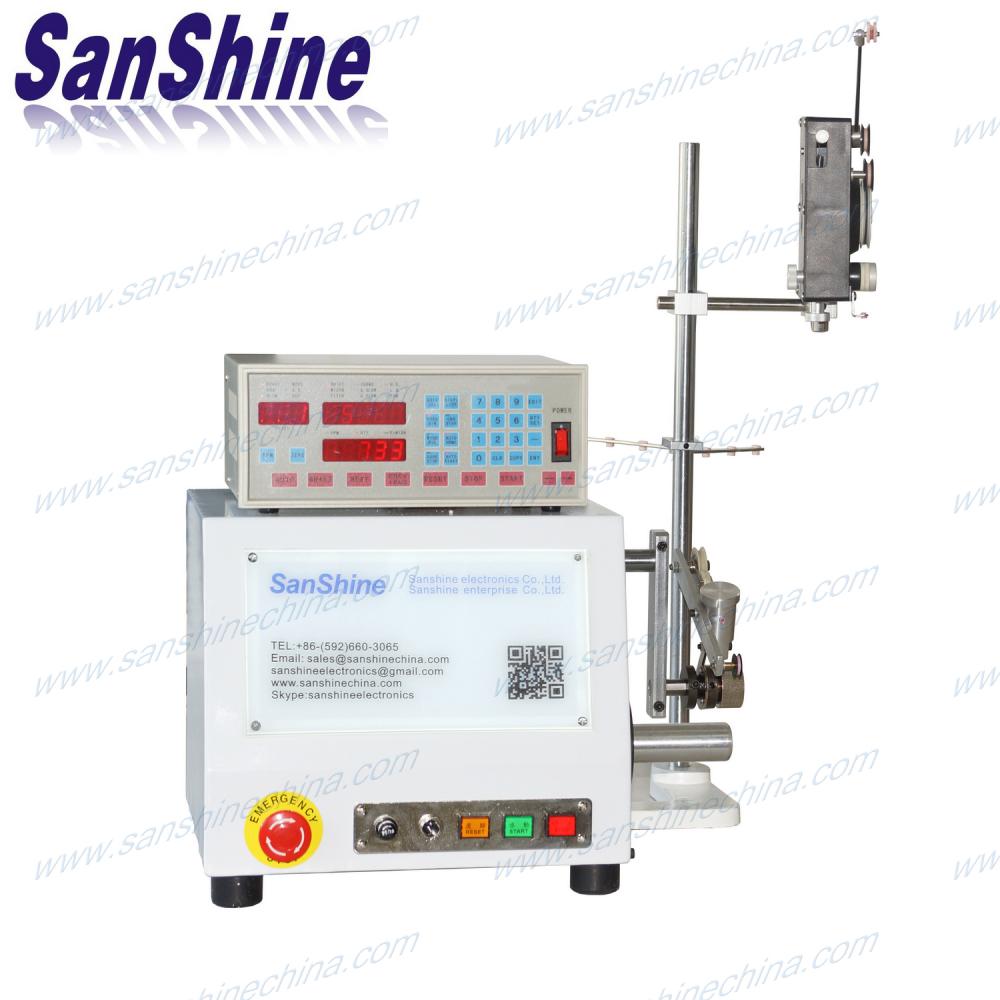

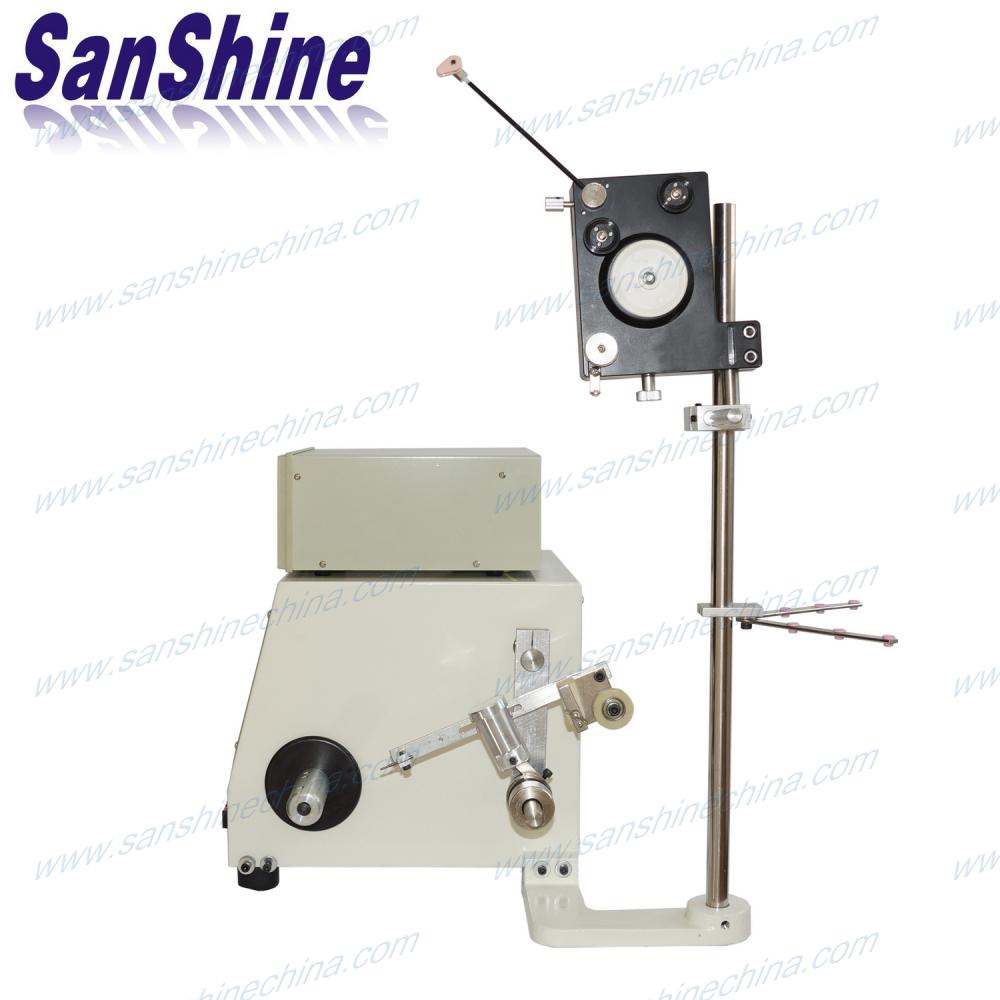

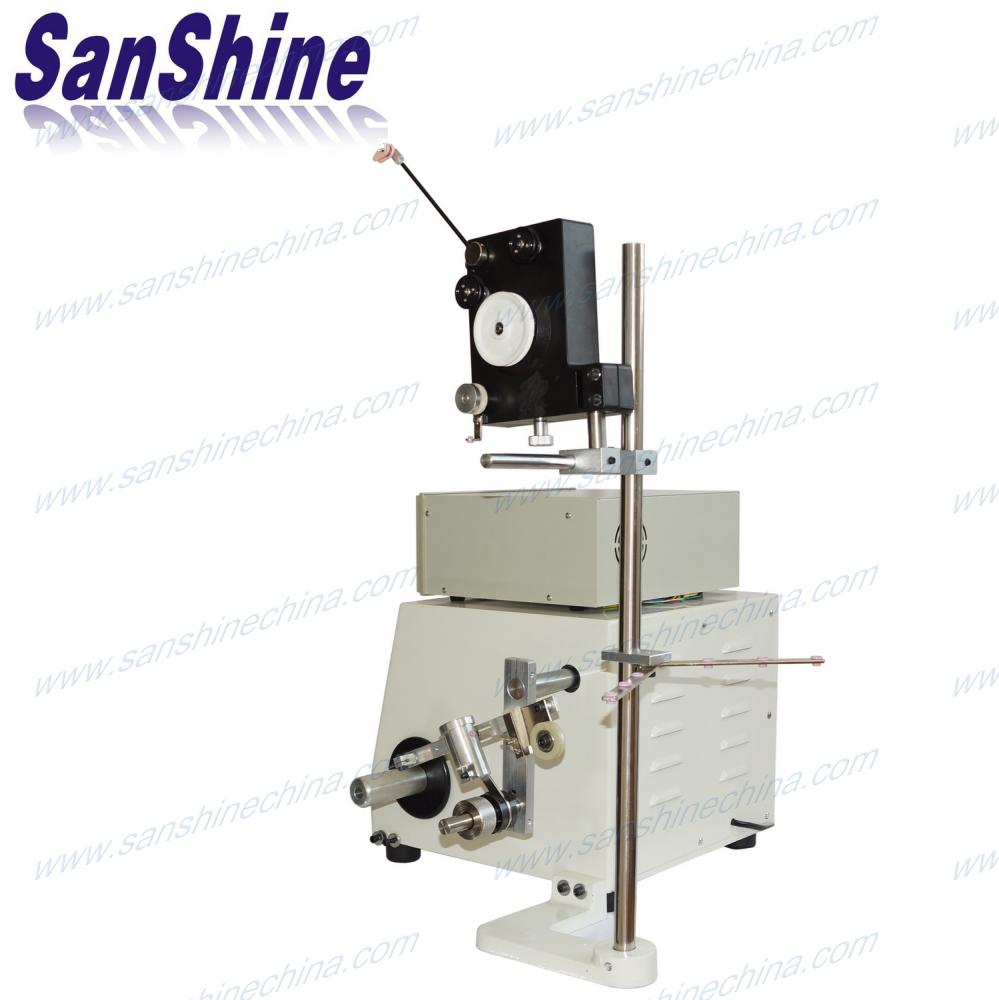

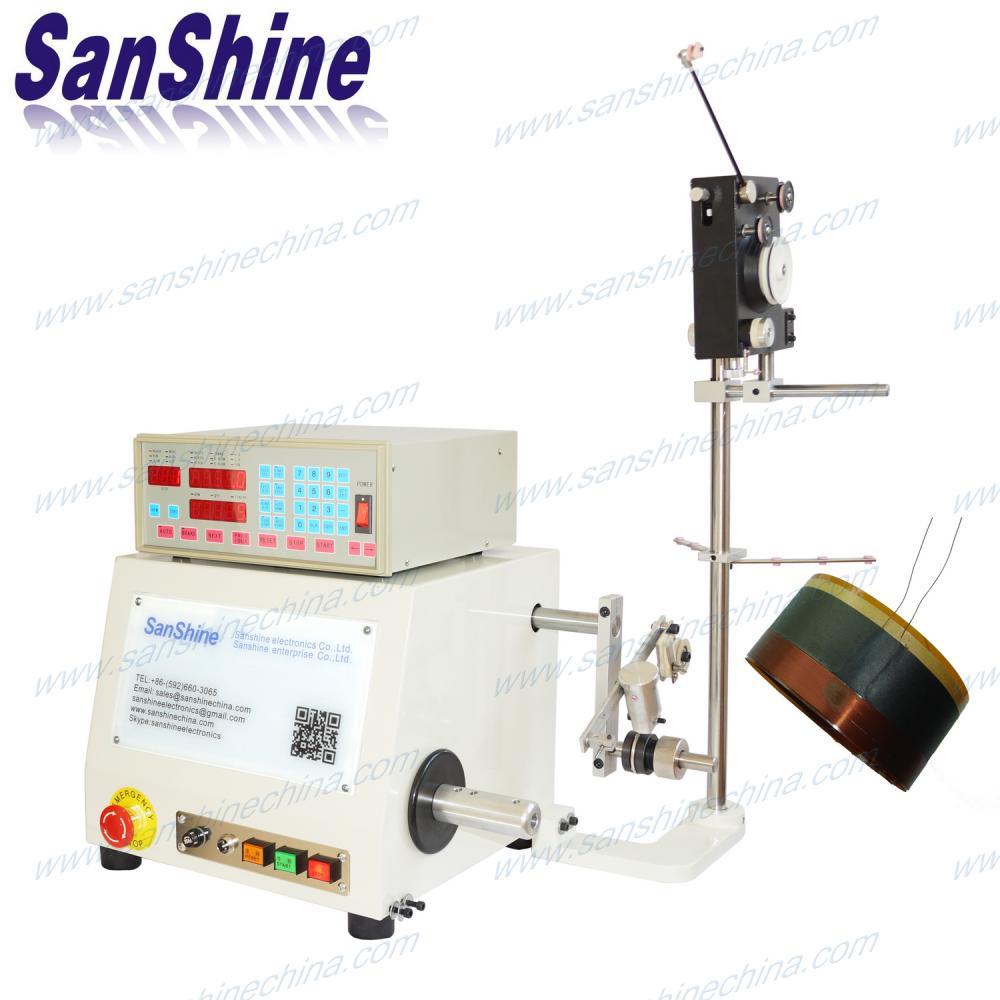

Automatic big speaker voice coil winding machine

This automatic big speaker voice coil winding machine (SS600V) is used for winding the alcohol self-bonding enamel wire voice coil with the bobbin. This voice coil winding machine be named bass voice wire coil winder also.
  • Item NO.:

    SS600V
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White
contact now
Description

Product name : Automatic big speaker voice coil winding machine (SS600V)



paper tube voice coil winding machine

loudspeaker coil winding machine

big voice coil winding machine

kapton voice coil winding machine

sound voice coil winding machine

subwoofer coil winding machine

bass voice coil winding machine

loundspeaker voice coil winder

Description :

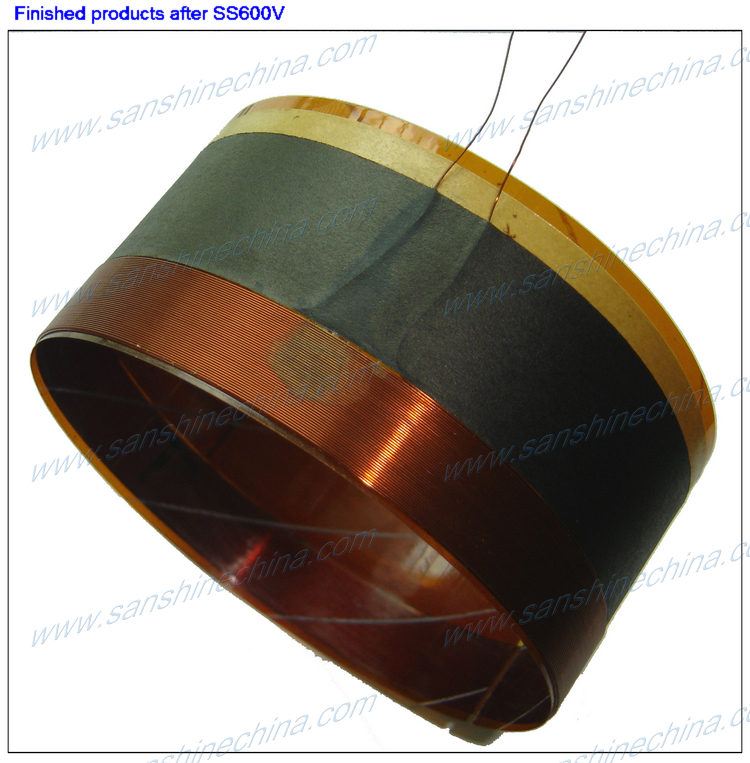

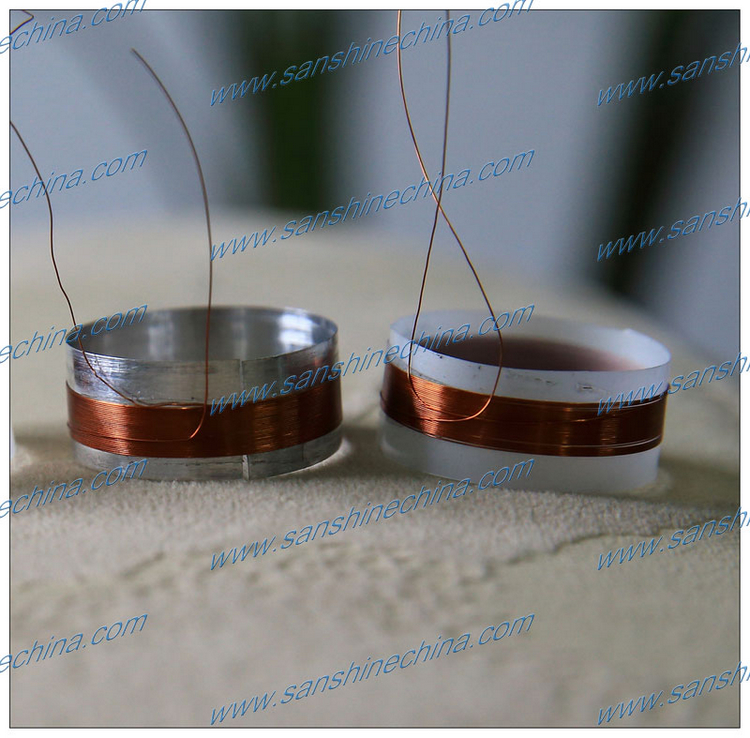

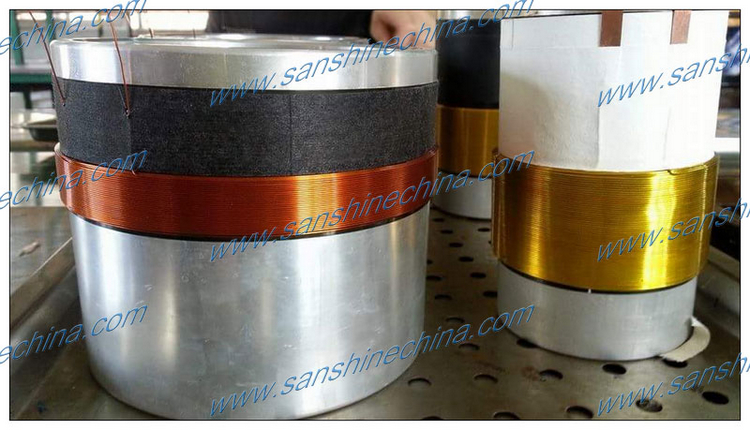

The CNC Automatic Big Speaker Voice Coil Winding Machine (SS600V) is one CNC digital programmable coil winding machine. Adopts the alcohol bath wire spreading head with the machine. This voice coil winding machine be named alcohol selfbonding wire winding machine also. This speaker coil winding machine is used for winding the alcohol selfbonding enamelled wire voice coil with the bobbin. Like as : subwoofer voice coil, horn voice coil, bass voice coil, etc. . It's the best choice for the big speaker voice coil.

Features:

1. Alcohol bath wire spreading head for the alcohol selfboding wires .

3. Step motor driven by constant-current power supply, high spreading speed precise winding.

4. "Start Point" could set by key panel or with teachable function. Display will show the position of spreading head while setting.

5. Wire passing through ceramic guides prevent insulation enamel from high temperature.

6. Foot-switch connection for better efficiency.

7. Winding parameters and options can be set independently for each step.

8. Memory capacity accommodates 999 steps of parameters with off-power memory retention.

Specification:

Model

SS600V

Spindles

1

Wire size

0.08~1.0mm

Spread pitch

0~9.999mm

Spread width

100mm (Max. )

Coil diameter

110mm (Max. )

Main motor

DC brushless Motor

Spread motor

2-Phase Stepper Motor

MAX. speed

6000RPM

Memory

999 Steps

Power source

AC220V / 110V ±10%, 50/60 Hz

Dimension(cm)

76x68x72

Net weight(Kg)

37
