Voice coil winding machine

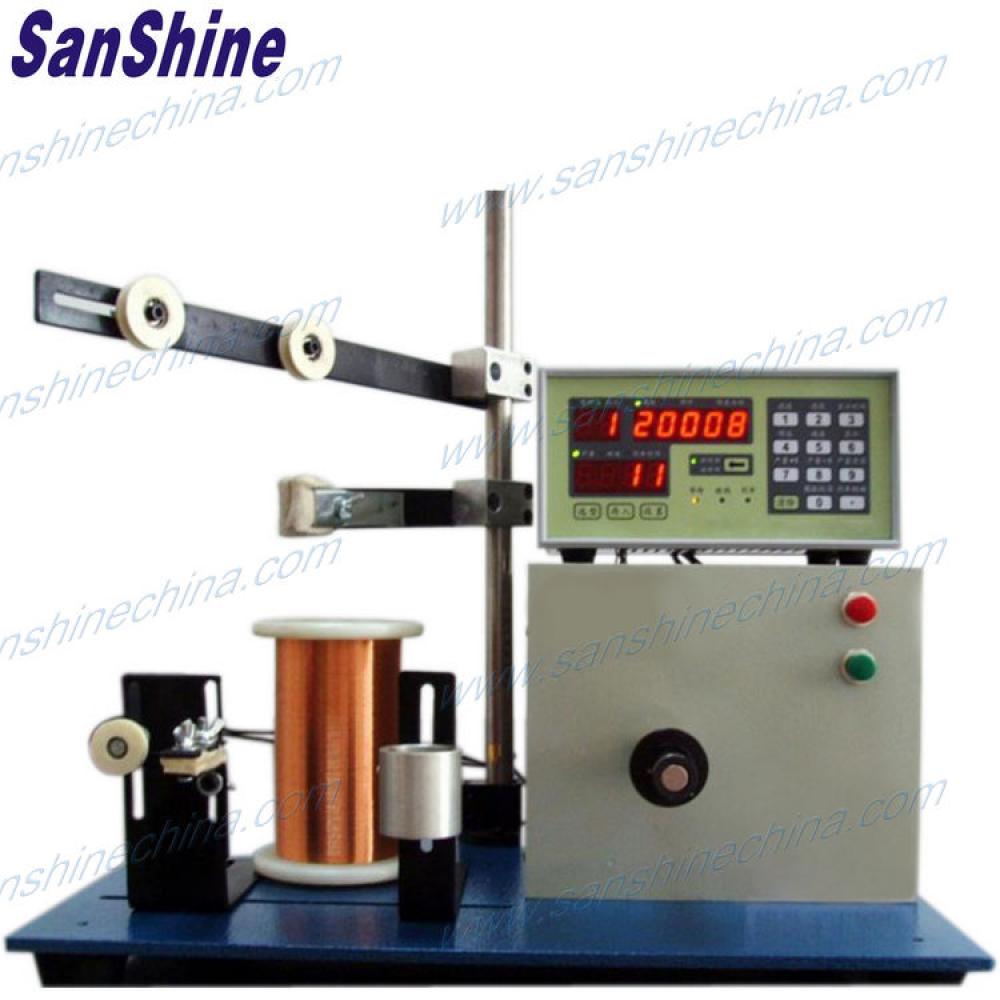

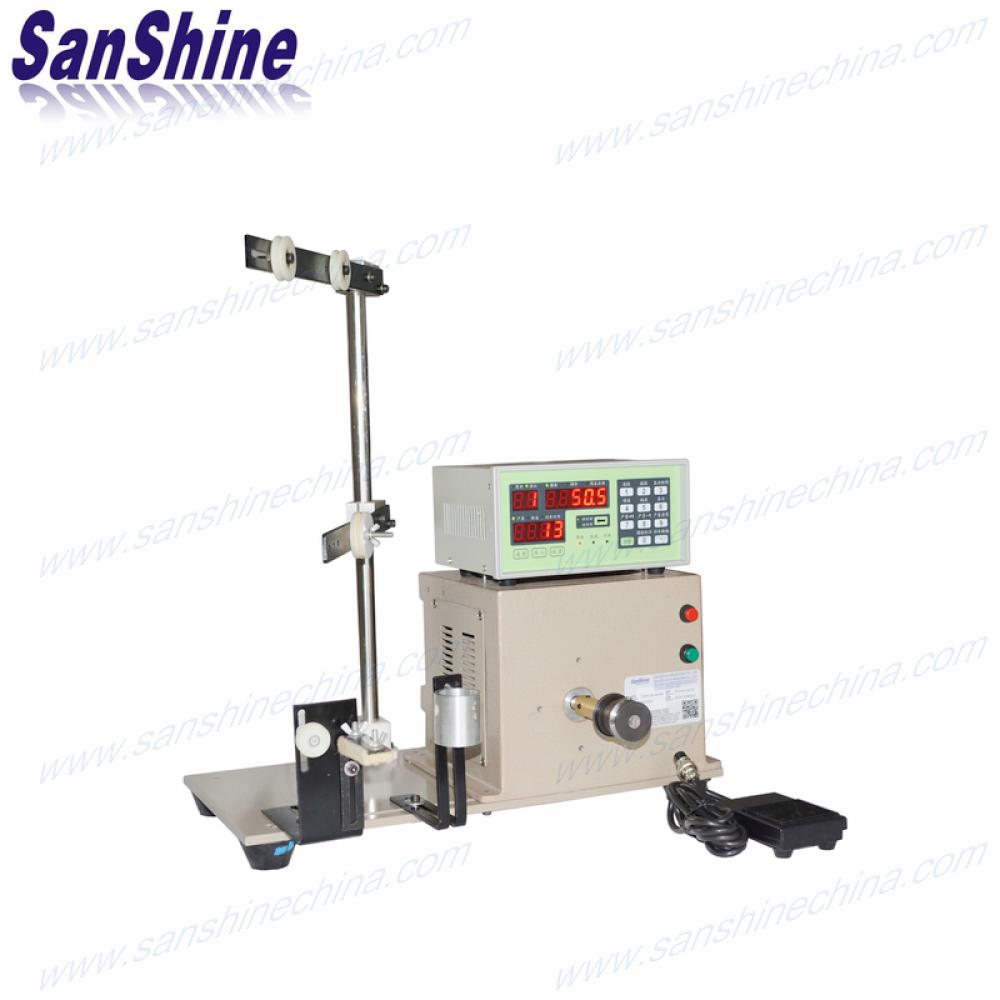

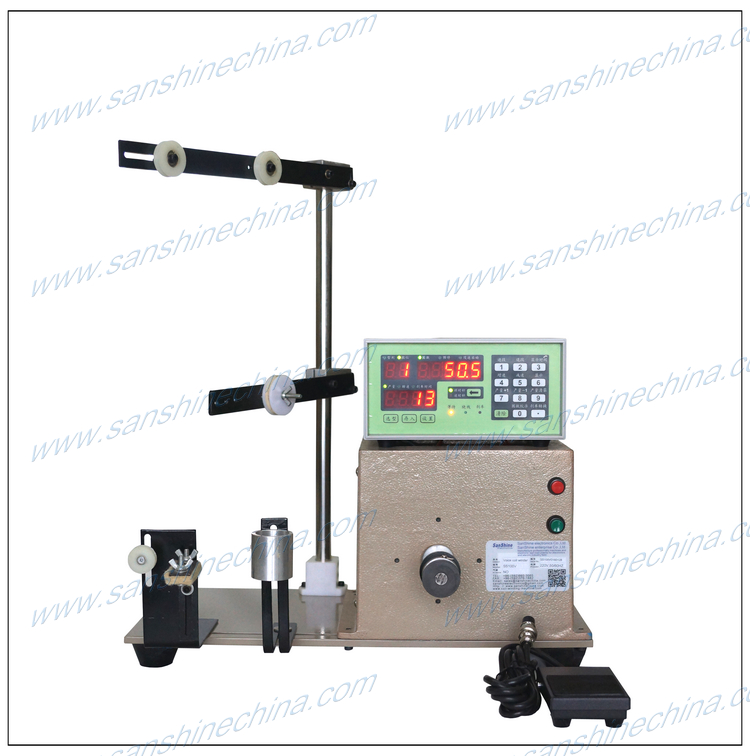

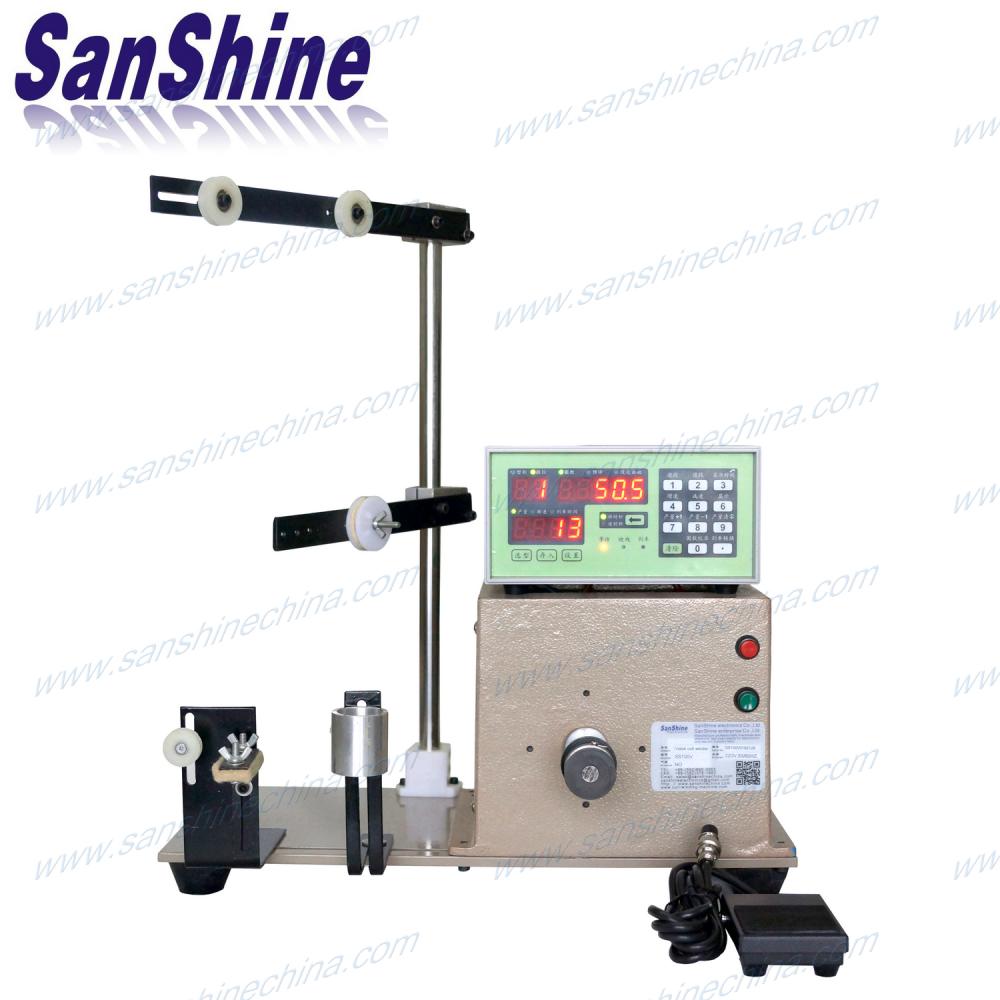

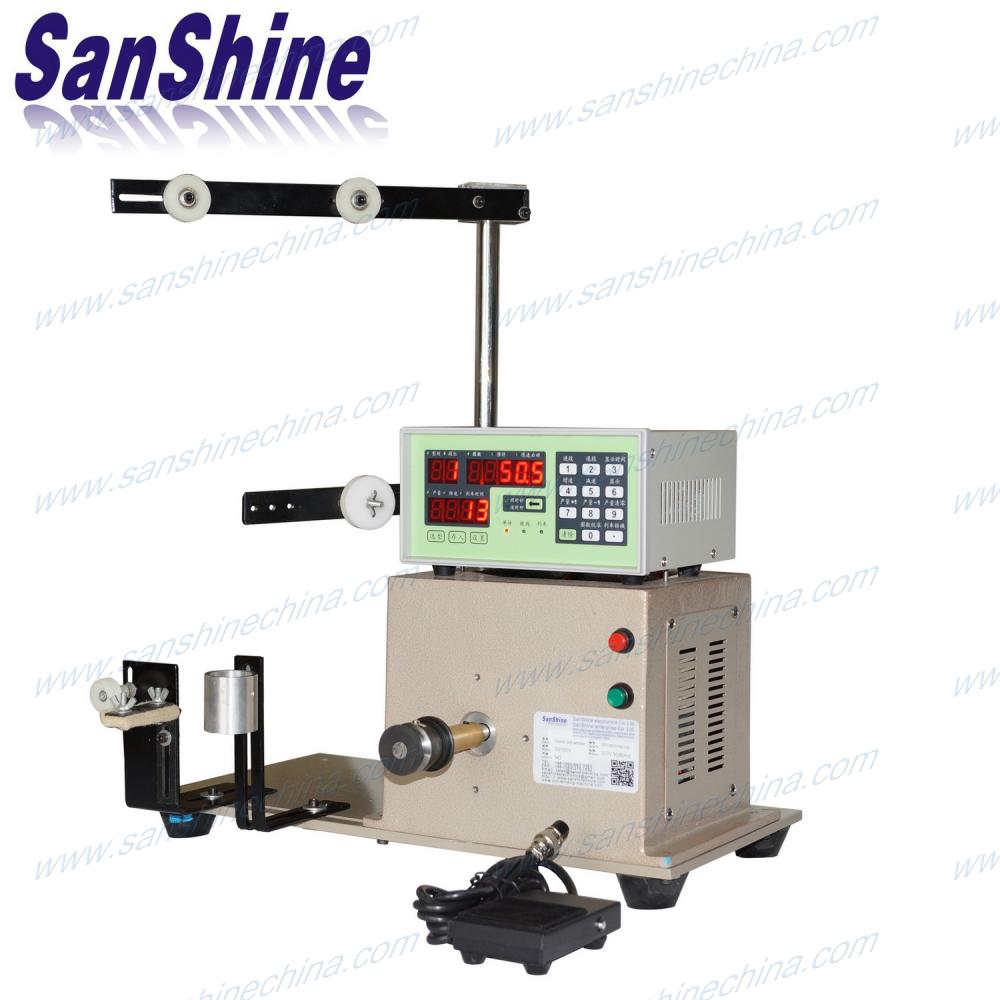

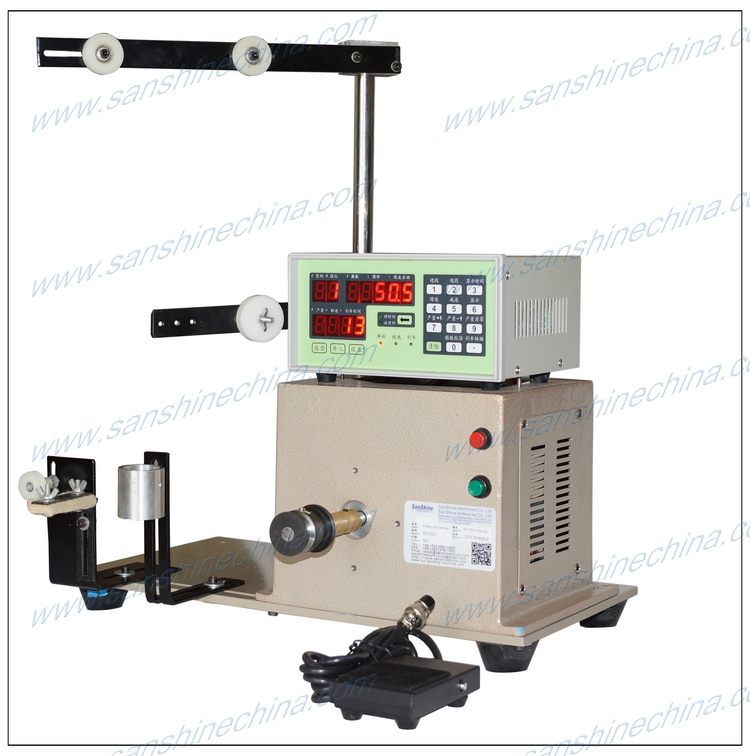

The voice coil winding machine (SS100V) is a digital coil winding machine. This winder is used for winding the small voice coils without bobbin, like as: mobile phone speaker voice coil, small speaker voice coil, earphone speaker coil,etc.. It is named mobile phone speaker voice coil winding machine also.
  • Item NO.:

    SS100V
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Brown
contact now
Description

Product name : Voice coil winding machine (SS100V)

china earplug winding machine

headset coil winding machine

phone coil winding machine

phone speaker coil winder

earphone coil winder

Description:

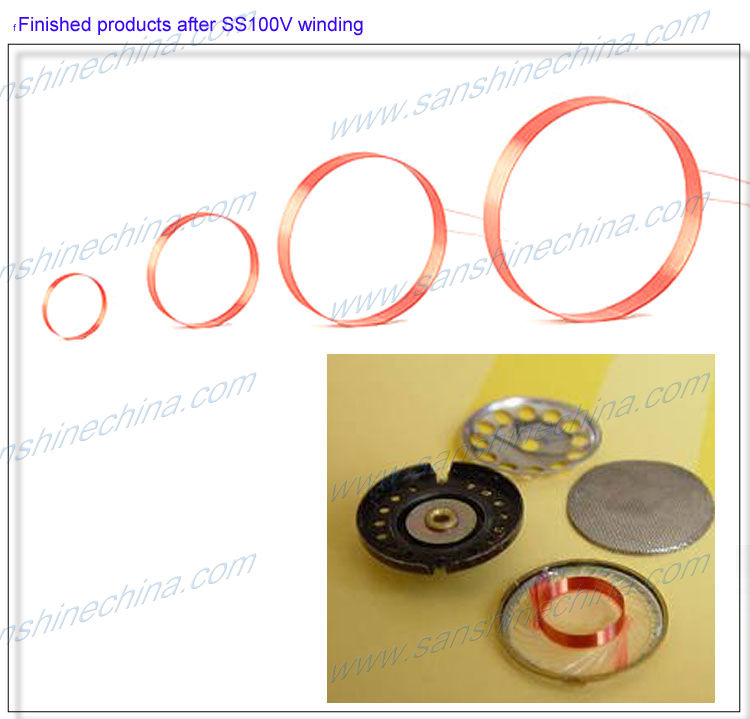

The voice coil winding machine (SS100V) is a digital voice coil winding machine. This winder adopts digital controller. It's an accurately and reliability digital coil winding machine. This coil coil winding machine used for winding the alcohol self-bonding winding small voice coil without the bobbin or paper tube or, like as: mobile phone speaker voice coil, small speaker voice coil, earphone speaker coil, etc.. This voice coil winder is called alcohol self bonding air coil winding machine, sell phone earphone coil winding machine and mobile phone earphone coil winding machine also. It is a very economical winding machine.

Features:

1. Accurately count turns of winding by precise photo-electricity sensor.

2. Programmable winding direction, winding turns, winding speed, pre-stop and pre-start speed. Programmable many steps for many different windings coil.

3. Scientific fast type winding fixture for winding and unload finished coil easy.

4. Memory capacity accommodates 99 sequences of parameters with off-power memory retention.

5. More convenience through using foot-switch.

6. Include one alcohol bath cup for winding the alcohol self bonding wires.

7. Spread wire by automatically.

Specification:

Wire size : φ 0.02~0.5mm

Winding speed : 300 ~8570rpm

Winding motor : DC brushless motor

Memory capacity : 999 steps

Power source : AC220V/110V±10%, 50/60 Hz.

Brake way : Use the reverse electromotive force of motor.


Related voice coil winding machine : SS600V
