Automatic thick wire long big coil winding machine

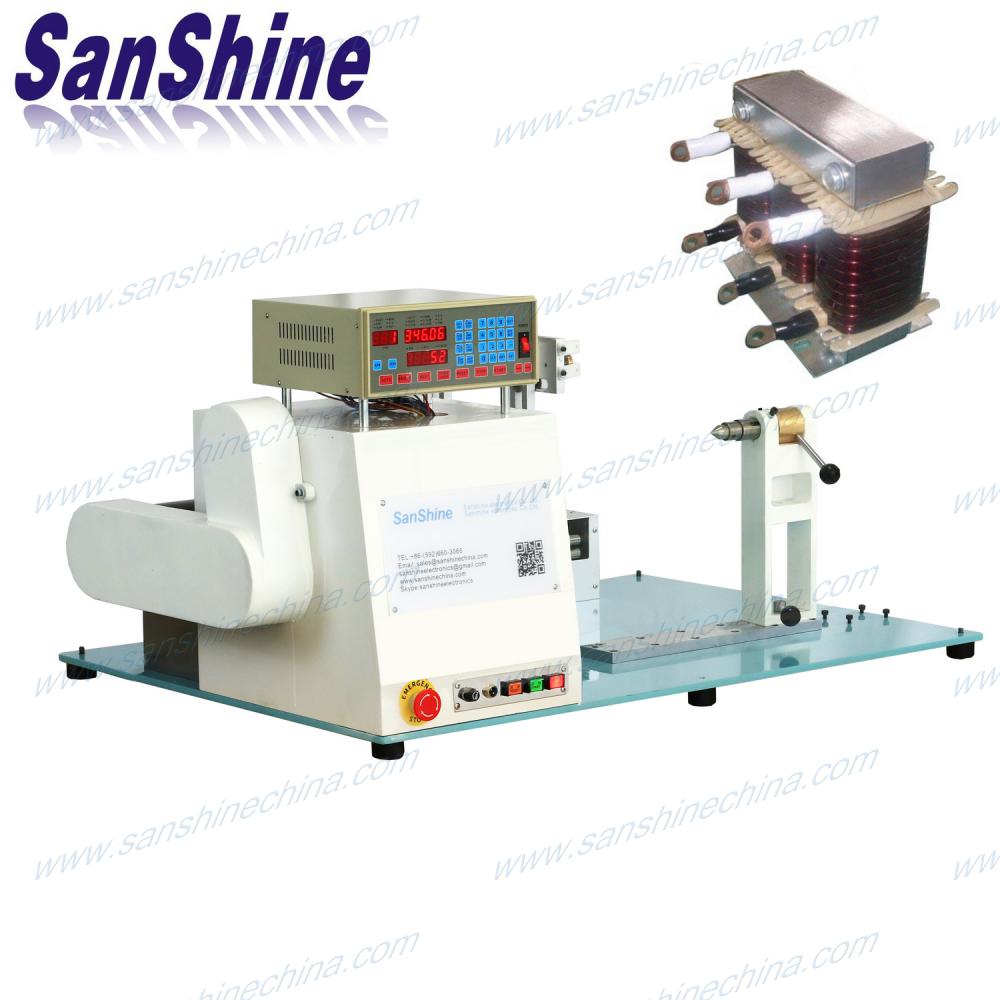

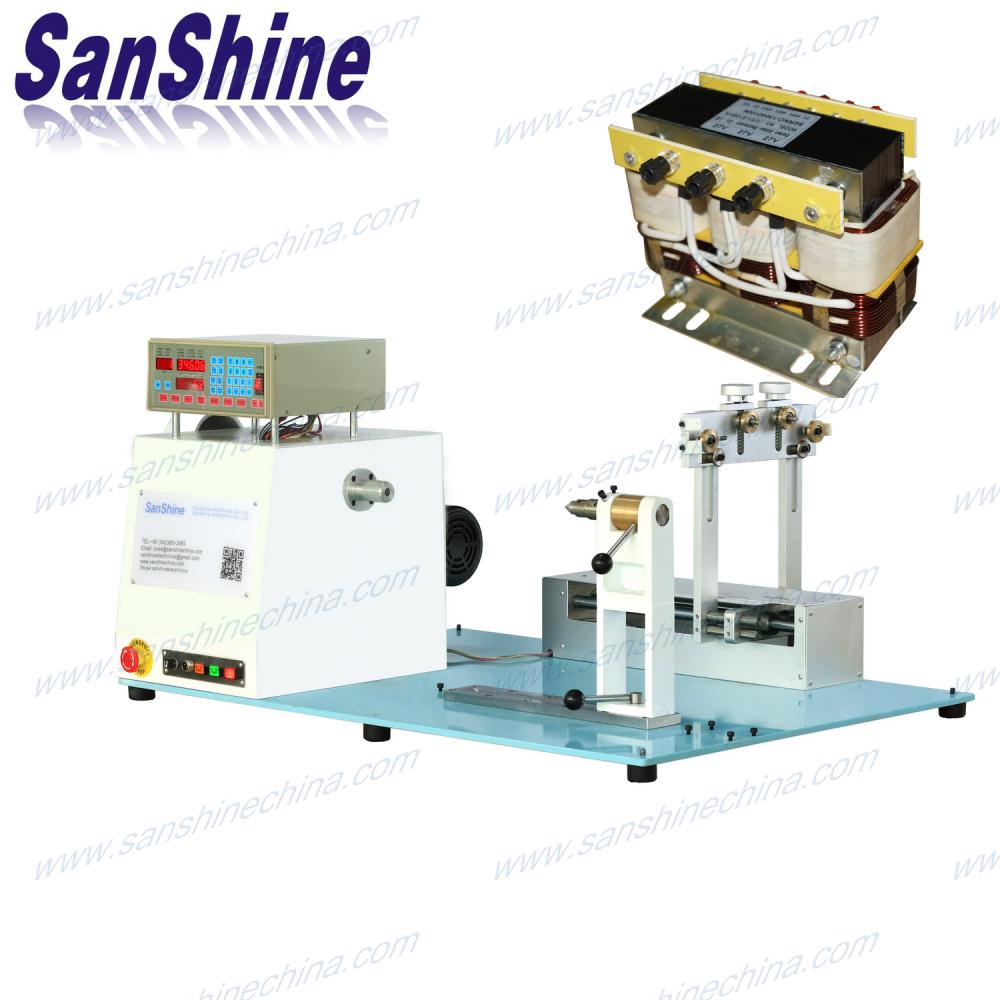

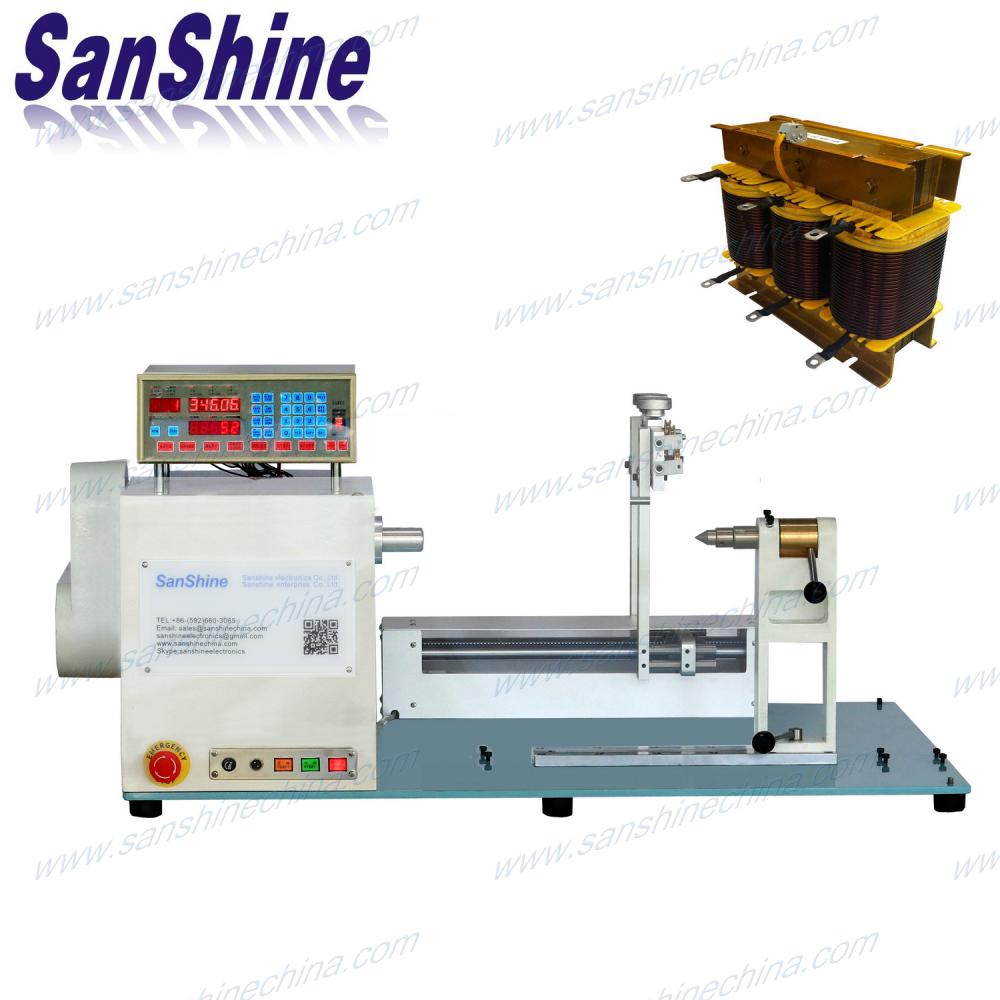

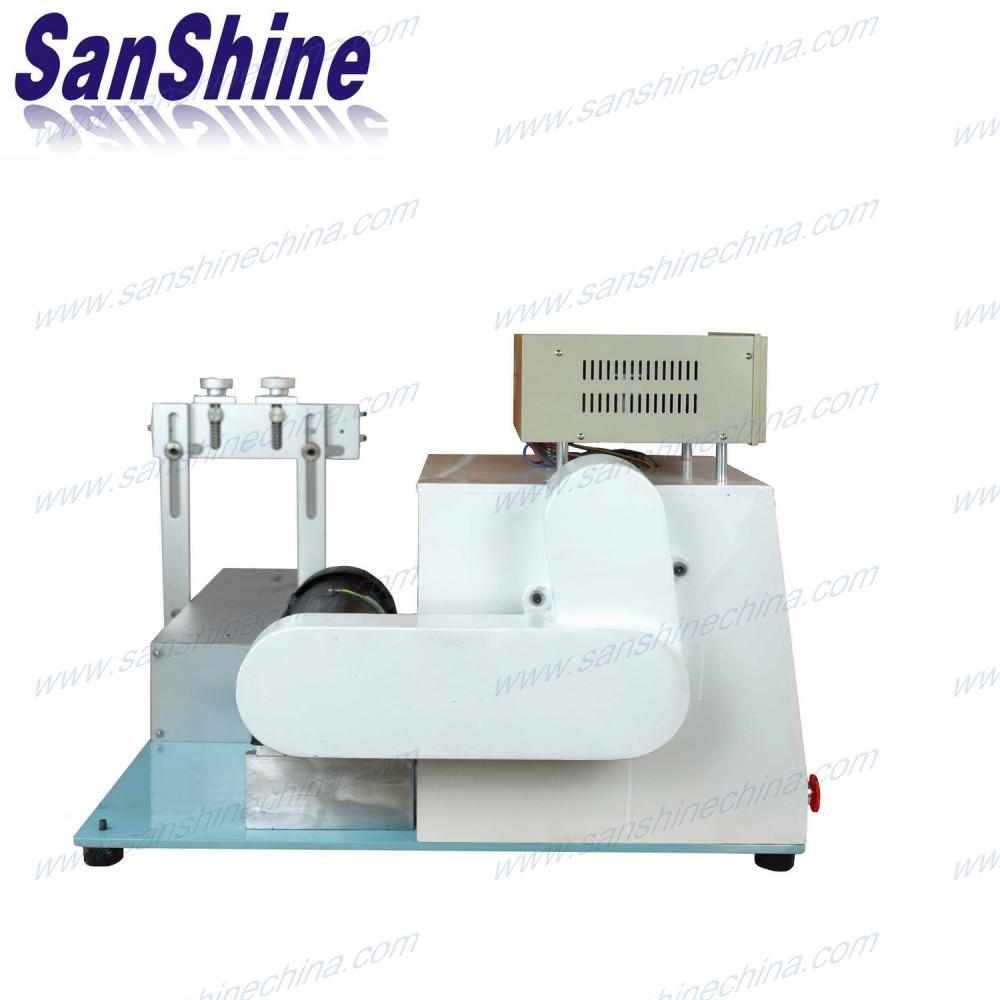

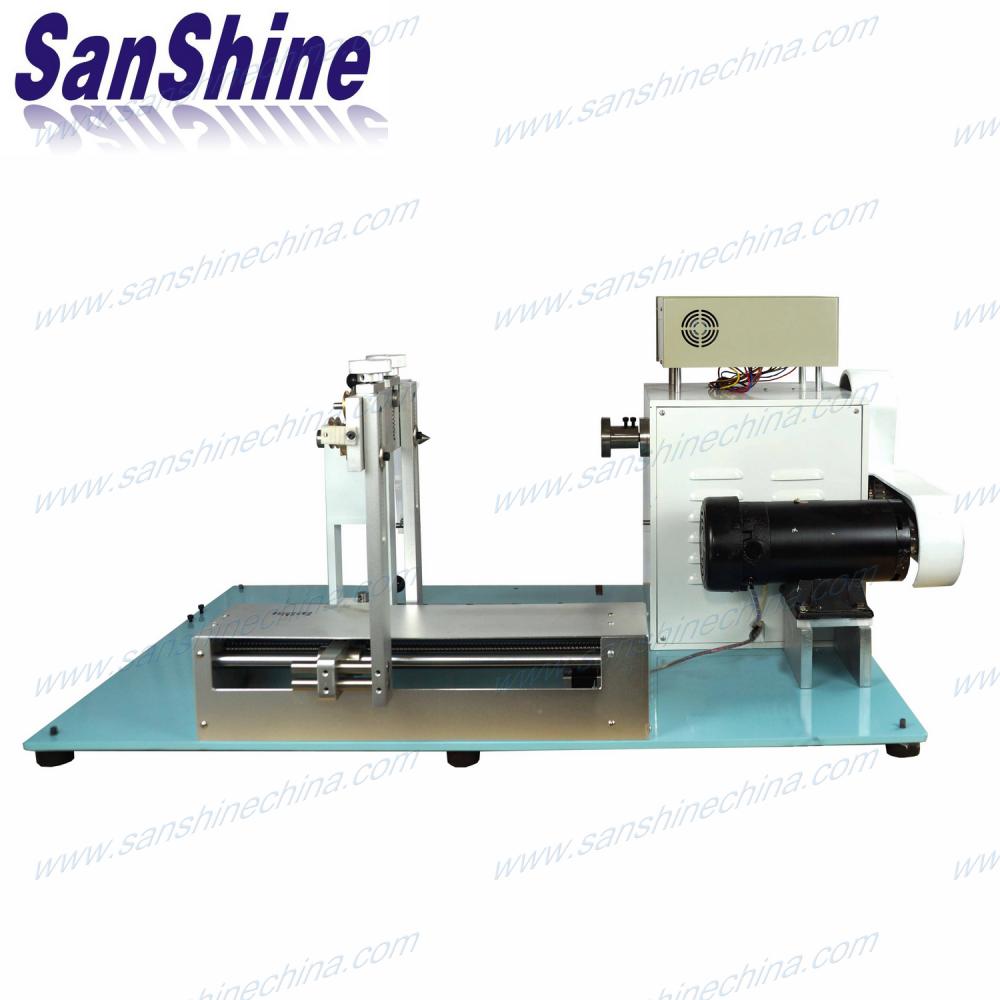

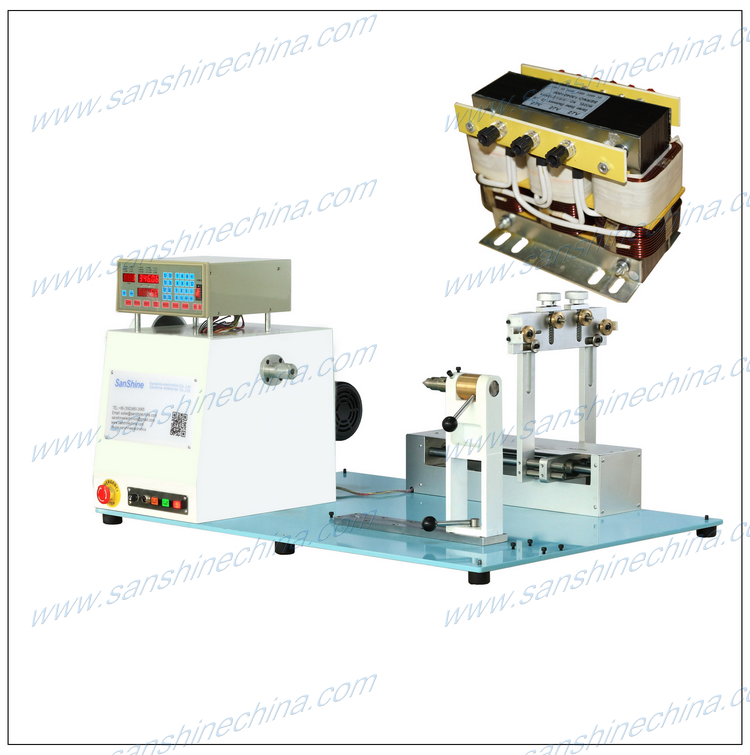

This automatic thick wire long big coil winding machine(SS851AL) is a CNC programmable winding machine with the high torsion DC winding motor. It's the best choice for winding the long and big linear coils. Like as the big and long transformer coils, big reactors, etc. .
  • Item NO.:

    SS851AL
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White and blue
contact now
Description

Product name : Automatic thick wire long big coil winding machine(SS851AL)

heavy duty wire coil winding machine

high torosion coil winding machine

big long coil winding machine

Description :

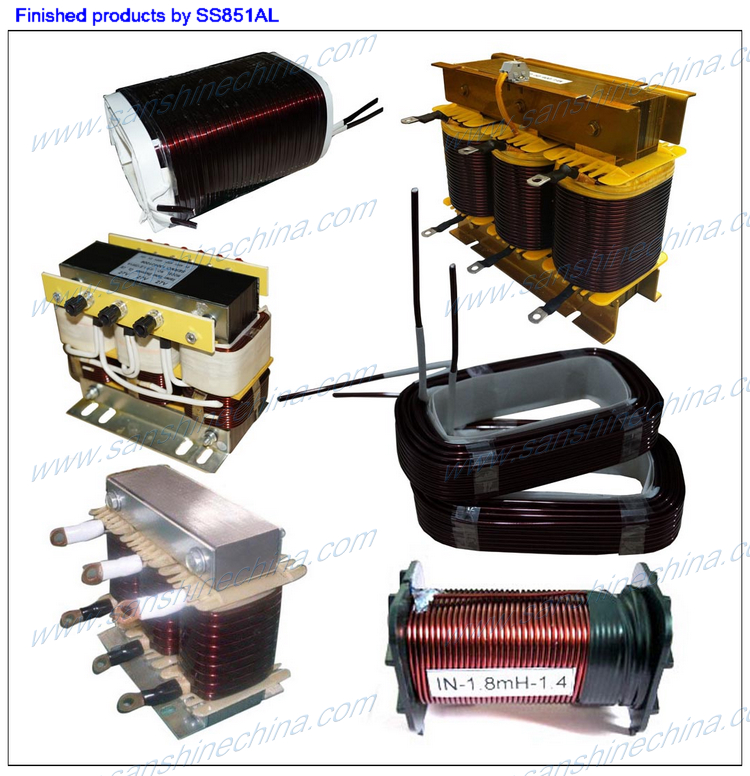

The automatic thick wire coil winding machine(SS851AL) is a CNC programmable winding machine with the high torsion DC winding motor. This automatic thick wire long big coil winding machine (SS851AL) is the best choice for winding the long and big linear coils. Like as the big and long transformer coils, big reactors, heavy duity wire coils, big inductors, etc. .. The Maximum wire diameter of this winder can reach 3.8mm for the small coil. This automatic thick wire long big coil winding machine (SS851AL) can be customized according to coil size by requested.

Feature :

1. Microprocessor design, easy for program-setting.

2. Stepper motor driven by constant-current power supply, high spreading speed precise winding.

3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Wire passing through ceramic rollers prevent enamel from high temperature.

5. Multiple spindles winding synchronal for highest efficiency.

6. Foot-switch connection for better efficiency.

7. Winding parameters and options can be set.

Specification :

Model SS851 SS852 SS851A SS851AL
Spindle Number 1 2 1 1
Wire diameter 0.05~5.0mm 0.05~1.6mm 0.05~5.0mm 0.05~3.8mm
Spread pitch 0.001~9.999mm
Spread width(traverse) Max. 230mm Max. 230mm Standard360mm, Customize Max.700mm Max. 400mm
Finished coil diameter Max. 200mm Max. 110mm Max.200mm Max. 500mm
Winding motor 500W DC Motor
Spread motor 4-Phase Stepper Motor
Max. speed 2500 RPM
Memory capacity 999 Steps
Power source AC220V /110V + 10%, 50/60 Hz
Dimension(cm) 70x52x60 70x52x60 120x52x60 120x94x66
Net weight 42Kgs 44Kgs 55Kgs 110Kgs
