Programable automatic small foil coil winding machine

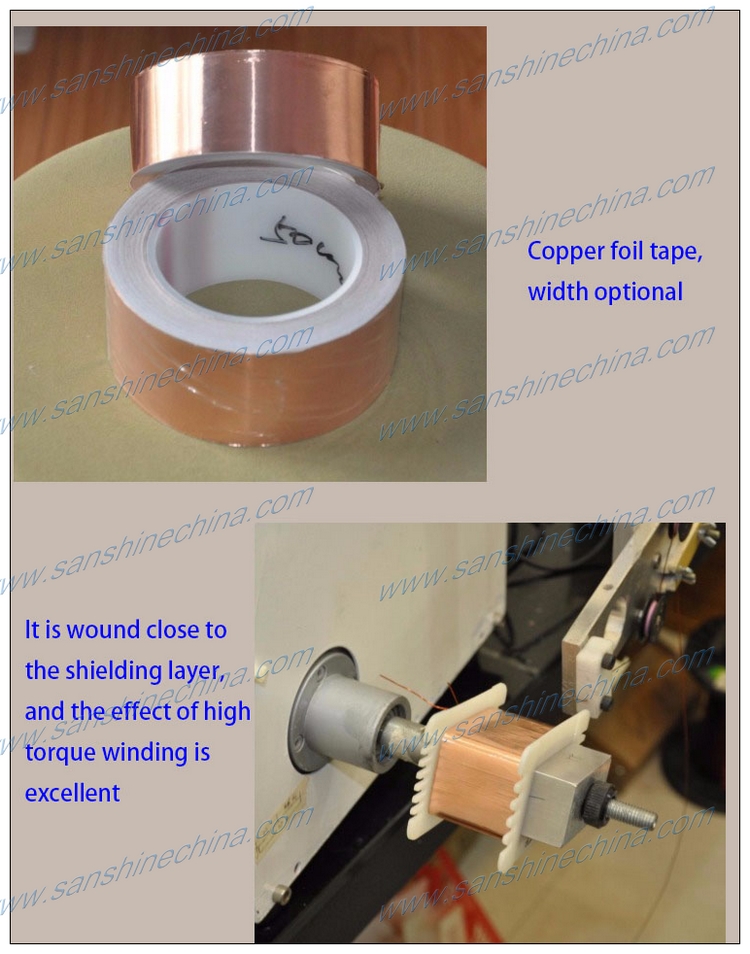

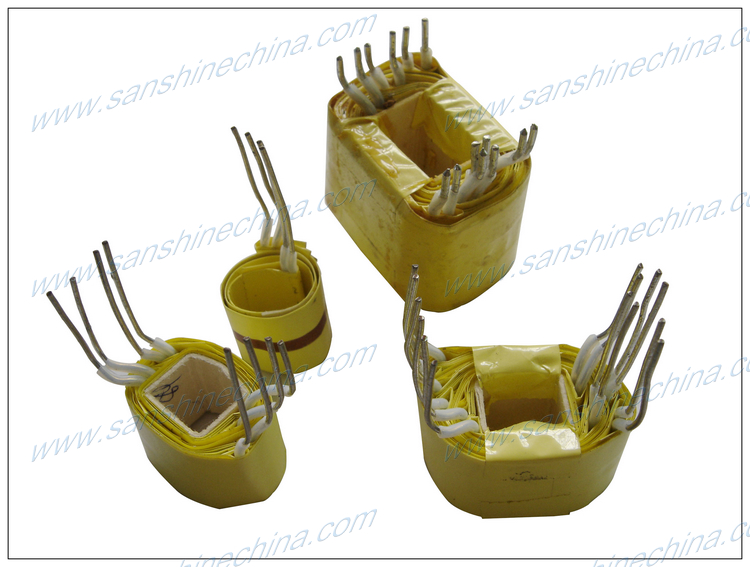

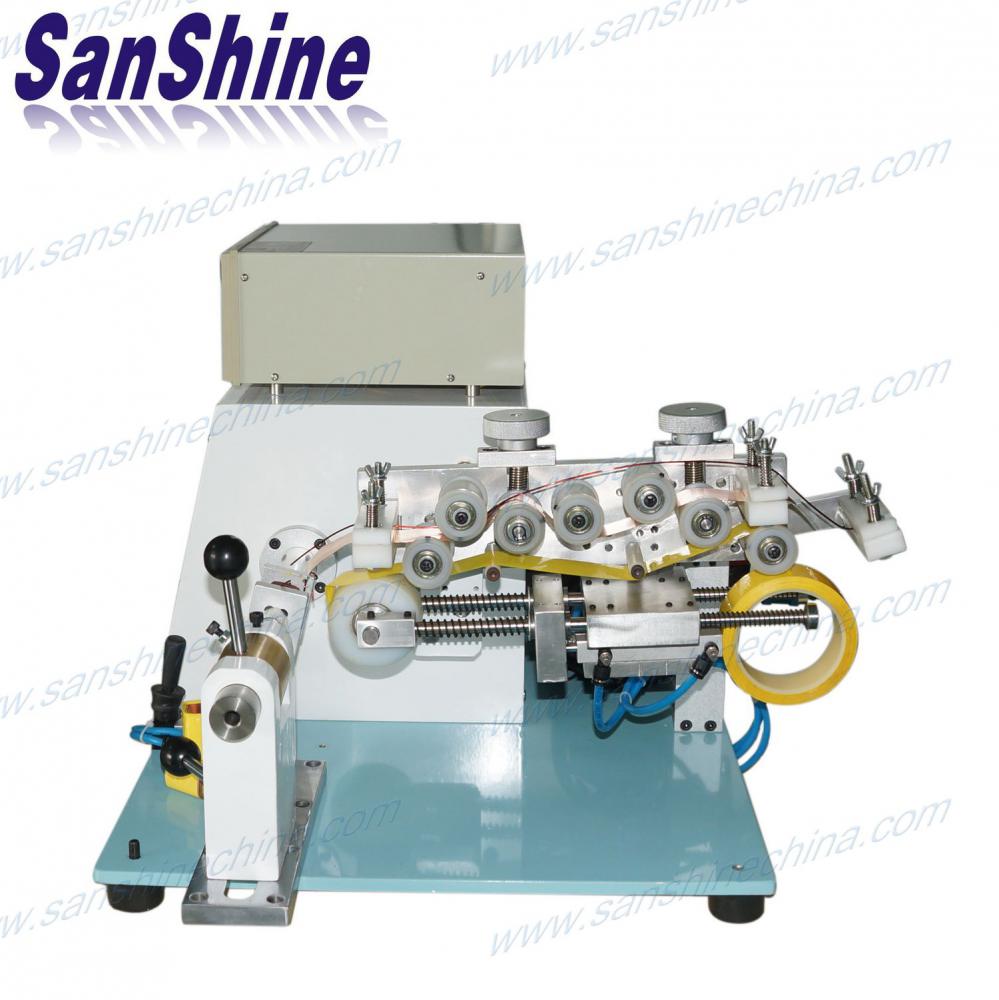

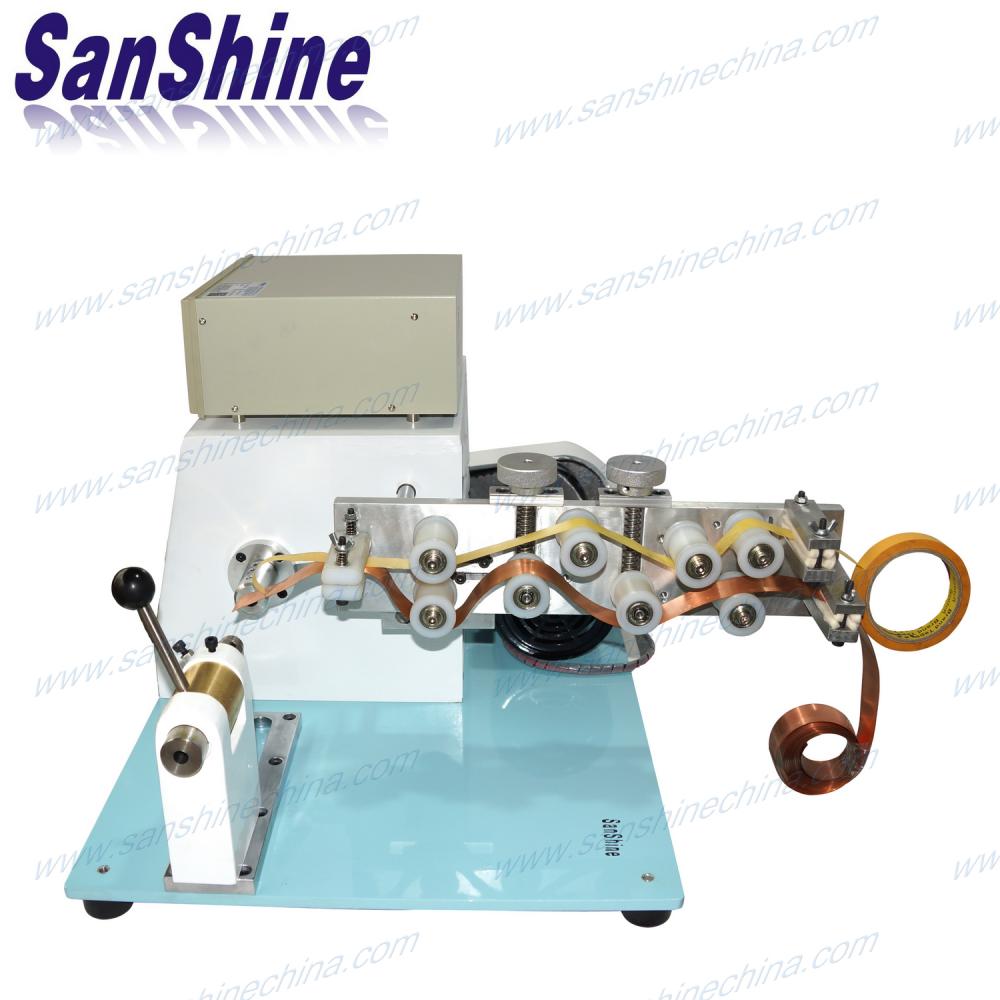

The programable automatic small foil coil winding machine (SS851F) is used for winding the foil type inductors and foil type transformers. It can wind the copper foil with the insulation Mylar tape (Myalar film, insulation paper) together at the same time. And can complete the special transformer whose some windings winded by round wires and another windings need be winded by copper foil.
  • Item NO.:

    SS851F
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White and blue
contact now
Description

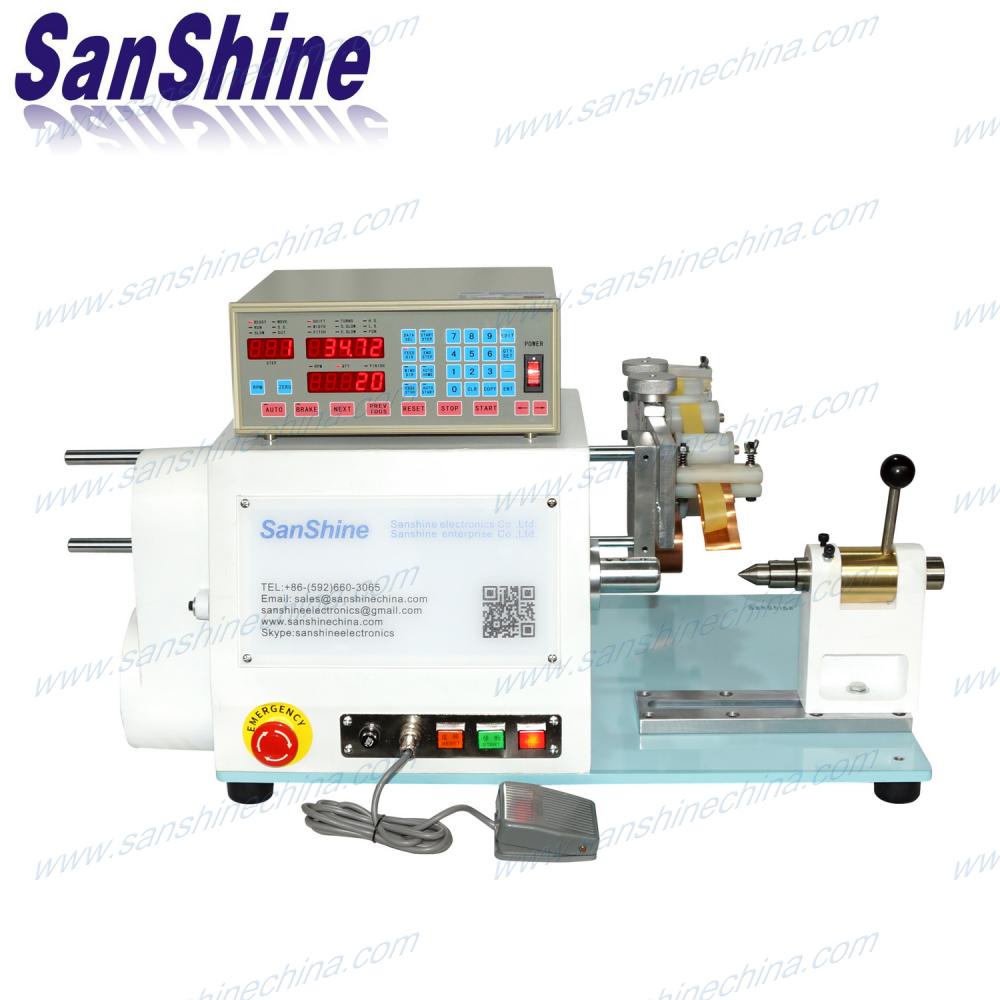

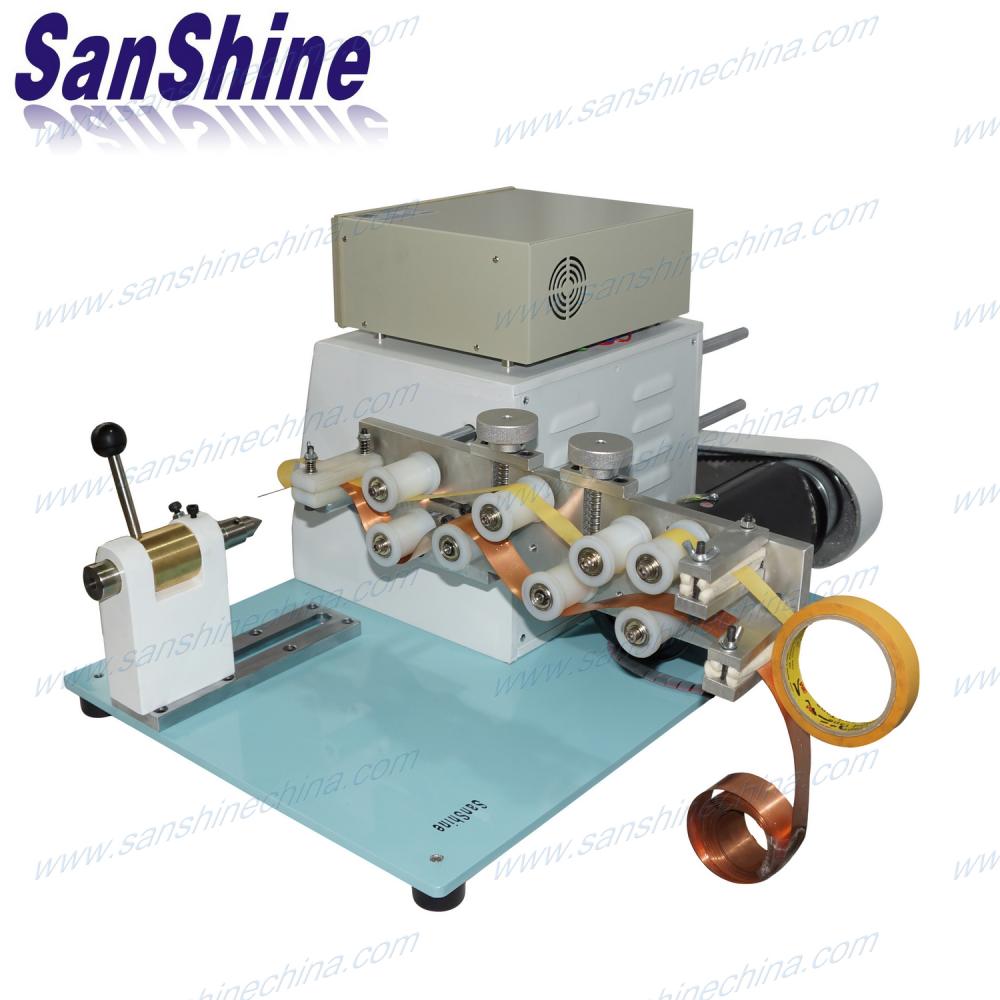

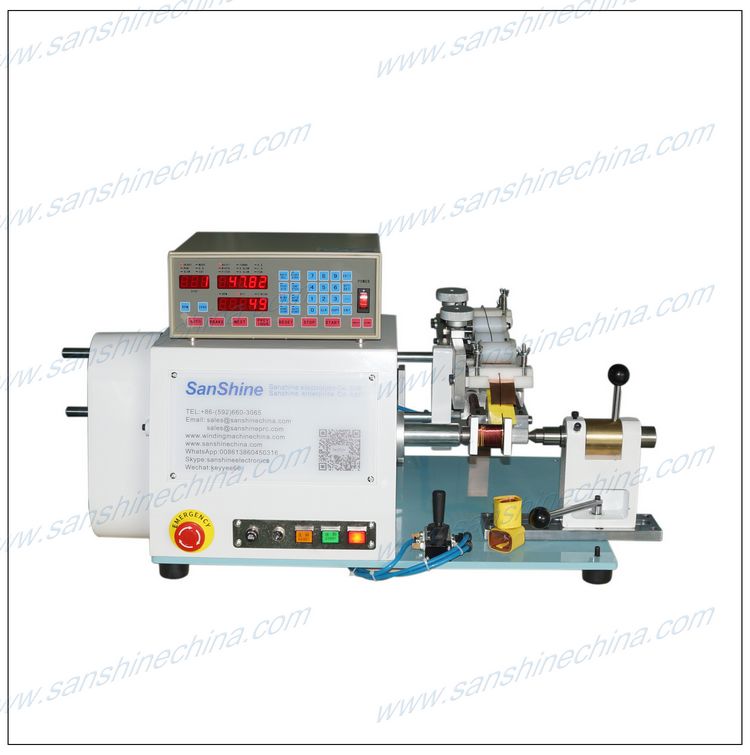

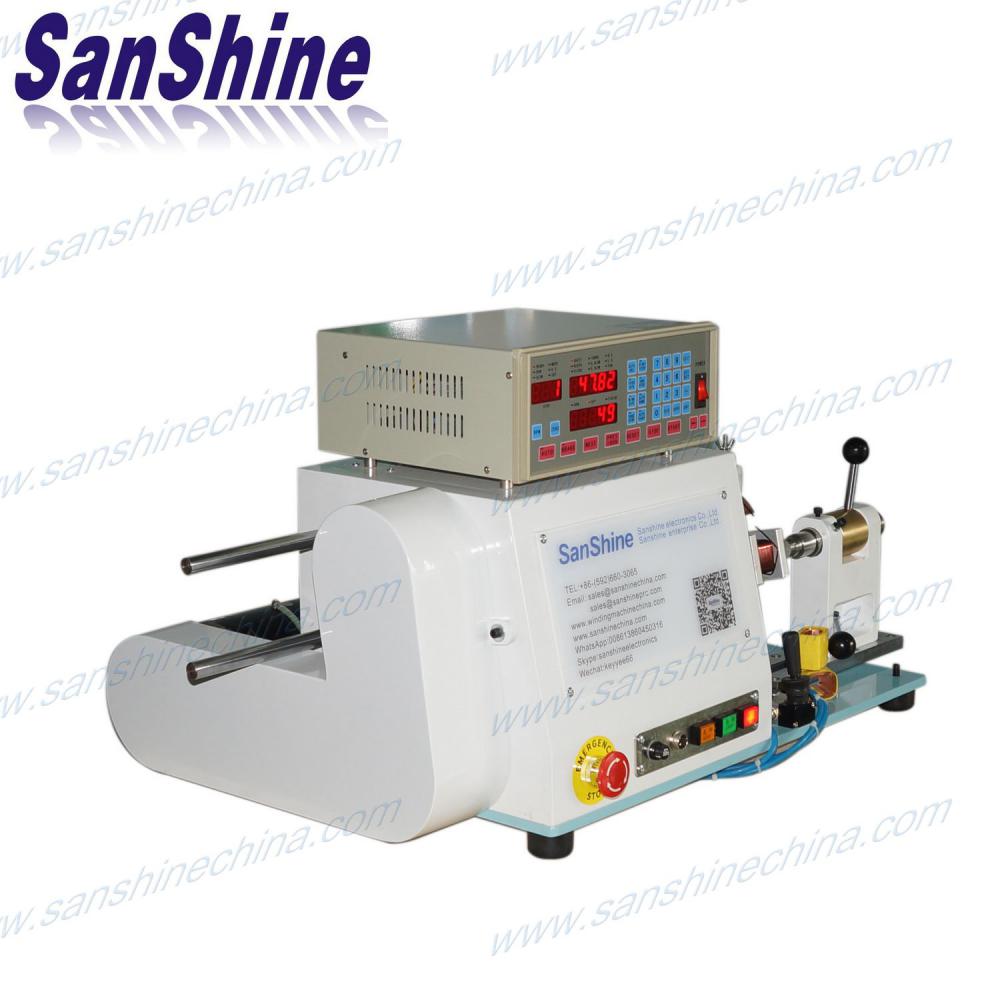

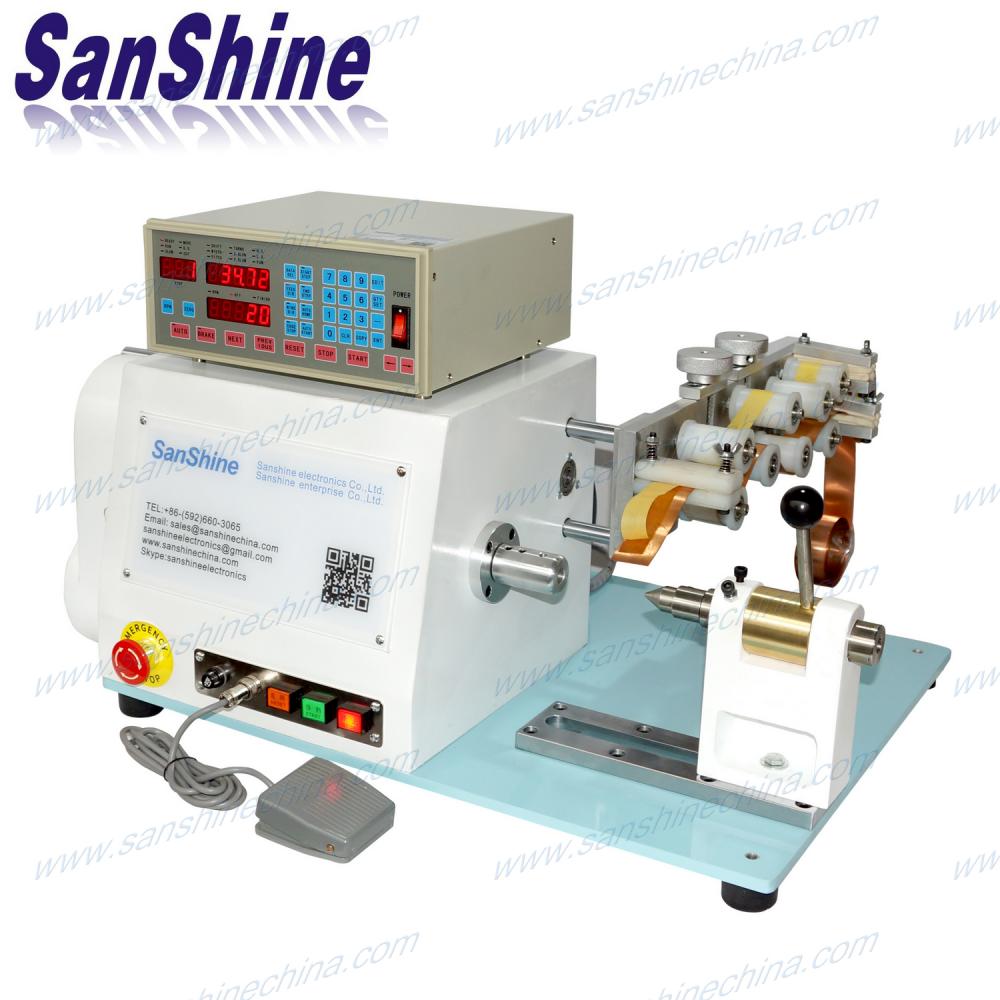

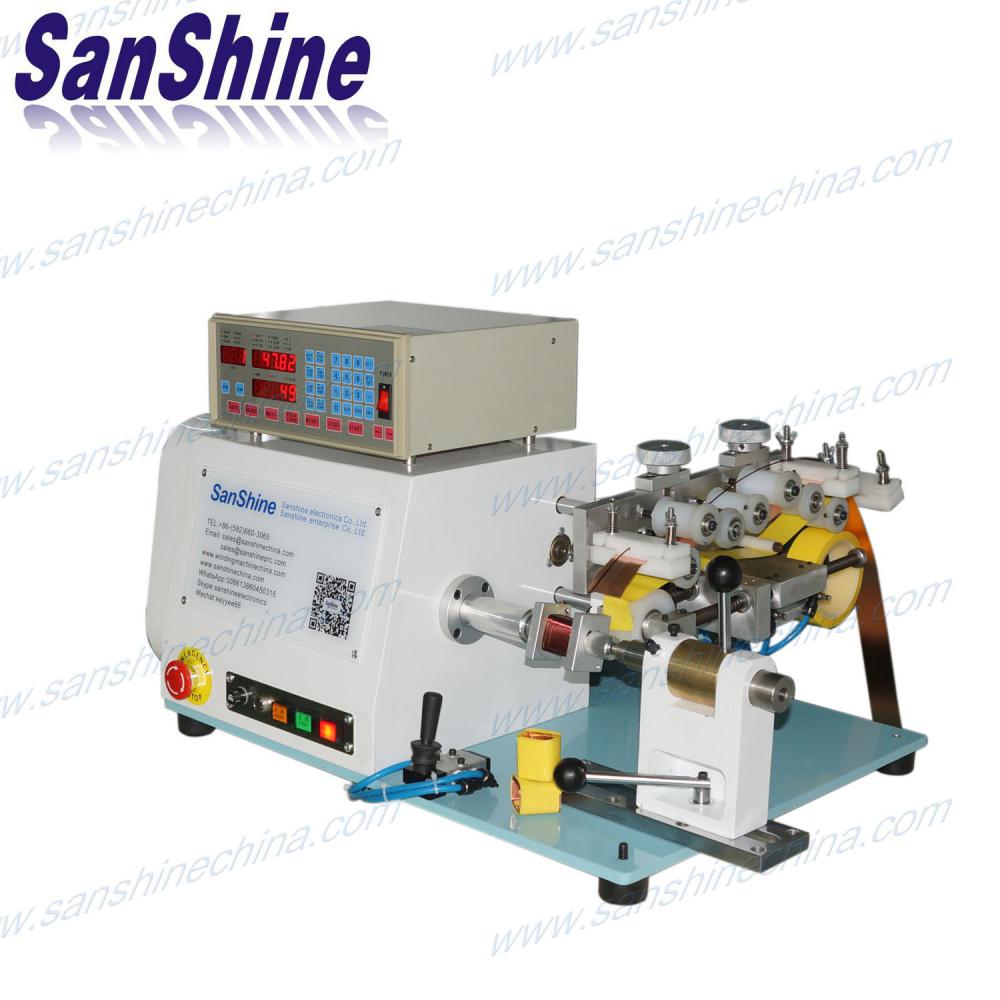

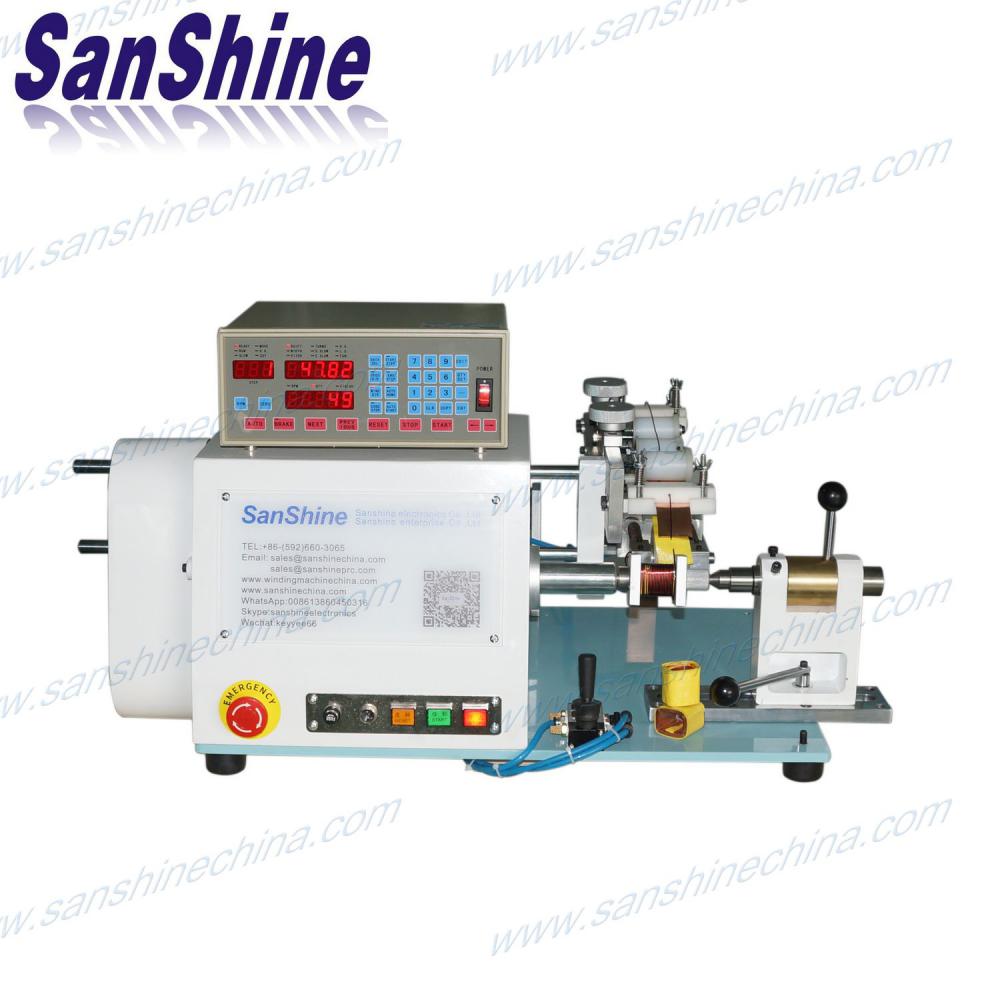

Product name : Programable automatic small foil coil winding machine (SS851F)





Description :

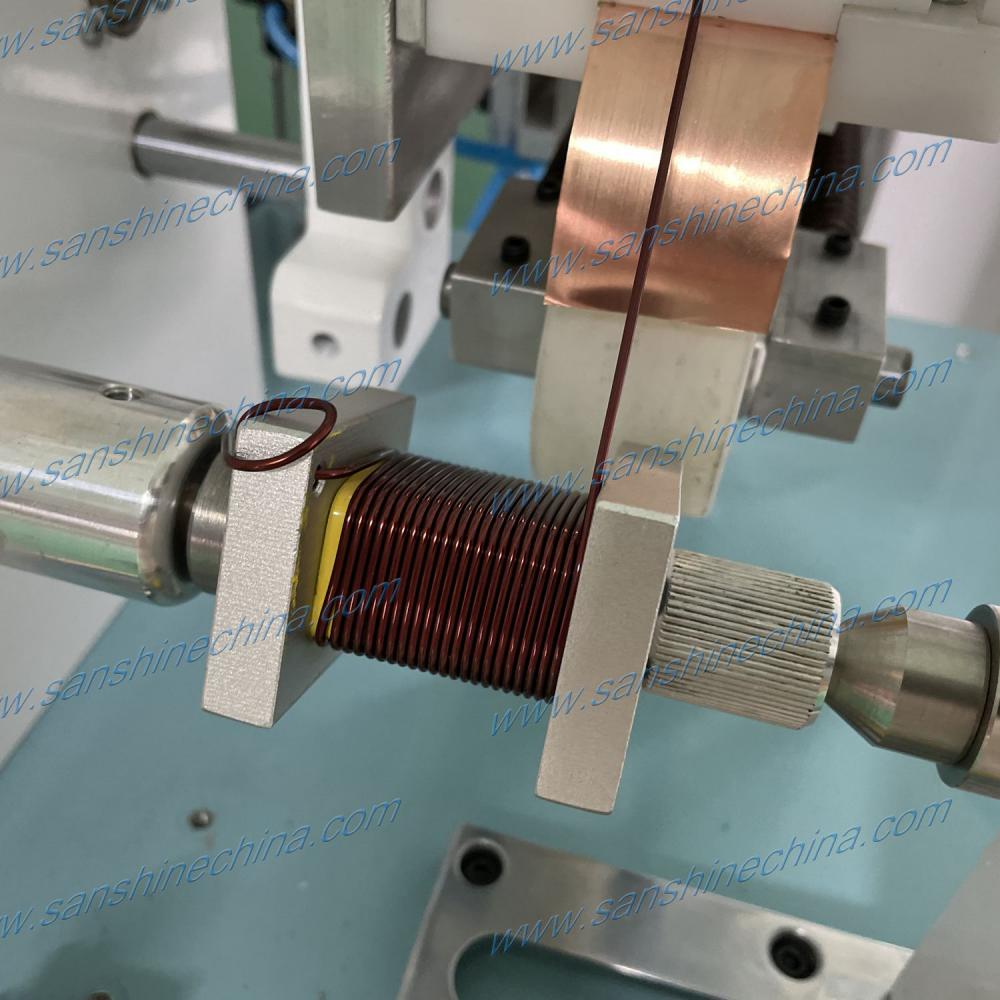

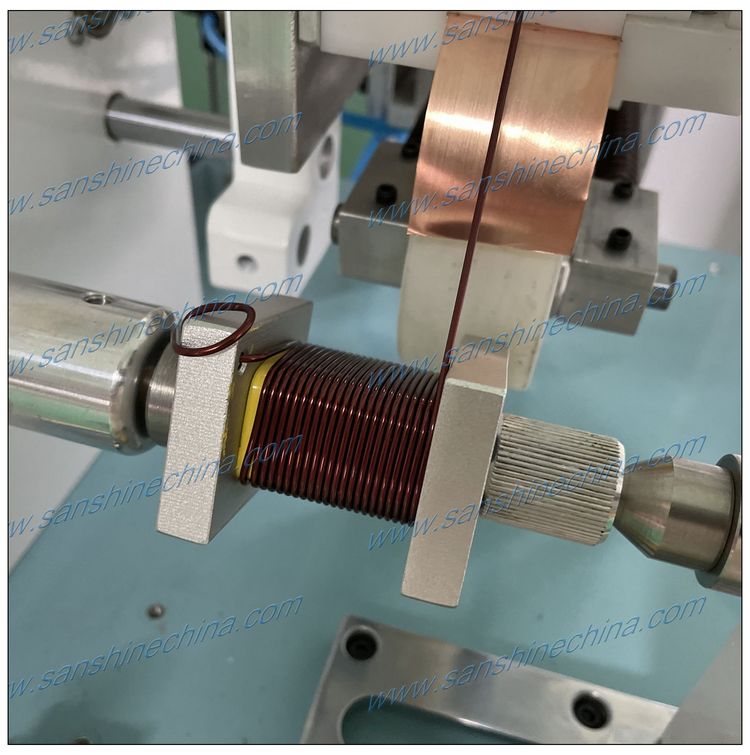

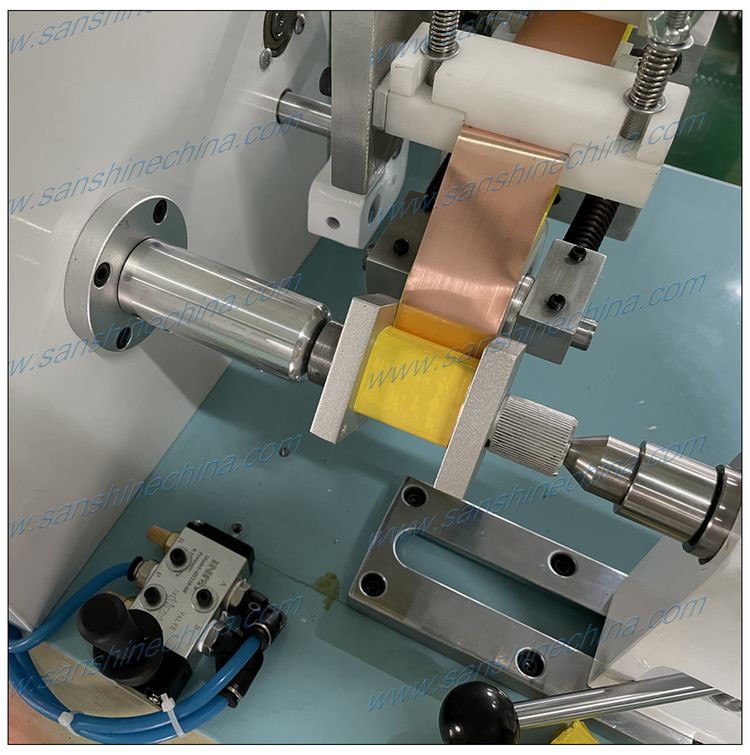

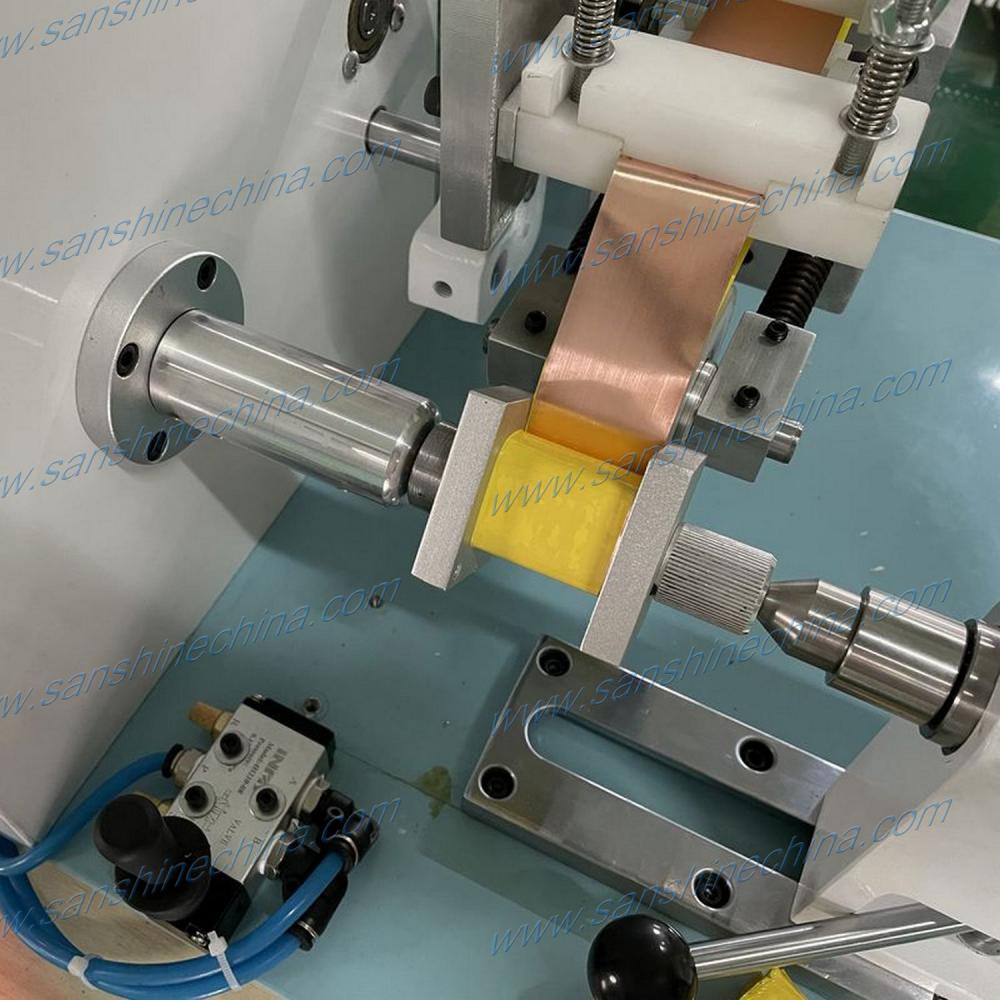

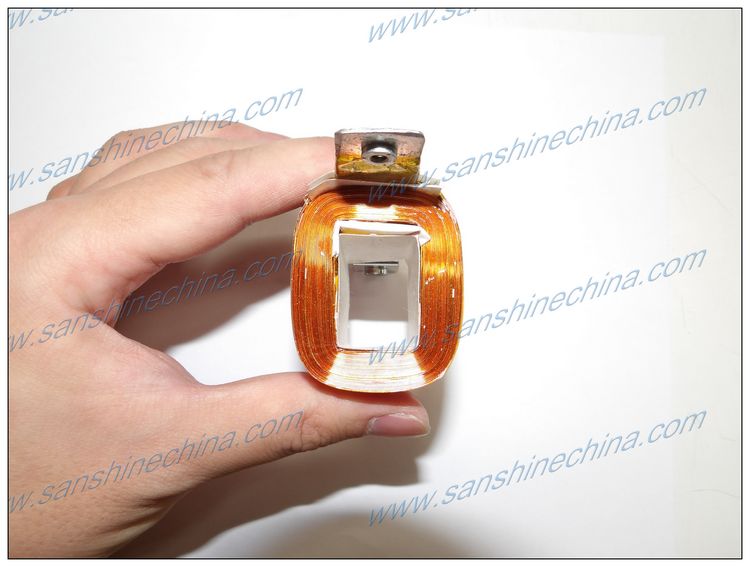

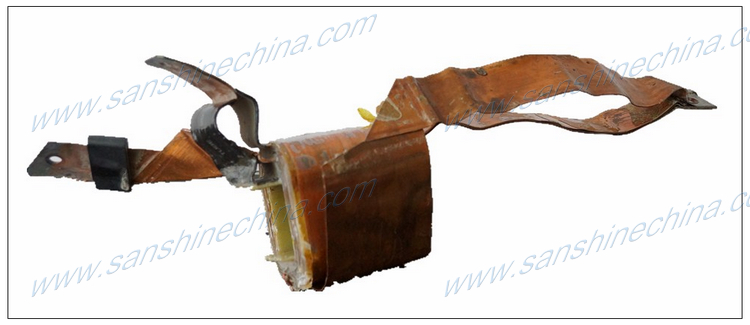

The programable automatic small foil coil winding machine (SS851F) is a digital type programmable foil coil winding machine with high torsion DC winding motor. This winder is used for winding the foil type inductors and foil type transformers. It can wind the copper foil with the insulation Mylar tape (Myalar film, insulation paper) together at the same time. And can complete the special transformer whose some windings winded by round wires and another windings need be winded by copper foil. The Maximum wire diameter of this winder can reach 5.0mm for small coil. This machine is the best choice for winding reactive coil, electric power transformer, flat wire coil, copper foil coils, auluminum foil coils, copper foil transformer, copper foil reactor. It be named layer insulation tape foil winding machine also. This winder can be customized according to coil size by requested.

Feature :

1. Microprocessor design, easy for program-setting.

2. Stepper motor driven by constant-current power supply, high spreading Speed precise winding.

3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Wire passing through ceramic rollers prevent enamel from high temperature.

5. Multiple spindles winding synchronal for highest efficiency.

6. Foot-switch connection for better efficiency.

7. Winding parameters and options can be set.

Specification :

Model SS851F
Spindle Number 1
Wire diameter 0.05~ 5.0mm
Spread pitch 0.001~ 9.999mm
Copper /aluminum foil thickness 0.03~ 2.8mm
Copper /aluminum foil width 0.5~ 85mm
Spread width(traverse) Max. 230mm
Finished coil diameter Max. 200mm
Winding motor 500W DC Motor
Spread motor 4-Phase Stepper Motor
Max. speed 2500 RPM
Memory capacity 999 Steps
Power source AC220V /110V + 10%, 50/60 Hz
Dimension(cm) 70x52x60
Net weight 46Kgs
