High torsion front spindle automatic coil winding machine

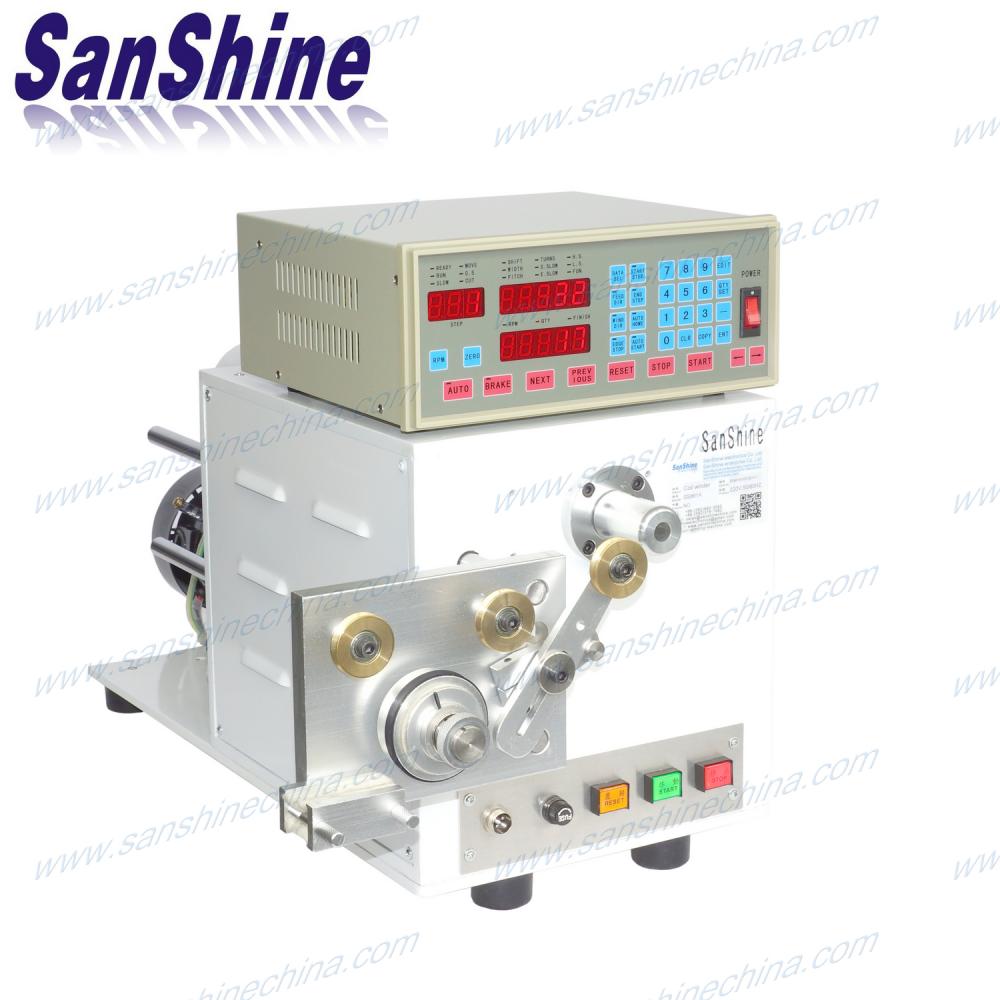

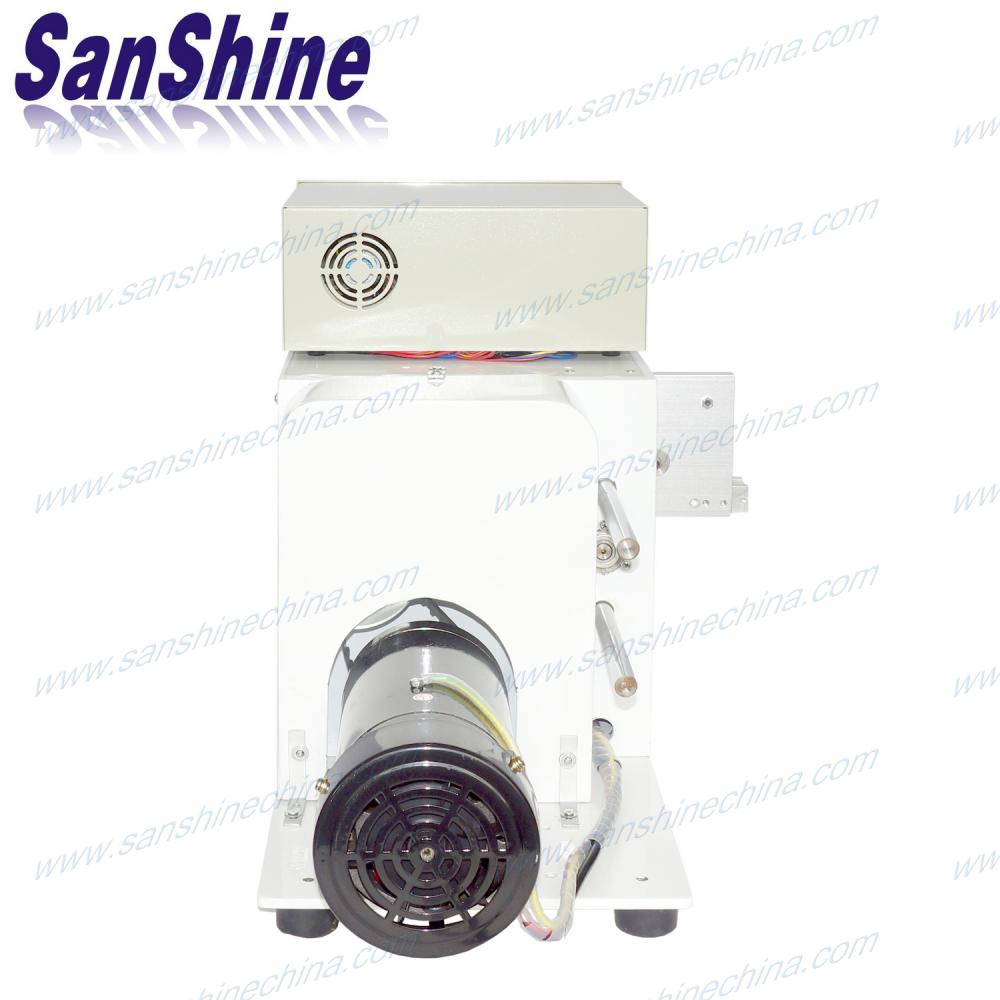

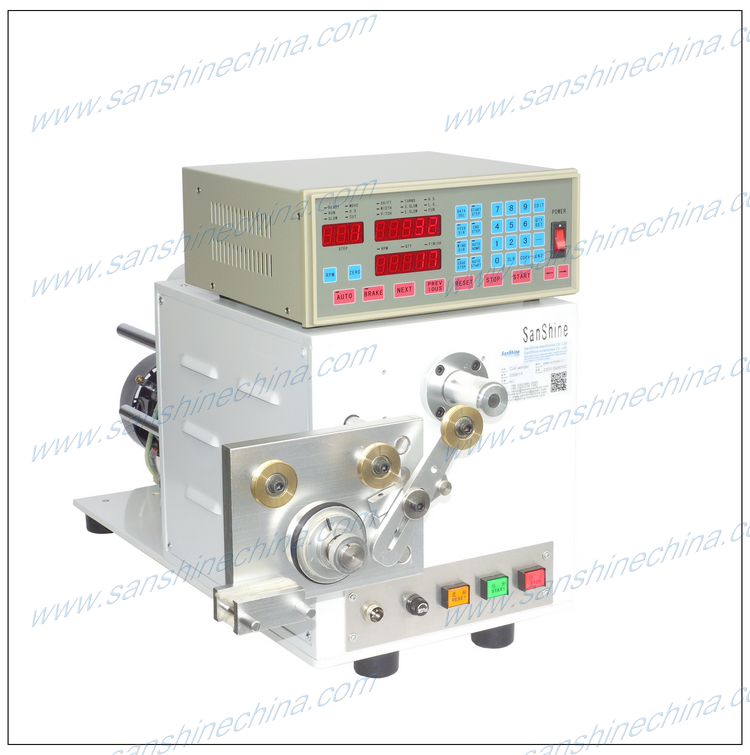

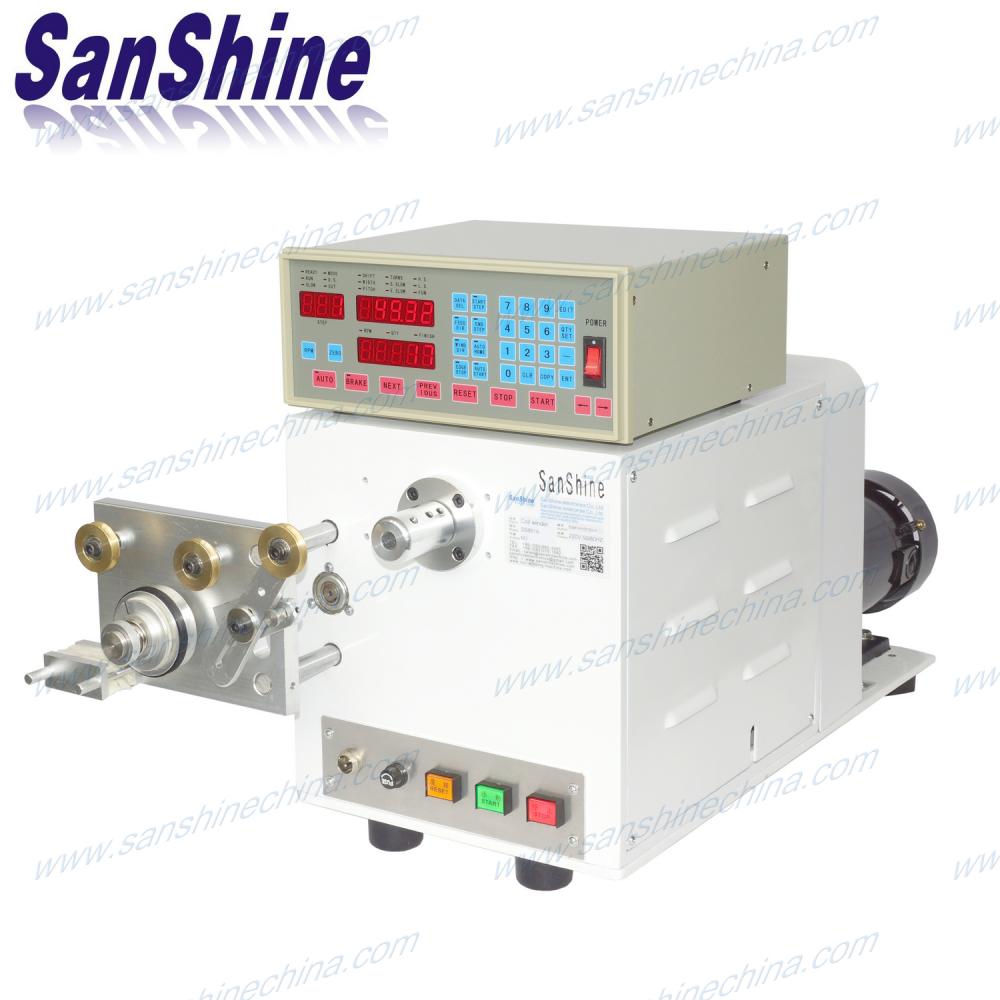

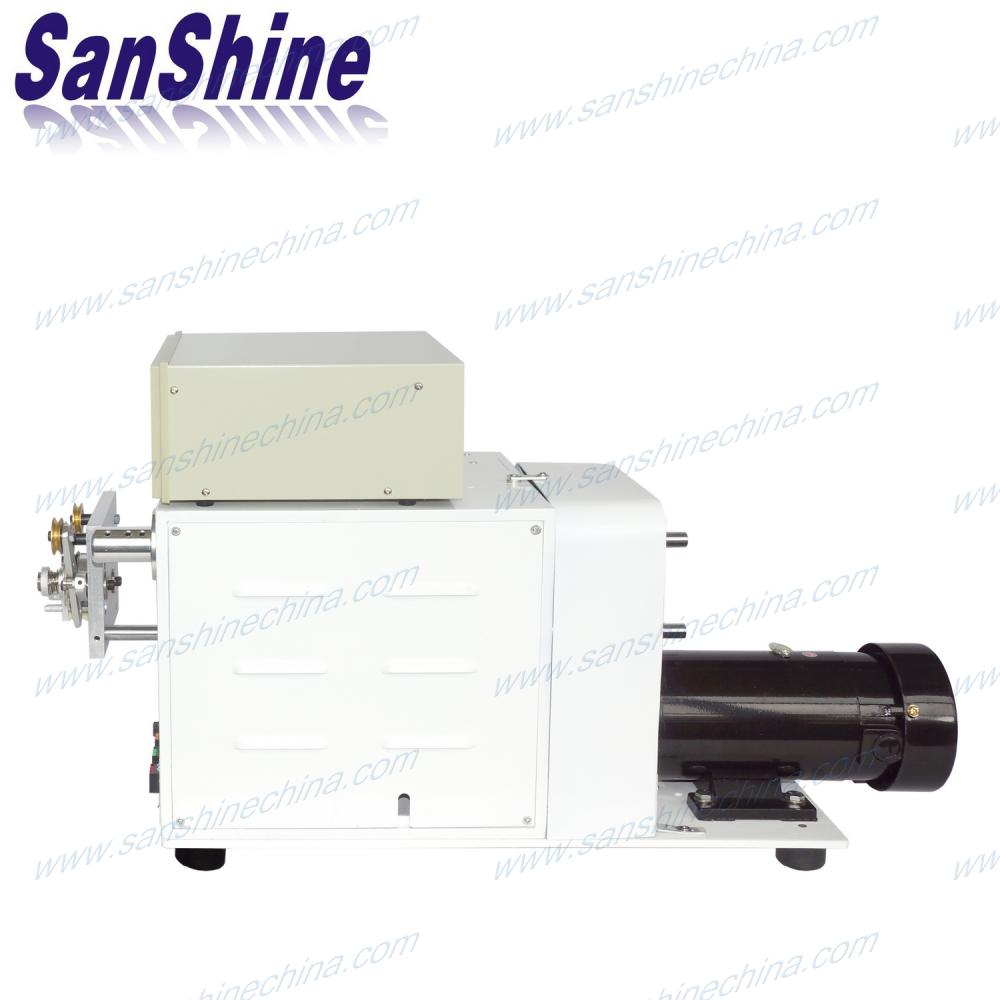

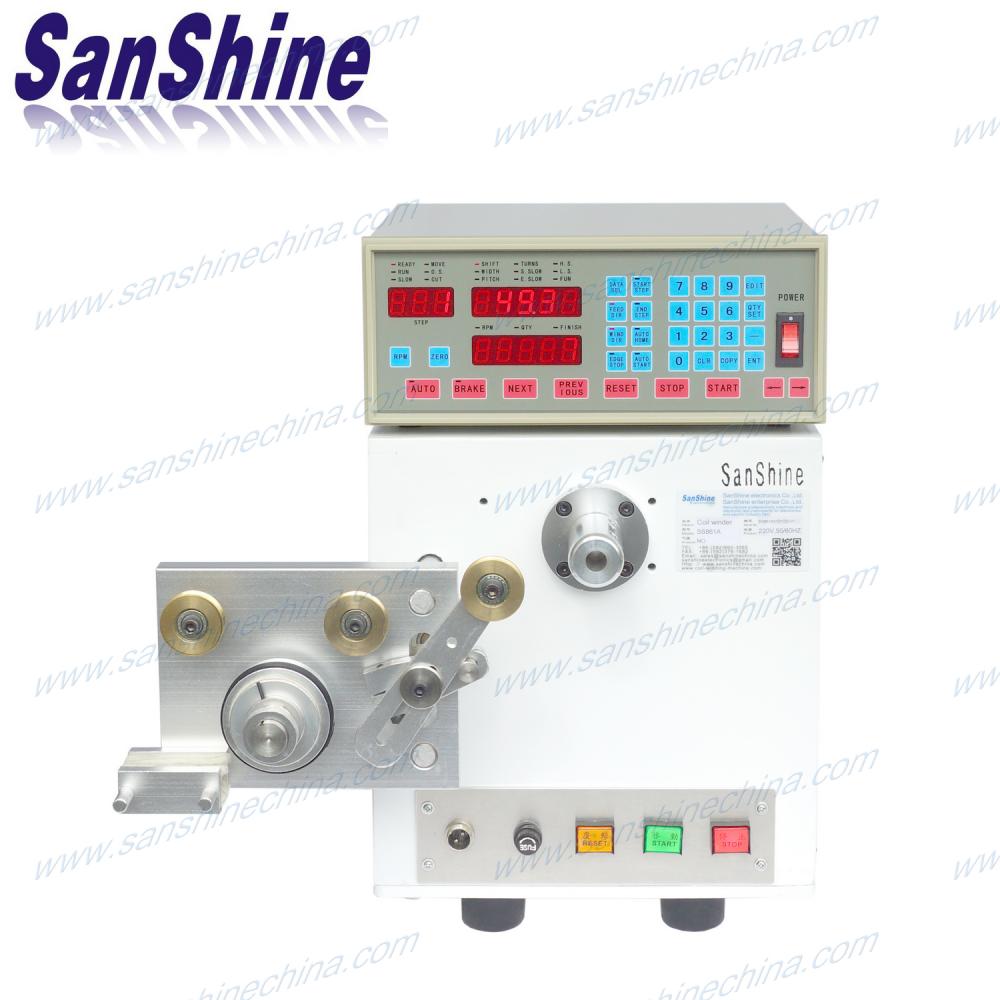

The high torsion front spindle automatic coil winding machine (SS861A) is one high torsion single spindle coil winding machine.This winding machine is used for winding the thick wire big coil. The winding spindle of this winding machine is at front of the machine base. So that to satisfy the practice of some operator. This winder be named heavy spool coil winding machine also.

  • Item NO.:

    SS861A
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White and blue
contact now
Description

Product name : High torsion front spindle automatic coil winding machine (SS861A)

progmmable thick wire winding machine

programmable heavy wire winder

Description :

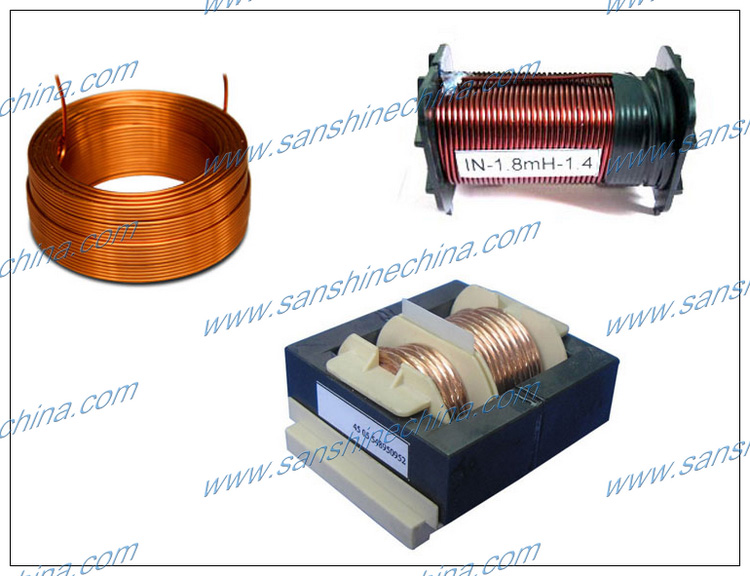

The high torsion front spindle automatic coil winding machine (SS861A) is one digital programmable high torsion coil winding machine. This winding machine adopts the winding spindle be at front of machine base, So that can suit to practice of some operators, Make them to operate the winding conveniently. This coil winding machine be called front spindle thick wire winding machine also. It's the highest efficiency equipment. This winding machine is best choice for winding thick wire big transformer, inductor, relay, ignition,contactor,electric valve,etc. .

Feature :

1. Microprocessor and big LED display designing, easy for program-setting.

2. Stepping motor driven by constant-current power supply, High spreading speed precise winding.

3. "Start Point " could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Wire spreading tension device spreading head.

5. Foot-switch connection for better efficiency.

8. Winding parameters and options can be set independently for each step.

9. Memory capacity accommodates 999 steps of parameters with off-power memory retention.

10. Front type winding spindle can suit to practice of some operators.

Specification :

Model

SS861A

Spindles

1

Wire size

0.2~2.0mm

Spread pitch

0~9.999mm

Spread width

150mm (Max. )

Coil diameter

300mm (Max. )

Spindel motor

DC Motor 500W

Spread motor

Stepping motor

Max. speed

6000RPM

Memory

999 Sequences

Power source

AC220V ±10%, 50/60 Hz

Dimension (cm)

45x67x60

Net weight(Kg)

45
