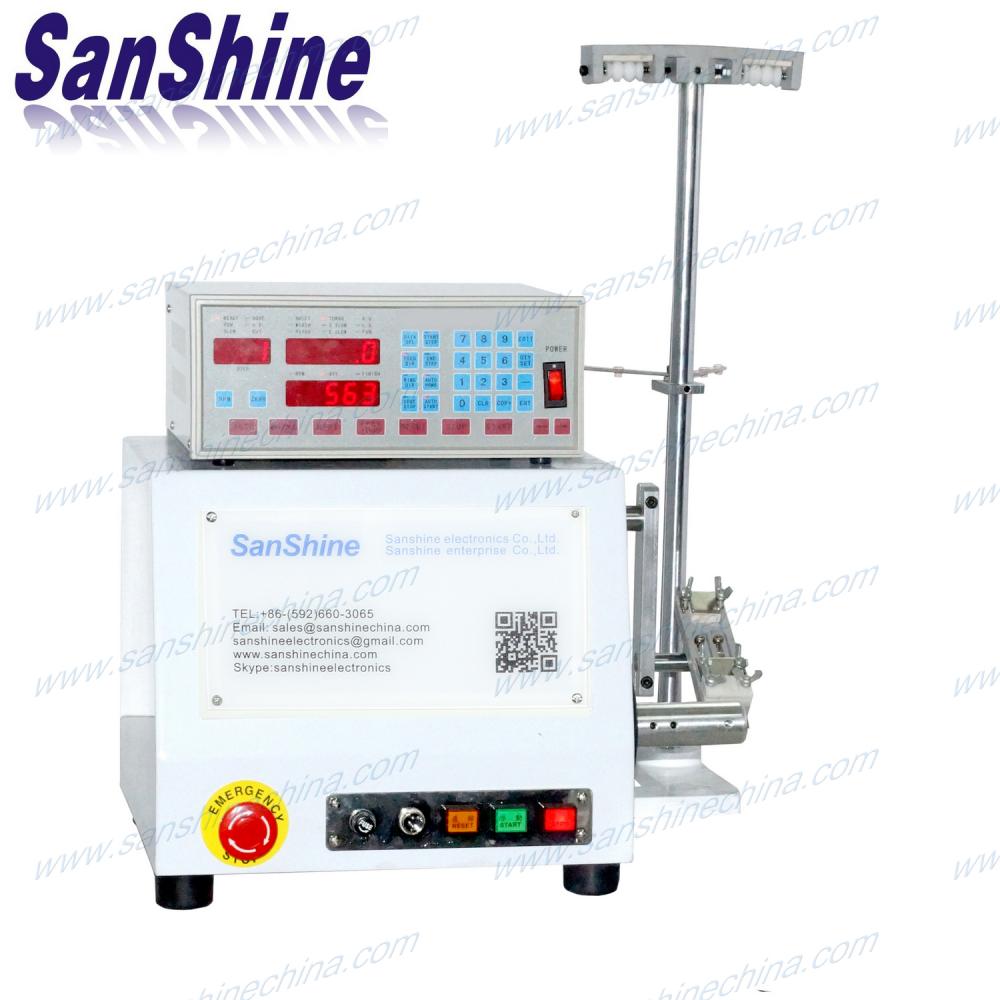

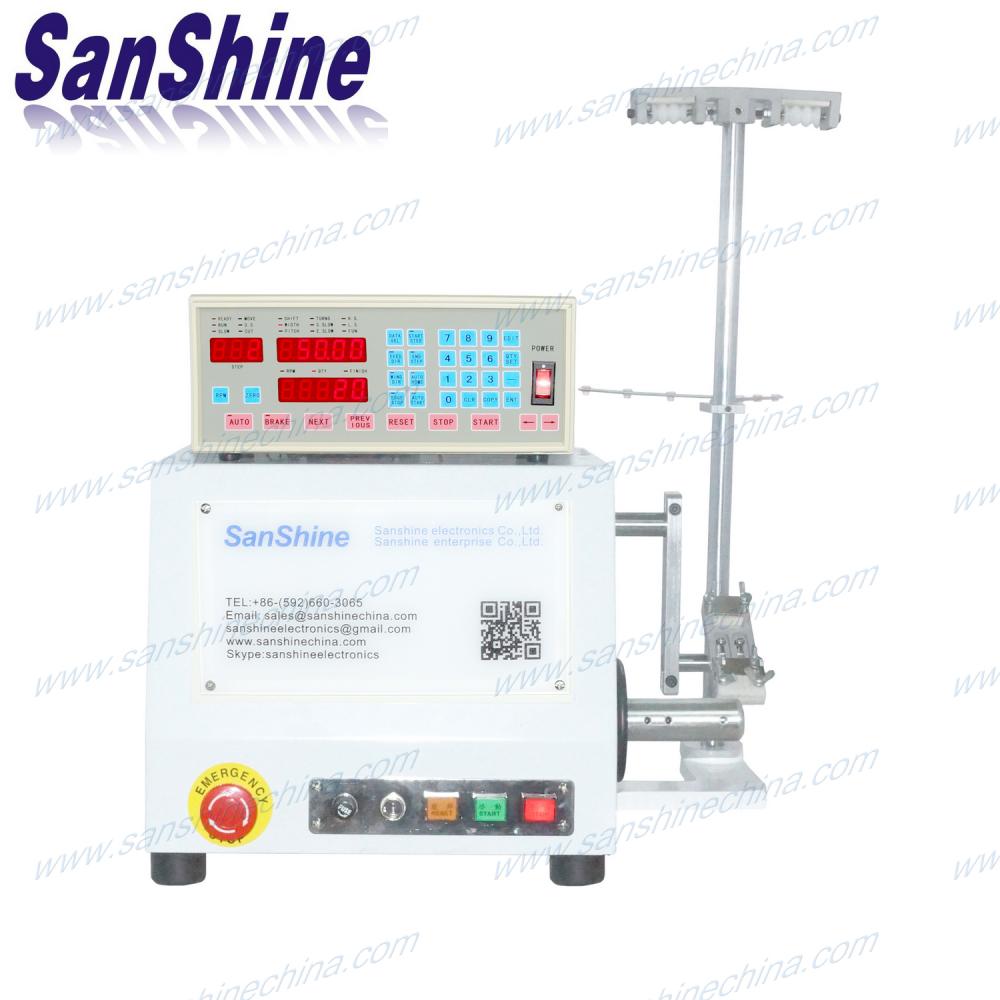

Programable CNC automatic guitar wire winding machine

This programable CNC automatic guitar wire winding machine (SS600G ) is used for winding the guitar pickup wires. The winding machine be named stringed instrument wire winding machine also.
  • Item NO.:

    SS600G
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
contact now
Description

Product name : Programable CNC automatic guitar wire winding machine (SS600G)

musical wire winding machine

guitar string winding machine

guitar line winding machine

Description :

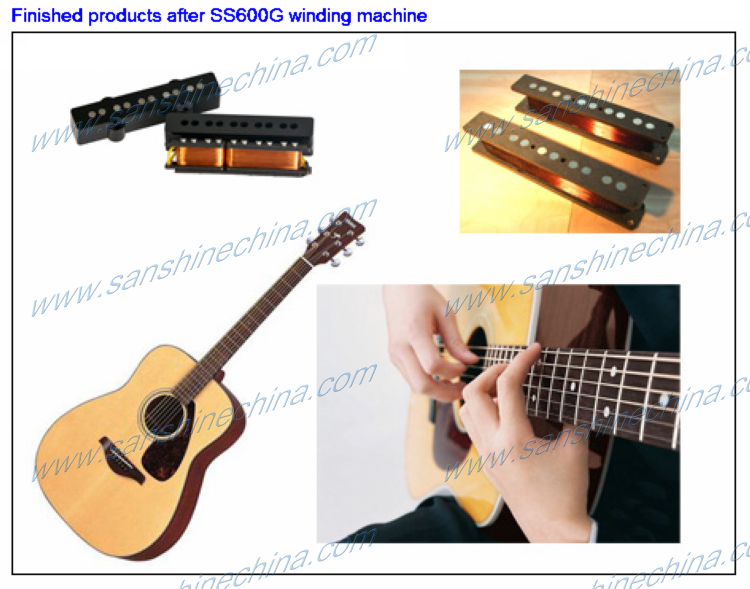

This programable CNC Automatic Guitar Wire Winding machine (SS600G) is one digital programmable precise coil winding machine. This machine is used for winding the guitar pickup wire, musical string, etc. . It be called guitar string winder also. It's the best choice for winding guitar pickups wire, stringed instrument wire, etc. .

Features:

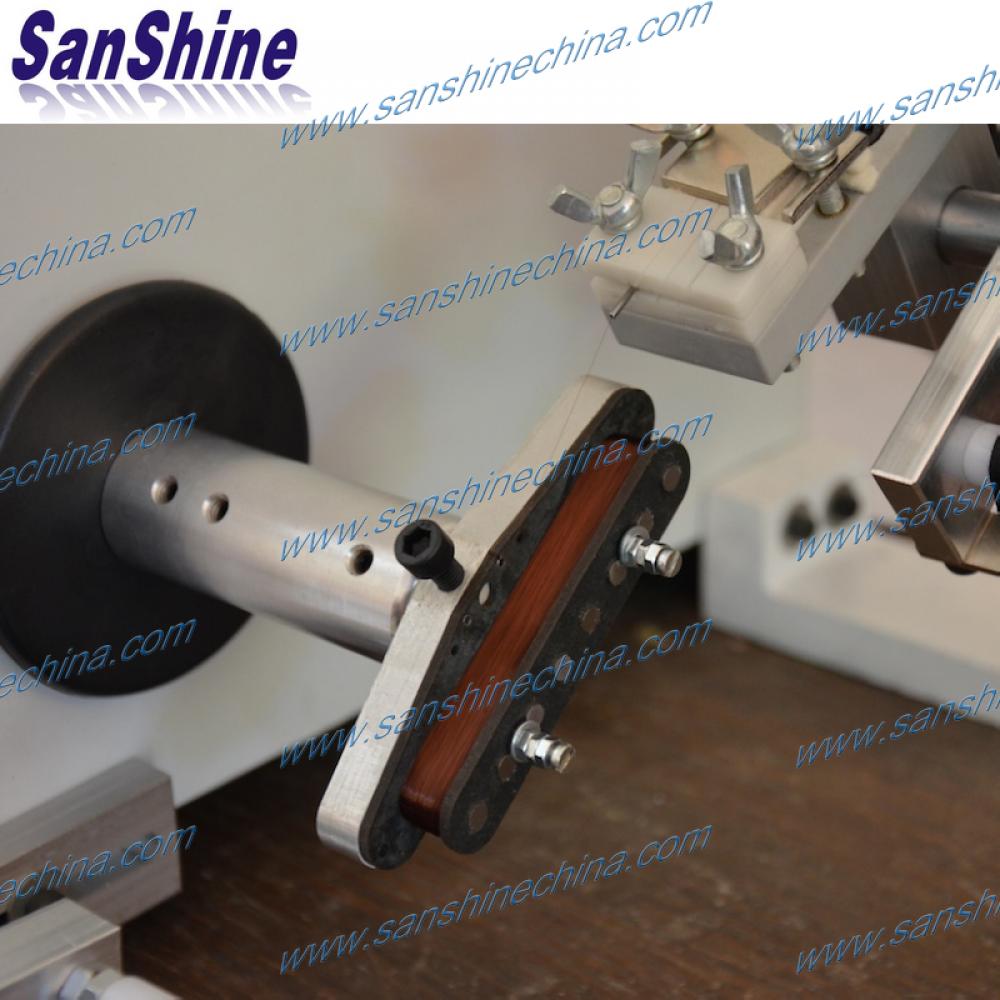

1. Spreading head of SS600G can install six pieces different size wires at the same time.

2. Winding and wire spreading can be done by one machine at same time.

3. Step motor driven by constant-current power supply, high spreading speed precise winding.

4. "Start Point" could set by key panel or with teachable function. Display will show the position of spreading head while setting.

5. Small wire diameter coil of spreading by nozzle type spreading head.

6. Wire passing through ceramic rollers prevent wire from high temperature.

7. Foot-switch connection for better efficiency.

8. Winding parameters and options can be set independently for each step.

9. Memory capacity accommodates 999 steps of parameters with Off-power memory retention.

Specification:

Model

SS600G

Spindles

1

Wire size

0.08~1.0mm

Spread pitch

0~9.999mm

Spread width

100mm (Max. )

Coil diameter

110mm (Max. )

Main motor

DC brushless Motor

Spread motor

2-Phase Stepper Motor

MAX. speed

6000RPM

Memory

999 Steps

Power source

AC220V / 110V ±10%, 50/60 Hz

Dimension(cm)

76x68x72

Net weight(Kg)

37
