SMD SMC SMT drum core inductor winding machine

The SMD SMC SMT drum core inductor winding machine (SS100A) is a digital coil winding machine. it's an accurately and reliability digital coil winding machine for winding SMT SMD SMC inductors and drum core inductors,surface mount inductors, etc.. This winder is named ferrite surface mount inductor winding machine and pins drum core inductor winding machine also.
  • Item NO.:

    SS100A
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Brown
contact now
Description

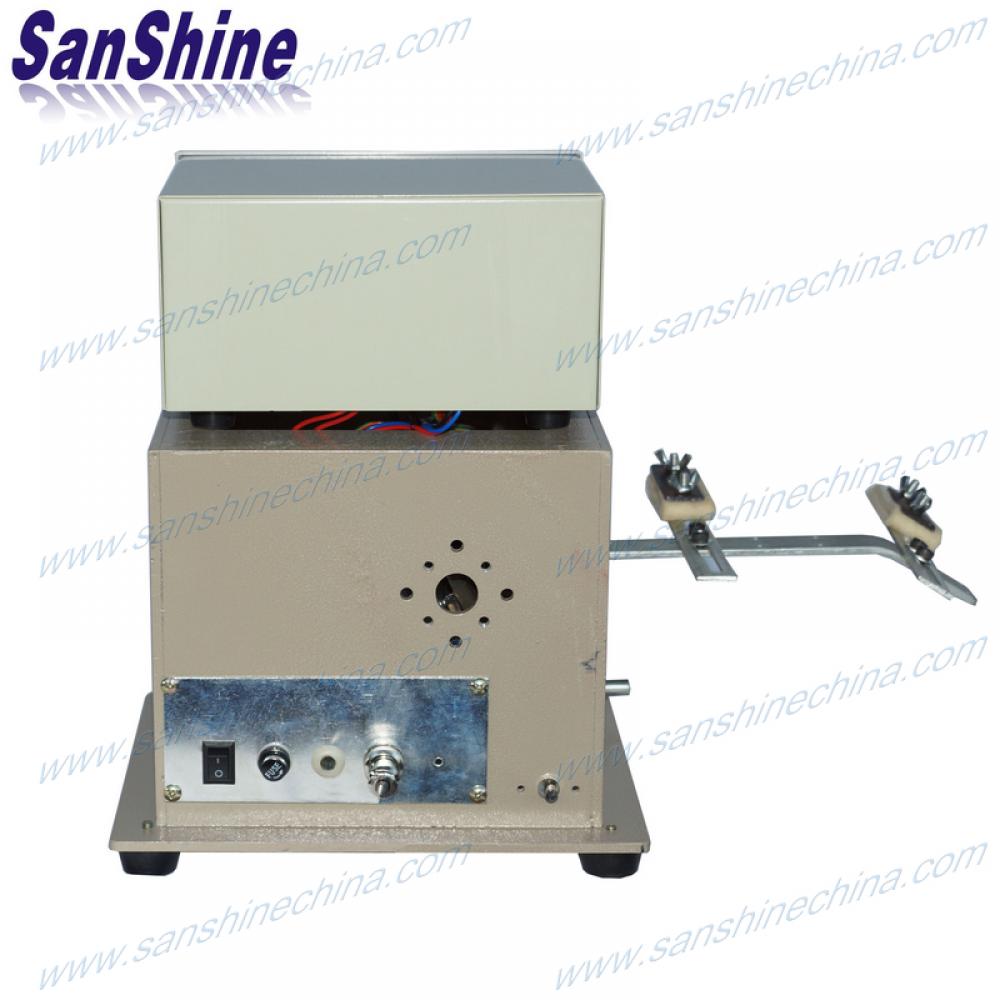

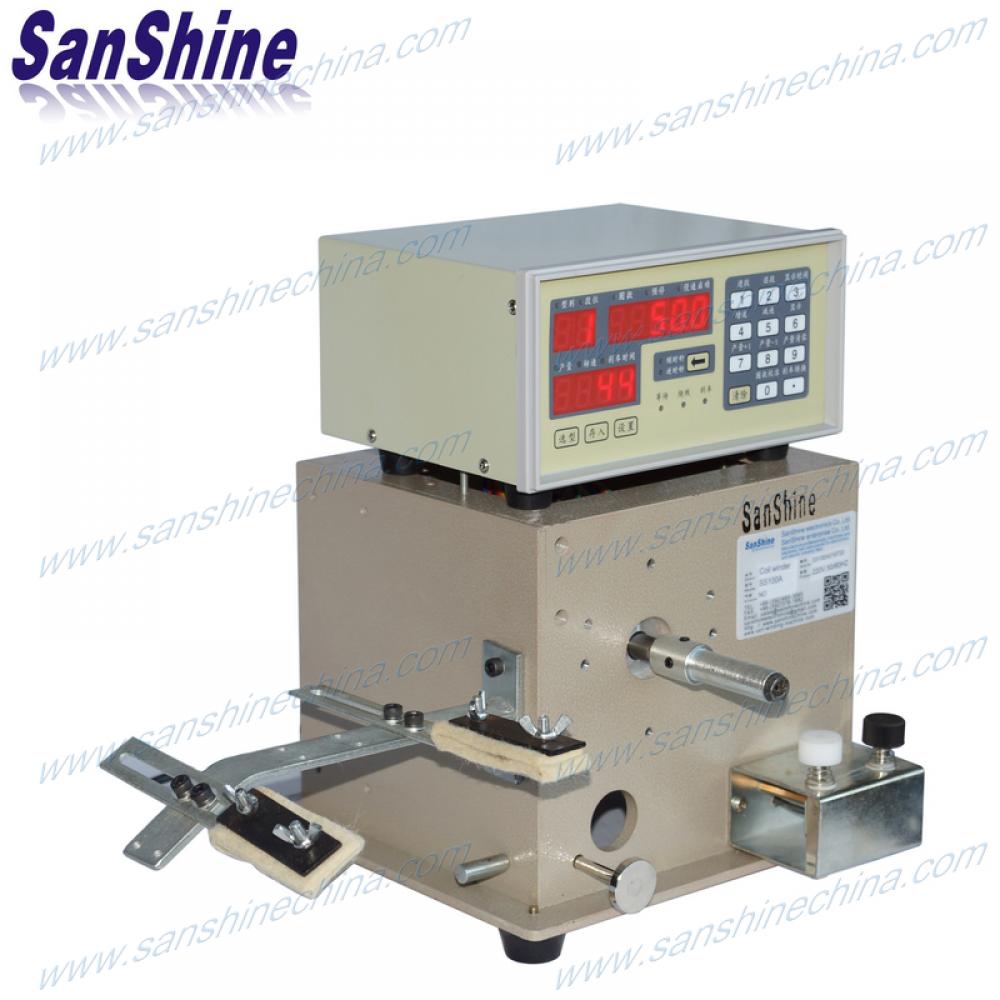

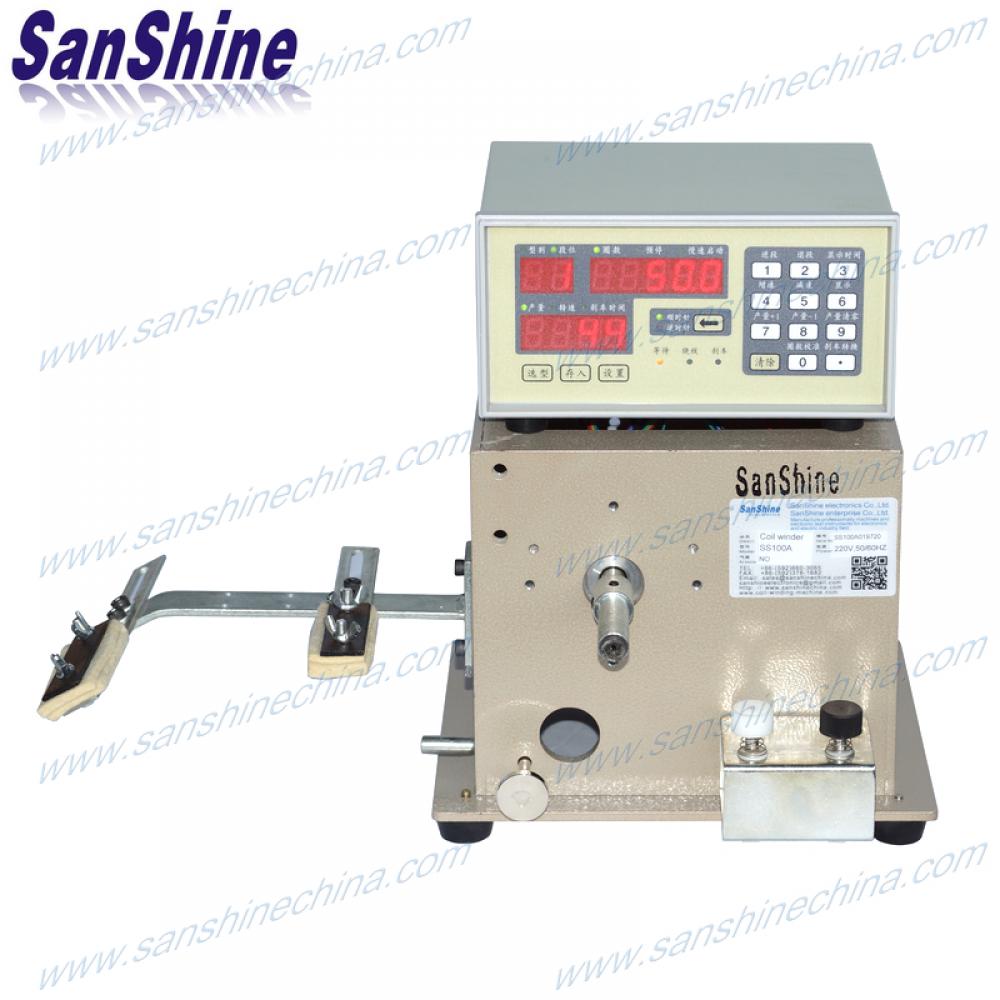

Product name : SMD SMC SMT drum core inductor winding machine (SS100A)

round wire power inductor winding machine

unshielded SMD drum core winding machine

unshielded drum core inductor winding machine

unshielded SMD power inductor winding machine

unshielded high current inductor winding machine

ultra inductor coil winding machine

Description :

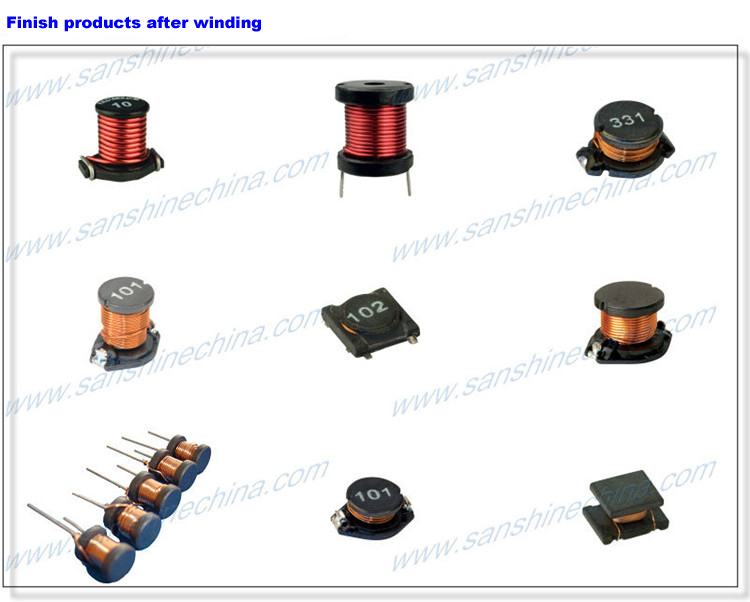

The SMD SMC SMT drum core inductor winding machine (SS100A) is a digital coil winding machine which adopts digital controller, This winder is an accurately and reliability digital coil winding machine for winding SMT SMC SMD inductors and drum core inductors, unshielded SMD power inductor,surface mount inductors,etc. . The winding machine (SS100A) is named power inductor bobbin core radial winding machine, power inductor pins drum core winding machine, shielded SMD core inductor winding machineand low profile SMD inductor winding machine also. It is one very economical winding machine.

Features :

1. Accurately count turns of winding by precise photo-electricity sensor.

2. Programmable winding direction, winding turns, winding speed, pre-stop and pre-start speed. Programmable many steps for many different windings coil.

3. Scientific fast type winding fixture for loading the core to wind and finished unload easily.

4. Memory capacity accommodates 99 sequences of parameters with off-power memory retention.

5. Spread wire by automatically.

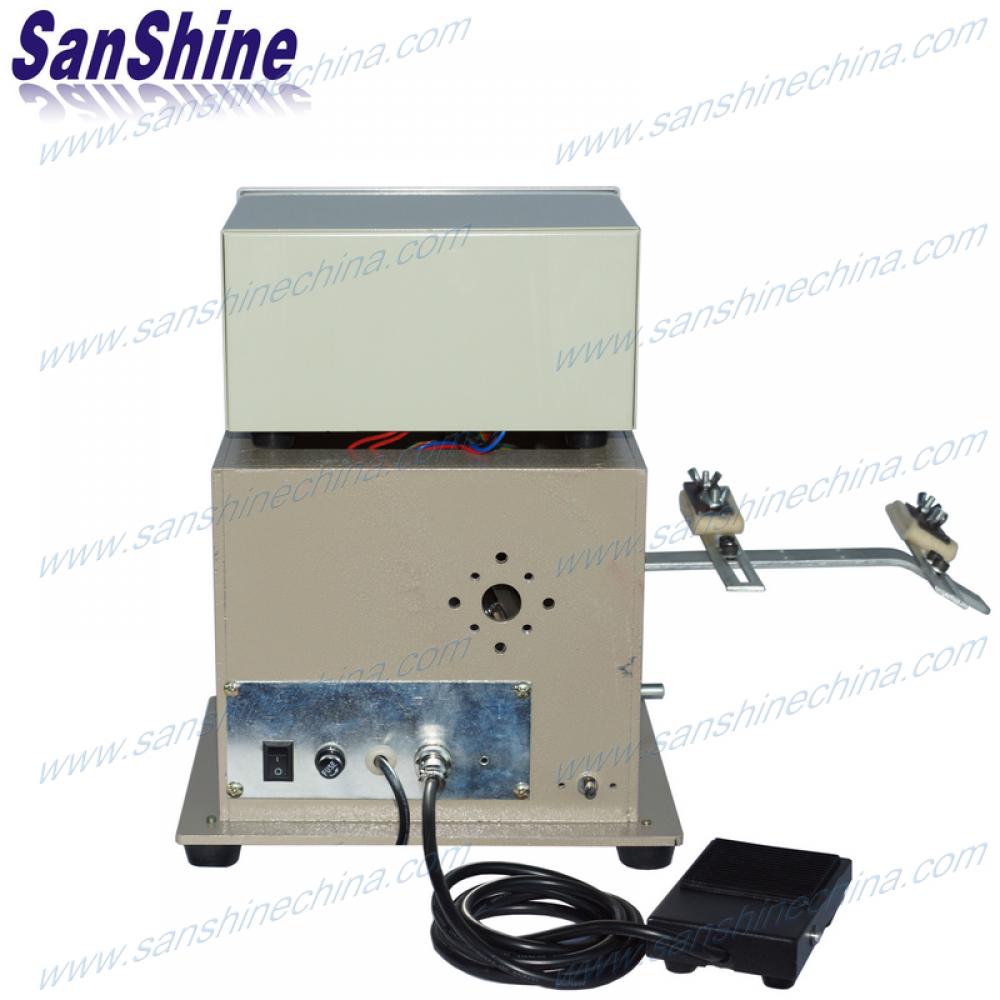

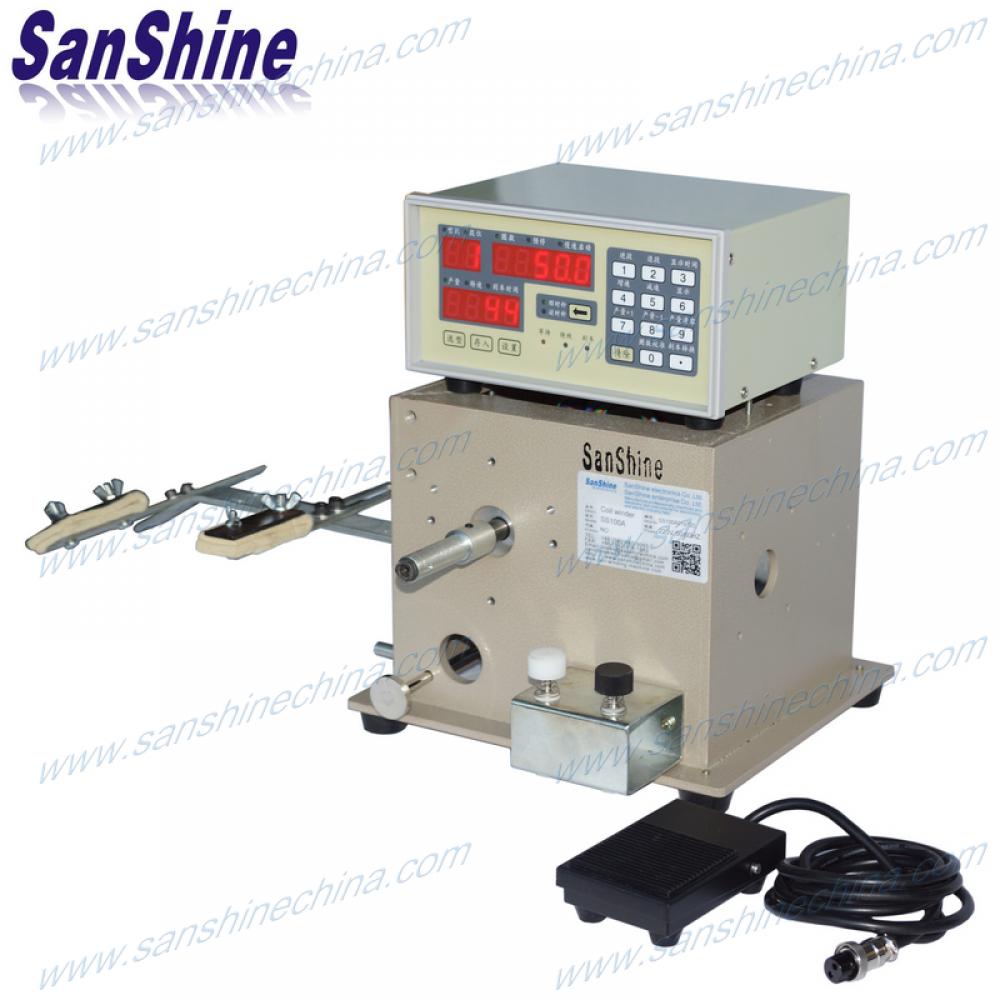

6. More convenience by using foot switch.

Specification :

Wire size : Φ0.02~1.2mm

Speed : 300 ~8570rpm

Winding motor : precise DC brushless motor

Memory capacity : 999 Steps

Power source: AC220V/110V ±10%, 50/60 Hz

Brake way: Use the reverse electromotive force of motor.


Related : 2 spindles drum core inductor winding machine (SS100C)
