programable automatic super big toroidal coil winding machine

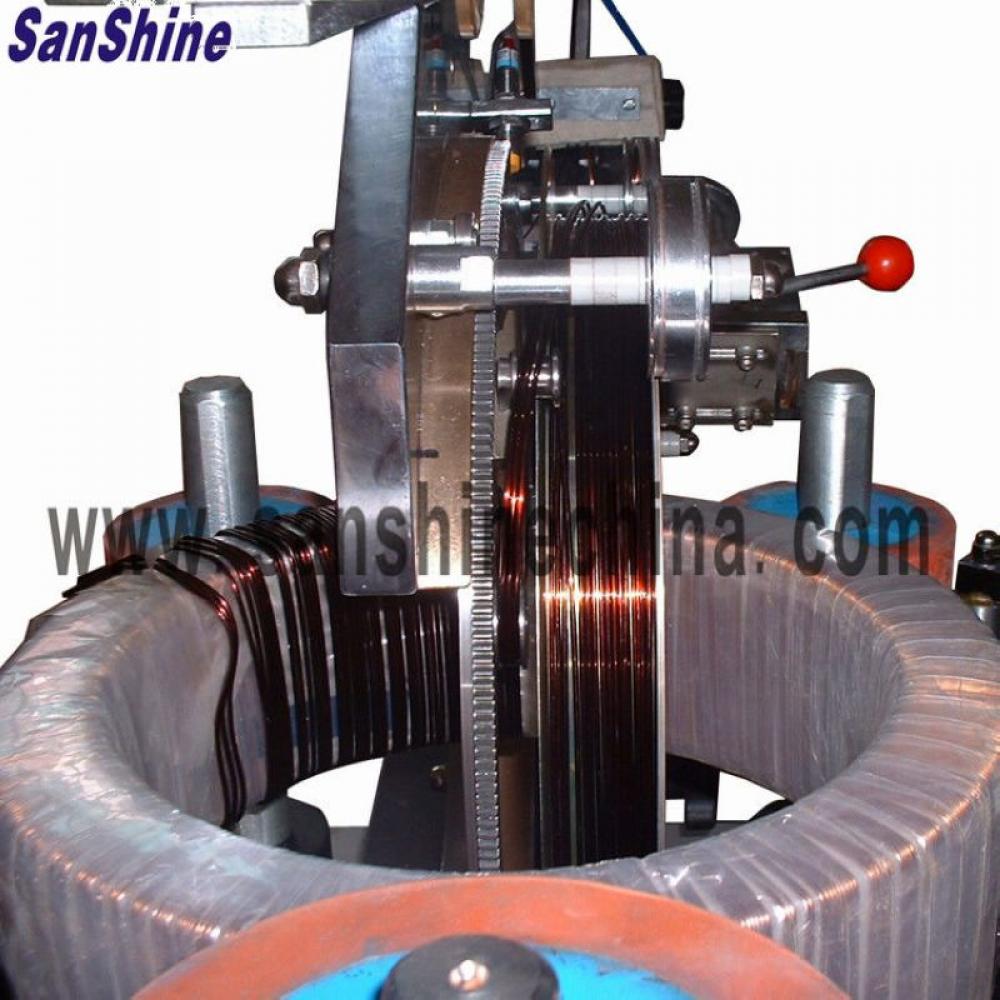

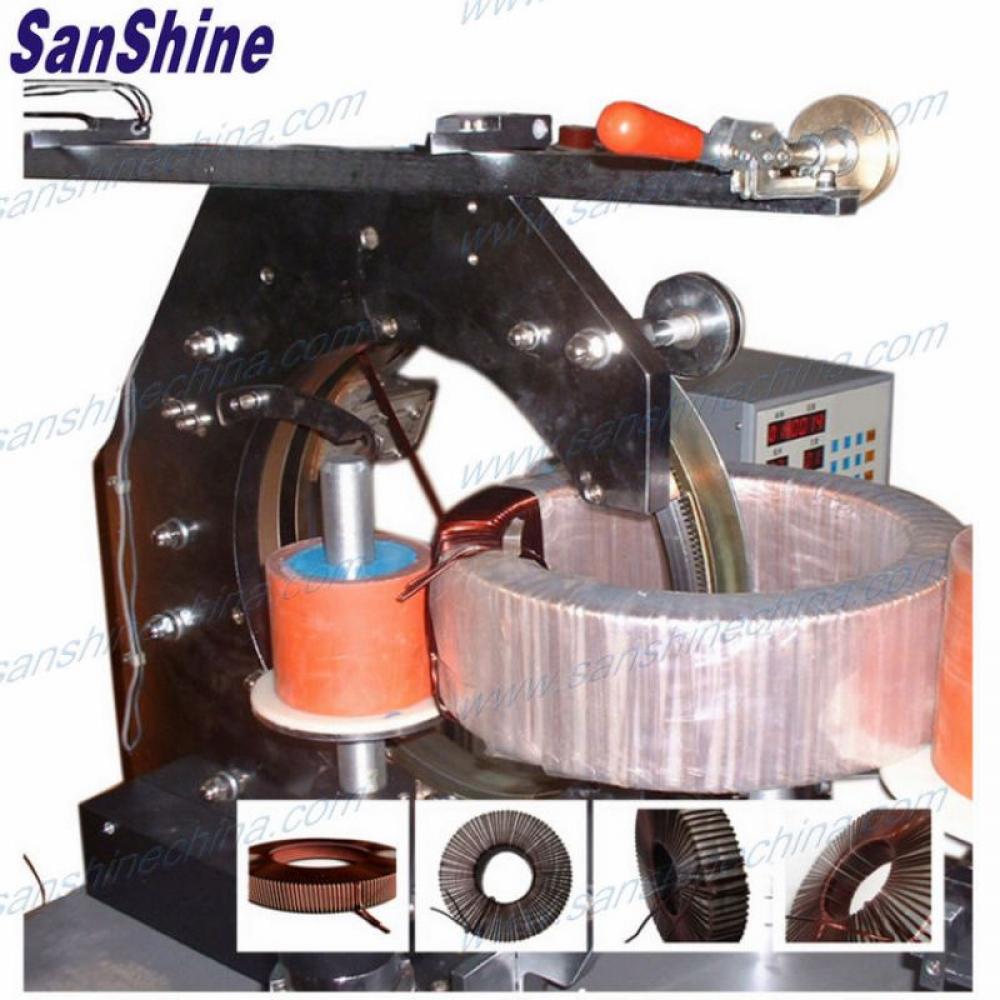

The programable automatic super big toroidal coil winding machine (SS1000) is a gear type toroid coil winding machine. this winding machine adopts the supper big winding head with strong winding shuttle. this toroid winding machine is used for winding the supper big toroid coils with the heavy wire. its winding capacity is finished coil Max. outside diameter 650mm with Max. 4 mm diameter. This toroid winding machine also called big toroidal current transformer winding machine.
  • Item NO.:

    SS1000
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray
contact now
Description

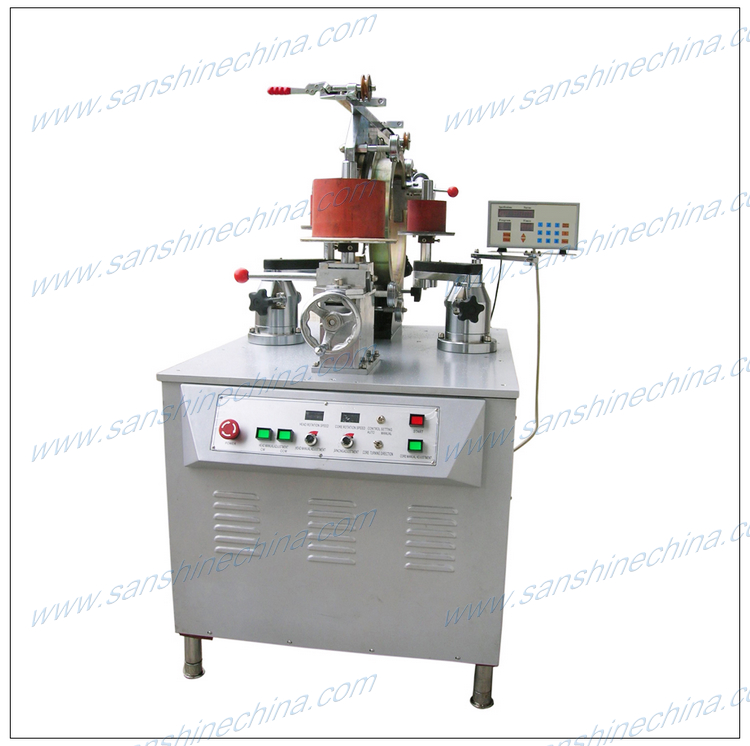

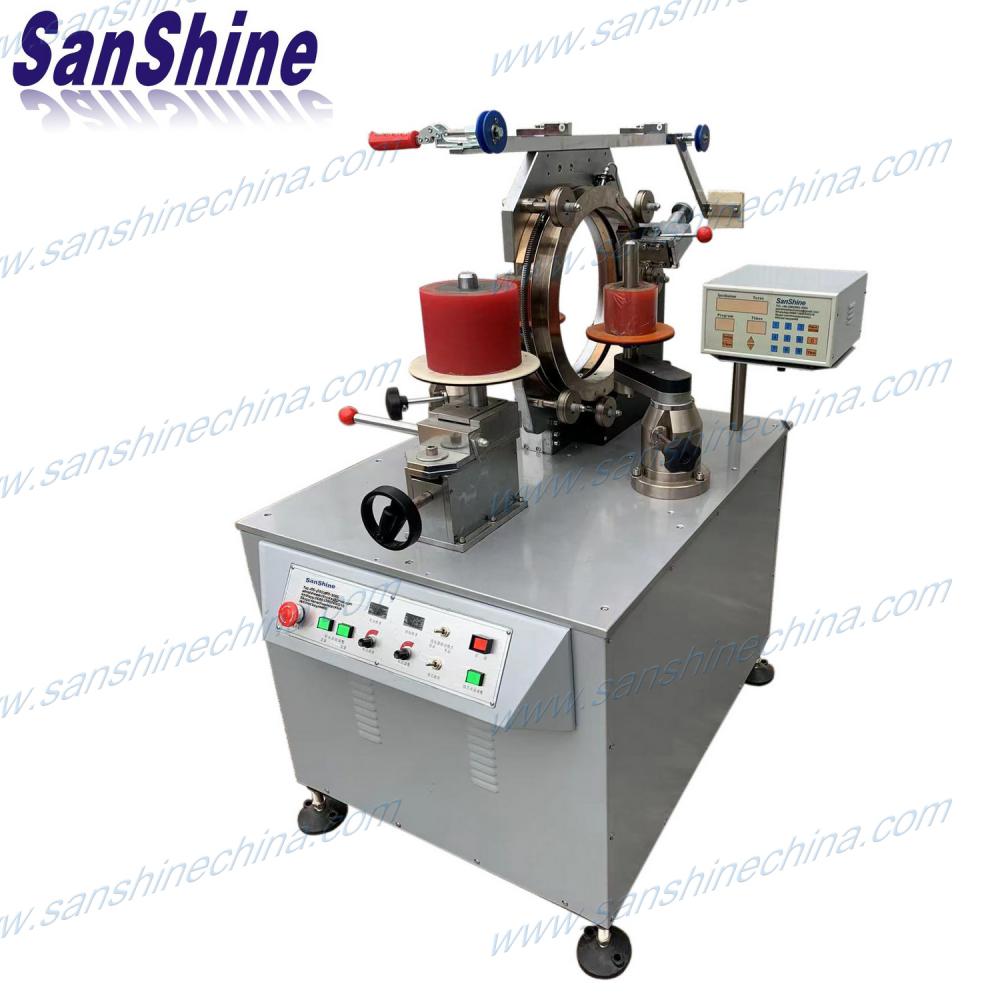

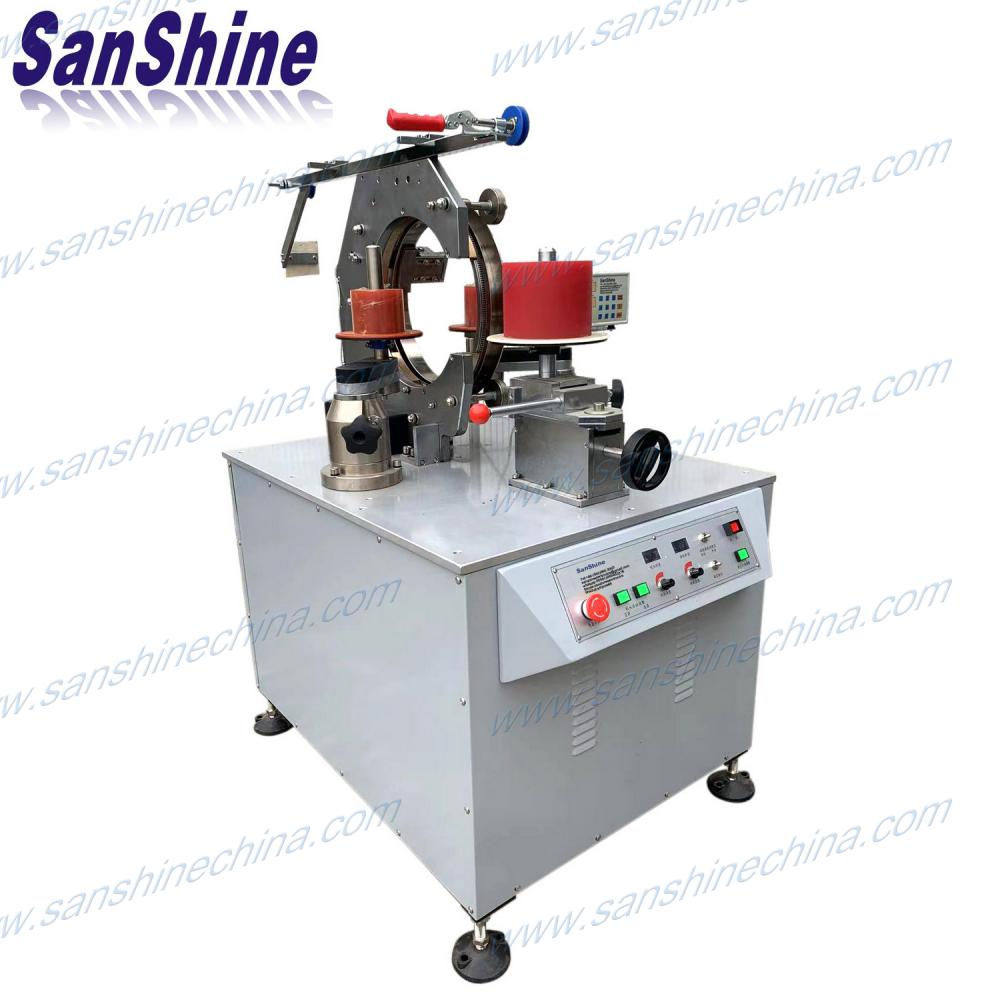

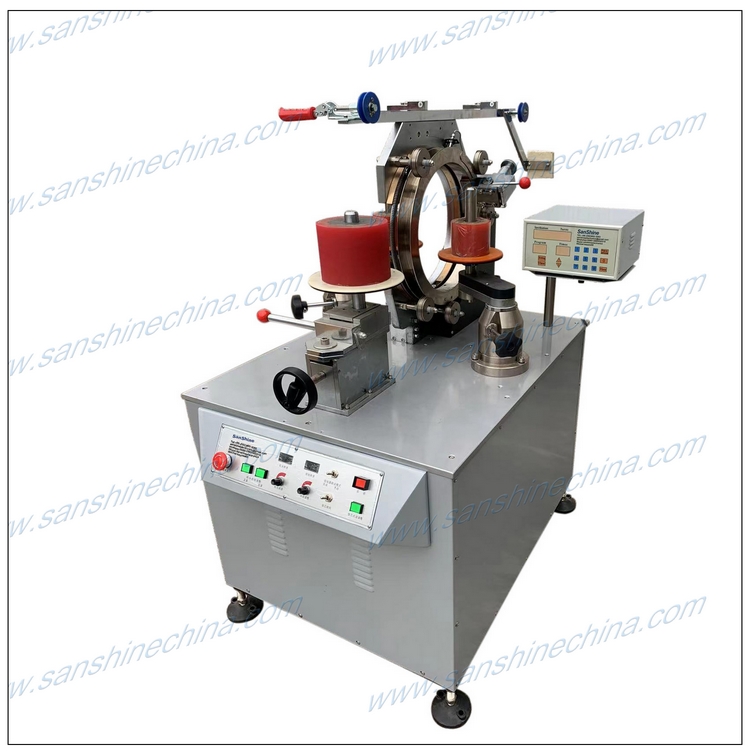

Product name : Programable automatic super big toroidal coil winding machine (SS1000)


heavy toroidal winding machine

toroid spiral winding machine

programmable big toroid winding machine

Description :

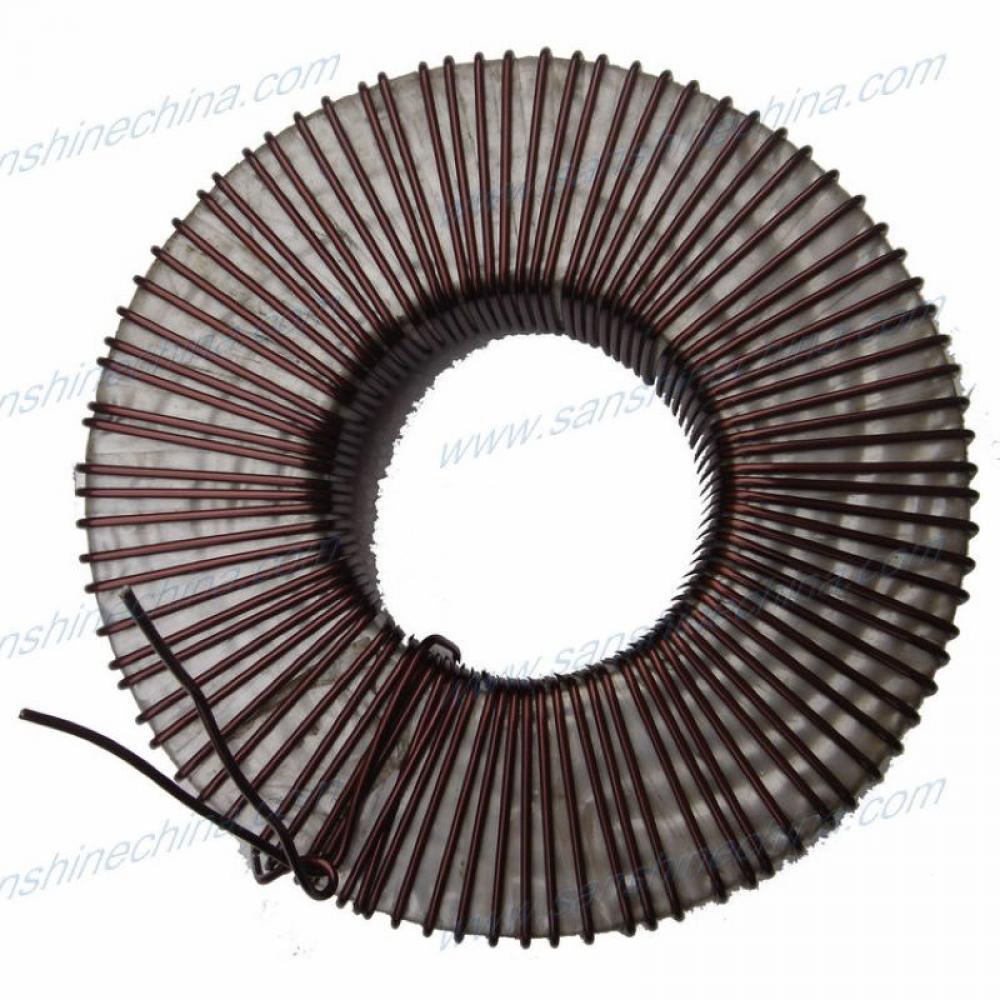

Programable automatic super big toroidal coil winding machine (SS1000) adopts precise digital toroid controller and strong big winding shuttle. This winding machine is an accurately and reliability digital automatic toroidal winding machine. This winder also named electic system current transformer winding machine, strong wire big toroidal winding machine, heavy toroidal core coil winding machine.This super big toroid winding machine is used for winding the big toroidal transformer with thick wire, toroidal current transformer with thick wire, toroidal coils with heavy enamel wire, power magnetics, UPS inductor with thick wire, heavy toroidal core with heavy wire coils, extra high voltage toroidal transformer, etc. .

Features :

1. Collocate the super big gear type winding head with strong winding shuttle to wind very heavy wire on the toroidal core, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different wires,turns,so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.

2. High technical strong winding shuttle for winding the so thick wire highest efficiency.

3. Separate speed controls for loading and winding.

4. Accurately count length of loading by limited-switch.

5. Accurately count turns of winding by photo-electricity sensor.

6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.

7. Accurately wire spacing by programmable controller and strong strong winding and spreading motors for the heavy toroid core and very thick wire.

8. Memory capacity accommodates 29 sets programes with off-power memory retention.

Specification :

Wire diameter

1.0-4.0mm

Max. winding speed

150 RPM

Max. final coil O. D.

Φ 130-650mm

Wire spacing

stepping motor

Min. final coilI.D.

Φ60mm

Supply voltage

AC220V,50Hz single phase

Max. final coil height

150mm

Mechanical dimensions

900*600*1350mm

Controller storage capacity programs

29(sets)

Weight

240kg


How to select the best suited automatic toroid coil winding machine for your toroid coil ?

Tell us your toroidal coil of data as below please:

1.toroid core outside diameter before winding?

2.toroid core inside diameter before winding?

3.toroid core height before winding?

4.how many windings on this core?

5.how many turns of each winding?

6.how about the copper wire diameter of each winding?

7.provide pictures of product which is more better.

Request a free quote

Can't find the specific information you're looking for? Have a question ? Contact Us

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
  • heavy toroid winding machine Porogramable automatic extra heavy toroidal coil winding machine

    The porogramable automatic extra heavy toroidal coil winding machine (SS1001) is a very large scale winding machine. it adopts the large winding head with the large and strong winding shuttle. The winding machine is used for winding the large scale toroid coils. This winding machine(SS1001) can wind the outside diameter 800mm toroid coils with wire1

  • extra toroid transformer winding machine Automatic extra toroid double heads winding taping machine

    The automatic extra toroid double heads winding taping machine (SS-1000WT) adopts one big winding head and one tape big wrapping head to wind the large big toroidal coils with the thick enamel wire and wrap the insulation tape at same time. so it be also named doubel coil winding taping head machine.

  • Hook coil winding machine Customized semiautomatic toroidal coil winding machine

    The customized semiautomatic toroidal coil winding machine (SS200) is used for winding the thick wire on the toroid core. it adopts nylon hook to wind the enamel wire. it also be called three phase EMC filter winding machine, toroid EMI filter winding machine.

  • fine wire small toroid winding machine Programmable slider type automatic toroid coil winding machine

    The programmable slider type automatic toroid coil winding machine (SS900S4) is used for winding the fine wire coils on the small toroidal core. like as small toroid transformers, toroid inductors and so on. This winding machine is named toroid current sensing transformer winding machine also.

  • toroidal coil winder Gear type automatic big toroid coil winding machine

    The gear type automatic big toroid coil winding machine (SS300 series) are used for winding the thick enamel wires on the big toroid core. Wind the big toroidal transformers, big toroidal voltage regulator coils, big toroid factor corrector coils. They are also called heavy wire toroidal coil winding machine.

  • fine wire toroid winder Slider type automatic big toroid coil winding machine

    The slider type automatic big toroid coil winding machine (SS300S series) is used for winding the fine wire big toroid coils. Like as: big toroid transformers, big toroidal inductors, big toroid current transformers, etc. . They also be named medium voltage instrument transformers winding machine, big toroid current sensor coil winding machine.

  • toroid winder Programmable belt type automatic toroid coil winding machine

    The programmable belt type automatic toroid coil winding machine (SS900B6, 6 inch winding head) is used for winding the thick enamelled wire on the toroid core. Also be named toroid common mode power line winding machine.

  • toroid transformer tape taping machine Programable automatic big toroid core coil taping machine

    The automatic big toroid core coil taping machine (SS300T series) is used for winding the insulation tape or film on the toroid core and the toroid coil. This toroid core coil tape taping machine be named ferrite toroidal core tape taping machine and toroidal coil tape taping machine also.
