Porogramable automatic extra heavy toroidal coil winding machine

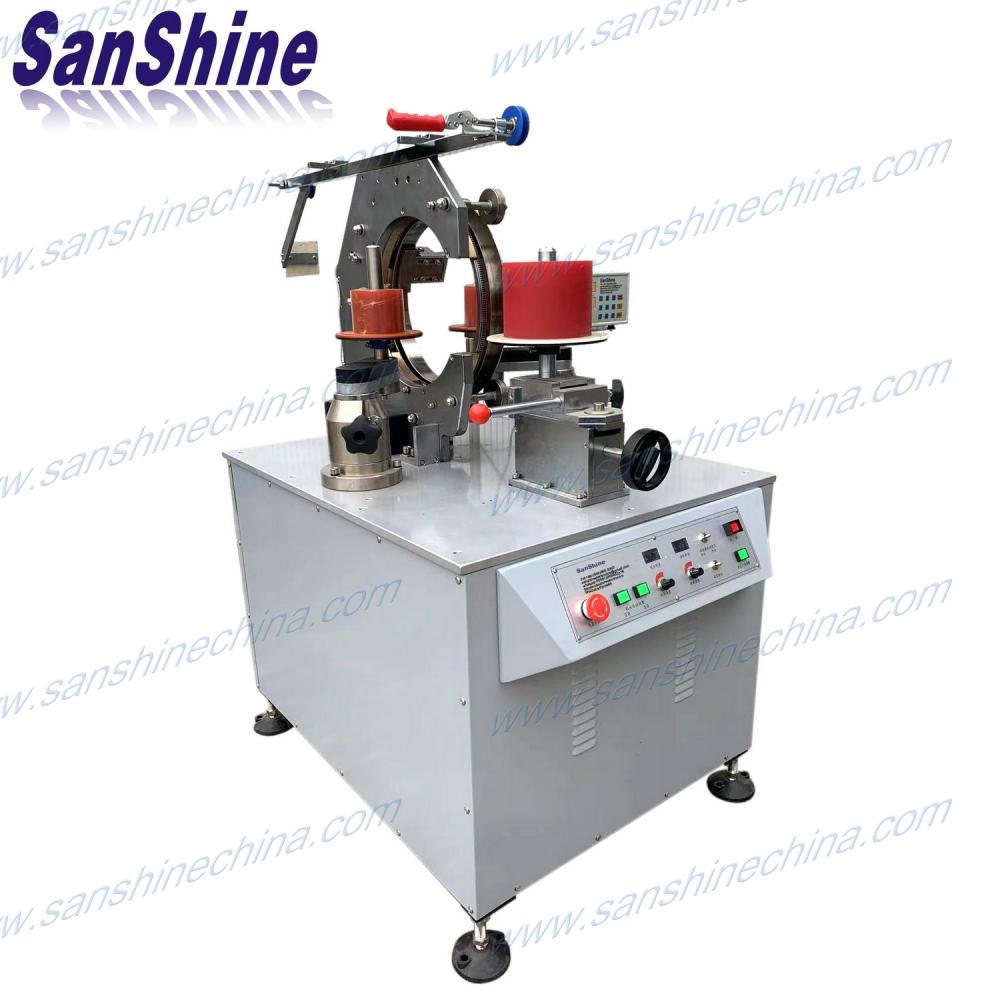

The porogramable automatic extra heavy toroidal coil winding machine (SS1001) is a very large scale winding machine. it adopts the large winding head with the large and strong winding shuttle. The winding machine is used for winding the large scale toroid coils. This winding machine(SS1001) can wind the outside diameter 800mm toroid coils with wire diameter 4.5mm. This toroid coil winding machine be named also electric power toroid transformer winding machine and extra high voltage toroid transformer winding machine.
  • Item NO.:

    S1001
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray
contact now
Description

Product name : Porogramable automatic extra heavy toroidal coil winding machine (SS1001)


programable extra toroid coil winding machine

programable extra toroid coil winder

programmable extra toroidal winding machine

Description :

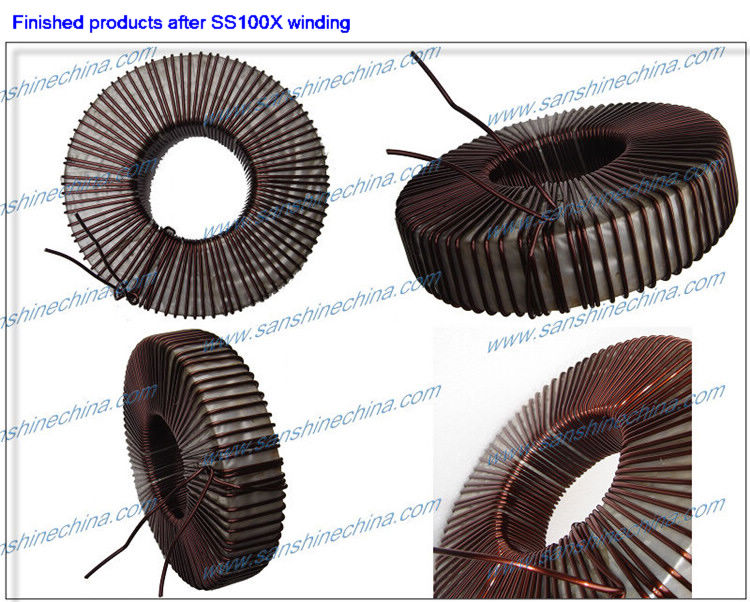

The porogramable automatic extra heavy toroidal coil winding machine (SS1001) adopts precise digital toroidal controller and a large scale strong winding shuttle. This winding machine is an accurately and reliability digital automatic strong toroid coil winding machine. This winding machine also be named electric system toroidal transformer winding machine and low voltage current transformer winding machine. It is used for winding the extra heavy big toroidal transformers with very thick wire, a large scale toroidal current transformer with thick wire, super big toroidal coil with thick wire,high voltage toroidal transformer, etc..

Features :

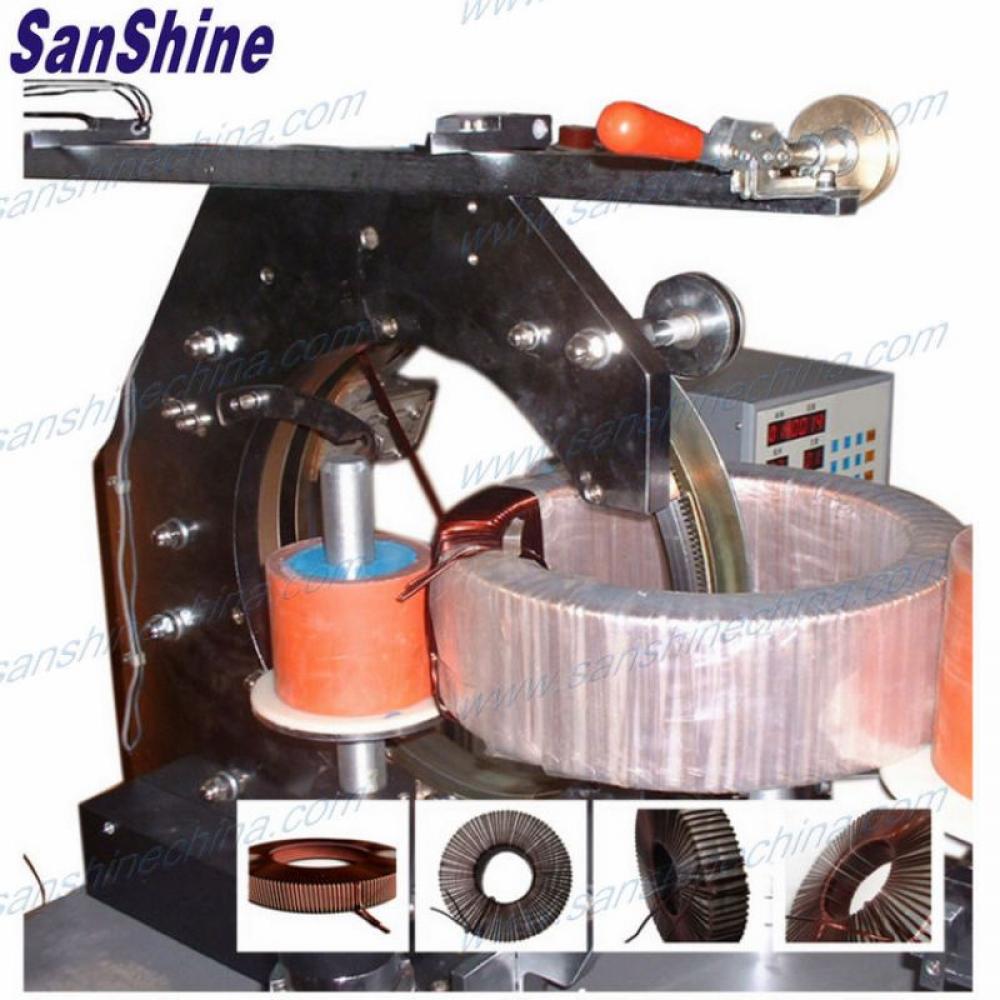

1. Adopt the a large scale gear type winding head with strong winding shuttle to wind the thick enamel wire, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different wires,turns,so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.

2. High technical and a large scale strong shuttle for big toroid coil and thick wire by highest efficiency.

3. Separate speed controls for loading and winding.

4. Accurately count length of loading by limited-switch.

5. Accurately count turns of winding by photo-electricity sensor.

6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.

7. Accurately wire spacing by programmable controller and strong wire spreading motor by high power frequency converter.

8. Memory capacity accommodates 29 sets programs with off-power memory retention.

Specification :

Wire diameter

1.2-4.5mm

Max. winding speed

100 RPM

Max. final coil O. D.

Φ 250-800mm

Wire spacing

stepping motor

Min. final coilI.D.

Φ80mm

Supply voltage

AC220V,50/60Hz single phase

Max. final coil height

250mm

Mechanical dimensions

1000×900×1500 mm

Controller storage capacity programs

29(sets)

Weight

330Kg


How to select the best suited automatic toroid coil winding machine for your toroid coil ?

Tell us your toroidal coil of data as below please :

1.toroid core outside diameter before winding?

2.toroid core inside diameter before winding?

3.toroid core height before winding?

4.how many windings on this core?

5.how many turns of each winding?

6.how about the copper wire diameter of each winding?

7.provide pictures of product which is more better.
