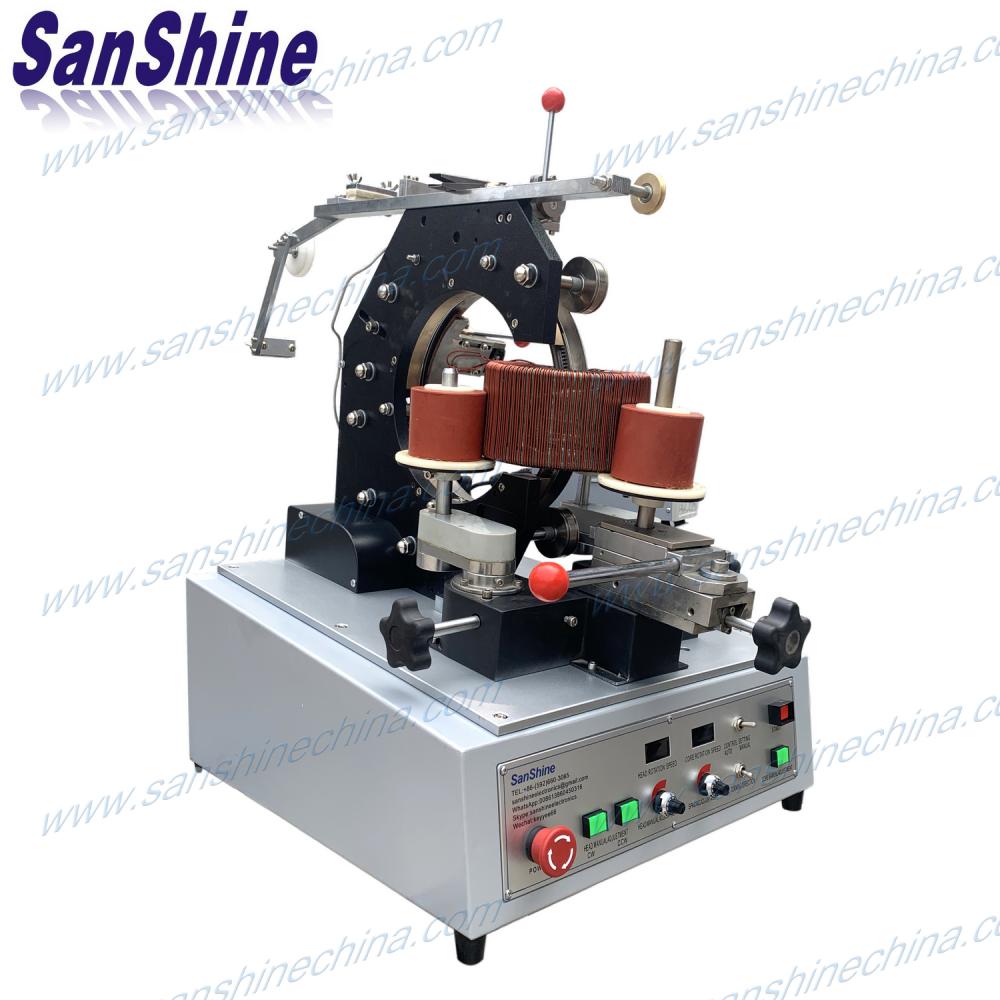

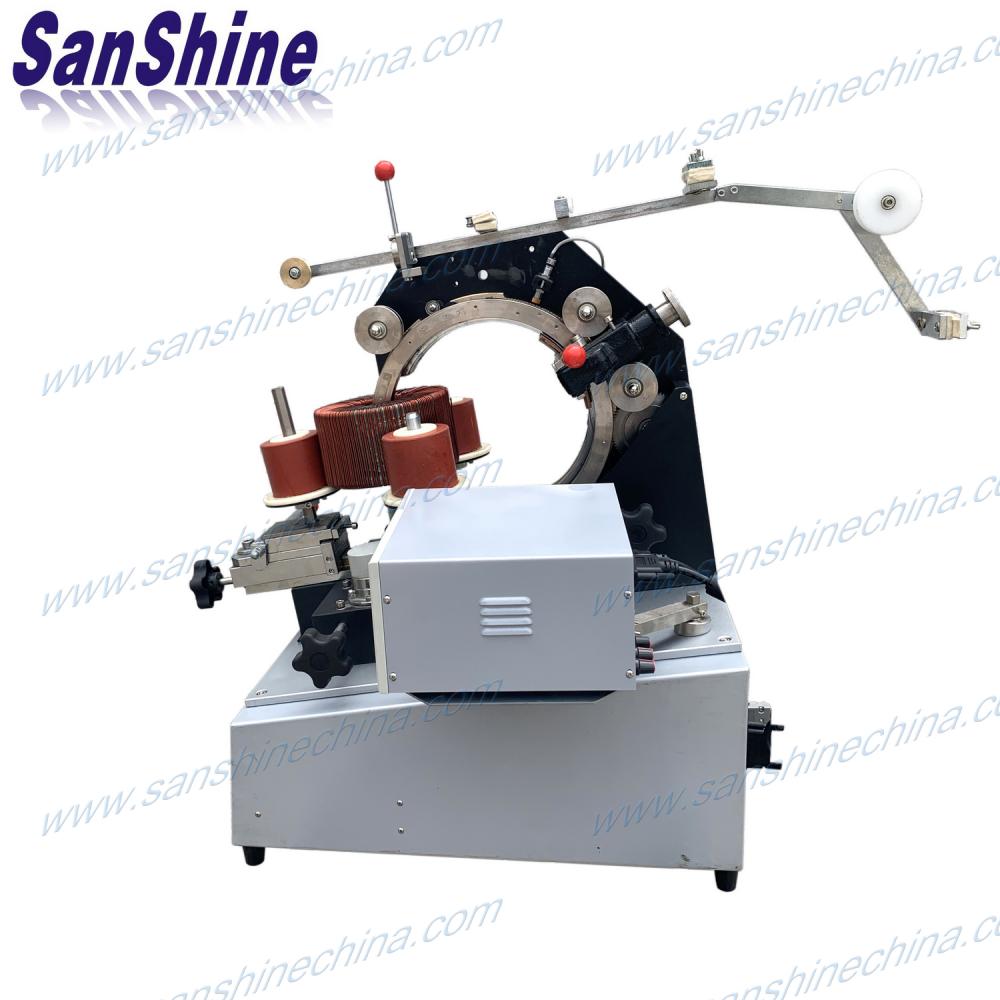

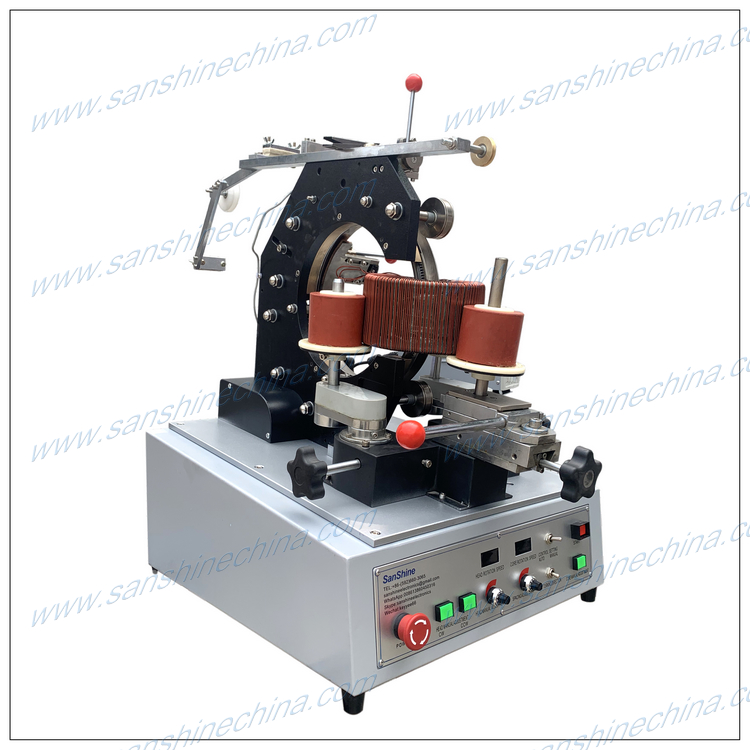

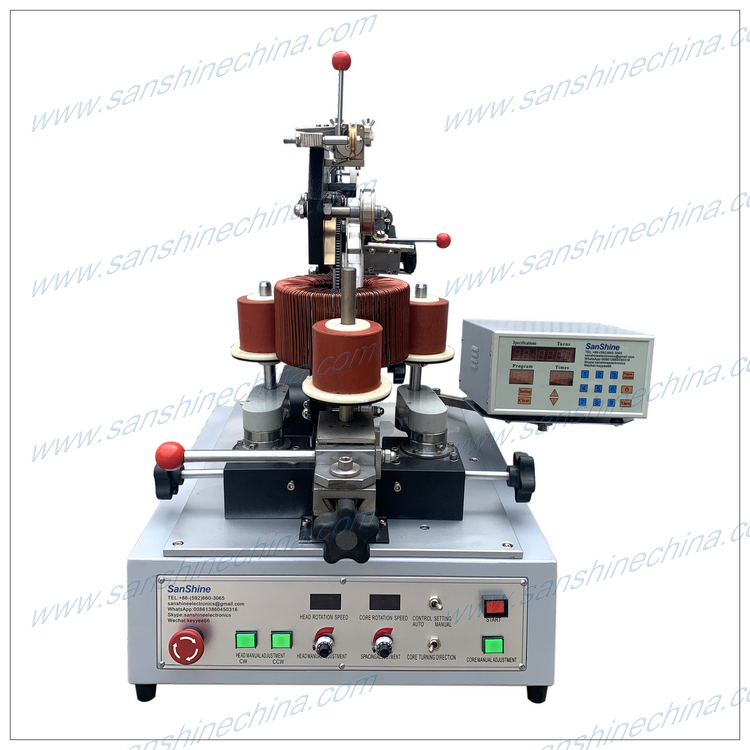

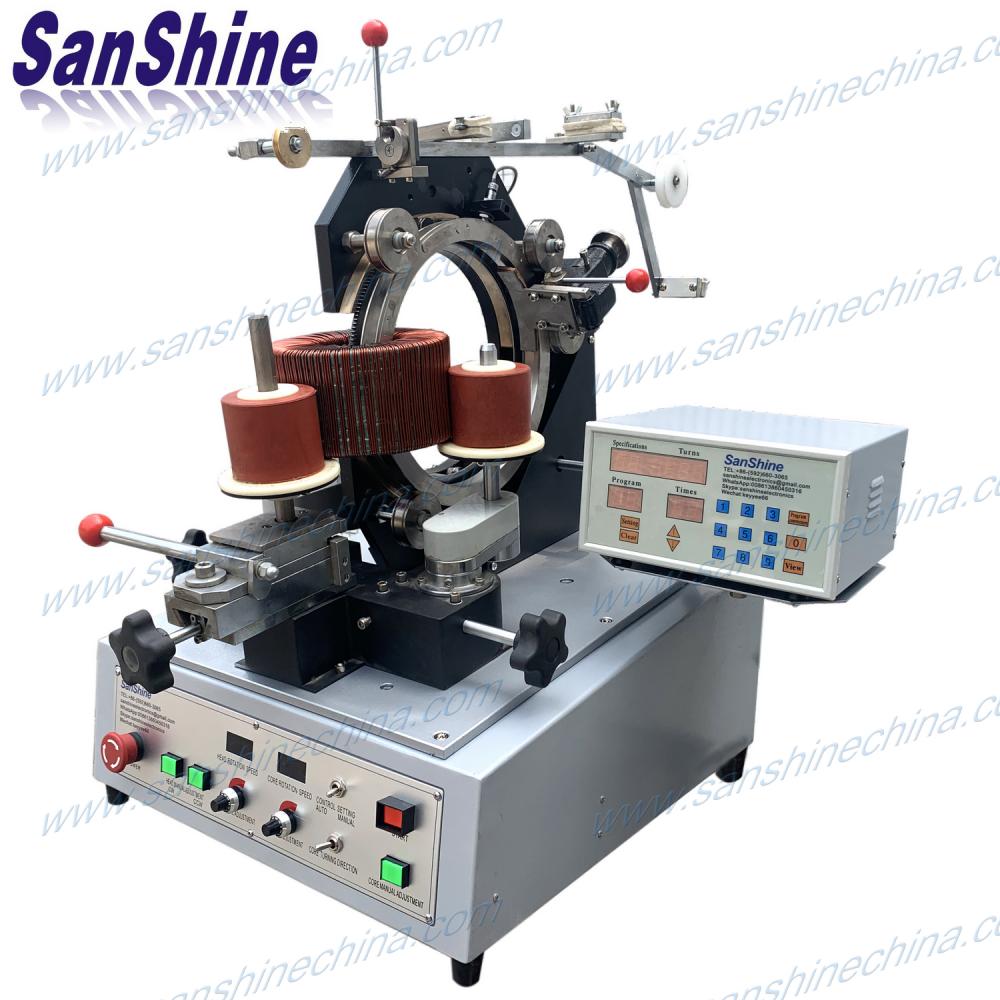

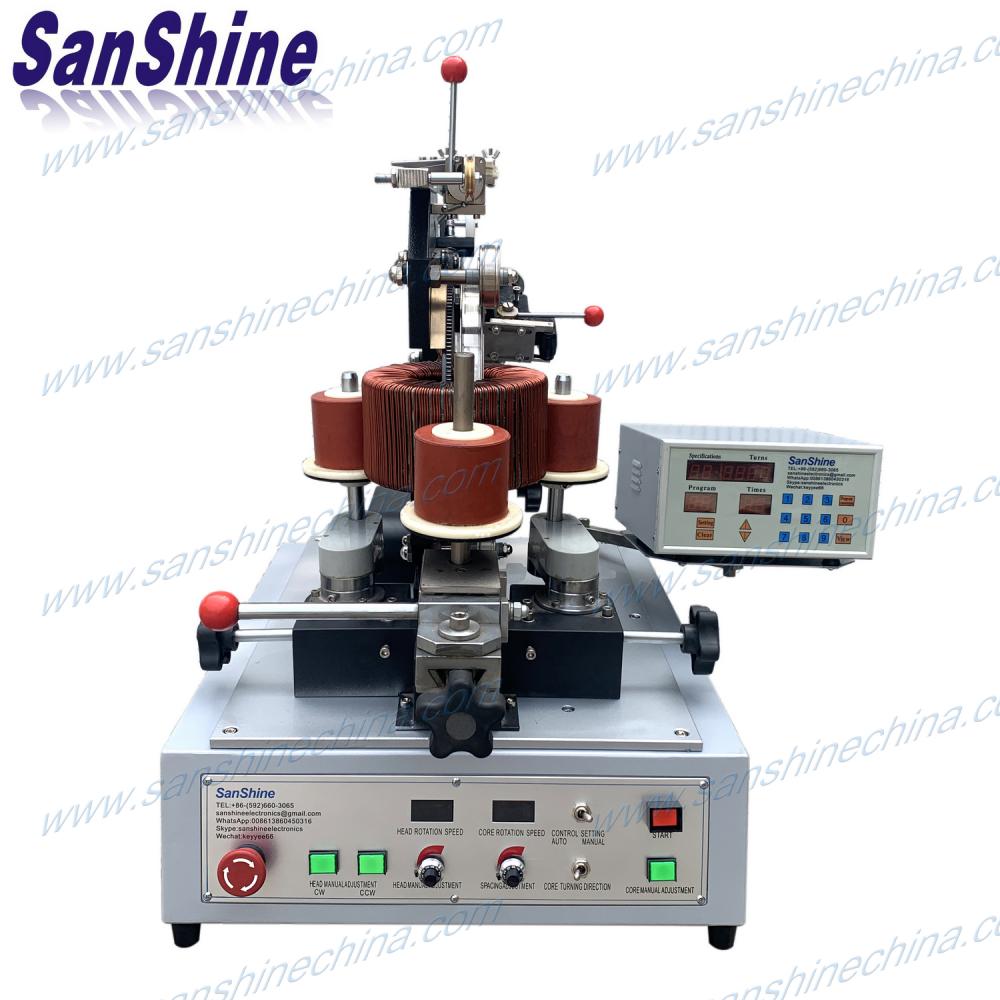

Gear type automatic big toroid coil winding machine

The gear type automatic big toroid coil winding machine (SS300 series) are used for winding the thick enamel wires on the big toroid core. Wind the big toroidal transformers, big toroidal voltage regulator coils, big toroid factor corrector coils. They are also called heavy wire toroidal coil winding machine.
  • Item NO.:

    SS300 series
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray and blue
contact now
Description

Product name : Gear type automatic big toroid coil winding machine (SS300 series)





thick wire toroid winding machine

Description:

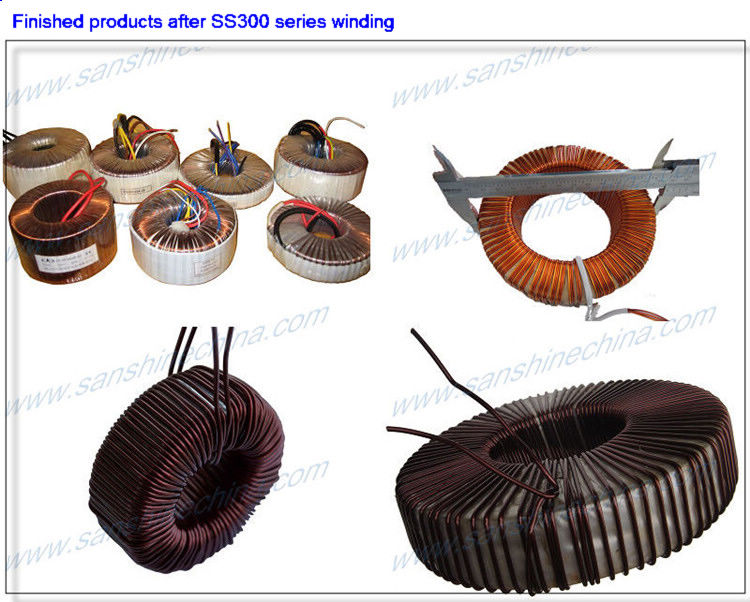

The gear type Digital Automatic Toroid Winding Machines (SS300 series )adopt precise digital toroid controller and the strong winding gear wheel. The gear wheel drives winding shuttle to run. They are accurately and reliability digital automatic toroid-winding machines. They are named thick wire big toroidal choke winding machine also. They are used for winding thick wire big toroidal inductor, thick wire toroidal transformer, thick wire toroidal current transformer, thick wire toroidal coils, toroid power inductors, toroid power magnetics, thick wire toroid UPS inductor, heavy wire toroid converter inductors, winding the heavy wire on the big toroidal core,etc. .

Features:

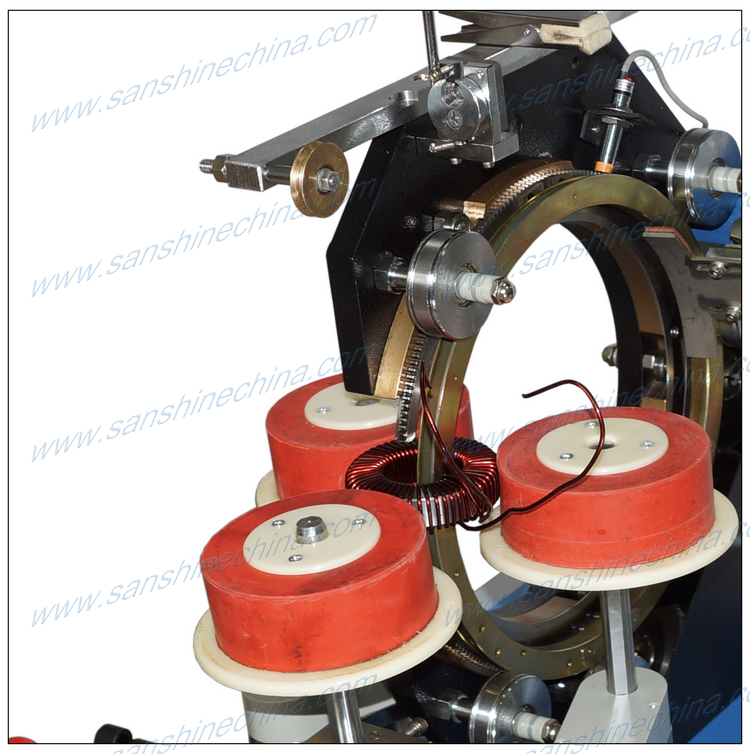

1. Collocate the gear type winding head, The gear wheel drive winding shuttle to wind heavy wire, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different wires, turns, so that to reduce the cost. one set standard automatic toroid coil winding machne include one PCS winding shuttle only, other sizes winding shuttles are optional.

2. Hi-tech shuttle for highest efficiency.

3. Separate speed controls for loading and winding.

4. Accurately count length of loading by limited-switch.

5. Accurately count turns of winding by photo-electricity sensor.

6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.

7. Accurately wire spacing by programmable controller.

8. Memory capacity accommodates 29 sets programs with off-power memory retention

Specification of each model :

Model SS300-01
Wire diameter 0.7 -2.0mm Max. winding speed 200 Rpm
Max. final coil O. D. Φ 60 -200mm Wire spacing stepping motor control
Min. final coil I. D. Φ 40mm Supply voltage AC 220V(50Hz)
Max. final coil height 100mm Mechanical dimensions 550*500*780mm
Controller storage capacity programs 29(set) Weight 94Kg
Model SS300-02
Wire diameter 0.7 -2.5mm Max. winding speed 200 Rpm
Max. final coil O. D. Φ 60 -200mm Wire spacing stepping motor control
Min. final coil I. D. Φ 40mm Supply voltage AC 220V(50Hz)
Max. final coil height 100mm Mechanical dimensions 550*500*780mm
Controller storage capacity programs 29(set) Weight 94Kg
Model SS300-03
Wire diameter 0.6 -1.6mm Max. winding speed 200 Rpm
Max. final coil O. D. Φ 60 -200mm Wire spacing stepping motor control
Min. final coil I. D. Φ 30mm Supply voltage AC 220V(50Hz)
Max. final coil height 80mm Mechanical dimensions 550*500*780mm
Controller storage capacity programs 29(set) Weight 94Kg
Model SS300-04
Wire diameter 0.5 -1.3mm Max. winding speed 200 Rpm
Max. final coil O. D. Φ 60 -200mm Wire spacing stepping motor control
Min. final coil I. D. Φ 25mm Supply voltage AC 220V(50Hz)
Max. final coil height 80mm Mechanical dimensions 550*500*780mm
Controller storage capacity programs 29(set) Weight 94Kg

How to select the best suited automatic toroid coil winding machine for your toroid coil?

Tell us your toroidal coil of data as below please:

1.toroid core outside diameter before winding?

2.toroid core inside diameter before winding?

3.toroid core height before winding?

4.how many windings on this core?

5.how many turns of each winding?

6.how about the copper wire diameter of each winding?

7.provide pictures of product which is better.
