Slider type automatic big toroid coil winding machine

The slider type automatic big toroid coil winding machine (SS300S series) is used for winding the fine wire big toroid coils. Like as: big toroid transformers, big toroidal inductors, big toroid current transformers, etc. . They also be named medium voltage instrument transformers winding machine, big toroid current sensor coil winding machine.
  • Item NO.:

    SS300S series
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray and blue and black
contact now
Description

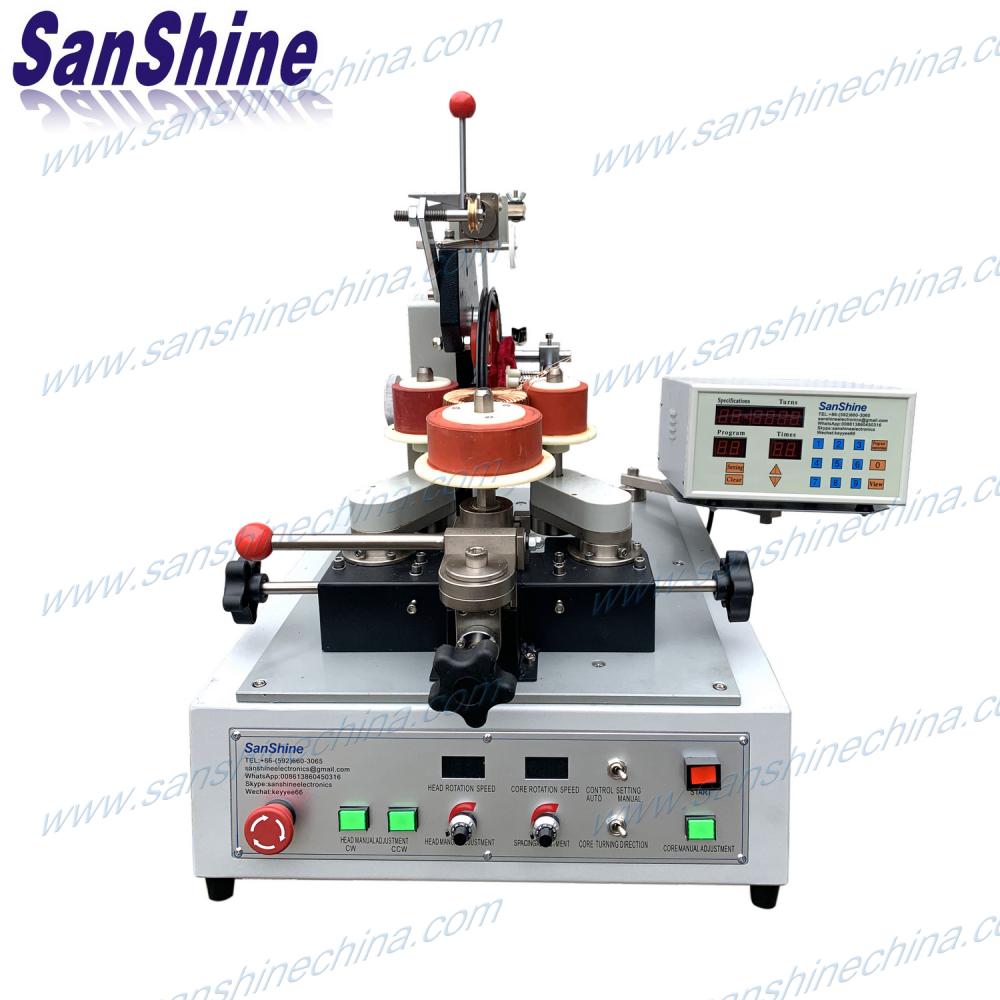

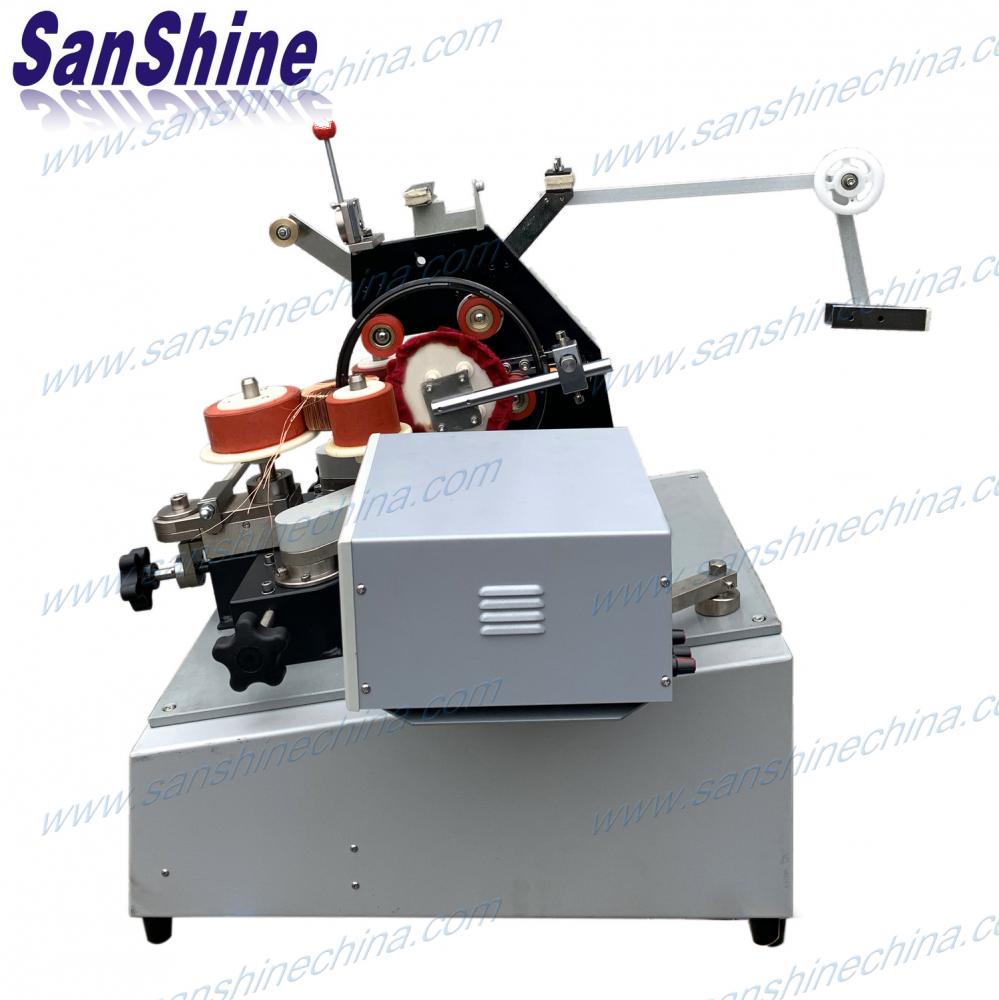

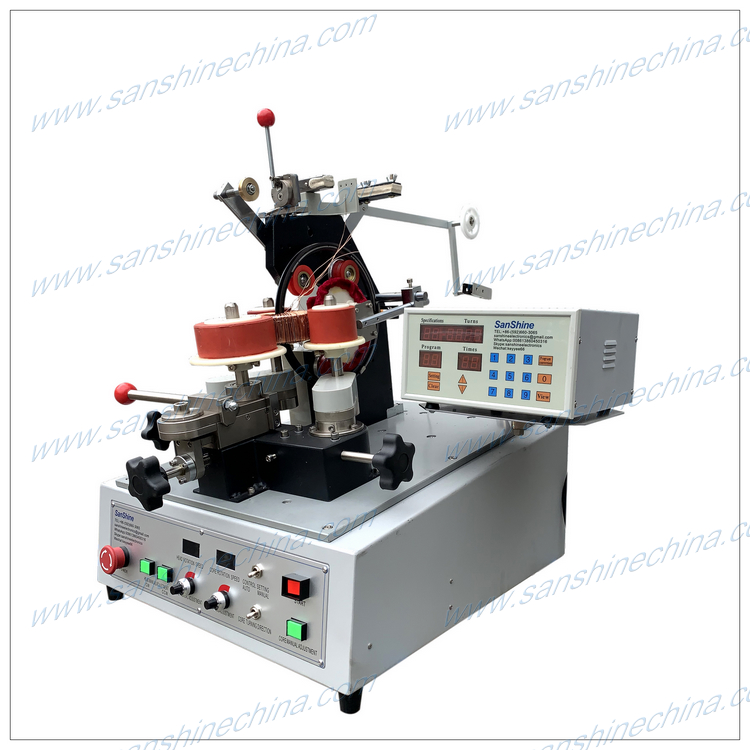

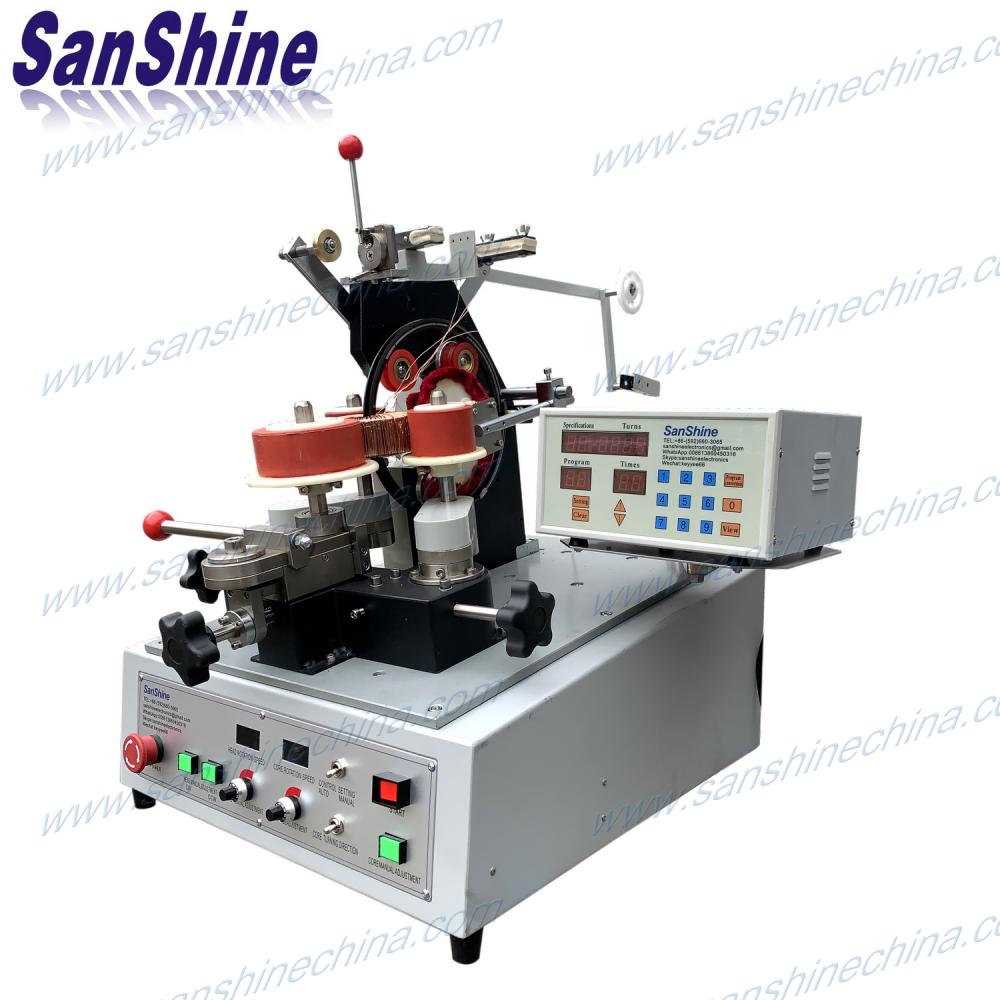

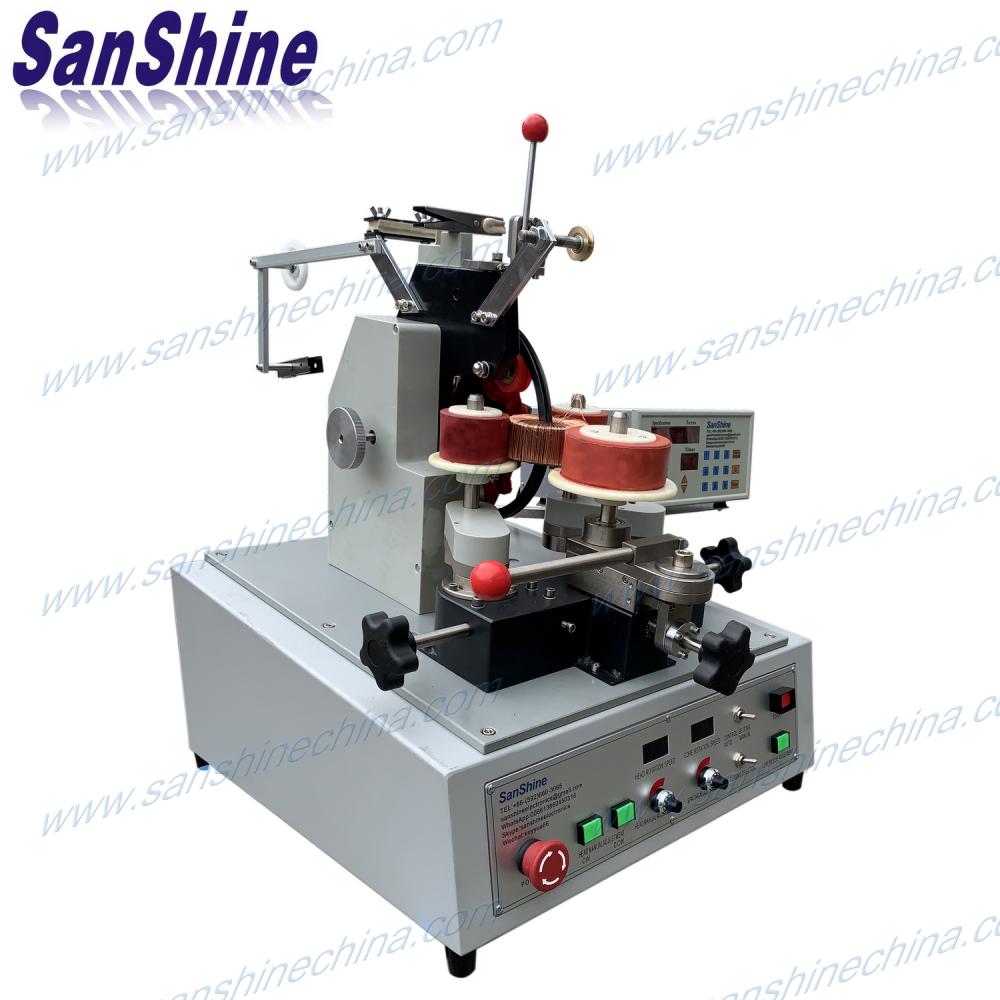

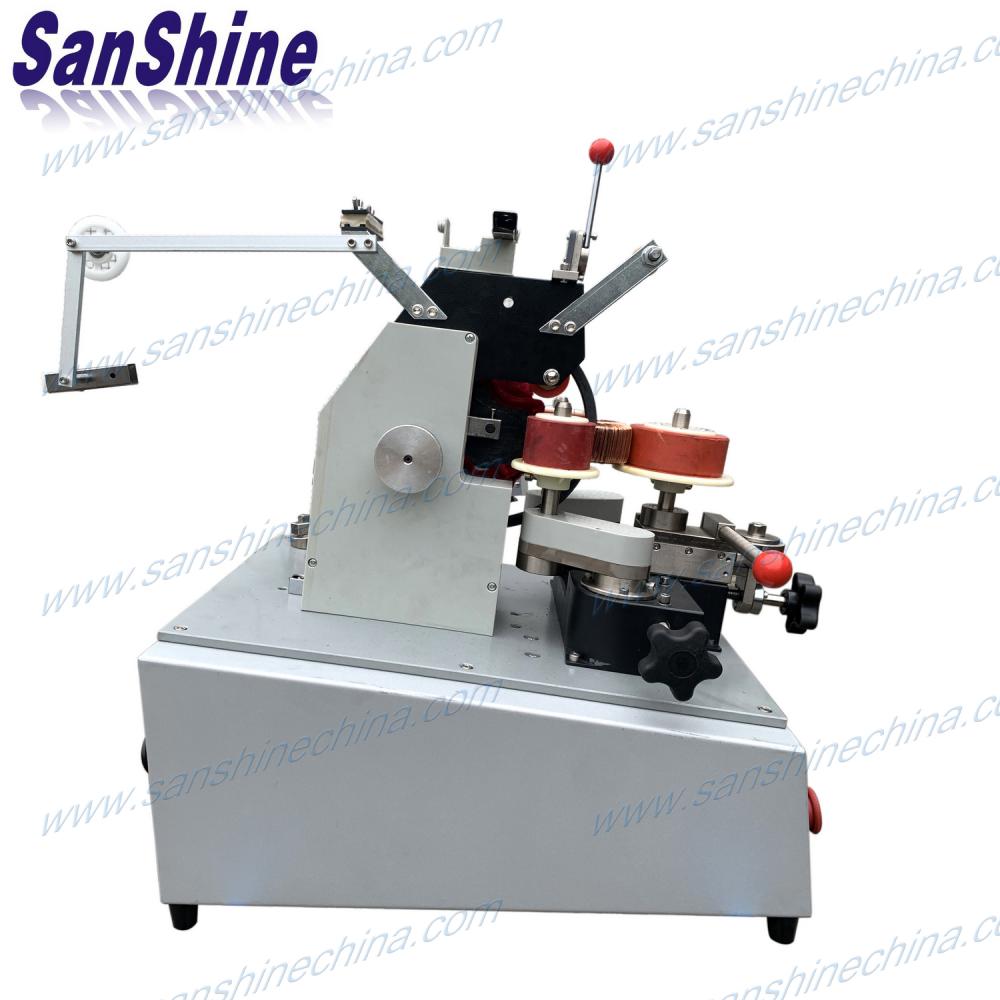

Product name : Slider type automatic big toroid coil winding machine (SS300S series)


toroidal current transformer winder

big toroid current transformer winder

toroid voltage transformer winding machine

Description :

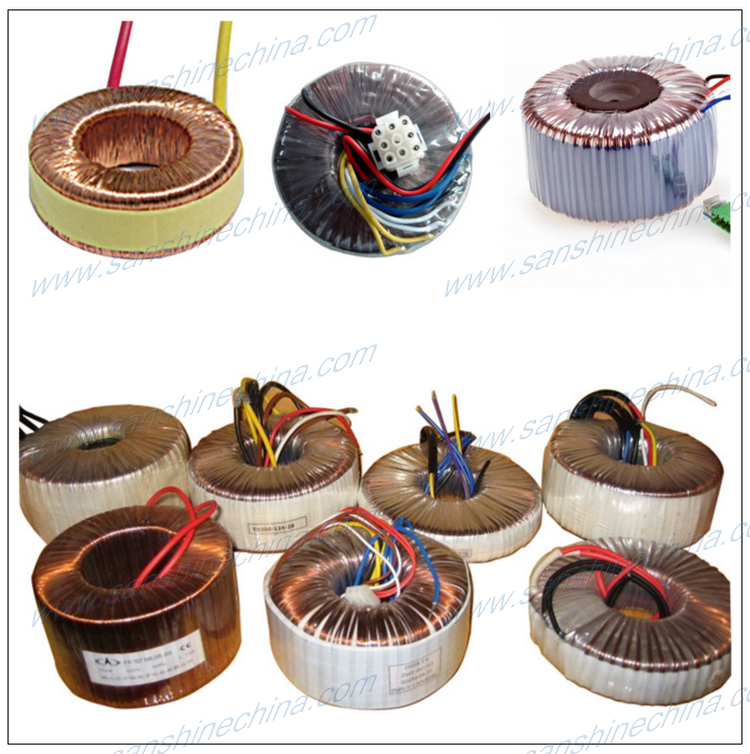

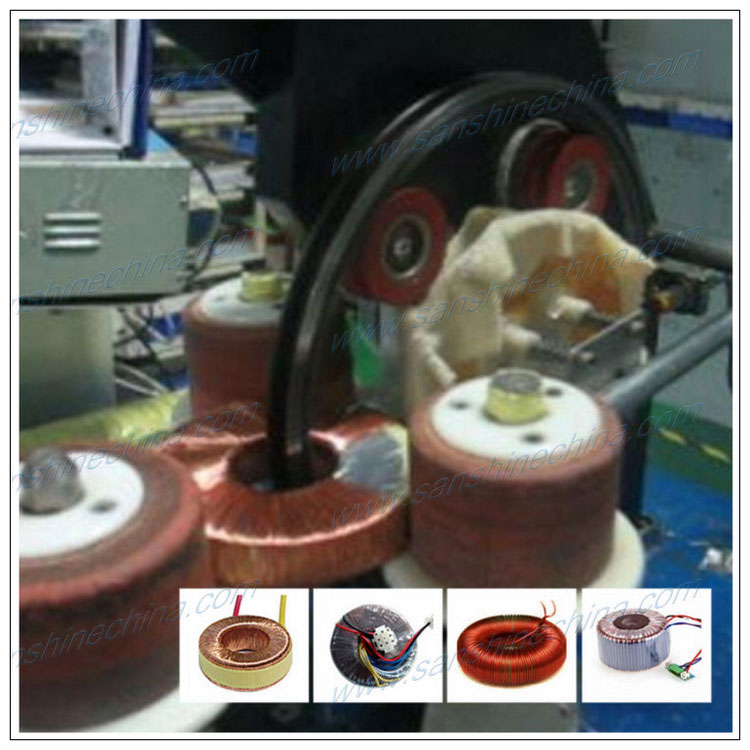

The slider type Automatic Big Toroid Winding Machines (SS300S series) adopt precise digital toroidal controller and big inner diameter winding shuttle. They are an accurately and reliability digital automatic toroidal winding machine. They are also be called fine wire toroid inductor winding machine and voltage instrument transformers winding machine. They are used for winding the fine wire on the heavy toroid core. Such as : big toroidal inductors with fine wire, big toroid transformers with fine wire, big toroidal current transformer with fine wire, big toroidal coil with fine wire, big toroidal chock coil, big toroidal power inductors, big toroid power magnetic coils, big UPS inductor with fine wire, big converter inductors with fine wire, heavy toroidal core with fine wire coils, etc. .

Features:

1. Collocate the slider type big winding head to wind fine wire, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different wires,turns, so that to reduce the cost. one set standard automatic toroid coil winding machine include one PCS winding shuttle only, other sizes winding shuttles are optional.

2. High technical shuttle for highest efficiency.

3. Separate control speed for loading and winding.

4. Accurately count length of loading by limited-switch.

5. Accurately count turns of winding by photo-electricity sensor.

6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.

7. Accurately wire spacing by programmable controller,Strong winding by AC motor which drove by precise frequency converter.

8. Memory capacity accommodates 29 sets programs with off-power memory retention.

Specification of each model :

Model SS300S-01
Wire diameter 0.2 -0.70mm Max. winding speed 700 Rpm
Max. final coil O. D. Φ 60 -200mm Wire spacing stepping motor control
Min. final coil I. D. Φ35mm Supply voltage AC 220V(50Hz)
Max. final coil height 80mm Mechanical dimensions 550*500*700mm
Controller storage capacity programs 29(set) Weight 83Kg
Model SS300S-02
Wire diameter 0.2 -0.70mm Max. winding speed 700 Rpm
Max. final coil O. D. Φ 60 -200mm Wire spacing stepping motor control
Min. final coil I. D. Φ35mm Supply voltage AC 220V(50Hz)
Max. final coil height 100mm Mechanical dimensions 550*500*720mm
Controller storage capacity programs 29(set) Weight 83Kg
Model SS300S-03
Wire diameter 0.15 -0.6mm Max. winding speed 700 Rpm
Max. final coil O. D. Φ 60 -200mm Wire spacing stepping motor control
Min. final coil I. D. Φ 30mm Supply voltage AC 220V(50Hz)
Max. final coil height 80mm Mechanical dimensions 550*500*700mm
Controller storage capacity programs 29(set) Weight 83Kg
Model SS300S-04
Wire diameter 0.12 -0.4mm Max. winding speed 700 Rpm
Max. final coil O. D. Φ 60 -200mm Wire spacing stepping motor control
Min. final coil I. D. Φ20mm Supply voltage AC 220V(50Hz)
Max. final coil height 80mm Mechanical dimensions 550*500*700mm
Controller storage capacity programs 29(set) Weight 94Kg

How to select the best suited automatic toroid coil winding machine for your toroid coil?

Tell us your toroidal coil of data as below please :

1.toroid core outside diameter before winding?

2.toroid core inside diameter before winding?

3.toroid core height before winding?

4.how many windings on this core?

5.how many turns of each winding?

6.how about the copper wire diameter of each winding?

7.provide pictures of product which is better.
