Automatic extra toroid double heads winding taping machine

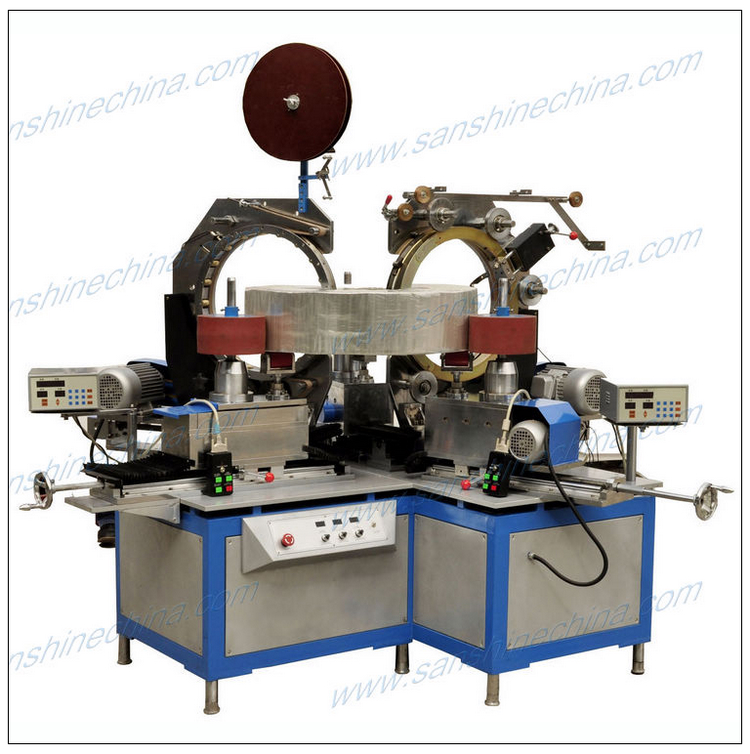

The automatic extra toroid double heads winding taping machine (SS-1000WT) adopts one big winding head and one tape big wrapping head to wind the large big toroidal coils with the thick enamel wire and wrap the insulation tape at same time. so it be also named doubel coil winding taping head machine.

  • Item NO.:

    SS1000WT
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray and blue
contact now
Description

Product name : Automatic extra toroid double heads winding taping machine (SS1000WT)

extra toroid coil winding machine

Description :

The Gear type Digital Automatic Extra Toroid Double Heads Winding Taping Machine (SS100WT) adopts one big winding head and one big taping head with the precise digital toroidal controller. This toroid winding and taping machine is an accurately and reliability digital automatic toroidal winding and taping machine. This toroid winding and taping machine is used for winding thick wire and wrapping insulation tape or film on the extra large toroid core at same time. The toroidal winding and taping machine be also named double winding head winding machine. and toroid core film wrapping machine and tape taping machine. This type winding machine is used for winding the extra big toroidal transformer, electric system toroidal current transformer, large big toroidal coils with thick enamel wire, heavy big toroidal core with heavy wire, electric extra high voltage toroid transformer, etc. .

Features :

1. Adopts the gear type double winding heads, one winding winding head, one tape taping head. the winding head winds very heavy wire and gear type taping head to wrap insulation tape, and interchangeable roller table with different size shuttle(magazine) for different dimensions coils and different wires and tapes,turns, so that to reduce the cost. one set standard automatic toroid coil winding and taping machne include one PCS winding shuttle and one PCS taping shuttle only, other sizes winding shuttles are optional.

2. High technical winding shuttle and taping shuttle for winding and taping at same time by highest efficiency.

3. Separate speed controls for loading and winding and taping.

4. Accurately count length of loading by limited-switch.

5. Accurately count turns of winding and taping by photo-electricity sensor.

6. Programmable winding and taping direction, winding and taping returns range (Turns or Angle) and segment winding and taping angle.

7. Accurately wire and tape spacing by adjustable.

8. Adopts two PCS handset program controllers so that easy to control and program during set up, because the coil is so big and machine is so big also.

9. Memory capacity accommodates 29 sets programs with off-power memory retention.

Specification :

Wire diameter

1.5 - 5.0mm

Head number

one winding head and one taping head

Insulation tape width

Any dimensions

Max. winding speed

150 RPM

Max. final coil O. D.

Φ700 -13500mm

Wire spacing

stepping motor

Min. final coil I.D.

Φ650mm

Supply voltage

AC220V,50Hz single phase

Max. final coil height

320mm

Mechanical dimensions

1500*1350*1500mm

Controller storage capacity programs

29(sets)

Weight

depend on core different size


How to select the best suited automatic toroid coil winding machine for your toroid coil ?

Tell us your toroidal coil of data as below please :

1.toroid core outside diameter before winding?

2.toroid core inside diameter before winding?

3.toroid core height before winding?

4.how many windings on this core?

5.how many turns of each winding?

6.how about the copper wire diameter of each winding?

7.provide pictures of product which is more better.
