Amorphous ribbon big toroidal core welding winding machine

This amorphous ribbon big size range toroidal core automatic welding winding machine adopts precise programmable PLC winding controller. It's an accurately and reliability programmable amorphous ribbon toroidal core winding machine with welding function. This ribbon toroid core winding equipment is named nanocrystalline magnetic toroidal core winder also.
  • Item NO.:

    SS-RTC04
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Blue
contact now
Description

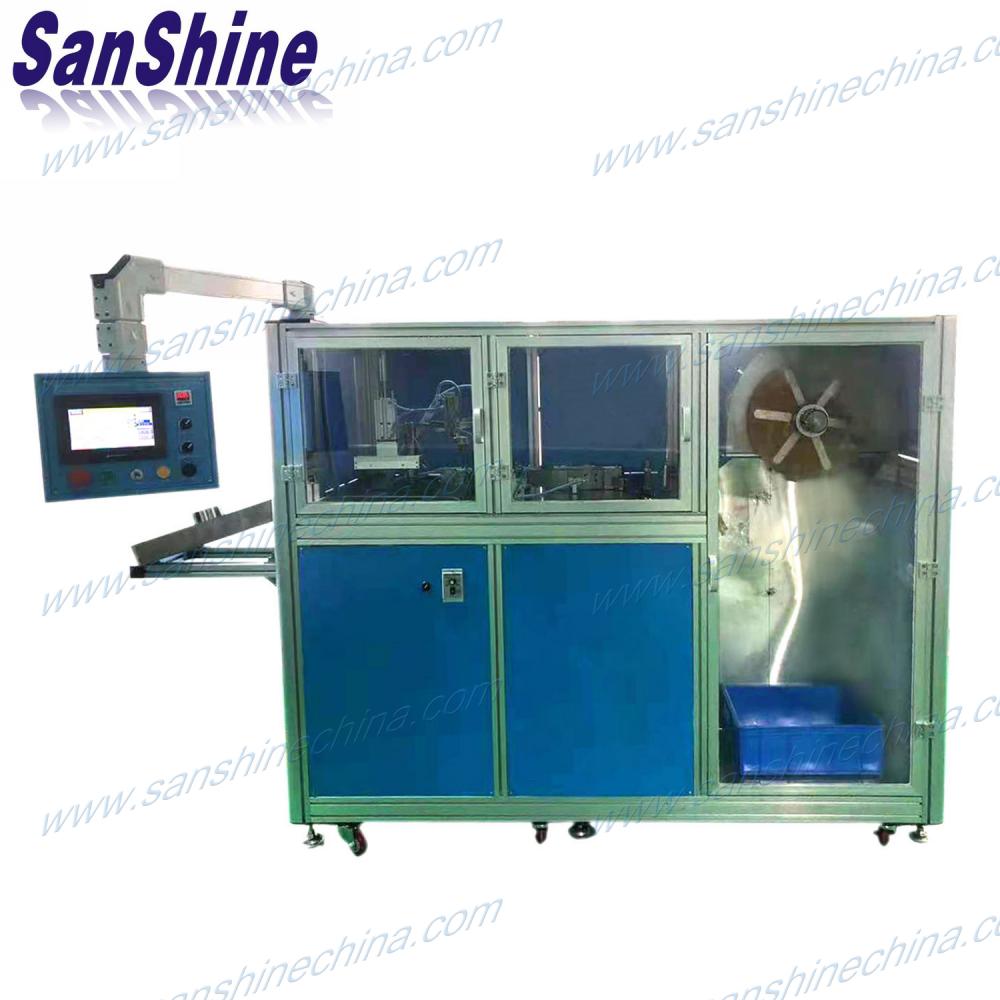

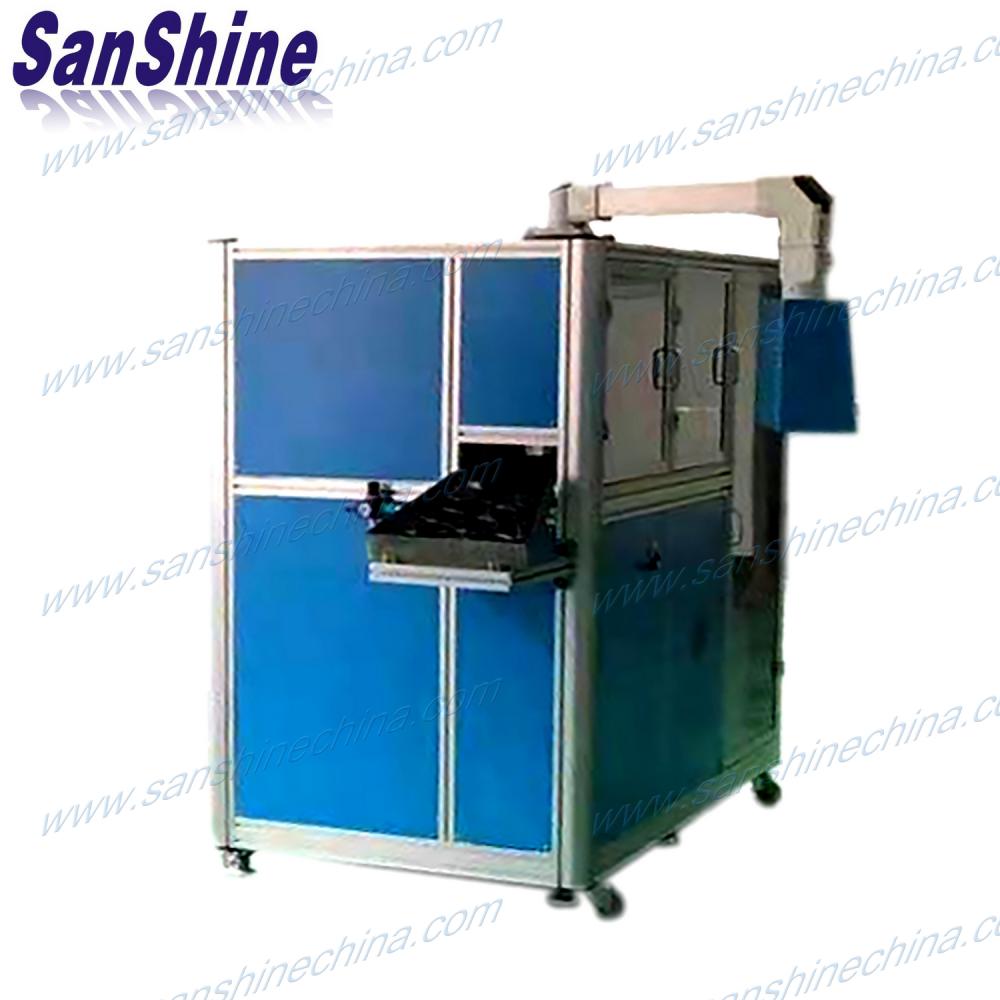

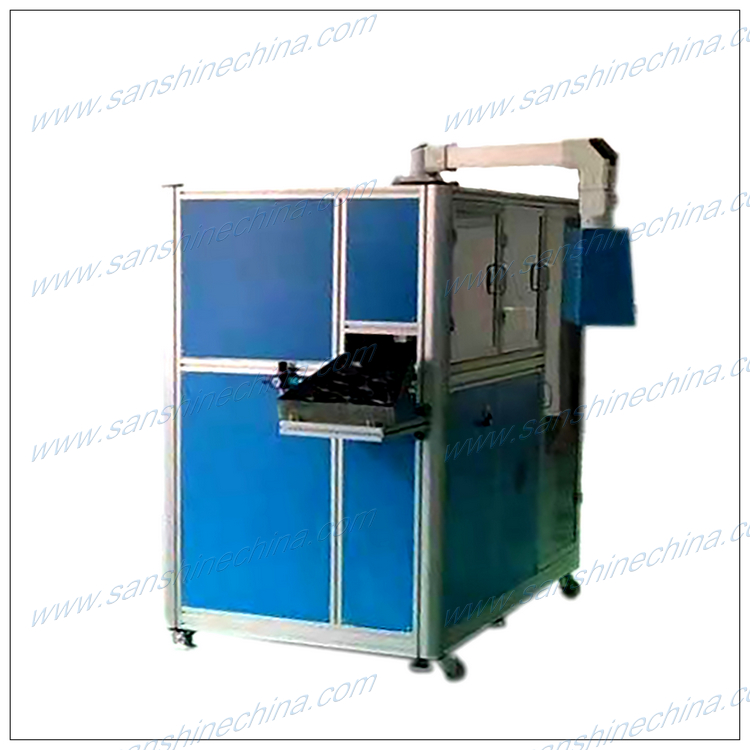

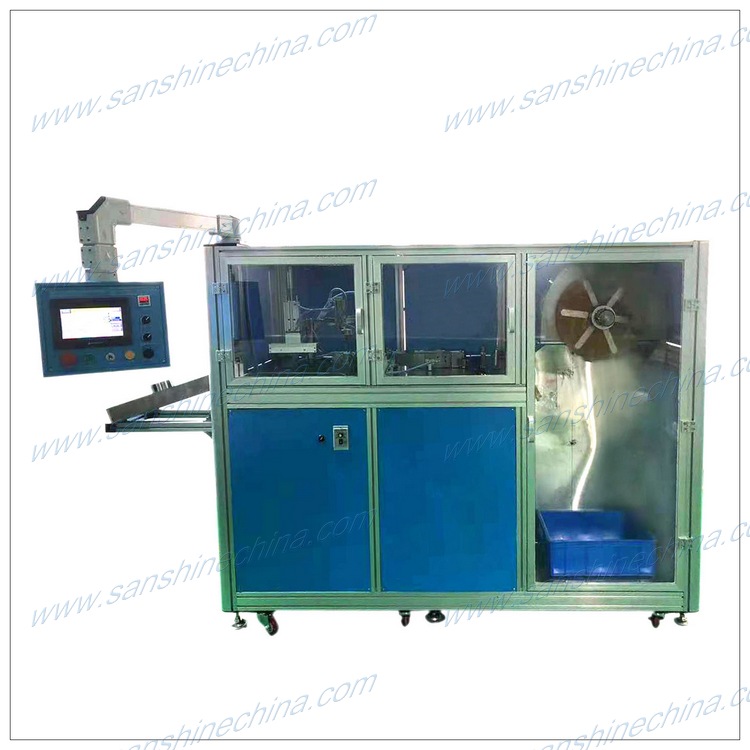

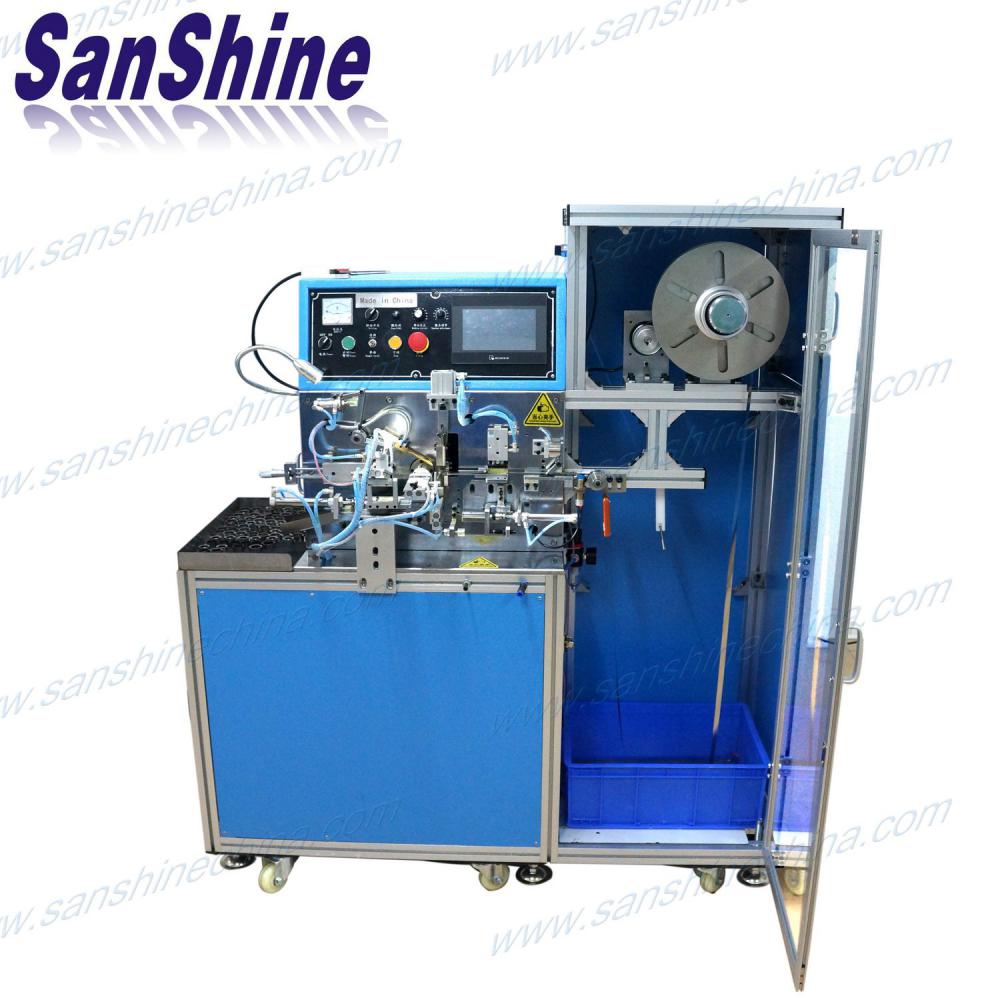

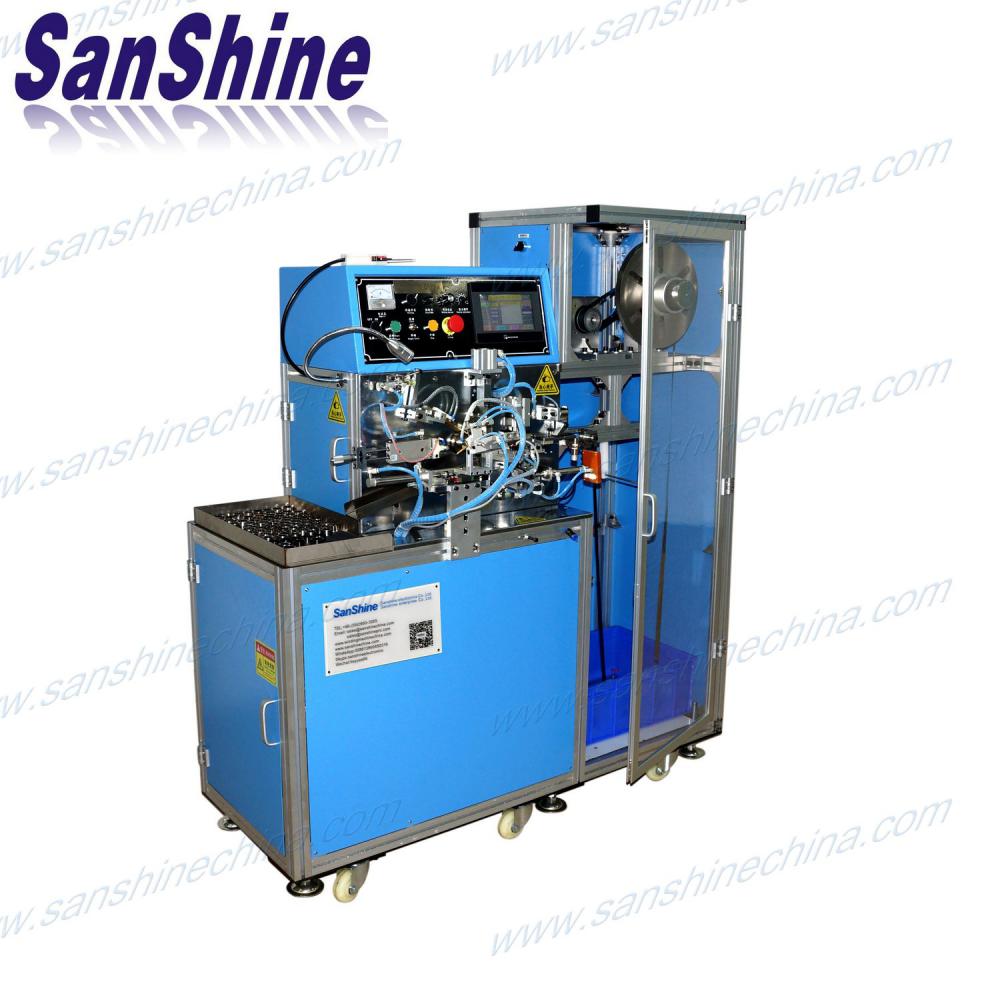

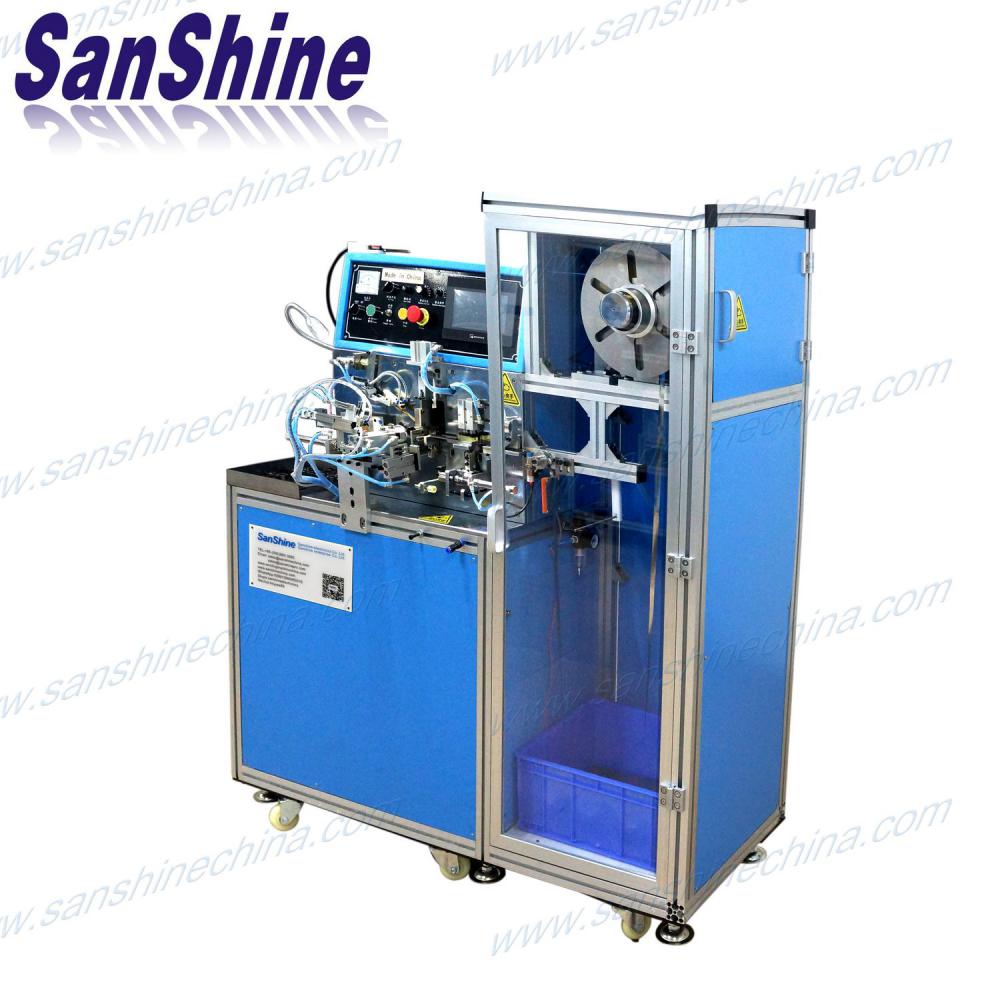

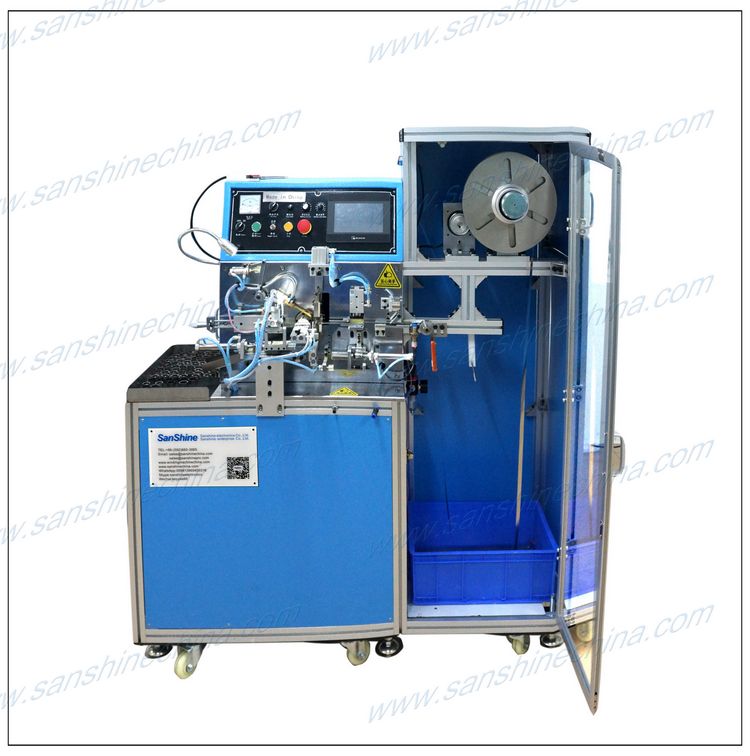

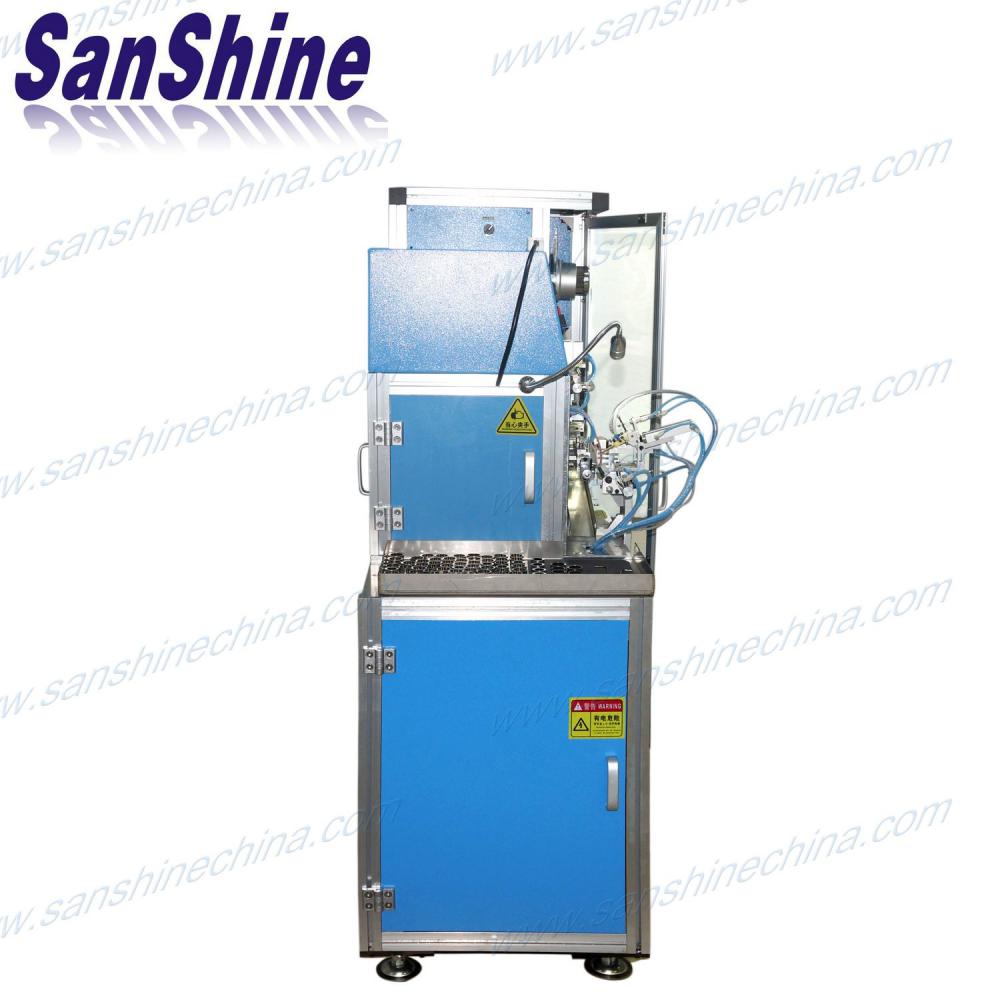

Production name : Amorphous ribbon big toroidal core welding winding machine (SS-RTC04)

amorphous core welding machinery

amorphous core welding machinery

Description :

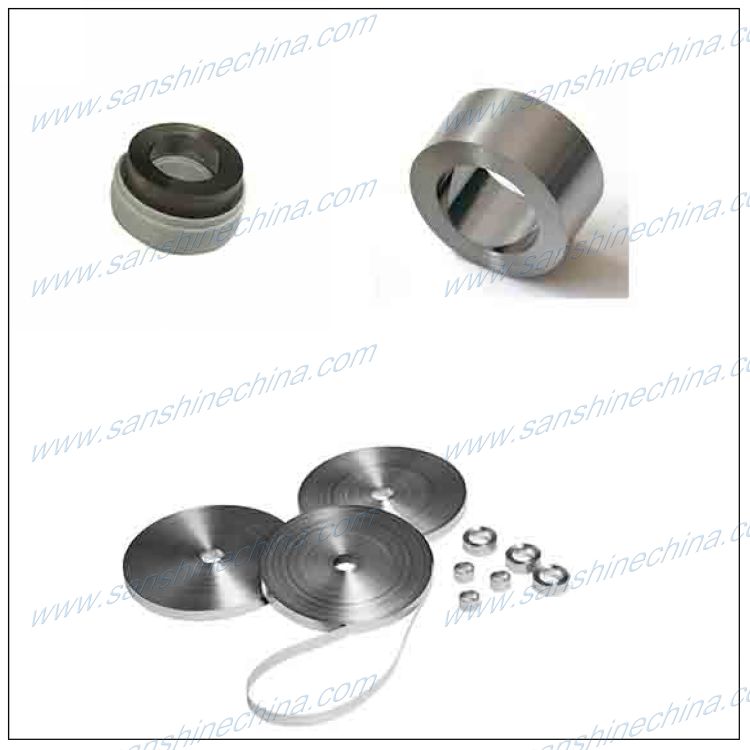

This amorphous ribbon big toroidal core welding winding machine (SS-RTC04) adopts precise programmable PLC winding controller. This alloy ribbon toroidal core winding machine can make a lot of different size core by change the different size winding modules. It's an accurately and reliability programmable amorphous ribbon toroidal core winding machine with welding function. This ribbon toroid core winding equipment is named crystalline magnetic toroidal core winding machinery also. This toroid core winding machine is used for production the amorphous ribbon magnetic toroidal inductor core, crystalline ribbon magnetic toroidal transformer core, nanocrystalline ribbon magnetic toroid chock core, etc. .

Features :

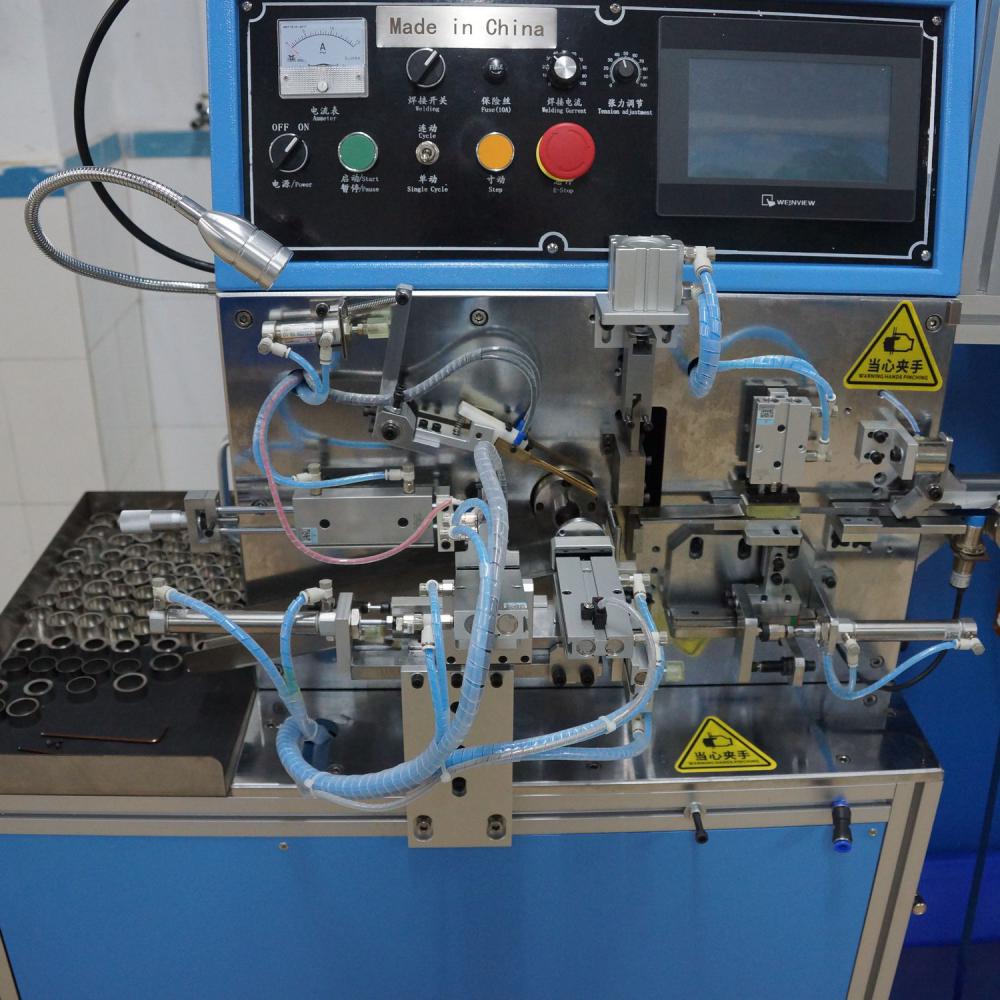

1. Adopts precise programmable PLC winding controller.

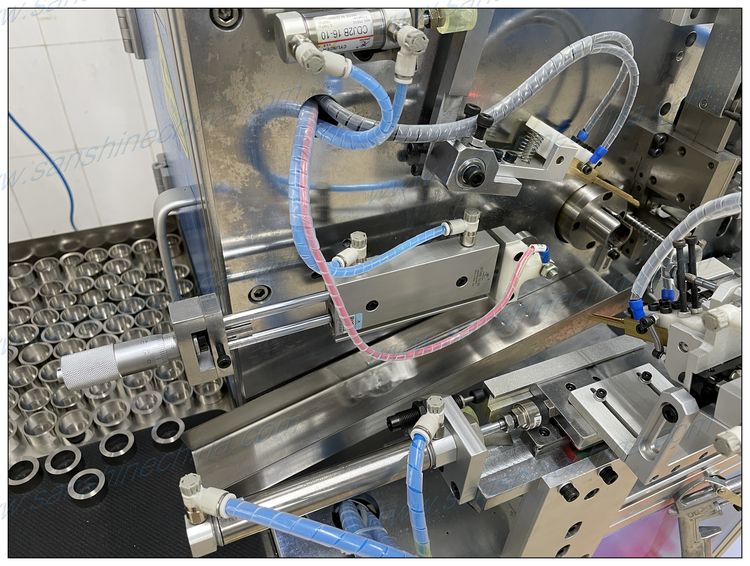

2. Integrated the welding function with it. can complete the amorphous ribbon winding and welding at same position.
3. Load ribbon, winding, welding, cutting and download automatically.
4. The welding current is adjustable for different thickness ribbon request.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction.
7. Accurately speed be programmable.
8. Saved programs with off-power memory retention.

Specification :

Model Ribbon toroid core inner diameter depend on spindle size (mm) Ribbon toroid core out diameter (mm) Ribbon width depend on spindle size (mm) Ribbon thickness (um) Power source (Single phase) Air source Size (cm) and weight (Kg)
SS-RTC04 50 ~250 60~300 30 ~ 50 15~35 220V,50/60HZ 0.7Mpa L300*120*H160,  450
