Fully automatic ten spindles linear coil winding machine

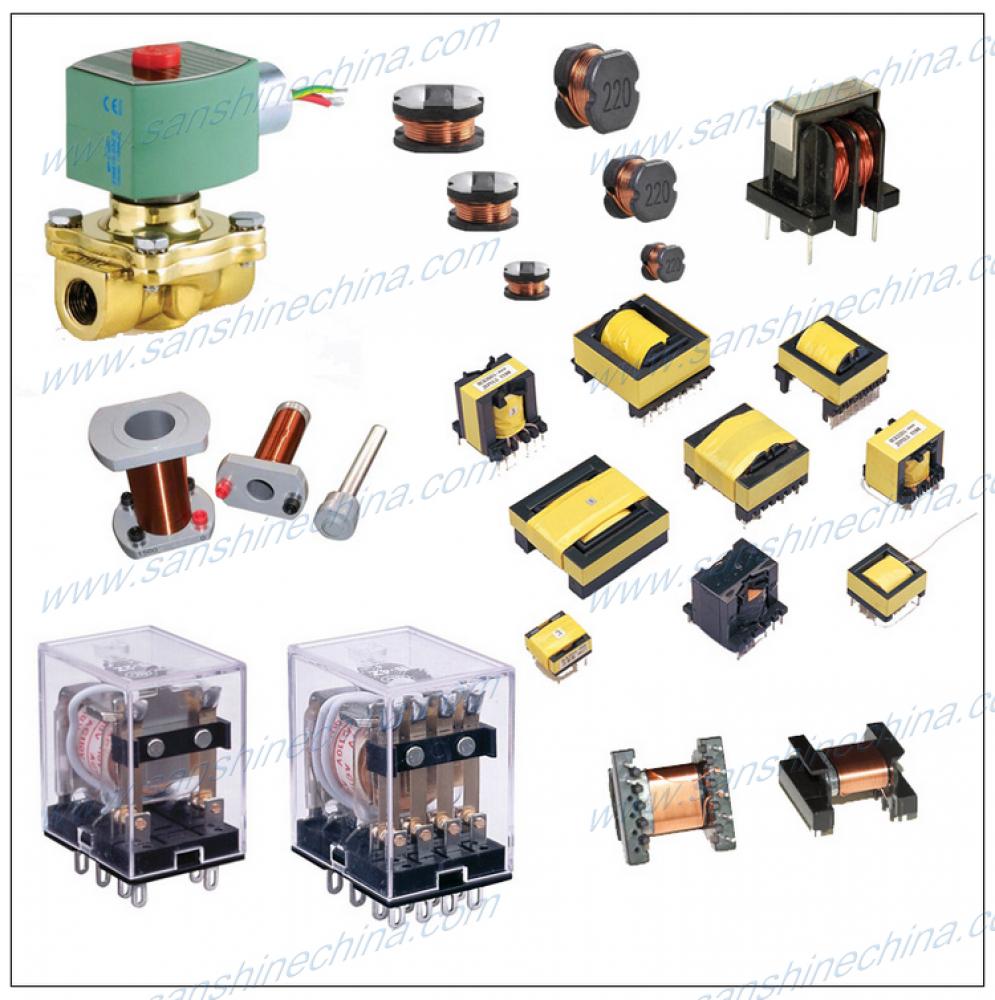

This fully automatic ten spindles linear coil winding machine (SS1055) is used for winding the linear coils by fully automatically. Such as : small power transformer, signal transformer, inductor, filter choke coil, relay, current contactor, valve coil, solenoid coil, telecom transformer etc. .
  • Item NO.:

    SS1055
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Blue
contact now
Description

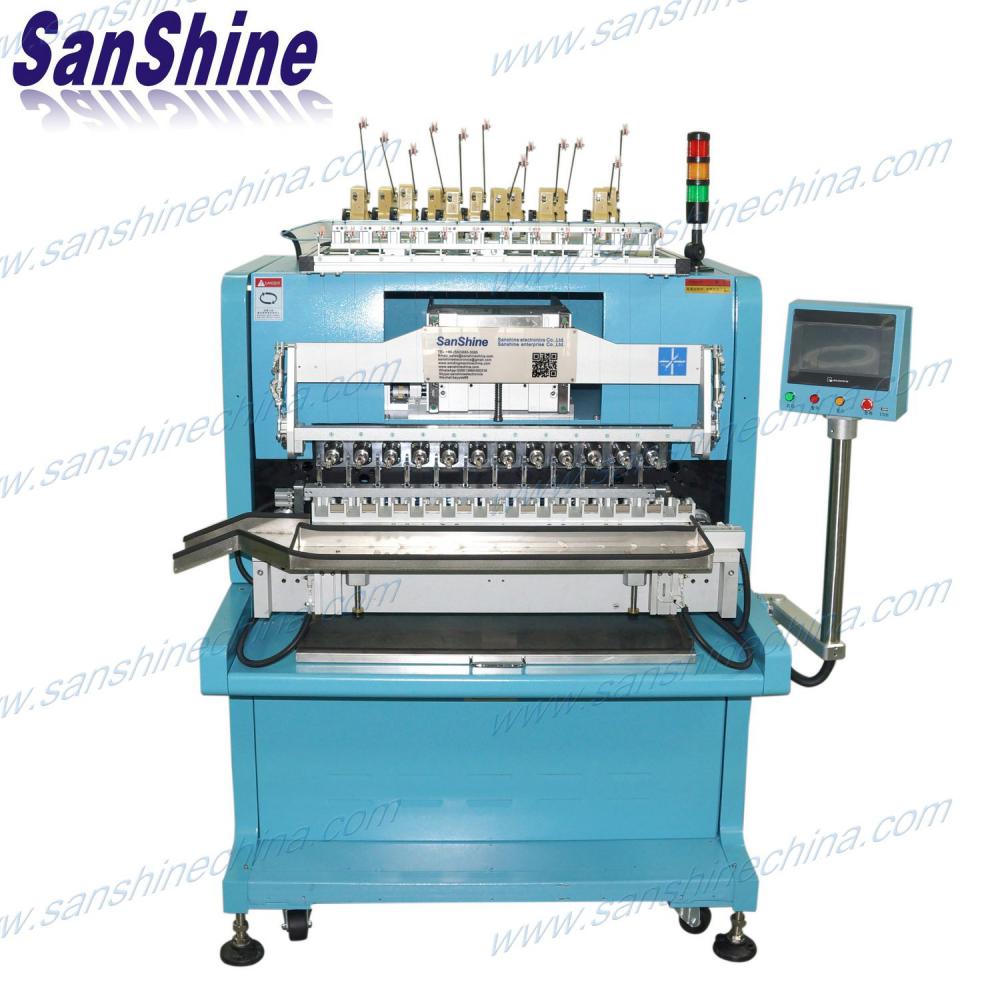

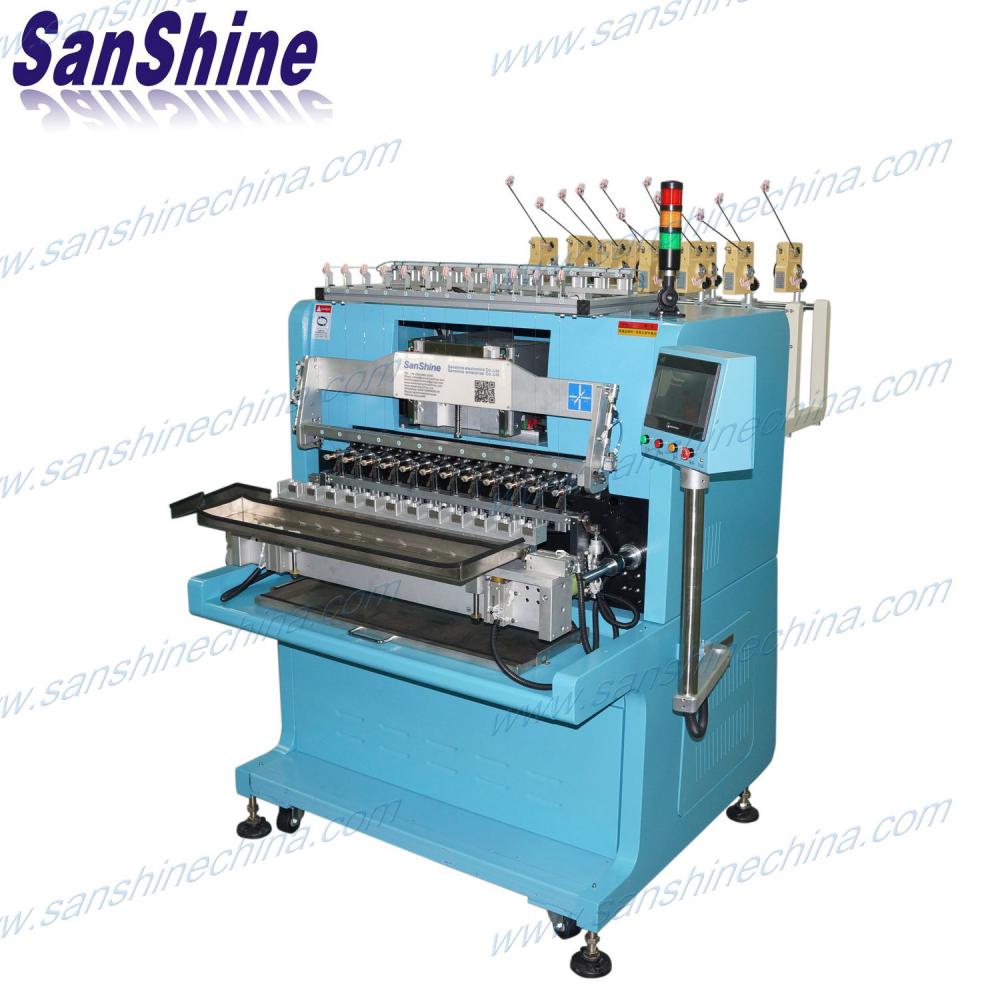

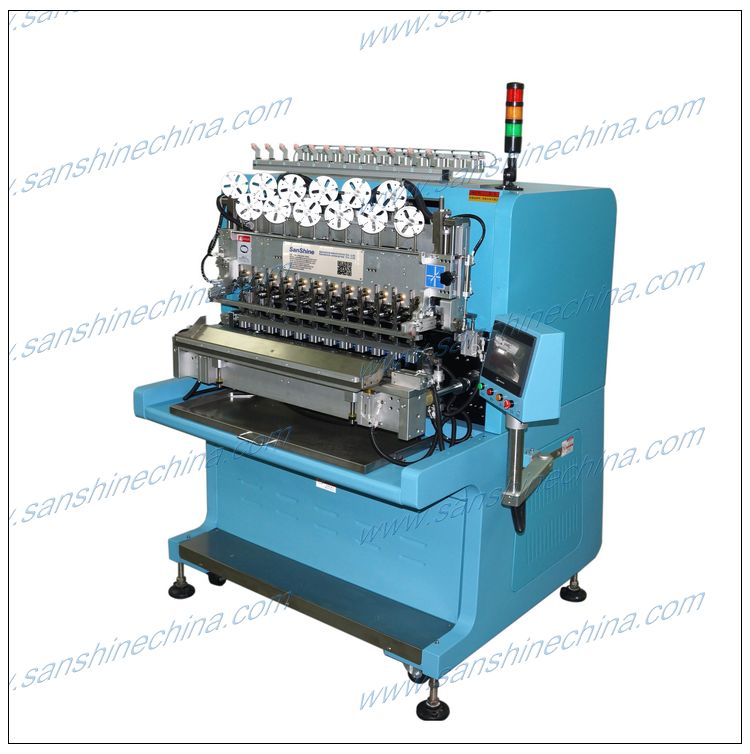

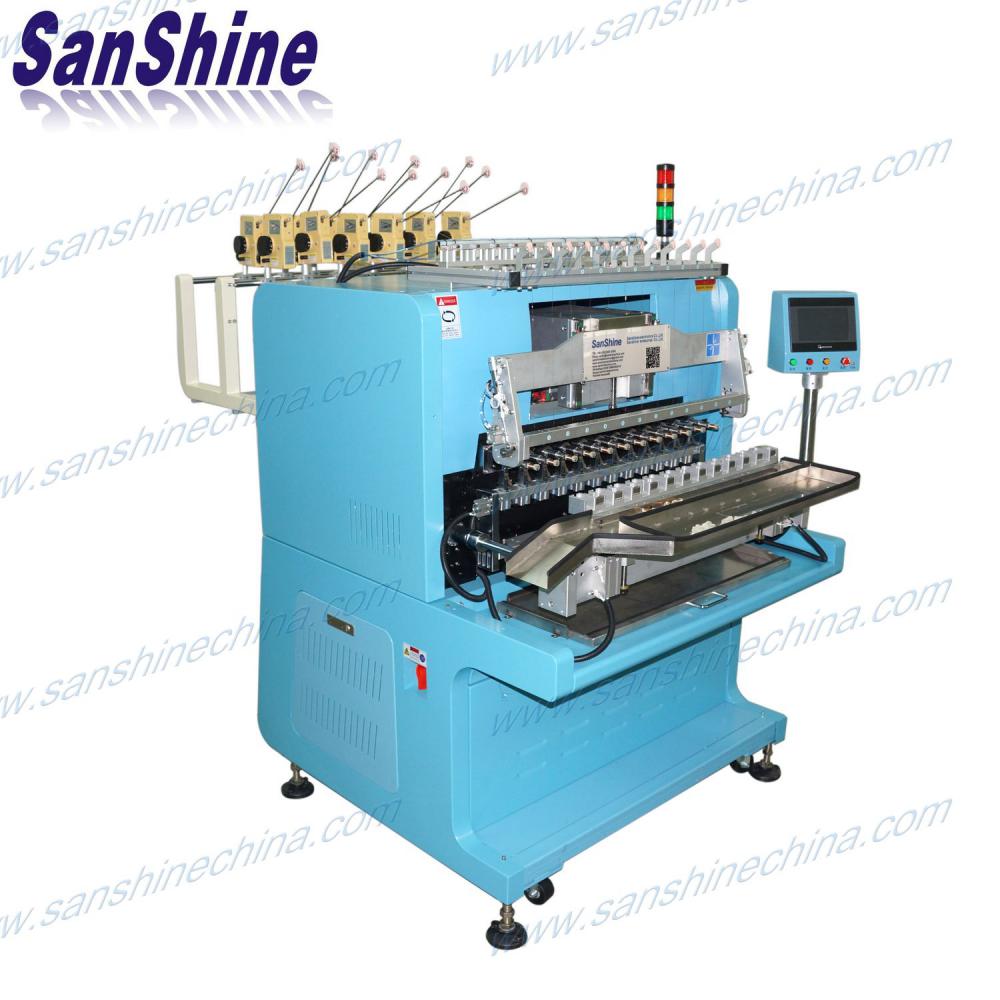

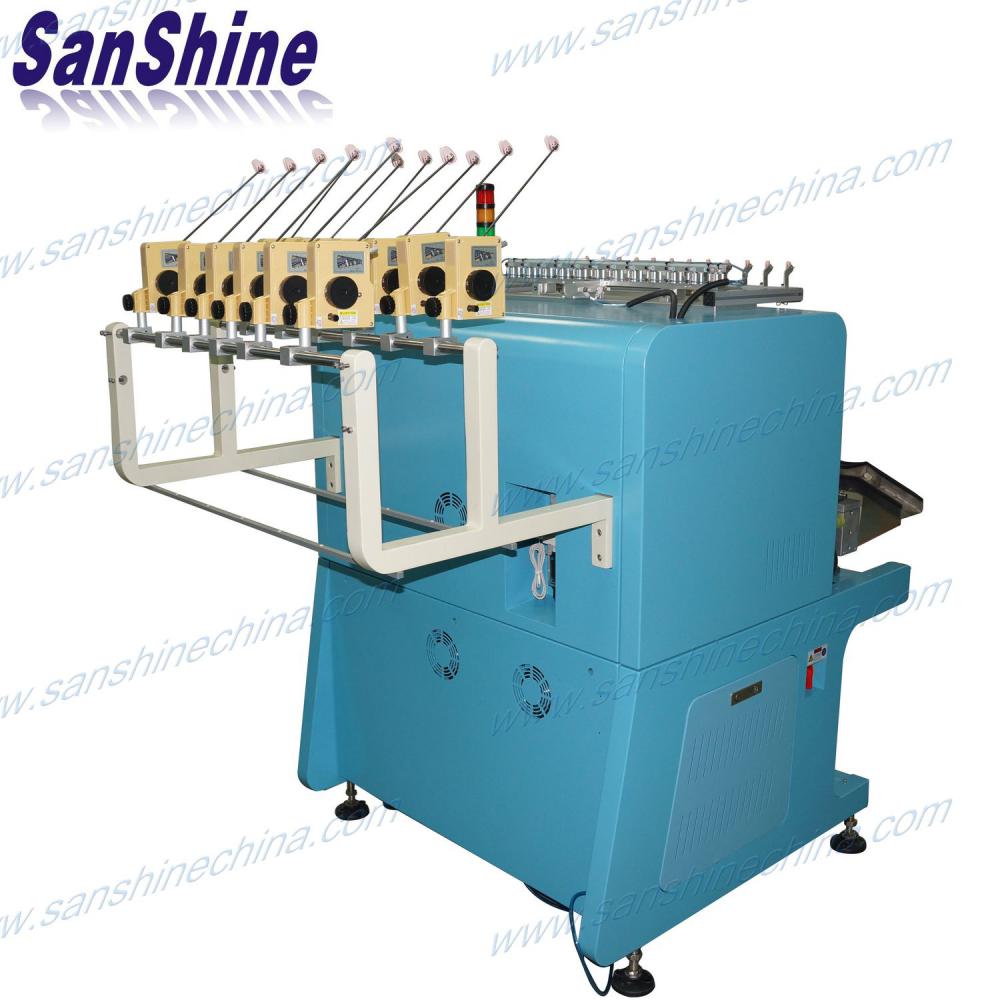

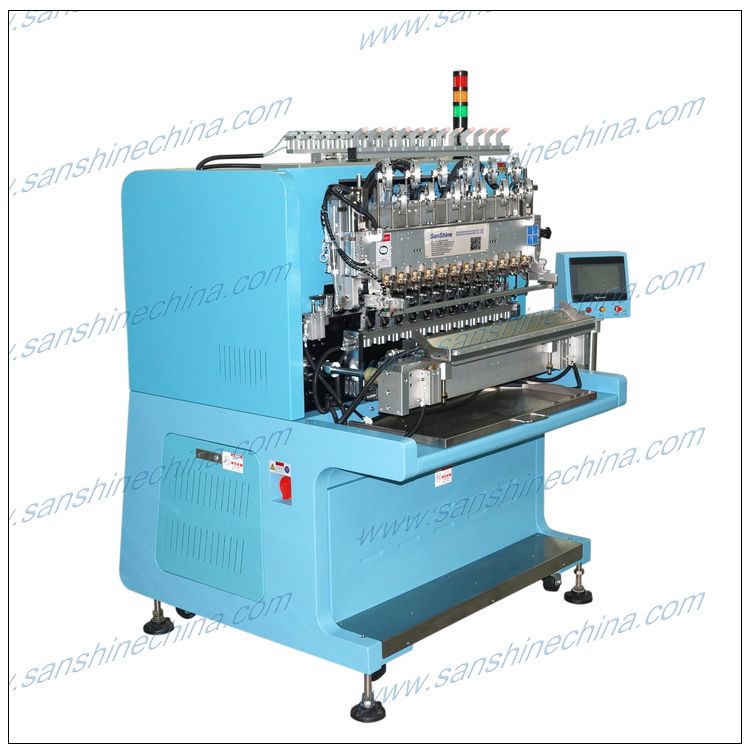

Product name : Fully automatic ten spindles linear coil winding machine (SS1055)


Gapped core output transformer winding machine

saving energy light inductor winding machine

Description :

The fully automatic ten spindles linear coil winding machine (SS1055) is used for winding the linear coils by fully automatically. Such as : power transformer, signal transformer, inductor, filter choke coil, relay, current contactor, valve coil, solenoid coil, telecom transformer. This fully automatic ten spindles linear coil winding machine is called SMD inductor coil winding machine and switching power source transformer winding machine also. This fully automatic ten spindles linear coil winding machine (SS1055) can complete the linear coils without any one operator in fully automatically by the optional systems. Load the bobbins and down load the finished coils in automatically. Process the winding, twisting, tape wrapping, wire cutting and wire stripping actions fully automatically quickly with different function optional systems. Make sure your production quality to top grade and raise production efficiency.

Fixtures :

1),Specially wire cutting system for thick wire and TEX wire.

2),The wire clips can hold wire still automatically when air pressure cut off.

3),Can cut off air pressure automatically when electric power off.

4),Can wind multiple piece wires in parallelly at same time on same bobbin.

5),Calibrate the original position of X / Y / Z spindles automatically.

6),Automatically loading and unloading function.

7),Wire broken alarm function.

8),Wrapping tape function.

9),Wire twisting function.

10),Wire cutter cutting function.

11),Wire stripping function.

12),High precise servo motors with high precise controlling system and movement system.

13),Multi-angles to wind wire terminal on the pins.

14),Winding jigs and loading /unloading fixture can be changeable easily.

15),Chinsee / English operation interface switchable with touching screen.

16),Potable adjustment keyboard.

Specification :

Model

SS6065

SS8075

SS1055

SS1260

SS1635

SS2430

Spindle numbers

6

8

10

12

16

24

Center distance between spindles

65

75

55

60

35

30

Control way

CNC 6-axis AC servo motor transmission system, position controlling precisely.

Spindles rotating speed

Max.15,000RPM CW/CCW

Spindles rotating angle

360° +/- 0.1

Movement range of winding nozzle

(X Axis):0-100mm (Y Axis):0-80mm (Z Axis):0-70mm

X / Y / Z Axis servo motor power

(X Axis):400W (Y Axis):400W (Z Axis):400W

Accuracy

0.01mm

Wire diameter

0.03 ~ 0.6mm

0.03 ~ 0.4mm

Max. Dia. of coil

60mm

70mm

50mm

55mm

30mm

25mm

Power supply

Single phase AC220V 50/60 Hz or Customize

Power

2.5KW

3KW

3KW

3.5KW

4KW

4KW

Air source pressure

5-6Kgf/cm2

Servo motor

Panasonic or YASKAWA

Cylinder

SMC / CKD/Airtac / Chelic Cylinder

Operation interface

Easily and simply teaching model operation system(Chinese / English operation interface switchable with touching screen)

Bobbing loading and finished coil unloading way

Operator place bobbins on the Auto. Loading and unloading fixture first, then machine insert the bobbins onto the winding spindles automatically, will unload the finished coils automatically.(fully automatic loading and unloading bobbins and coils function by request to customize, fully automatically loading and unloading function which no need operator to place the bobbins on the fixture.)

Wrapping tape function

optional

optional

optional

optional

NO

NO

Wire twisting function

optional

optional

optional

optional

optional

optional

Wire cutter cutting function

optional

optional

optional

optional

optional

optional

Wire stripping function

optional

optional

optional

optional

optional

optional

Wire broken alarm function

optional

optional

optional

optional

optional

optional

Weight

480Kg

520Kg

580Kg

650Kg

730Kg

795Kg

Dimension

860(L)*950(W)*1550(H)mm

1100(L)*1260(W)*1550(H)mm

Request a free quote

Can't find the specific information you're looking for? Have a question ? Contact Us

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
  • coil winding machinery Fully automatic twelve spindles linear coil winding machine

    The fully automatic twelve spindles linear coil winding machine (SS1260) is used for winding the small power transformers, signal transformers, inductors, filter choke coil, relays, current contactors, valve coils, solenoid coils, telecom transformers. It can complete the coils without any one operator in fully automatically. It is named telecom tr1

  • automatic winding machine Fully automatic 24 spindles linear coil winding machine

    The fully automatic 24 spindles linear coil winding machine (SS2430) is used for winding the linear small power transformers, signal transformers, filter choke coil, relays, valve coils, solenoid coils, telecom transformers. This winding machine can finish the coils without any one manual actions in fully automatically. It is named PCB mounted rela1

  • adapter transformer winding machine Fully automatic six spindles linear coil winding machine

    This fully automatic six spindles linear coil winding machine (SS6065) is used for winding the linear coils in automatically. Like as: small power transformers, signal transformers, inductors, filter choke coil, relays, current contactors, valve coils, solenoid coils, telecom transformers.

  • EE driving transformer winding machine Fully automatic eight spindles linear coil winding machine

    This fully automatic six spindles linear coil winding machine (SS8075) is used for winding the linear coils in automatically. For example : small power transformers, signal transformers, inductors, filter choke coil, relays, current contactors, valve coils, solenoid coils, telecom transformers, etc. .

  • switching power transformer winding machine Fully automatic sixteen spindles linear coil winding machine

    This fully automatic sixteen spindles linear coil winding machine (SS1635) is used for winding the linear coils in fully automatically. For example : small power transformer, signal transformer, inductor, filter choke coil, relay, current contactor, valve coil, solenoid coil, telecom transformer etc. . This fully automatic sixteen spindles linear c1

  • transformer winding machine Single spindle programmable automatic transformer coil winding machine

    The single spindle programmable automatic transformer coil winding machine (SS600) is used for winding the bobbin coils. Like as switch power source transformer, power line filter inductor, signal transformer, choke coils. This winding machine be named pulse transformer winding machine and audio transformer winding machine and filtering choke windi1

  • high frequency inductor winding machine 6inch slider type automatic toroid coil winding machine

    The 6 Inch slider type automatic toroid coil winding machine (SS900S6, 6 inch winding head) is used for winding the fine wire coils on the toroidal core(about core OD 60mm). like as toroid transformers, toroid inductors and so on. This toroid coil winding machine (SS900S6) is named micro metal toroid core winding machine also.

  • CNC copper wire cutting machine Automatic copper wire foil tube sleeve cutting machine

    This automatic copper wire foil tube sleeve cutting machine (SS-CT01) is best suitable for cutting in precise dimension for heat-shrinkable tube, copper wire, aluminum wire, cable, PVC tube, nylon tube,Teflon tube, copper foile, aluminum foile, insulating film, double surface tape, bonding tape etc. . This cutting equipment is called electric insul1
