Fully automatic selfbonding wire air coil winding machine

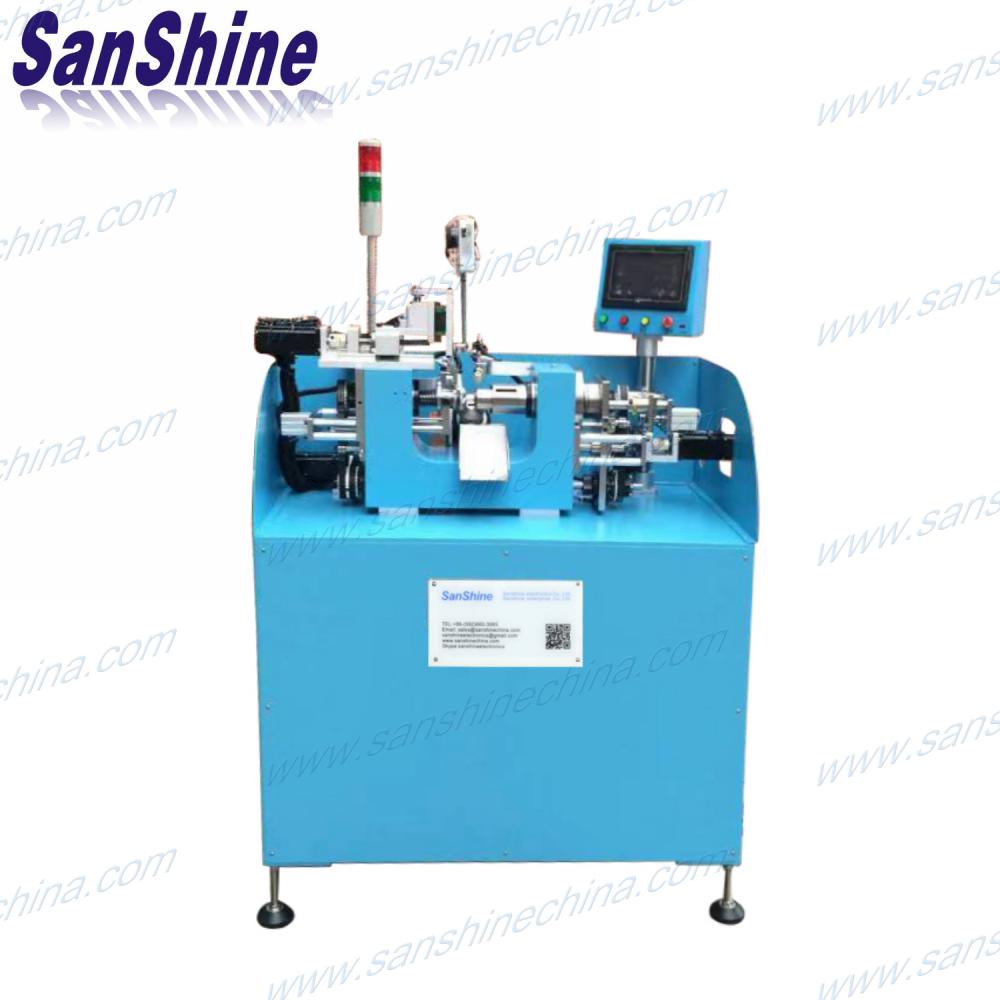

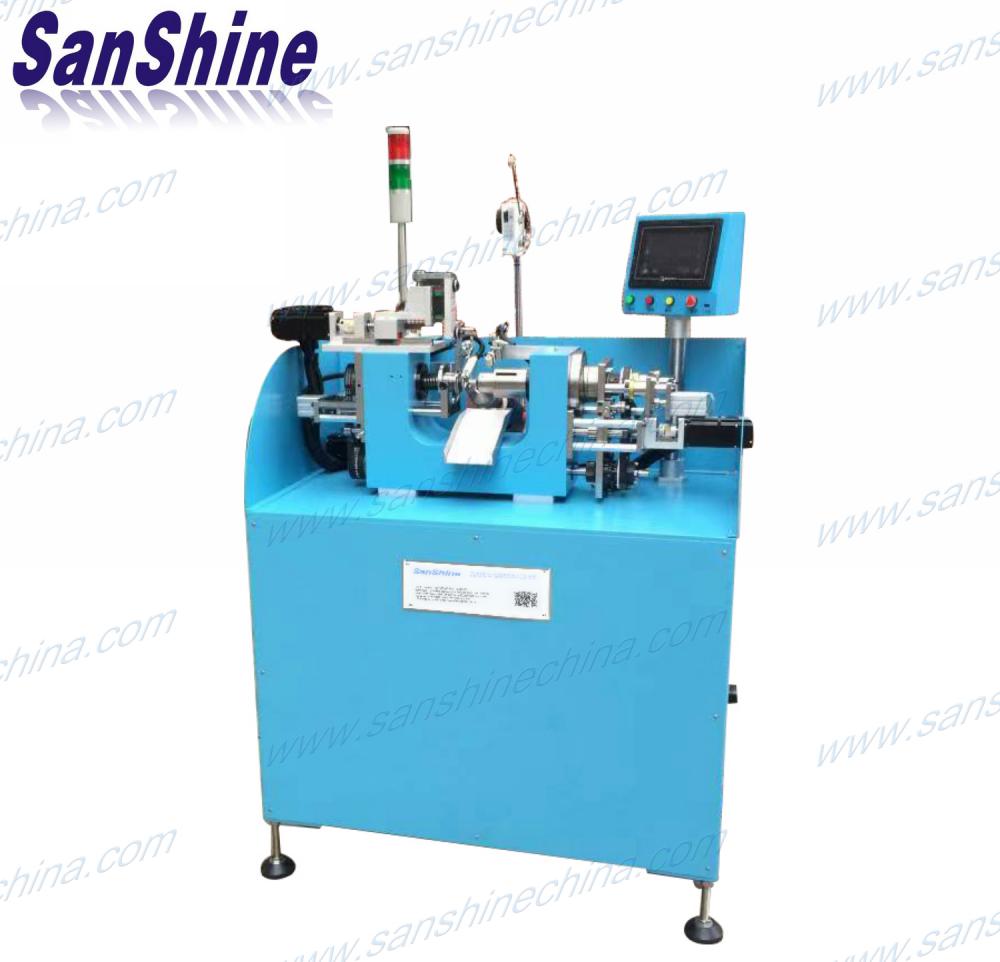

This (SS821AS and SS822AS) bobbin less alcohol or hot air self bonding wire air coil winding machines are used for winding the self bonding wire air coils in fully automatically without operator. This air coil winder is called bobbin less inductance coil winding machine also.
  • Item NO.:

    SS821AS and SS822AS
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Blue
contact now
Description
Product name: Fully automatic selfbonding wire air coil winding machine (SS821AS and SS822AS)



ID card coil winder

earphone coil winding machinery

air coil winder

wireless charger coil winding equipment

linear motor coil winder

Descriptions :

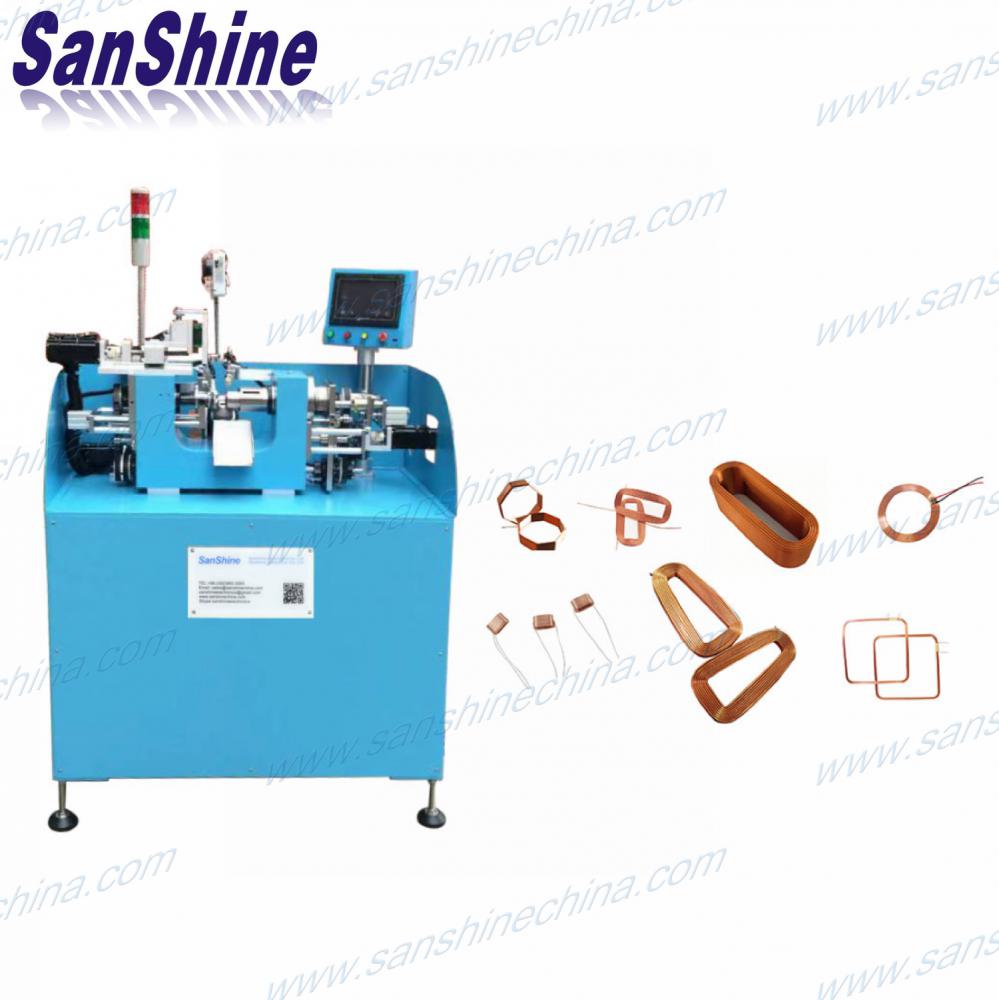

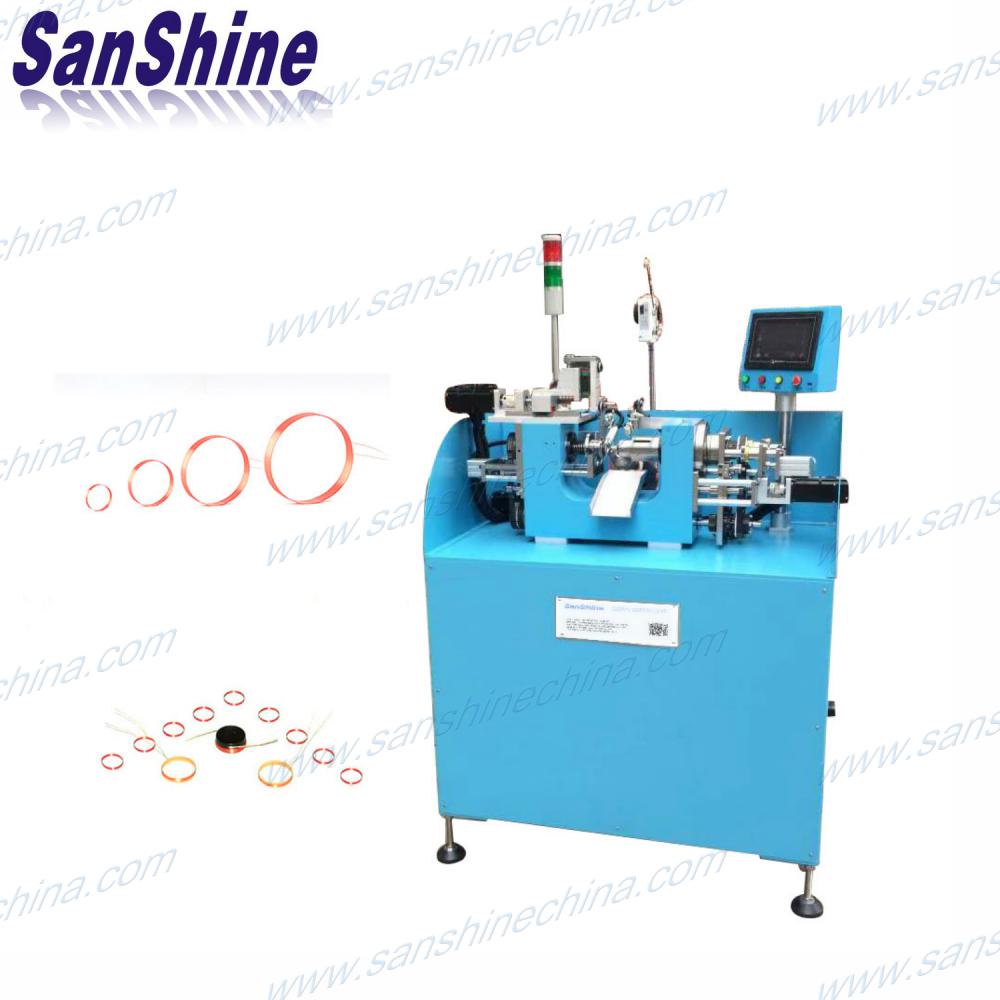

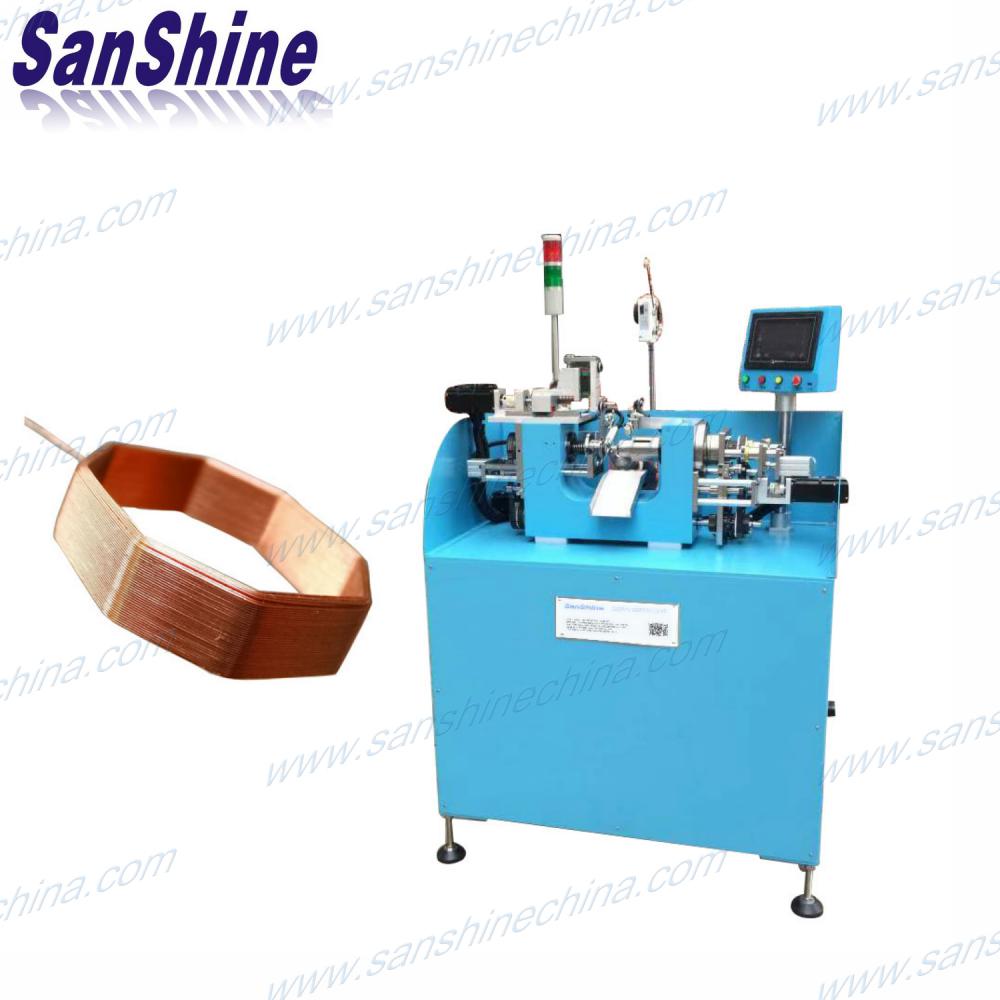

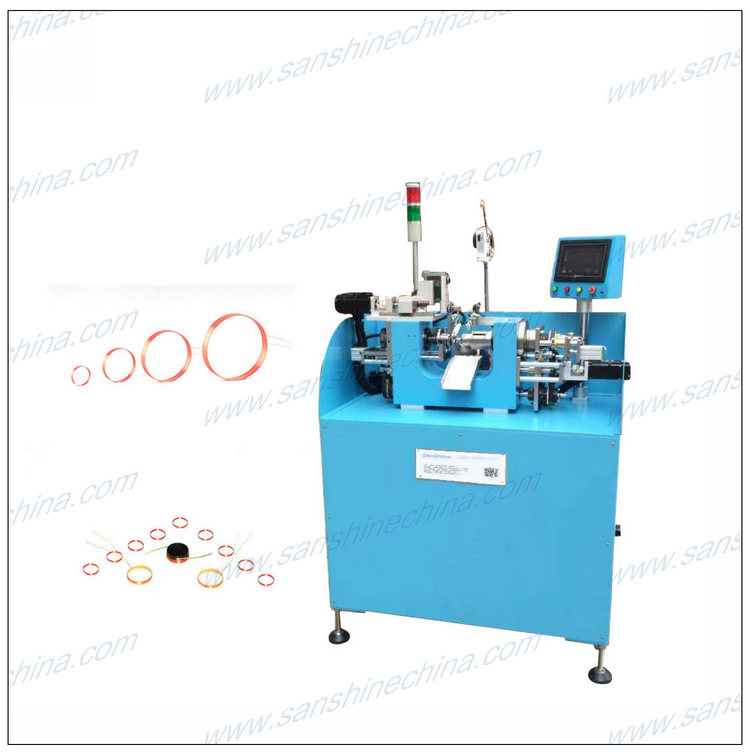

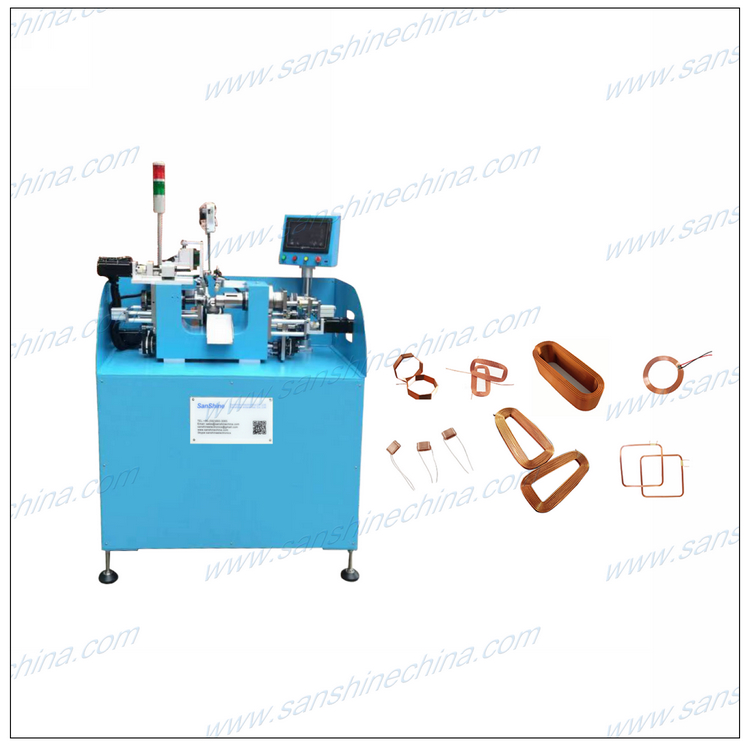

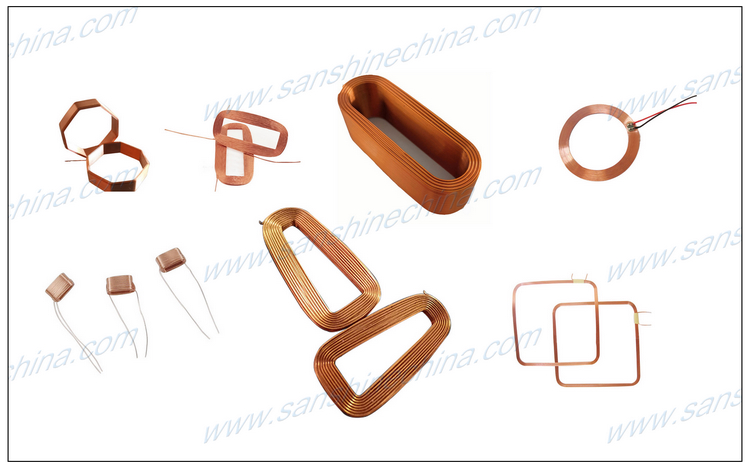

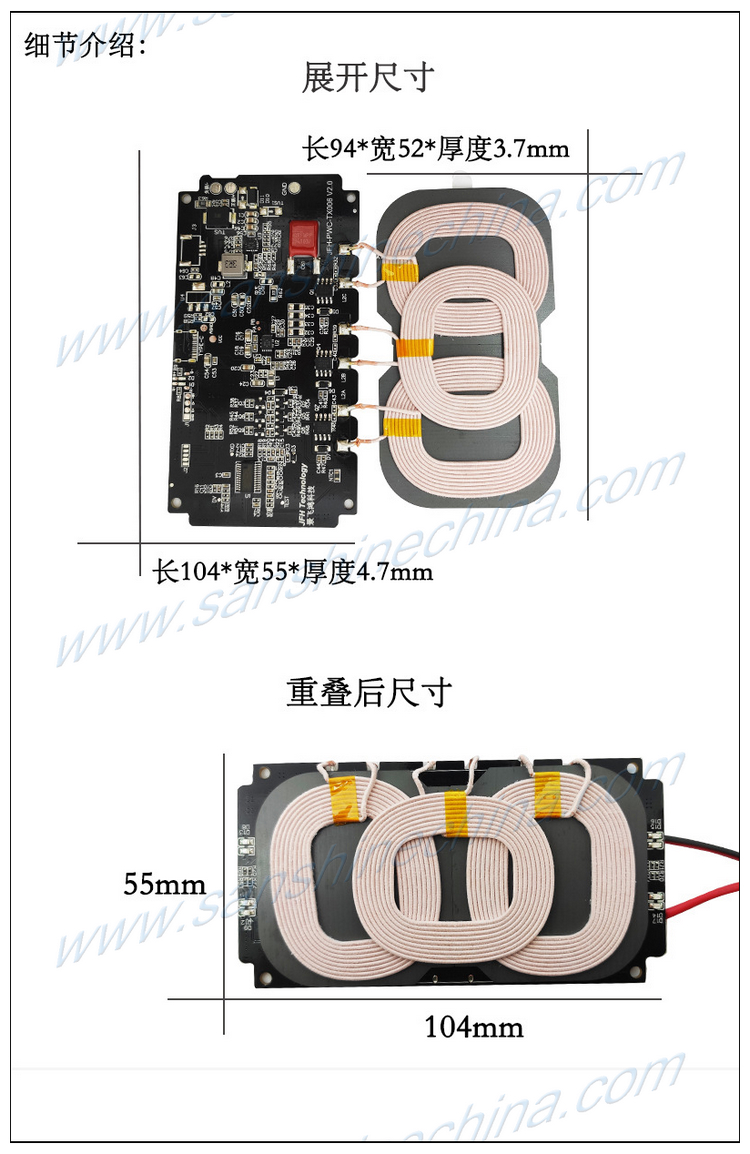

This (SS821AS and SS822AS) bobbin less alcohol or hot air self bonding wire air coil winding machines are used for winding the self bonding wire air coils in fully automatically without operator. These fully automatic winder are named bobbin less inductance coil winding machine and fully automatic air coil production line also. They are best suited for winding the earphone coils and wireless charger coils, linear motor coils, flat vibration motor coils, IC card coils, CUID coils, NFC coils, RFID coils, etc. .  This precise programmable fully automatic air coil winding machine can wind a lot of different size shapes air coil through change the different size winding moulds.

Specifications :

Model SS821SA SS822SA
Spindle numbers 1 1
Max. Diameter Or width of coil 15mm 35mm
Traverse range of winding nozzle / winding width 15mm 30mm
Wire diameter  (mm) 0.02~0.2 0.05~1.2
Control way Precise CNC multi-axis AC servo motor transmission system, position controlling precisely.
Spindles rotating speed (RPM) Max.3000 Max.3000
Winding nozzle angle  90° with machine base
Spindles rotating angle 360° +/- 0.1
Winding nozzle /wire clip and wire cutter actions actions of wire clip and wire cutter at same time actions of wire clip and wire cutter are separated.
Accuracy of winding nozzle movement 0.002mm
Wire loading and finished coil unloading way Fully automatic
Wire type alcohol self bonding enamel copper wire / hot air self bonding enamel copper wire / self bonding yarn wrapped copper wire
X / Y / S Axis servo motor power (W) (X):200 (Y):200 (S/ winding spindle):400 (X):200 (Y):200 (S/ winding spindle):400
Operation interface Easily and simply teaching model operation system(Chinese / English operation interface switchable with touching screen)
Program storage method Direct storage + USB
Power supply Single phase AC220V 50/60 Hz or AC110V 50/60 Hz by request
Power 2.5KW 3KW
Air source pressure 5-6Kgf/cm2
Servo motor Panasonic or or FUJI or YASKAWA
Cylinder SMC / CKD /Airtac / Chelic Cylinder
Machine net weight 200Kg 300Kg
Machine size 410(W)*710(L)*1200(H)mm 600(W)*1000(L)*1380(H)mm

Request a free quote

Can't find the specific information you're looking for? Have a question ? Contact Us
