transformer winding turns ratio phase tester

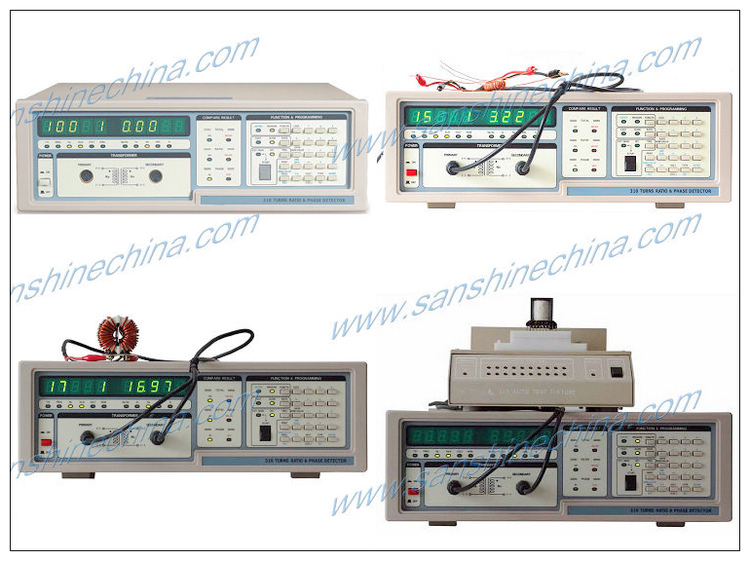

The transformer winding turns ratio phase tester (SS310) is a reliable test instrument used for product inspection and sample analysis in the manufacturers of ferrite transformer, radio and TV set or relative scientific research units.
  • Item NO.:

    SS310
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray and light blue
contact now User's reviews
Description

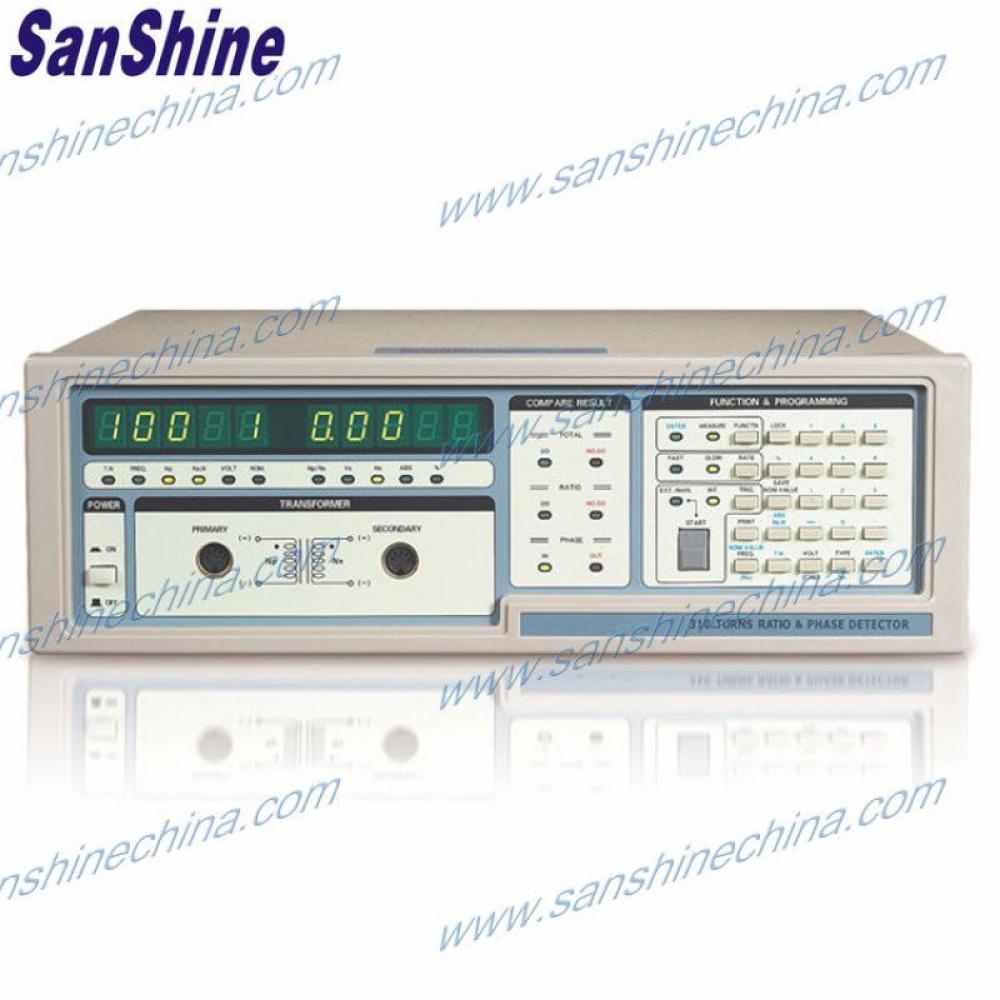

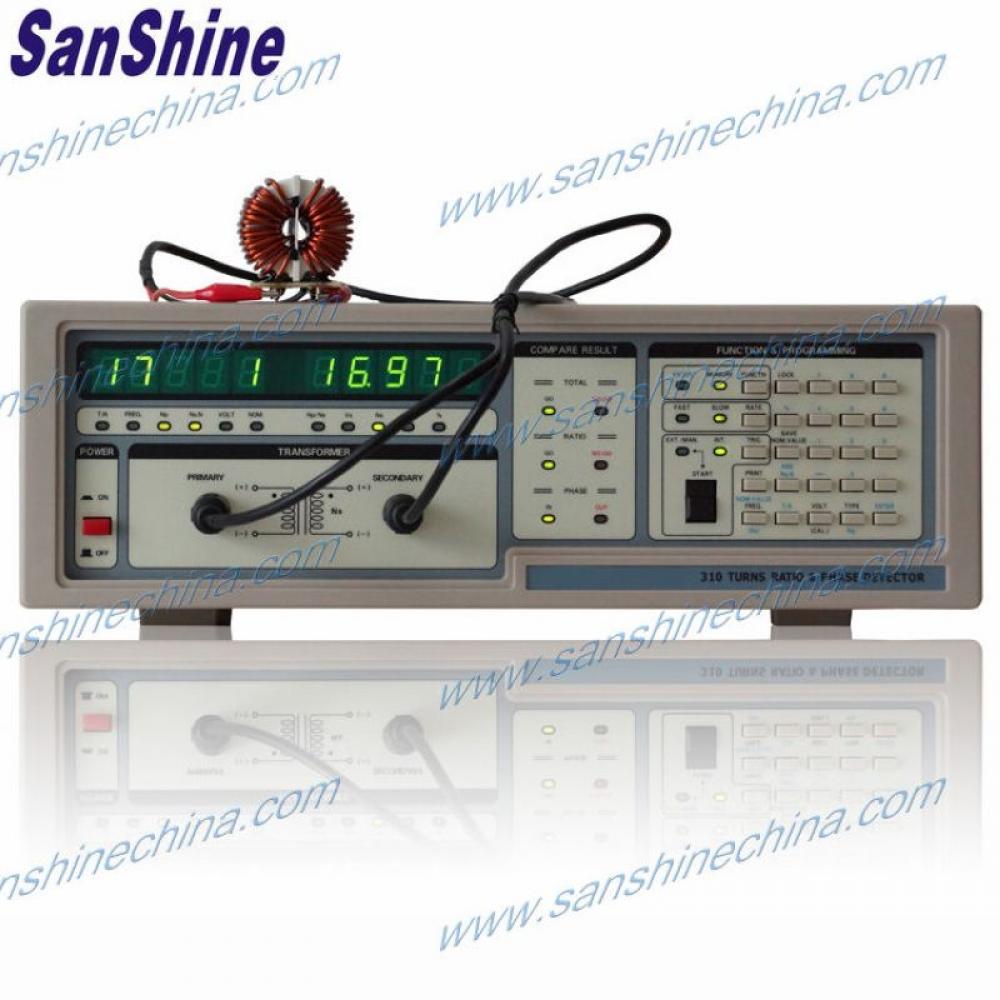

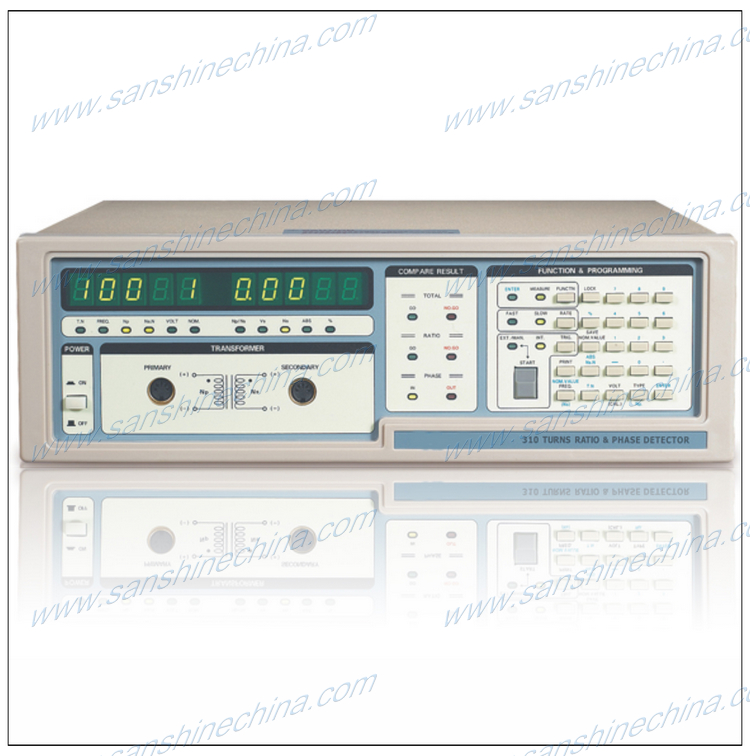

Product name : Transformer winding turns ratio phase tester (SS310)

transformer windings turn ratio meter

transformer winding turn meter

Description:

The transformer winding turns ratio phase tester (SS310) is a reliable test instrument used for product inspection and sample analysis winding turns and phase in the manufacturers of ferrite transformer, radio and TV set or relative scientific research units. 100 internal instrument setup in the transformer winding turns ratio phase tester (SS310) can free you from the trouble of repeated parameter setup as well as save much time. This transformer winding turns ratio phase tester can substitute the Chroma 310 turns ratio phase tester and Zentech 310 turns ratio phase tester fully and easily. As an optimum tool, The transformer winding turns ratio phase tester (SS310) can improve product quality and increase production efficiency as well.

Key Features:

Test Frequency: 1KHz, 15.75KHz, 20KHz, 50KHz

Basic Measurement Accuracy: ± 0.5%

100Groups internal instrument Seting Store / recall Capability

GOOD /NG Judgment

Order project:

SS310

310 Cross-clip Cable

310 Big or big-pin Fixture (optional, Custom-made available)

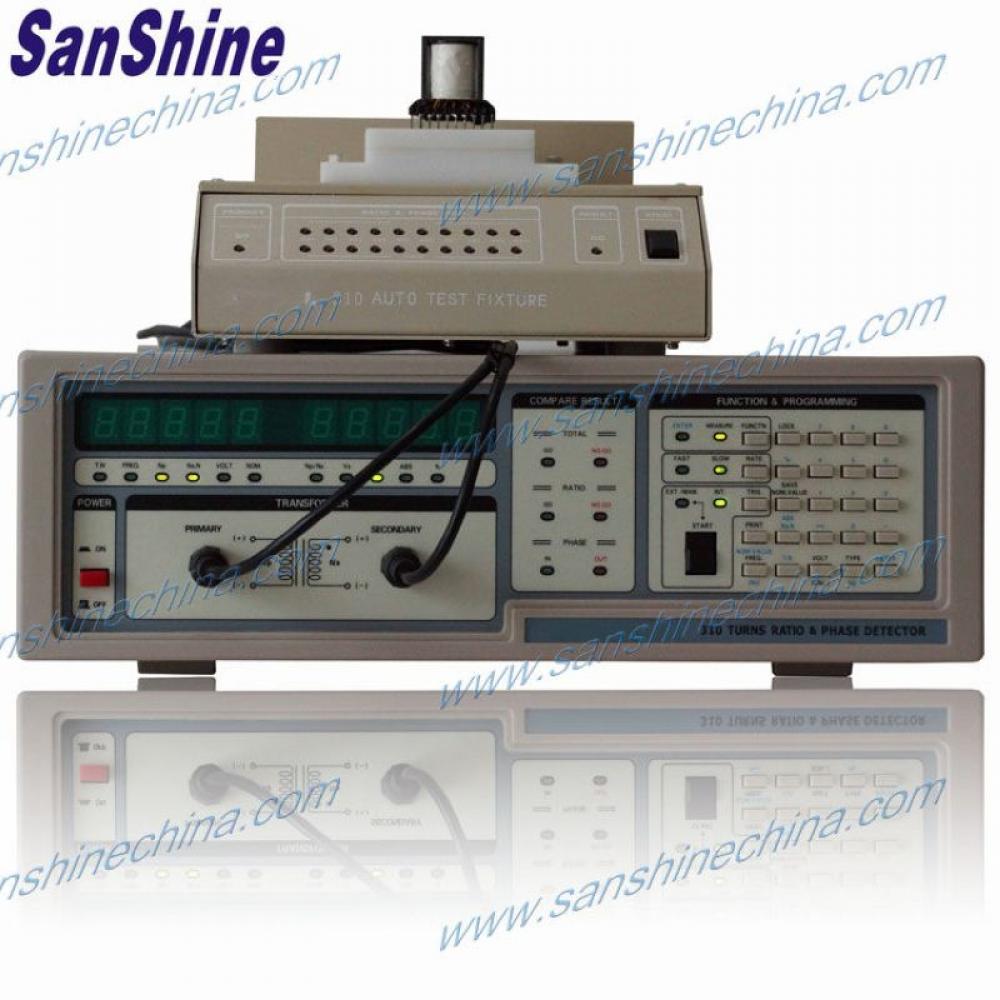

310 Test Box

310 Test Box Jump wires Board

Specification:

Model

SS310

Test parameter

(Np, Ns) (Vp, Vs) ; (Np, Ns) (Ns, Np)

Measure signal

Meas. Level

0.1V~10V±10%, 0.1V/step programable

Meas. Frequency

1KHZ , 15.75KHZ , 20KHZ , 50KHZ

Base accuracy

±0.5%

Meas. Range

0.01~9999.9T

Meas. Speed

Fast

5Meas./S

Slow

2.5Meas./S

Trigger

automatic, manual

Display

4.5pcs digitals×2

Memory

100Groups seting

Automatic judgement

pass or fail

Common spec.

Environment

temperature :10 ºC ~ 40 ºC ,humidity :10%~90%RH

Power consuming

Max.100W

Power

90~125V or 190~250V,48HZ~62HZ

Weight

8Kg

Meas. (W×H×L )

405×130×365mm
