Electric heating shrinking hot air cycled tunnel oven

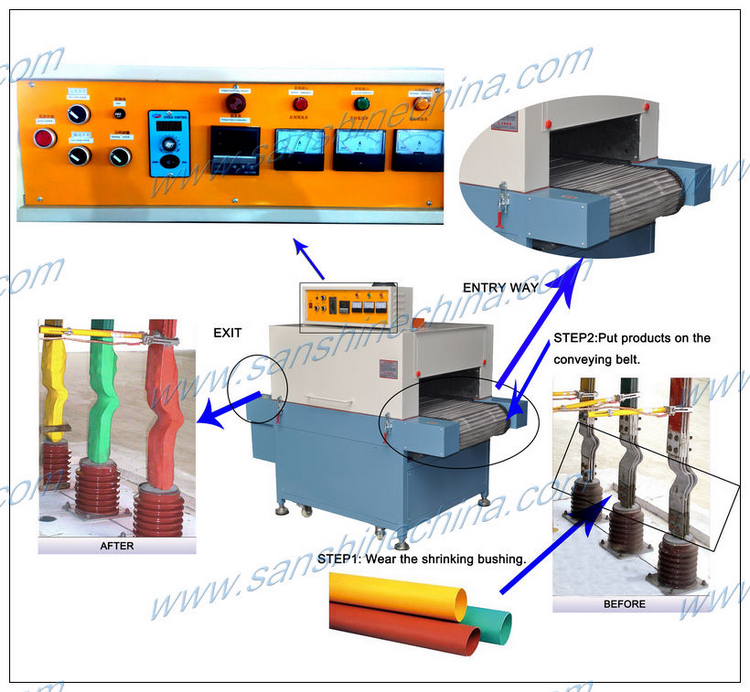

This electric heating shrinking hot air cycled tunnel oven (SS-HSTO02) adopts the principle of level hot air cycle conveying and the precision programable digital temperature controller. It is used specifically for shrinking and wrapping the heat shrink tube and shrink film, heat shrink packing, heating shrinking insulation sleeve and tube and harness, etc.. This tunnel oven is named copper foil isolation tube shrinking oven and wire harness insulation sleeve heating shrinking oven also.

  • Item NO.:

    SS-HSTO02
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Beige and blue
contact now
Description

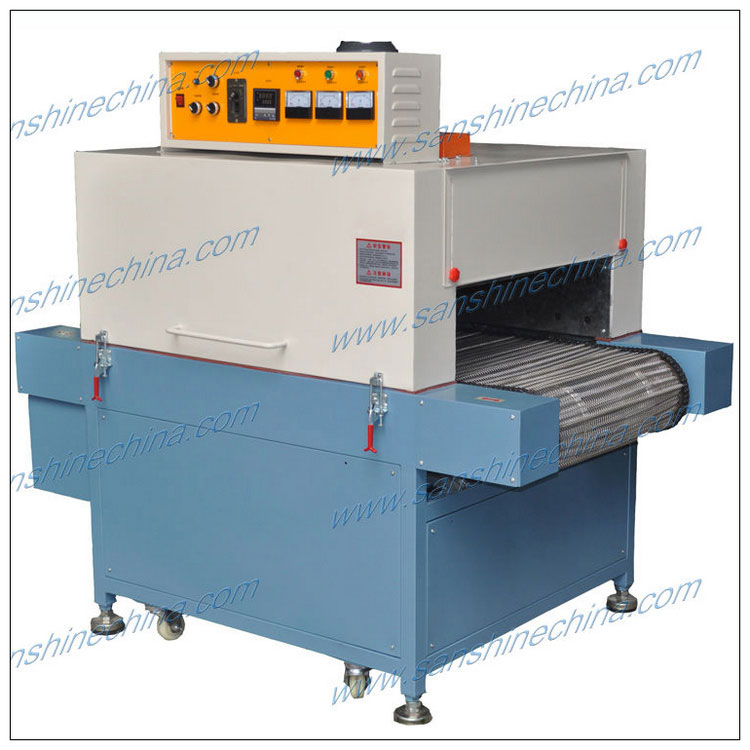

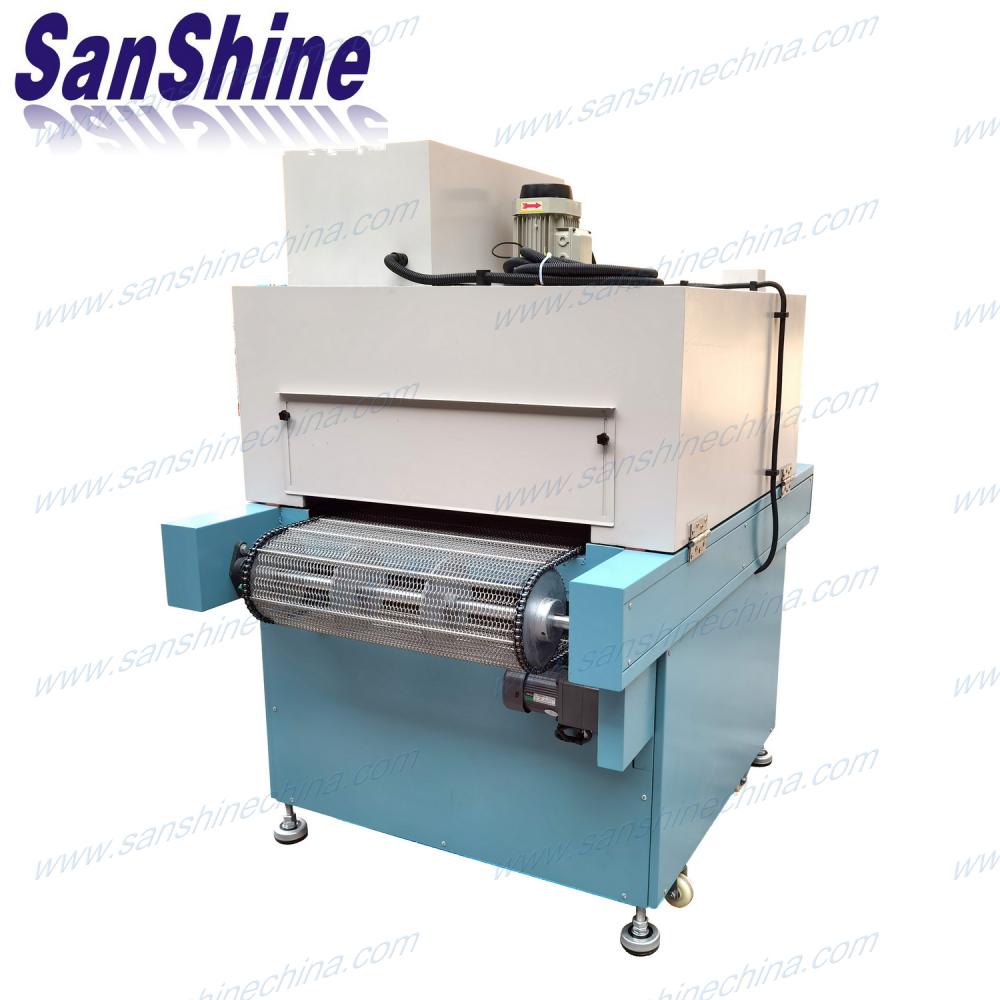

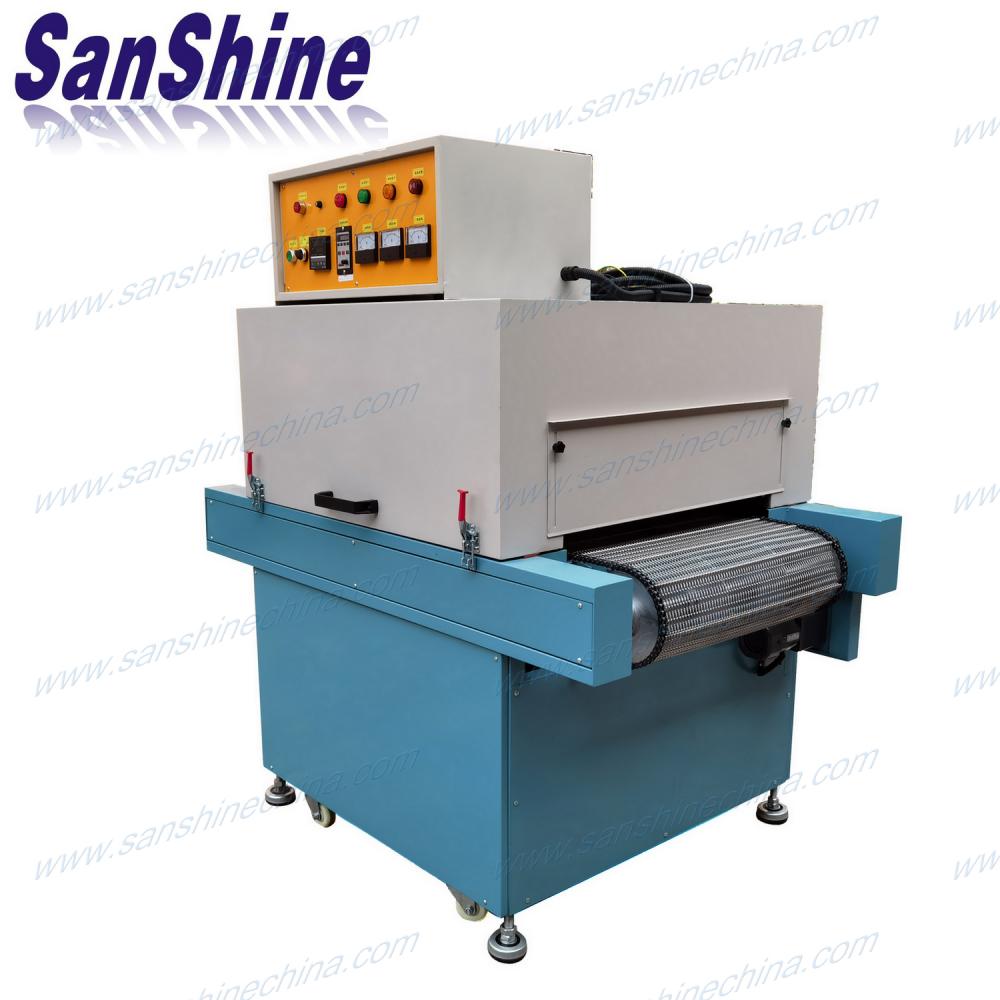

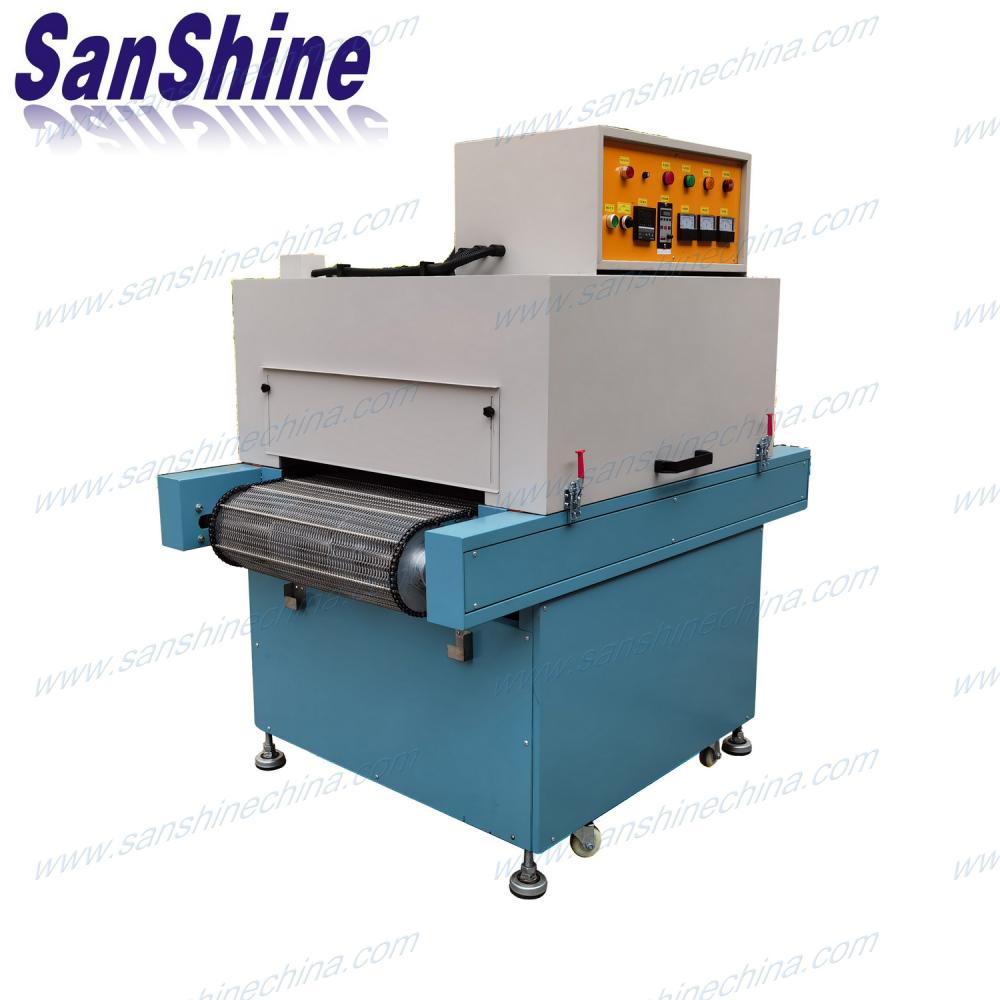

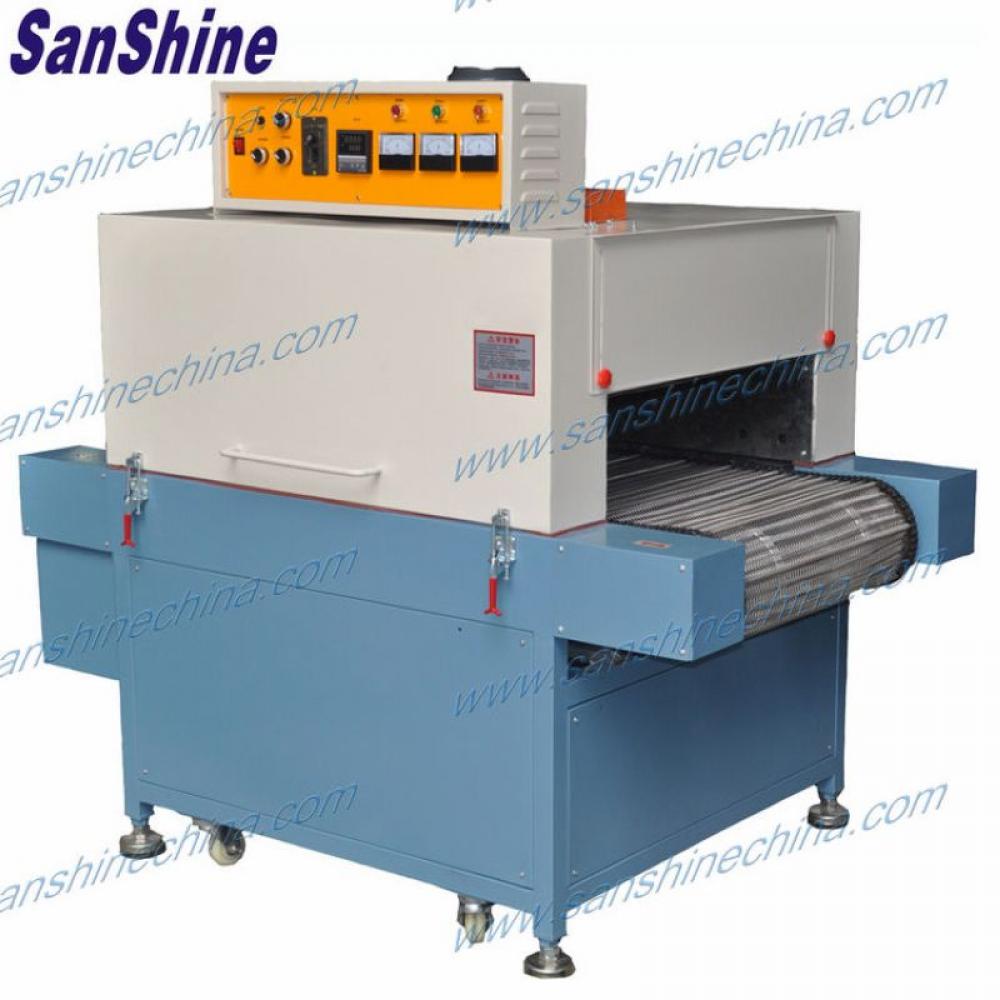

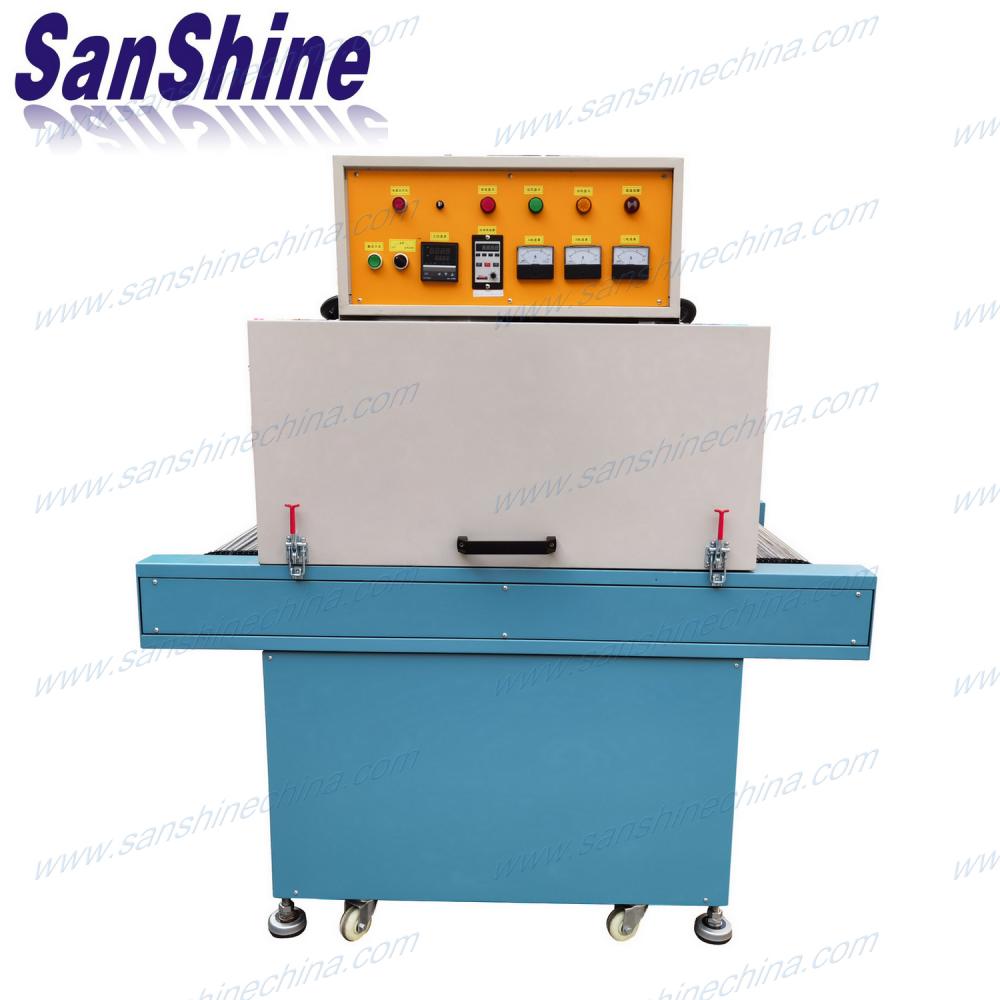

Product name : Electric heating shrinking hot air cycled tunnel oven (SS-HSTO02)

tunnel stove


cable shrinking oven

Description:

This electric heating shrinking hot air cycled tunnel oven (SS-HSTO02) adopts the principle of level hot air cycle conveying and the precision programable digital temperature controller. This hot air cycled tube oven is specifically used for shrinking and wrapping the heating shrink tube, shrink film, insulation sleeve, insulaltion tube, cable harness, etc.. Often be used for shrink-wrap processing. Like as : shrinks the insulation tube of electronics cable, shrinks the isolation sleeve of electrical cable, shrinks the insulation tube of electronics components, shrinks the isolated bushing of electrical parts, shrinks the label of bottle, shrinks the PVC film of toys, shrinks the PE film of hardwares, etc. . This hot air cycled tunnel furnace is called electricity busbar insulation sleeve shrinking oven, PVC film heating shrinking tube oven and hot air cycled shrinking tunnel oven also. The heat shrink tubing oven( SS-HSTO02 ) adopts the conveyor speed controller, the conveyor motor is a speed reducing motor. This oven is one tunnel type oven which perfect for manufacturing settings. Highly accurate electronic digital programable temperature controller and speed controller make sure the procesing quality consistent. The working temperature is invariableness by automatically. The oven will warn if the temperature overs the seting. Operator only need put the processing products on the conveying belt, then the these products will be entered and processed and out put automatically. High efficiency and high grade quality.

Specification:

1. machine total length: 1500mm.

2. heating zone length(inner working zone): 1000mm ( be customized according to user's requirements also).

3, conveying belt width(inner working zone): 600mm ( be customized according to user's requirements also ).

4, the entryway height of tunnel oven: 200mm ( be customized according to user's requirements also ).

5, the conveying belt length of entryway zone: 250mm ( be customized according to user's requirements also ).

6, the conveying length of exit zone: 250mm ( be customized according to user's requirements also ).

7, the height from ground to the conveying: 750mm.

8, heating way: electrical heating tubes with the hot air cycle.

9, heating power: 6KW.

10, the speed of conveyer: 50 ~ 1000mm/Minute.

11, working temperature: room temperature ~ 200ºC( be customized according to user's requirements also).

12, power source: 3 phase 380V 50Hz.

13, conveying belt of configuration: Φ1.2x8x10mm stainless net belt and chain belt.

14, conveying time: can be adjustable from 30seconds to 4 minutes.

*****This heat shrink tubing oven can be customized according to user's requirements, welcome to inquire*****
