Amorphous alloy slim ribbon magnet core production machine

The amorphous alloy slim ribbon magnet core production machine (SS-AR45W) is used for producing the amorphous alloy slim ribbon which is one raw material for making the amorphous magnet cores, ultracrystallite cores, Nanocry-stalline core. This amorphous alloy crystalline magnet core production machinery is called Fe-based Nanocrystalline alloy ribbon spinning machine also.

  • Item NO.:

    SS-AR45W

  • Product Orgin:

    China

  • Brand:

    SanShine

  • Shipping Port:

    XIAMEN,CHINA

  • Color:

    Beige and blue
contact now User's reviews
Description

Product name ：Amorphous alloy slim ribbon magnet core production machine （SS-AR45W）

amorphous magnet film machine

alloy film spinning machine

amorphous ribbon spinning machine

Description :

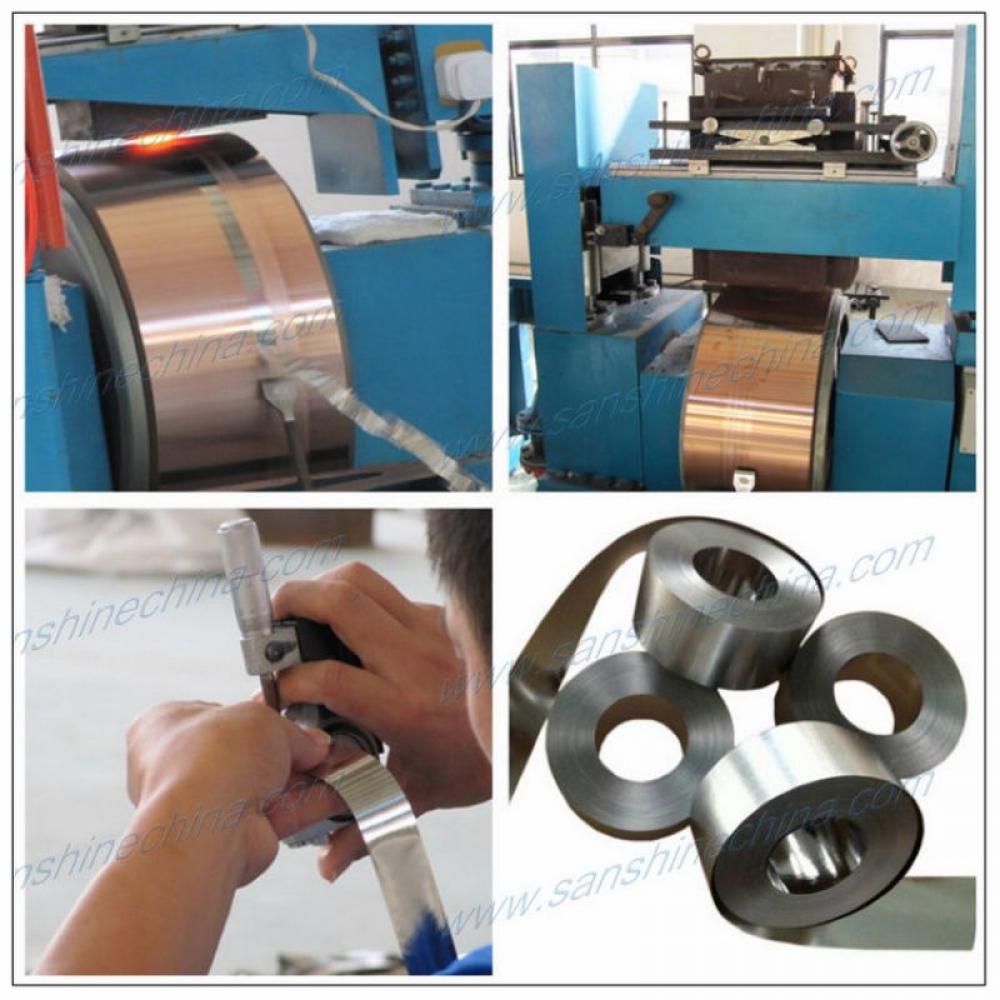

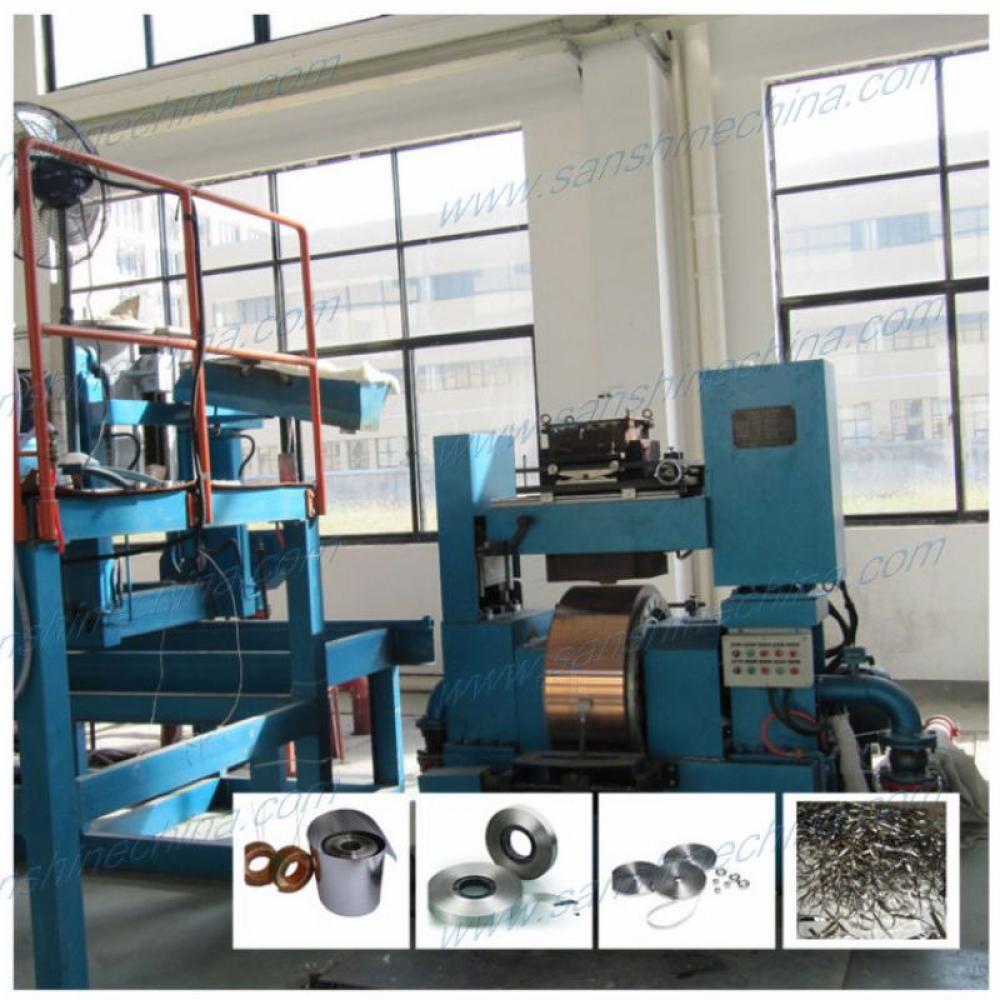

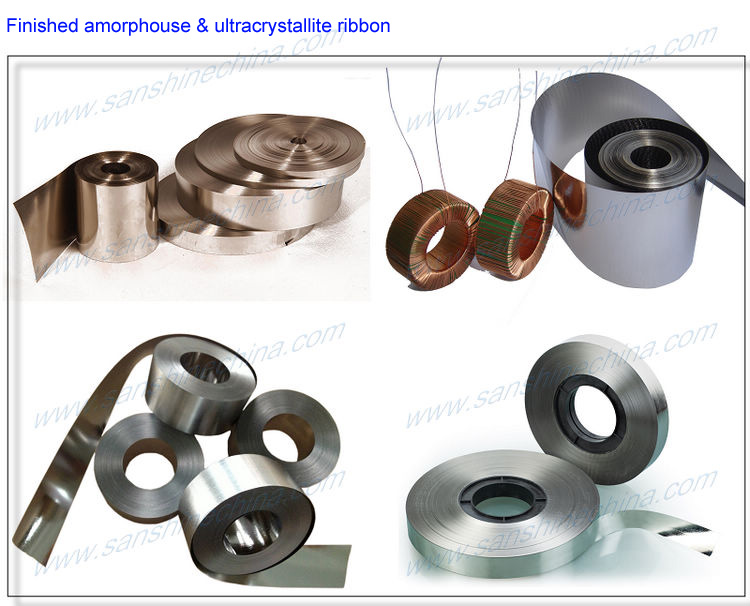

The (SS-AR45W) amorphous alloy slim ribbon magnet core production machine (metal melted spinning machine) is used for producing the amorphous alloy slim ribbon ( foil ) which is one raw material for making the amorphous magnet cores, ultracrystallite cores, Nanocry-stalline cores. These magent cores are best efficiency than the Ferrite cores and Iron cores and the steell sheet cores. These magnent cores be used for making the toroidal current transformers, current sensors, electronics transformers, electrical transformers, electronic inductors, choke, electric reactors, motors, etc.. This machine is named transformer amorphous magnetic core making machine also.

Main specification :

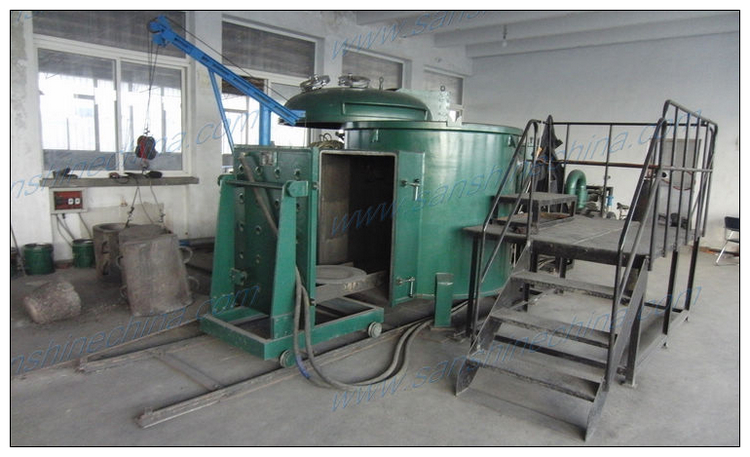

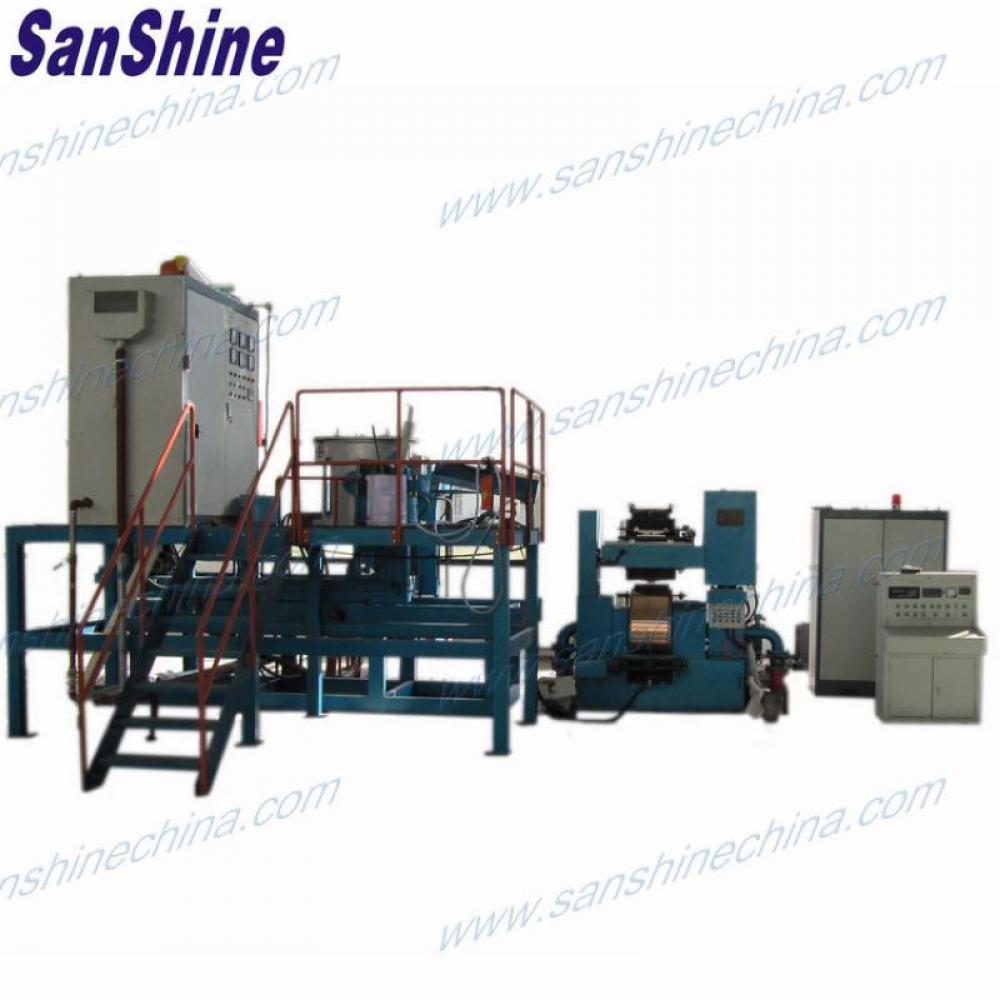

1. one set integrated amorphous alloy ribbon produce machine must include one set amorphous alloy ribbon produce machine (for produce amorphous alloy ribbon), one set vacuum inductance furnace(for melting the metal raw material, then waits them to be cooled and get the solid metal again, these new solid metals are be prepared for the amorphous ribbon produce machine ), one set industrial vacuum heating treatment furnace(for treatment the magnetism cores and make sure the cores of quality, this one is optional.).

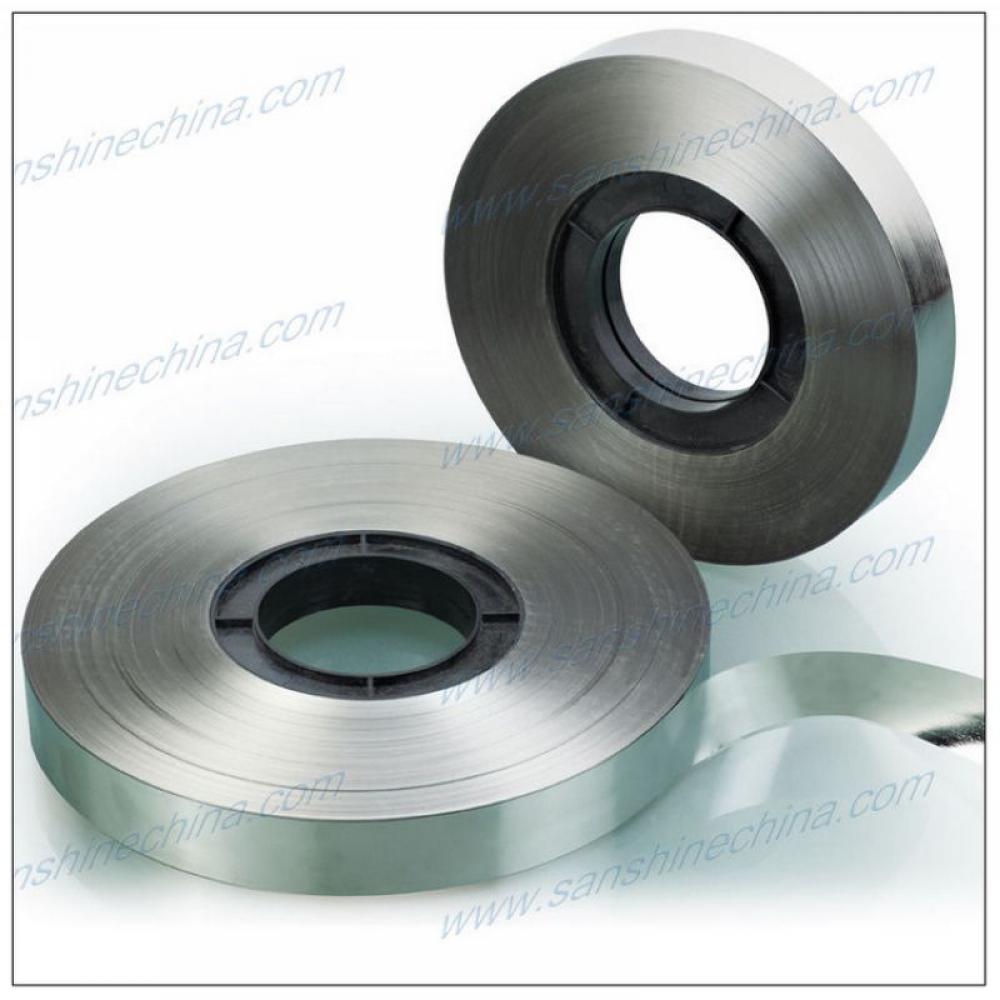

2. this amorphous alloy ribbon produce machine (SS-AR45W) can make 25~35um thickness ribbon, 10~ 45mm width ribbon. We have the more big machine for production the Width 213mm ribbon also.

3. the vacuum inductance furnace of capacity : 100Kgs.

4. tthe remelting furnace capacity of he amorphous ribbon produce machine : 150Kgs.

5. machines of power source : 3 phases 380V, 50Hz/60Hz.

6. machines of cooling water pressure requirement : 0.3Mpa .

7. machines of air compressing source : 0.7Mpa.
