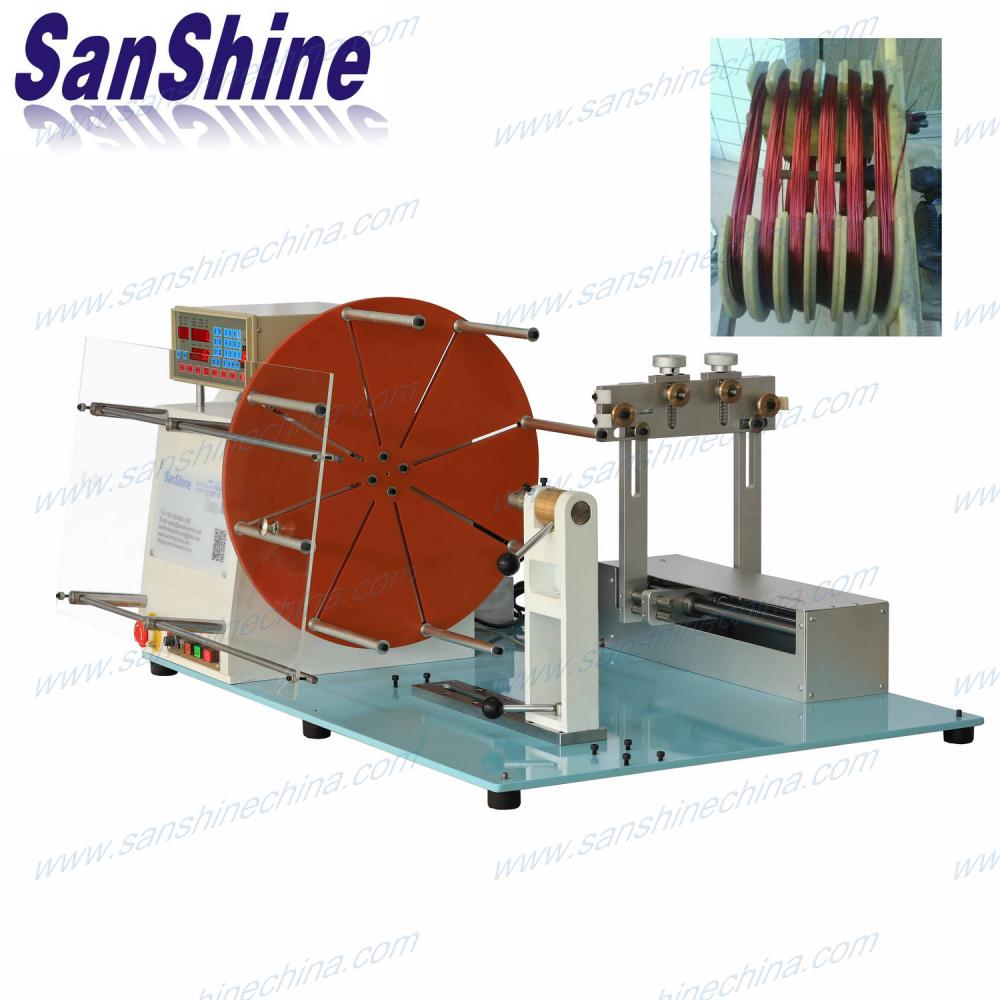

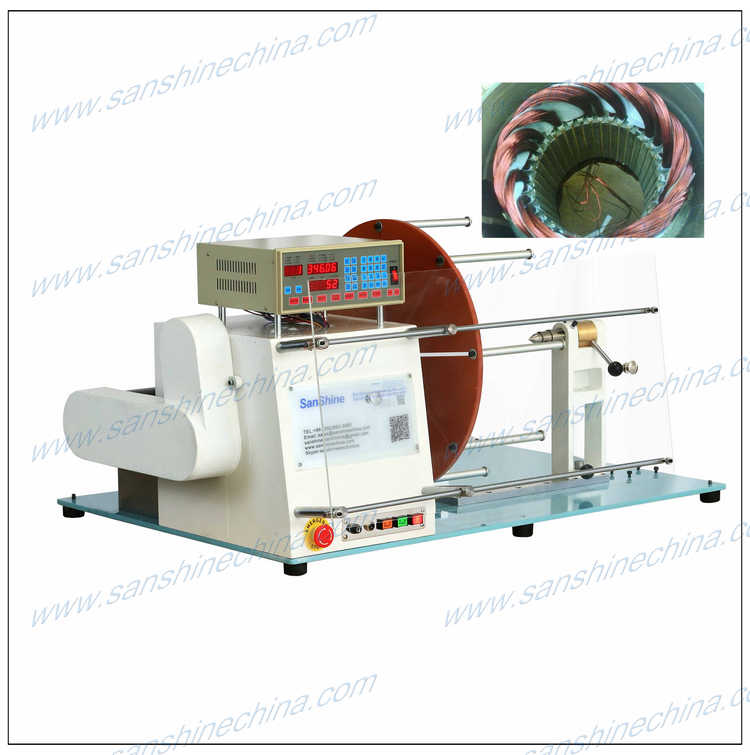

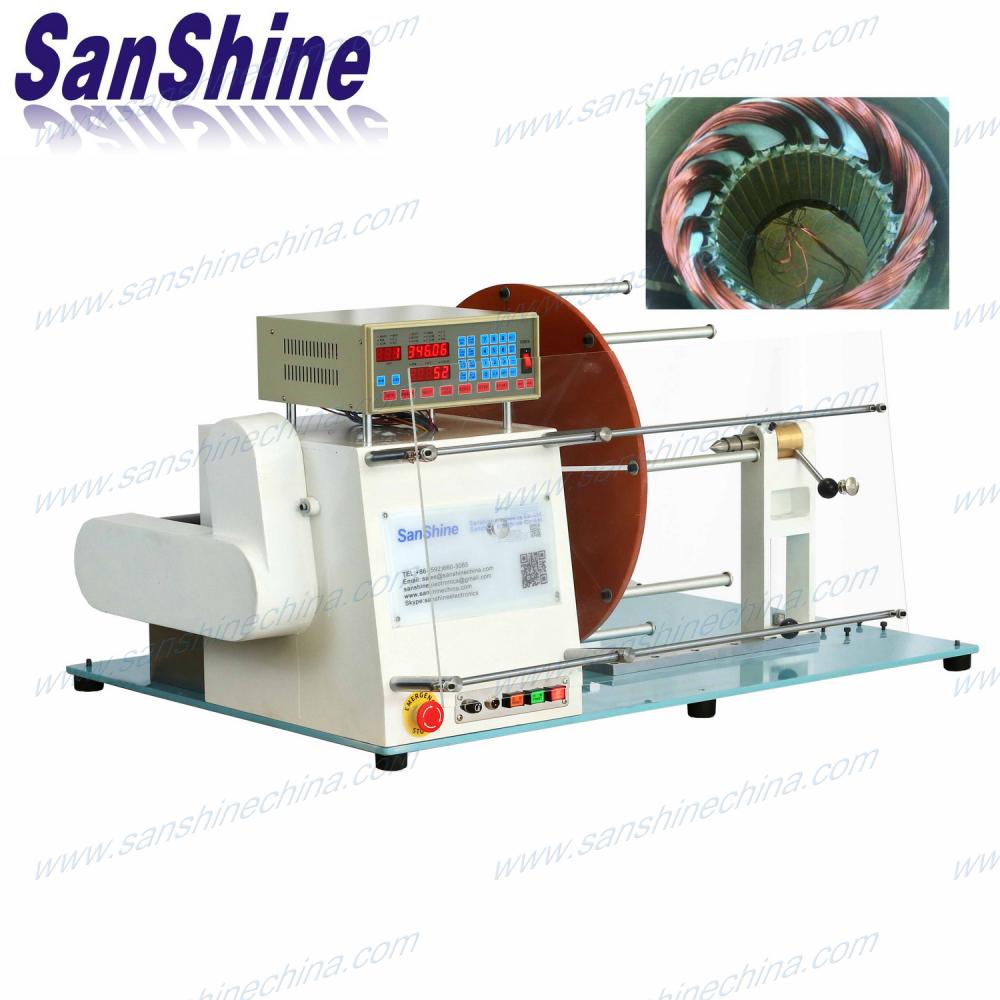

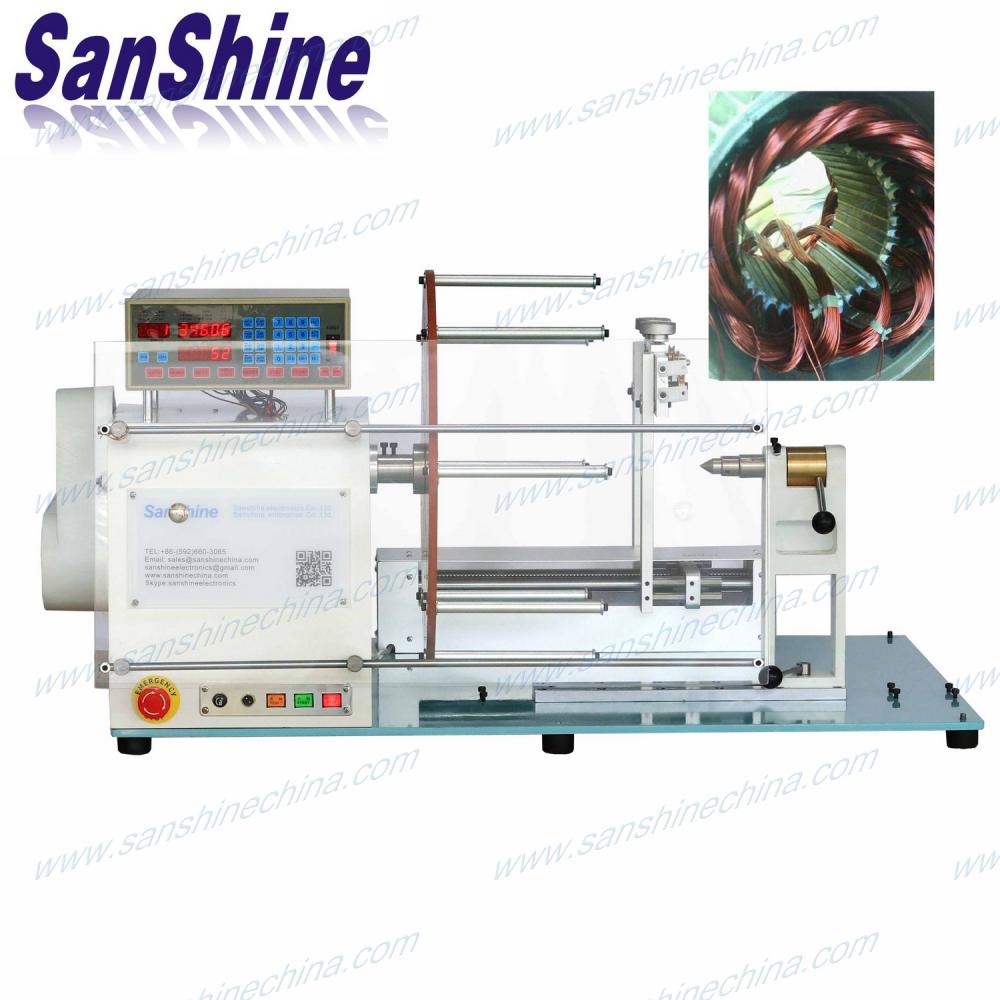

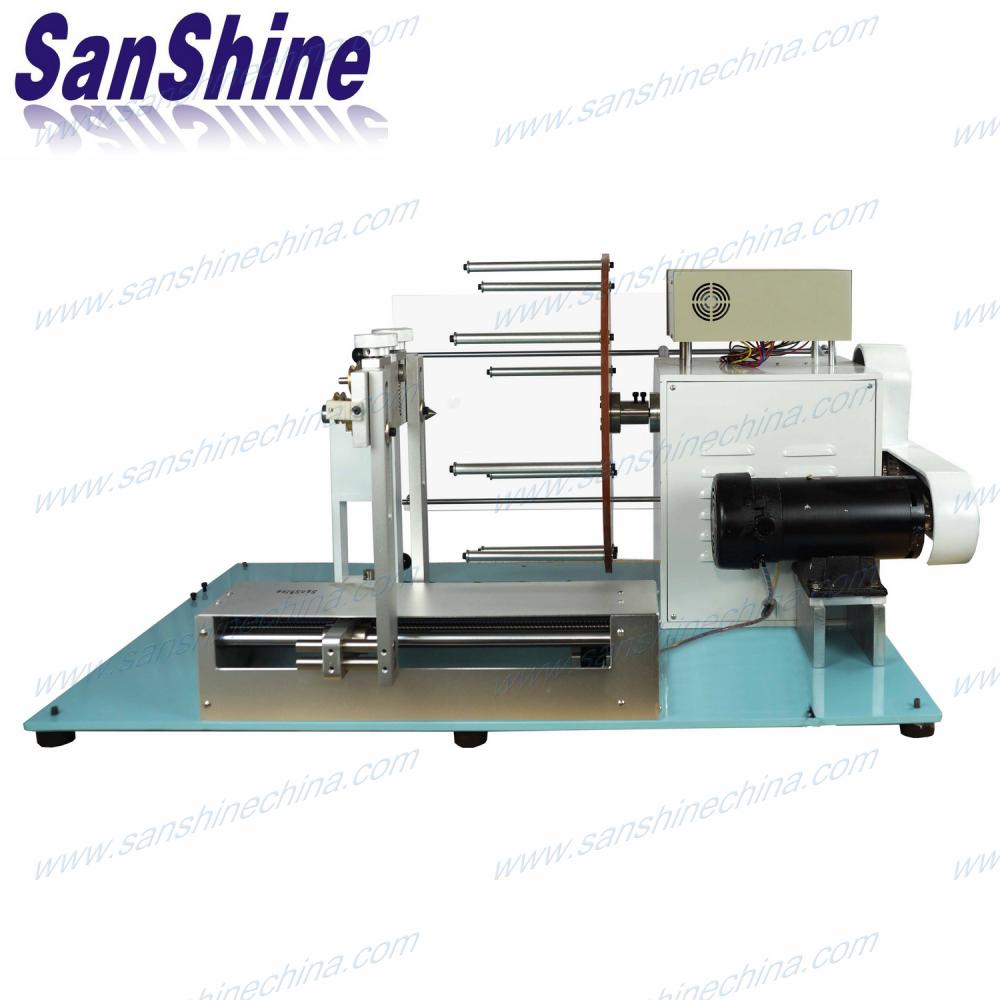

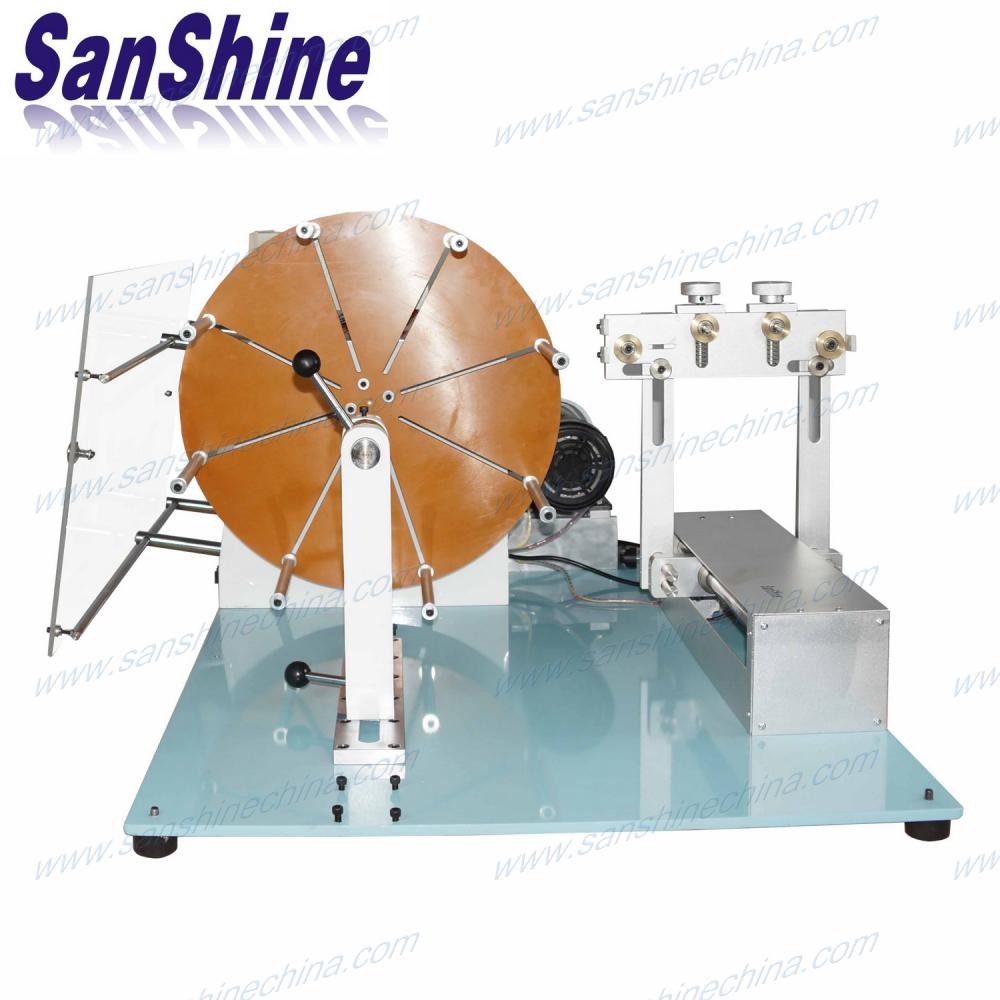

Automatic big motor stator generator coil winding machine

The automatic big motor stator generator coil winding machine (SS851BMS) is a CNC programmable winding machine with the high torsion DC winding motor. It's the best choice for winding and rewinding the big motor stator coil and the generator coils.
  • Item NO.:

    SS851BMS
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White and blue
contact now
Description

Product name : Automatic big motor stator generator coil winding machine (SS851BMS)

submersible pump motor coil winding machine

thick wire electromotor winding machine

Description :

The automatic big motor stator generator coil winding machine (SS851BMS) is a CNC programmable winding machine with the high torsion DC winding motor. This big motor stator generator coil winding machine (SS851BMS) is the best choice for winding and rewinding the big motor stator coil and the generator coils. The Maximum wire diameter of this winder can reach 3.8mm for the small coil. This big motor stator generator coil winding machine (SS851BMS) can be customized according to coil size by requested.

Feature :

1. Microprocessor design, easy for program-setting.

2. Stepper motor driven by constant-current power supply, high spreading speed precise winding.

3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Wire passing through ceramic rollers prevent enamel from high temperature.

5. Multiple spindles winding synchronal for highest efficiency.

6. Foot-switch connection for better efficiency.

7. Winding parameters and options can be set.

Specification :

Model SS851BMS
Spindle Number 1
Wire diameter 0.05~3.8mm
Spread pitch 0~9.999mm
Spread width(traverse) Max. 400mm
Finished coil diameter Max. 500mm
Winding motor 500W DC Motor
Spread motor 4-Phase Stepper Motor
Max. speed 2500 RPM
Memory 999 Steps
Power source AC220V/110V + 10%, 50/60 Hz
Dimension(cm) 118x94x66
Net weight 110Kgs
