Programmable automatic generator coil winding machine

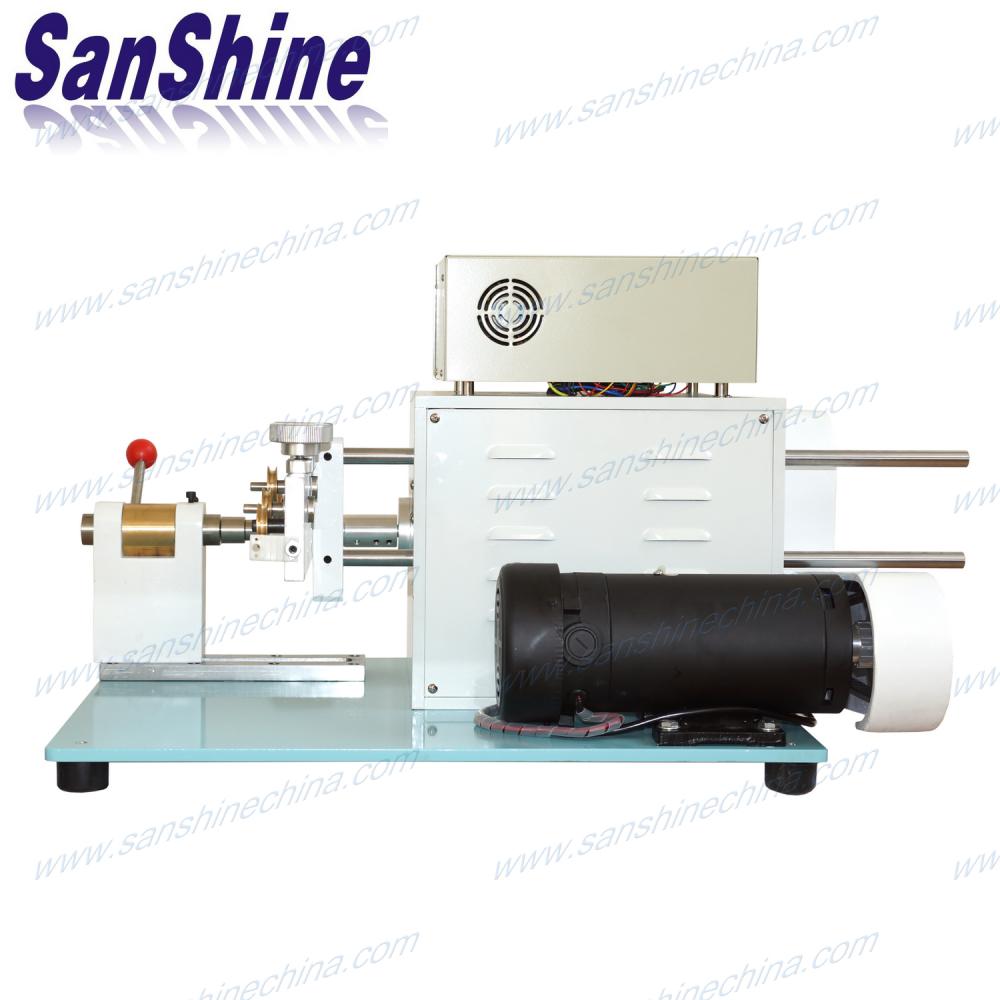

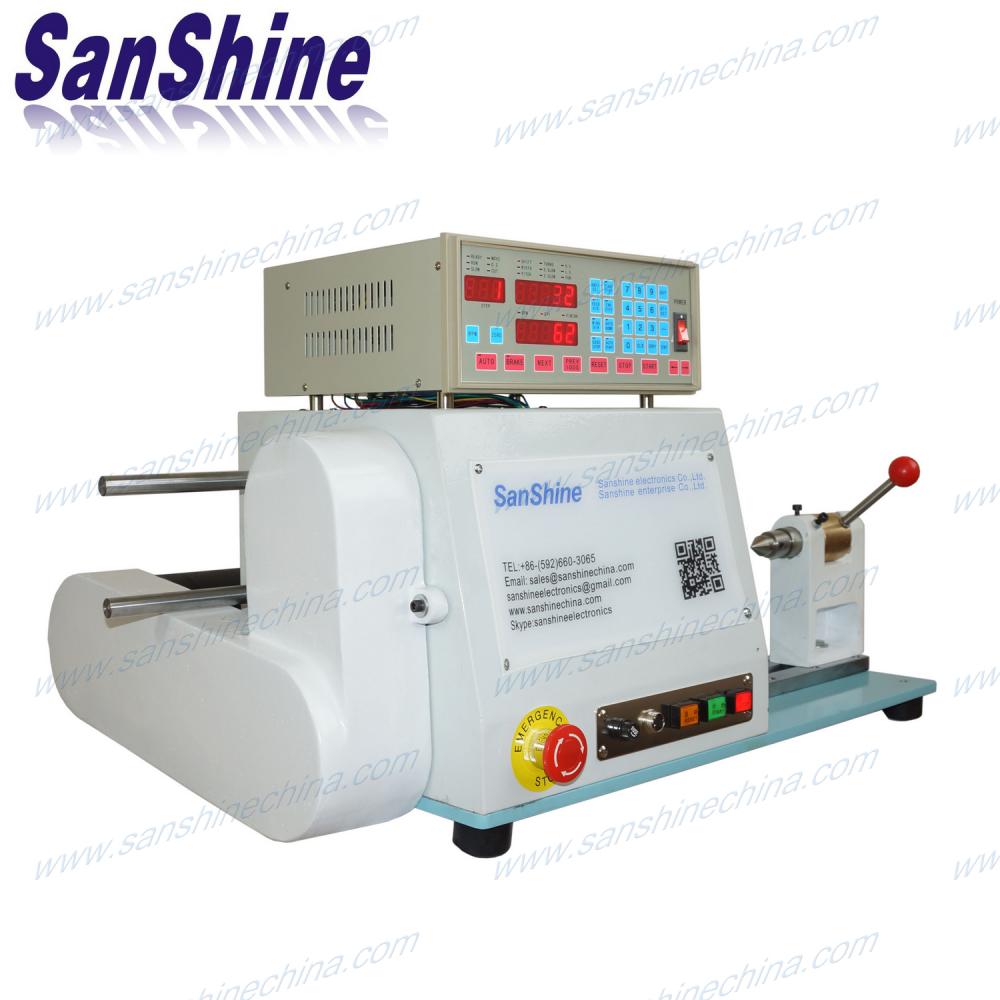

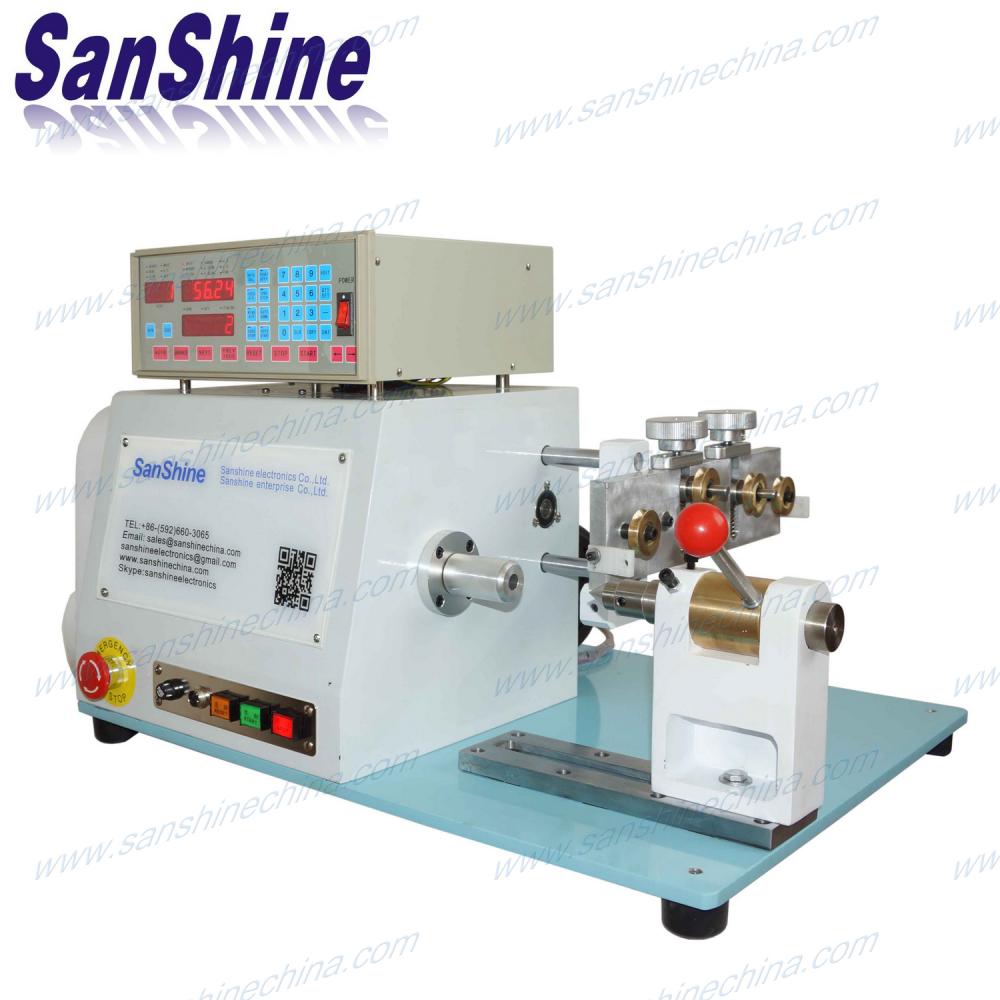

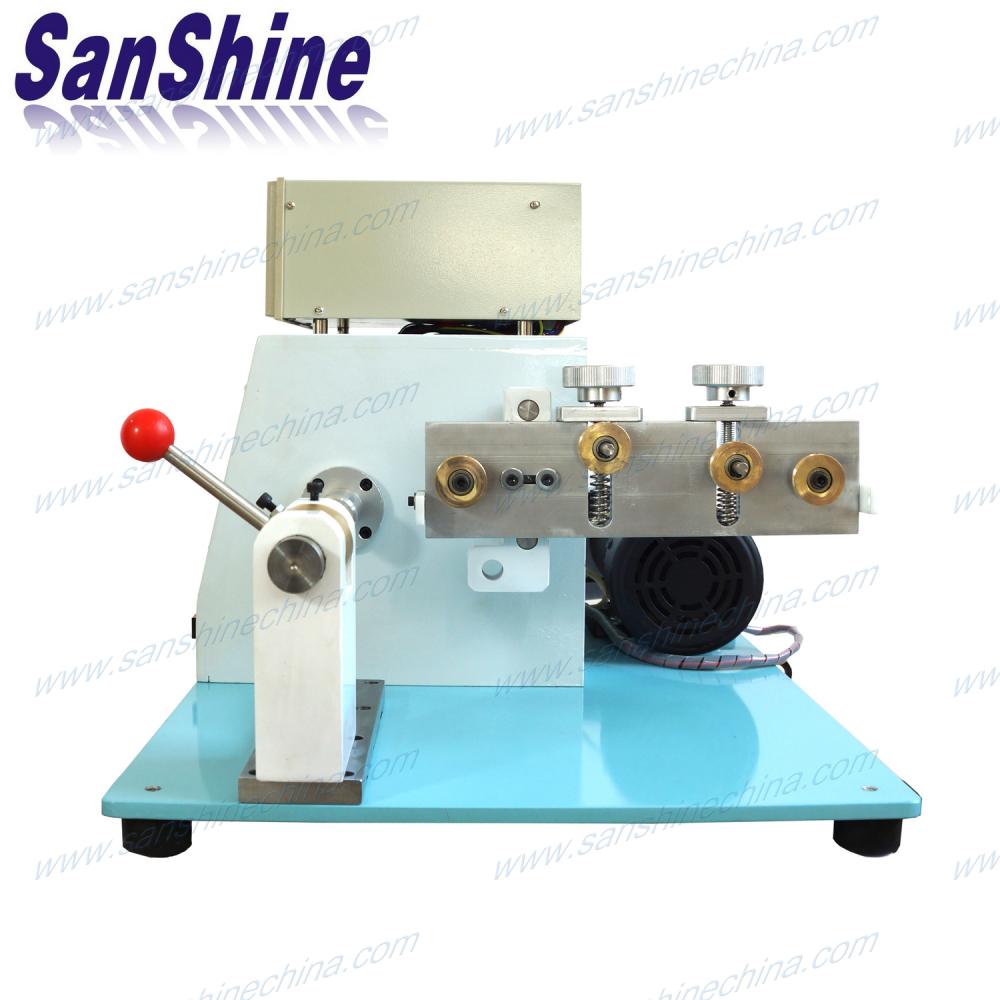

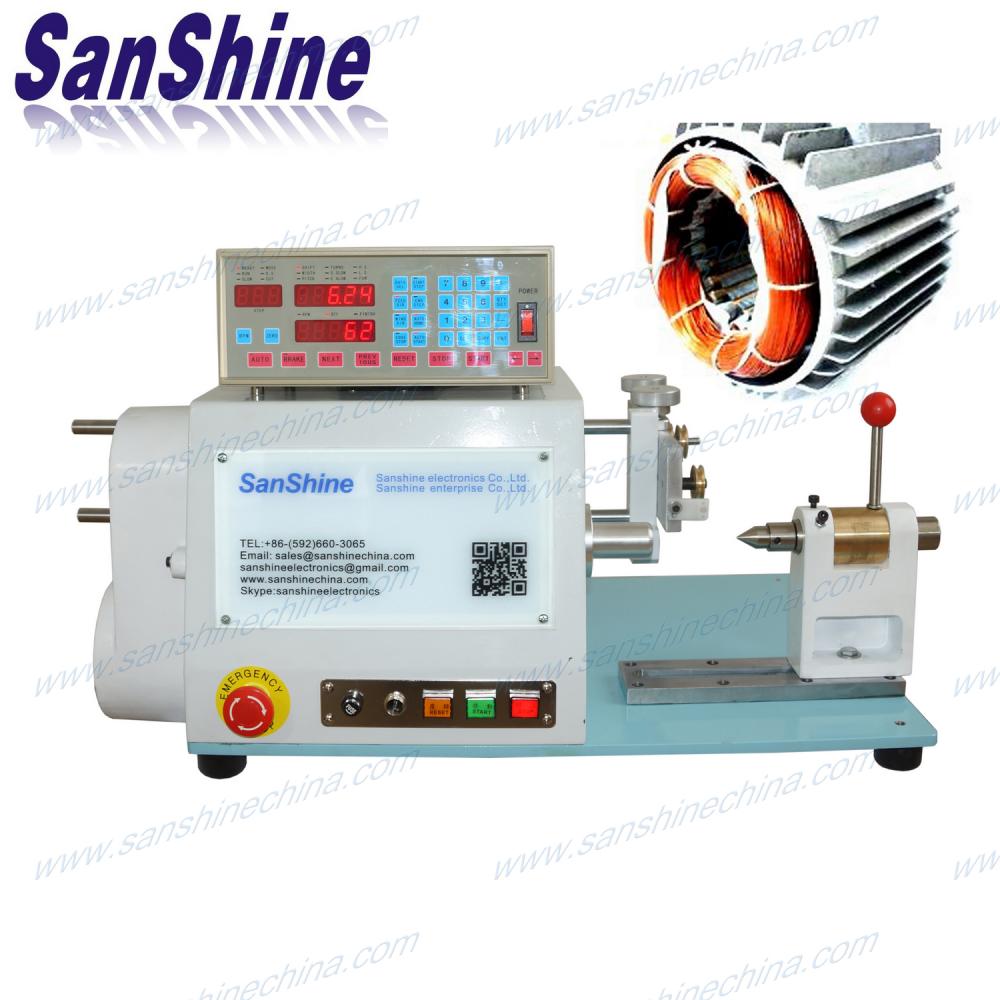

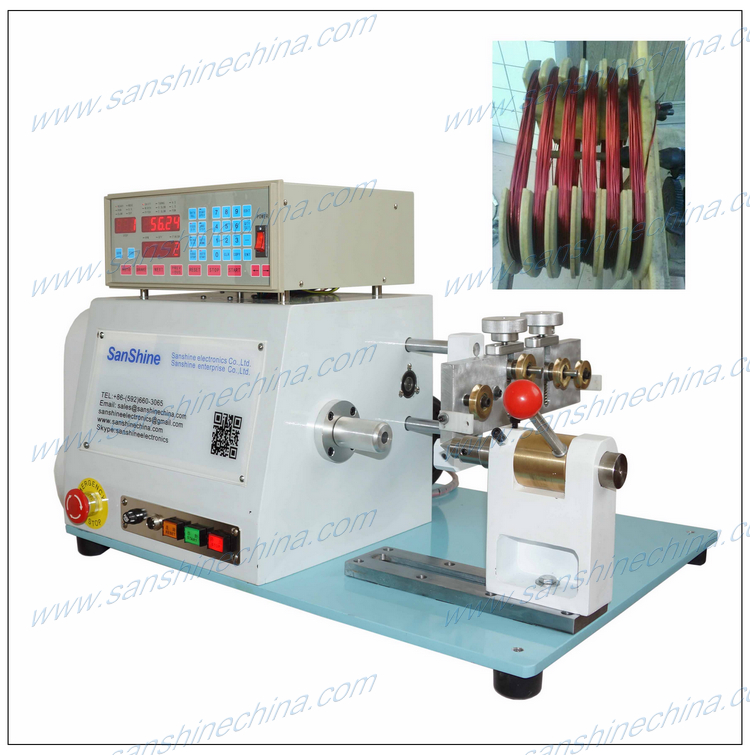

This programmable automatic generator coil winding machine (SS851MS) is a CNC programmable winding machine with the high torsion DC winding motor. It's the best choice for winding and rewinding the motor stator coil and generator coils. This winding machine is named generator coil making machine also.
  • Item NO.:

    SS851MS
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White and blue
contact now
Description

Product name : Programmable automatic generator coil winding machine (SS851MS)

generator production machine


OEM generator

Description :

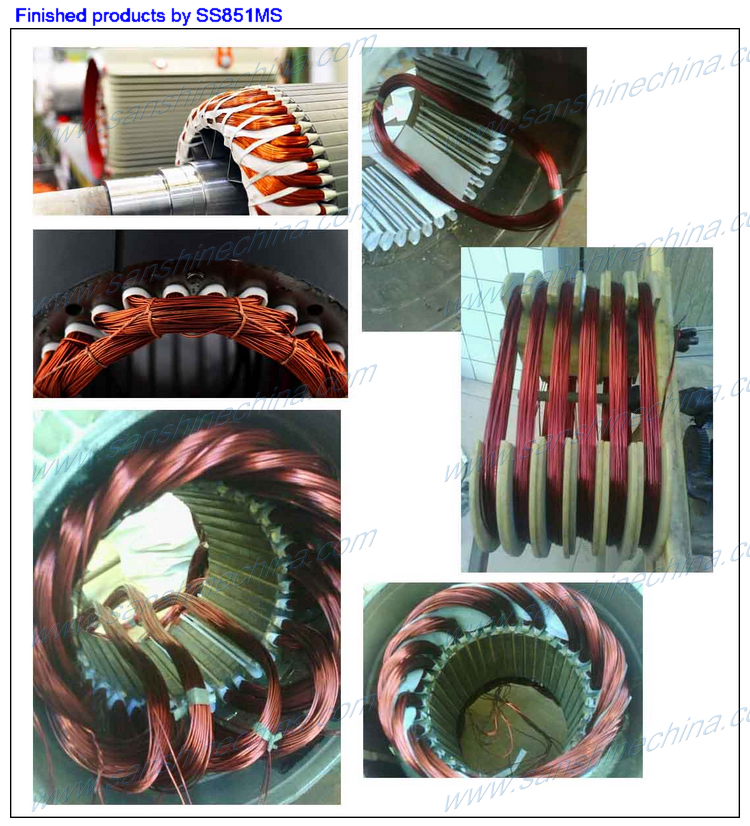

The programmable automatic generator coil winding machine (SS851MS) is a CNC programmable winding machine with the high torsion DC winding motor. The Maximum wire diameter of this winder can reach 5.0mm if the finished coil outside diameter less than 55mm. This motor stator generator coil winding machine (SS851MS) is the best choice for winding and rewinding the motor stator and generator coils. This motor stator generator coil winding machine is named CNC generator coil winding machine also. This programmable automatic generator coil winding machine (SS851MS) can be customized according to coil size by requested.

Feature :

1. Microprocessor design, easy for program-setting.

2. Stepper motor driven by constant-current power supply, high spreading speed precise winding.

3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Wire passing through ceramic rollers prevent enamel from high temperature.

5. Multiple spindles winding synchronal for highest efficiency.

6. Foot-switch connection for better efficiency.

7. Winding parameters and options can be set.

Specification :

Model SS851MS
Spindle Number 1
Wire diameter 0.05~5.0mm
Spread pitch 0~9.999mm
Spread width(traverse) 230mm
Finished coil diameter 200mm
Winding motor 500W DC Motor
Spread motor 4-Phase Stepper Motor
Max. speed 2500 RPM
Memory 999 Steps
Power source AC220V/110V + 10%, 50/60 Hz
Dimension(cm) 70x52x60
Net weight 42kgs
