Small ferrite core air gap grinding machine (SS-GR02)

categories
Small ferrite core air gap grinding machine (SS-GR02) Small ferrite core air gap grinding machine (SS-GR02) Small ferrite core air gap grinding machine (SS-GR02)

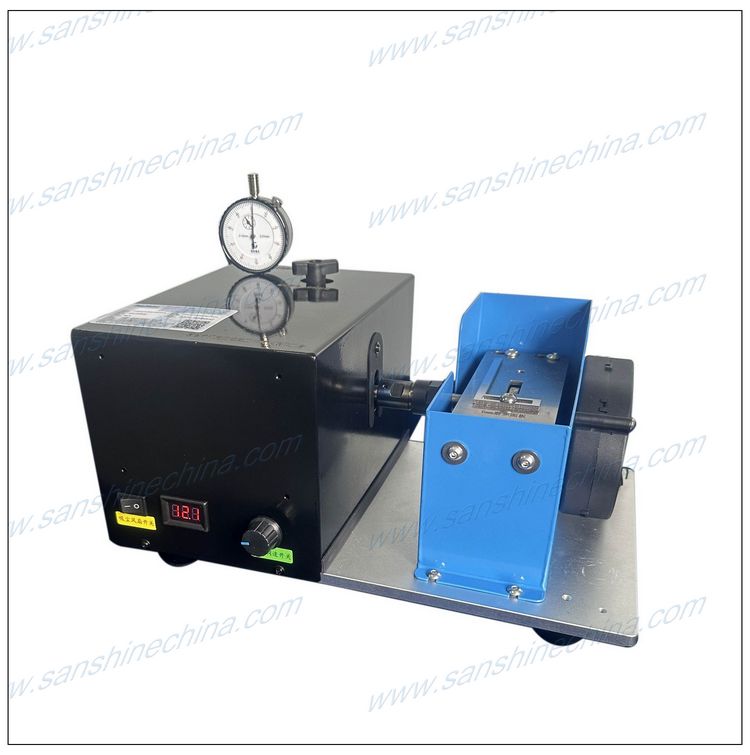

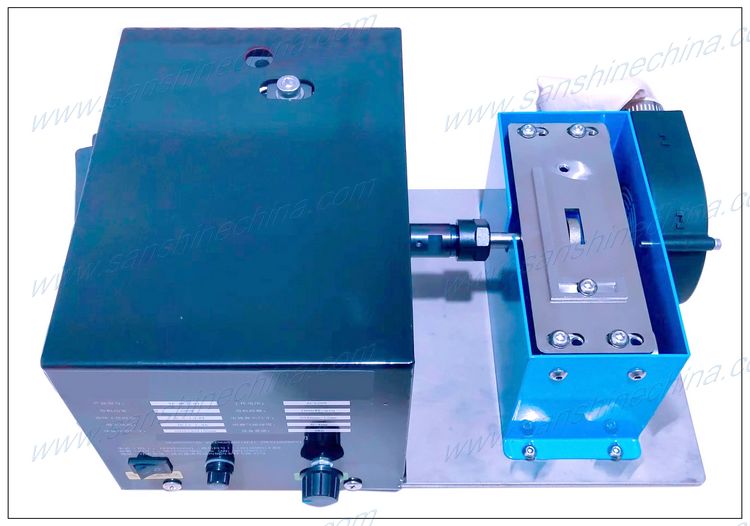

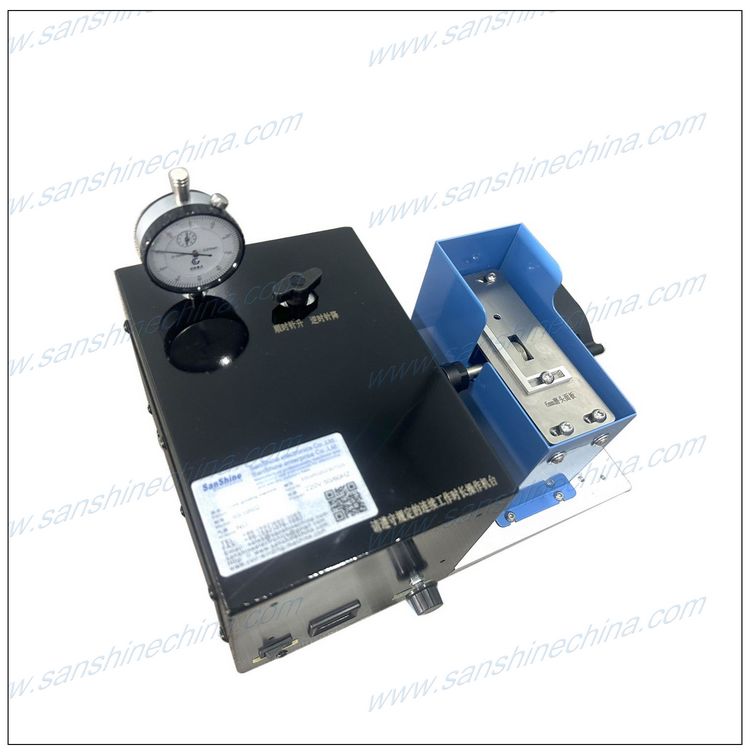

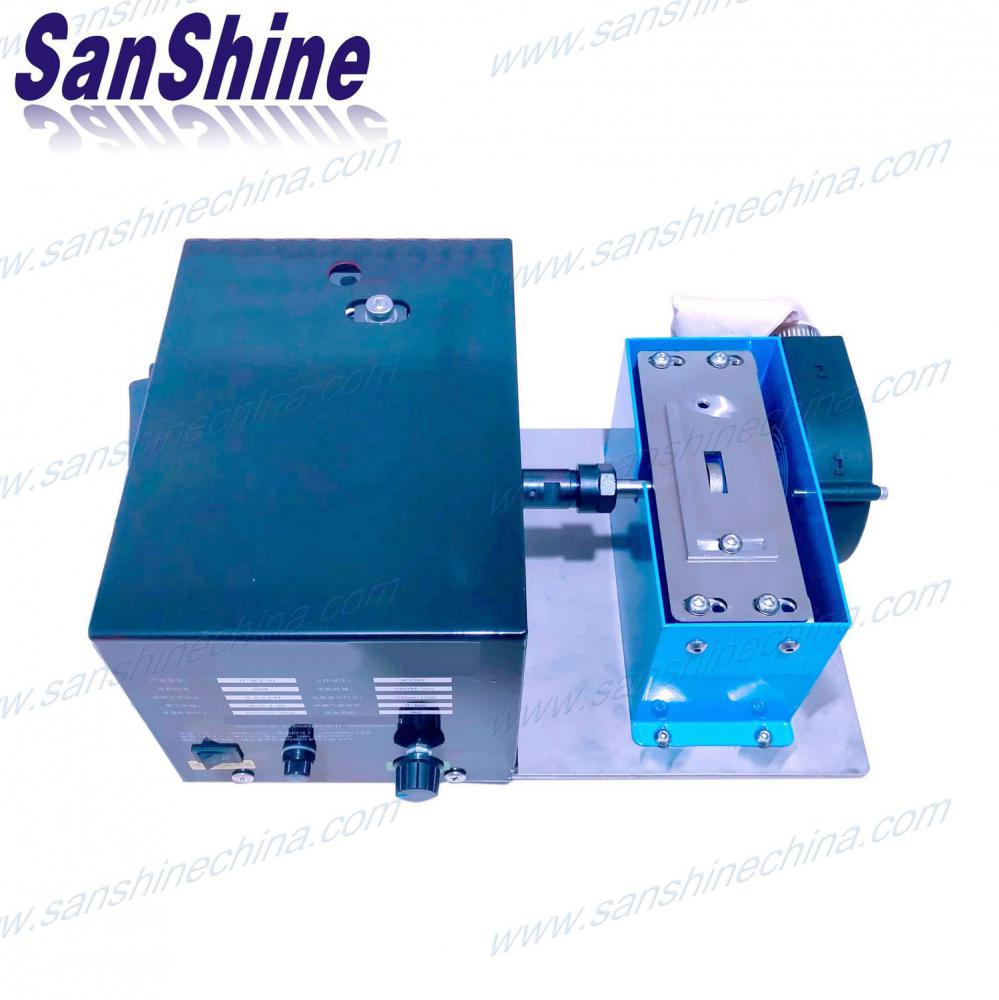

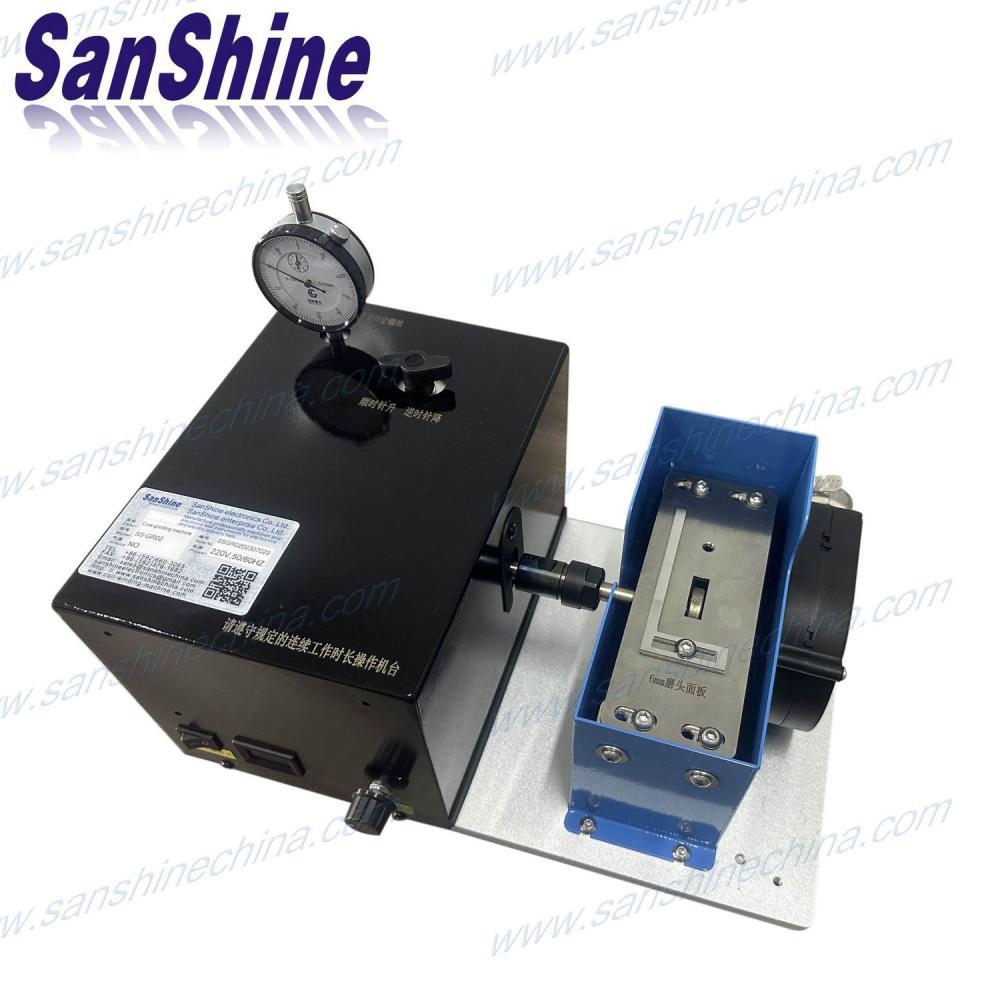

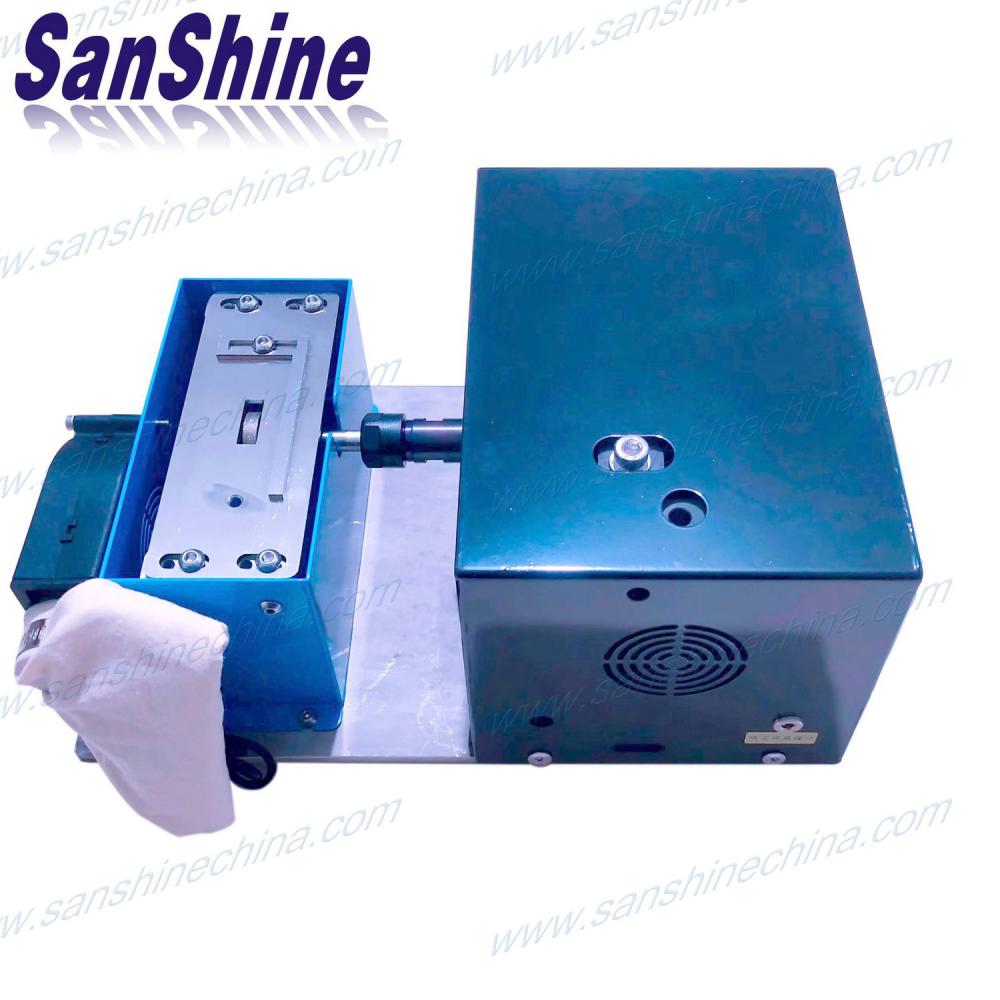

Small ferrite core air gap grinding machine (SS-GR02)

This small ferrite core air gap grinding machine (SS-GR02) is used for grinding the air gap of small ferrite cores of transformer and inductor. This grinding equipment is called inductor core gap grinding machine also.

  • Item NO.:

    SS-GR02

  • Product Orgin:

    China

  • Brand:

    SanShine

  • Shipping Port:

    XIAMEN,CHINA

  • Color:

    Blue and black
contact now User's reviews
Description

Product name : Small ferrite core air gap grinding machine (SS-GR02)


ferrite core milling machine




Description of Small ferrite core air gap grinding machine (SS-GR02) :

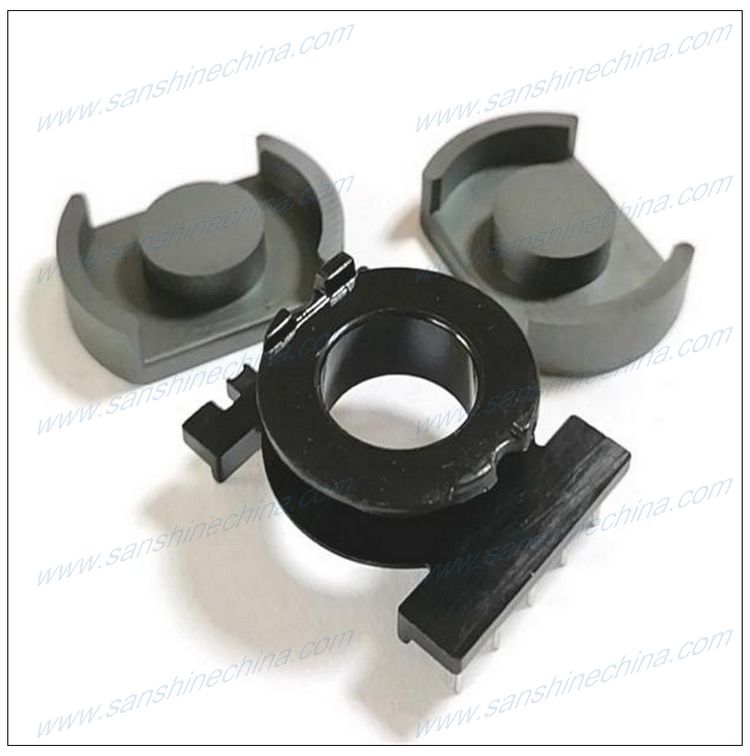

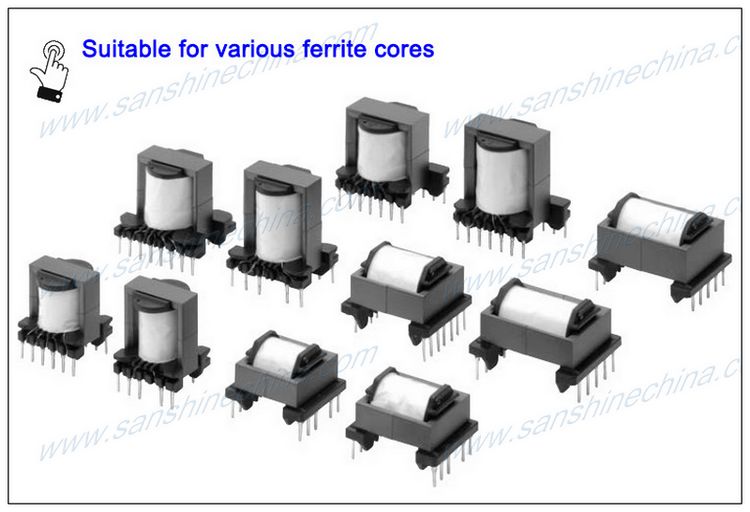

This small ferrite core air gap grinding machine (SS-GR02) is used for grinding the air gap of small ferrite cores of transformer and inductor.

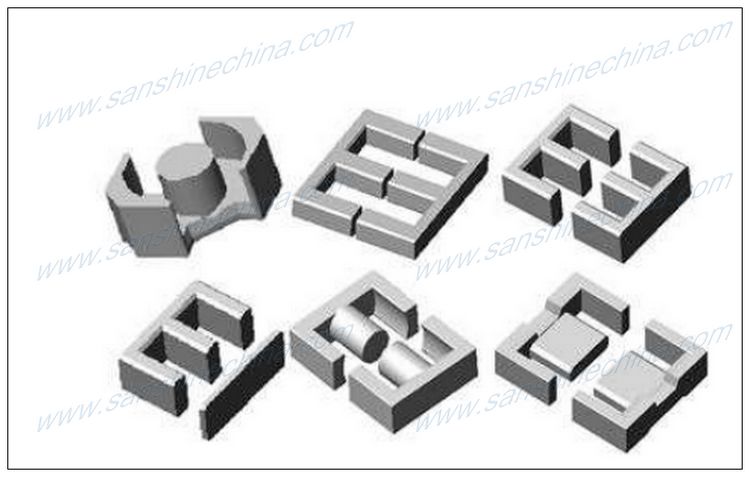

Like as the EE and ER and PQ series cores. This grinding machine is named transformer core gap grinding machine also. This machine

is only suited for the engineering RD room with a few output quantity. It is one manual machine.

Feature of Small ferrite core air gap grinding machine (SS-GR02):

Key features SS-GR02 SS-GR03 SS-GR04
Grinding way Manuallly holding core one by one Manuallly holding core one by one Manuallly holding core one by one
Grinding depth of core ≤4.5mm ≤4.5mm ≤4.5mm
Grinding air gap accuracy 0.01~0.03mm 0.01~0.03mm 0.01~0.03mm
Standard grinding wheel width 6 or 12mm 6 or 12mm 6 or 12mm
The height of grinding wheel Adjustable and display with dial indicator Adjustable and display with dial indicator Adjustable and display with dial indicator
Grinding motor power 680W 680W 1.5KW
Grinding motor type DC DC 3 Phases
Grinding motor speed adjustable Knob Knob Frequency converter
Grinding wheel speed Adjustable Max. 7000RPM Adjustable Max. 7000RPM Adjustable Max. 24000RPM
Grinding motor cooling None None Yes, by water or cooling oil of car
Core cooling None Yes Yes
Water pump None DC 12V DC 12V
Water box None Yes Yes

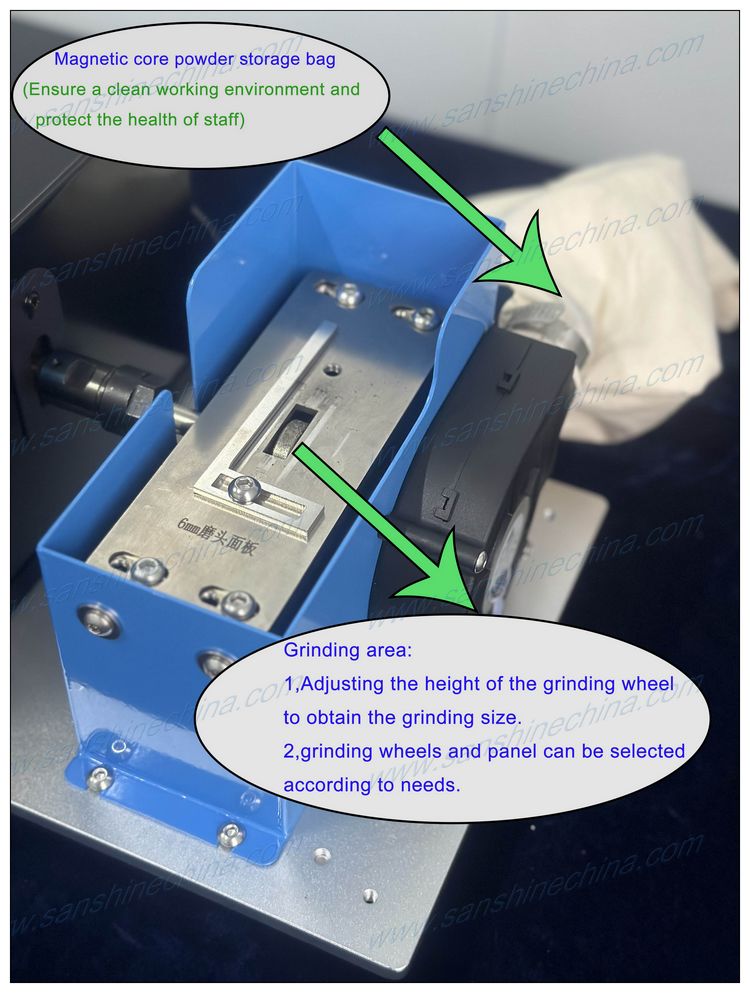

Grinded dust collection way DC 12V exhaust fan with bag filting net movable magnetic rolls box
Machine usage RD room RD room Production
Output capacitiy Low Low Small-Medium
Grinding motor working limited time Need be break < 1 hour worked Need be break < 1 hour worked Continually
Machine power source Single phase 220V, 50/60Hz Single phase 220V, 50/60Hz Single phase 220V, 50/60Hz
Machine net weight 8Kgs 8.5Kgs 47Kgs
Machine sizes (mm) L360*W250*Height 190 L360*W250*Height (190+150) L520*W420*Height 450
