high level automatic judgement precise digital LCZ LCR meter

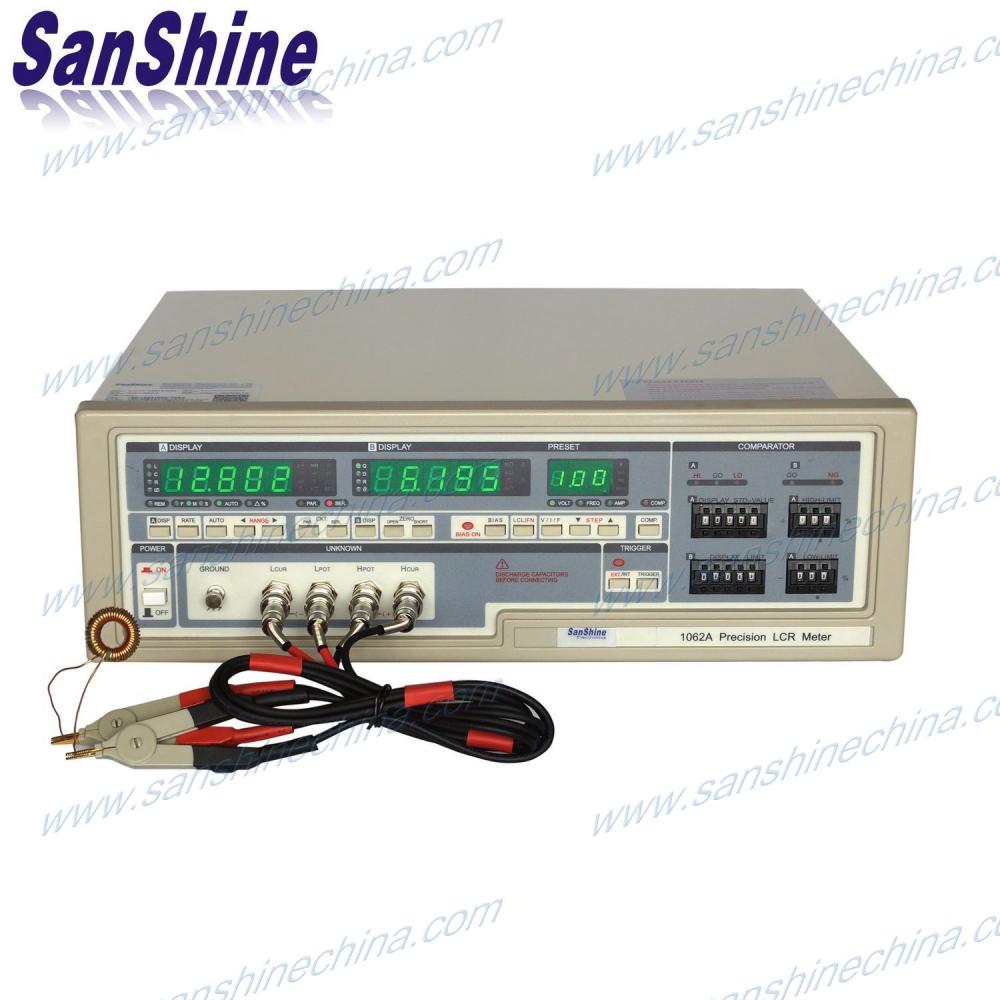

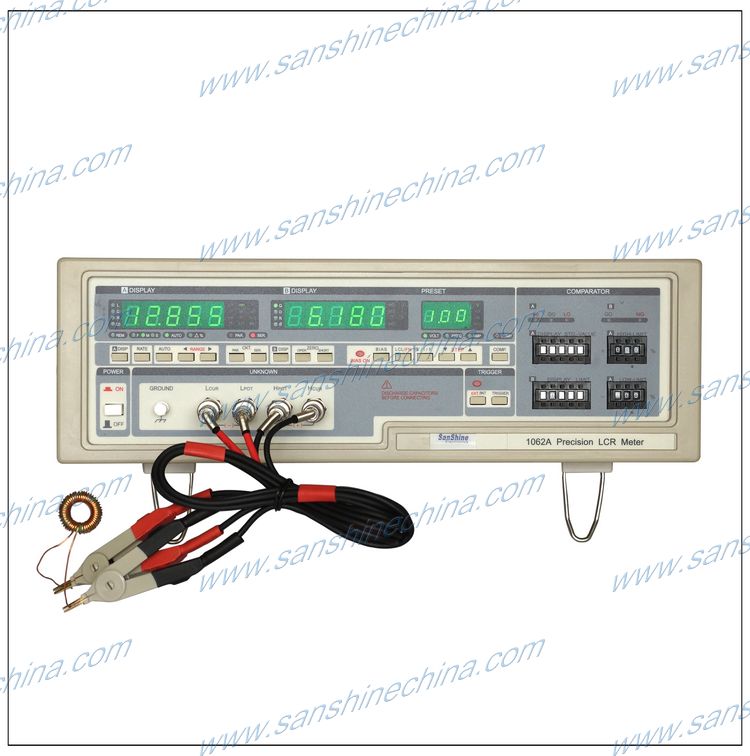

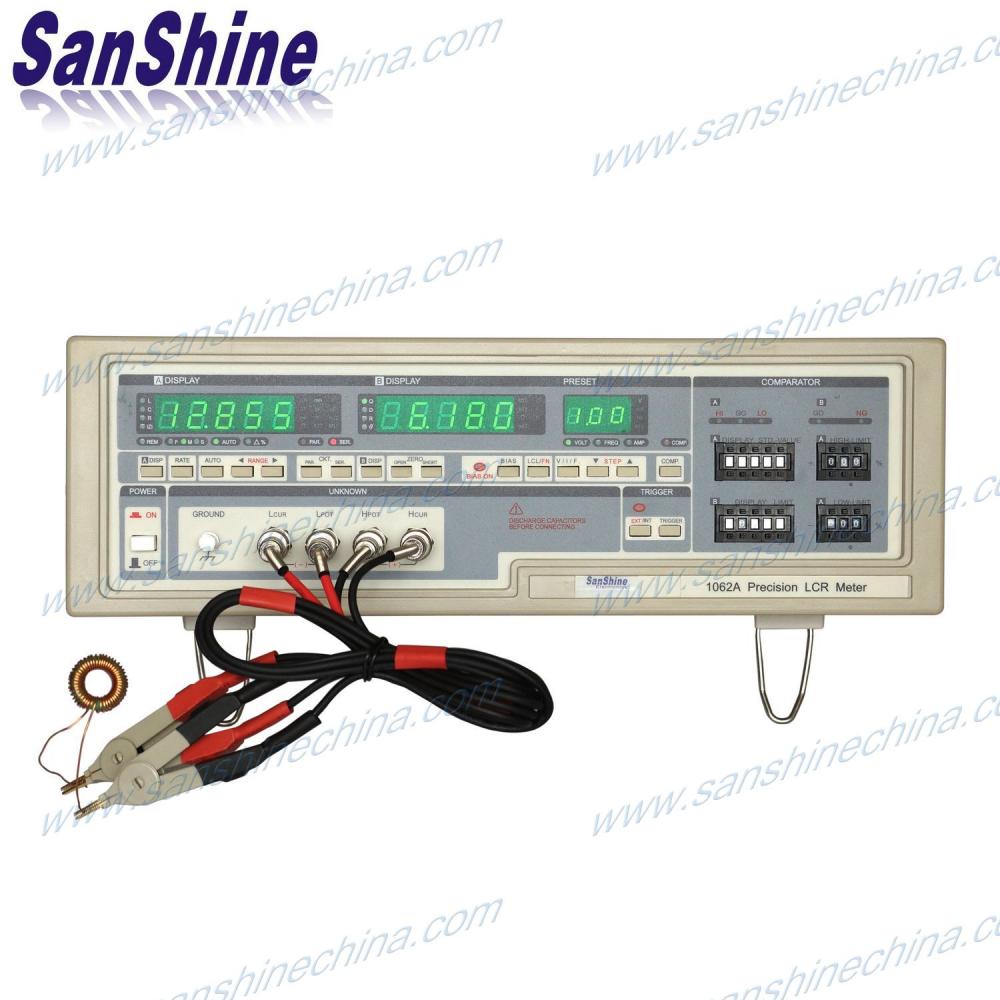

The high level automatic judgement precise digital LCZ LCR meter (SS1062A) is a high-grade electronic and electric components test instrument with high testing level and frequency signal which upgraded from SS106X series LCZ LCR testers.
  • Item NO.:

    SS1062A
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray with light white
contact now
Description

Product name : high level automatic judgement precise digital LCZ LCR meter (SS1062A)


Agilent 4294A impedance analyzer

Description :

The high level automatic judgement precise digital LCZ LCR meter (SS1062A) is a high-grade electronic and electric components test instrument with high testing level and frequency signal which upgraded from SS106X series LCZ LCR testers. The high level automatic judgement precise digital LCZ LCR meter (SS1062A) is with 4 output impedance modes and measuring results compatible with other well-known LCR meters. This high level automatic judgement precise digital LCZ LCR meter (SS1062A) can substitute the Chroma LCR meter 1062A and Zentech LCR meter 1062A fully and easily. This high level automatic judgement precise digital LCZ LCR meter (SS1062A) can judge the testing result automatically according to user seted up parameter limit. The high level automatic judgement precise digital LCZ LCR meter (SS1062A)) is actually optimum test instruments for component incoming and production inspection. Like as: transformer, inductor, resistor, capacitor, relay, motor, generator, eletric valve, contactor, cable, coils, wire, etc..

Key feature :

Test frequency: 40Hz ~ 200KHz

Test voltage: 10mV ~ 2.5V, 10mV/step

4 output impedance modes: 25Ω, 100Ω, 50Ω, 2Ω

Direct comparison: HP4284, GR1689, WK3245, NF2330

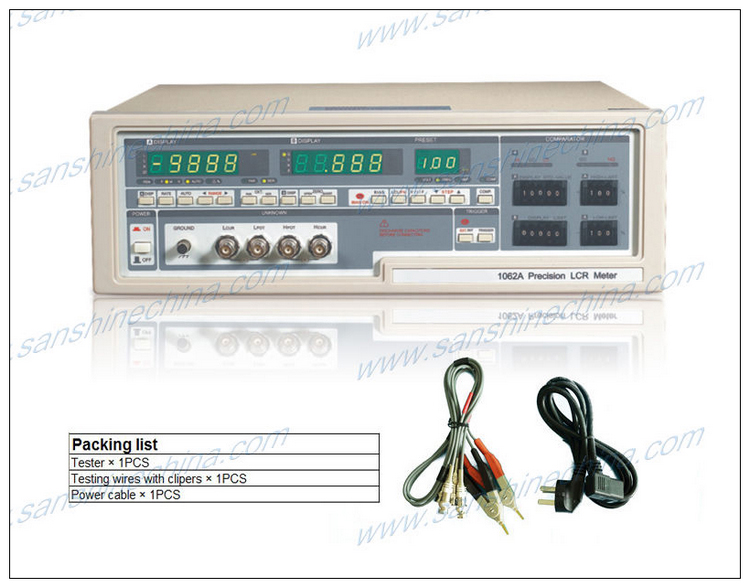

Order Items :

SS1061A

SS1062A

4-terminal test clamp(within tester)

Test pen(optional)

Test box(optional)

SMD test wire(optional)

Specification :

Model

SS1061A

SS1062A

Test parameter

Main display

L ,C, R, Z

Subaltern display

Q ,D ,ESR ,θ

Measure signal

Meas. Level

10mV~2.5V,10mV/step

Meas. Frequency

40HZ~200KHZ

Frequency accuracy

±0.15%

Out impedance

25Ω±5% ,100Ω±5% ,50Ω±5% ,2Ω±10%(load impedance ≥ 10Ω)

Measure Range

Main parameter

L(0.00001uH ~ 9999.99H),

C(0.0001pF~9999.9mF)

R(0.0001mΩ~9999.9MΩ),

Z(0.0001mΩ~9999.9MΩ)

Subaltern parameter

Q, D(0.0001~9999.9),θ(-90.00°~90.00°), Δ %(0.0001%~99999%)

Base accuracy

0.15% (AC parameter 1KHZ )

Measure speed (1KHZ )

Best fast

13Measurement/S

Fast

10Meas./S

Middle

5Meas./S

Slow

1Meas./S

Trigger

internal

internal, external, manual

Display

L,C,Z,R

5pcs digitals

Q,D,R, θ

5pcs digitals

Frequency ,level

3pcs digitals

Q,D,R, θ

5pcs digitals

DC base

0

Revising function

open, short

Equivalent circuit model

series ,parallel

Automatic judgement

pass or fail

Common specification

Environment

temperature :10 ºC ~ 40 ºC ,humidity :10%~90%RH

Power consuming

Max.55W

Power

90~125V , or 190~250V,, 48HZ~62HZ

Weight

5.4Kg

7.5Kg

Meas. (W×H×L )

270×105×350mm

405×130×365mm
