200KHZ automatic judgement accuracy digital LCZ LCR meter

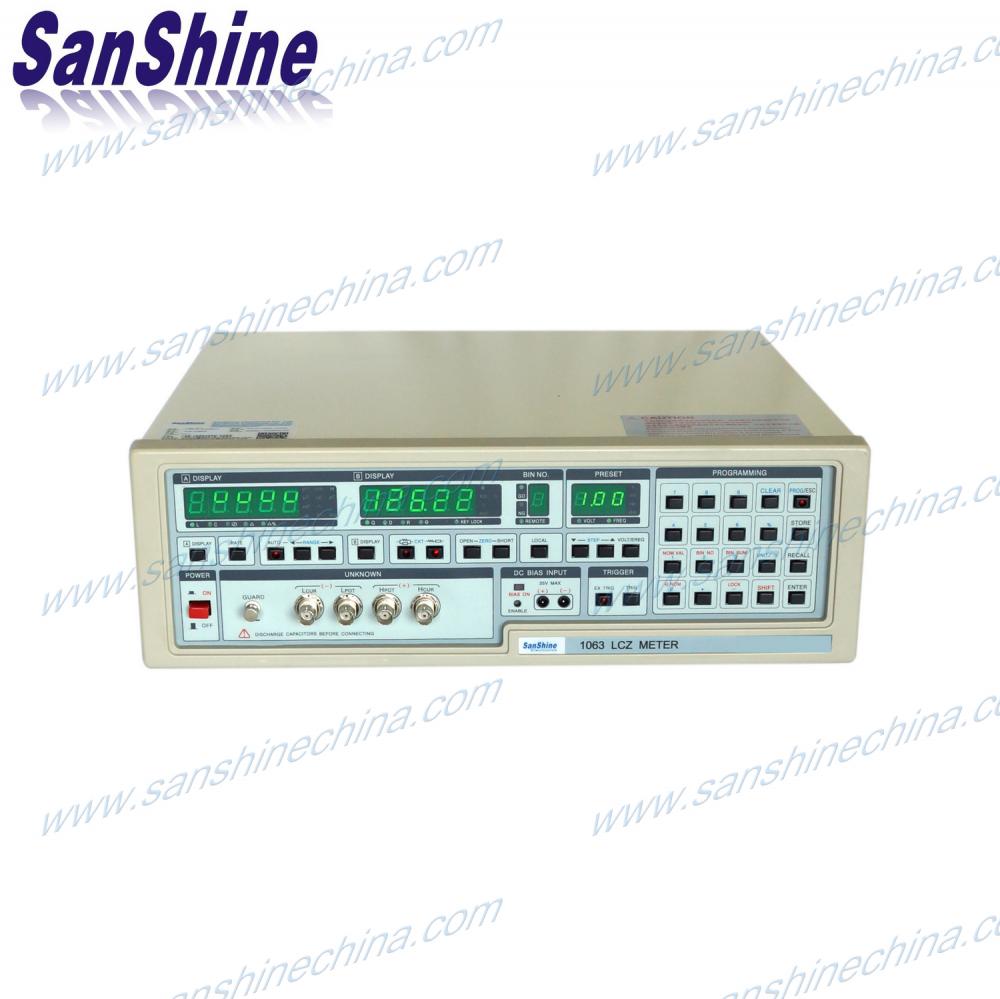

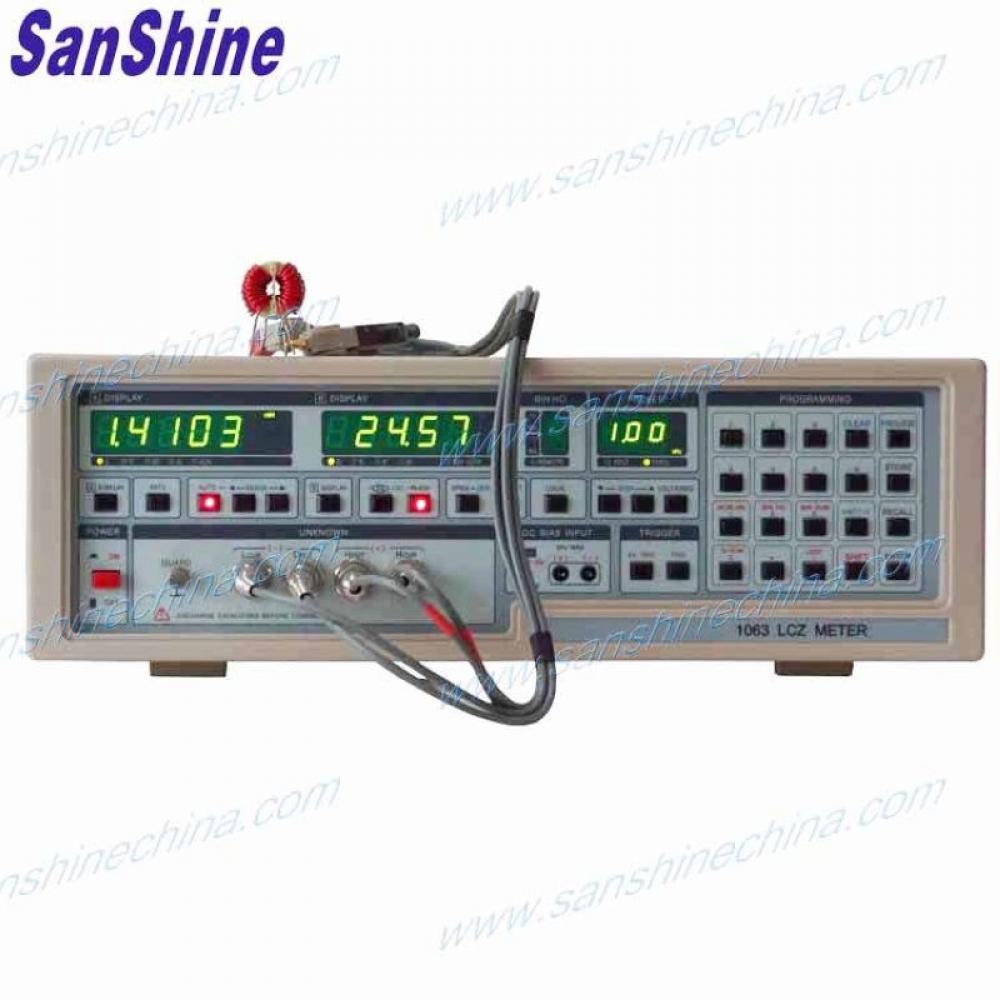

The 200KHZ automatic judgement accuracy digital LCZ LCR meter (SS1063) is a test system for testing the electronic and electric passive components which designed for the use in electronic inspection or production process quality control.
  • Item NO.:

    SS1063
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Light blue
contact now

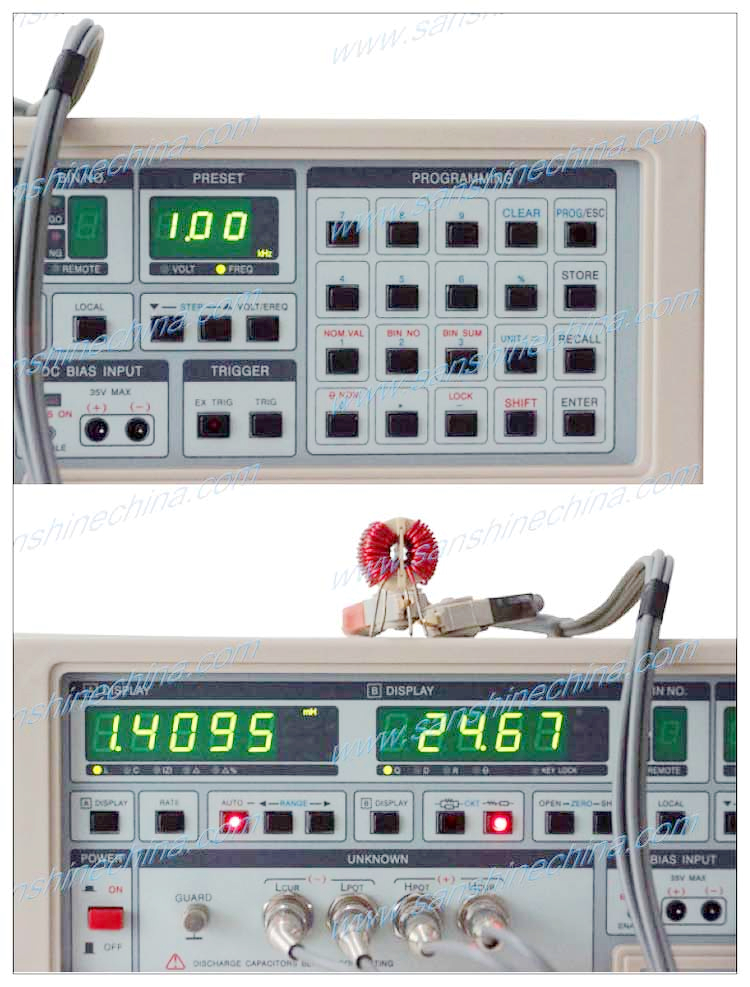

Description

Product name : 200KHZ automatic judgement accuracy digital LCZ LCR meter (SS1063)

GR1689 LCR meter


NF2330 LCR meter

India LCR meter

Description :

The 200KHZ automatic judgement accuracy digital LCZ LCR meter (SS1063) is a test system for testing the electronic and electric passive components which designed for the use in electronic inspection or production process quality control. The 200KHZ automatic judgement accuracy digital LCZ LCR meter (SS1063) can substitute Chroma LCR meter 1063 and Zentech LCR meter 1063 fully and easily. The 200KHZ automatic judgement accuracy digital LCZ LCR meter (SS1063) meets any demanding requirement on production speed and precision, discrimination of qualified products from unqualified ones, as well as internal setup, storing and calling function for up to 10 instrument groups. This accuracy digital LCZ LCR meter (SS1063) tester can judge the testing result automatically according to user seted up parameter limit. So this 200KHZ automatic judgement accuracy digital LCZ LCR meter (SS1063) is actually optimum test instruments for component incoming and production inspection. Like as: transformer, inductor, resistor, capacitor, relay, motor, generator, coils, eletric valve, contactor,cable,wire,etc.

Key Features :

Test frequency: 40Hz~200kHz

Basic measurement accuracy: 0.1%

Single-function Keys, LED display, easy to operate

LCR Nominal Value, Upper Limit%, Lower Limit%, Q / D / R / E Limit thumb switches setting(1062 only).

10 internal Instrument setups store / recall capability(1063 only).

L: 0.0001uH ~19999H; C: 0.0001pF~199.99mF; Z: 0.0001Ω~199.99MΩ; Q/D: 0.0000~10000

θ : -180deg ~ +179.99deg; ESR: 0.0001MΩ~19999kΩ,

Testing Voltage: 10mV~1.0V, 10mV/step,

Order Items :

SS1061

SS1062

SS1063

4-terminal test fixture

Test pen

Test box

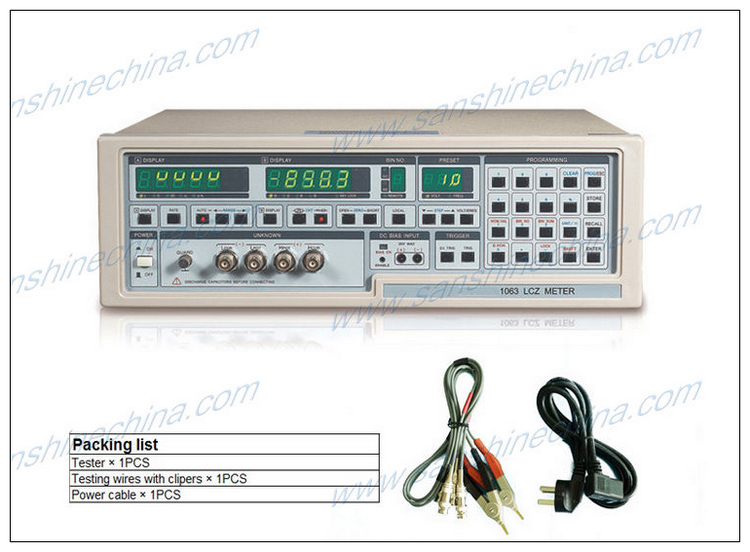

SMD test wire

Order project :

SS1061

SS1062

SS1063

Four-terminal Test Wire Clamp(within tester)

Test Pen(optional)

Test Box(optional)

SMD Test Cable(optional)

Specification:

Model SS1061 SS1062 SS1063
Test parameter
Primary display L , C, R, Z
Secondary display Q , D , ESR , θ
Measure. signal
Meas. Level(voltage) 10mV~1.0V, 10mV/step
Meas. Frequency 40HZ~ 200KHZ, 30steps
Frequency accuracy ± 0.01%
Out impedance 100mA± 5% , (1V seting ), Impedance 10Ω, 2Ω± 10%, 10Ω
Measure Range
primary parameter L(0.0001uH ~ 19999H), C(0.0001pF~199.99mF) , Z(0.0001Ω ~199.99MΩ )
Secondary parameter Q, D(0.0000~ 10000), θ (-180.00° ~ +179.99° ), ESR(0.0001mΩ ~ 19999KΩ)
Base accuracy 0.1%
Measure speed ( 1KHZ )
Fast 8 Meas. /S
Slow 2.5 Meas. /S
Trigger internal internal, external, manual
Display
L, C, Z, R 5pcs digitals
Q, D, R, θ 5pcs digitals
Frequency, level 3pcs digitals
External DC base DC: 0~35V
Revising function open, short
Equivalent circuit model in series , parallel
Automatic judgement pass or fail
Memory 10 Groups seting
Common spec.
Environment temperature : 10 º C ~ 40 º C, humidity : 10%~90%RH
Power consuming Max. 55W
Power 90~125V or 190~250V, 48HZ~62HZ
Weight 5.5Kg 6.5Kg
Meas.( W× H× L ) 270× 105×350mm 405× 130×365mm

Request a free quote

Can't find the specific information you're looking for? Have a question ? Contact Us

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
  • LCZ tester 200KHZ precise digital LCZ LCR meter

    The 200KHZ precise digital LCZ LCR meter (SS1061) is a test system for passive components which designed for the use in electronic inspection or production process quality control.

  • Inductor tester 200KHZ automatic judgement precise digital LCZ LCR meter

    The 200KHZ automatic judgement precise digital LCZ LCR meter (SS1062) is for used for testing the passive components.

  • LCZ LCR indicator High level automatic judgement precise digital LCZ LCR meter

    The high level automatic judgement precise digital LCZ LCR meter (SS1062A) is a high-grade electronic and electric components test instrument with high testing level and frequency signal which upgraded from SS106X series LCZ LCR testers.

  • LCZ LCR meter 200KHZ high level accuracy digital LCZ LCR meter

    The 200KHZ high level accuracy digital LCZ LCR meter (SS1061A) is a high-grade component test instrument upgraded from SS106X series LCZ LCR testers. This meter is with 4 output impedance modes and measuring results compatible with other well-known LCR meters.

  • motor coil winding nozzle Mirror surface tungsten carbide motor coil winding nozzle

    The mirror surface tungsten carbide motor coil winding nozzle is used in coil winding machines to protect the enamel insulation film of copper wire and guide the wire to wind on the stator and rotor, on the bobbin, on the pins for winding motors, generators.

  • transformer winding machine Single spindle programmable automatic transformer coil winding machine

    The single spindle programmable automatic transformer coil winding machine (SS600) is used for winding the bobbin coils. Like as switch power source transformer, power line filter inductor, signal transformer, choke coils. This winding machine be named pulse transformer winding machine and audio transformer winding machine and filtering choke windi1

  • digitial voltage tester Programable AC withstand high voltage hipot tester

    The programable AC withstand high voltage hipot tester (SS7110) is used for testing withstanding voltage capability of the electrical equiment, electric devices and electronics components.

  • LCZ tester 200KHZ precise digital LCZ LCR meter

    The 200KHZ precise digital LCZ LCR meter (SS1061) is a test system for passive components which designed for the use in electronic inspection or production process quality control.
