200KHZ precise digital LCZ LCR meter

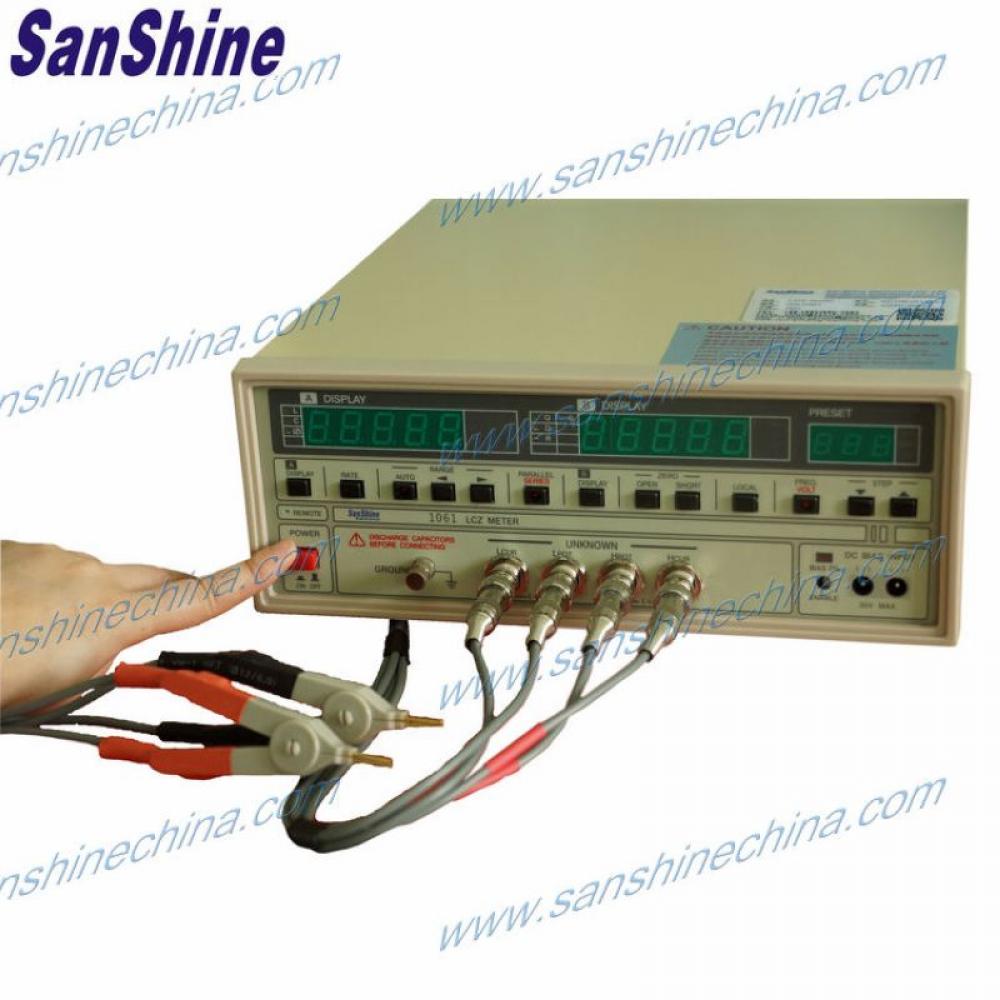

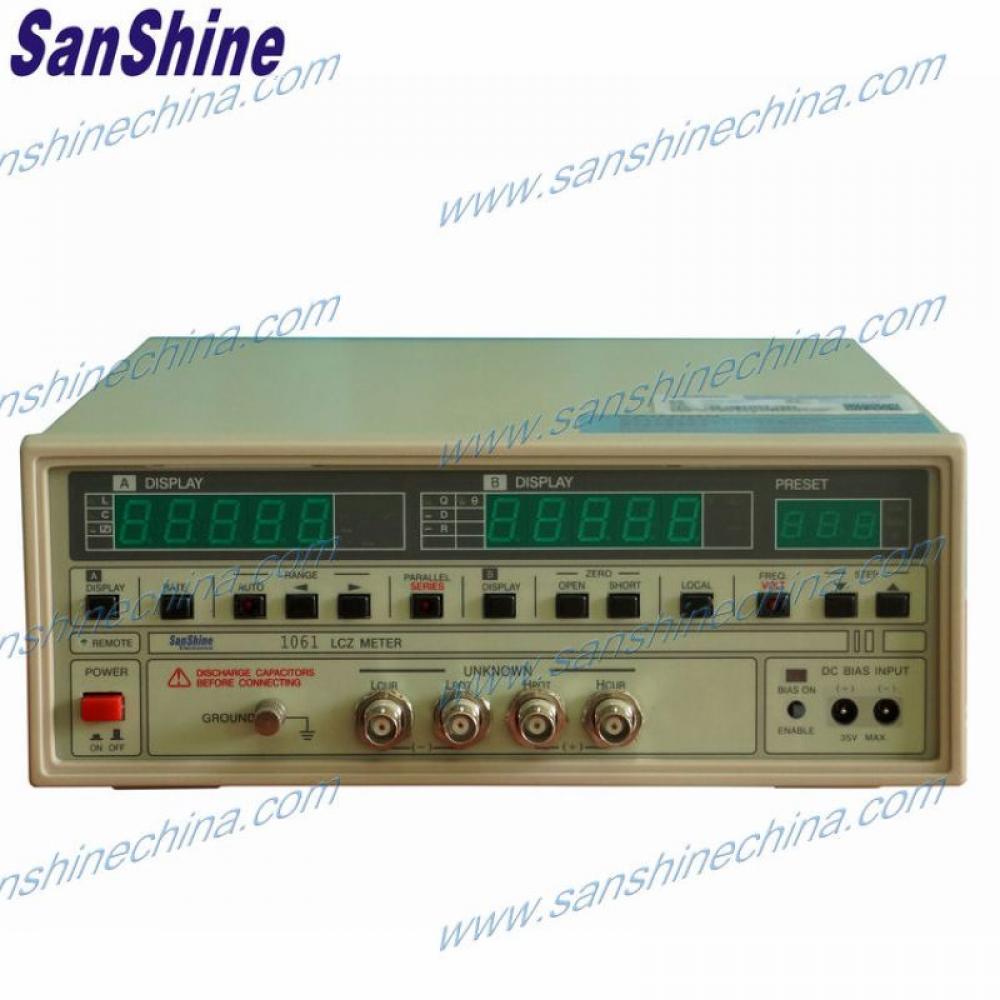

The 200KHZ precise digital LCZ LCR meter (SS1061) is a test system for passive components which designed for the use in electronic inspection or production process quality control.
  • Item NO.:

    SS1061
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray
contact now
Description

Product name : 200KHZ precise digital LCZ LCR meter (SS1061)

high frequency LCR meter

Agilent 4263B LCR meter

Zentech LCZ meter 1061

Description :

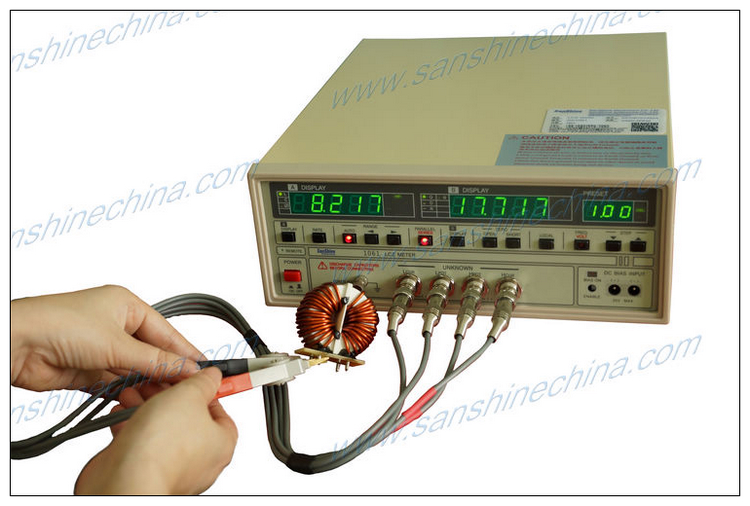

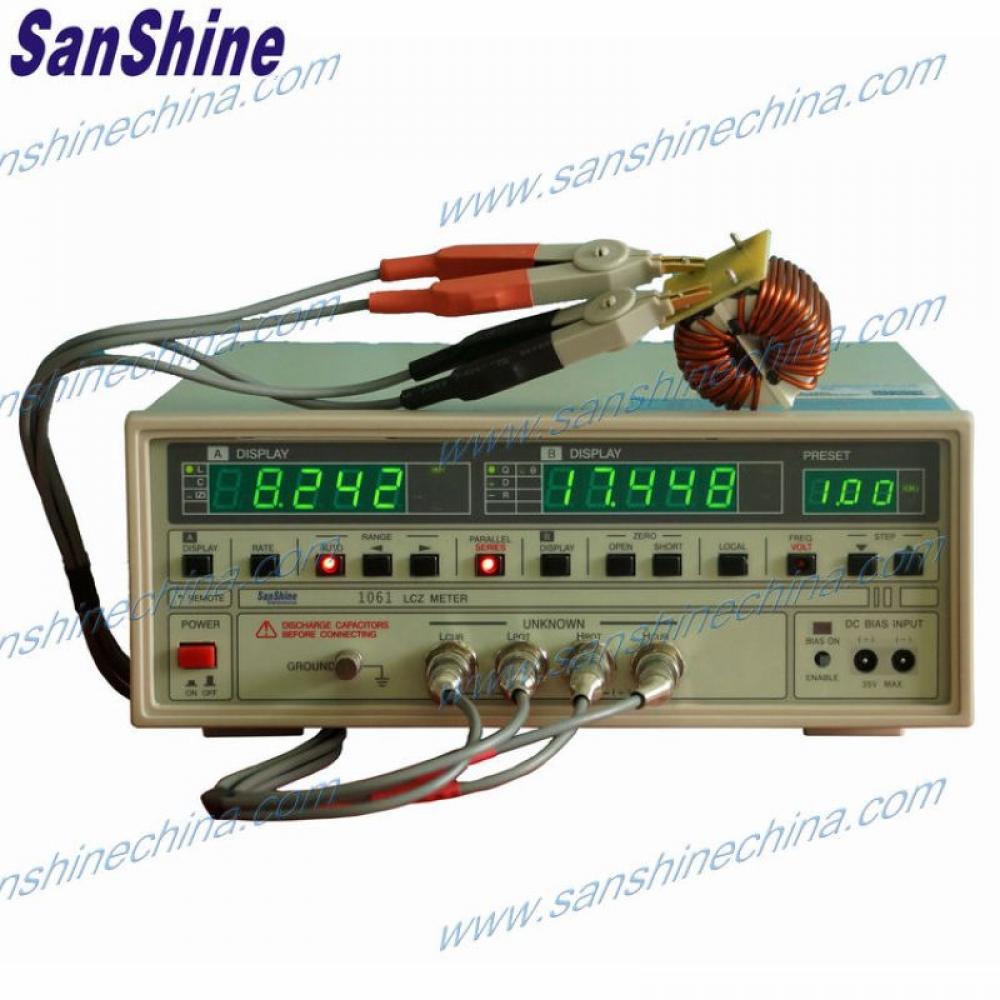

The 200KHZ precise digital LCZ LCR meter (SS1061) is a test system for passive components designed for the use in electronic inspection or production process quality control. This The 200KHZ precise digital LCZ LCR meter (SS1061) can substitute the Chroma LCR meter 1061 and Zentech LCR meter 1061 fully and easily. The 200KHZ precise digital LCZ LCR meter (SS1061) is actually optimum test instruments for component incoming and production inspection. Like as: transformer, inductor, resistor, capacitor, relay, motor, generator, eletric valve, contactor,cable,wire,etc.

Key Features :

Test frequency: 40Hz~200kHz

Basic measurement accuracy: 0.1%

Single-function Keys, LED display, easy to operate

LCR Nominal Value, Upper Limit%, Lower Limit%, Q / D / R / E Limit thumb switches setting(1062 only).

10 internal Instrument setups store / recall capability(1063 only).

L: 0.0001uH ~19999H; C: 0.0001pF~199.99mF; Z: 0.0001Ω~199.99MΩ; Q/D: 0.0000~10000

θ : -180deg ~ +179.99deg; ESR: 0.0001MΩ~19999kΩ,

Testing Voltage: 10mV~1.0V, 10mV/step,

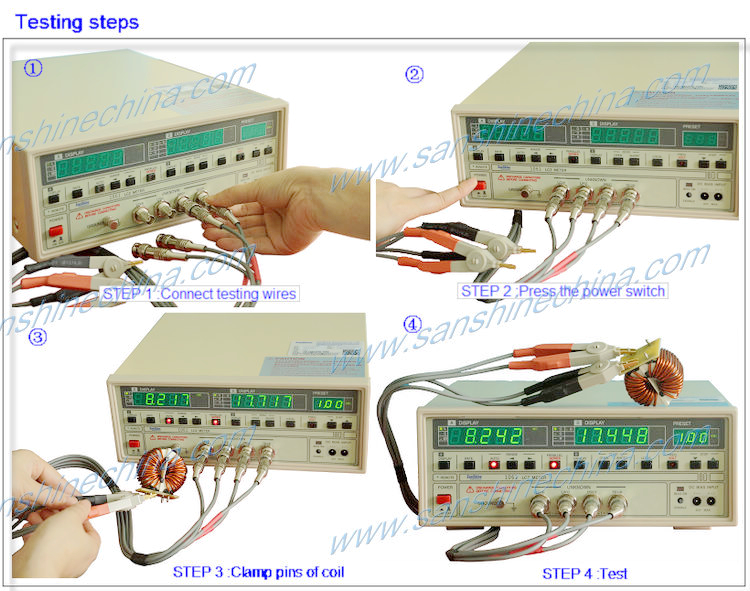

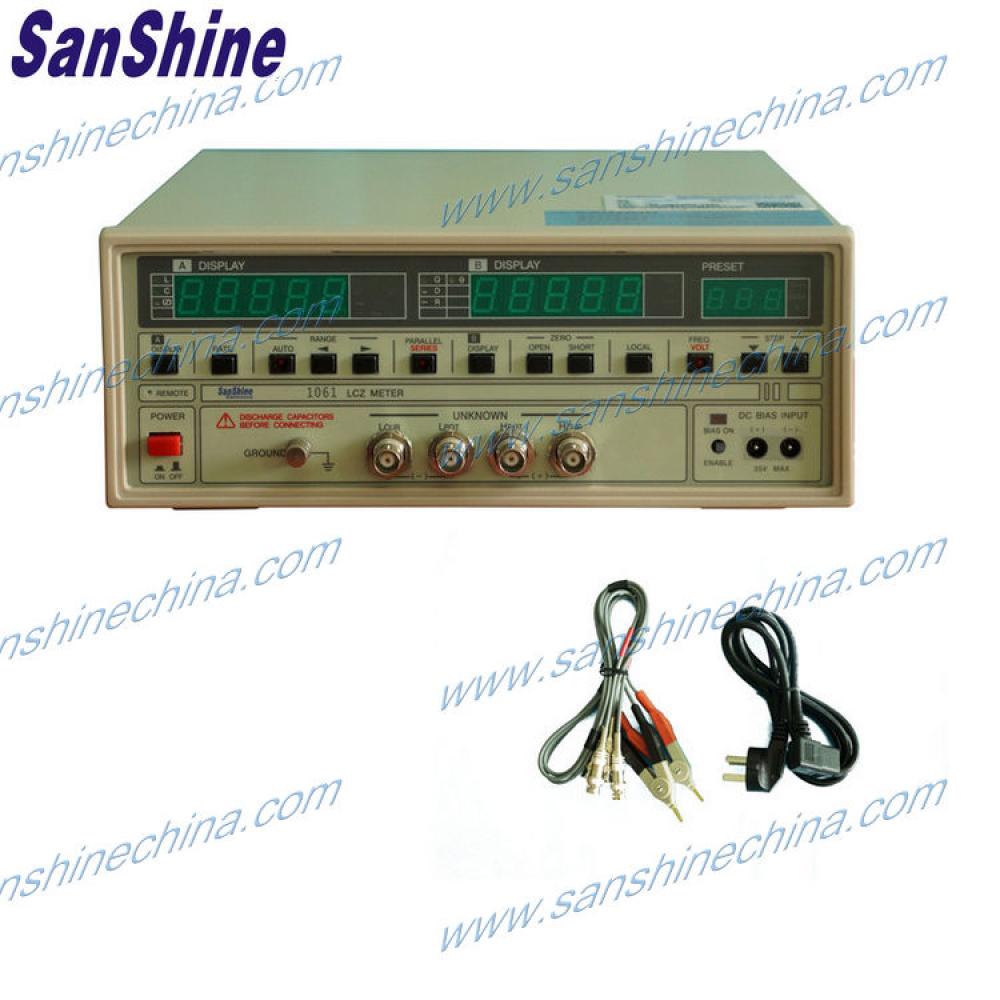

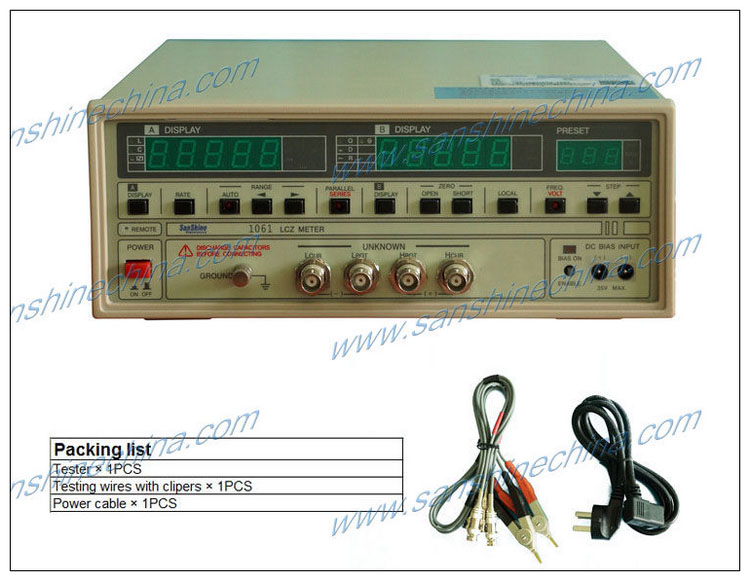

Order Items :

SS1061

SS1062

SS1063

4-terminal test fixture

Test pen

Test box

SMD test wire

Order project :

SS1061

SS1062

SS1063

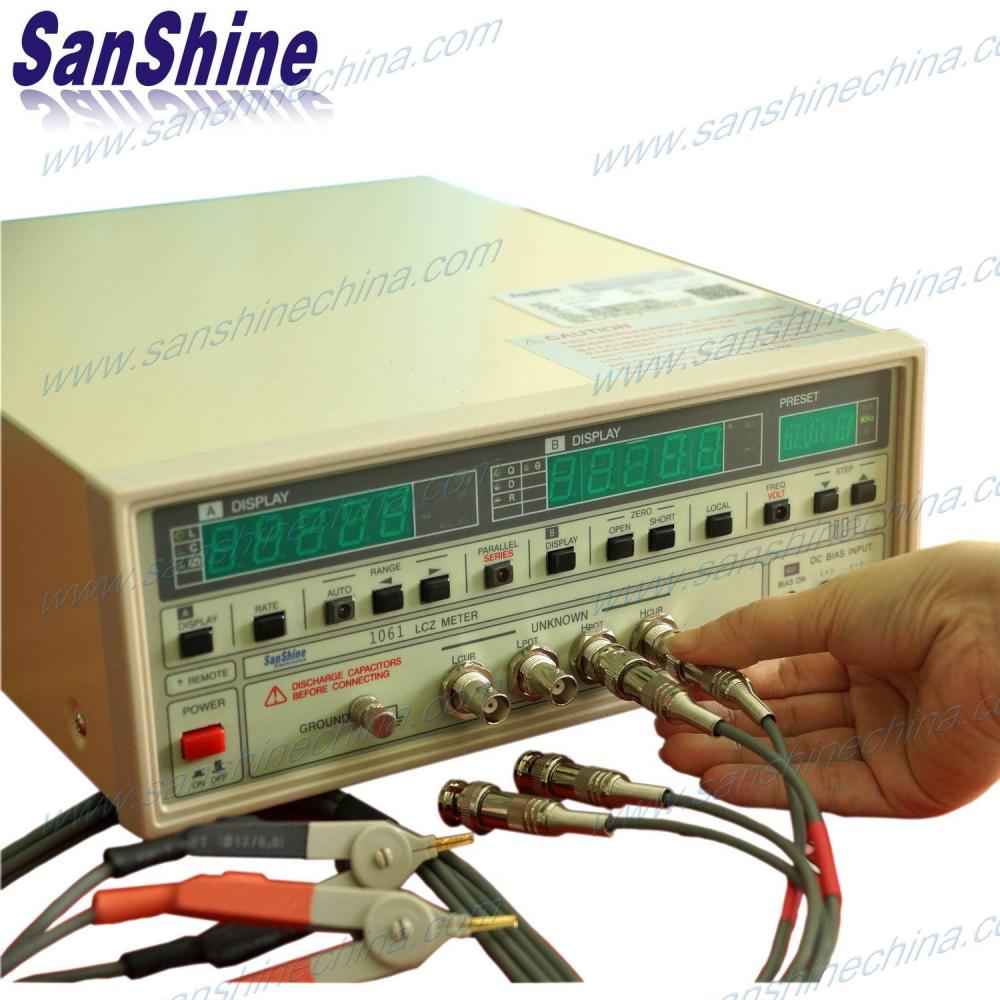

Four-terminal Test Wire Clamp(within tester)

Test Pen(optional)

Test Box(optional)

SMD Test Cable(optional)

Specification:

Model SS1061 SS1062 SS1063
Test parameter
Primary display L , C, R, Z
Secondary display Q , D , ESR , θ
Measure. signal
Meas. Level(voltage) 10mV~1.0V, 10mV/step
Meas. Frequency 40HZ~ 200KHZ, 30steps
Frequency accuracy ± 0.01%
Out impedance 100mA± 5% , (1V seting ), Impedance 10Ω, 2Ω± 10%, 10Ω
Measure Range
primary parameter L(0.0001uH ~ 19999H), C(0.0001pF~199.99mF) , Z(0.0001Ω ~199.99MΩ )
Secondary parameter Q, D(0.0000~ 10000), θ (-180.00° ~ +179.99° ), ESR(0.0001mΩ ~ 19999KΩ)
Base accuracy 0.1%
Measure speed ( 1KHZ )
Fast 8 Meas. /S
Slow 2.5 Meas. /S
Trigger internal internal, external, manual
Display
L, C, Z, R 5pcs digitals
Q, D, R, θ 5pcs digitals
Frequency, level 3pcs digitals
External DC base DC: 0~35V
Revising function open, short
Equivalent circuit model in series , parallel
Automatic judgement pass or fail
Memory 10 Groups seting
Common spec.
Environment temperature : 10 º C ~ 40 º C, humidity : 10%~90%RH
Power consuming Max. 55W
Power 90~125V or 190~250V, 48HZ~62HZ
Weight 5.5Kg 6.5Kg
Meas.( W× H× L ) 270× 105×350mm 405× 130×365mm
