Precise programmable round flat wire air coil winding machine robot

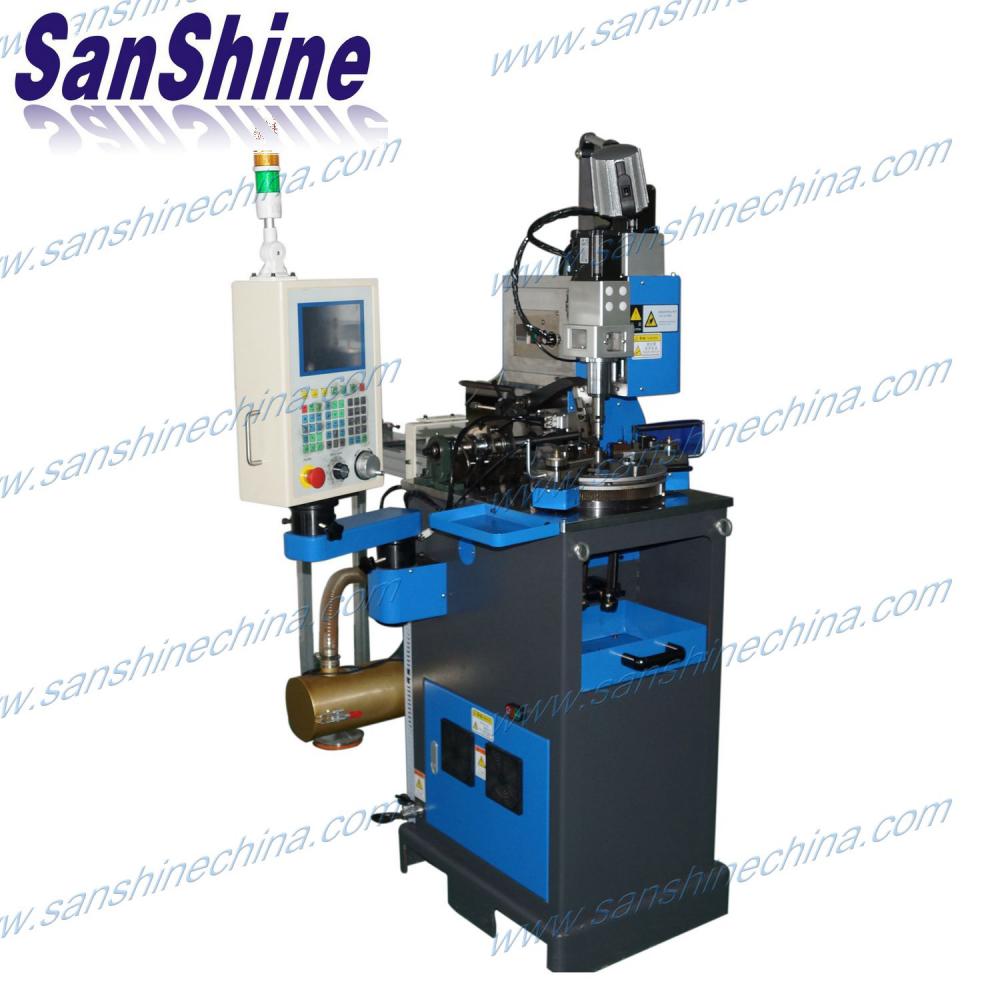

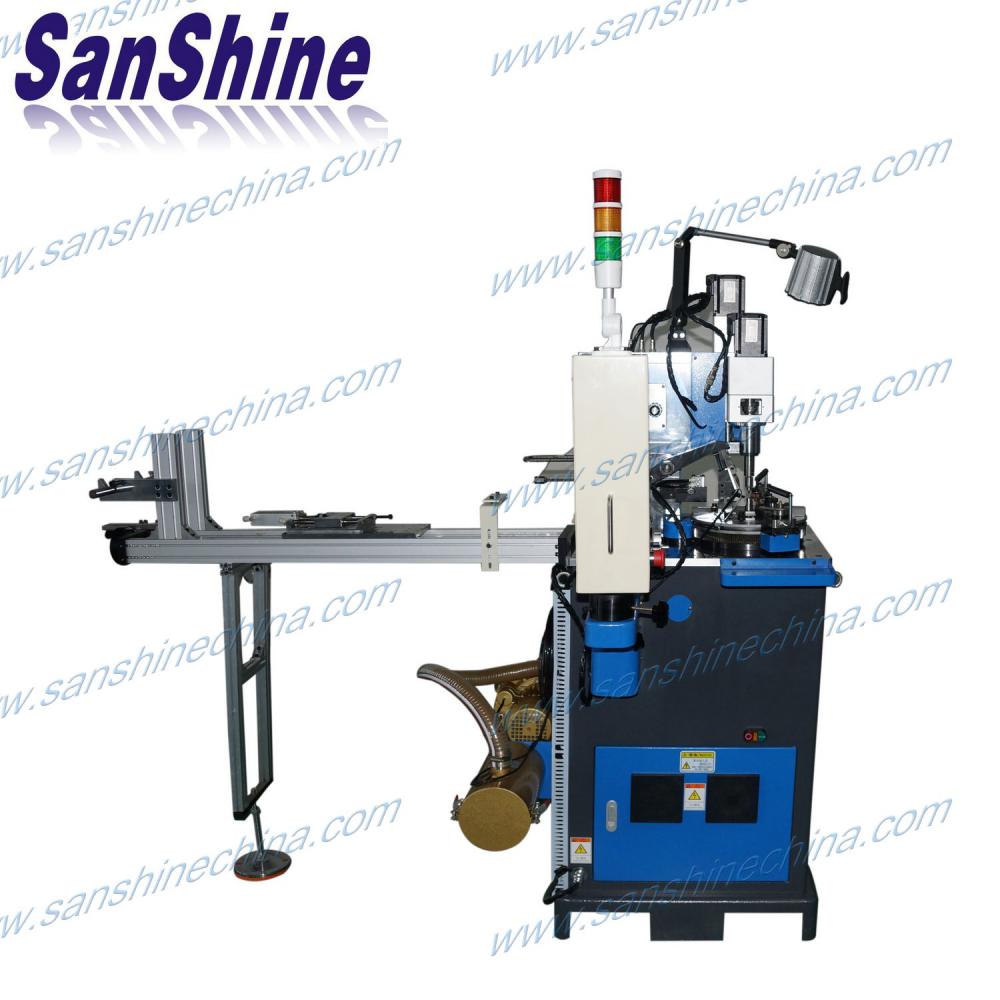

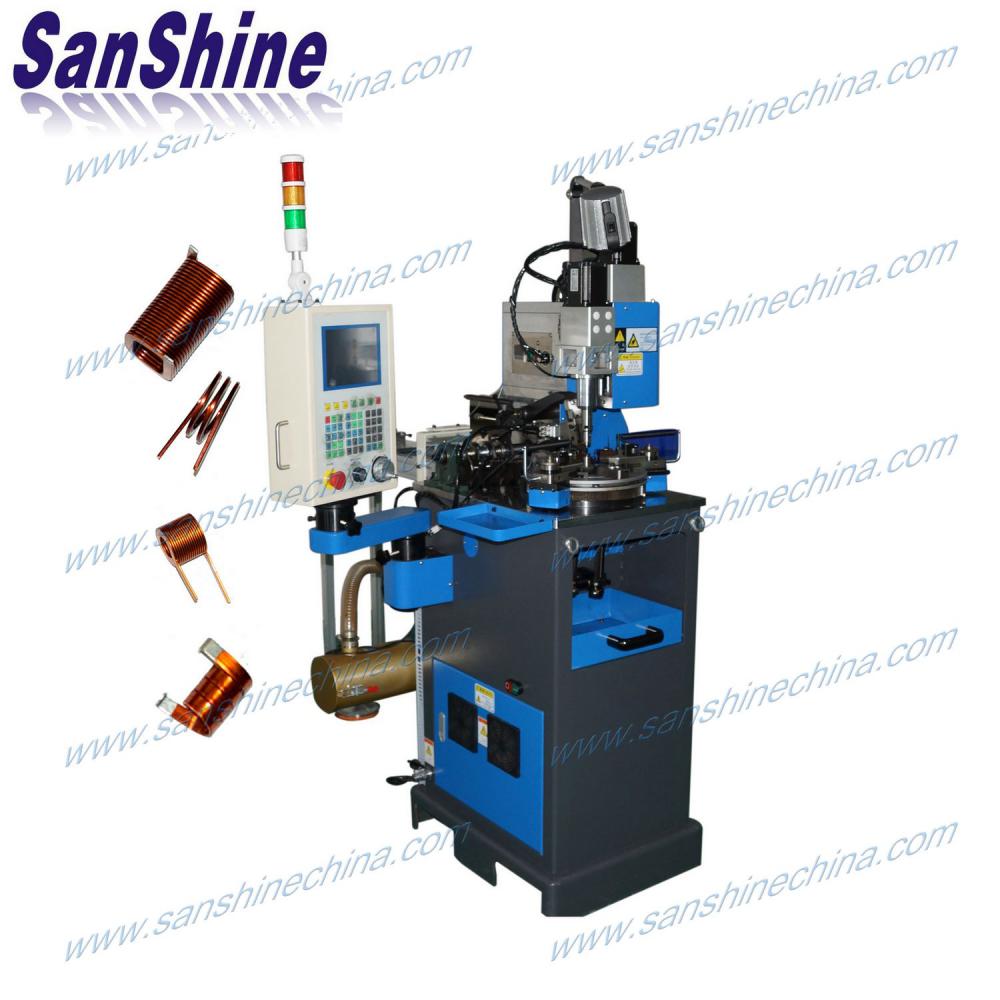

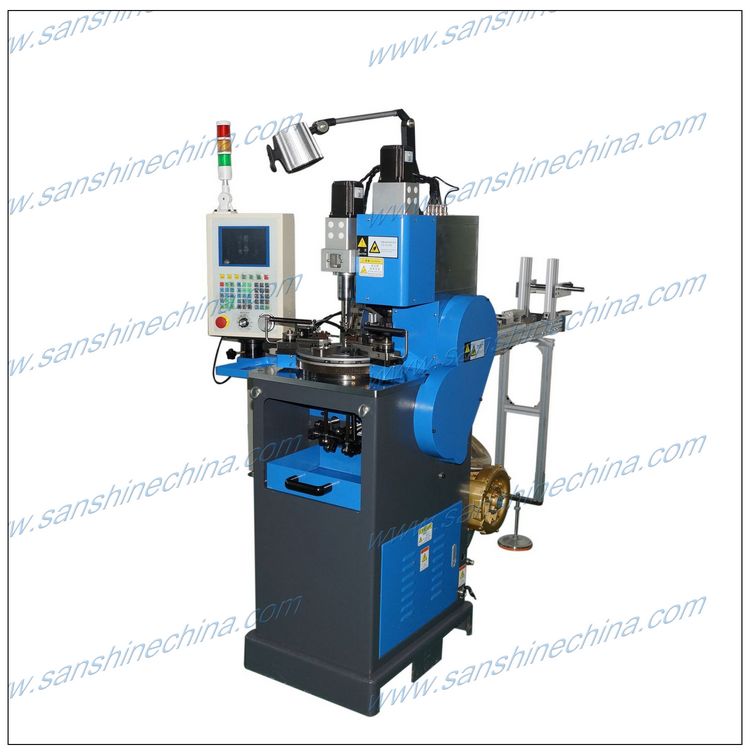

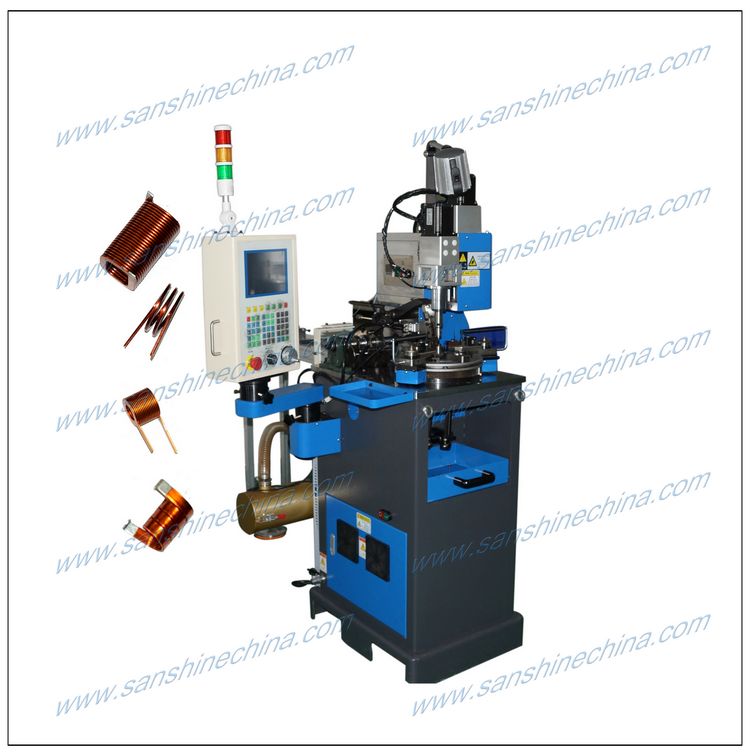

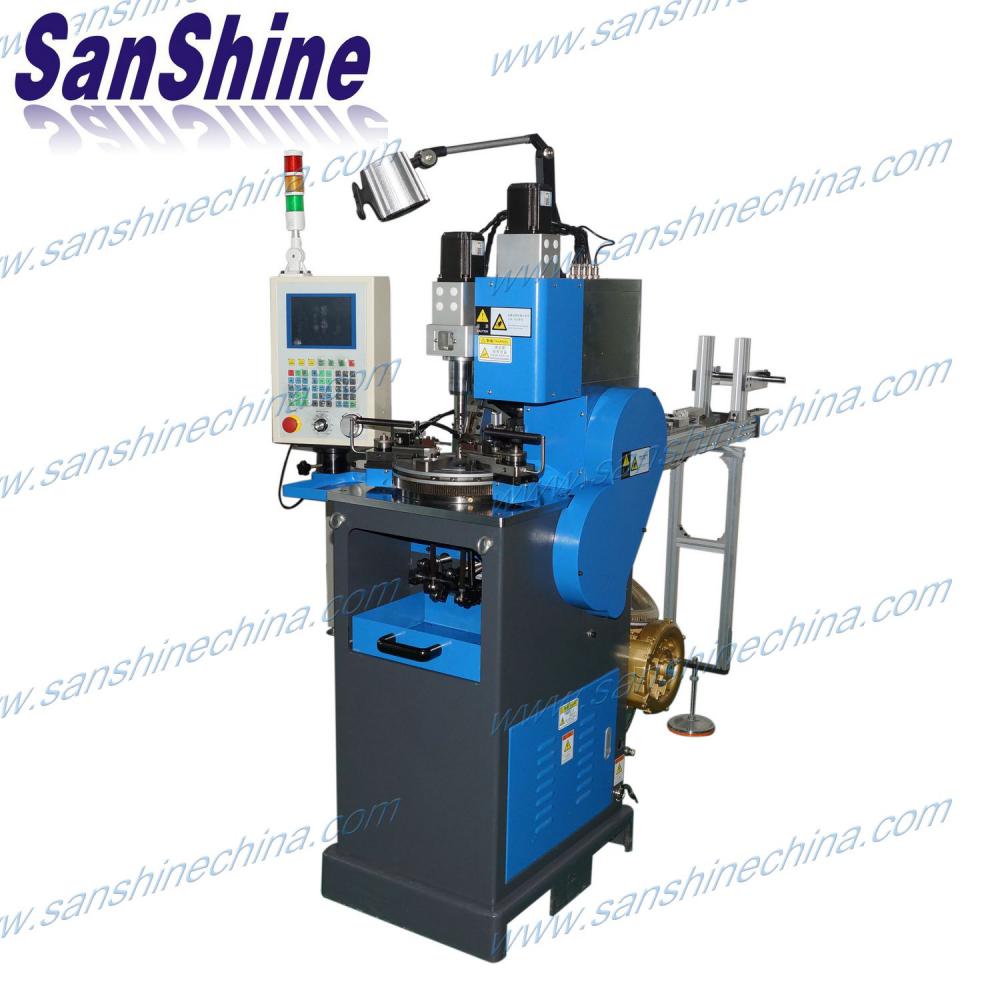

The (SS-RFAC01) is one cam type precise programmable fully automatic round flat wire standing layout air coil winding machine winding robot WITHOUT operator. This flat wire big power inductor winding machine is used for winding the round and flat wire air coils and spring coils without operator.

Item NO.:
SS-RFAC01
Product Orgin:
China
Brand:
SanShine
Color:
Black and blue

contact now User's reviews

Description

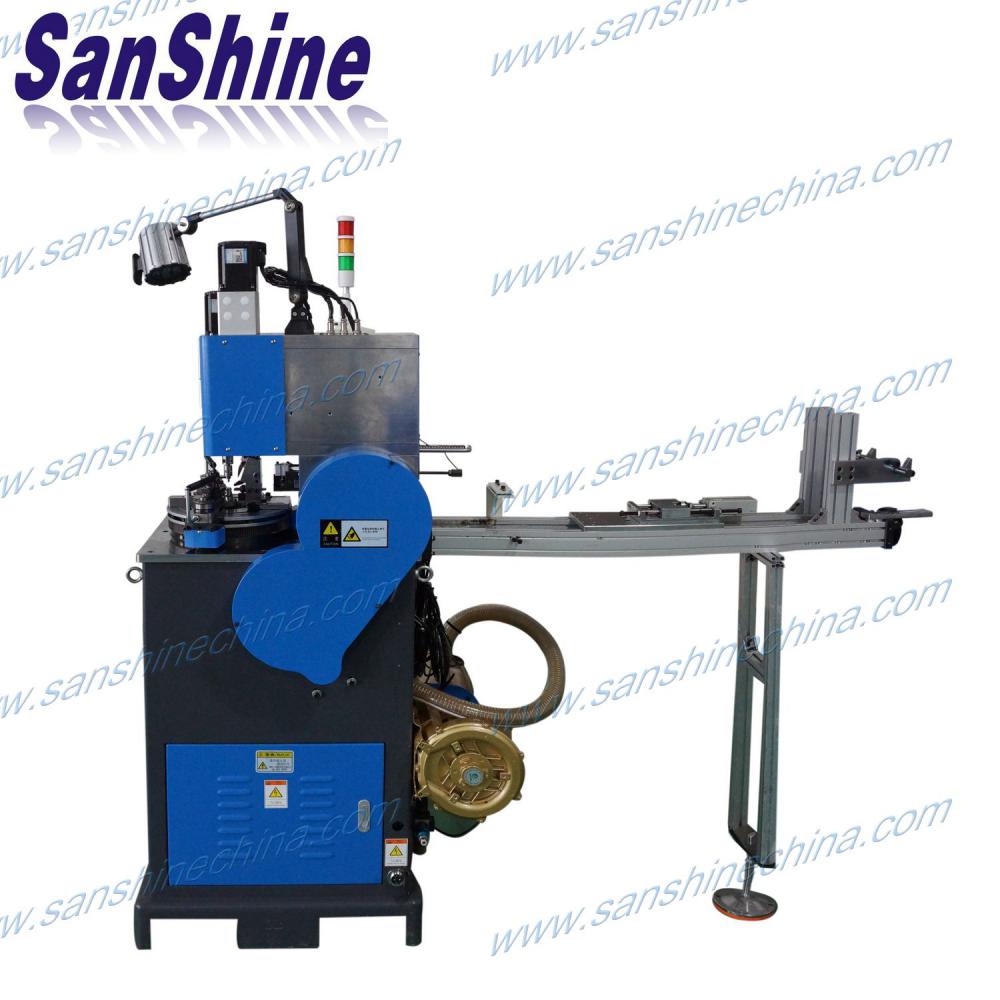

Product name : Precise programmable round flat wire air coil winding machine robot (SS-RFAC01)

Description :

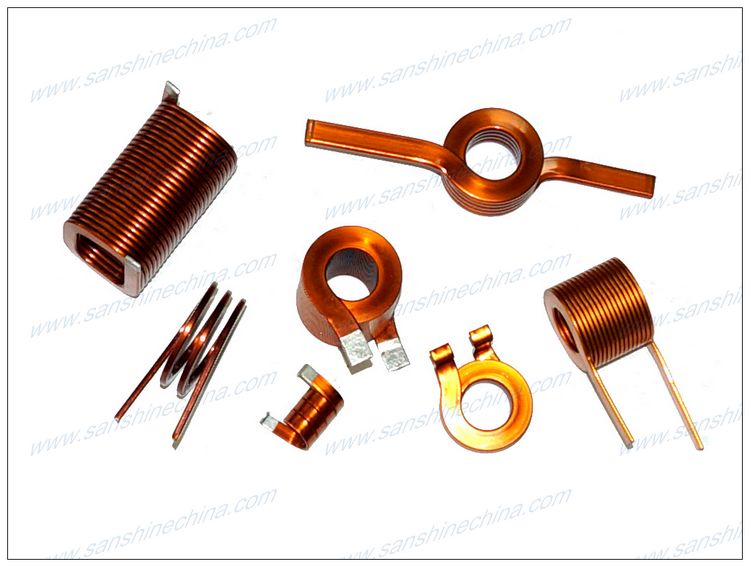

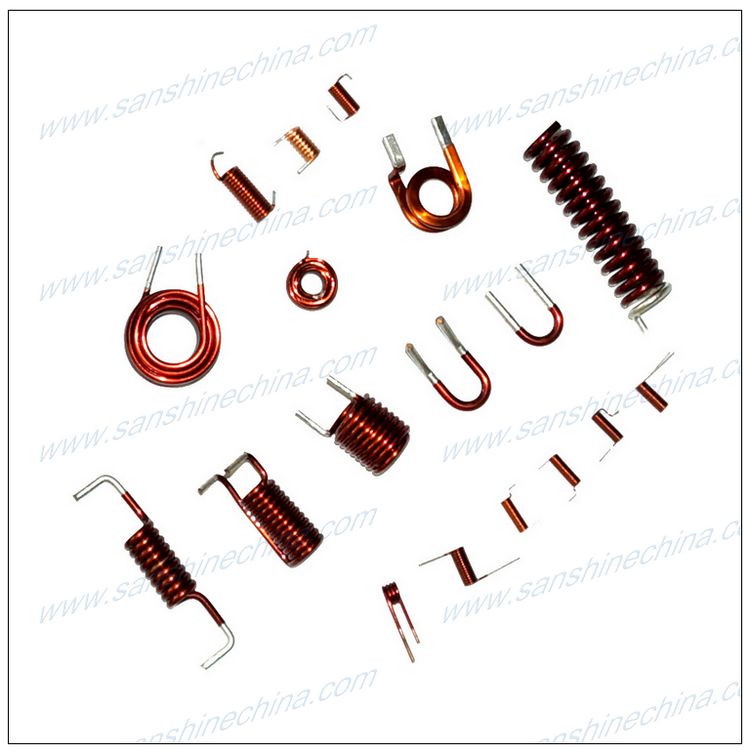

The (SS-RFAC01) is one cam type precise programmable fully automatic round flat wire standing layout air coil winding machine winding robot WITHOUT operator. This winding machine is called fully automatic flat round wire air coil winding machinery too. This winding and stripping robot is used for winding the round and flat wire air coils and spring coils without operator. This winding robot can bend and strip the wire terminals (pins) of coil automatically. But some special shape of pins can not bend by it. Can not strip the flat wire.
Features :
1. Adopting the latest manufacturing technology. servo peeling is more stable, avoided the phenomenon of wire breakage and movement.
2. Optimized mechanical structure designing, adopts Japanese THK brand guiding rail, China Taiwan TBI brand screw bar, Japanese NSK brand bearings, and the gears adopt high-precision grinding gears. The overall mechanical performance and service life of the machine are improved, and repeated positioning tolerance are further reduced.
3. Adopts big LCD display and high-resolution servo motors, the winding angle is more accurate.
4. The winding spindle is developed and produced using the latest technology, and the runout tolerance is further reduced to meet the requirements of various round wire air coils and flat wire air coils.
5. This robot are widely used in electric, new engergy car, electric car, battery chargers, electronics, digital, mobile phones, automobiles, and other industries.
6. 3 to 6 axes can be customized according to customer request.

Specifications :

Model	SS-RFAC01
Round enamel copper wire diameter range	0.15mm-2.8mm
Flat enamel copper wire diameter range	Thickness : 0.1~1.0mm, Width : 0.6~4.0mm
Finished coil inner hole diameter	1.0 ~ 20mm
Lifting axis setting range ( wire spreading )	0.01mm-90mm
Finished coil length	Max. 45mm
Torque handle length	≤45*50
Camshaft minimum setting value	0.1°
Camshaft maximum setting value	359.9°
The motor power of camshaft (X axis)	0.9KW
Winding spindle setting range ( Y axis )	0.1*-359.9°
Winding spindle servo motor power ( Y axis )	0.75KW
Round enamel wire stripping sizes range (flat wire can not be stripped)	Diameter 0.3~2.8mm depend on different size stripping blades, stripping length Max. 50mm ±1
Servo motor power of lifting axis ( Z axis)	0.75KW
Servo motor power of wire stripping system	0.75KW
Machine dimensions (length x width x height)	180011001650mm
Machine net weight	500kg
Power source input voltage	220V 50/60Hz or 110V 50/60Hz by request.
