200KHZ automatic judgement precise digital LCZ LCR meter

The 200KHZ automatic judgement precise digital LCZ LCR meter (SS1062) is for used for testing the passive components.
  • Item NO.:

    SS1062
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray with light white
contact now

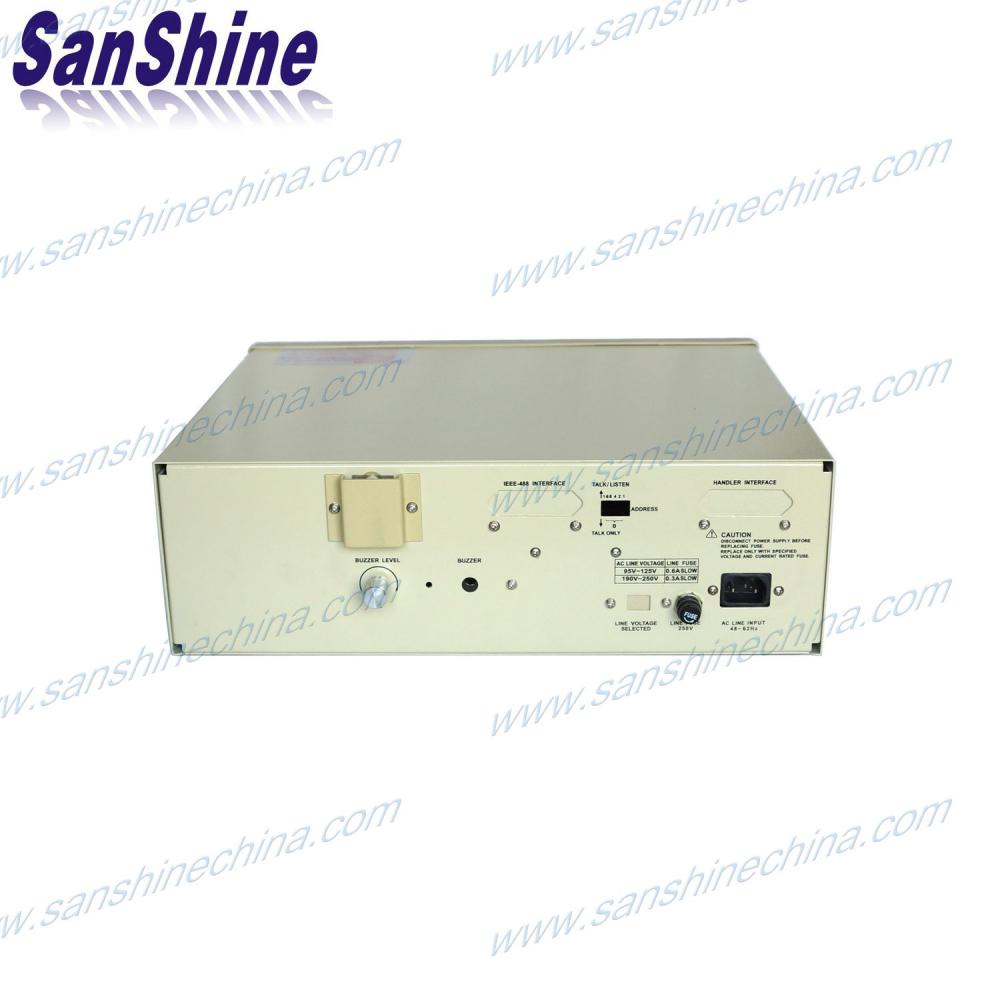

Description

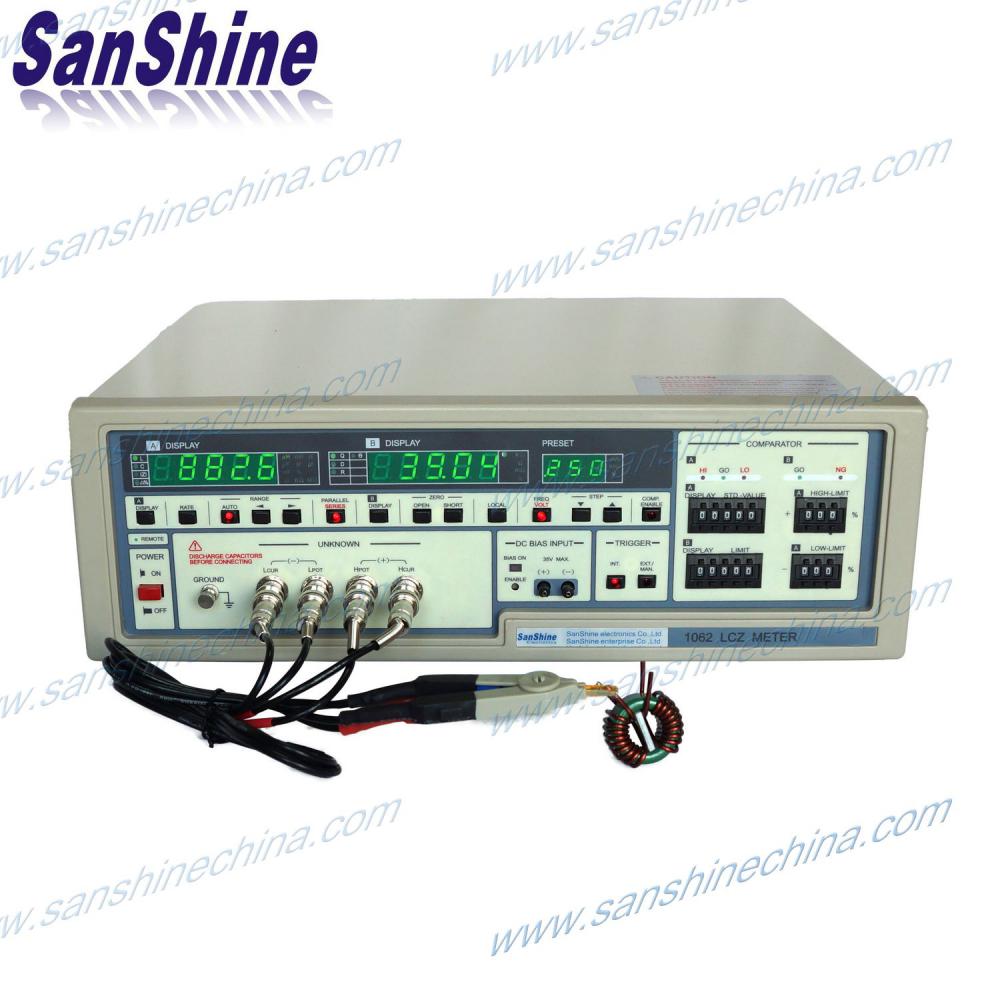

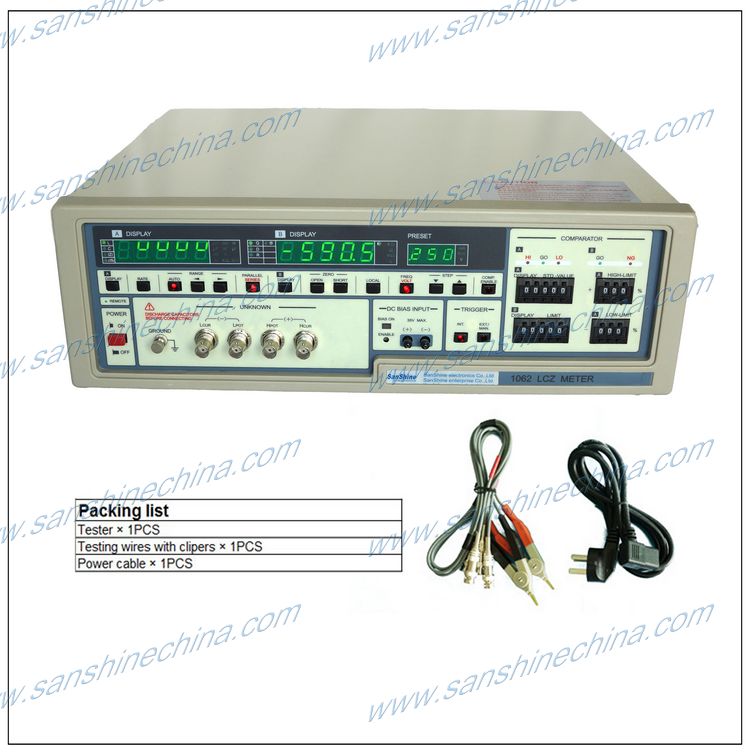

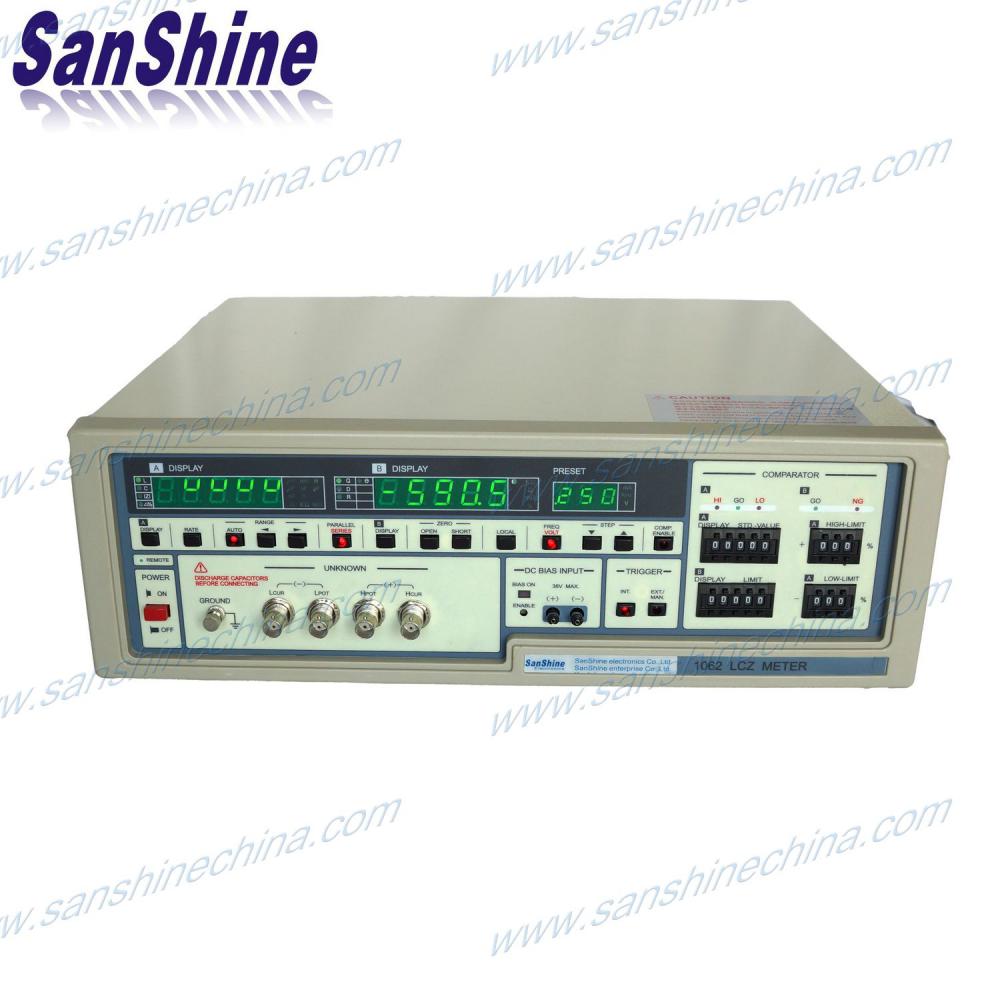

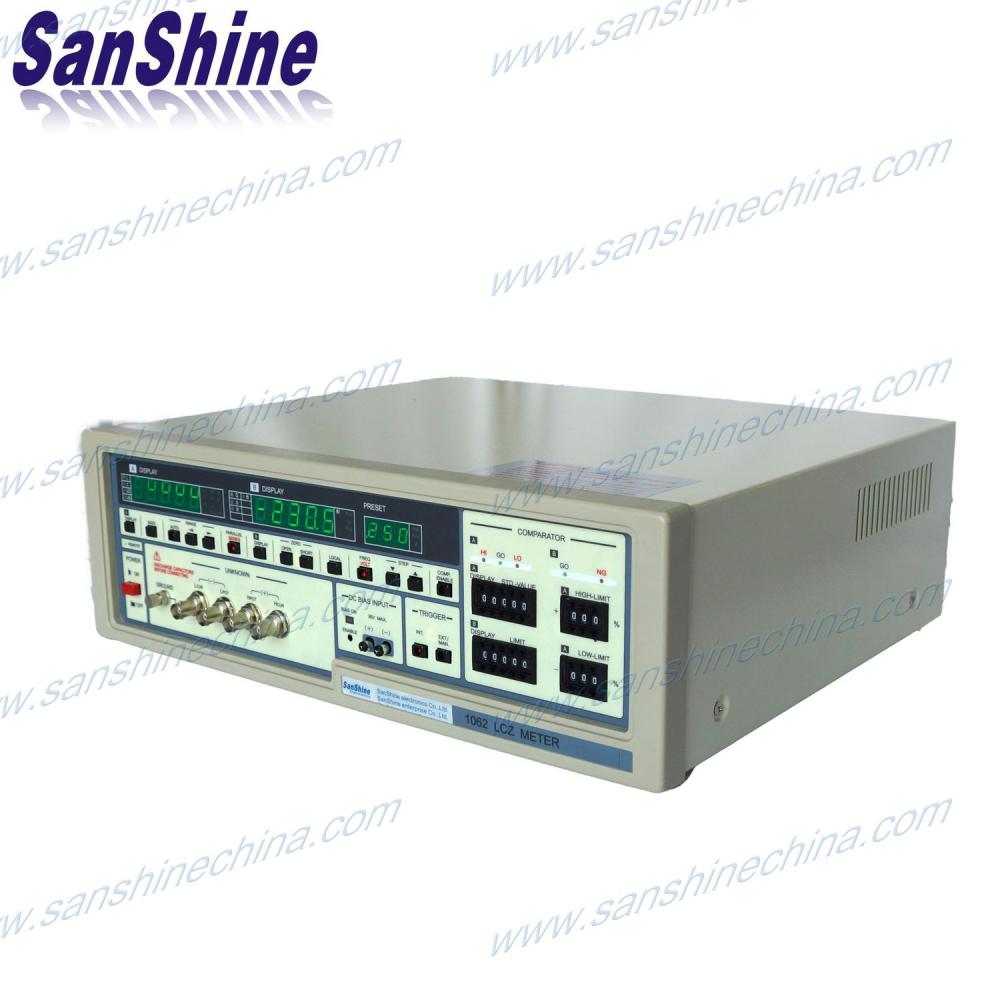

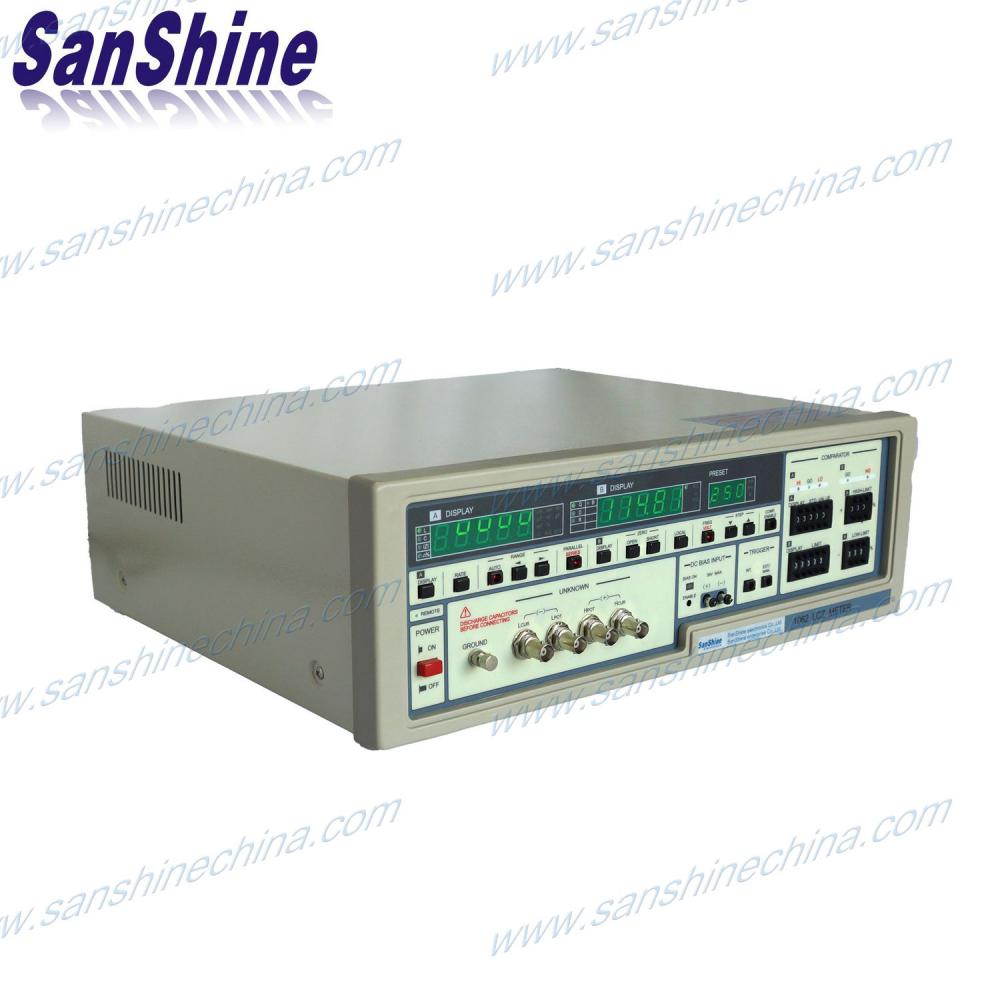

Product name : 200KHZ automatic judgement precise digital LCZ LCR meter (SS1062)

Agilent E4980AL LCR meter

Description :

The 200KHZ automatic judgement precise digital LCZ LCR meter (SS1062) is for used for testing the passive components. The 200KHZ automatic judgement precise digital LCZ LCR meter (SS1062) is designed for the use in electronic inspection or production process quality control. The 200KHZ automatic judgement precise digital LCZ LCR meter (SS1062) meets any demanding requirement on production speed and precision, discrimination of qualified products from unqualified ones. The 200KHZ automatic judgement precise digital LCZ LCR meter (SS1062) can substitute Chroma LCR meter 1062 and Zentech LCR meter 1062 fully and easily. The 200KHZ automatic judgement precise digital LCZ LCR meter (SS1062) can judge the testing result automatically according to user seted up parameter limit. The 200KHZ automatic judgement precise digital LCZ LCR meter (SS1062) is actually optimum test instruments for component incoming and production inspection. Like as: transformer, inductor, resistor, capacitor, relay, motor, generator, eletric valve, contactor, cable, wire, etc..

Key Features :

Test frequency: 40Hz~200kHz

Basic measurement accuracy: 0.1%

Single-function Keys, LED display, easy to operate

LCR Nominal Value, Upper Limit%, Lower Limit%, Q / D / R / E Limit thumb switches setting(1062 only).

10 internal Instrument setups store / recall capability(1063 only).

L: 0.0001uH ~19999H; C: 0.0001pF~199.99mF; Z: 0.0001Ω~199.99MΩ; Q/D: 0.0000~10000

θ : -180deg ~ +179.99deg; ESR: 0.0001MΩ~19999kΩ,

Testing Voltage: 10mV~1.0V, 10mV/step,

Order Items :

SS1061

SS1062

SS1063

4-terminal test fixture

Test pen

Test box

SMD test wire

Order project :

SS1061

SS1062

SS1063

Four-terminal Test Wire Clamp(within tester)

Test Pen(optional)

Test Box(optional)

SMD Test Cable(optional)

Specification:

Model SS1061 SS1062 SS1063
Test parameter
Primary display L , C, R, Z
Secondary display Q , D , ESR , θ
Measure. signal
Meas. Level(voltage) 10mV~1.0V, 10mV/step
Meas. Frequency 40HZ~ 200KHZ, 30steps
Frequency accuracy ± 0.01%
Out impedance 100mA± 5% , (1V seting ), Impedance 10Ω, 2Ω± 10%, 10Ω
Measure Range
primary parameter L(0.0001uH ~ 19999H), C(0.0001pF~199.99mF) , Z(0.0001Ω ~199.99MΩ )
Secondary parameter Q, D(0.0000~ 10000), θ (-180.00° ~ +179.99° ), ESR(0.0001mΩ ~ 19999KΩ)
Base accuracy 0.1%
Measure speed ( 1KHZ )
Fast 8 Meas. /S
Slow 2.5 Meas. /S
Trigger internal internal, external, manual
Display
L, C, Z, R 5pcs digitals
Q, D, R, θ 5pcs digitals
Frequency, level 3pcs digitals
External DC base DC: 0~35V
Revising function open, short
Equivalent circuit model in series , parallel
Automatic judgement pass or fail
Memory 10 Groups seting
Common spec.
Environment temperature : 10 º C ~ 40 º C, humidity : 10%~90%RH
Power consuming Max. 55W
Power 90~125V or 190~250V, 48HZ~62HZ
Weight 5.5Kg 6.5Kg
Meas.( W× H× L ) 270× 105×350mm 405× 130×365mm

Request a free quote

Can't find the specific information you're looking for? Have a question ? Contact Us

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
  • LCZ tester 200KHZ precise digital LCZ LCR meter

    The 200KHZ precise digital LCZ LCR meter (SS1061) is a test system for passive components which designed for the use in electronic inspection or production process quality control.

  • LCZ LCR indicator High level automatic judgement precise digital LCZ LCR meter

    The high level automatic judgement precise digital LCZ LCR meter (SS1062A) is a high-grade electronic and electric components test instrument with high testing level and frequency signal which upgraded from SS106X series LCZ LCR testers.

  • LCZ meter china 200KHZ automatic judgement accuracy digital LCZ LCR meter

    The 200KHZ automatic judgement accuracy digital LCZ LCR meter (SS1063) is a test system for testing the electronic and electric passive components which designed for the use in electronic inspection or production process quality control.

  • LCZ LCR meter 200KHZ high level accuracy digital LCZ LCR meter

    The 200KHZ high level accuracy digital LCZ LCR meter (SS1061A) is a high-grade component test instrument upgraded from SS106X series LCZ LCR testers. This meter is with 4 output impedance modes and measuring results compatible with other well-known LCR meters.

  • toroid winder Programmable belt type automatic toroid coil winding machine

    The programmable belt type automatic toroid coil winding machine (SS900B6, 6 inch winding head) is used for winding the thick enamelled wire on the toroid core. Also be named toroid common mode power line winding machine.

  • electric relay coil winding machine 32 spindles fully automatic valve relay winding machine

    The fully automatic 32 spindles linear coil winding machine (SS3532) is used for winding the linear small power transformers, signal transformers, filter choke coil, relays, valve coils, solenoid coils, telecom transformers. This winding machine can finish the coils without any one manual actions in fully automatically. It is named valve coil windi1

  • thick wire coil winding machine Automatic high torsion long traverse coil winding machine

    The automatic high torsion long traverse coil winding machine (SS851A) is a CNC type programmable winding machine with wire spreading big width capacity and high torision DC winding motor. This winder Maximum wire diameter capacity can reach 5.0 mm for small coil. The coil winding machine (SS851A) is the best choice for winding the long length and 1
