gear type high strength toroid coil winding shuttle

The gear type high strength toroid coil winding shuttle (SS300-G series) is used for the gear type automatic big toroid coil winding machine to wind the heavy enamelled wire big toroid coils. Like as : big oroid transformers, big toroid inductors, etc. .
  • Item NO.:

    SS300-G series
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Argent
contact now SPECIFICATION SHEET
Description

Product name : Gear type high strength toroid coil winding shuttle (SS300-G series)

VC winding shuttle

VC winding magazine

RUFF gear type winding shuttle

GORMAN gear type winding shuttle

Description :

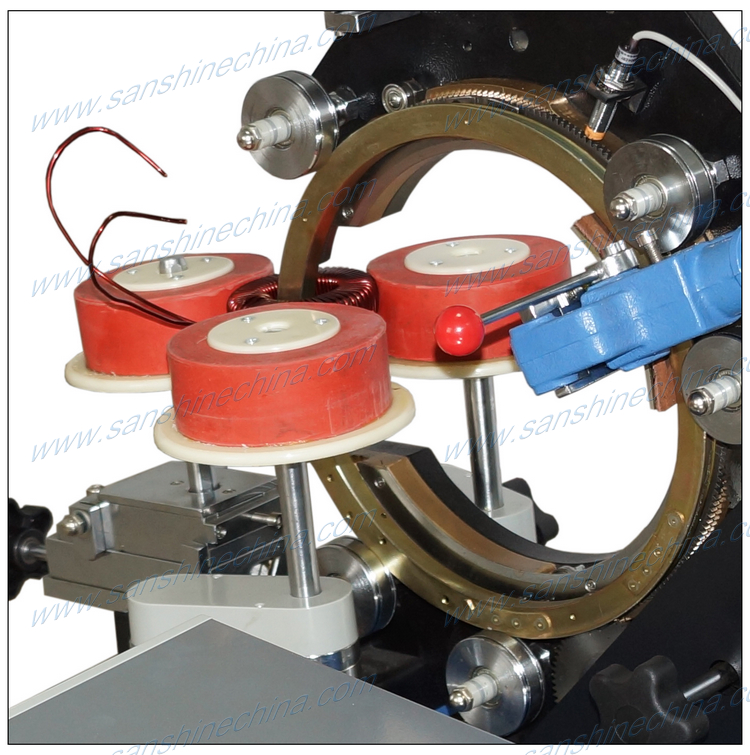

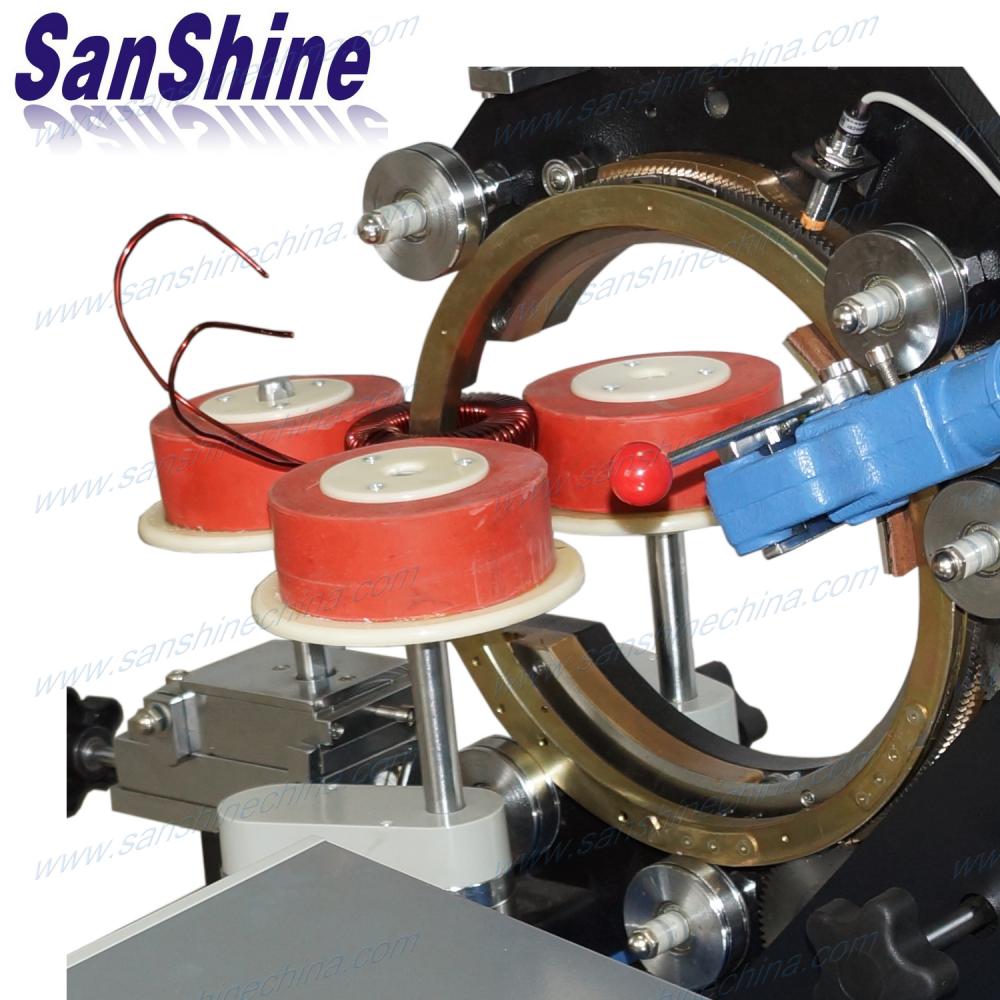

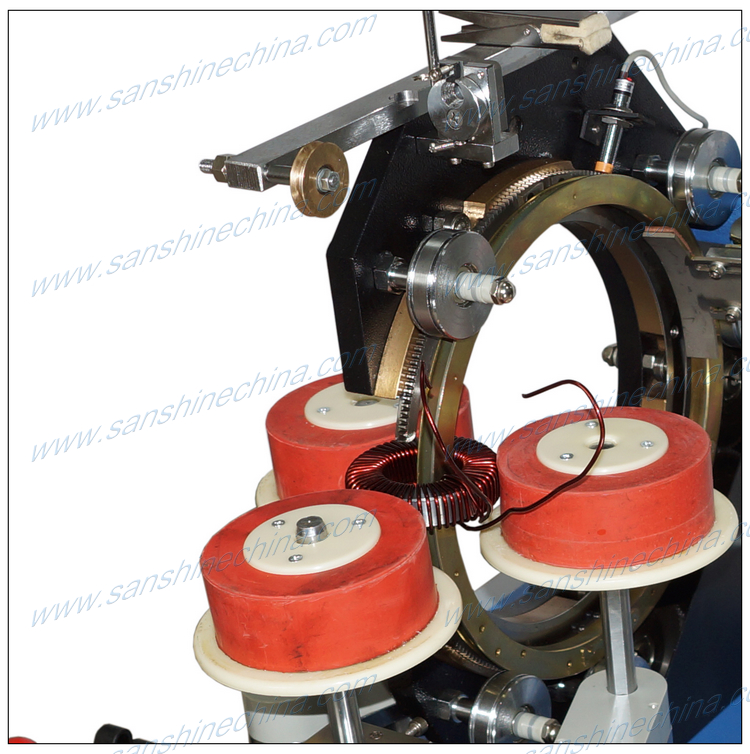

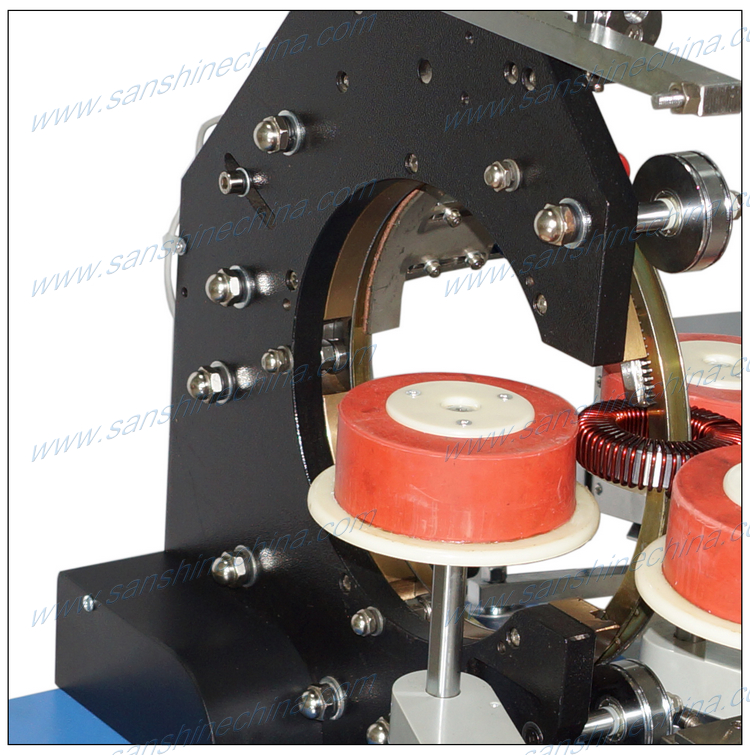

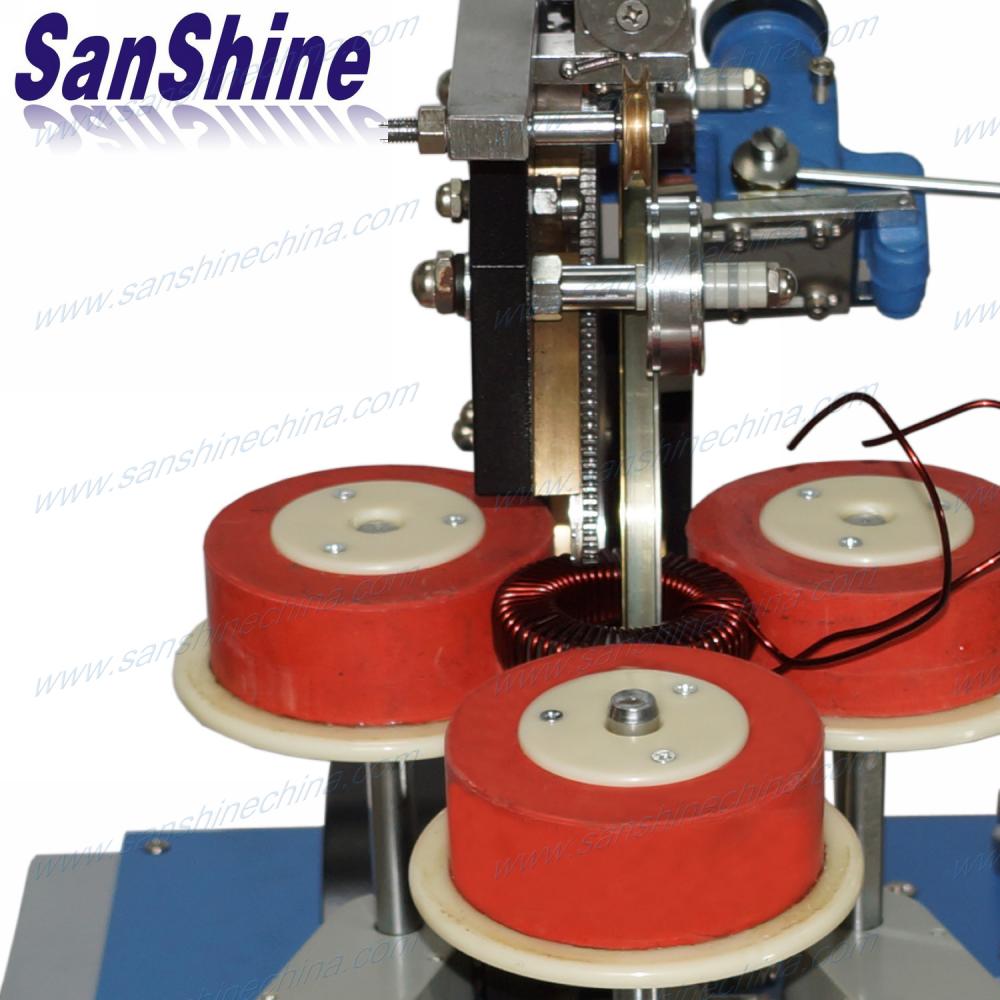

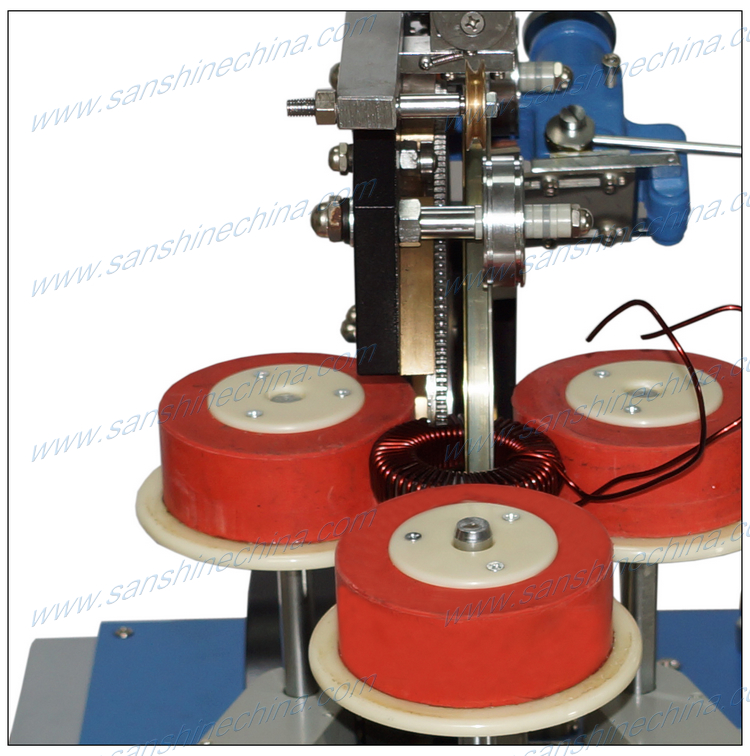

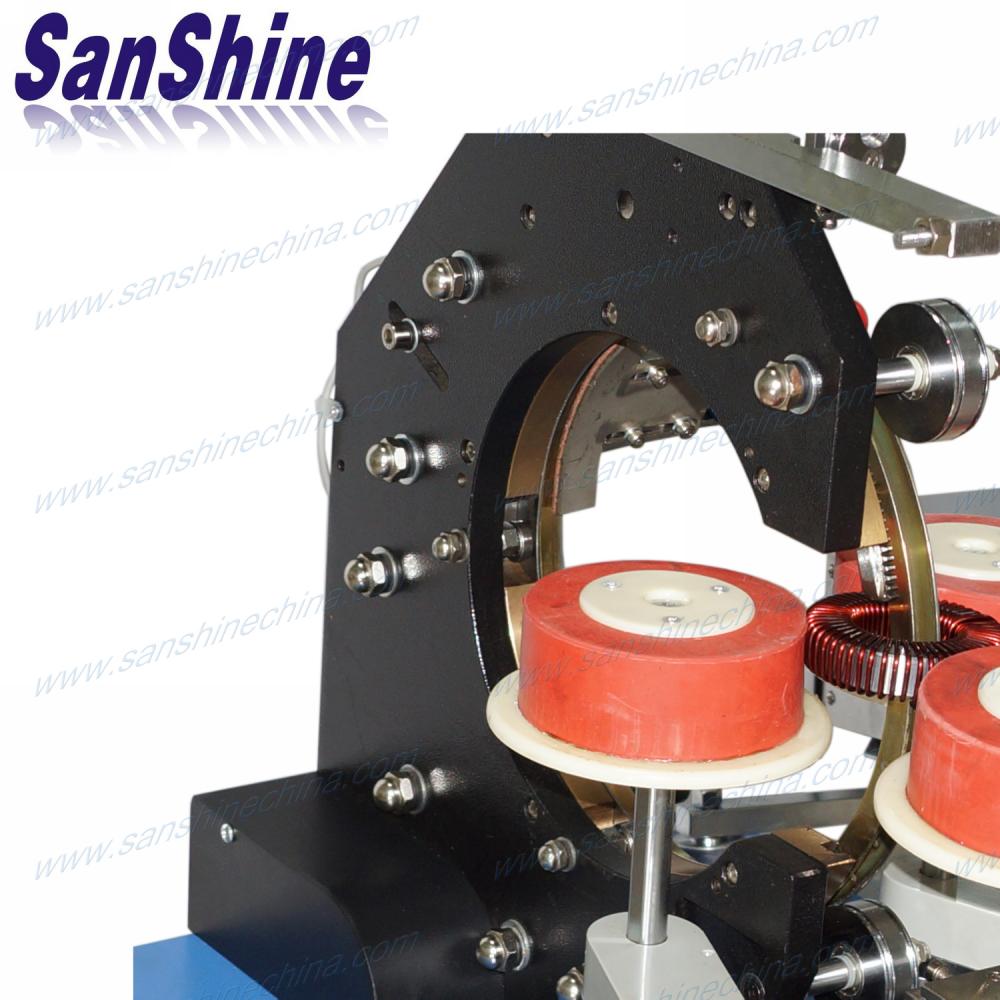

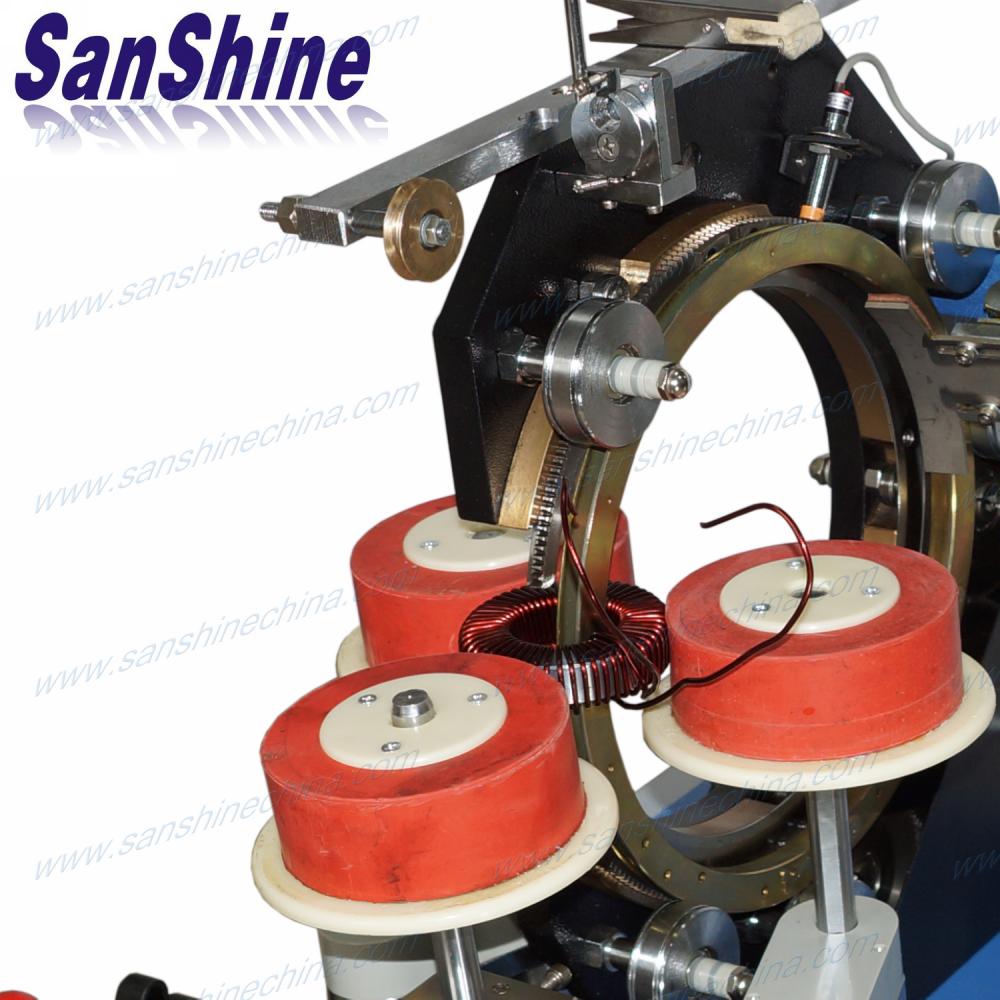

The gear type high strength toroid coil winding shuttle (SS300-G series) is used for the gear type automatic big toroidal coil winding machine to wind the heavy enamelled wire on the big toroidal core. Like as : big toroid transformers, big toroid inductors, big toroid choke coils etc. . This gear type high strength toroid coil winding shuttle (SS300-G series) is one very important part of the gear type automatic big toroidal coil winder. This gear type high strength toroid coil winding shuttle (SS300-G series) is named big toroid transformer winding shuttle also. This gear type high strength toroid coil winding shuttle (SS300-G series) be fixed on one gear ring and be drived by this gear ring so that can load and wind the very heavy(thick) enamelled wire.

Specification:

Please click the "SPECIFICATION SHEET" blue button to read the standard shuttls details. We can customize the toroid winding shuttle according to user required detailed dimensions drawing (or samples). Our winding shuttle can substitute the top brand shuttle fully and easily. Like as : winding shuttles of JOVIL toroid coil winding machine, winding shuttles of RUFF toroid coil winding machine, winding shuttles of GORMAN toroid winder, winding shuttles of VC toroid coil winding machine, etc. .

Welcome to customize and inquire with detailed dimensions drawing or sample !
