Item NO.:
Part numbers as listProduct Orgin:
ChinaBrand:
SanShineShipping Port:
XIAMEN,CHINAColor:

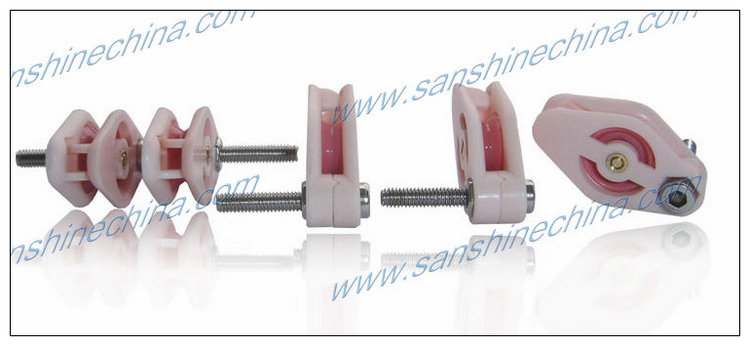

PinkProduct name : Cage type mirror surface ceramic wire jump preventer
Description :
The cage type mirror surface ceramic wire jump preventer (part numbers 001 to 006) is used for a radical change of direction and adequate guidance and prevent the wire jumping during the winding process in coil winding machine and the production process in cables machinery and the production process in textile machinery. This cage type mirror surface ceramic wire jump preventer (part numbers 001 to 006) is named cage wire jump preventer and wire guide jump preventer also. The precision ceramics circle inside has an ultra-fine polishing degree Ra0.2. There is a high-speed bearing in this porcelain circle which can control the sliding distance between enameled wire and the circle under 0.2mm, protect the film and ensure the enameled wire jumping in a very small scope to stabilized the tension.
Specification :
Net weight : 001 (4g) , 002 (7.5g), 003 (13.5g), 004 (4g), 005(2g), 006(2g).

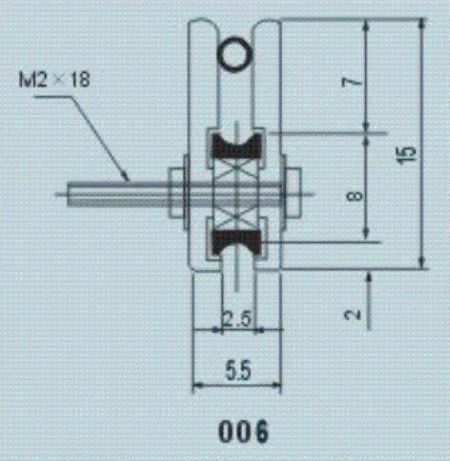

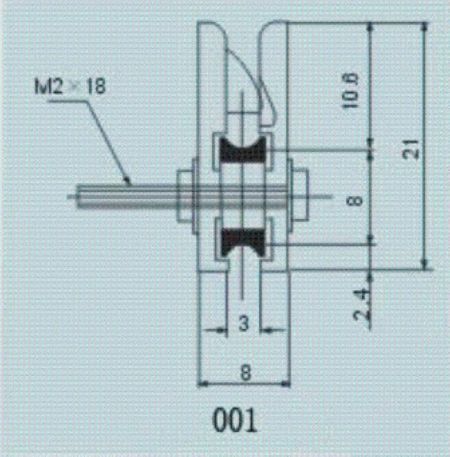

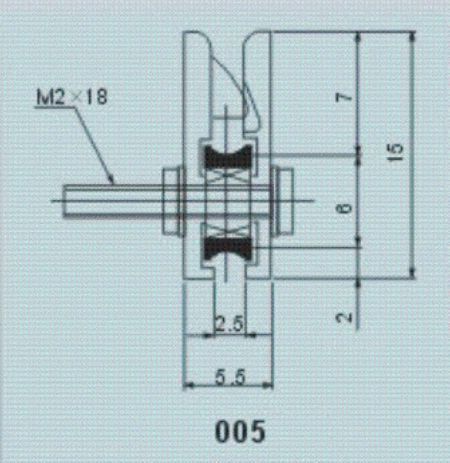

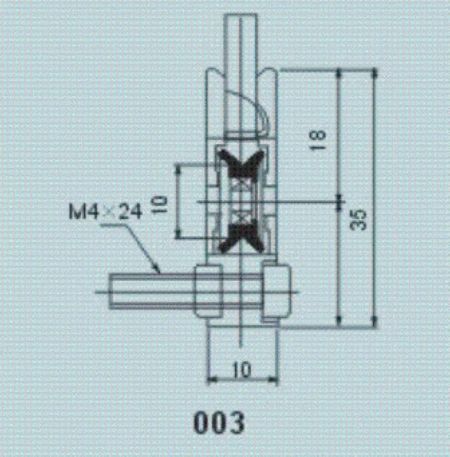

Dimensions : As above dimensions drawings.
