electric transformer generator motor reactor pump coil turn testing machine

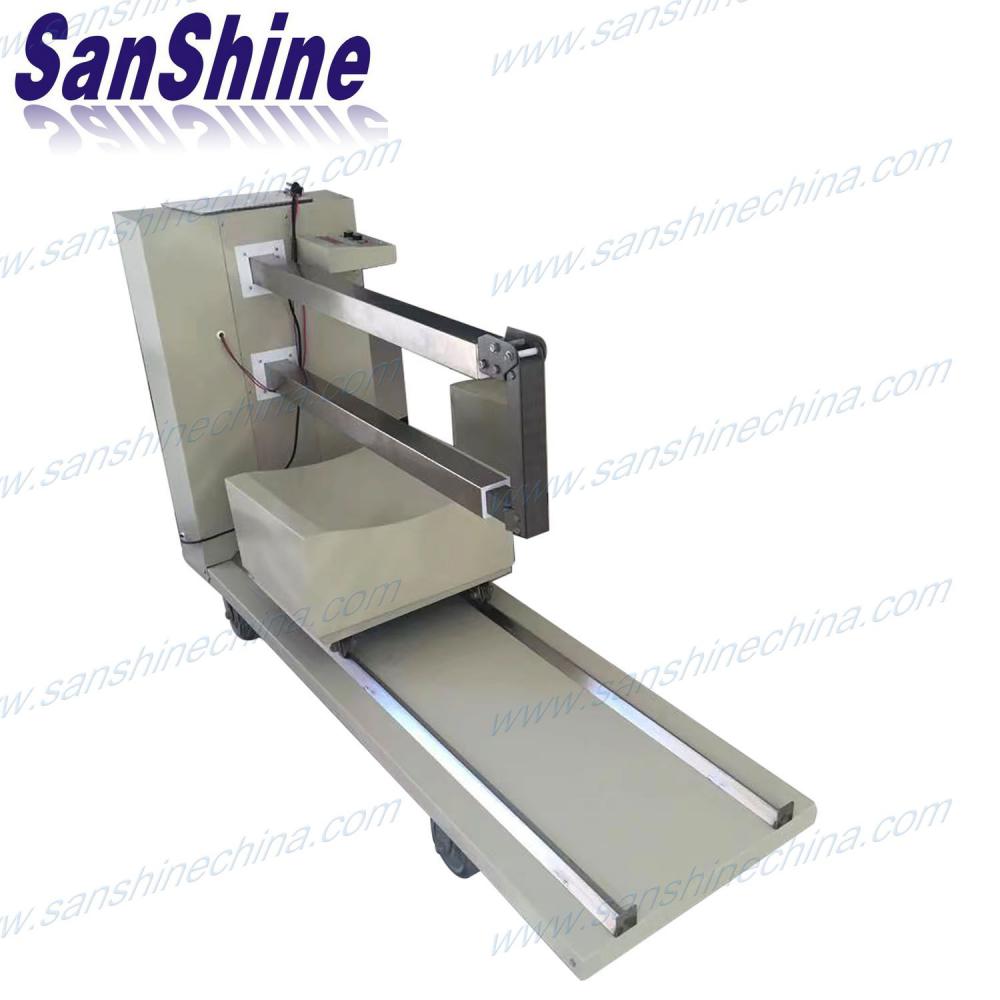

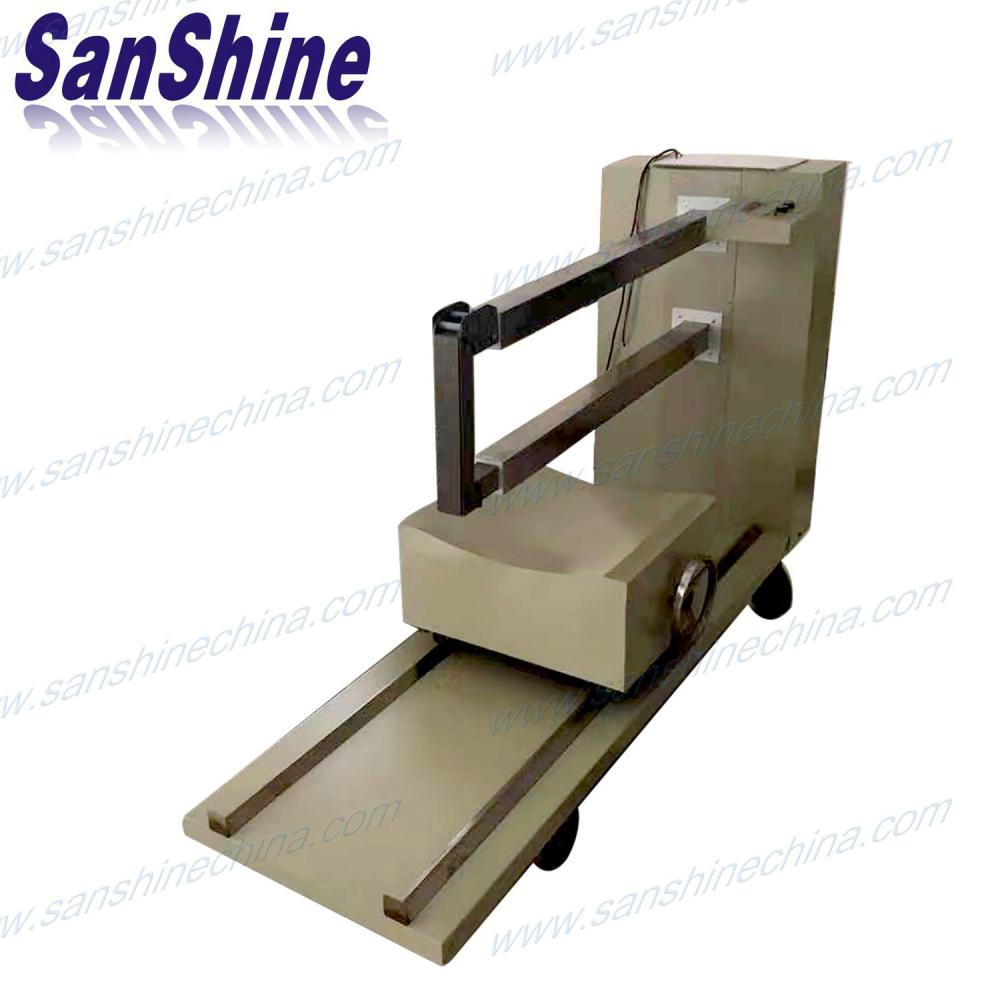

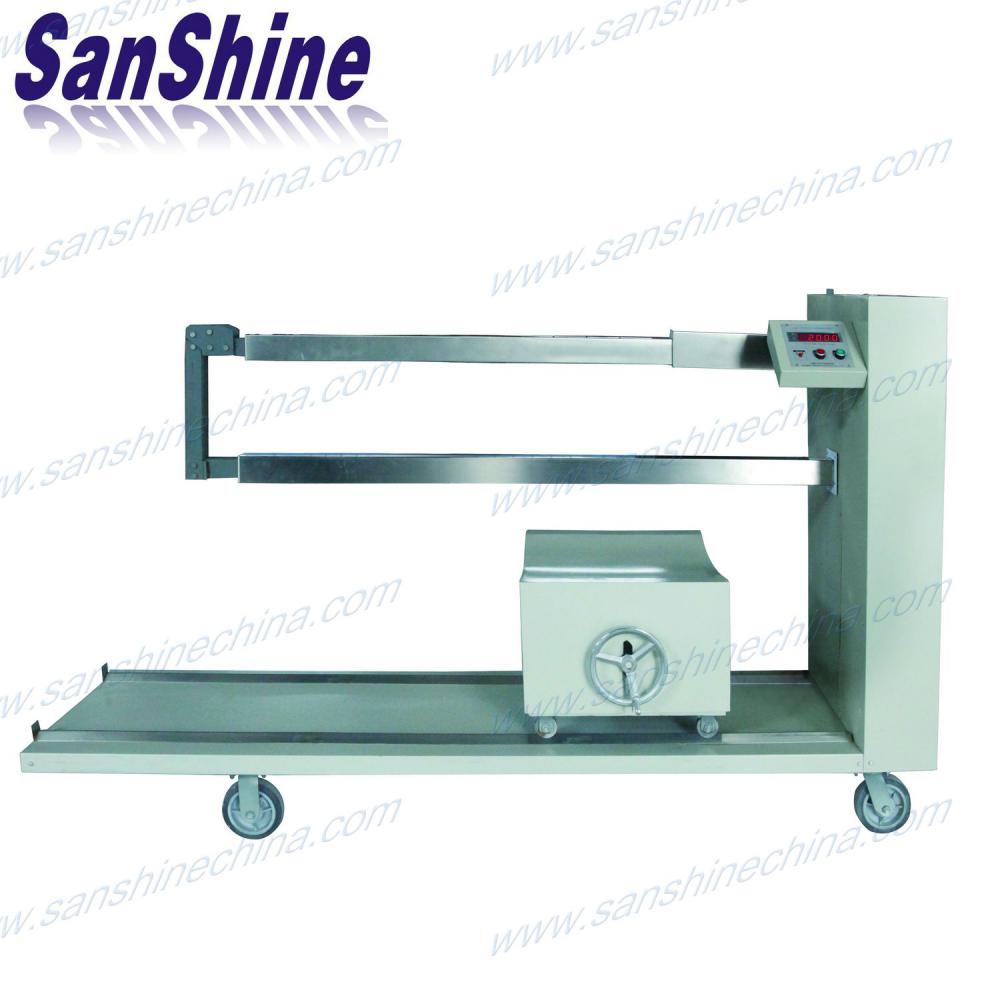

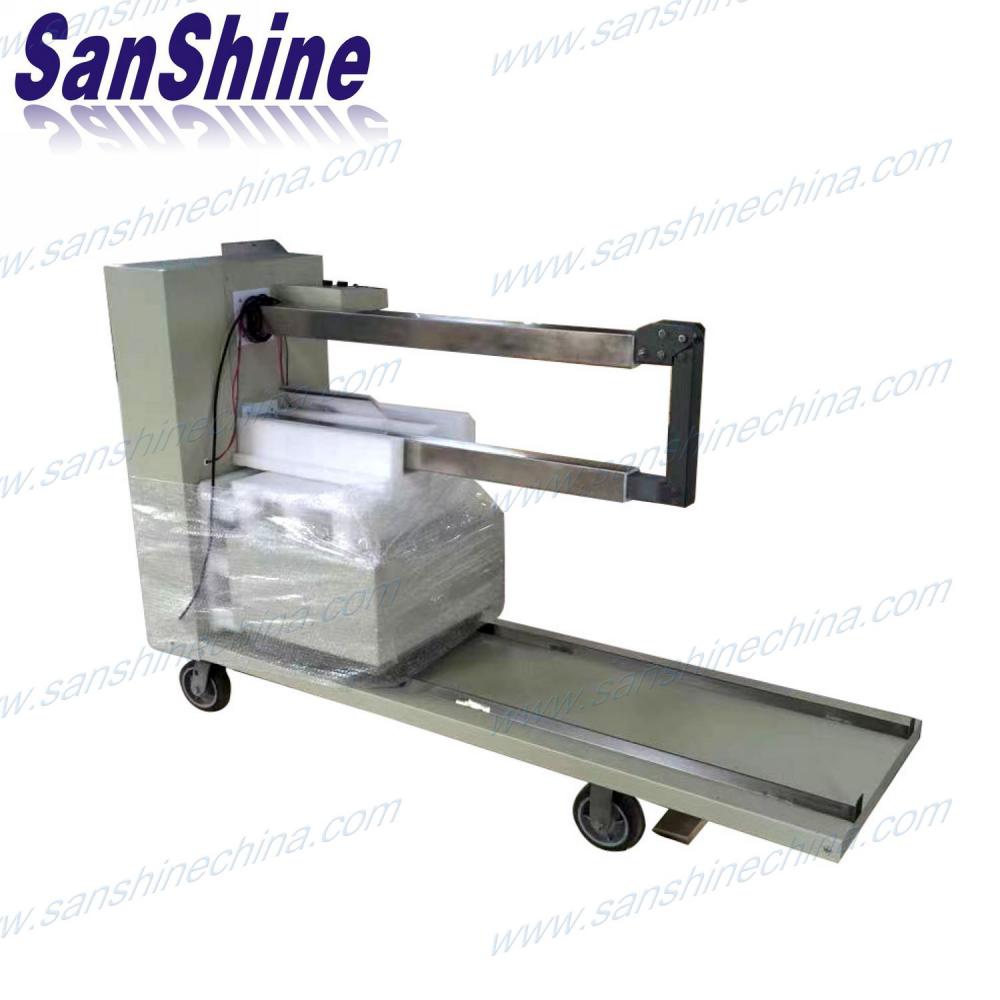

The electric transformer generator motor reactor pump coil turn testing machine (SS-BT1500) is used for testing the turns number of the various huge winding coils. this turn tester is called large electric reactor coil turn tester also.
  • Item NO.:

    SS-BT1500
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Beige and gray
contact now
Description

Product name :  electric transformer generator motor reactor pump coil turn testing machine (SS-BT1500)

big coil turn tester

big coil turn counter

heavy coil turn tester

transformer turn testing machine

generator turn testing machine

Description :

The big electric transformer generator motor reactor pump coil turn tester (SS-BT1500) is used for testing the turns number of the various huge winding coils. So that can check and make sure the coil turns are correct after winding processing. This big winding coil turns tester( SS-BT1500) is named large electric reactor coil turn tester or transformer turn testing machine also which used for measuring the turns number of the super big winding coils. Such as: large generator winding turns, three phase large power electric transformer winding turns, huge mortor winding turns, huge inductor winding turns, huge reactor coil turns, huge pump motor coil turns, etc..

Feature :

1. CPU control and digital display.

2. Operation easy, measuring automatically, no need switch the measurment range.

3. Accuracy: 0.1%.

4. 5 digits counts display.

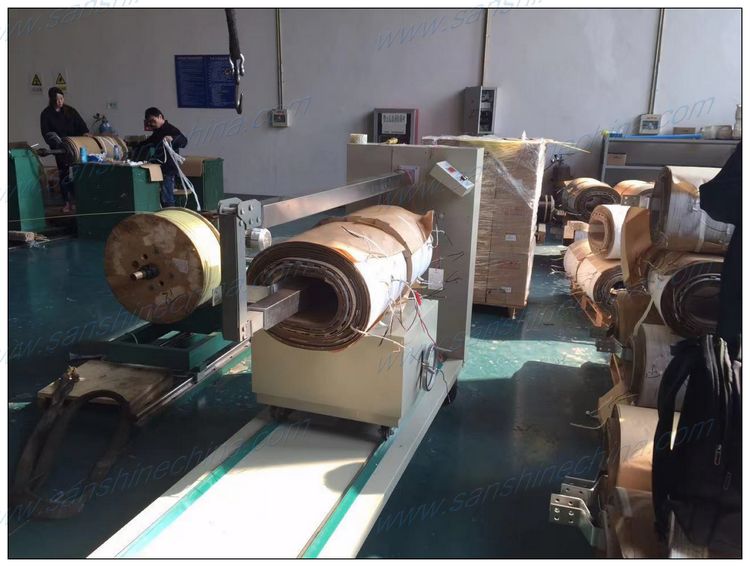

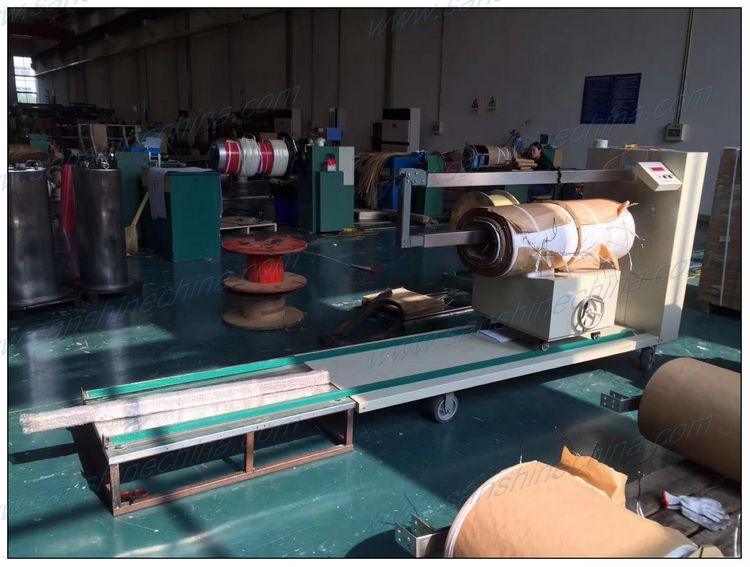

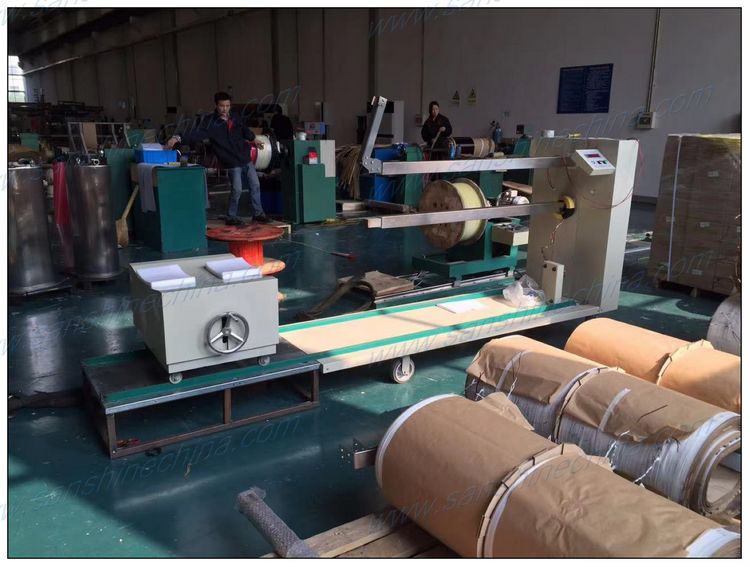

5. Rail type trolley to load the heavy huge winding coil for testing.

6. The wire turns shorting detecting function can be customized by request.

Specification :

Model SS-BT1000 SS-BT1500 SS-BT2000 SS-BT2500
Coil inner diameter φ>100mm
Coil outside diameter φ<350mm φ<450mm
Coil height(length) H<800mm H<1300mm H<1800mm H<2300mm
Testing  sensor bar size 80X80mm
Coil turns range 0~16000T
Testing accuracy(tolerance) 0.1%accuracy is 0.2% if the outer diameter of the measured coil exceeds the specified range.
Testing speed 3 Seconds /time
Tester measurement 1700mm x 550mm x 1100mm
Tester weight about 120Kgs
