Wire winding coil turns DC resistance tester

The transformer generator motor reactor pump coil turns tester (SS108A series) are used for testing the turns number of the various big winding coils.

Item NO.:
SS108R
Product Orgin:
China
Brand:
SanShine
Shipping Port:
XIAMEN,CHINA
Color:
Beige and gray

contact now User's reviews

Description

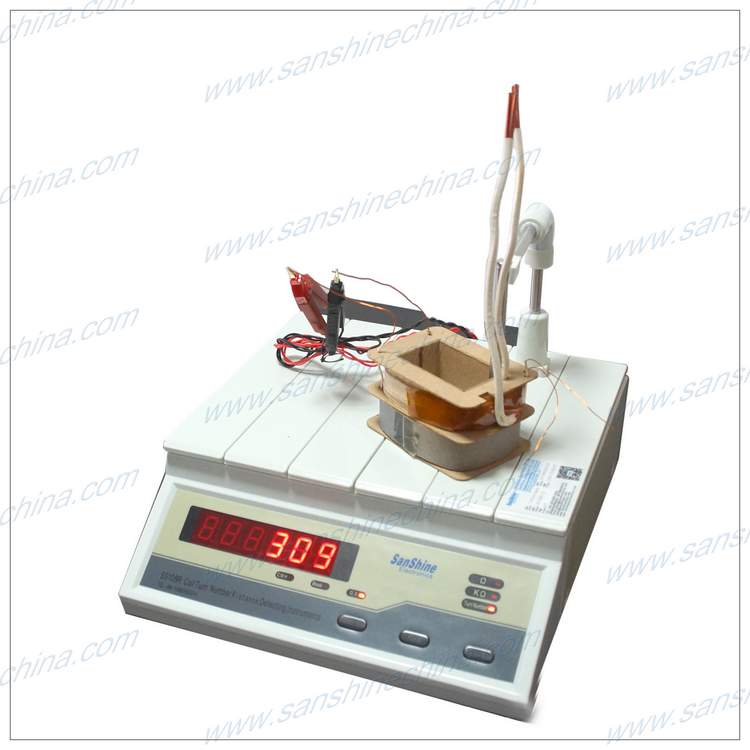

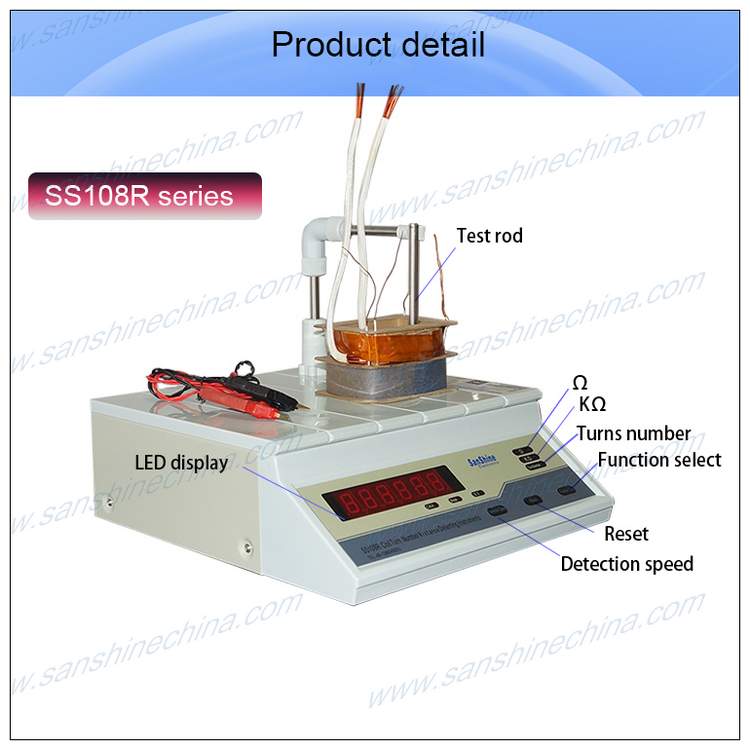

Product name : Wire winding coil turns DC resistance tester (SS108R series)

Description :

This high-quality and cost-effective coil turn tester is specially developed for measuring winding turns of various multi-coil electronic components. It is widely compatible with generator windings, transformer windings, relay windings, spark plug windings and many other electronic parts.

Adopting advanced microprocessor digital control technology, the testing instrument delivers stable performance and powerful testing functions. It supports accurate measurement of both coil turns and coil resistance, with a high precision of 0.2%. Different coil shapes and sizes have negligible influence on the testing results.

The device is capable of precise measurement from 0 to 60,000 turns without any range switching. Such humanized design greatly simplifies operation procedures, improves working efficiency and effectively prolongs the equipment service life. With automatic range conversion and intuitive 5-digit direct reading display, testing data can be shown clearly and instantly.

Feature :

1), Microprocessor full digital intelligent control

2), 0.2% high measurement precision for stable detection

3), 0-60000 turns continuous measurement without range switching

4), Automatically display coil turns and resistance value

5), 5-digit high-definition digital direct display

6), Minimal influence from coil shape and size

7), Wide applicability for various industrial coils

8). Customizable measuring sensor size

Specification :

Model	SS108R-10	SS108R-6	SS108R-4	SS108R-X

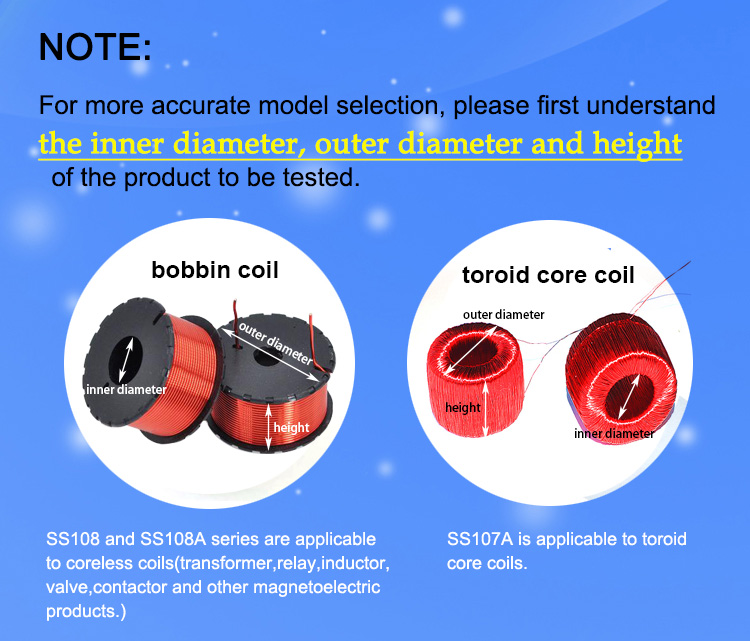

coil inside diameter	>10mm	>6mm	>4mm	specially size can be customized
coil outside diameter	<120mm
coil height	<110mm
testing rod diameter	10mm	6mm	4mm
coil turns range	0 ~ 60000T
testing accuracy(tolerance)	0~300T± 0T, 300~500T± 1T, 500~20000T± 0.2%, 20000~60000± 0.5%
testing speed	fast 3 Measurements /s, slow 1.2 Meas. /s
DC R testing accuracy(tolerance)	0.1Ω ~200KΩ ±0.2%
DC R testing range	0.00001Ω-200KΩ
weight	7Kgs
measurement	370220110mm
