Item NO.:
SS100FAS seriesProduct Orgin:
ChinaBrand:
SanShineShipping Port:
XIAMEN,CHINAColor:
Gray and blue
Description :

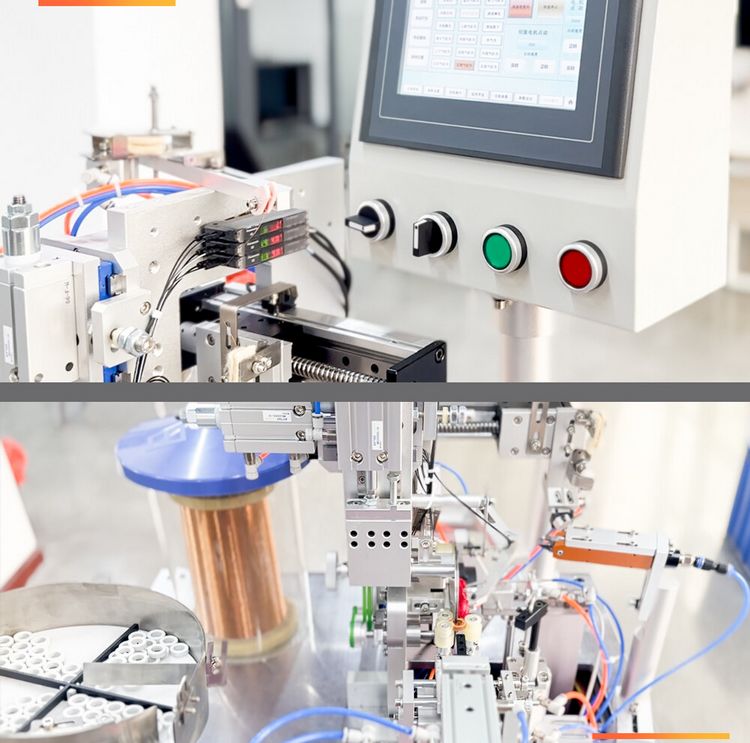

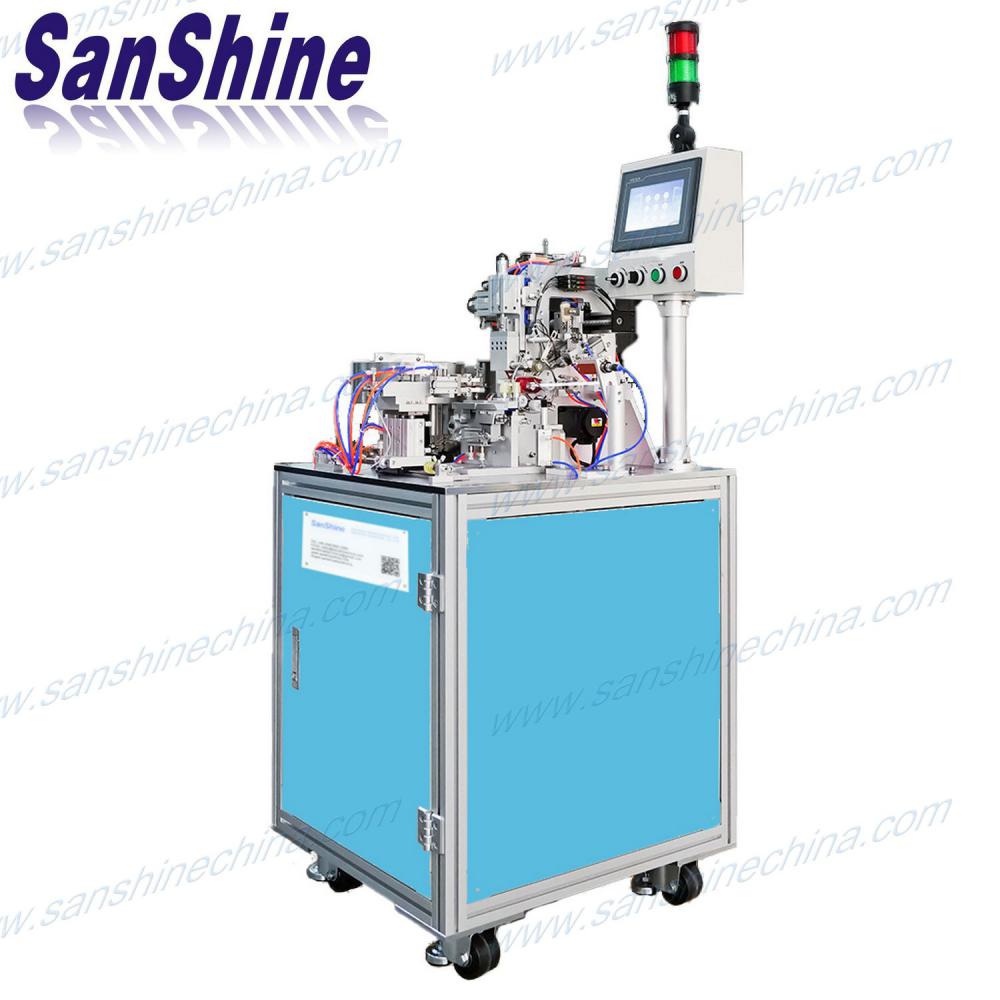

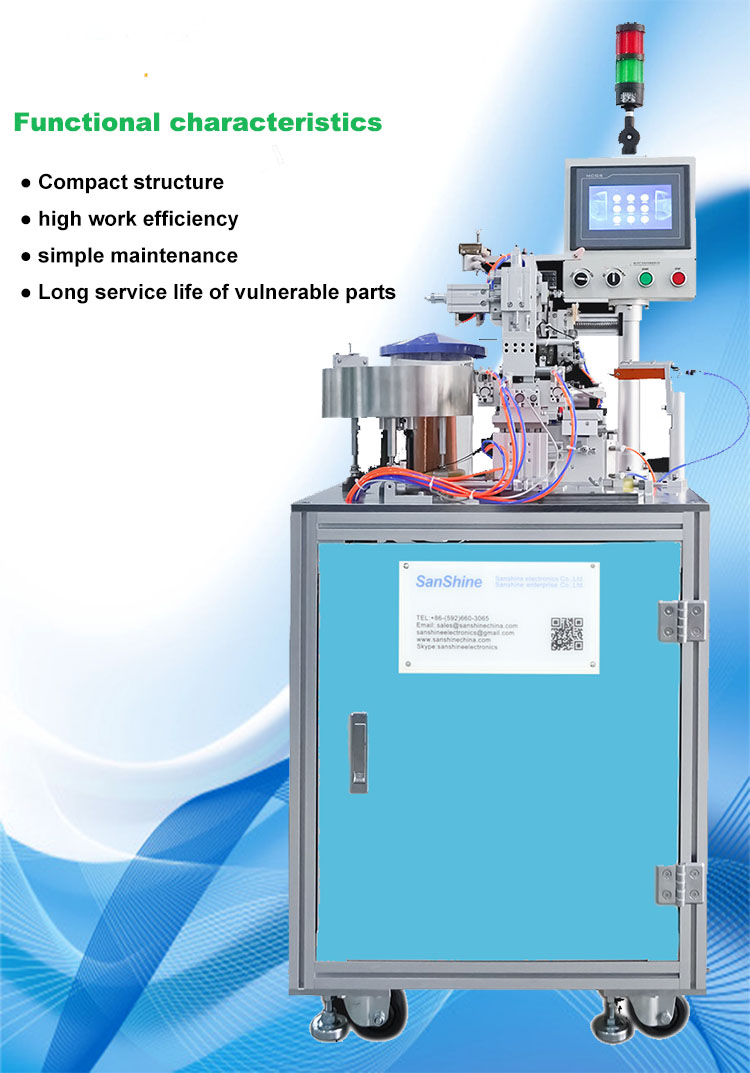

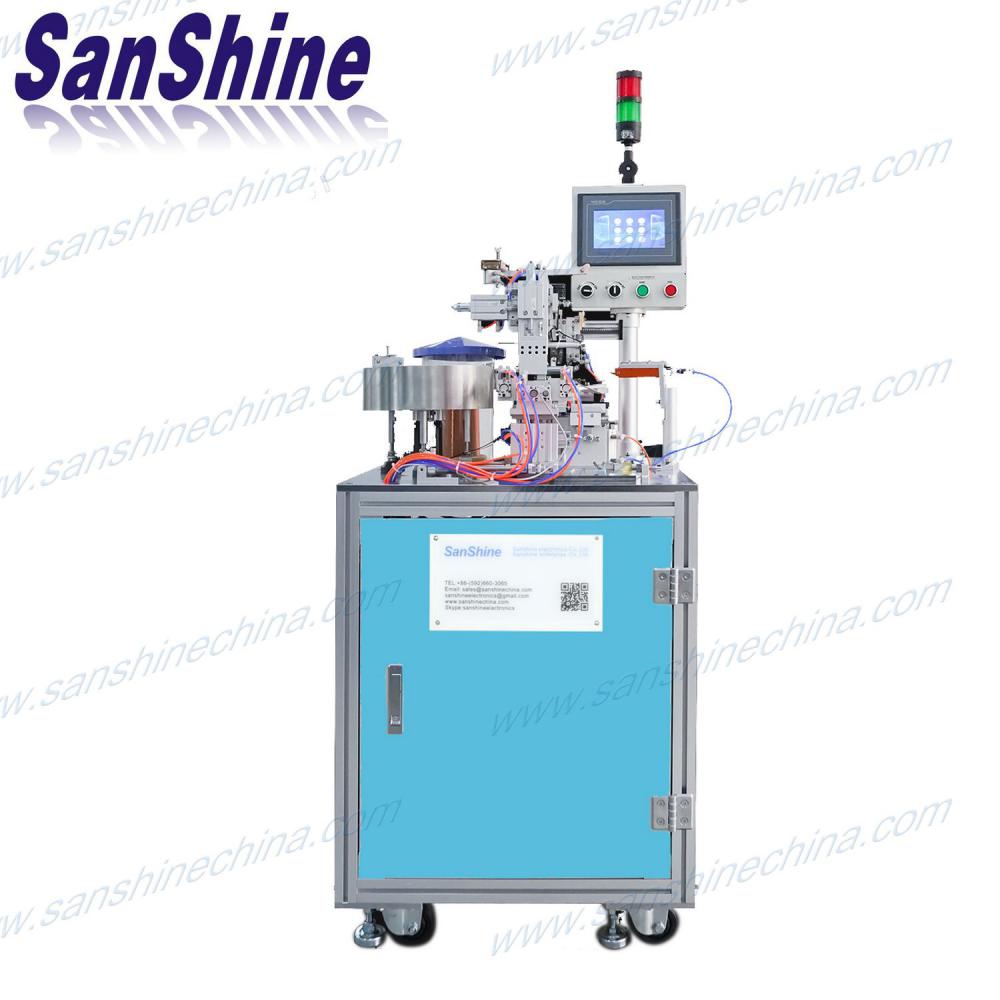

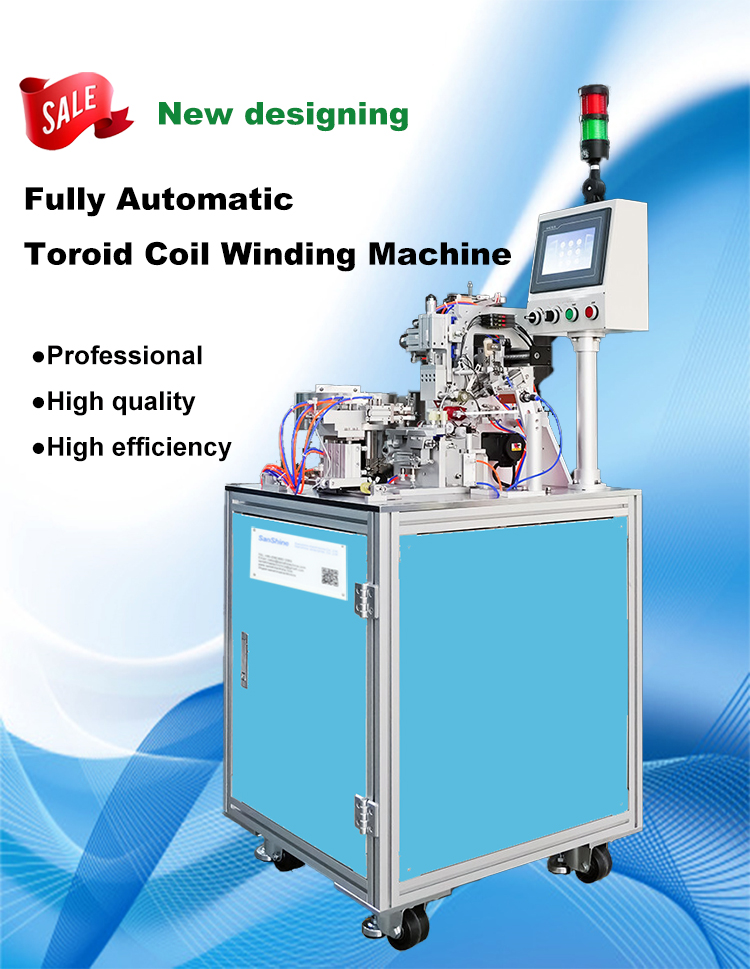

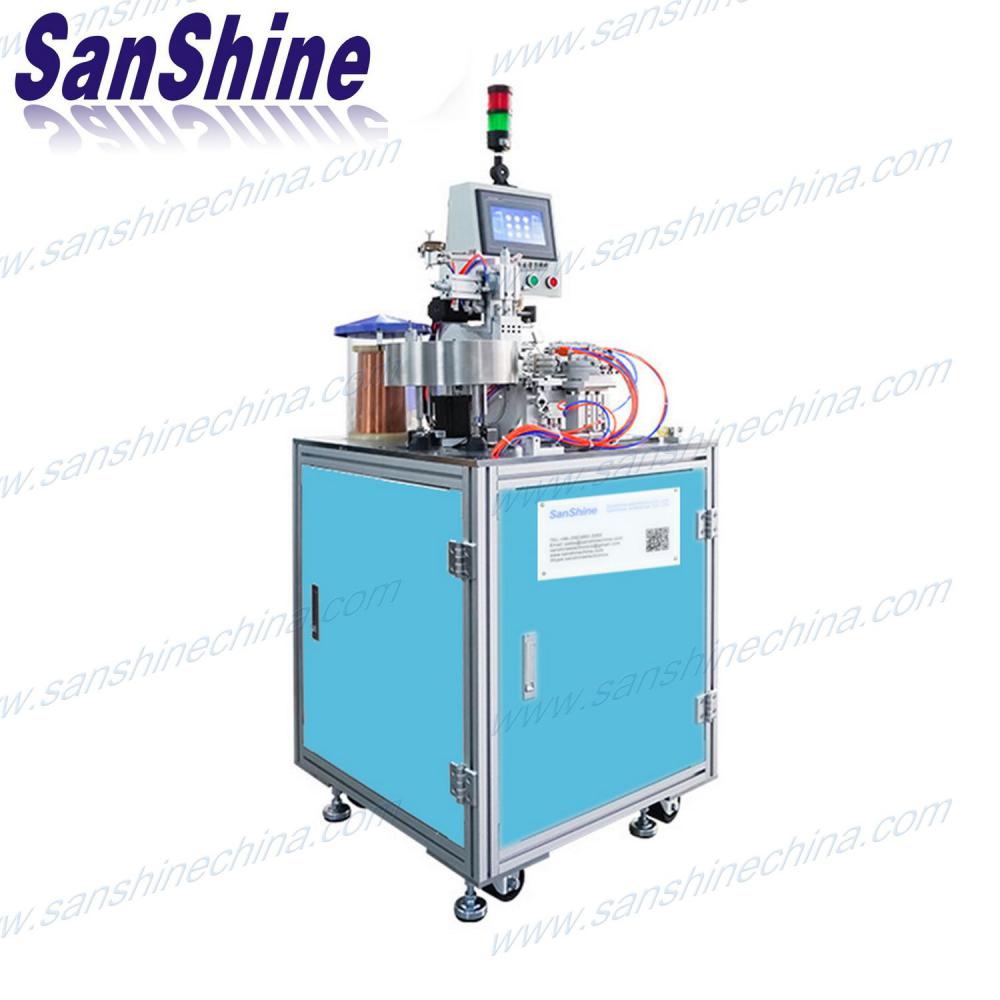

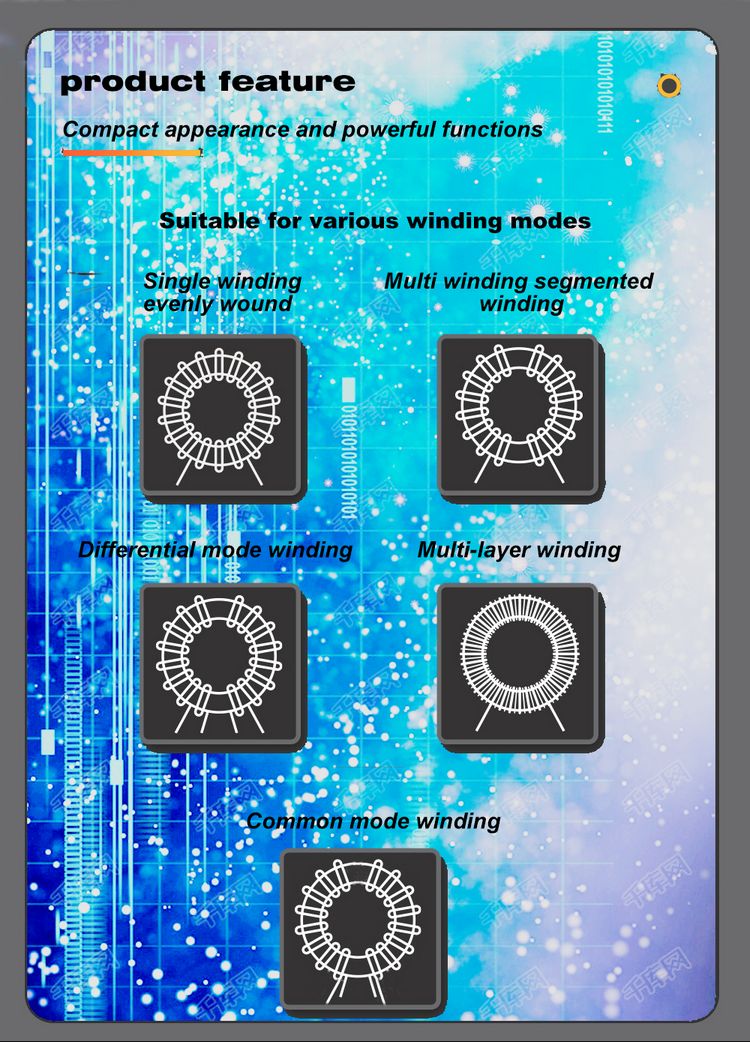

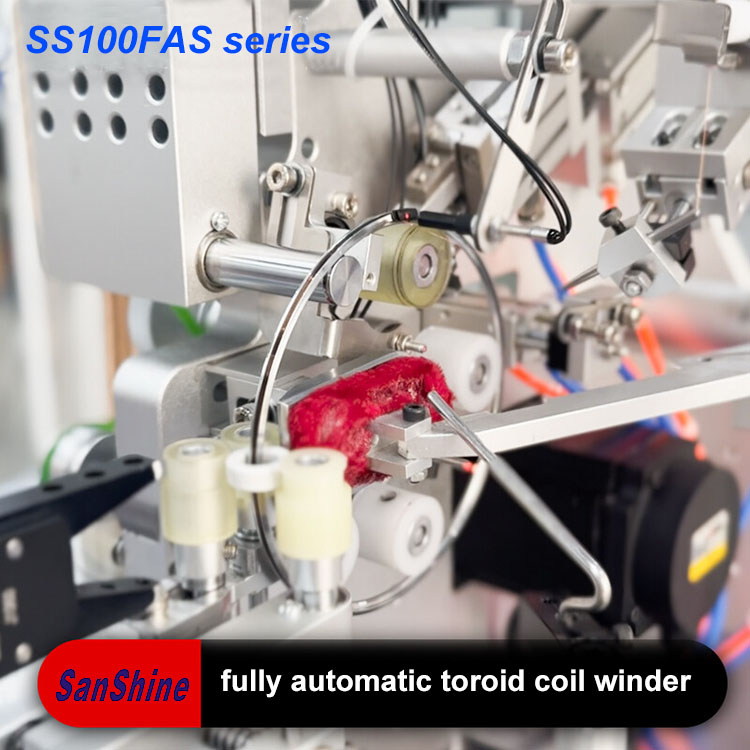

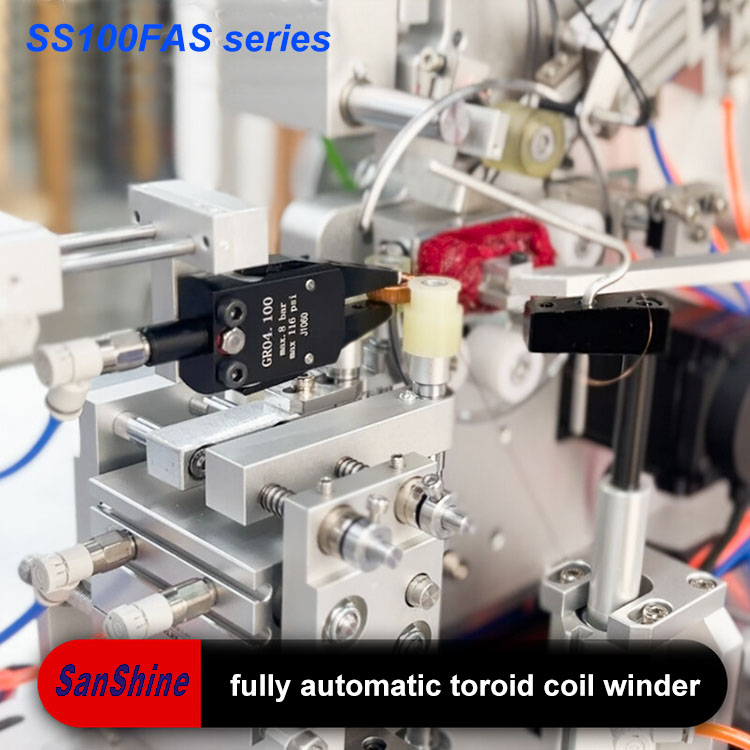

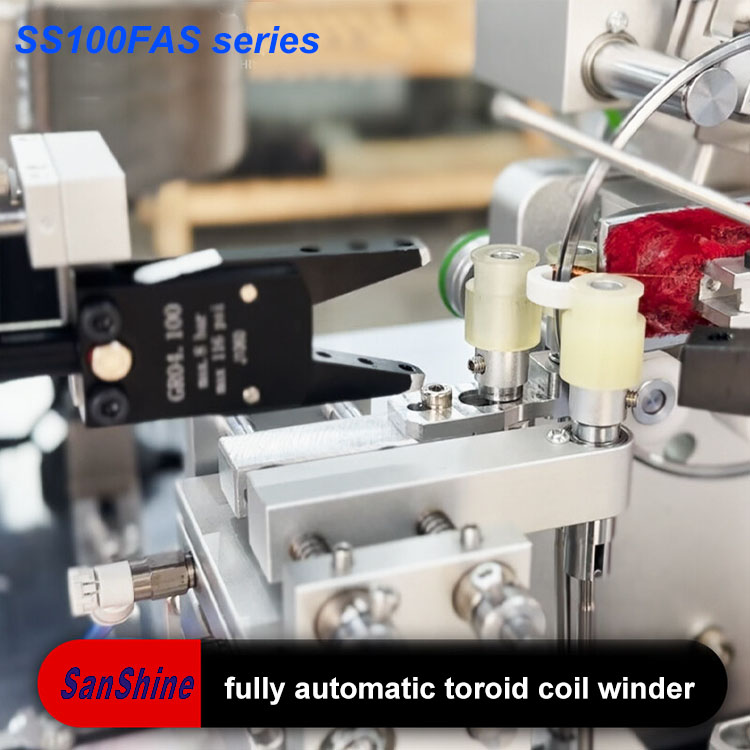

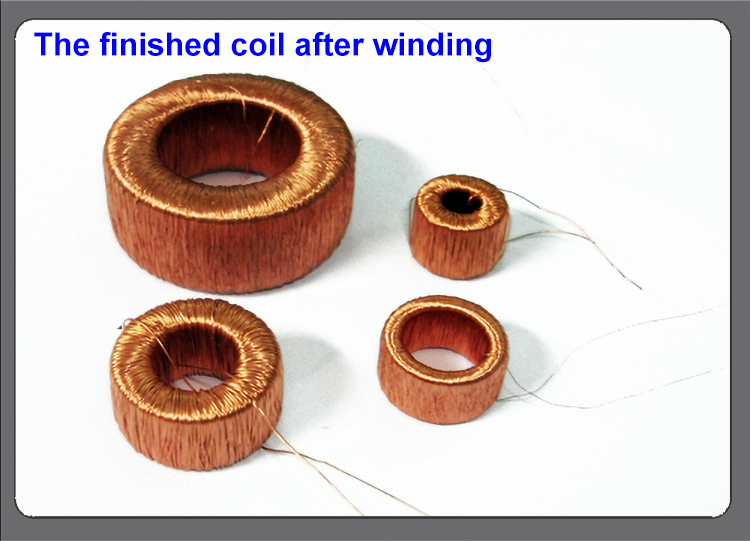

This fully automatic slider type automatic toroid coil winding machine (SS100FAS series, winding shuttle inner diameter 90~170mm) is used for winding fine enamelled wire toroidal coils without operator. This slider type fully automatic toroid coil winding robot (SS100FAS series) adopts programmable precise CNC toroid controller with precise servo motors and sensors, Adopts winding shuttle with slider. Shuttle and slider take the fine enamel wire and wind on the toroidal core in orderly according to user's wire layout requirements. This winding robot is an accurately and reliability programmable precise toroid coil winding machine. The slider type fully automatic ring coil winder (SS100FAS series) is used for winding toroid current transformer, toroid current sensor, watt metter current toroidal sensors, toroid inductor, toroid transformer, toroid coil, toroid chock coil, power magnetics, small step motor coil, converter inductors, etc. . This fully automatic slider type toroidal coil winding equipment (SS100FAS series) be know as toroid angle motor winding machine and toroid hall effect current transducer sensor winding machine also.SS100FAS-01 | |||
Enamel copper wire diameter | 0.05~0.2mm | Max. winding speed | 1500RPM |
Max. finished coil outside diameter | 30mm | Wire spacing controlling | wire winding and layout by proportional linkage servo and steping motor |
Max. finished coil inner hole diameter | 6mm | Electric power source | Single phase 110V /220V 50/60Hz |
Max. finished coil height | 12mm | Air pressure source | 0.7Mpa |
Shuttle inner diameter | 90mm | Machine size | about L680*W630*Height 1680mm |
Controller memory programs capacity | 100 sets | Machine net weight | about 140Kgs |
SS100FAS-02 | |||
Enamel copper wire diameter | 0.05~0.2mm | Max. winding speed | 1500RPM |
Max. finished coil outside diameter | 60mm | Wire spacing controlling | wire winding and layout by proportional linkage servo and steping motor |
Max. finished coil inner hole diameter | 6mm | Electric power source | Single phase 110V /220V 50/60Hz |
Max. finished coil height | 15mm | Air pressure source | 0.7Mpa |
Shuttle inner diameter | 104mm | Machine size | about L680*W630*Height 1680mm |
Controller memory programs capacity | 100 sets | Machine net weight | about 140Kgs |
SS100FAS-03 | |||
Enamel copper wire diameter | 0.05~0.2mm | Max. winding speed | 1500RPM |
Max. finished coil outside diameter | 60(110)mm | Wire spacing controlling | wire winding and layout by proportional linkage servo and steping motor |
Max. finished coil inner hole diameter | 8mm | Electric power source | Single phase 110V /220V 50/60Hz |
Max. finished coil height | 20mm | Air pressure source | 0.7Mpa |
Shuttle inner diameter | 140mm | Machine size | about L680*W630*Height 1680mm |
Controller memory programs capacity | 100 sets | Machine net weight | about 140Kgs |
SS100FAS-04 | |||
Enamel copper wire diameter | 0.07~0.23mm | Max. winding speed | 1400RPM |
Max. finished coil outside diameter | 60(110)mm | Wire spacing controlling | wire winding and layout by proportional linkage servo and steping motor |
Max. finished coil inner hole diameter | 9mm | Electric power source | Single phase 110V /220V 50/60Hz |
Max. finished coil height | 30mm | Air pressure source | 0.7Mpa |
Shuttle inner diameter | 170mm | Machine size | about L680*W630*Height 1680mm |
Controller memory programs capacity | 100 sets | Machine net weight | about 140Kgs |
