Small ferrite core air gap water type grinding machine (SS-GR03)

categories
Small ferrite core air gap water type grinding machine (SS-GR03) Small ferrite core air gap water type grinding machine (SS-GR03) Small ferrite core air gap water type grinding machine (SS-GR03) Small ferrite core air gap water type grinding machine (SS-GR03) Small ferrite core air gap water type grinding machine (SS-GR03)

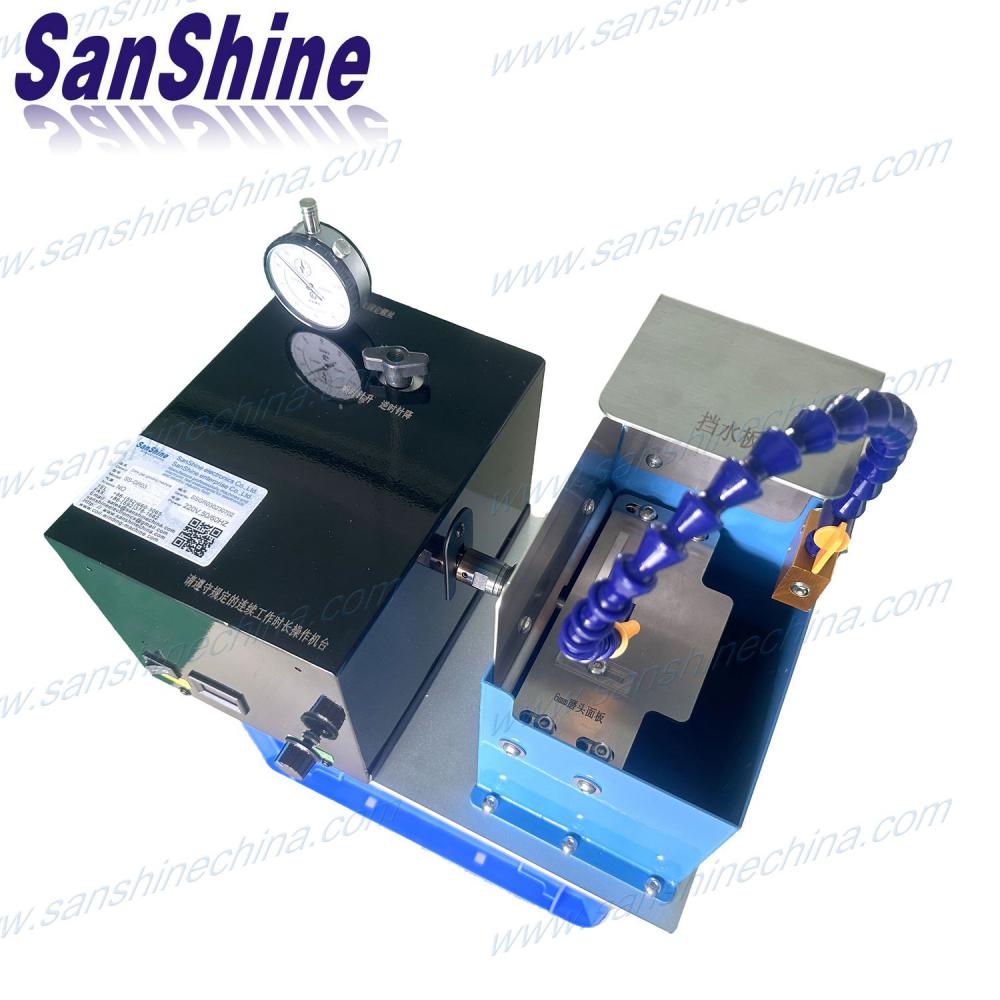

Small ferrite core air gap water type grinding machine (SS-GR03)

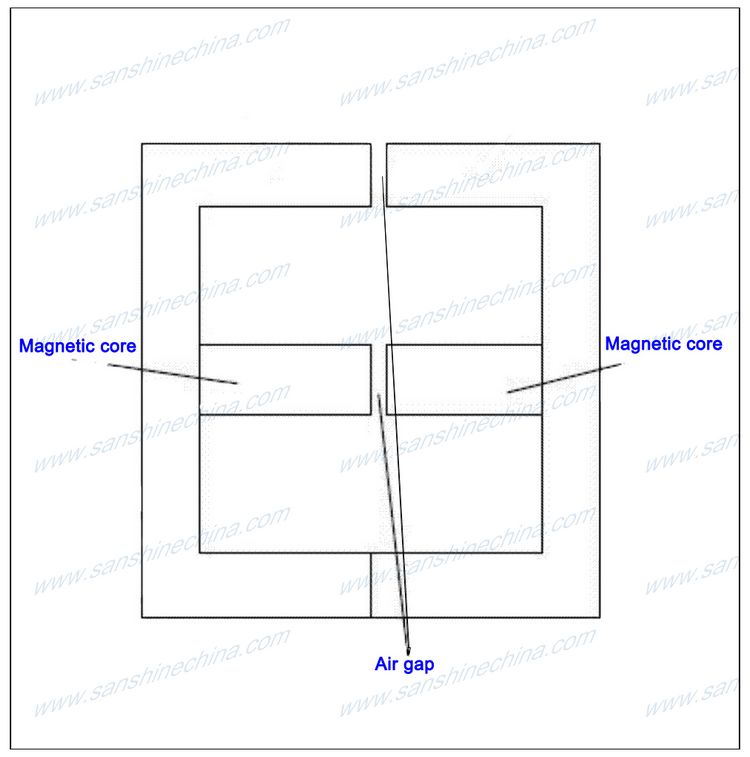

This small ferrite core air gap water type grinding machine (SS-GR03) is used for grinding the air gap of small ferrite cores of transformer and inductor. This grinding machine is named inductor core gap grinding equipment also.

  • Item NO.:

    SS-GR03

  • Product Orgin:

    China

  • Brand:

    SanShine

  • Shipping Port:

    XIAMEN,CHINA

  • Color:

    Blue and black
contact now User's reviews
Description

Product name : Small ferrite core air gap water type grinding machine (SS-GR03) :




ferrite core grinding equipment





Description of Small ferrite core air gap water type grinding machine (SS-GR03) :

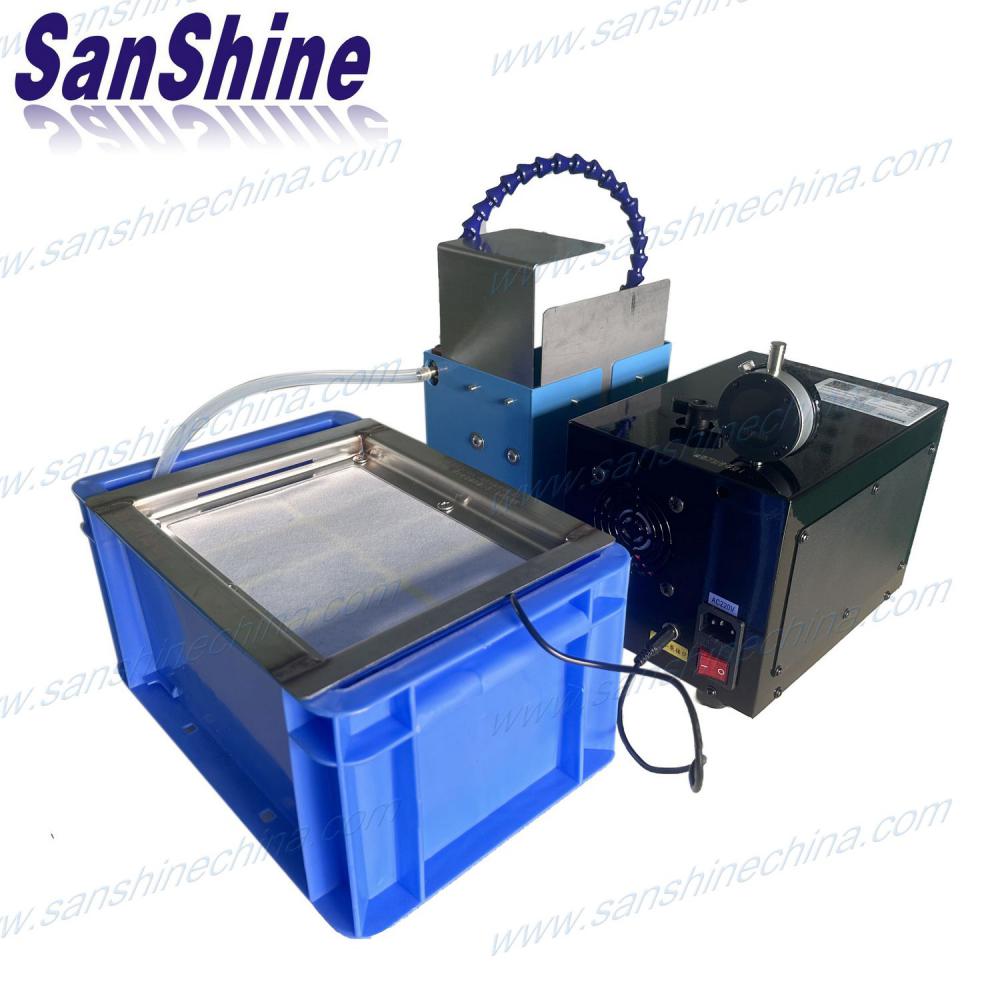

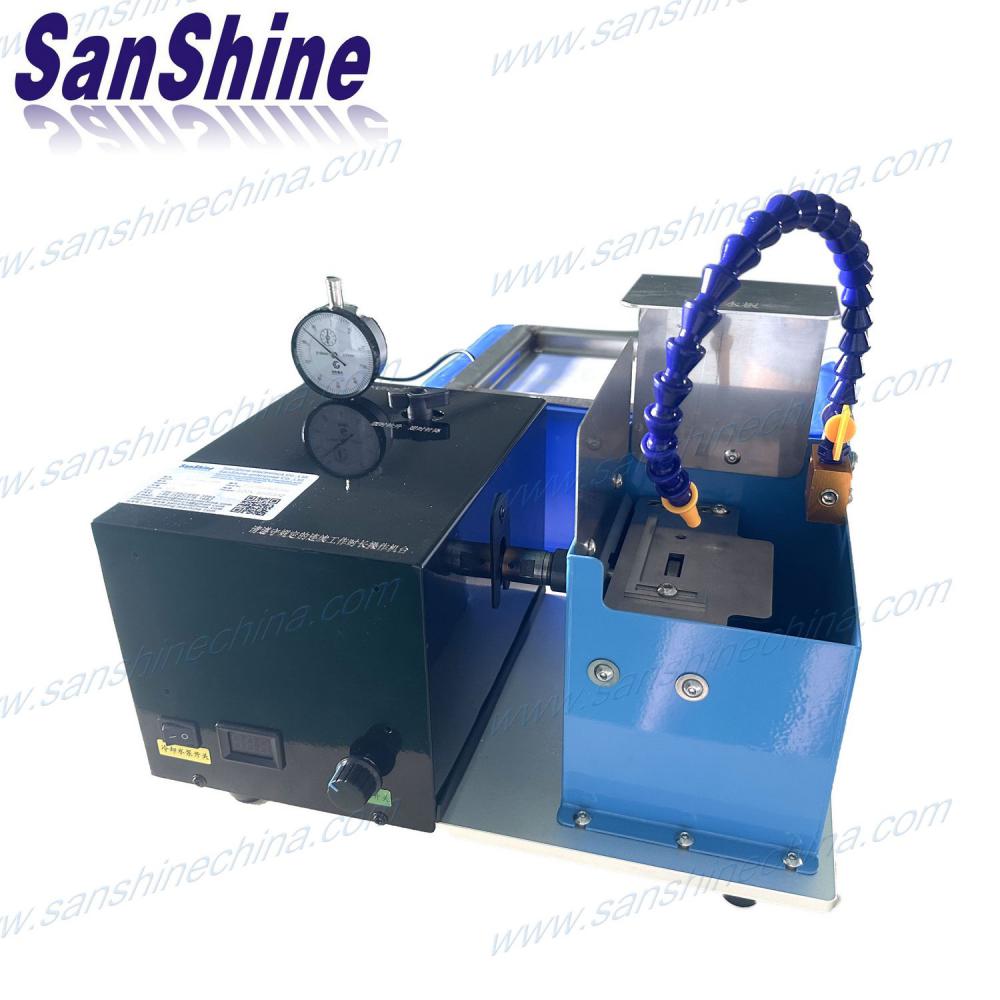

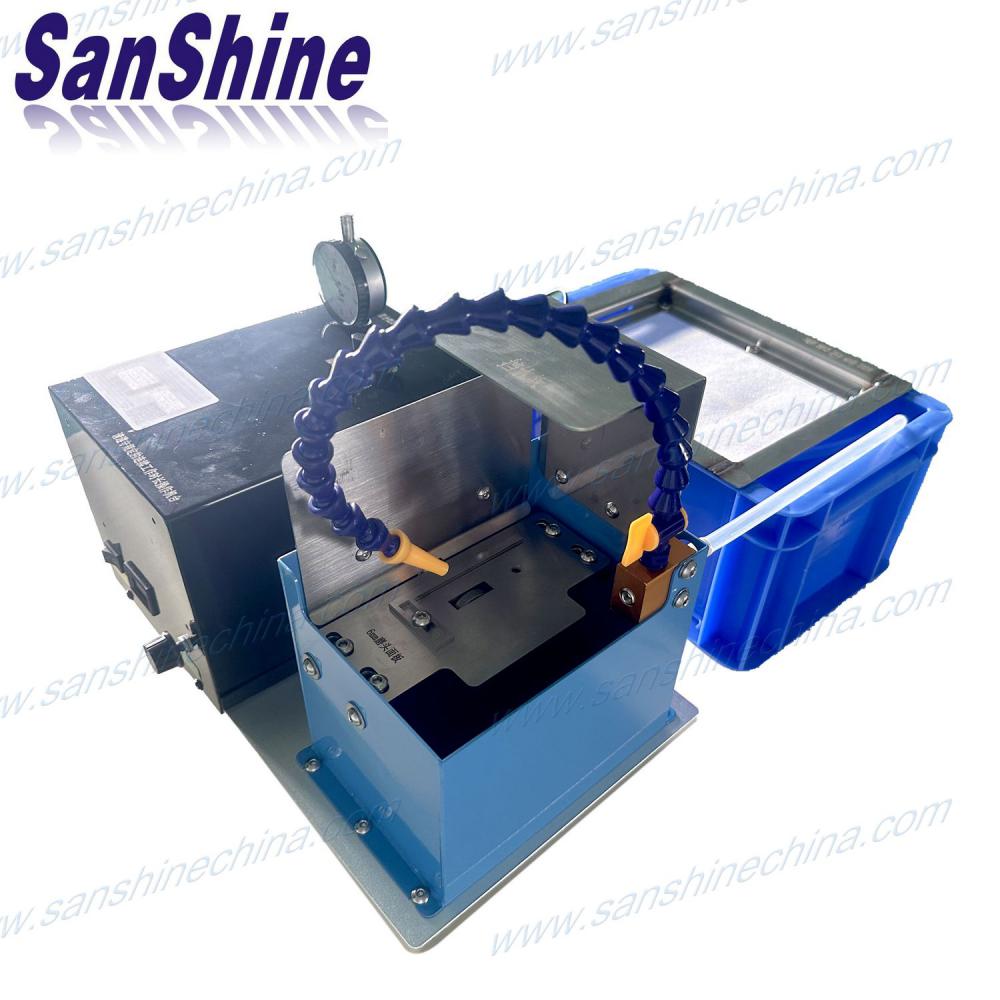

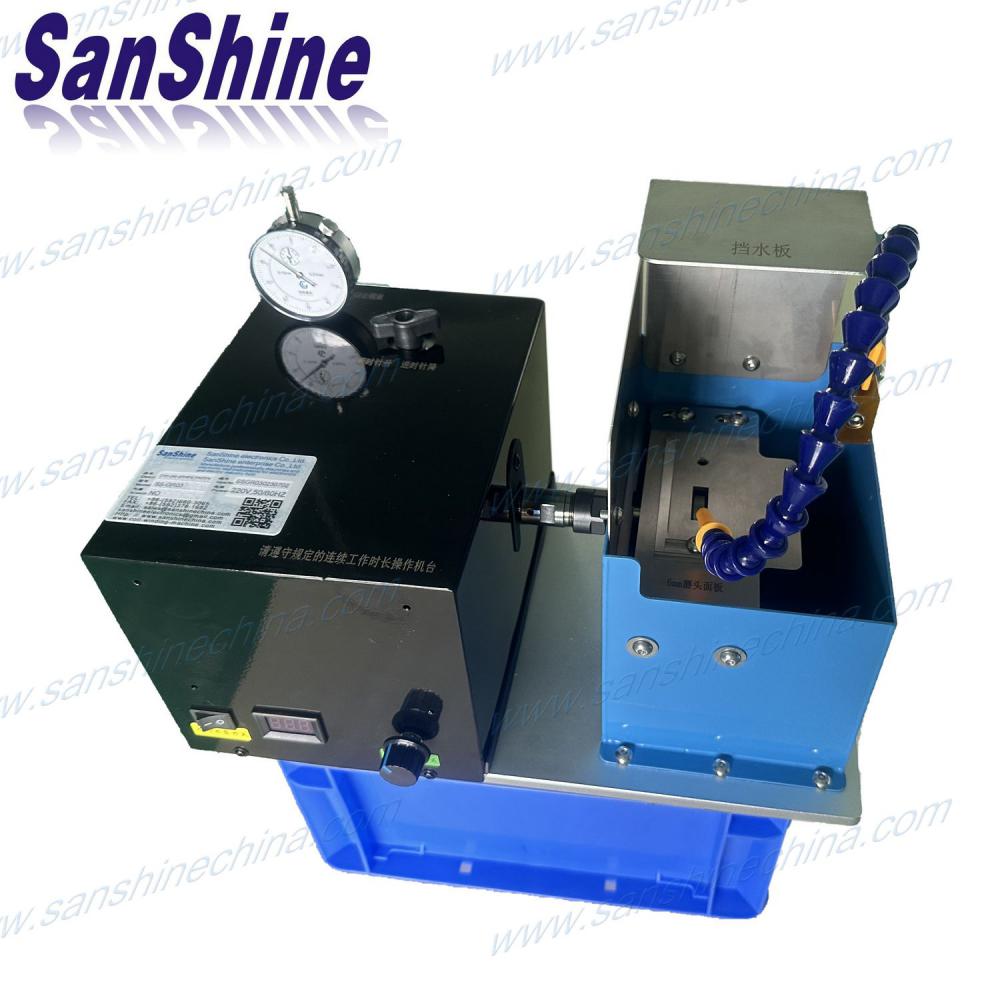

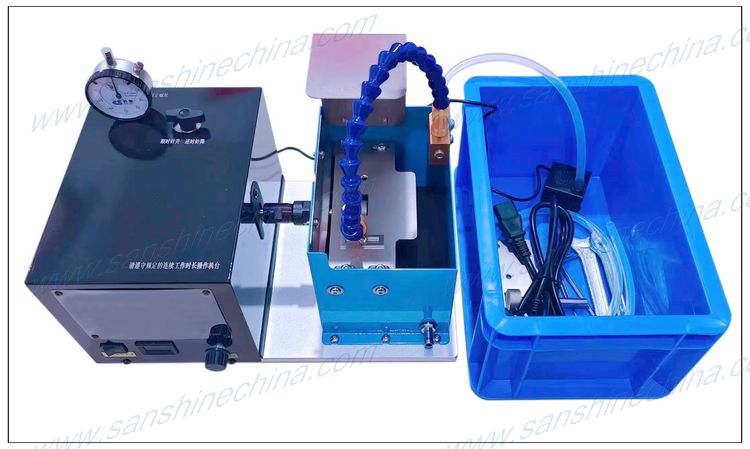

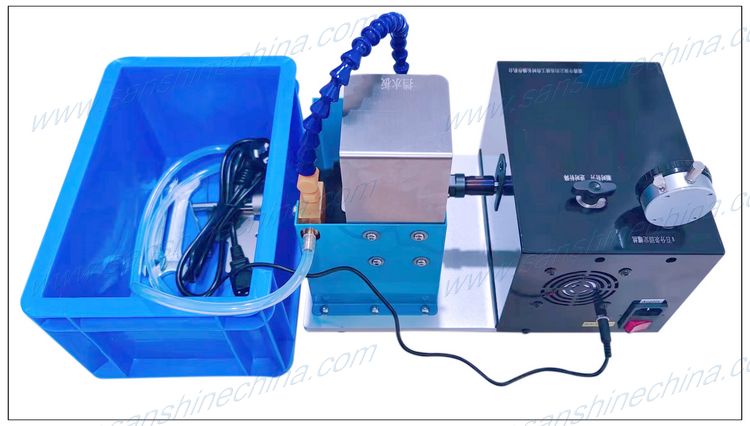

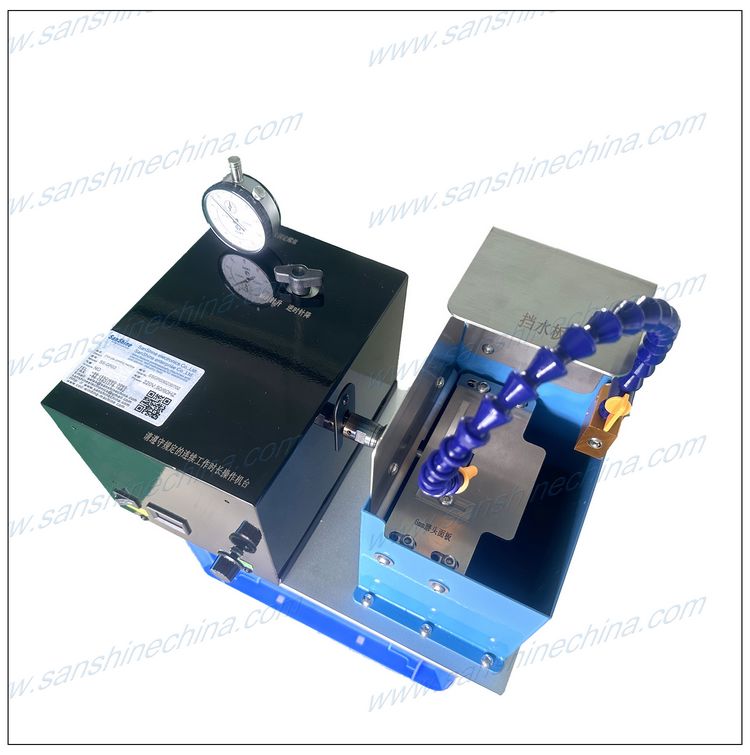

This small ferrite core air gap water type grinding machine (SS-GR03) is used for grinding the air gap of small ferrite cores of transformer and inductor.

Like as the EE and ER and PQ series cores. It adopts water to clean the core during grinding processing. This grinding machine is named transformer

core gap grinding equipment also.This machine is only suited for the engineering RD room with a few output quantity. It is one manual machine.

Feature of Small ferrite core air gap water type grinding machine (SS-GR03) :

Key features SS-GR02 SS-GR03 SS-GR04
Grinding way Manuallly holding core one by one Manuallly holding core one by one Manuallly holding core one by one
Grinding depth of core ≤4.5mm ≤4.5mm ≤4.5mm
Grinding air gap accuracy 0.01~0.03mm 0.01~0.03mm 0.01~0.03mm
Standard grinding wheel width 6 or 12mm 6 or 12mm 6 or 12mm
The height of grinding wheel Adjustable and display with dial indicator Adjustable and display with dial indicator Adjustable and display with dial indicator
Grinding motor power 680W 680W 1.5KW
Grinding motor type DC DC 3 Phases
Grinding motor speed adjustable Knob Knob Frequency converter
Grinding wheel speed Adjustable Max. 7000RPM Adjustable Max. 7000RPM Adjustable Max. 24000RPM
Grinding motor cooling None None Yes, by water or cooling oil of car
Core cooling None Yes Yes
Water pump None DC 12V DC 12V
Water box None Yes Yes
Grinded dust collection way DC 12V exhaust fan with bag filting net movable magnetic rolls box
Machine usage RD room RD room Production
Output capacitiy Low Low Small-Medium
Grinding motor working limited time Need be break < 1 hour worked Need be break < 1 hour worked Continually
Machine power source Single phase 220V, 50/60Hz Single phase 220V, 50/60Hz Single phase 220V, 50/60Hz
Machine net weight 8Kgs 8.5Kgs 47Kgs
Machine sizes (mm) L360*W250*Height 190 L360*W250*Height (190+150) L520*W420*Height 450
