200KHZ high level accuracy digital LCZ LCR meter

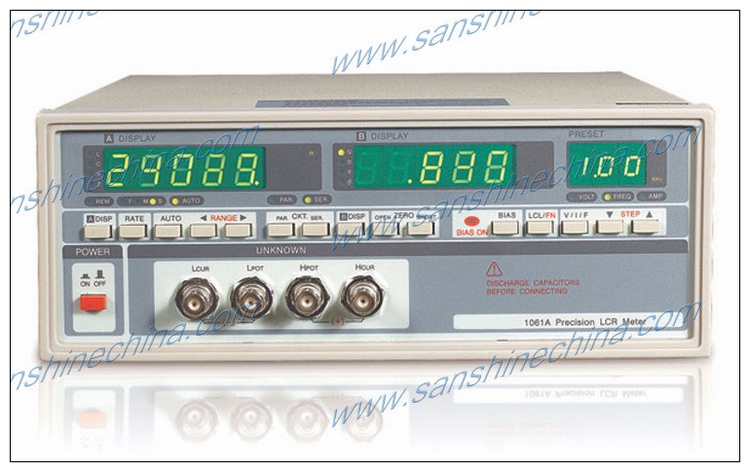

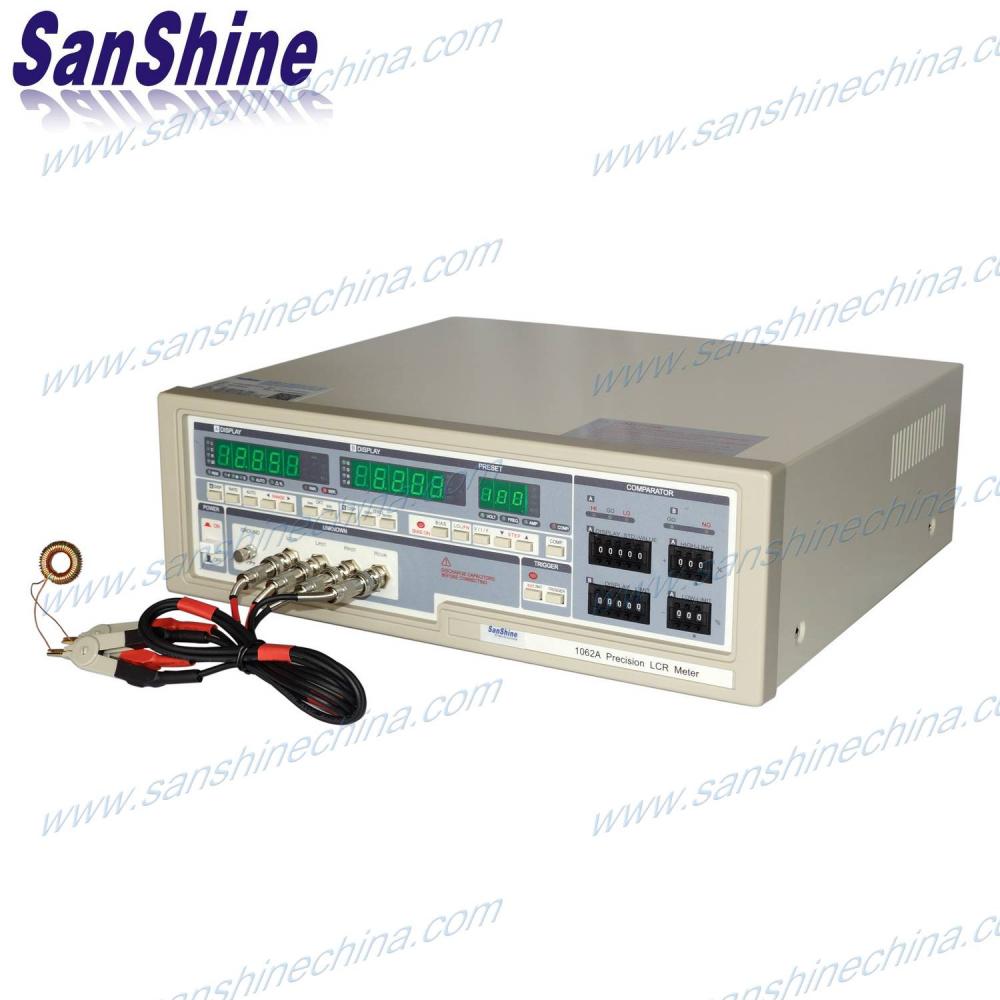

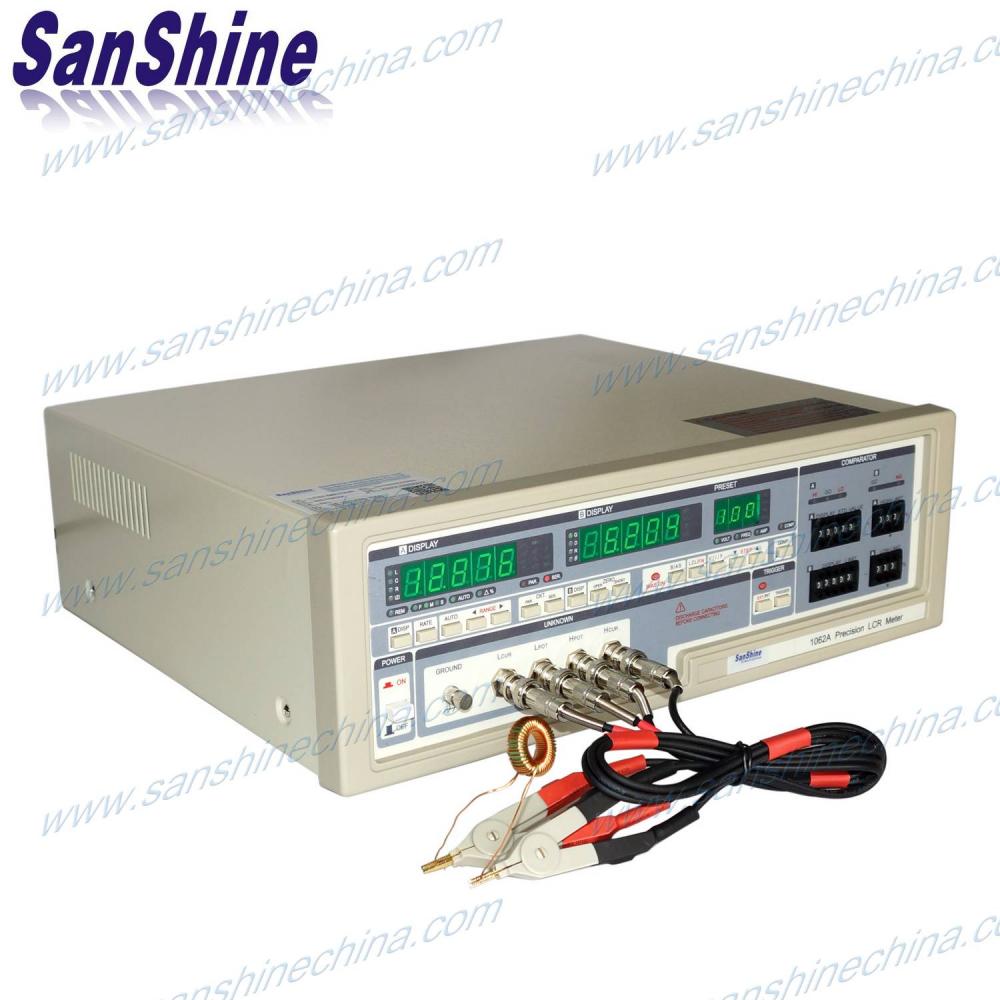

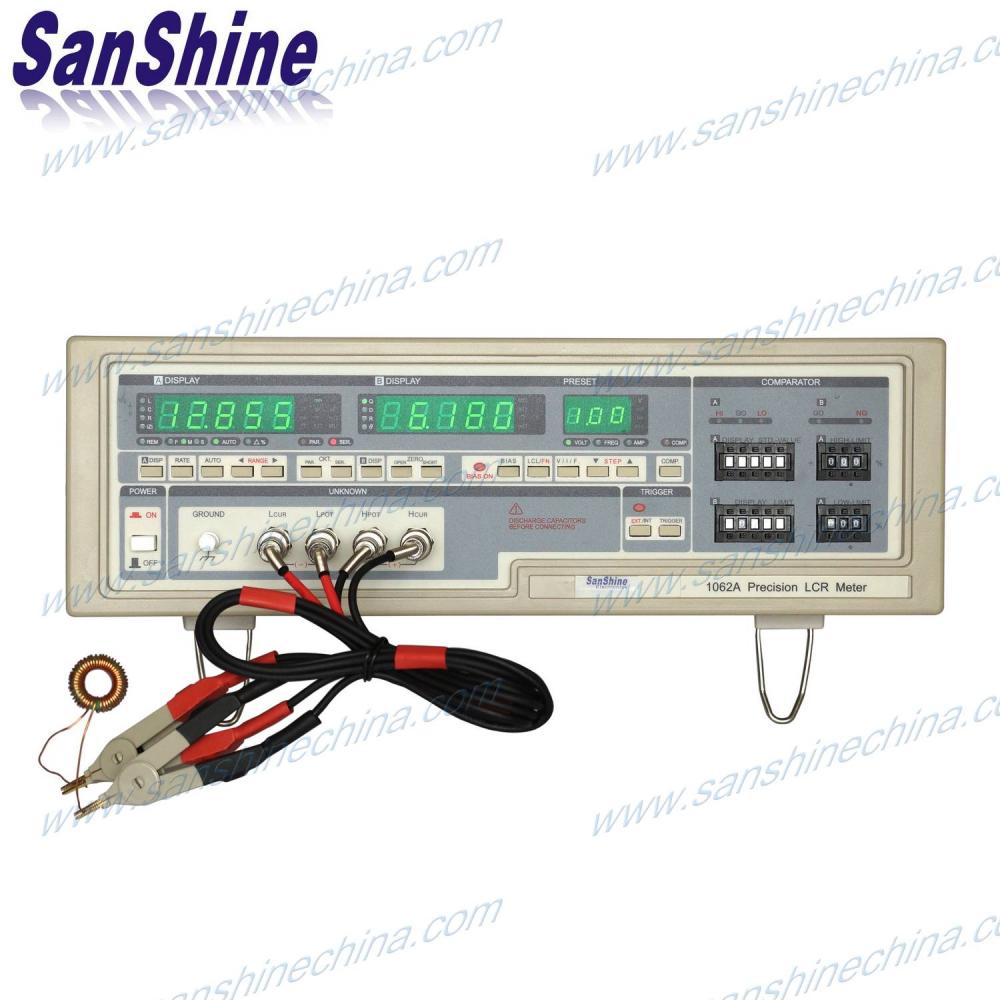

The 200KHZ high level accuracy digital LCZ LCR meter (SS1061A) is a high-grade component test instrument upgraded from SS106X series LCZ LCR testers. This meter is with 4 output impedance modes and measuring results compatible with other well-known LCR meters.
  • Item NO.:

    SS1061A
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray
contact now User's reviews

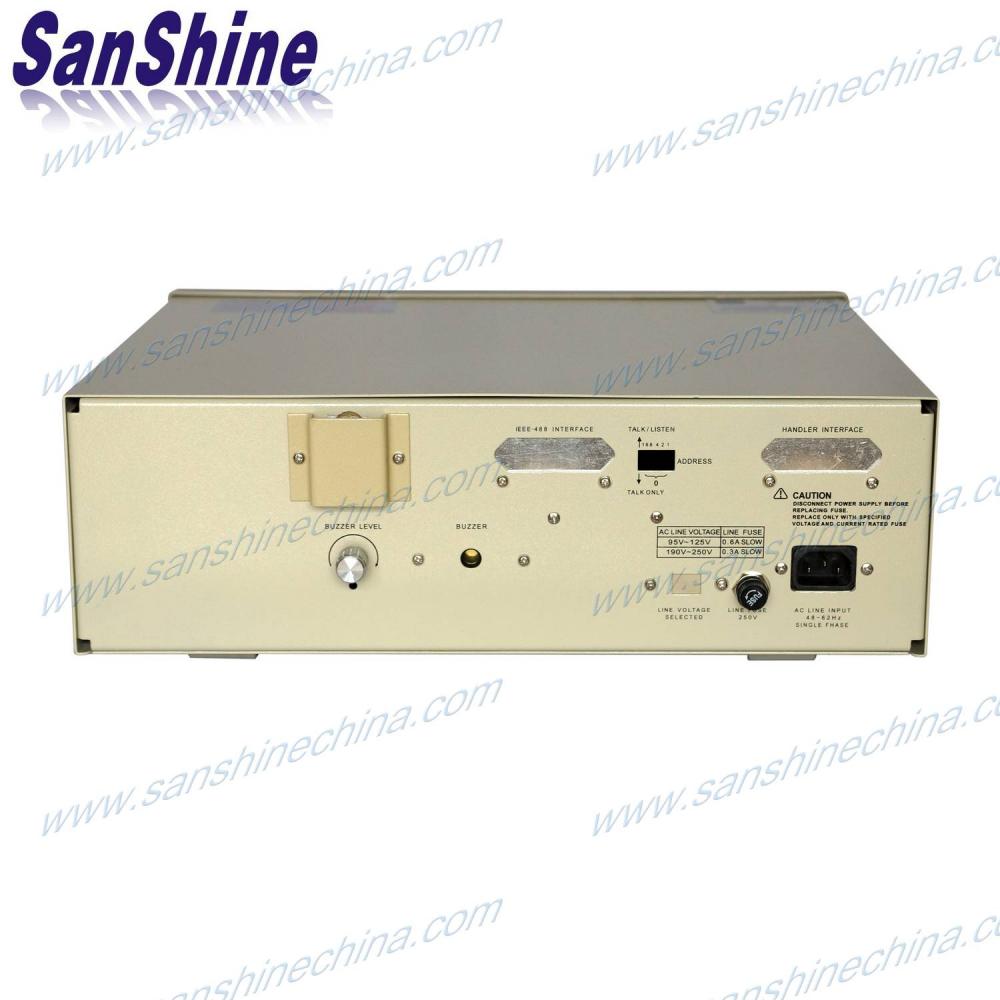

Description

Product name : 200KHZ high level accuracy digital LCZ LCR meter (SS1061A)

Agilent 4284 LCR meter

Description :

The 200KHZ high level accuracy digital LCZ LCR meter (SS1061A) is a high-grade component test instrument with high testing frequency and high testing level signal. This 200KHZ high level accuracy digital LCZ LCR meter (SS1061A) can substituted Chroma LCR meter 1061A and Zentech LCR meter 1061A fully and easily. This 200KHZ high level accuracy digital LCZ LCR meter (SS1061A) is upgraded from SS106X series LCZ LCR testers, It is with 4 output impedance modes and measuring results compatible with other well-known LCR meters.

Key feature :

Test frequency: 40Hz ~ 200KHz

Test voltage: 10mV ~ 2.5V, 10mV/step

4 output impedance modes: 25Ω, 100Ω, 50Ω, 2Ω

Direct comparison: HP4284, GR1689, WK3245, NF2330

Order Items :

SS1061A

SS1062A

4-terminal test clamp(within tester)

Test pen(optional)

Test box(optional)

SMD test wire(optional)

Specification :

Model

SS1061A

SS1062A

Test parameter

Main display

L ,C, R, Z

Subaltern display

Q ,D ,ESR ,θ

Measure signal

Meas. Level

10mV~2.5V,10mV/step

Meas. Frequency

40HZ~200KHZ

Frequency accuracy

±0.15%

Out impedance

25Ω±5% ,100Ω±5% ,50Ω±5% ,2Ω±10%(load impedance ≥ 10Ω)

Measure Range

Main parameter

L(0.00001uH ~ 9999.99H),

C(0.0001pF~9999.9mF)

R(0.0001mΩ~9999.9MΩ),

Z(0.0001mΩ~9999.9MΩ)

Subaltern parameter

Q, D(0.0001~9999.9),θ(-90.00°~90.00°), Δ %(0.0001%~99999%)

Base accuracy

0.15% (AC parameter 1KHZ )

Measure speed (1KHZ )

Best fast

13Measurement/S

Fast

10Meas./S

Middle

5Meas./S

Slow

1Meas./S

Trigger

internal

internal, external, manual

Display

L,C,Z,R

5pcs digitals

Q,D,R, θ

5pcs digitals

Frequency ,level

3pcs digitals

Q,D,R, θ

5pcs digitals

DC base

0

Revising function

open, short

Equivalent circuit model

series ,parallel

Automatic judgement

pass or fail

Common specification

Environment

temperature :10 ºC ~ 40 ºC ,humidity :10%~90%RH

Power consuming

Max.55W

Power

90~125V , or 190~250V,, 48HZ~62HZ

Weight

5.4Kg

7.5Kg

Meas. (W×H×L )

270×105×350mm

405×130×365mm
