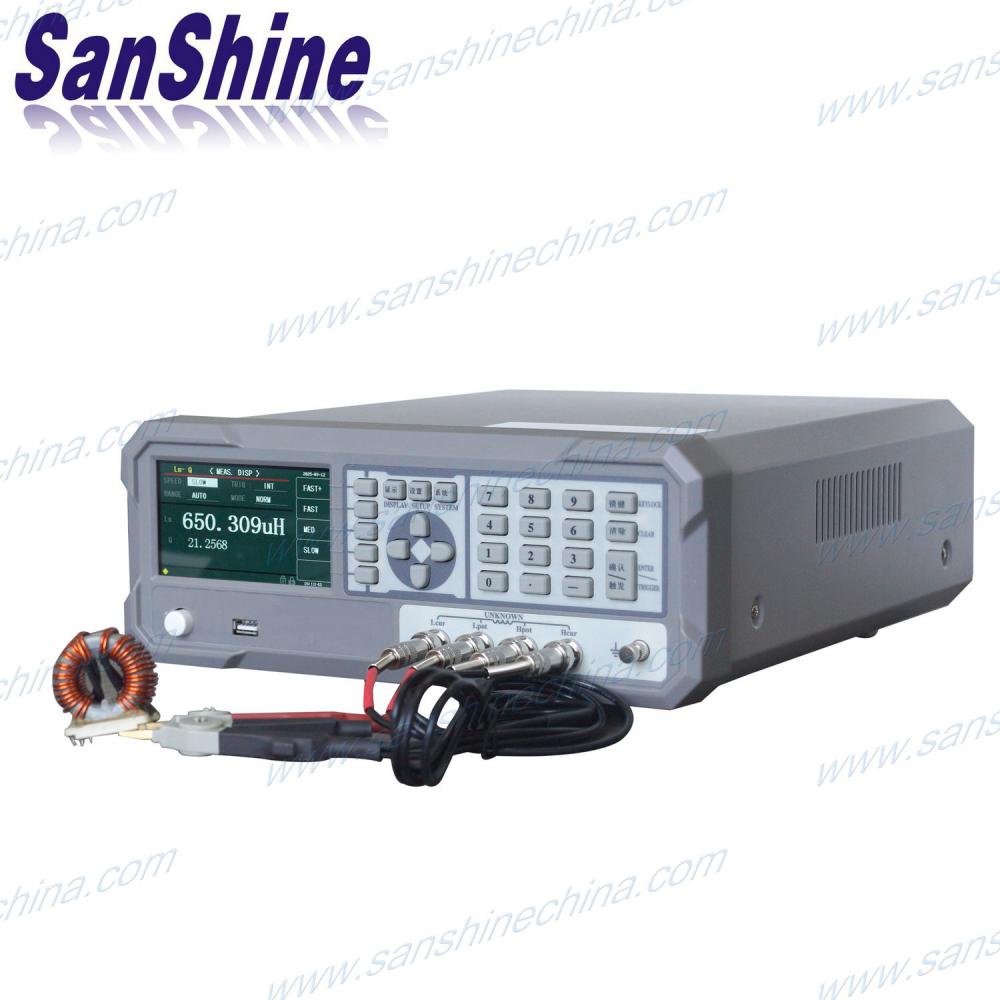

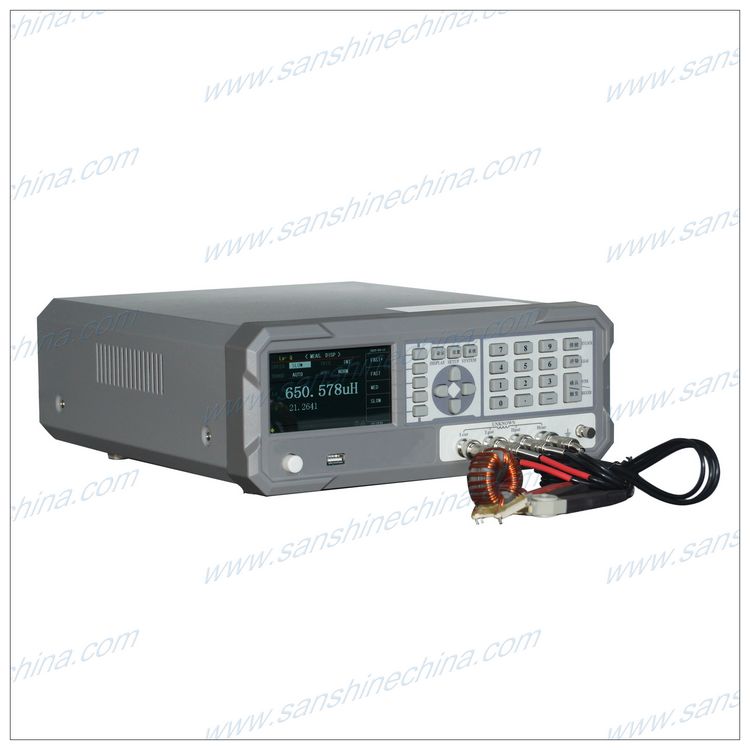

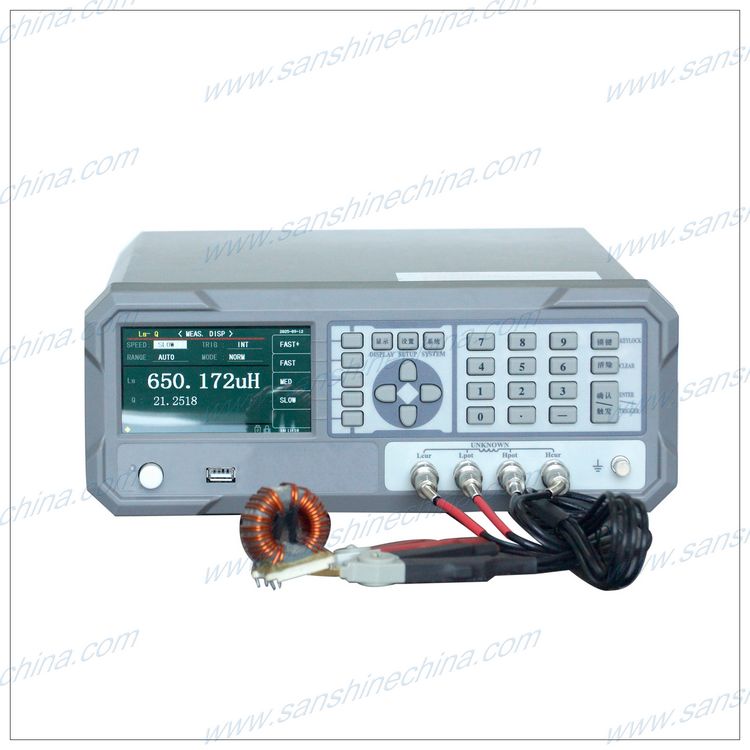

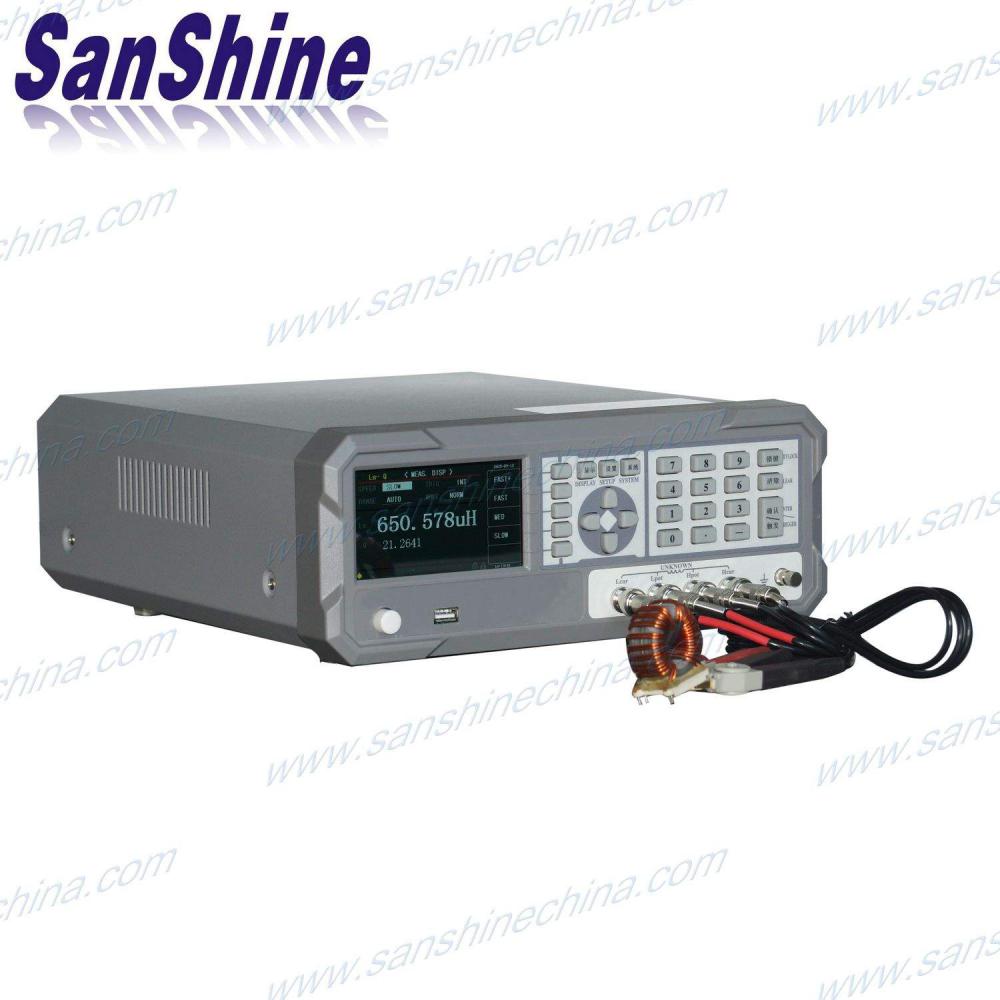

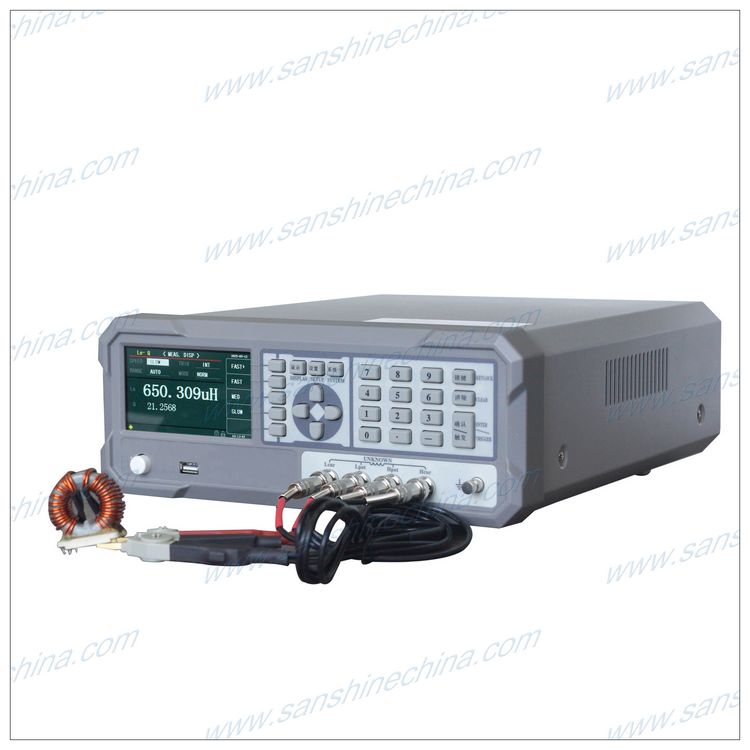

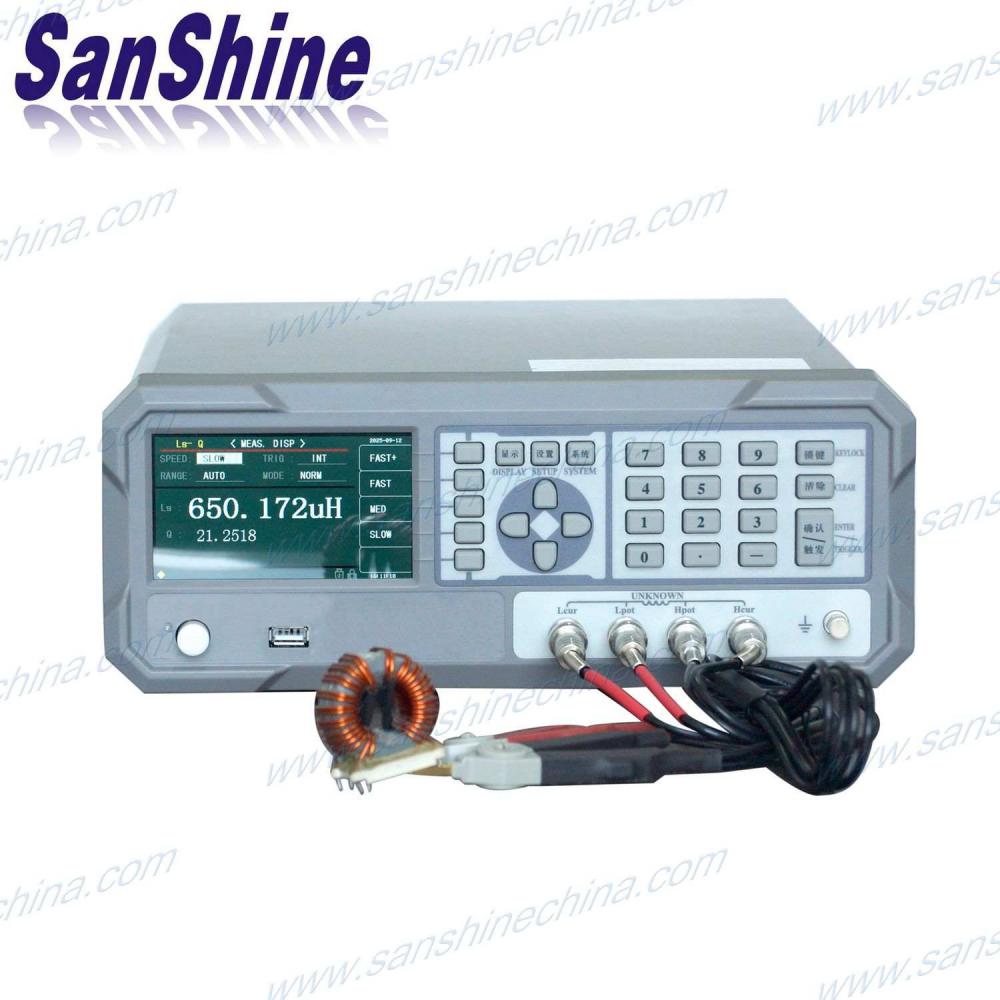

SS2818A/B Precision LCZ Tester: High-Accuracy LCR Measuring Instrument

SS2818A/B Precision LCZ Tester is a high-precision, high-stability impedance measuring instrument with fast testing speed, wide measurement range, and large data storage capacity. Equipped with an advanced 32-bit microprocessor and 4.3-inch color display, it features a user-friendly interface for quick and easy operation, supporting routine, comparison, sorting, and scanning measurements. With large-capacity data saving and reading functions, it provides a reliable basis for product quality control and characteristic analysis, fully meeting diverse testing needs. Additionally, it comes with Handler interface and RS-232C serial communication port, enabling automated measurement, remote control, and data transmission.

Item NO.:
SS2818A/B
Product Orgin:
China
Brand:
SanShine
Shipping Port:
XIAMEN,CHINA
Color:
Gray

contact now User's reviews

Description

Product name : SS2818A/B Precision LCZ Tester

Description :

The SS2818A/B Precision Precision LCZ Tester stands as a professional impedance measuring instrument engineered for high-precision (±0.1% basic accuracy) and long-term stability, boasting rapid testing response (<5ms typical), an ultra-wide measurement range (1mΩ to 100MΩ), and expansive data storage (up to 10,000 sets). Powered by an advanced 32-bit ARM microprocessor and featuring a 4.3-inch high-resolution color LCD, its intuitive menu-driven interface ensures streamlined operation, supporting versatile measurement modes including routine testing, comparative analysis, component sorting, and sweep scanning.

With robust data management capabilities—enabling mass storage and quick retrieval of test parameters and results—it delivers actionable insights for product quality control and characteristic evaluation, effectively addressing diverse testing requirements across industries. Complemented by integrated Handler interface and RS-232C serial communication, the tester facilitates seamless integration into automated testing systems, enabling remote control and real-time data transmission for enhanced workflow efficiency.

Key feature :

■ 4.3-inch color screen display

■ Test frequency: 50Hz to 200KHz, arbitrarily settable (SS2818A only)

■ Test frequency: 50Hz to 200KHz, 37 selectable fixed frequency points (SS2818B)

■ Test level: 10mV～2V with 10mV step (When the internal resistance is 10Ω, the maximum settable voltage is 1V)

■ Basic accuracy: 0.05%

■ High-speed and efficient measurement: up to 32 times/second

■ Load correction: The instrument performs calculation and correction according to specific samples and parameters to obtain the required test data.

■ Comparator function: After setting one or more sets of range values for the parameter items of product measurement, the instrument can compare the obtained measured values with the set values to determine whether the product is qualified or unqualified.

■ Real-time recording of measurement results, with relevant information such as measurement date, product measurement data file name, and statistics of daily measurement times; data is not lost when the device is turned on or off

■ File management function: Can store 100 sets of product test data

■ Sorting function: Subdivides product grades and cooperates with the control mechanical sorting system to sort and classify products.

■ Voltage (V) and current (I) test signal level monitoring function

■ Can perform scanning measurement on up to 8 frequency points or 8 voltage points, and display the measurement results simultaneously

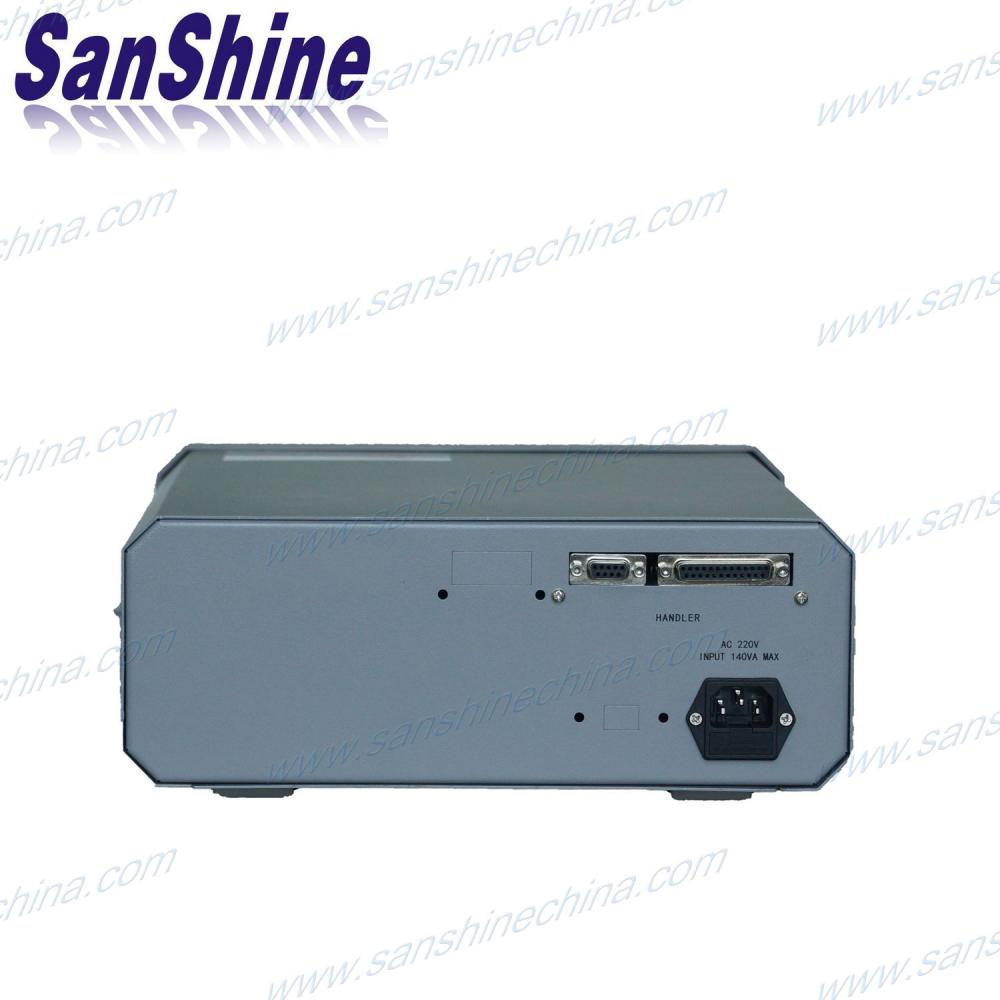

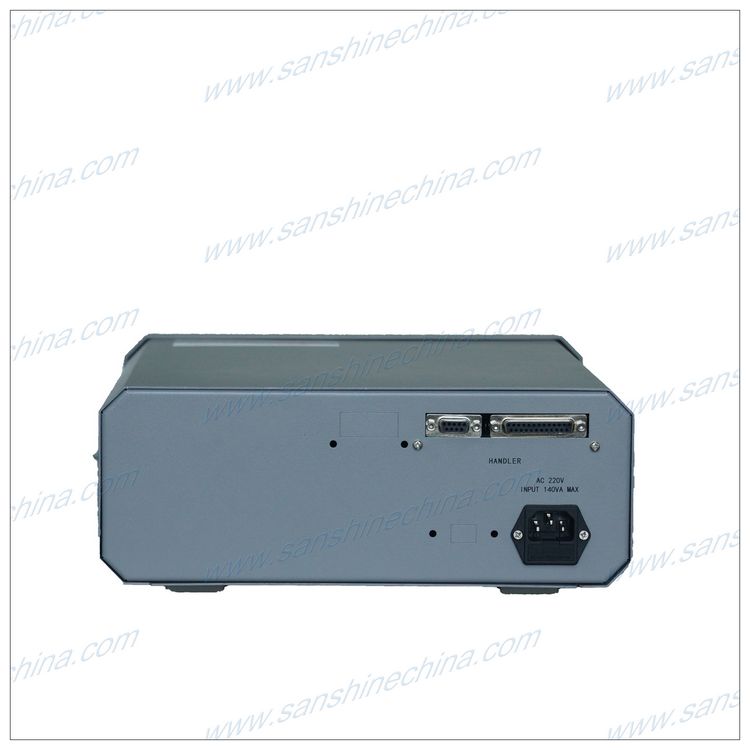

■ Communication interface: RS232C/HANDLER

Ordering Information

SS2818A Precision LCR Digital Bridge

SS2818B Precision LCR Digital Bridge

Instrument Accessories

SMD Test Leads

Test Box

Test Probe

Four - Terminal Test Clamp

GPIB Interface Board

Data Acquisition Software

Specification :

General Specifications:

Temperature & Humidity		0℃-40℃,≤90%RH
Power Supply	Voltage	200-240V
	Frequency	60Hz
· 功耗Power Consumption		≤60 VA
Dimensions (W×H×D)		300mm×120mm×360mm
Weight		Approximately 3.5 kg

Specifications:

Measurement Functions
Measurement Parameters	Ls-Q, Ls-Rs, Lp-Q, Lp-Rp, Cs-D, Cs-Rs, Cp-D, Cp-Rp, Z-deg (angle), Y-deg (angle), R-X, G-B (conductance, susceptance)
Basic Accuracy	0.05%
Testing Speed	Fast: 32, Medium: 9, Slow: 4 (times/second)
Equivalent Circuits	Series, Parallel
Trigger Modes:	Internal, Manual, External
Calibration Functions	Open/Short, Full-frequency 清零，Single-point frequency 清零
Display	4.3-inch color screen
Memory	100 groups internally, multiple groups via external USB flash drive
Testing Signals
Testing Frequency	SS2818A	50Hz-200KHz, Resolution: 10mHz
	SS2818B	20Hz-200KHz, 37 commonly used frequency points
Output Impedance	10Q,30Ω,50Ω,100Ω
Testing Level:	10mV～2V, Resolution: 10mV
Measurement Display Range
Z,R,X	0.01mΩ~9999.99MΩ
Y,G,B	0.01nS～999.999S
C	0.00001pF～9999.99mF
L	0.01nH～9999.99H
D	0.00001～9.99999
θ(Deg)	-179.9°-179.9°
Q	0.00001～99999.9
