programable automatic fish string rewinding machine

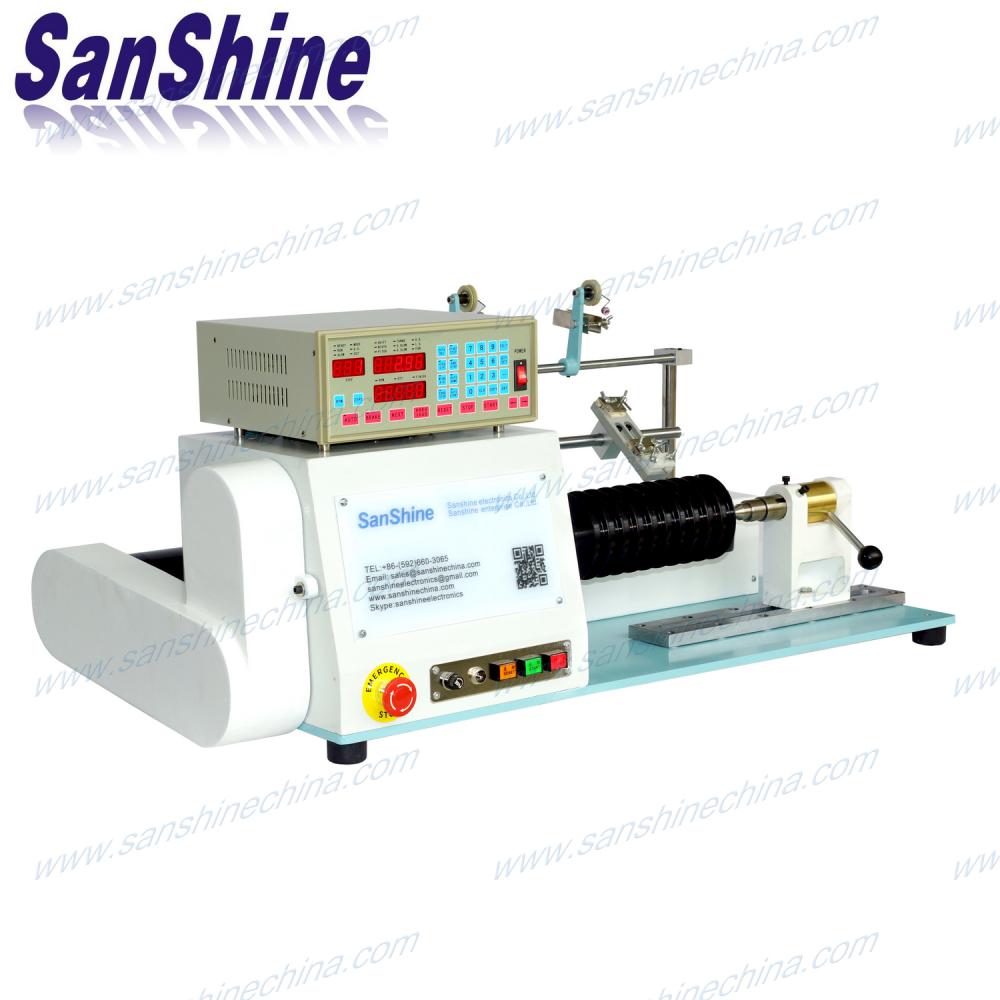

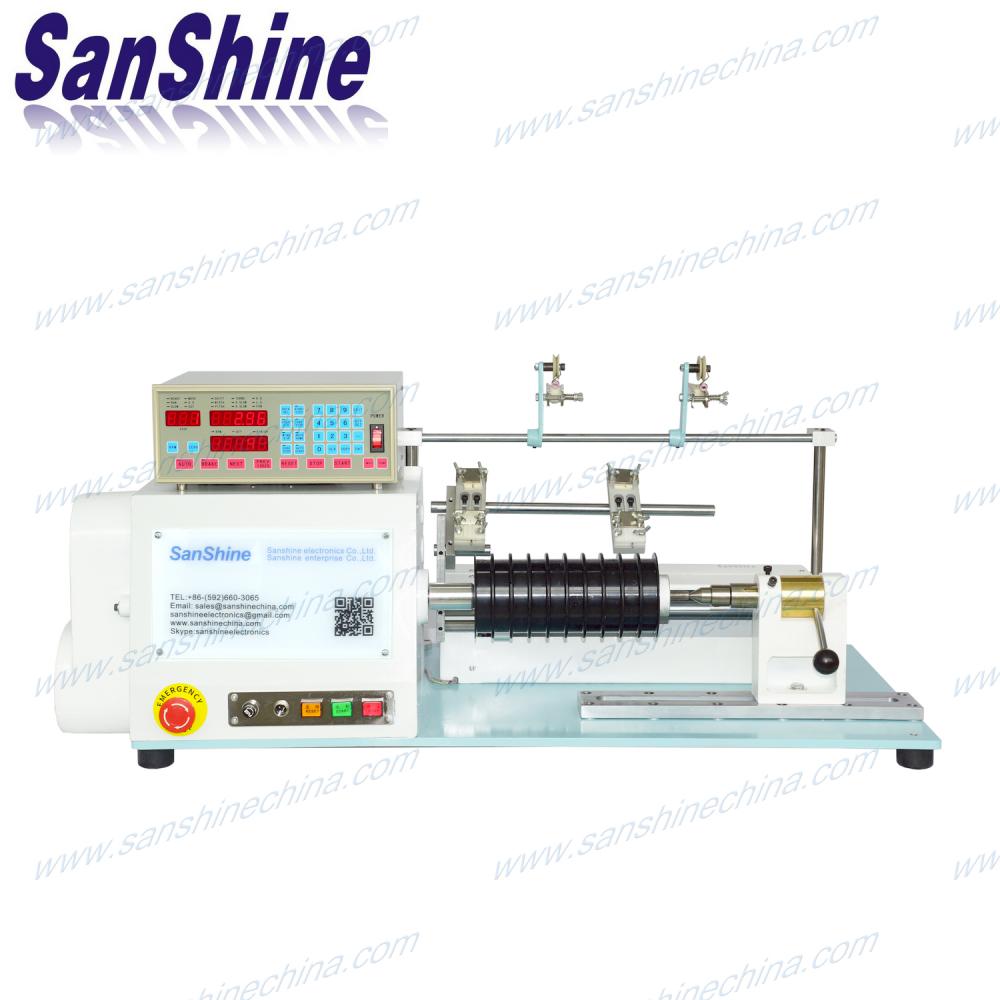

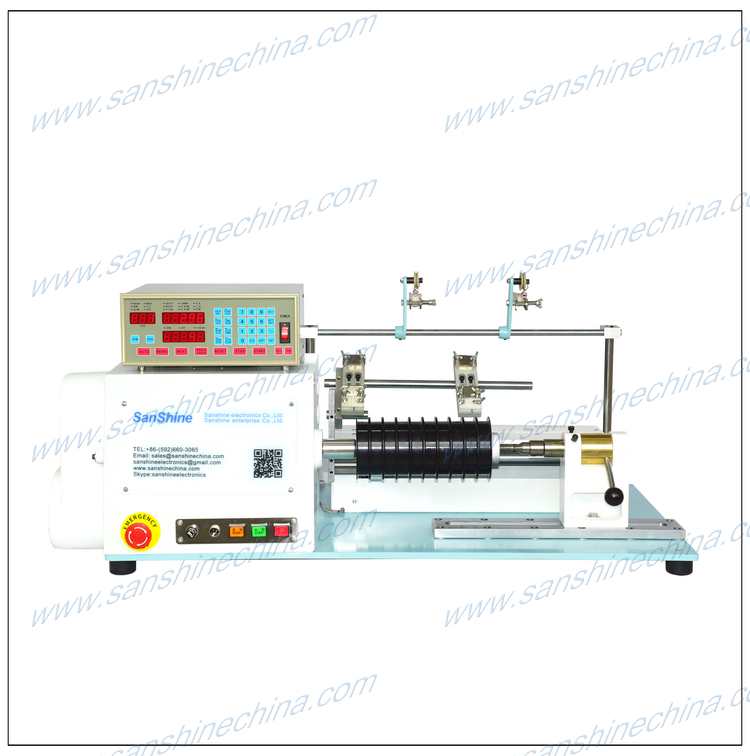

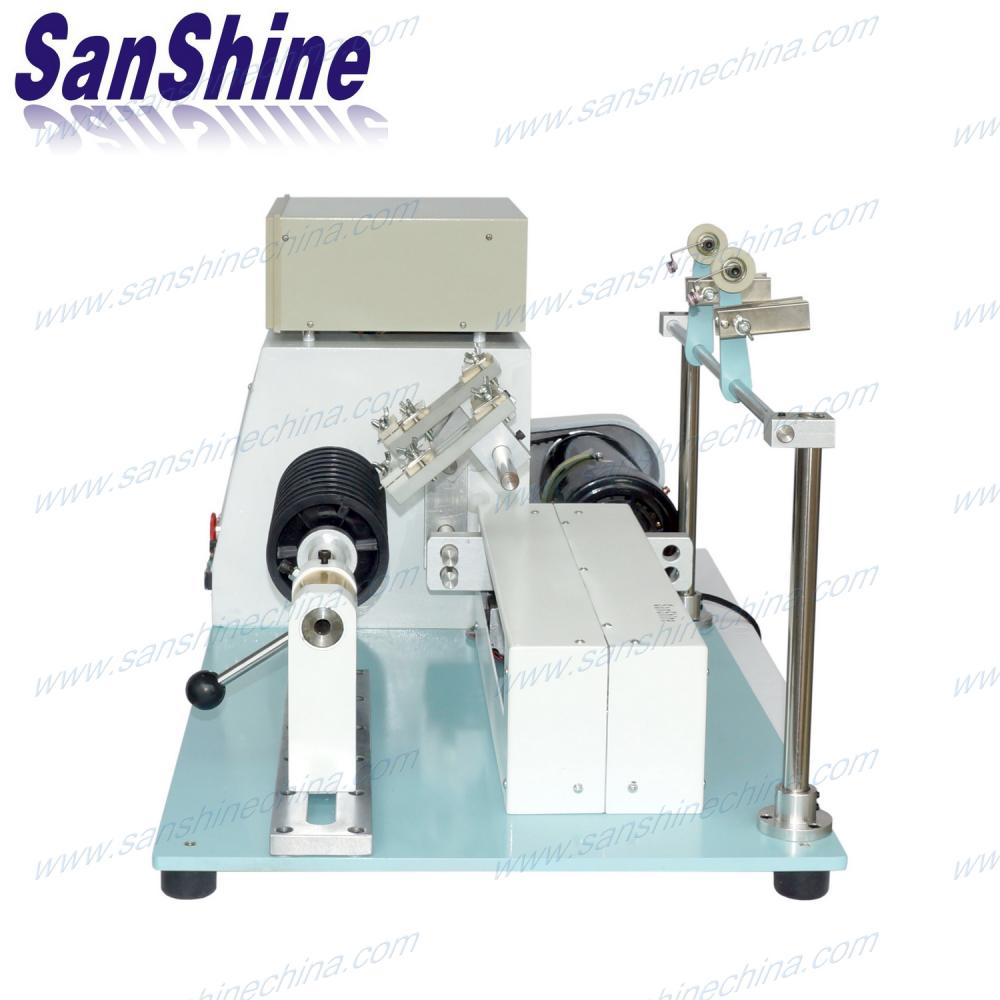

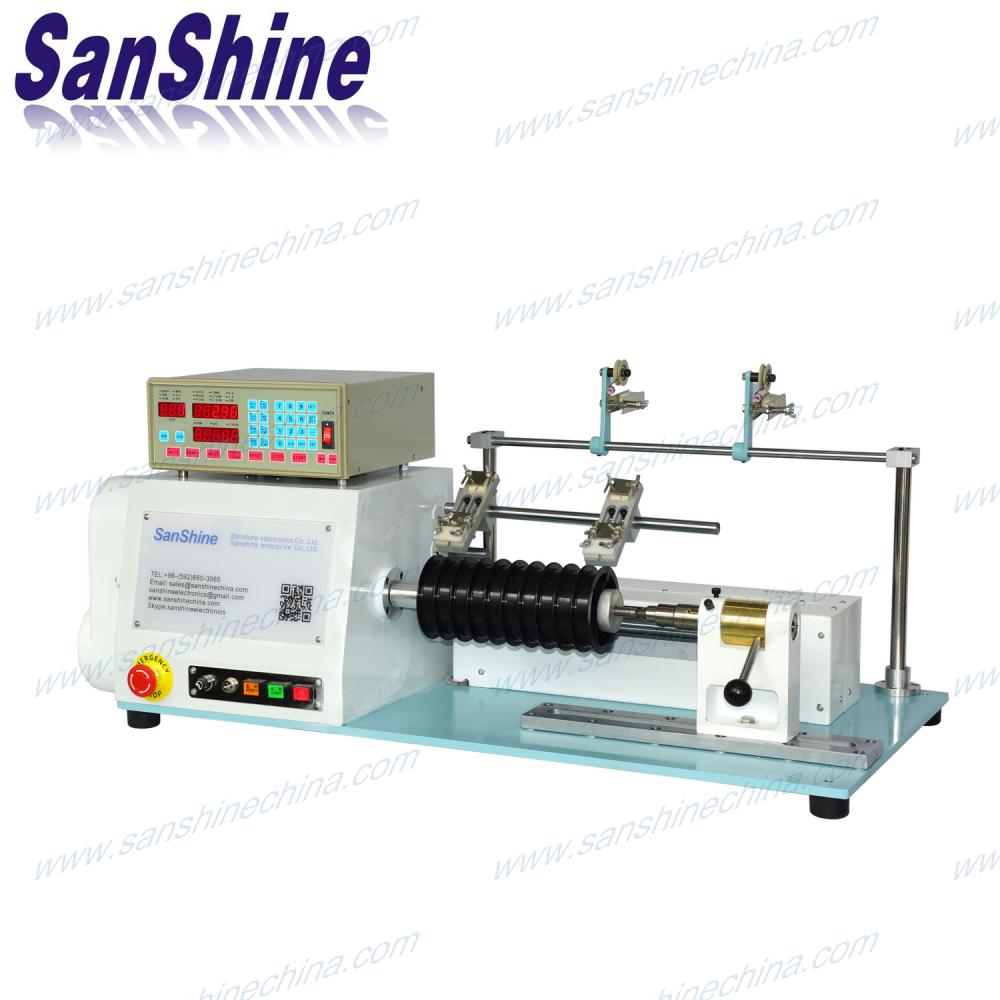

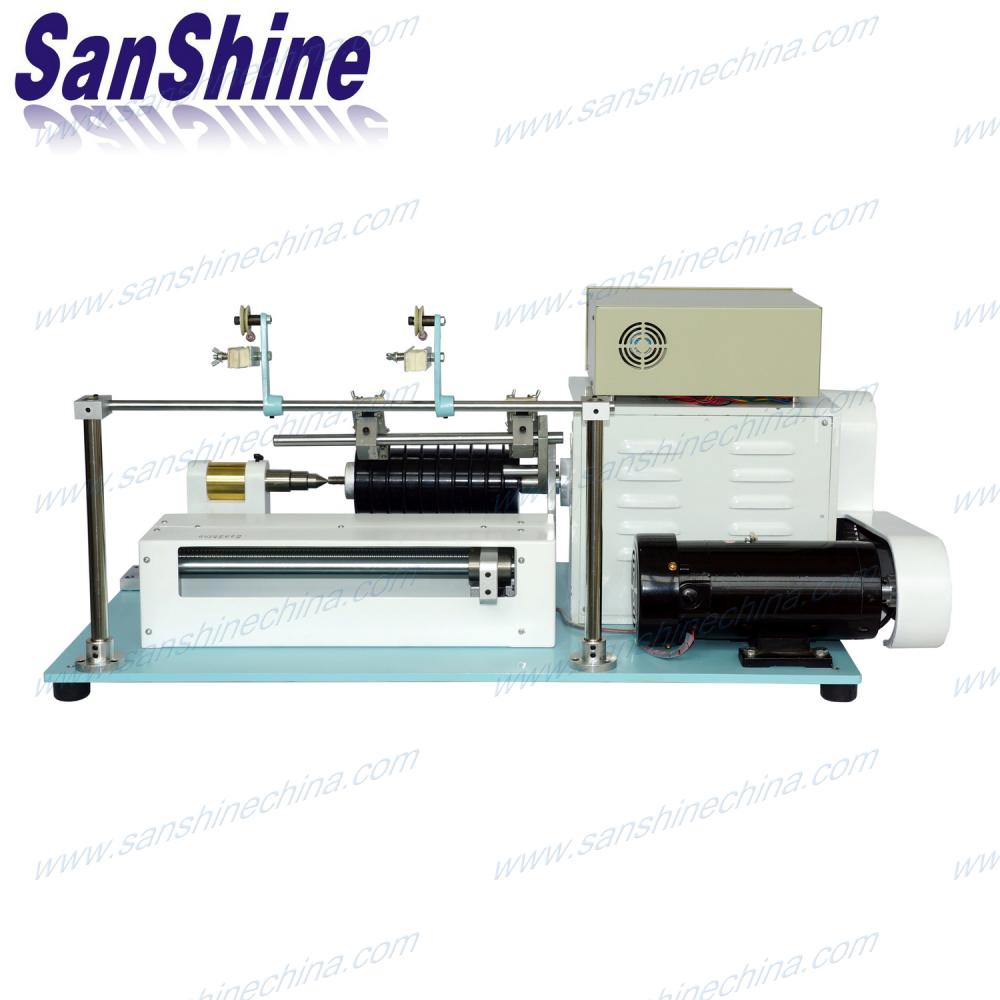

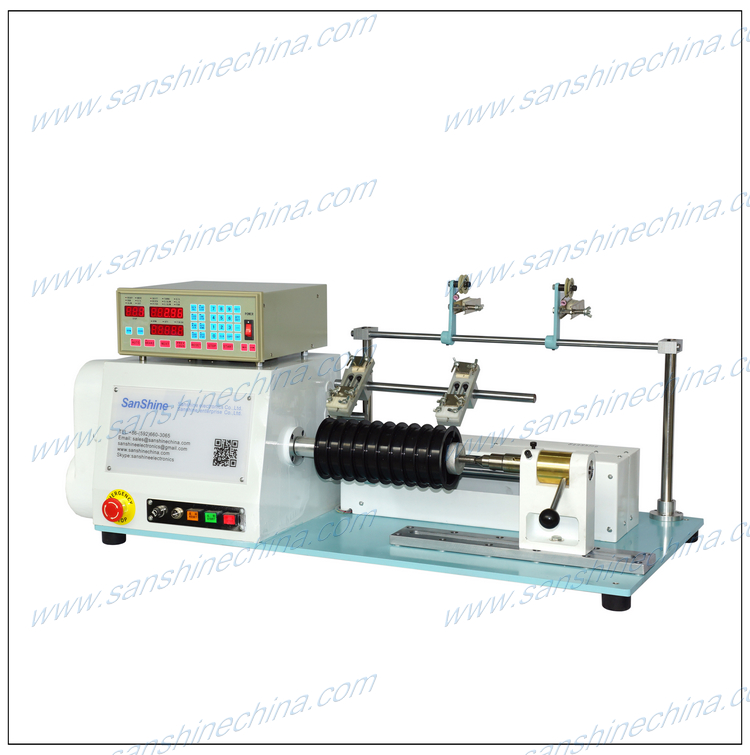

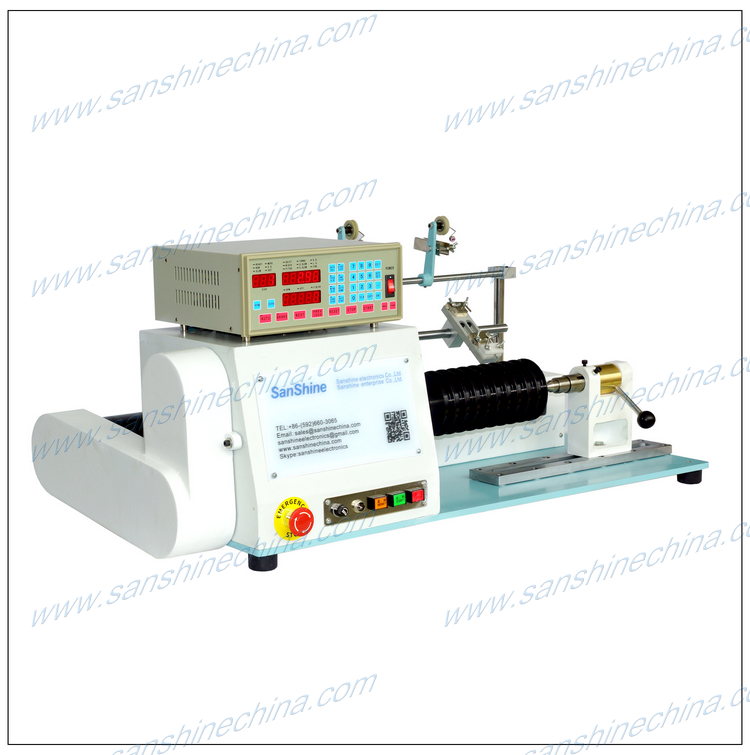

The programable automatic fish string rewinding machine (SS-RW02) is one precise digital fish wire coil rewinding machine. This fish wire rewinder is the best choice for rewinding fish string, rewinding fish wire, rewinding fish thread, rewinding plastic string, etc. .This rewinding machine is called also nylon thread rewinding machine.
  • Item NO.:

    SS-RW02
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    White and blue
contact now
Description

Product name : Programable automatic fish string rewinding machine (SS-RW02)


polyester string rewinding machine

rebar wire spool rewinding machine

metal wire spool rewinding machine

plastic string rewinding machine

fish string rewinding machine

Description :

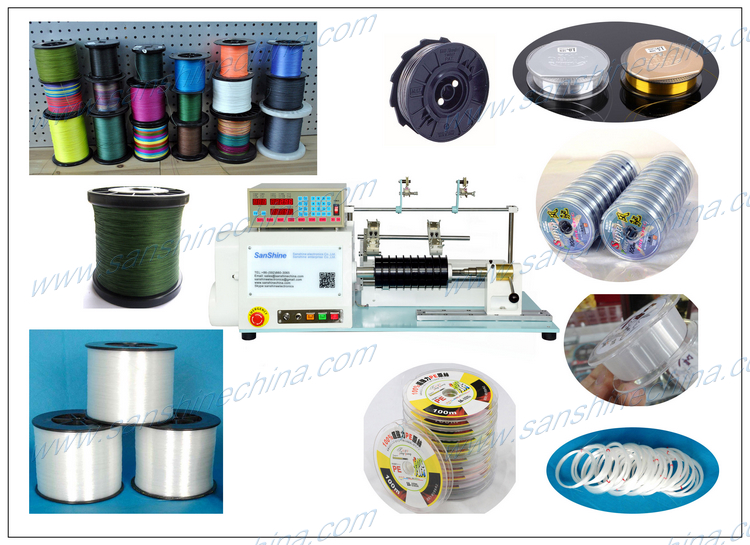

The programable automatic fish string rewinding machine (SS-RW02) is one High-Torsion digital precise coil rewinding machine. This rewinding machine is a digital programmable coil rewinding machine with 500W DC winding motor. The capacity of maximum wire diameter can reach 3.0mm. This fish wire rewinder is the best choice for rewinding fish string, rewinding fish wire, rewinding fish net wire, rewinding solder wire, rewinding wires, rewinding plastic string, etc. from 1 large wire spool within a lot of wire onto the small spools. This machine be named fish wire bobbin winding machine and fish net wire rewinding machine also. This machine can be customized according to coil size by requested.

Feature :

1. Microprocessor designing, easy for program-setting, operation. Precise photoelectric turns sensor makes sure turns be accuracy.

2. Stepper motor driven by constant-current power supply, high spreading speed precise winding.

3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting up.

4. Wire passing through ceramic rollers so that protect the wire from high temperature.

5. Two wire spreading heads with winding nozzles make sure the spreading wire precise and be high efficiency for the small wire bobbins.

6. Foot-switch connection for better efficiency.

7. Winding parameters and options can be set up.

Specification :

Model

SS-RW02

Spindle Number

1

Wire diameter

0.5~3.0mm

Spread pitch

0~9.999mm

Spread width(traverse)

350mm

Finished coil diameter

200mm

Winding motor

500W DC Motor

Spread motor

4-Phase Stepper Motor

Max. speed

1600 / 400rpm

Memory

999 Steps

Power source

AC220V/110V + 10%, 50/60 Hz

Dimension(cm)

70x52x60

Net weight

42kgs
