Single chanel wire coil winding intertun insulation impulse surge tester

The SS100WS-3 and SS100WS-5 single chanel wire coil winding intertun insulation impulse surge testers are best suited for decting the insulation of turn to turn of the single winding coils, such as solenoid valvecoil, relay coil, inductor choke coil, voice coil, current sensors, current contactor coil, RFD coil, charger coil, transformer coil, etc. .

Item NO.:
SS100WS-3 or SS100WS
Product Orgin:
China
Brand:
SanShine
Shipping Port:
XIAMEN,CHINA
Color:
Gray

contact now User's reviews

Description

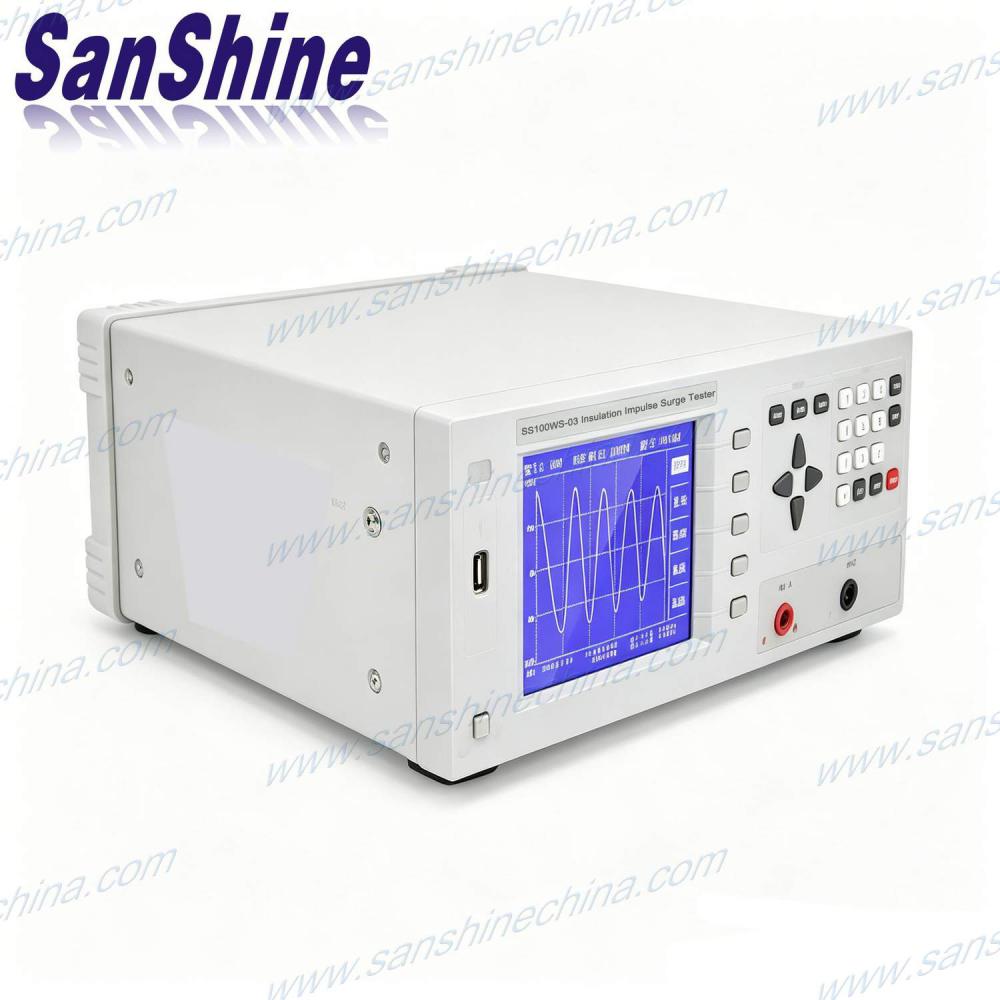

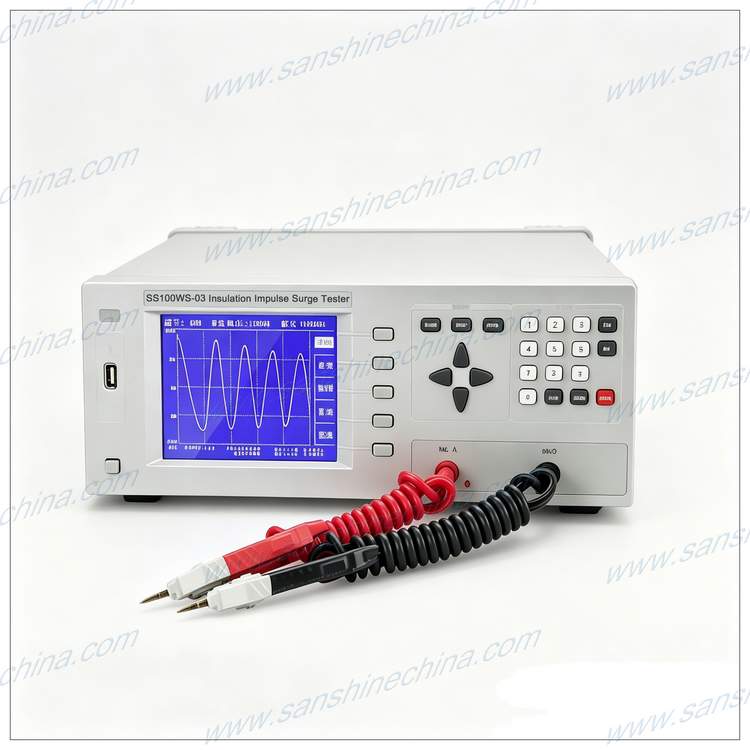

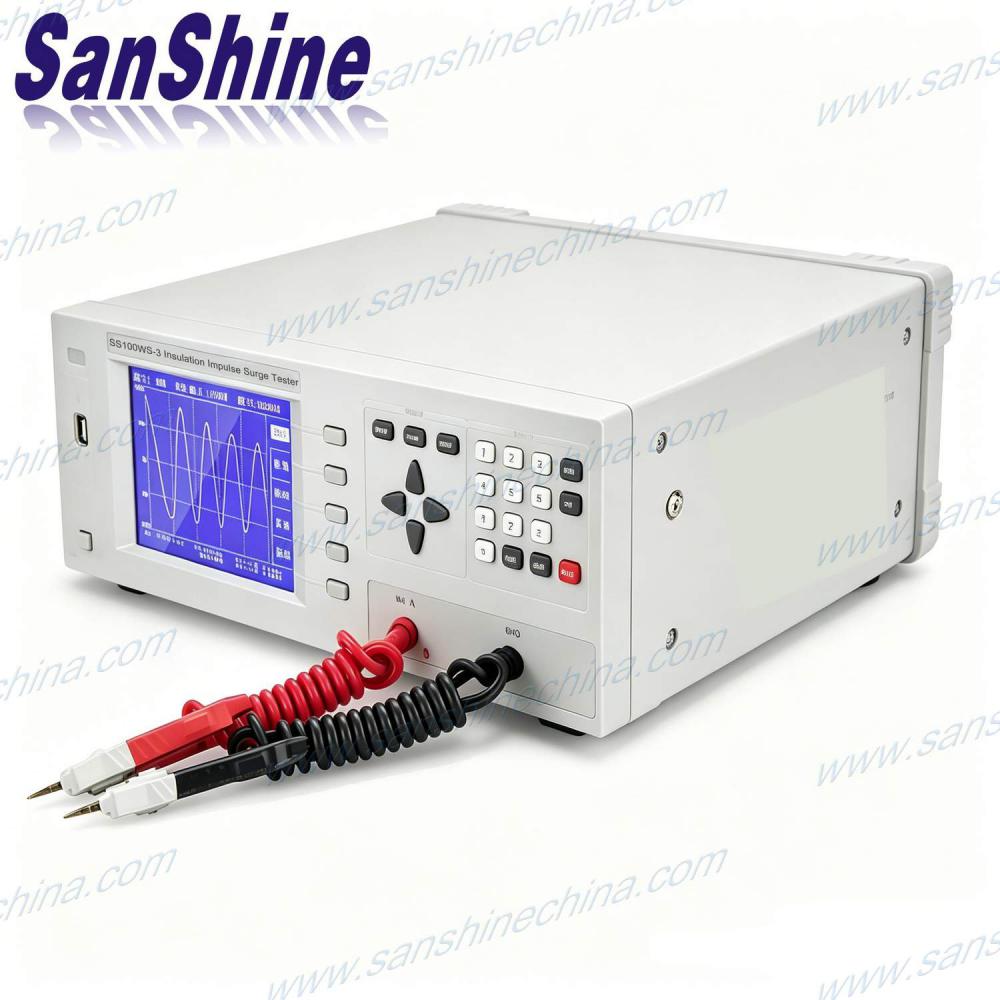

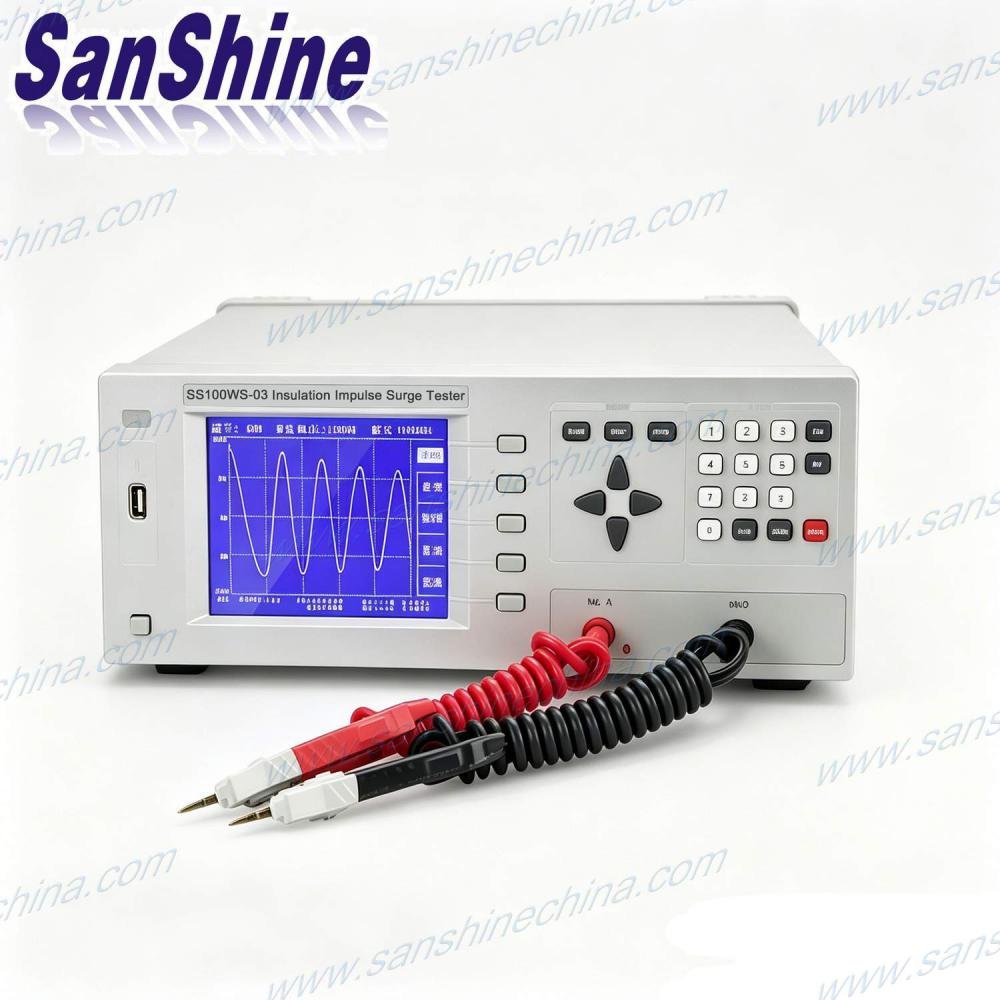

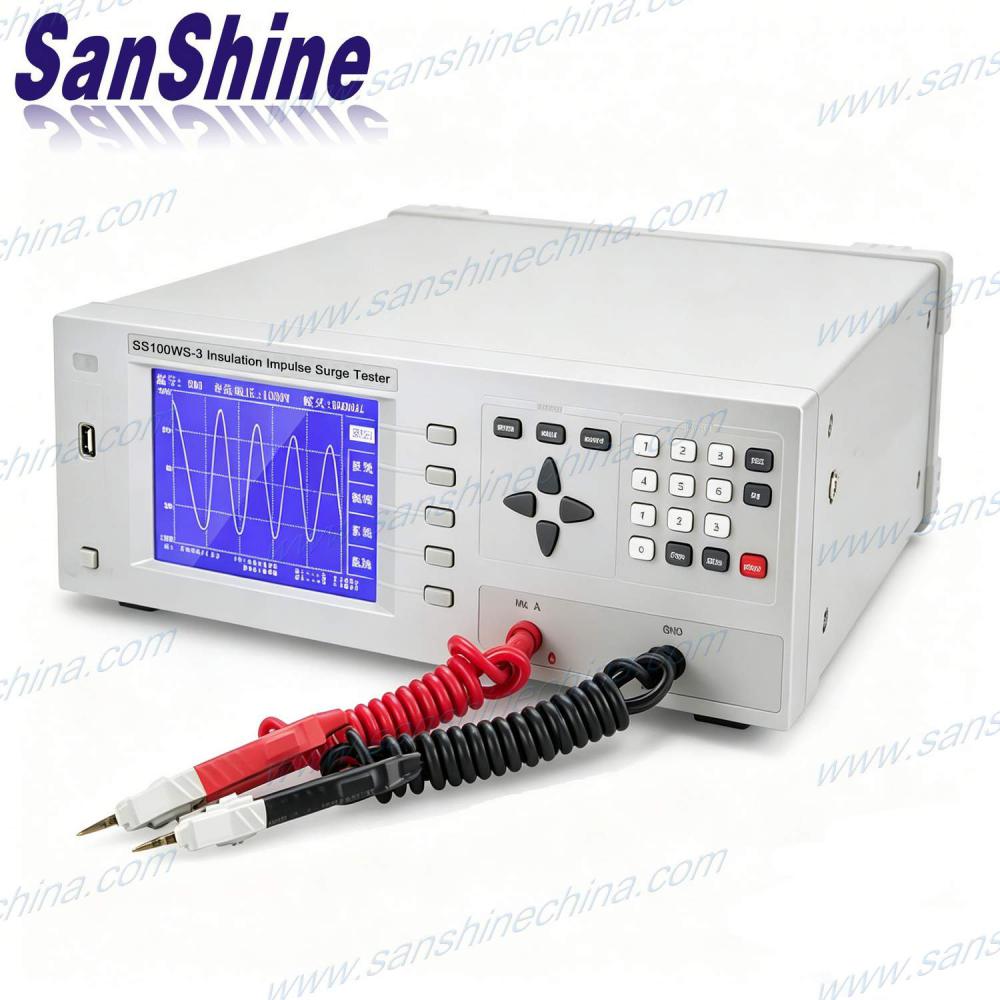

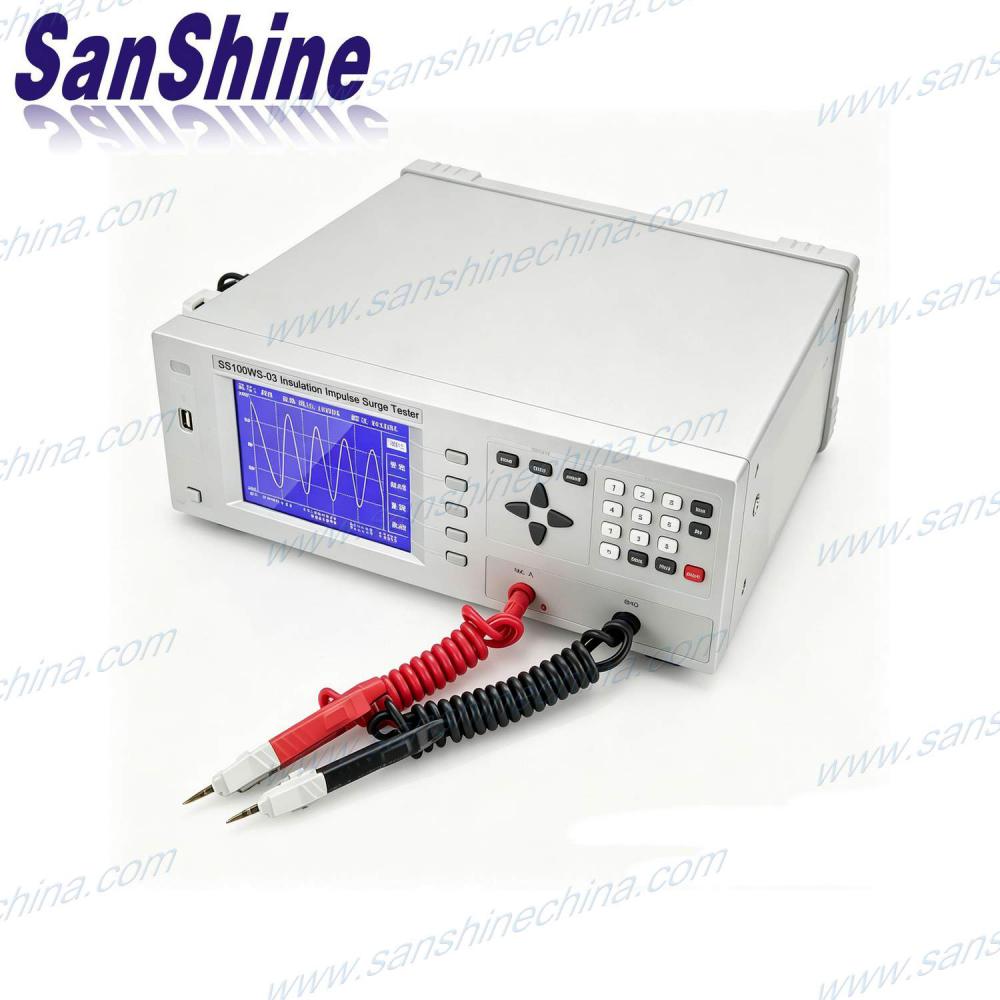

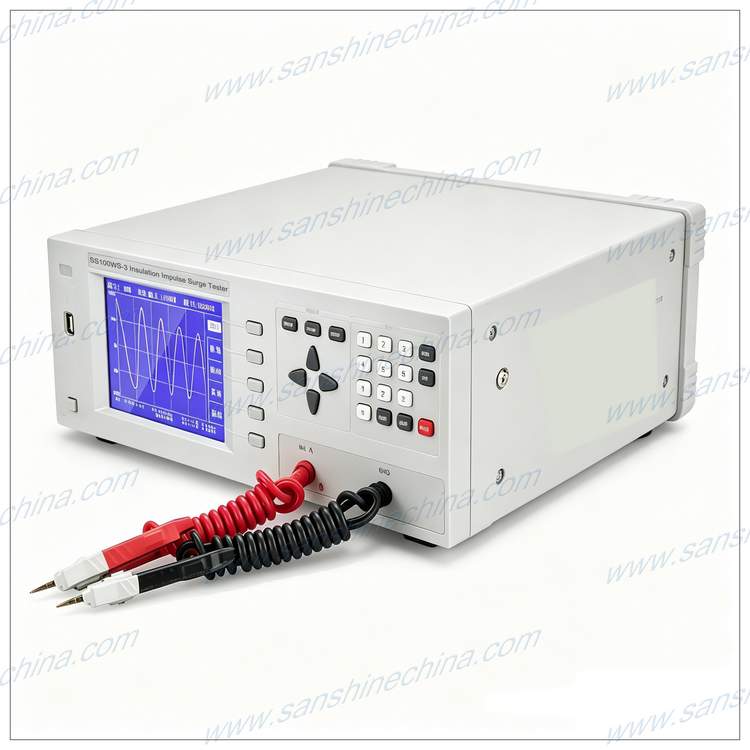

Product name : Single chanel wire coil winding intertun insulation impulse surge tester ( SS100WS-3 or SS100WS-5 )

Description :
The SS100WS-3 and SS100WS-5 single chanel wire coil winding intertun insulation impulse surge testers adopt high stability
high voltage impulse power supply and high voltage switching device controlled by thyristor module,which greatly improves the
stability and reliability of the product. The SS100WS-3 and SS100WS-5 surge testers are suitable for decting the insulation
of turn to turn of the single winding coils, such as solenoid valvecoil, relay coil, inductor choke coil,voice coil, current sensors,
current contactor coil, RFD coil, charger coil, transformer coil, etc. .
Features :
1. The use of high stability high-voltage impulse power supply and controllable silicon module
controlled high-voltage switching devices greatly improves the stability and reliability of the product.
(Completely avoiding the problems of poor stability, long preheating time, short lifespan, and easy
aging caused by the first generation simulation products such as "inflatable hydrogen gate" and "oscilloscope".)
2. Adopting advanced digital signal processing technology and strong anti-interference ability.
3. Four waveform comparison methods are used to quickly judge coil quality.
4. LCD module display, user-friendly operation interface, simple and easy to learn.
5. comparison results are directly displayed and there are multiple sound alarm methods to choose.
6. Small size and light weight.
7. Quickly judge the insulation performance of the coil. A speed of up to 6 times testing per second.
8. Low inductance pulse test as small as 10uH.
9. Maximum 40MHz sampling frequency.
Specification :

Model	SS300WS-3	SS300WS-5	SS100WS-3	SS100WS-5	SS100WS-10	SS400WS-5	SS100WS-30
Output chanel numbers	3	3	1	1	1	4	1
Output impulse voltage	300V~3000V, 50V/Step	500V~5000V, 100V/Step	300V~3000V, 50V/Step	500V~5000V, 100V/Step	500V~10000V, 100V/Step	500V~5000V, 100V/Step	0 ~ 30KV stepless regulation by adjustable transformer
Impulse engergy	Max. 99 Milli Joule	Max. 275 Milli Joule	Max. 99 Milli Joule	Max. 275 Milli Joule	Max. 2500 Milli Joule	Max. 275 Milli Joule	Max. 22.5 Joule (45 Joule optional )
Inductance range of the testing coil	≥10uH	≥20uH	≥10uH	≥20uH	≥20uH	≥10uH	≥ 10uH
Best suited for what type winding coils	Single / Three phases motor stators, transformers, generators		Inductors, Relay, Current contactor, Current transformer sensor, Valves, Solenoid, alomost all wire wound single winding coils			Single / Three phases motor stators, transformers, generators	Big power single / three phases motor stators, transformers , generators.
Buzzer on	Pass / Fail / Mixing						NO
Trigger	Start key or Foot switch
Testing speed	6 times / second						3 times / second
Testing wave comparing way	Area compare , Area difference compare , corona discharge compare, phase difference compare						comapre testing wave with standard wave
Memory capacity	100 Programs , Extended USB connecting optional						NO
Communication ports	HANDLER , RS232						NO
Working environment	0~40°C ,<90%RH
Power source	Single phase 220V+/-10%, 110V+/-10% by user request						Single phase 220V+/-10% 2KW, 110V+/-10% 2KW by user request
Weight	12Kgs						150Kgs
Sizes (mm )	460400142						6007001600
