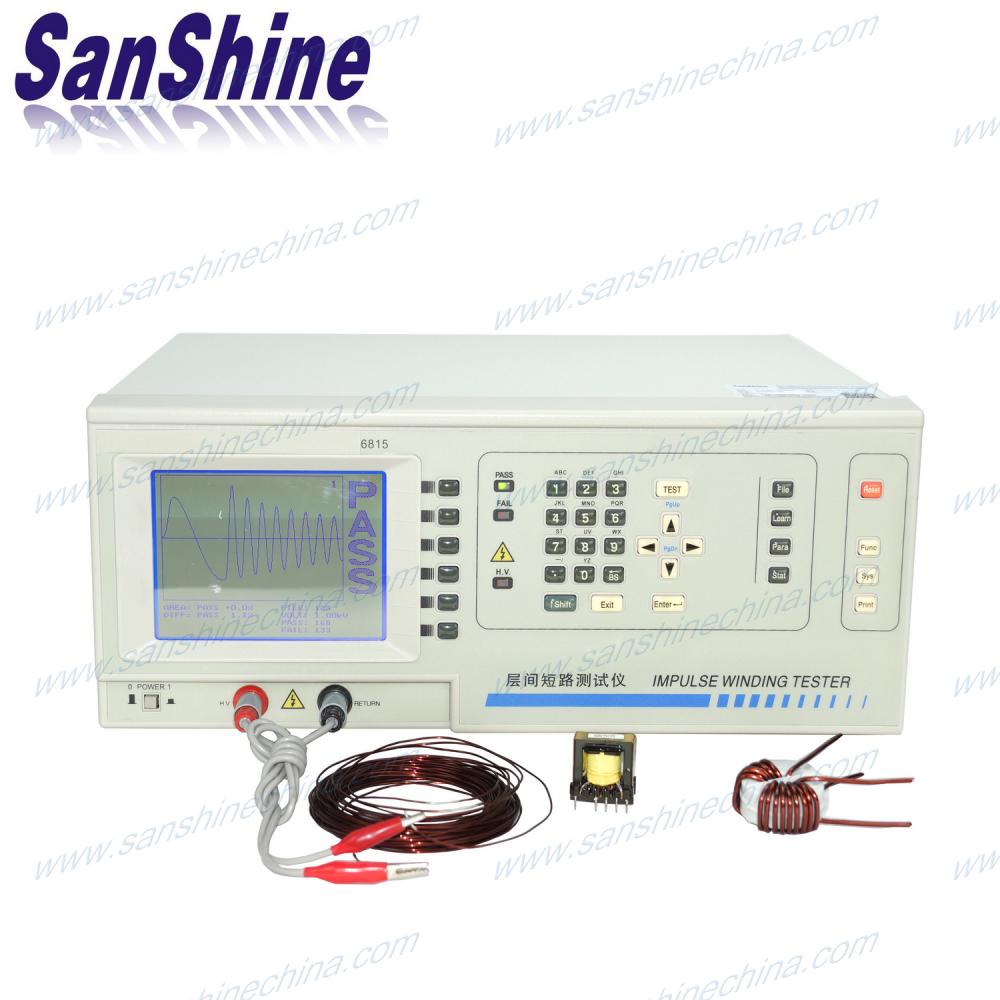

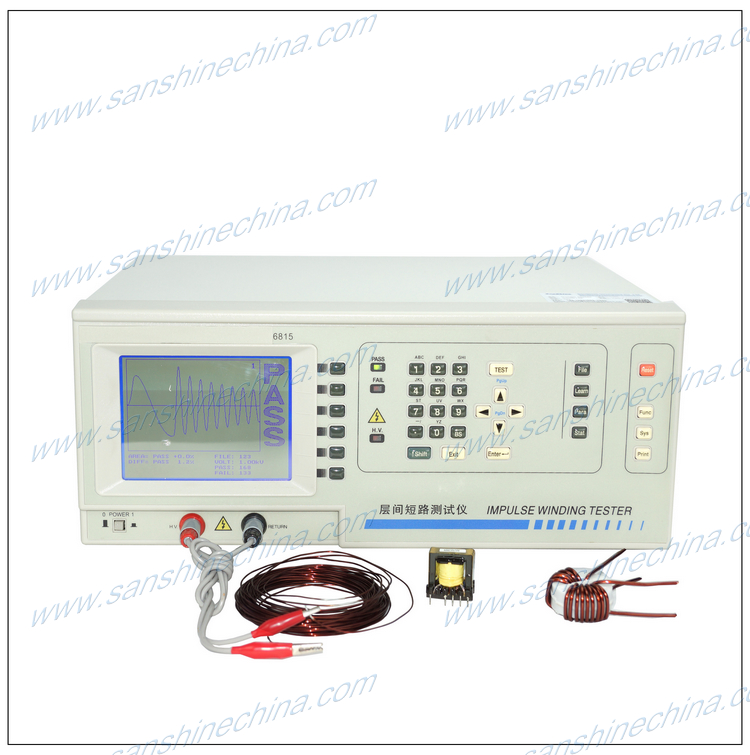

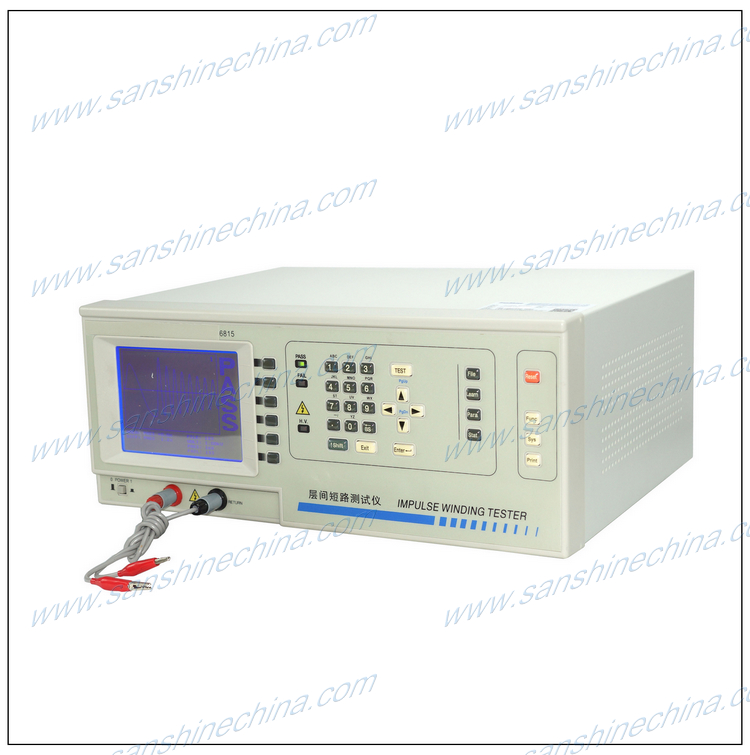

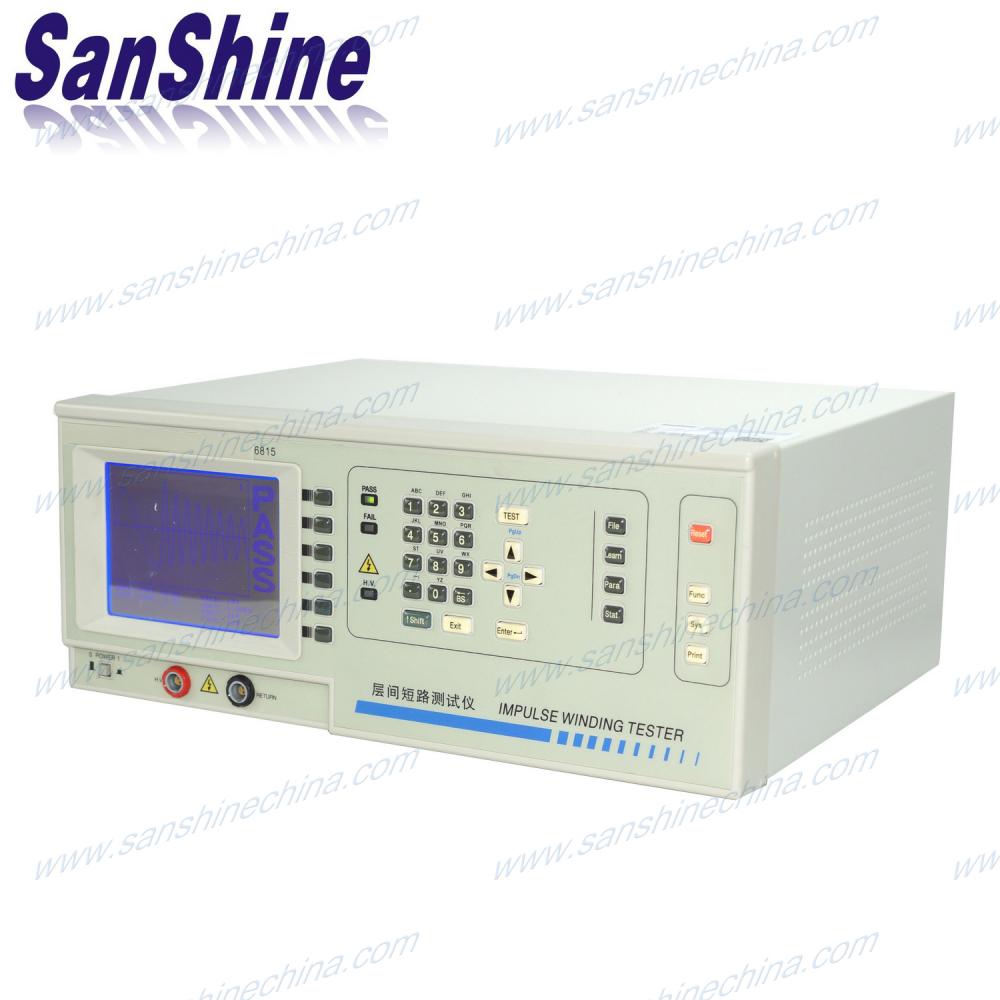

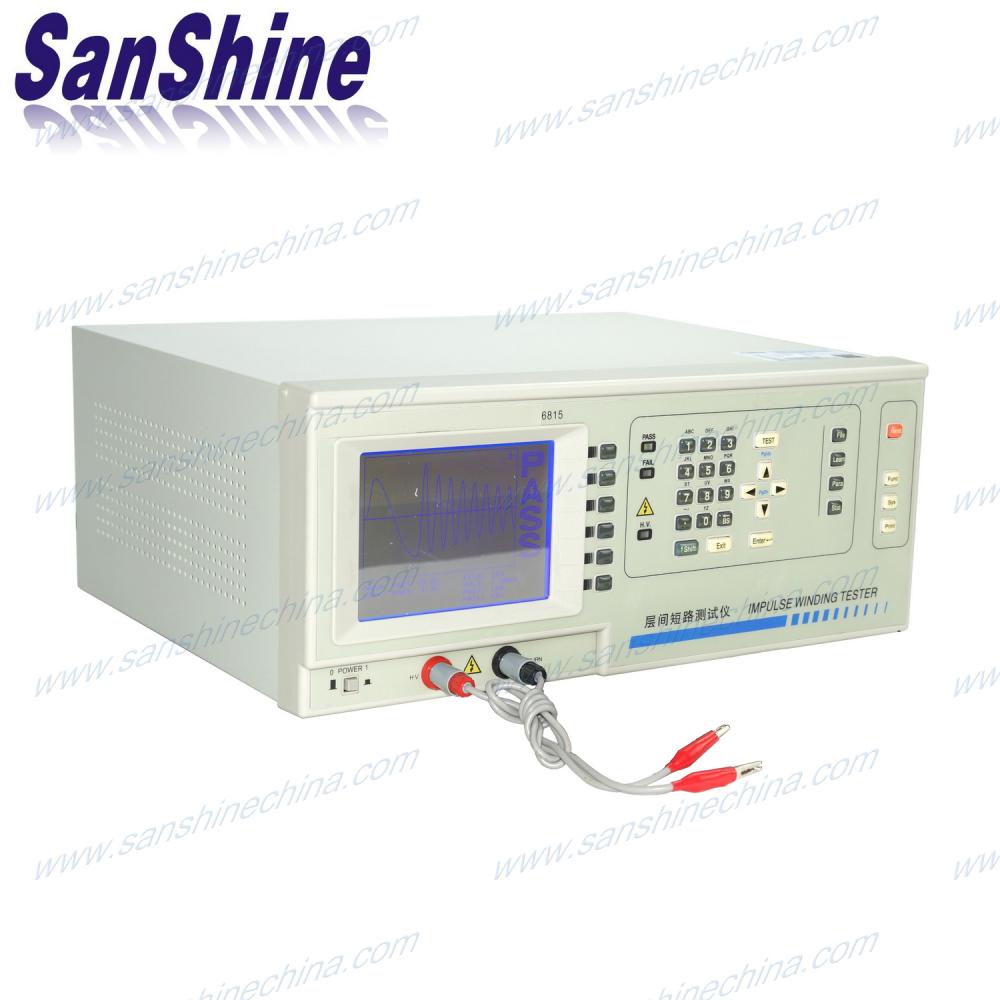

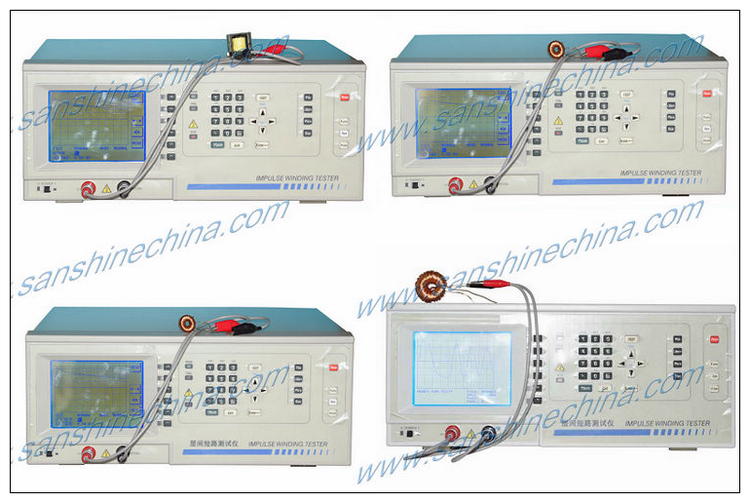

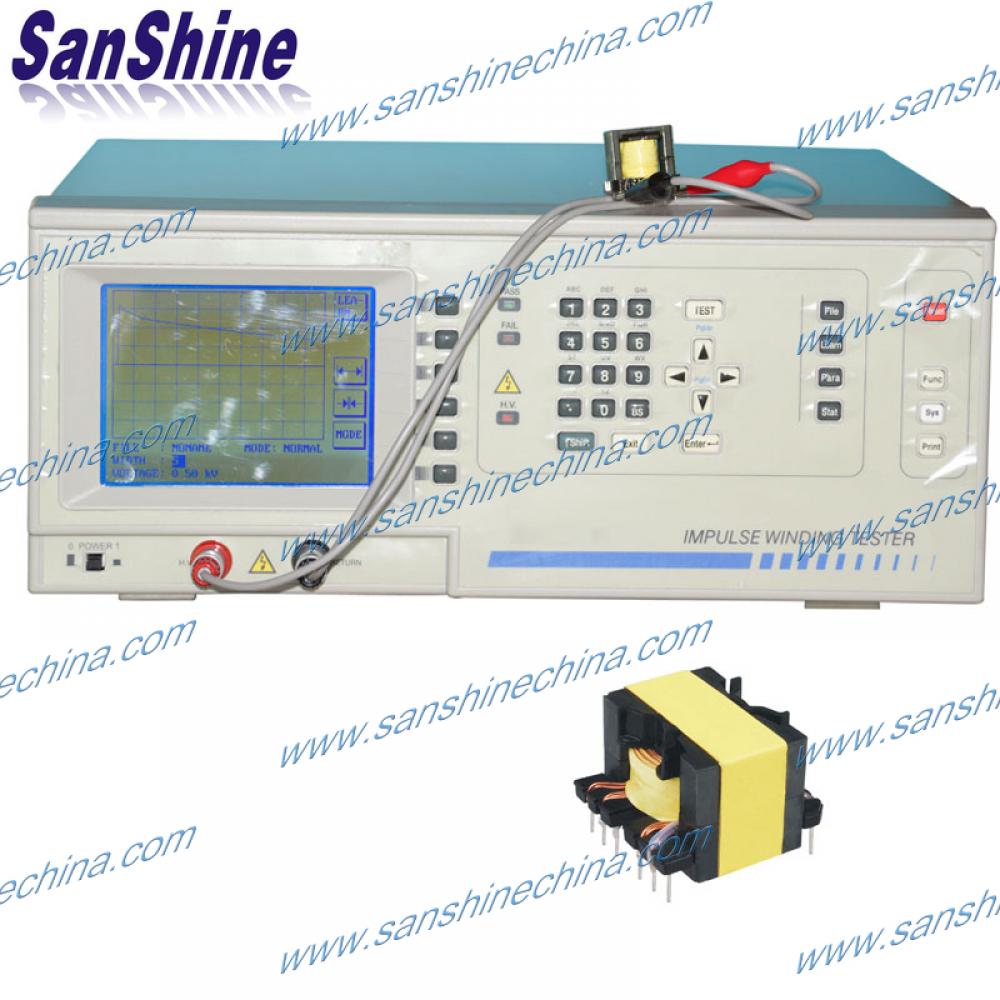

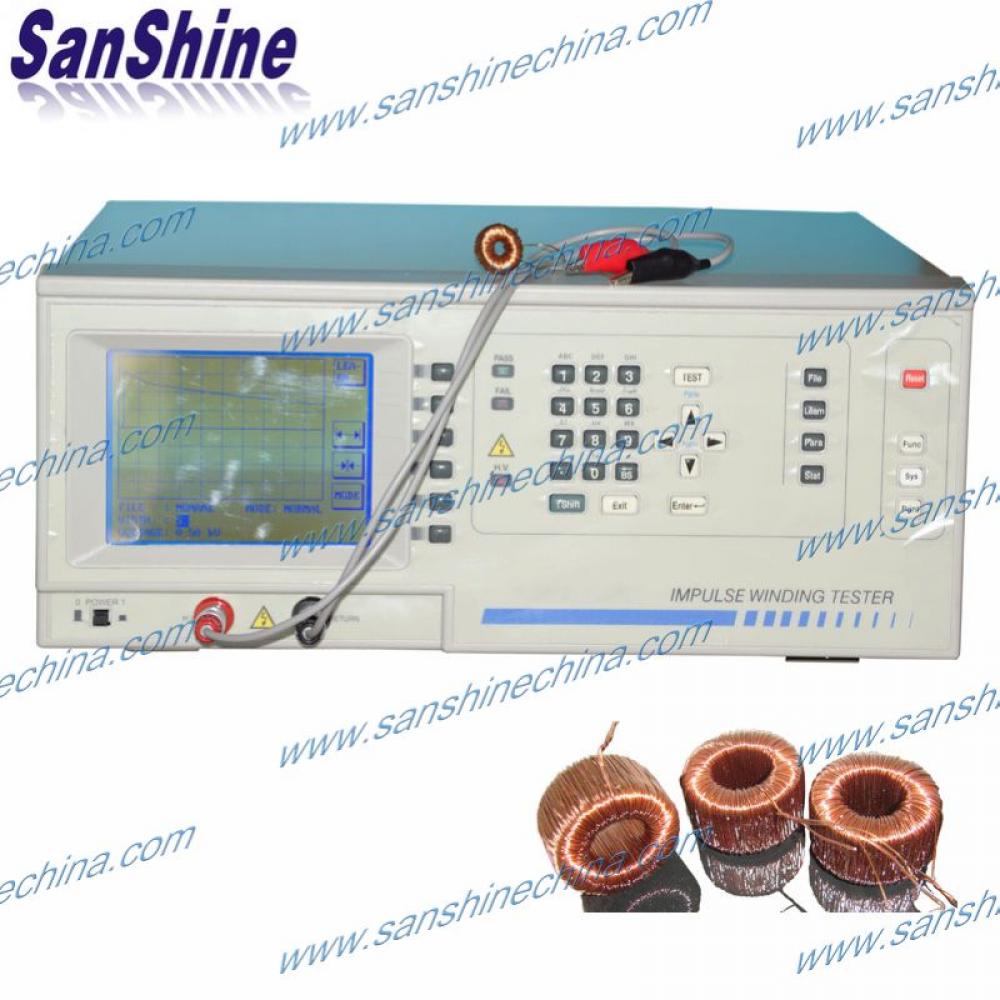

Coil winding impulse surge tester

The coil winding impulse surge tester (SS6815 / SS6815F) is used for testing and check the insulation quality grade of turns between turns, layers between layers, windings between windings.
  • Item NO.:

    SS6815F
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Gray
contact now
Description

Product name : Coil winding impulse surge tester (SS6815 / SS6815F)



turns short tester

winding wire insulation tester


wire insulation tester

Description :

The coil winding impulse surge tester (SS6815 / SS6815F) are used for testing and check the insulation quality grade of turns between turns, layers between layers, windings between windings. This winding impulse tester is named turn to turn insulation tester, coil to coil insulation tester, winding to winding insulation tester and layer to layer insulation tester also. This impulse winding tester is used widely for check the wire insulation quality grade of the transformer, current sensor, voltage sensor, relay, contactor, inductor, motor, generator, valve coil,voice coil, etc.. User need set up the tesing impulse voltage according to the technical requirments of theirs gold coil sample first, then to test the gold coil sample by the self-learning of tester and save the testing result. So this tester saved the testing standard specifications of this gold coil sample. It will judge automatically when test the same model coils. And display the tesing result by wave and PASS or FAIL. This tester will output an alarm and display FAIL when it detect the insulation broken or shorted of some turns.

Features :

1. Ultra High 5000 Test Voltage

2. Large 320*240 LCD Display

3. Chinese / English Language Version

4. Full Programming Sequence Test

5. Easy to Use

6. Versatile I/O Ports for Application

7. Test Statistics and Print Function

Specification :

Advanced Functions Ultra High 5000V Testing Voltage
Auto Learning & Auto Test
Test Statistics & Full Analysis
Self Diagnostic
Key Lock Mode
Test Functions Area Size Comparison
Difference Area Comparison
Flutter Value
Corona Discharge
Waveform Comparison
Impulse Voltage 200~5000V Setting
± 2% Accuracy
Measurement Time 50ms
Display and Sound 320× 240 Graphic LCD Display
Pass/Fail LED Indicator
Internal Speaker
Connections 2 Test Sockets
I/O Interface RS-232 Port
Printer Port
Remote ControlPort
Memory Flash Memory
100 Waveform Files
Power 115/230V ± 10% 60/50Hz Switchable
Accessories 2-Terminal Aligator Clips
Remote Control Cable
Power Cord
User' s Guide
Temperature & Humidity 10º C ~ 40º C
RH 75%
Dimension (WxHxD) 425× 190×350mm
Weight Approx, 13Kgs(w/o Accessory)
Ordering Information
SS6815 200~3000V Impulse Surge Tester
SS6815F 200~5000V Impulse Surge Tester
