Item NO.:
SS98Product Orgin:
ChinaBrand:
SanShineShipping Port:

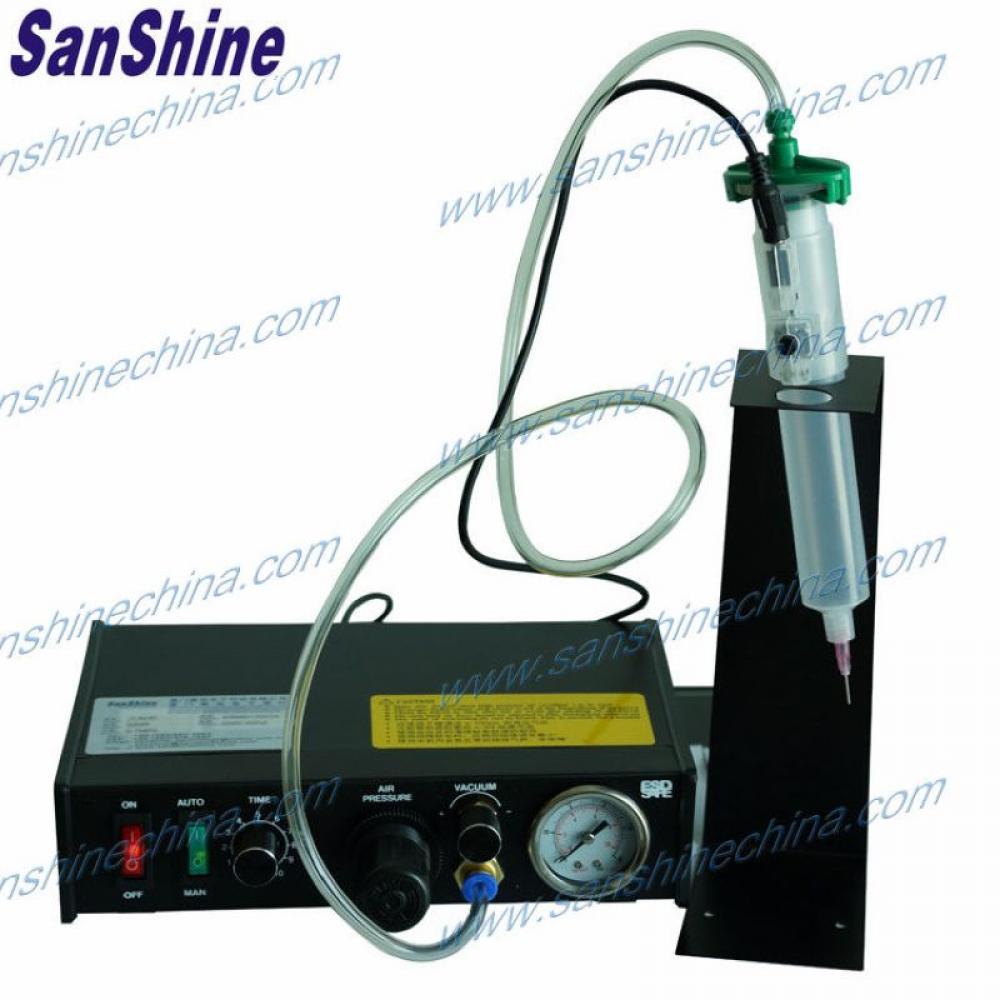

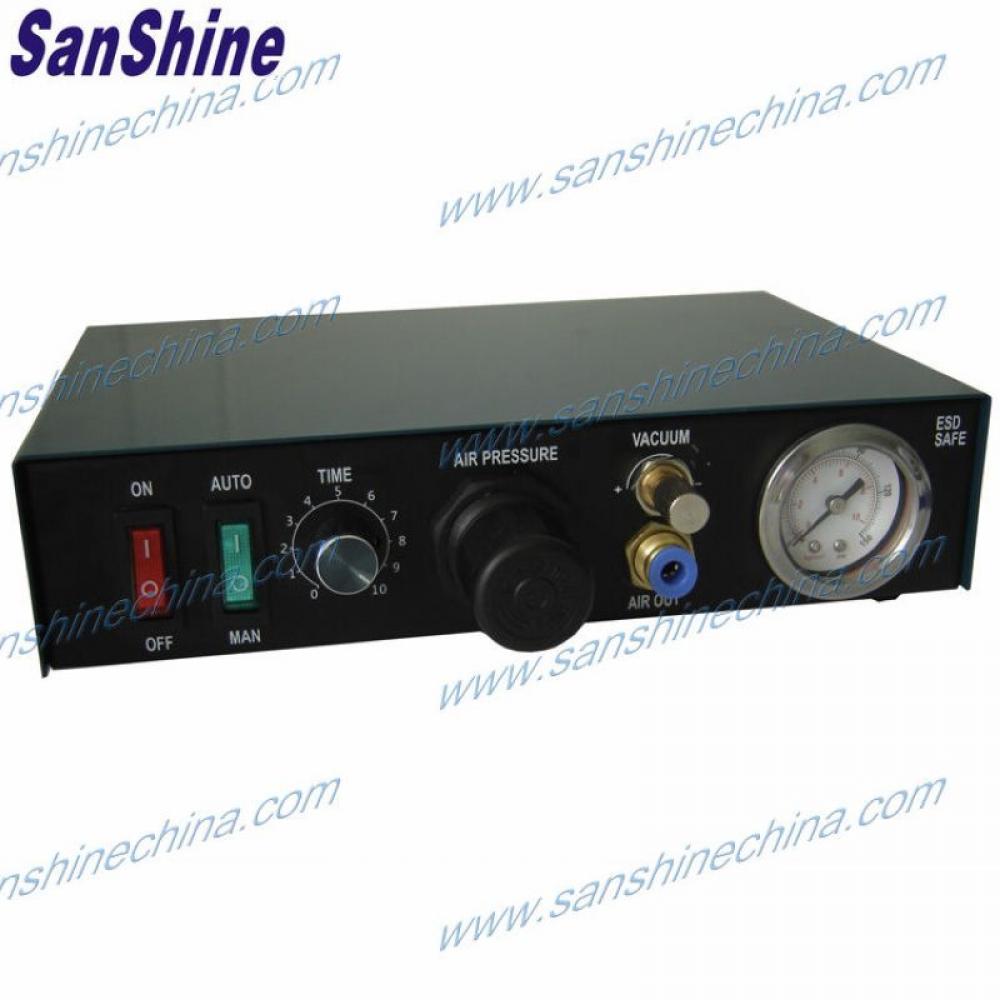

XIAMEN,CHINAProduct name : semiautomatic oil resin glue solder dispensing machine (SS98)
Description :

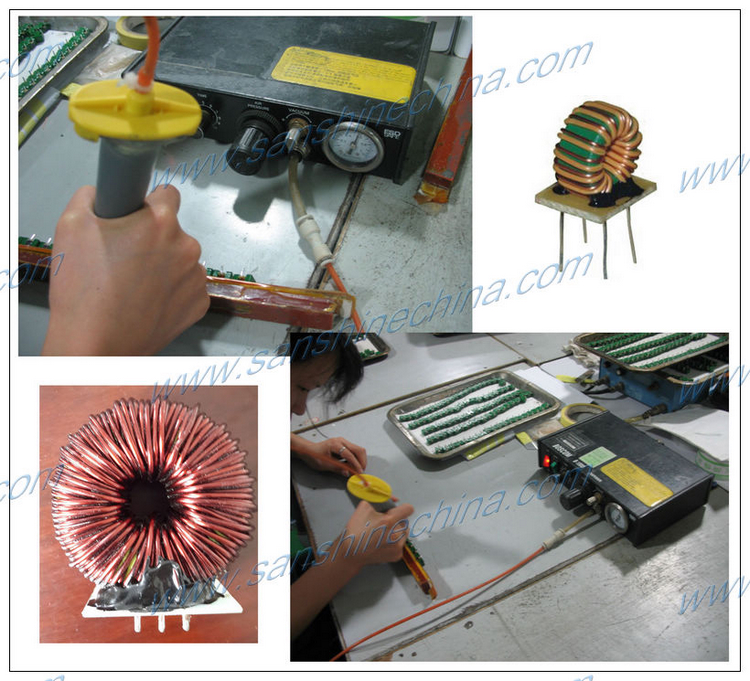

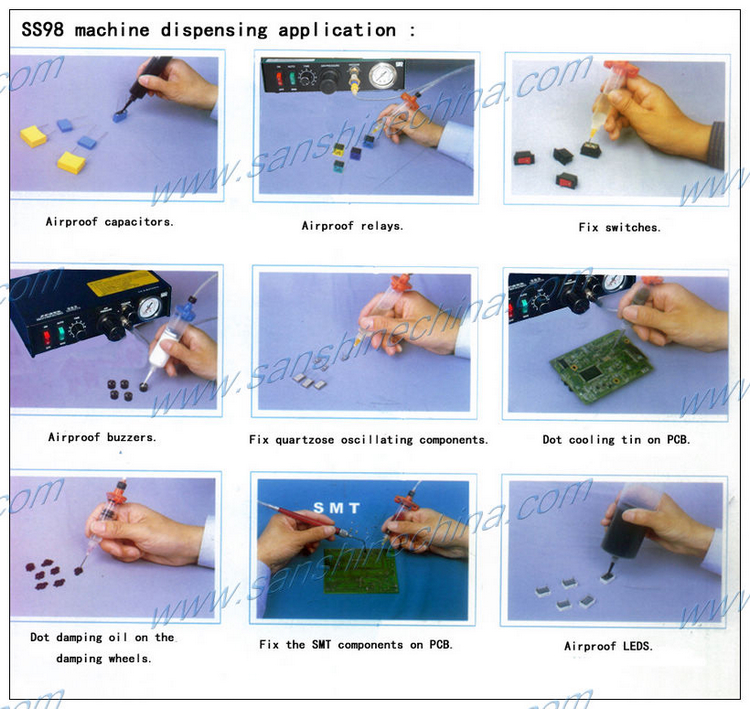

Our semiautomatic oil resin glue solder dispensing machine (SS98) is used for dispensing the glue, resin, varnish and oil, cold liquid solder, coolant, Etc. in precision. This glue dispenser is called cold solder tin dispensing machine and transformer core bonding glue dispensing machine also. This dispensing machine be used widely in the manufacture fields of transformers, inductors, sensors, PCB electronics, relays, speakers, toys, artware, hardware, Etc. . It is one economic machine.
Features :
1. can control the glue dispensing quantity precisely.
2. can set up to be manual and Auto. For glue quantity.
3. It is used for all liquid glue or cold liquid solder, coolant.
4. you can control it by footswitch or handswitch.

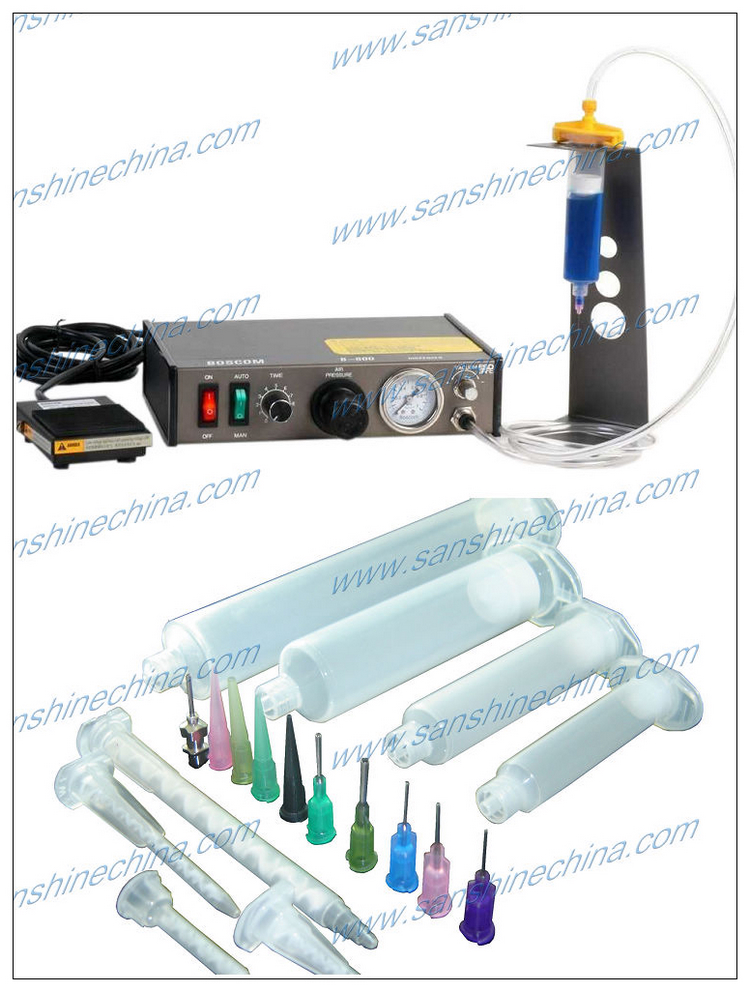

5. the machine can be suited to many type size glue dispensing nozzle and barrel.

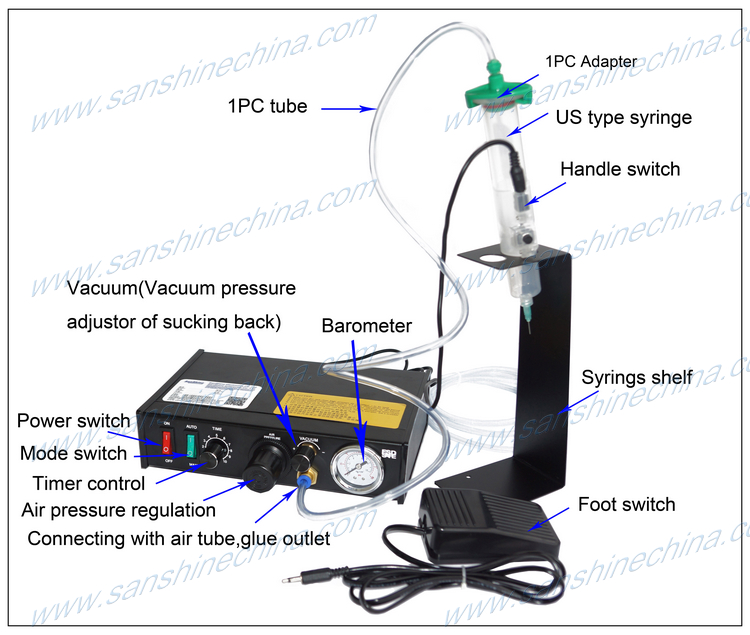

6. one set include: one PCS dispensing machine, one PCS foot switch, one PCS handswitch, one glue tank, one PCS nozzle, one PCS adaptor.
7. It has the vacuum back sucktion function, This function is used for controlling the very watery glue, resin, varnish and oil, Etc. to be dispensing in precision, this function can make sure the very watery liquid dispensing quantity to be very point-blank and clearly and exactly.
Specification :
Model | SS98 |
Dispense way | Manual , Manual time(Constantly dispense Qty.) |
Precision | ±0.5% |
Min dispensing quantity | 0.01mL |
Air input | 35-100Psi(0.25-0.7MPa) |
Air output | 1-78Psi(0.1-0.7MPa) |
Input power | 220 ~ 240V,50HZ |
Measurement | 265*225*58mm |
Net weight | 2.4Kg |
