Item NO.:
SS267XXX seriesProduct Orgin:
ChinaBrand:
SanShineShipping Port:
XIAMEN,CHINAColor:
Light grayProduct name : Adjustable digital high voltage withstand tester (SS267XXX series)
Description:
The adjustable digital high voltage withstand tester (SS267XXX series) are for general-purpose HV testing operation. They can be widely used for high voltage withstand test in electrician’s assistant instrument, transformers, inductors, relays, rubber-wooden facility, switch, current connecting switch, voltage convertor, wires, power meter, motor, power supply plug, cables and all kinds of electronic and electric products. These digital high voltage withstand tester (SS267XXX series) are called high voltage withstand test instrument also. As the launch of the national security standard, Voltage withstand instrument has become one of necessary withstand test instruments to the radio, electric and electronic products manufacturers.
Specification:
Model
SS2670AM
SS2671AM
SS2671BM
SS2671CM
SS2672AM
SS2672BM
SS2672CM
SS2672DM
SS2674A
Output voltage(AC)(KV)
0~5.0
0~5 /10
0~5 /10
0~5 /10
0~5.0
0~5.0
0~5.0
0~5.0
0~20
Output voltage(DC)(KV)
NO
0~5 /10
0~5 /10
0~5 /10
0~5.0
NO
0~5.0
0~5.0
0~20
Testing current(AC)(mA)
0~2 / 20
0~2 / 20
0~2 /20 /50
0~2 /20/100
0~2 / 20
0~2/20/100
0~2/20/100
0~2/20/200
0~2 / 20
Testing current(DC)(mA)
NO
0~ 2/ 10
0~2 / 20
0~2 / 20
0~2 / 10
NO
0~2 / 20
0~2 / 20
0~2 / 10
Testing
accuracy
±(5%+3digits)
±5%
Testing time
(S)
0.0～999s ,0.0=continuing
Output transformer capacity
100VA
200VA
500VA
1000VA
100VA
500VA
500VA
1000VA
400VA
External PLC connecting port
optional
optional
optional
optional
optional
optional
optional
optional
optional
Power source
220V±10%,50/60Hz±3Hz
Working environment
(0-40)℃ ,Humidity≤75%RH
Dimensions(cm)
32×27×18
38×30.5×19.5
44.3×39×22
44.3×39×22
39×27×18
39×27×18
44×38×18
44×38×18
45×51.5×23
Weight (Kg)
8.5
14.5
17.5
27
9.5
14
18.5
24.5
35
Accessary

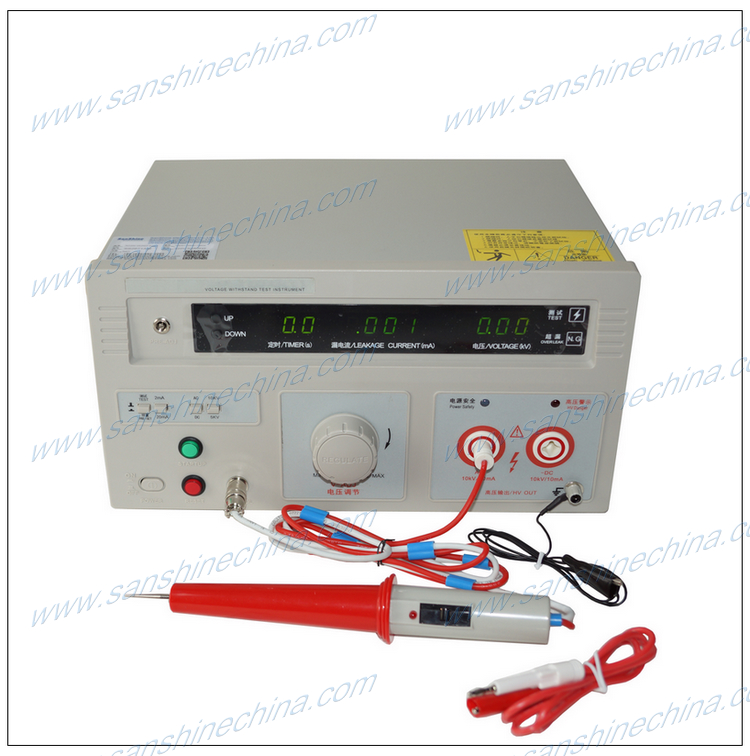

1PCS testing stick, 1PCS testing cable,1PCS Grounding cable, 1PCSpower
cable.
