programable AC withstand high voltage hipot tester

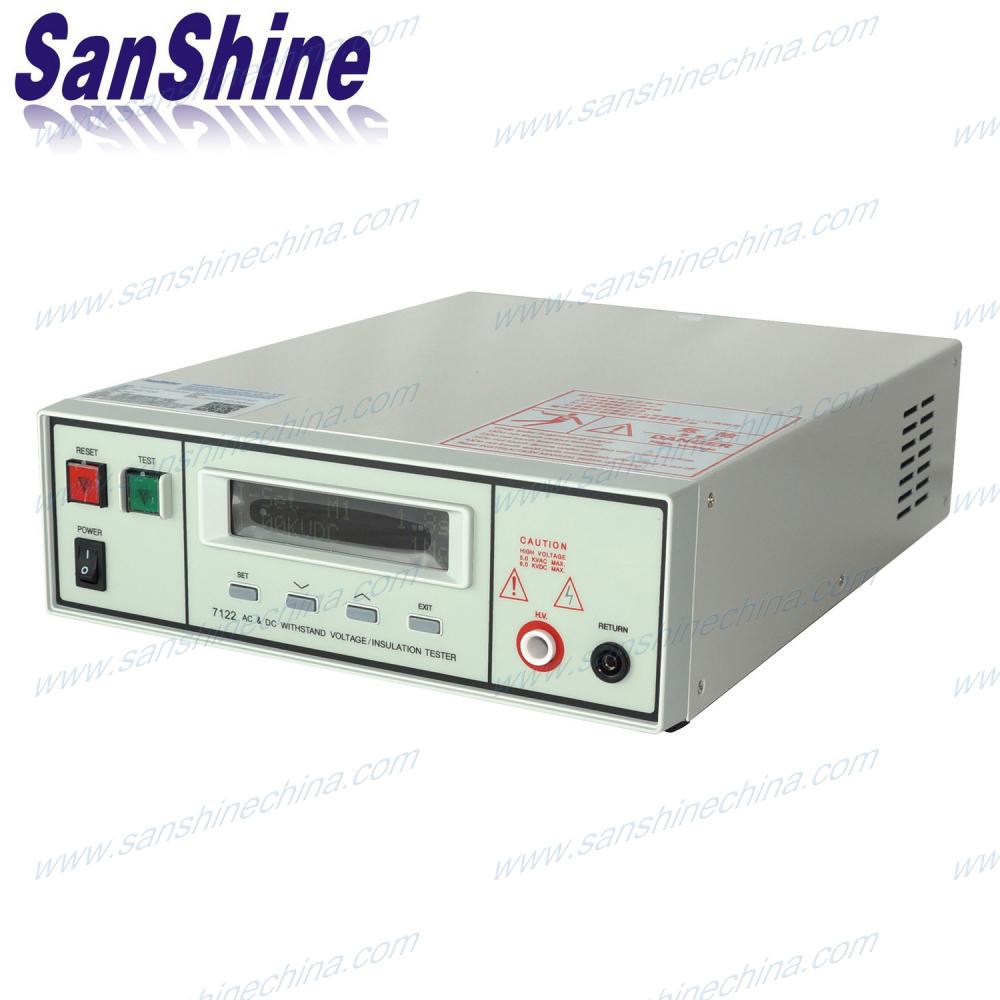

The programable AC withstand high voltage hipot tester (SS7110) is used for testing withstanding voltage capability of the electrical equiment, electric devices and electronics components.
  • Item NO.:

    SS7110
  • Product Orgin:

    China
  • Brand:

    SanShine
  • Shipping Port:

    XIAMEN,CHINA
  • Color:

    Light blue
contact now User's reviews
Description

Product name : programable AC withstand high voltage hipot tester (SS7110)

EXTECH 7110 AC withstand voltage tester

EXTECH 7151 AC withstand voltage tester

Description :

The programable AC withstand high voltage hipot tester (SS7110) is used for testing the withstanding AC voltage capability and grade of electrical equiment, electric devices and electronics components. Like as : transformers, motor, relays, cables, electronic components, electronics applications, inductors, ignition coils, insulation wires, insulation tapes, valve coils, reactors, contactors, etc. .

Features :

1). Compact size and light weight.

2). Four test modes available, W, I, W-I, I-W.

3). Linkable to Ground Bond Tester

4). Capable of storing 5sets of testing conditions

5). Electronic ramp up and dwell time for up to 999.9 seconds

6). Front panel lockout

7). Built-in PLC Remote interface

8). Front panel software calibration

9). RS232 port for communication with the external machines.

10). Easy to operate

Specifications :

Model

SS7122

SS7120

SS7112

SS7110

AC WITHSTAND VOLTAGE

Output Rating

5KVAC/12mA

Output Voltage, KVAC

Range

Resolution

Accuracy

0-5.00

0.01

± (2% of setting + 5V)

Output Frequency

50Hz/60Hz ± 100ppm, User Selection

Output Waveform

Sine Wave, THD. < 2% (Resistive Load), Crest Factor = 1.3 - 1.5

Output Regulation

± (1% of output + 5V), From no load to full load

SETTINGS

Hi-Limit AC Current, mA

0.10 - 12.00

0.01

± (2% of setting + 2counts)

Lo-Limit AC Current, mA

0.00 - 12.00

0.01

± (2% of setting + 2counts)

Ramp Time, second

0.1 - 999.9

0.1

± (0.1% + 0.05sec)

Dwell Time, second

0, 0.2 - 999.9 ( 0=continuous)

0.1

Arc Detection

0, 1 - 9 ranges (0=OFF, 9 is the most sensitivity)

DC WITHSTAND VOLTAGE (7120, 7122 ONLY)

Output Rating

6KVDC/5mA

Output Voltage, KVDC

0 - 6.00

0.01

± (2% of setting + 5V)

Output Ripple

< 5%(6KV/5mA at Resistive Load)

SETTINGS

Hi-LimitDCCurrent, mA

0.02 - 5.00

0.01

± (2% of setting + 2counts)

Lo-LimitDCCurrent, mA

0.00 - 5.00

0.01

± (2% of setting + 2counts)

Ramp Time, second

0.1 - 999.9

0.1

± (0.1% + 0.05sec)

Dwell Time, second

0, 0.2 - 999.9 (0=continuous)

0.1

Arc Detection

0, 1 - 9 ranges (0=OFF, 9 is the most sensitivity)

Discharge Time

< 200 msec

INSULATION RESISTANCE (7112, 7122 ONLY)

Output Rating

1KVDC/1000MΩ

Output Voltage, KVDC

0.10 - 1.00

0.01

± (2% of setting + 2V)

SETTINGS

Hi-Limit Resistance, MΩ

0, 1 - 1000 (0=OFF)

1

± (3% of setting+2counts)at > 500VDC ± (7% of setting +2counts)at < 500VDC

Lo-Limit Resistance, MΩ

1 - 1000

1

Delay Time, second

0, 0.5 - 999.9 (0=continuous)

0.1

± (0.1% + 0.05sec)

MEASUREMENT

AC/DC Voltage, KV

0 - 6.00

0.01

± (2% of reading + 1count)

DC Voltage, KV (IR only)

0.10 - 1.00

0.01

± (2% of reading + 2V)

AC Current, mA

0.10 - 12.00

0.01

± (2% of reading + 2counts)

DC Current, mA

0.02 - 5.00

0.01

± (2% of reading + 2counts)

Resistance, MΩ

1 - 1000 (AutoRange)

0.001 0.01 0.1

± (3% of reading+2counts)at > 500VDC ± (7% of reading +2counts)at < 500VDC

GENERAL

Input Voltage AC

110/220Vac± 15%, 50/60Hz ± 5%, Fuse3AFast

PLC Remote Control

Input: Test, Reset

Output: Pass, Fail, Processing

Memory

5 Sets Store/Recall of each Memory, 4 Test Mode Selectable (W, I, W I, I W Only 7112, 7122)

Display

16× 2 LCD with back light

Key Lock

To prevent unauthorized alteration of the test Parameters

Calibration

Build-in software and external calibrated meters

Environment

0-40º C, 20-80%RH

Dimension/Net Weight

280mm(W)×89mm(H)×370mm(D)/9Kg

STANDARD ACCESSORIES

Power Cord(10A)

× 1

Fuses

× 3 (Including a spare contained in the fuse holder)

High Voltage Test Cable(1101)

× 1

Return Test Cable(1102)

× 1


*product specifications are subject to change without notice.

Ordering information of SS71XX series withstand voltage/insulation tester :

SS7110 AC Withstand Voltage Tester

SS7112 AC Withstand Voltage / Insulation Resistance Tester

SS7120 AC/DC Withstand Voltage Tester

SS7122 AC/DC Withstand Voltage / Insulation Resistance Tester
